How to Choose the Right Scissor Lift for Your Auto Shop in 2026

Introduction

A scissor lift is one of the most versatile investments you can make for your auto shop. Unlike traditional two-post or four-post lifts, scissor lifts offer a low-profile design that works with virtually any vehicle — from compact cars to heavy-duty trucks — while taking up minimal floor space. Whether you're setting up a new shop or upgrading your existing equipment, this guide will help you choose the right scissor lift for your operation in 2026.

⏱️ Quick Guide: How to Choose the Best Scissor Lift for Your Auto Shop

1. Determine your lift height needs — full-rise (60"+) for full undercarriage access, mid-rise (24"–36") for tire and brake work
2. Choose your power source — electric for clean indoor use, pneumatic for air-powered shops
3. Match the weight capacity — 6,600 lb to 8,000 lb depending on your vehicle mix
4. Decide on installation type — in-ground for a flush floor finish, surface-mounted for flexibility
5. Consider portability — portable mid-rise lifts offer maximum shop flexibility
6. Check CE certification — all Katool scissor lifts are CE Approved for professional use

Understanding Different Types of Scissor Lifts

1. Full-Rise Scissor Lifts

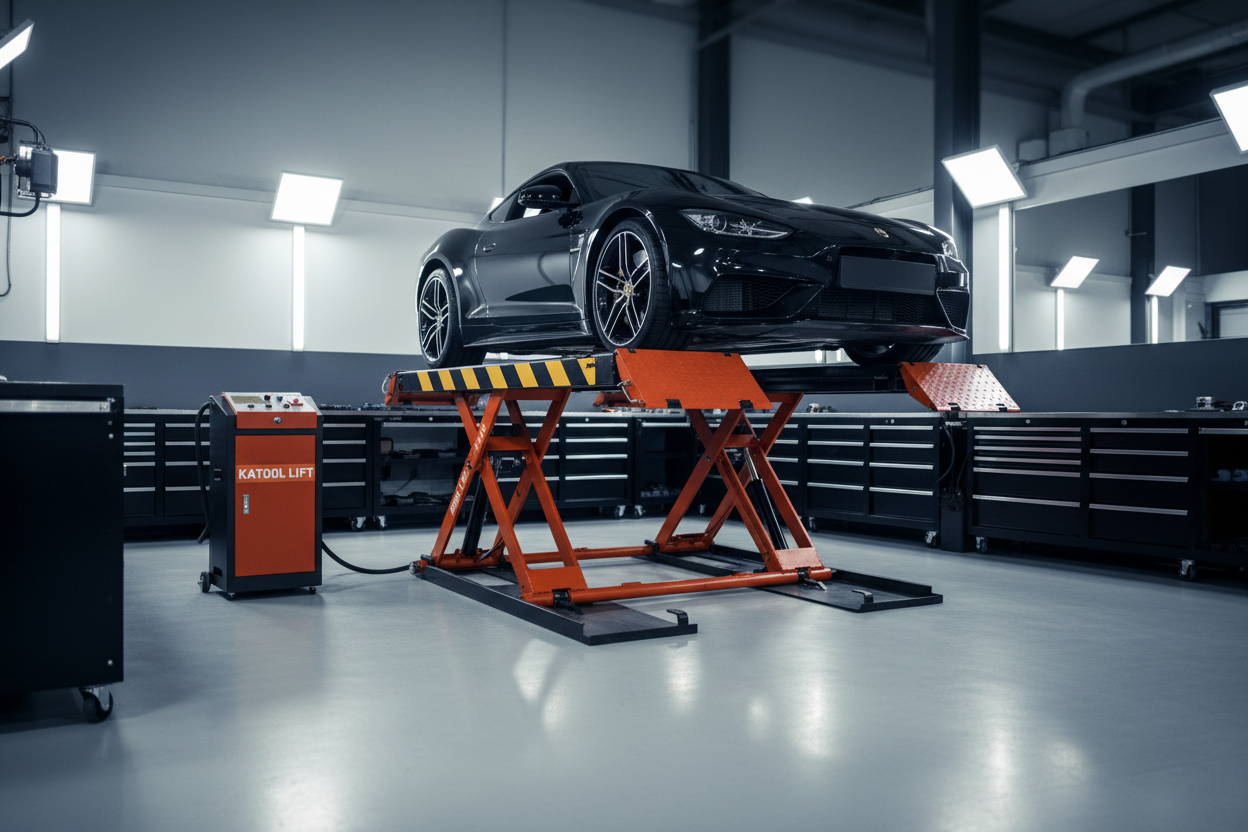

Full-rise scissor lifts elevate vehicles to full working height — typically 60 inches or more — giving technicians complete access to the undercarriage, exhaust, suspension, and drivetrain. These are the workhorses of professional auto shops.

• KT-X99 — 7,716 lb surface-mounted full-rise, ideal for high-volume shops
• KT-X90E — 8,000 lb electric full-rise, whisper-quiet operation for indoor environments
• KT-X95 — 7,716 lb in-ground full-rise, flush floor finish for premium shop aesthetics

2. Mid-Rise Scissor Lifts

Mid-rise scissor lifts raise vehicles to a comfortable working height of 24–36 inches — perfect for tire changes, brake service, wheel alignments, and quick inspections without requiring full undercarriage access. Their compact footprint makes them ideal for shops with limited space.

• KT-X85 — 8,000 lb electric mid-rise, highest capacity in its class
• KT-X80 — 8,000 lb pneumatic mid-rise, powered by your shop's air compressor
• KT-X77 — 7,000 lb drive-on mid-rise, no runway ramps needed
• KT-X66 — 6,600 lb portable mid-rise, move it anywhere in your shop

3. In-Ground vs. Surface-Mounted

In-ground scissor lifts like the KT-X95 are installed flush with the shop floor, creating a clean, professional appearance and eliminating trip hazards. Surface-mounted lifts like the KT-X99 and KT-X90E require no floor excavation and can be repositioned if needed.

Electric vs. Pneumatic: Which Power Source Is Right for You?

Electric Scissor Lifts

Electric scissor lifts run on standard shop power and require no air compressor. They offer smooth, consistent operation and are ideal for shops that prioritize quiet operation or don't have a high-capacity air system.

• Best for: indoor shops, dealerships, detail centers
• Models: KT-X90E (full-rise), KT-X85 (mid-rise)

Pneumatic Scissor Lifts

Pneumatic scissor lifts use compressed air to raise and lower the platform. They're fast, powerful, and well-suited for shops that already run a robust air system for other tools.

• Best for: tire shops, high-volume service bays, shops with existing air infrastructure
• Models: KT-X80

Key Specifications to Compare

Weight Capacity

Match the lift's rated capacity to the heaviest vehicles you regularly service:

• 6,600 lb — compact cars, sedans, small SUVs — KT-X66
• 7,000 lb — most passenger vehicles and light trucks — KT-X77
• 7,716 lb — full-size trucks and SUVs — KT-X95, KT-X99
• 8,000 lb — heavy-duty vehicles, maximum versatility — KT-X90E, KT-X85, KT-X80

Lift Height

Full-rise lifts provide 60"+ of clearance for complete undercarriage work. Mid-rise lifts provide 24"–36" — enough for tire, brake, and suspension service without requiring technicians to work at ground level.

Platform Width

Wider platforms accommodate larger vehicles. The KT-X77's drive-on design eliminates the need for runway ramps, making it especially convenient for quick-service operations.

Which Scissor Lift Is Right for Your Shop?

Choose a Full-Rise Lift If You:

• Perform exhaust, transmission, or full suspension work
• Need technicians to walk under vehicles comfortably
• Run a general repair shop or dealership service center
• Want a premium in-ground installation — consider the KT-X95

Choose a Mid-Rise Lift If You:

• Primarily perform tire changes, brake jobs, and wheel alignments
• Run a high-volume tire shop or quick-lube center
• Have limited floor space and need a compact footprint
• Want portability — the KT-X66 can be moved between bays

Choose an Electric Model If You:

• Prioritize quiet, clean operation
• Don't have a high-capacity air compressor
• Run a dealership, detail center, or indoor showroom

Choose a Pneumatic Model If You:

• Already run a robust shop air system
• Need fast cycle times in a high-volume environment
• Prefer air-powered equipment throughout your shop

Scissor Lift Comparison Table

Accessories: Maximize Your Scissor Lift's Versatility

The right accessories extend what your scissor lift can do. The KT-XS1 Scissor Lift Support Bar Kit is designed for narrow-frame vehicles — sports cars, performance vehicles, and low-clearance cars that don't fit standard lift pads. It's an essential add-on for shops that service a diverse vehicle mix.

Installation and Safety Considerations

Floor Requirements

Surface-mounted scissor lifts require a level concrete floor with adequate thickness (typically 4"+ reinforced concrete). In-ground models like the KT-X95 require excavation and professional installation — plan for this in your shop setup timeline.

CE Certification

All Katool scissor lifts carry CE certification, meeting European safety standards and providing assurance of build quality, load testing, and safety system compliance. This is especially important for insurance and liability purposes in professional shop environments.

Safety Best Practices

• Always use safety locks before working under a raised vehicle
• Inspect lift pads and contact points before each use
• Never exceed the rated weight capacity
• Train all operators on proper lift procedures
• Perform monthly inspections of hydraulic lines and seals

ROI Considerations

A quality scissor lift typically pays for itself within 6–12 months through:

• Faster service times — technicians work at comfortable height, not on the ground
• Expanded service offerings — tire, brake, suspension, and exhaust work all become faster
• Reduced technician fatigue — ergonomic working height improves productivity and reduces injury risk
• Higher throughput — more vehicles serviced per day means more revenue

Frequently Asked Questions

What is the difference between a scissor lift and a two-post lift?

A two-post lift raises a vehicle by its frame or pinch welds using two vertical columns, providing full undercarriage access. A scissor lift uses a folding mechanism to raise the entire platform — it's lower profile, takes up less floor space, and is ideal for tire and brake work. Full-rise scissor lifts like the KT-X99 and KT-X90E can also provide full undercarriage access.

Can a scissor lift handle trucks and SUVs?

Yes — our 8,000 lb models (KT-X90E, KT-X85, KT-X80) comfortably handle full-size trucks and heavy SUVs. Always verify the vehicle's weight against the lift's rated capacity before use.

Do I need a special electrical connection for an electric scissor lift?

Electric scissor lifts typically require a 220V single-phase connection. Check the specific model's electrical requirements before installation. Your electrician can confirm your shop's panel has adequate capacity.

How long does a scissor lift last?

With proper maintenance — monthly hydraulic inspections, annual servicing, and daily cleaning — a quality scissor lift should last 15–20 years in a professional shop environment.

What's the best scissor lift for a small shop?

For small shops with limited space, the KT-X66 (portable, 6,600 lb) or KT-X77 (drive-on, 7,000 lb) offer the best combination of capability and compact footprint.

Conclusion

Choosing the right scissor lift comes down to three key decisions: lift height (full-rise vs. mid-rise), power source (electric vs. pneumatic), and installation type (in-ground vs. surface-mounted). Match these to your shop's workflow, vehicle mix, and space constraints, and you'll have a lift that pays for itself for decades.

Ready to find the right lift for your shop? Browse our complete scissor lift lineup — all CE Approved and backed by Katool's professional support. Not sure which model fits your operation? Talk to our equipment specialists for a personalized recommendation.
