Katool KT-X80 8,000 lb Mid-Rise Scissor Lift — Pneumatic Lock Release

Pickup at Carrier Terminal
$2,299.00
Skip to product information
Pneumatic scissor lift with dark textured platform, orange frame, and control box
1/9

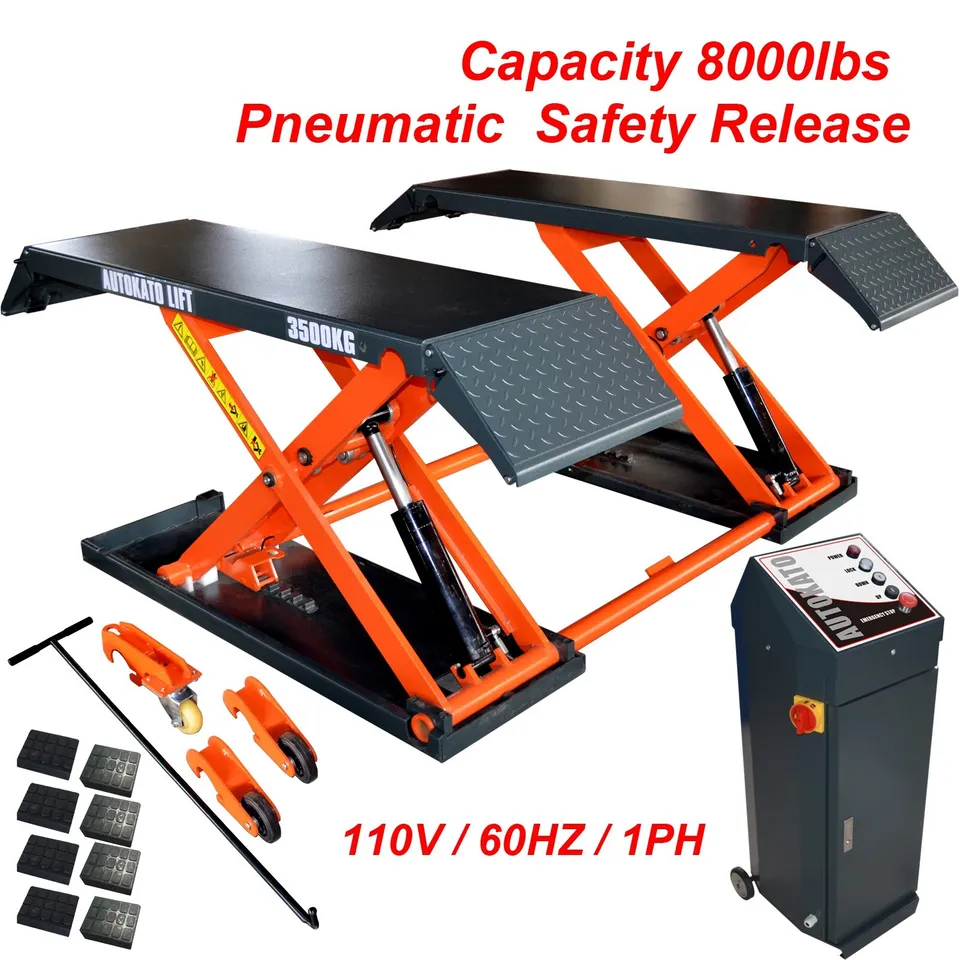

  • Pneumatic scissor lift with dark textured platform, orange frame, and control box

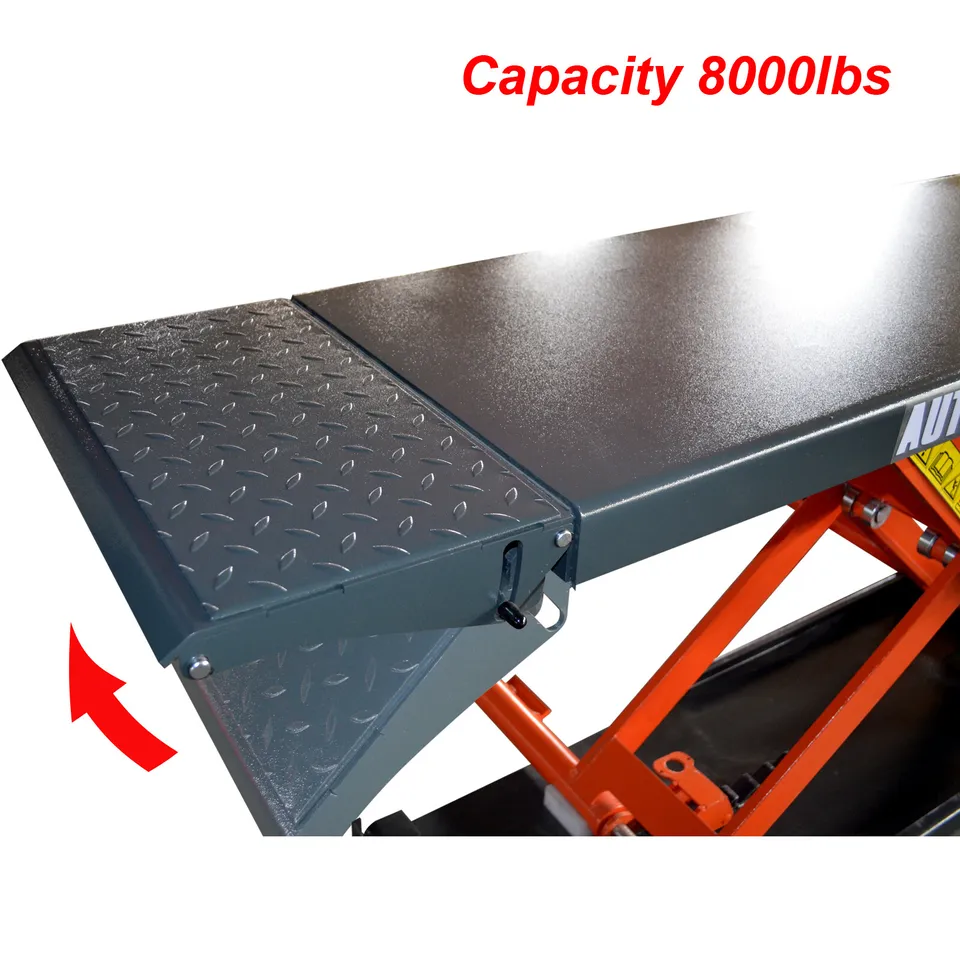

  • Pneumatic scissor lift platform with textured black top and orange support frame

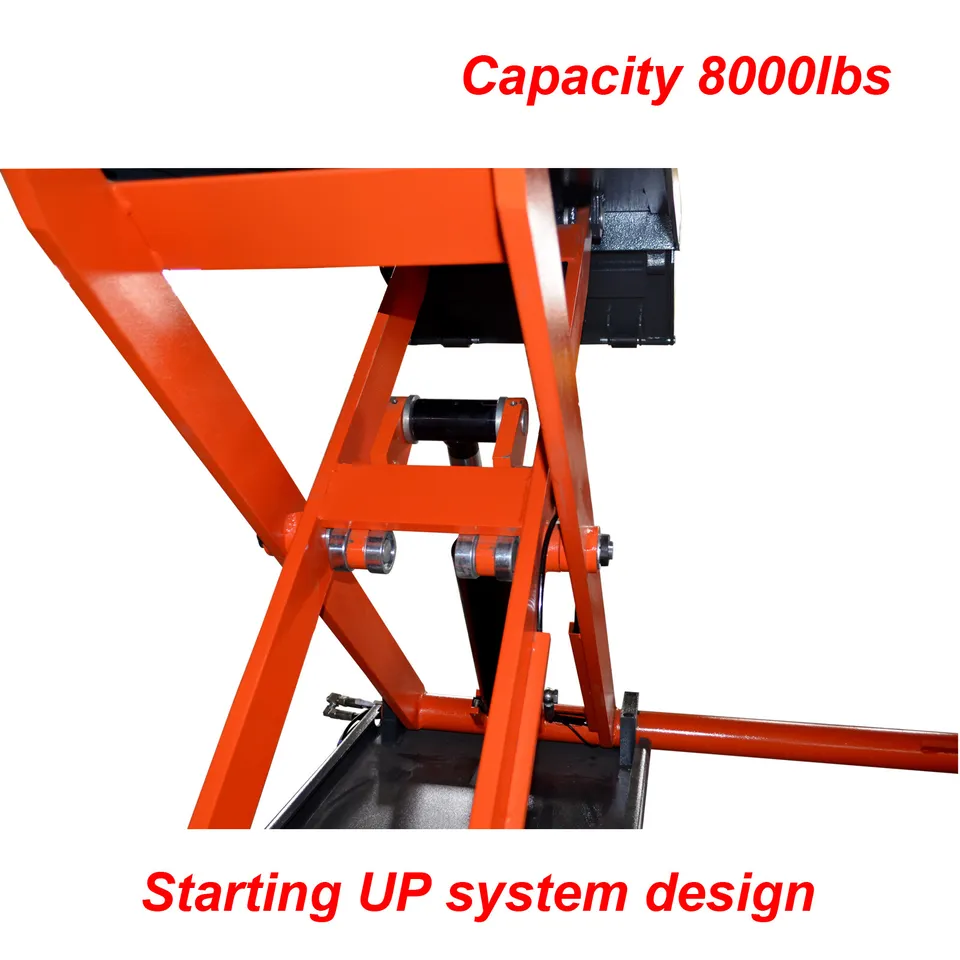

  • Pneumatic scissor lift underside with orange linkage and dark hydraulic components

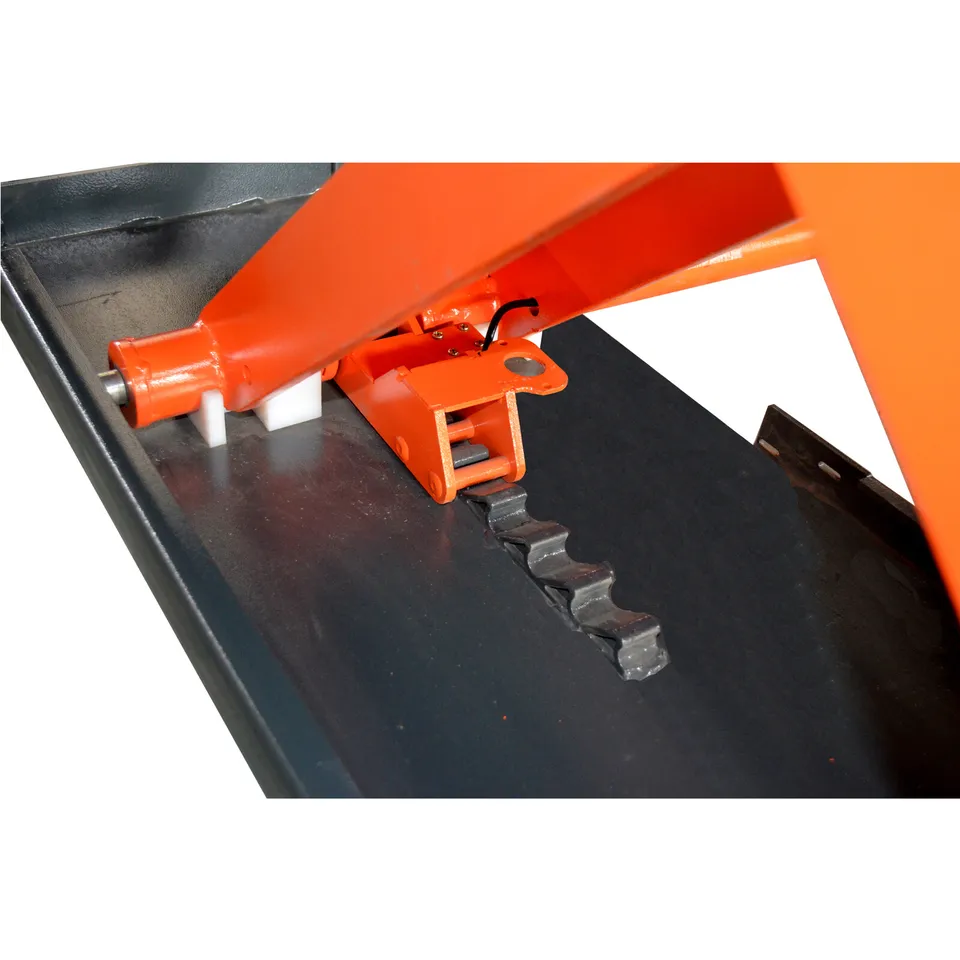

  • Pneumatic scissor lift side view with black safety latch and orange base parts

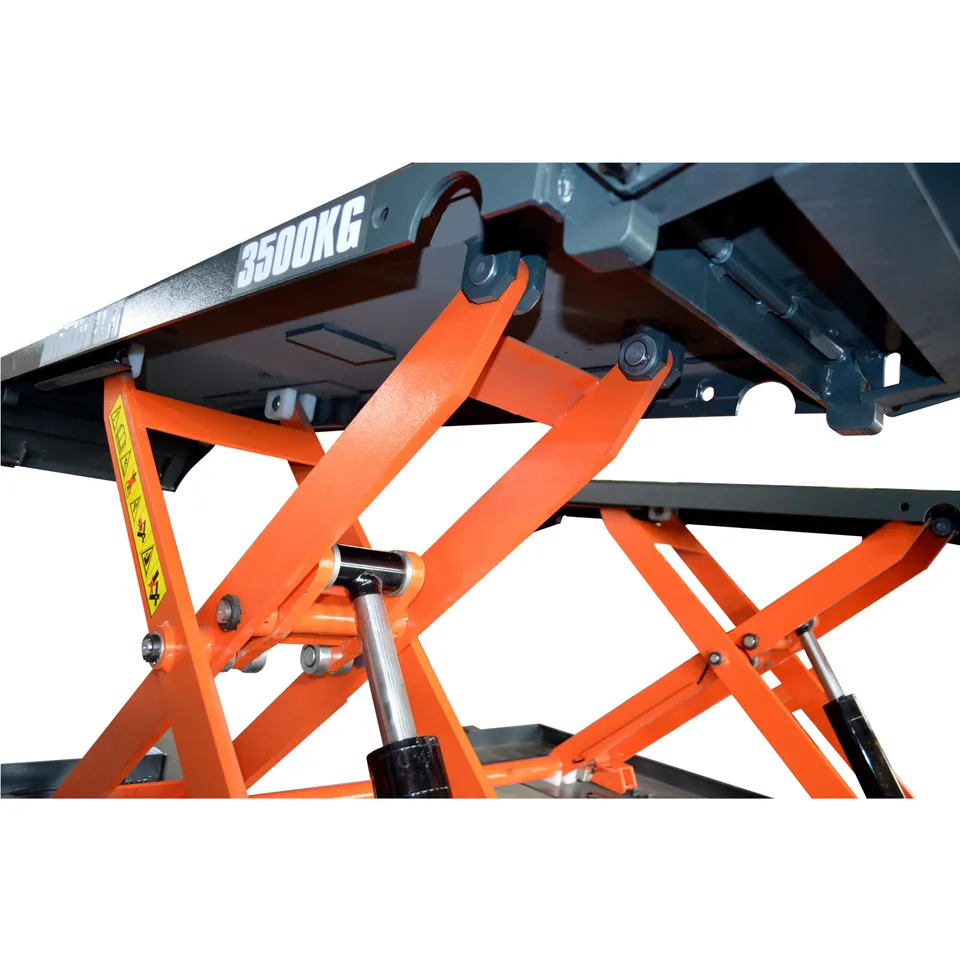

  • Pneumatic scissor lift scissor arms with orange steel frame and textured platform

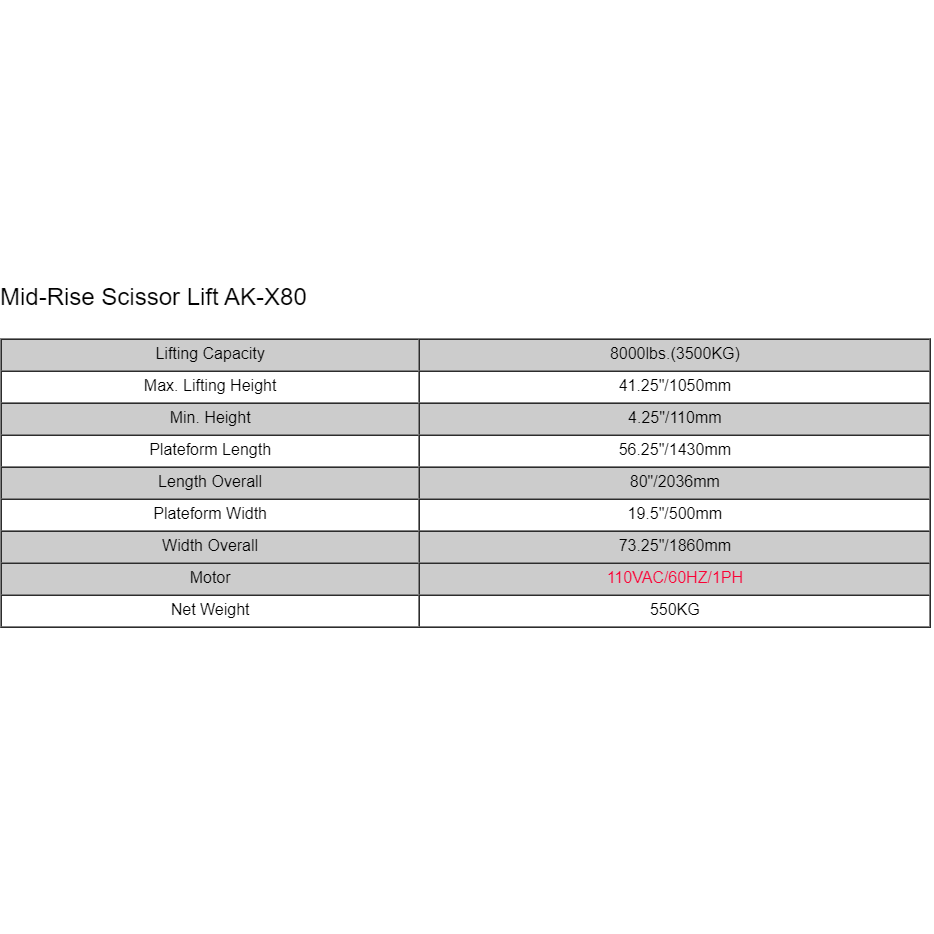

  • Mid-rise scissor lift specifications chart with capacity and dimensions table

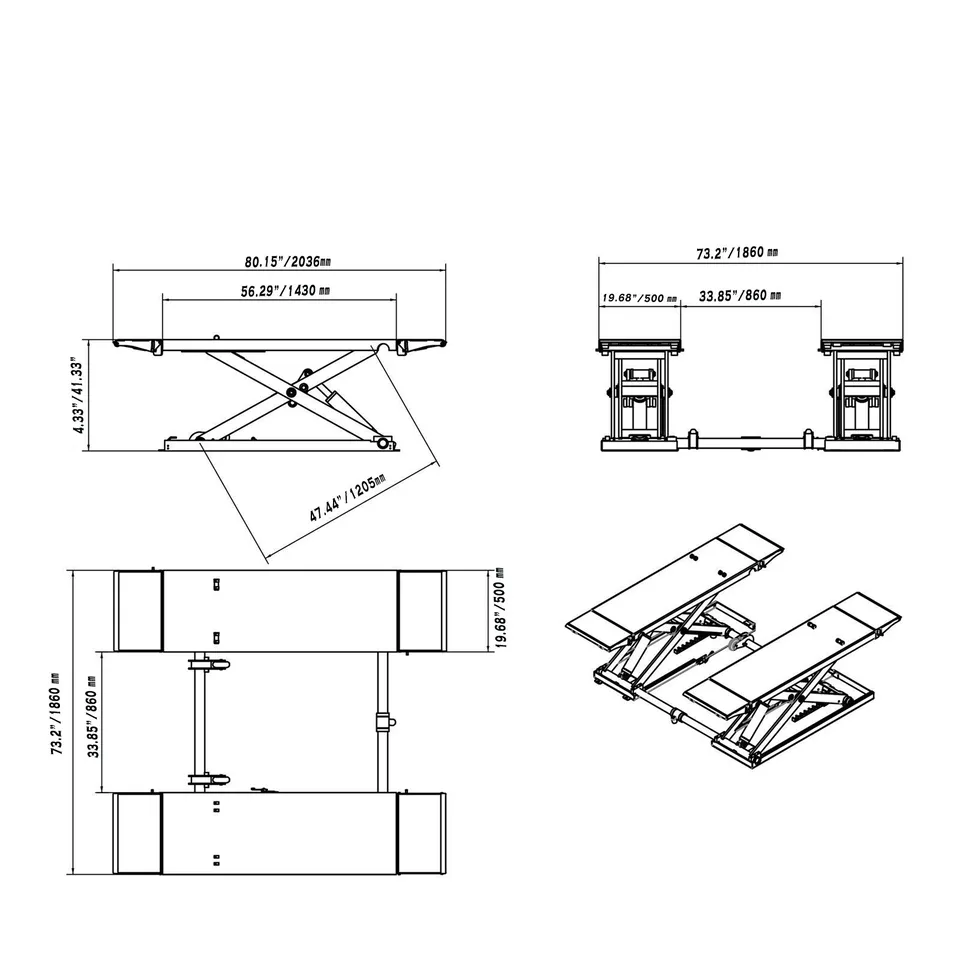

  • Mid-rise scissor lift dimension diagram with front and side measurement lines

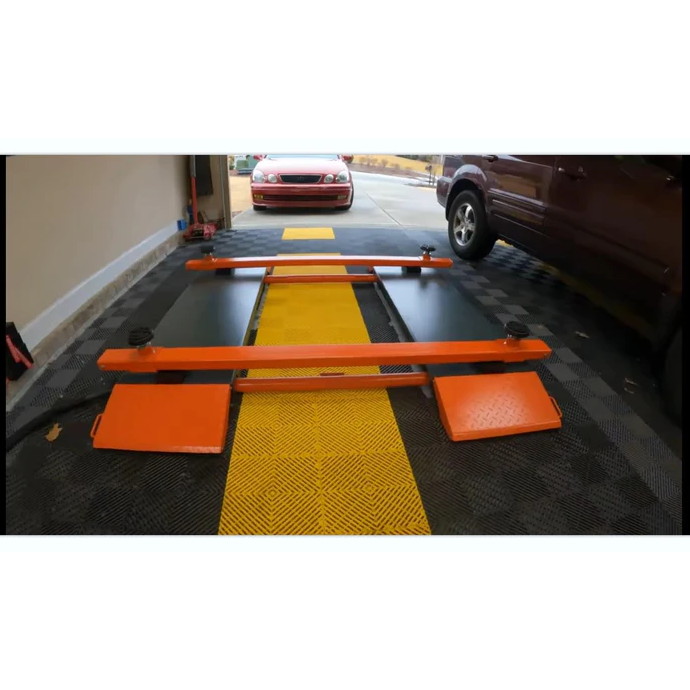

  • Pneumatic scissor lift with orange frame and textured platform pads in an indoor bay

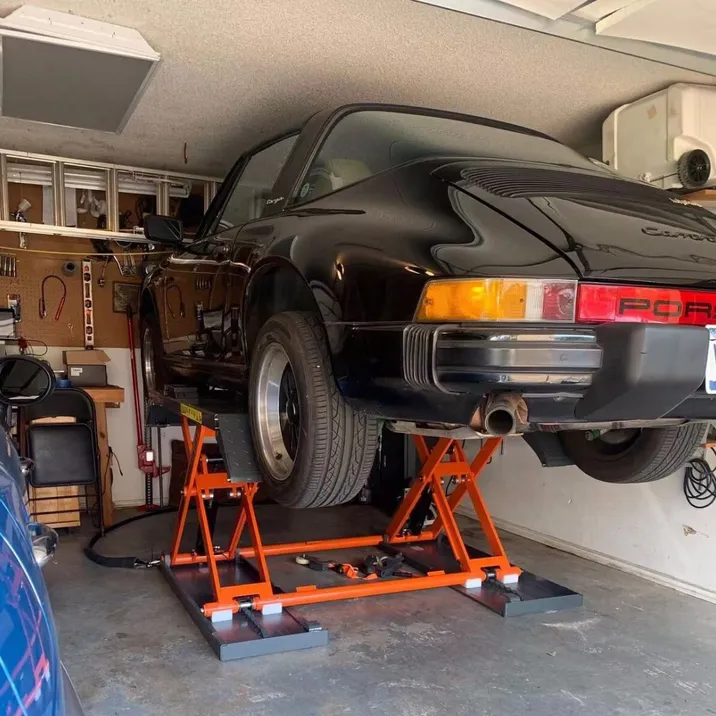

  • Pneumatic scissor lift holding a car on its orange frame platform supports
Katool KT-X80 8,000 lb Mid-Rise Scissor Lift — Pneumatic Lock Release

Katool KT-X80 8,000 lb Mid-Rise Scissor Lift — Pneumatic Lock Release

$2,299.00

Shop Pay Installments

Eligible customers can split their purchase into payments with Shop Pay. Available plans and terms are shown at checkout.

How it works:

  • Choose Shop Pay at checkout
  • Select your preferred payment plan
  • Review the payment schedule and any down payment at checkout
  • Pay the rest over time with automatic payments

Payment options are subject to eligibility. Interest may apply. Review your rate, payment schedule, and total cost before completing your purchase.

🚚 Shipping availability and rates vary by product, delivery option, and destination.

Delivery Options
Free warehouse pickup · Confirm first Ask us to confirm stock and the supplier pickup location before ordering. No same-day pickup or handling fee. Contact us to arrange pickup →
Carrier Terminal Pickup: Bring a suitable vehicle or trailer. The terminal will load the shipment, but the customer is responsible for unloading at the final destination.
⚠️ Warehouse Pickup – Please Contact Us First. Due to varying inventory across our warehouse locations, please contact us before placing your order to confirm stock availability at your preferred location.
Contact Us to Check Availability

Adds 24 months after the standard parts warranty ends. Parts only; labor is not included. One plan per machine.

View coverage and terms

🇺🇸 US-Based Business: We offer specialized support and flexible shipping and delivery options.

🏭
Expert SupportUS-Based Team
🚚
Shipping OptionsVary by Product & Destination
🛡️
Manufacturer WarrantySee Product Terms
🔬
Product SupportContact ALLIZOE
📍
Pickup Options May Be AvailableContact us to confirm location & availability
Learn More >
Warranty

Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge. Optional extended parts coverage is offered only when an enabled add-on is shown for this eligible main machine. If purchased, it adds 24 months after the standard parts warranty ends. Parts only; labor is not included, and the structural warranty is not extended.

  • Covers: Cylinders, power units, motors, displays, electronics, etc.
  • Standard manufacturer structural warranty: 3 years on structural components.
  • Claims must fall within the warranty period and require the original order number.
  • Replacement parts provided at no cost, including free shipping.
  • Labor is not included in the warranty.
Shipping

Shipping availability, charges and estimated timing vary by product, delivery option and destination. Review the selected option and confirm any unloading equipment or delivery services required before ordering. Warehouse pickup requires stock and location confirmation, an appointment and written pickup authorization; no same-day pickup. Pickup has no shipping or handling fee. View full Shipping & Delivery details →

⚠️ Safety Warning

Contact with line power voltages can cause death or serious injury.

  • Do not operate equipment with a damaged power cord.
  • If an extension cord is necessary, use one with a current rating equal to or greater than the equipment.
  • Do not expose the equipment to rain or wet environment.
  • Make sure to connect the unit with proper electrical power.
  • Use a certified electrician to connect the electrical power.
  • Do not remove or bypass grounding pin.
  • Only qualified service personnel should service this equipment.
  • Disconnect power to the unit before servicing.

Contact with moving parts could cause injury.

  • Keep hands and other body parts away from moving surfaces.
  • Do not bypass any safety features.
  • During lifting and lowering, stay clear of moving parts — confirm no one is in the hazardous area before lifting.
  • When platform height is less than 1.75 meters, avoid hitting your head when entering.
  • An improper docking, improperly parked vehicle, or oversized vehicle can cause the vehicle to fall at risk.
  • Do not stand or sit on the lift platform during lifting operation.

Debris, dirt, and fluids can cause serious eye injury.

  • Wear approved safety glasses during mount and demount procedures.
  • Lubricating oil around the lift can cause slip risks — keep the area clean and promptly clean up oil spills.

Tools that break or slip can cause injury.

  • Read and understand the operation instructions before using the equipment.
  • Frequently inspect, clean, and lubricate (if recommended) where designated.

Price & Freight — Before Tax

For one machine in its listed standard configuration within the contiguous United States:

  • Warehouse Pickup: $2,299 before tax; no freight or handling fee. Confirm supplier stock, warehouse and pickup appointment with ALLIZOE before ordering. No same-day pickup.
  • Pickup at Carrier Terminal: $2,299 product + $300 freight = $2,599 before tax.
  • Commercial Delivery (Forklift Required): $2,299 product + $400 freight = $2,699 before tax.
  • Residential Delivery (Forklift Required): $2,299 product + $400 freight = $2,699 before tax.

Tax and optional accessories or upgrades are additional. The optional $349 extended parts warranty is also additional. Select the option matching your address and unloading equipment. Where a liftgate option is listed, confirm current package weight and dimensions, carrier limits and site access with ALLIZOE before ordering. For terminal pickup where offered, bring a suitable vehicle or trailer and arrange final unloading. Review the final total at checkout; orders containing other products may have different combined shipping charges.

The KT-X80 is Katool's premium electric-hydraulic mid-rise scissor lift with pneumatic safety release, engineered for shops that demand both power and precision. At 8,000 lbs, it handles the full range of passenger vehicles and light trucks with ease. The pneumatic safety release and max height limit switch provide an extra layer of protection, while the motor cooling fan assists heat dissipation; follow the supplied duty-cycle instructions. The included portable mobile kit means you can reposition the unloaded lift on a suitable floor according to the supplied instructions.

  • 8,000 lbs lifting capacity
  • pneumatic safety release system
  • Max height limit switch — prevents over-extension
  • 24V safe control system
  • Aluminum motor with cooling fan to assist heat dissipation
  • Mobile kit included for unloaded repositioning
  • Self-lubricated bushings & bearings
  • Drive-up ramps with extension included
  • Composite rubber lifting blocks
  • 110V or 220V configuration; confirm supplied voltage and circuit requirements
KT-X66 KT-X77 KT-X80 KT-X85 KT-X90E KT-X95 KT-X99
Lift Type Mid-Rise Mid-Rise Mid-Rise Mid-Rise Mid-Rise In-Ground Full-Rise Full-Rise
Lifting Capacity 6,600 lbs 7,000 lbs 8,000 lbs 8,000 lbs 8,000 lbs 8,000 lbs 7,700 lbs
Max Lift Height 48" 39.37" 41.25" 40.15" 47.25" 72.3" ~76"
Power Source Electric-hydraulic; manual release Electric-hydraulic; air required Electric-hydraulic; pneumatic release Electric-hydraulic; electric release listed; confirm air requirements Electric-hydraulic; confirm air setup Electric-hydraulic; pneumatic release Electric-hydraulic; confirm air setup
Installation Surface Surface Surface Surface Surface In-Ground Surface
Portable Kit ✓ ✓ ✓ ✓ ✓ — —
  • Lifting Capacity: 8,000 lbs
  • Max. Lifting Height: 41.25" (supplier listing)
  • Min. Height: 4.25"
  • Platform Length: 56.25"
  • Overall Length: 80"
  • Platform Width: 19.5"
  • Overall Width: 73.25"
  • Safety Release: Pneumatic; compressed air required
  • Motor: 110V or 220V AC, 60Hz, single-phase; confirm selected configuration
  • Net Weight: 1,213 lbs (550 kg)

This professional-grade electric-hydraulic mid-rise scissor lift with pneumatic safety release delivers 8,000 lbs of lifting capacity with pneumatic safety release for shops equipped with compressed air. The pneumatic safety release system provides precise control, while the max height limit switch adds an additional safety layer. The aluminum motor with integrated cooling fan ensures reliable performance during extended operation. Self-lubricated bushings and bearings minimize maintenance requirements.

Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge. Optional extended parts coverage is offered only when an enabled add-on is shown for this eligible main machine. If purchased, it adds 24 months after the standard parts warranty ends. Parts only; labor is not included, and the structural warranty is not extended.

  • Covers: Cylinders, power units, motors, displays, electronics, etc.
  • Standard manufacturer structural warranty: 3 years on structural components.
  • Claims must fall within the warranty period and require the original order number.
  • Replacement parts provided at no cost, including free shipping.
  • Labor is not included in the warranty.
  • Professional Auto Shops: 8,000 lb capacity handles cars, SUVs, and light trucks
  • Brake & Suspension Work: 41.25" max height gives excellent undercarriage access
  • High-Volume Shops: pneumatic safety release for fast, efficient operation
  • Mobile or Fixed Use: Mobile kit for repositioning the unloaded lift according to the supplied instructions
  • Safety-First Shops: Max height limit switch prevents over-extension

Katool manufactures its scissor lifts to rigorous industrial standards using Q235 and Q245 high-strength steel construction.

Price & Freight — Before Tax

For one machine in its listed standard configuration within the contiguous United States:

  • Warehouse Pickup: $2,299 before tax; no freight or handling fee. Confirm supplier stock, warehouse and pickup appointment with ALLIZOE before ordering. No same-day pickup.
  • Pickup at Carrier Terminal: $2,299 product + $300 freight = $2,599 before tax.
  • Commercial Delivery (Forklift Required): $2,299 product + $400 freight = $2,699 before tax.
  • Residential Delivery (Forklift Required): $2,299 product + $400 freight = $2,699 before tax.

Tax and optional accessories or upgrades are additional. The optional $349 extended parts warranty is also additional. Select the option matching your address and unloading equipment. Where a liftgate option is listed, confirm current package weight and dimensions, carrier limits and site access with ALLIZOE before ordering. For terminal pickup where offered, bring a suitable vehicle or trailer and arrange final unloading. Review the final total at checkout; orders containing other products may have different combined shipping charges.

Product price and freight charges are separate. Delivery charges vary by destination and selected service.

  • Supplier warehouse pickup: No freight or handling fee. Allizoe confirms stock and the pickup warehouse before payment; warehouse address can be shared before payment.
  • Scheduling: No same-day pickup. After confirmation, the supplier provides a pickup release form. Blind pickup may be arranged.
  • Carrier terminal pickup: Freight to a carrier terminal is separate from free supplier warehouse pickup. Bring a suitable vehicle or trailer and arrange unloading at your final destination.
  • Commercial or residential delivery: Select the service matching your address and unloading equipment.

Confirm unloading arrangements before delivery.

Package Size

L x W x H (in) 78 x 63 x 9 / 41 x 19 x 19
Weight (lbs) 1305

Product Manual

Download the complete product manual and installation guide.
Download Manual

Complete Your Shop Setup

Explore equipment for your shop
Tire Service Packages Collection Banner

Tire Service Packages

2-Post Lifts Category Image

2-Post Lift

4-Post Lifts Category Image

4-Post Lifts

Tire Changer

Tire Changer

Wheel Balancer

Wheel Balancer

Shop Accessories Collection Banner

Shop Accessories

Frequently Asked Questions

  • The KT-X80 has a rated lifting capacity of 8,000 lbs in Katool's product listing. Check the supplied unit's rating plate, vehicle weight, and lifting points before use.
  • The KT-X80 is a portable mid-rise scissor lift designed for surface-mounted use. No pit excavation required — confirm floor suitability and follow the supplied instructions when repositioning the unloaded lift.
  • Yes. The KT-X80 uses an electric hydraulic power unit and pneumatic safety release, and must be connected to a compressed air source. Confirm the required pressure for your supplied unit before ordering.
  • The package includes the scissor lift unit, hydraulic power unit, drive-up ramps with extensions, safety locks, rubber lifting blocks, portable mobile kit, and all necessary hardware.
  • Setup time depends on site conditions and installer experience. Follow the supplied manual for floor suitability, positioning, required connections, and initial testing before use.
  • Confirm the current number of packages, packaged dimensions, gross shipping weight, and required unloading equipment with Allizoe before arranging transport. Equipment dimensions and net weight are not packaged shipping measurements.
  • Yes, the KT-X80 comes with a limited one-year (12 months) manufacturer warranty on all parts and defects, free of charge. A 2-year extended warranty plan is also available.
  • Yes. The hydraulic power unit needs the approved electrical supply, and the safety-release system needs external compressed air. Confirm the supplied voltage version, nameplate/circuit requirements and air requirements with ALLIZOE before ordering. Do not assume one unit can switch between 110V and 220V.
