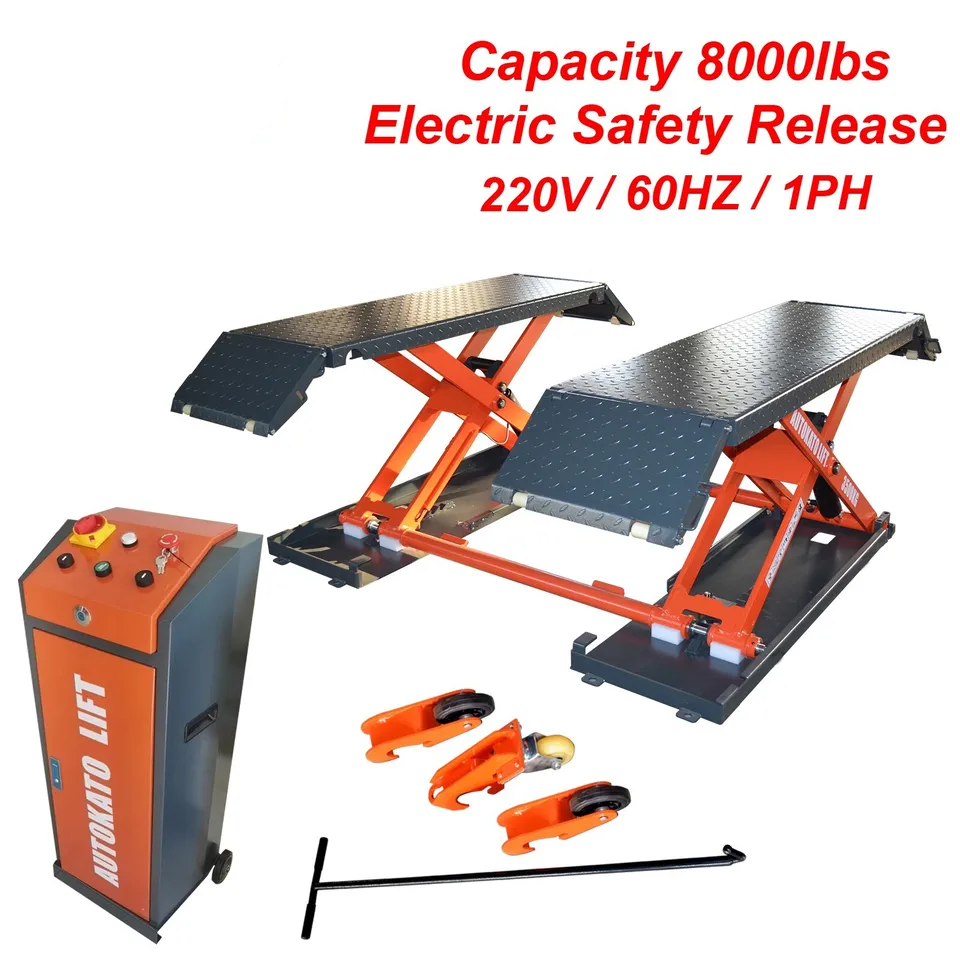

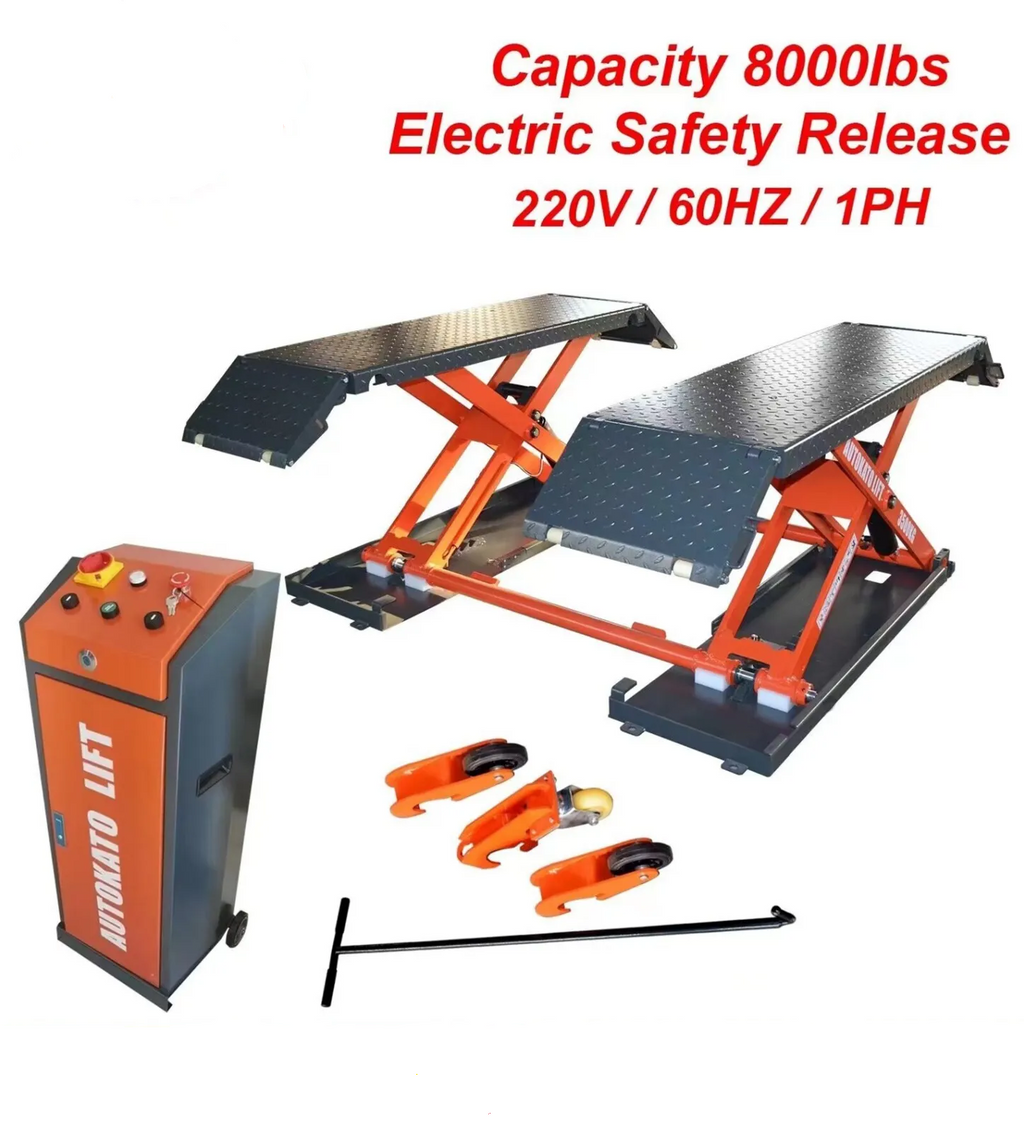

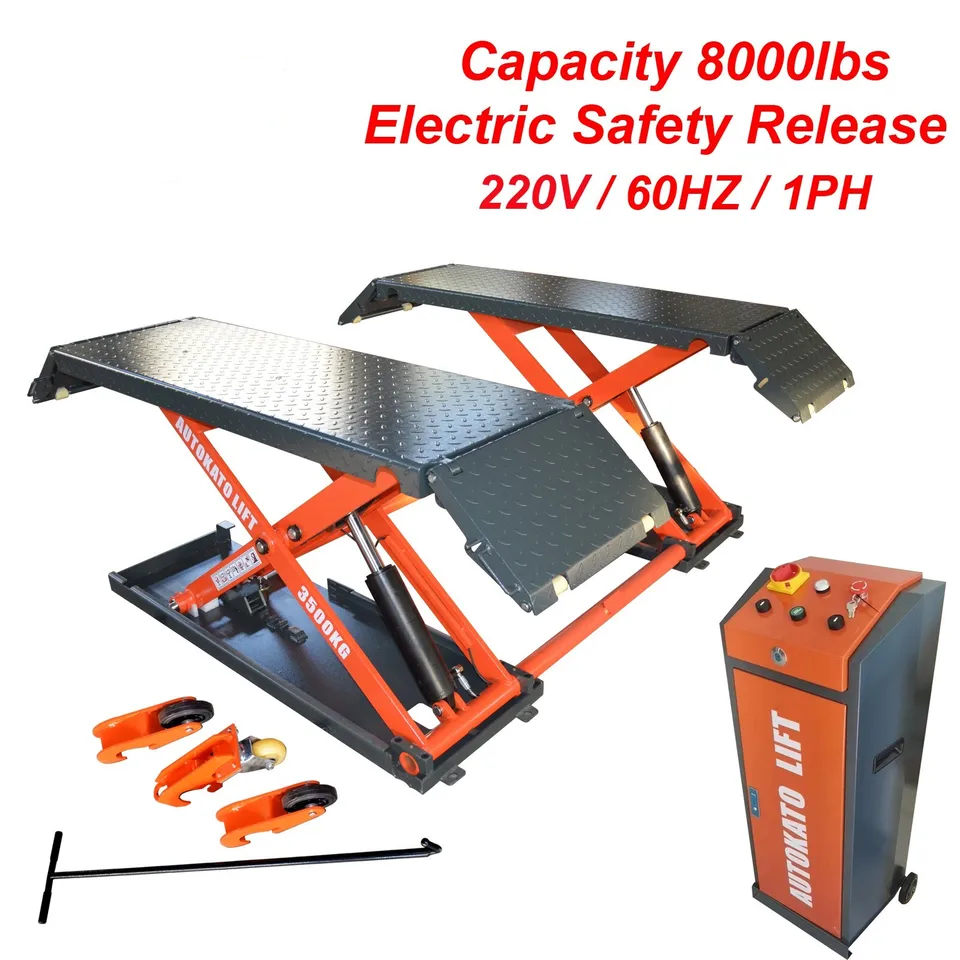

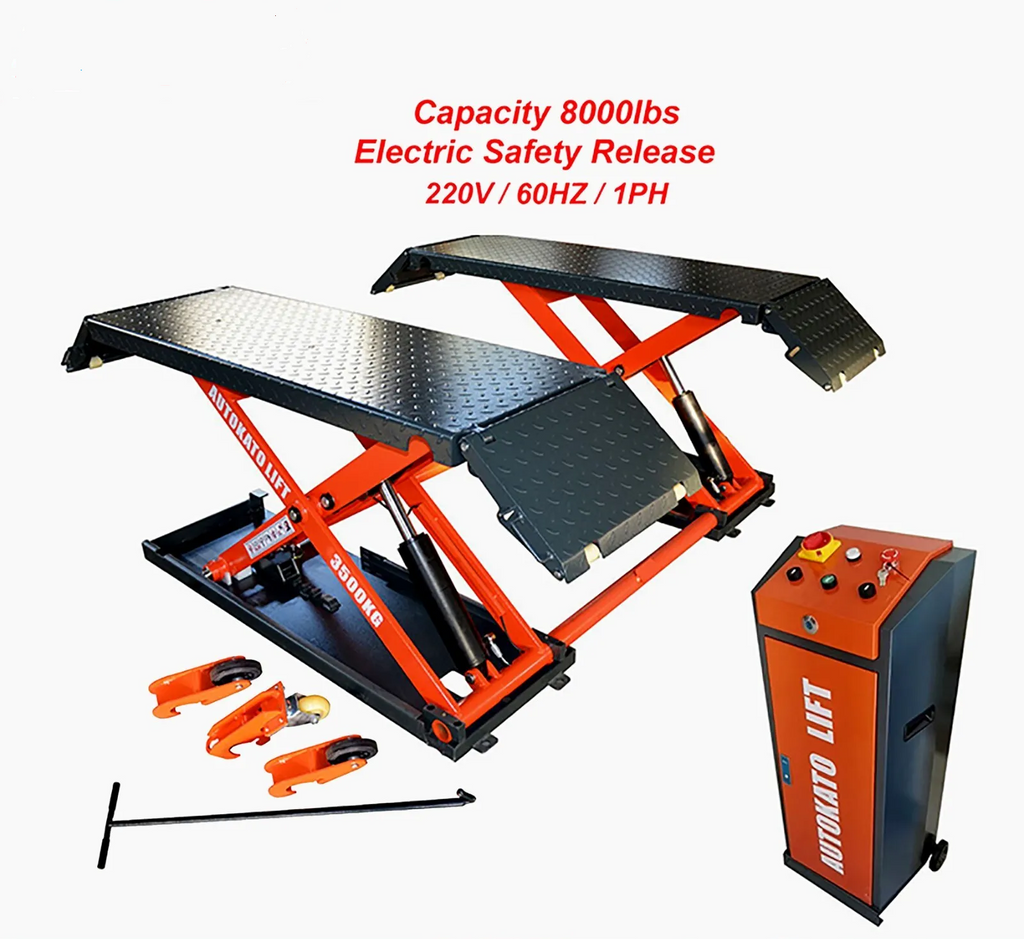

Katool KT-X85 8,000 lb Mid-Rise Electric Scissor Lift

• 8,000 lbs lifting capacity
• Electronic safety release system
• Max height limit switch — prevents over-extension
• 24V safe control system
• Aluminum motor with cooling fan to assist heat dissipation
• Portable mobile kit included; move only without a vehicle
• Self-lubricated bushings & bearings
• Drive-up ramps with extension included
• Composite rubber lifting blocks
• 110V or 220V configuration; confirm supplied voltage and circuit requirements

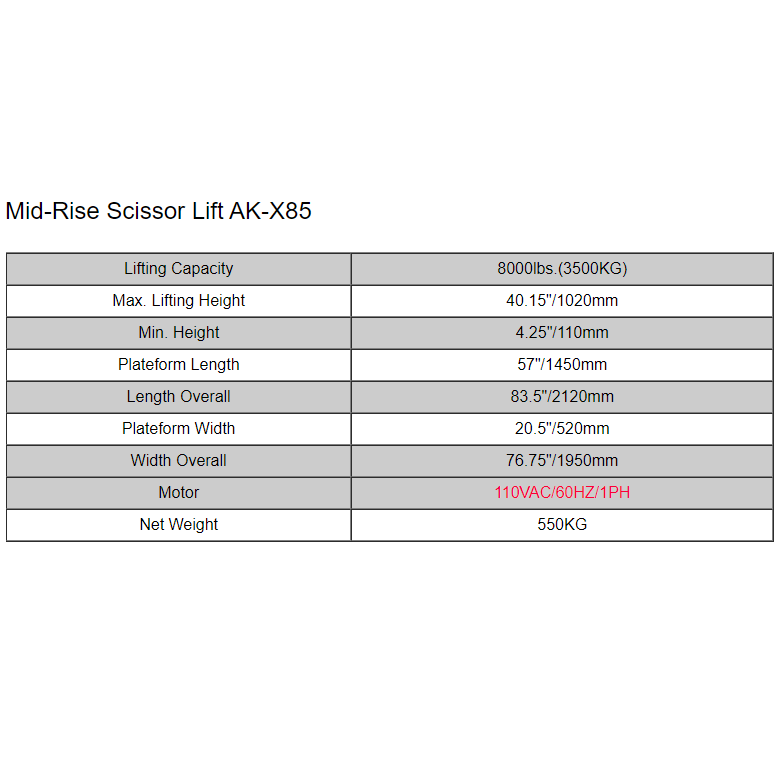

• Lifting Capacity: 8,000 lbs

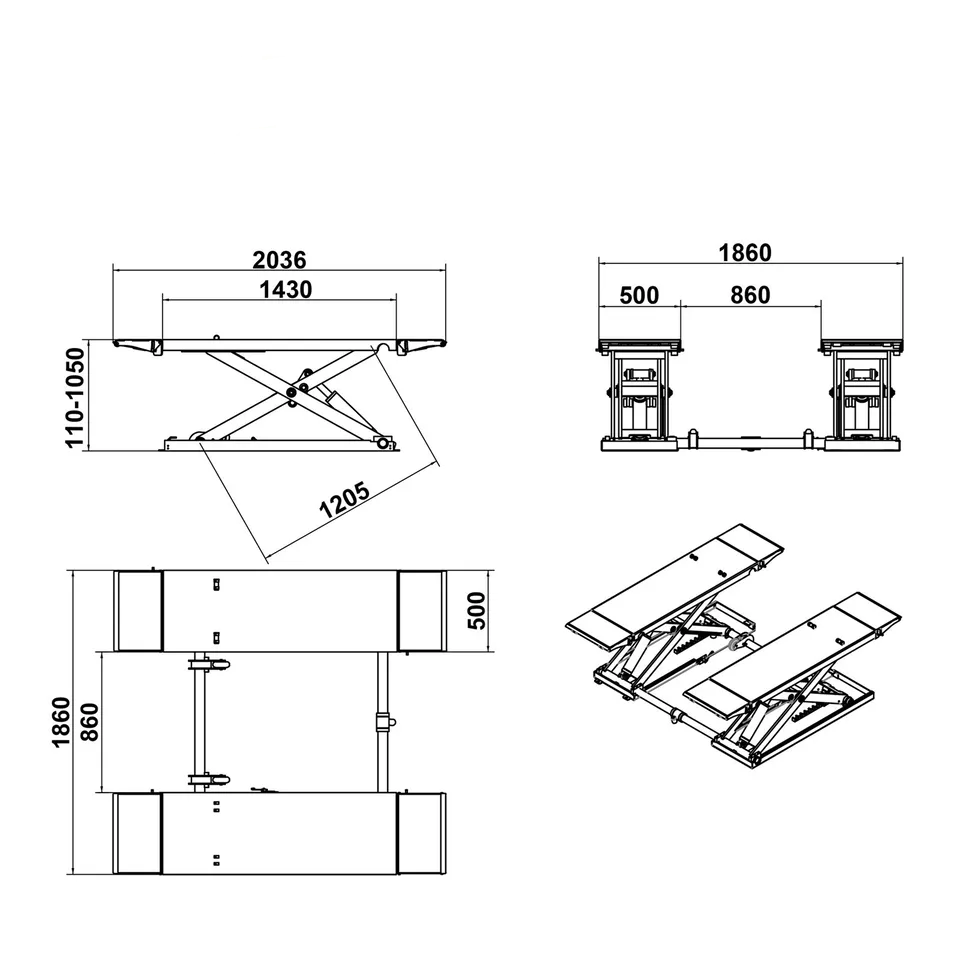

• Max. Lifting Height: 40.15" (1,020 mm)
• Min. Height: 4.25"
• Platform Length: 57"
• Overall Length: 83.5"
• Platform Width: 20.5"
• Overall Width: 76.75"
• Safety Release: Electric safety release

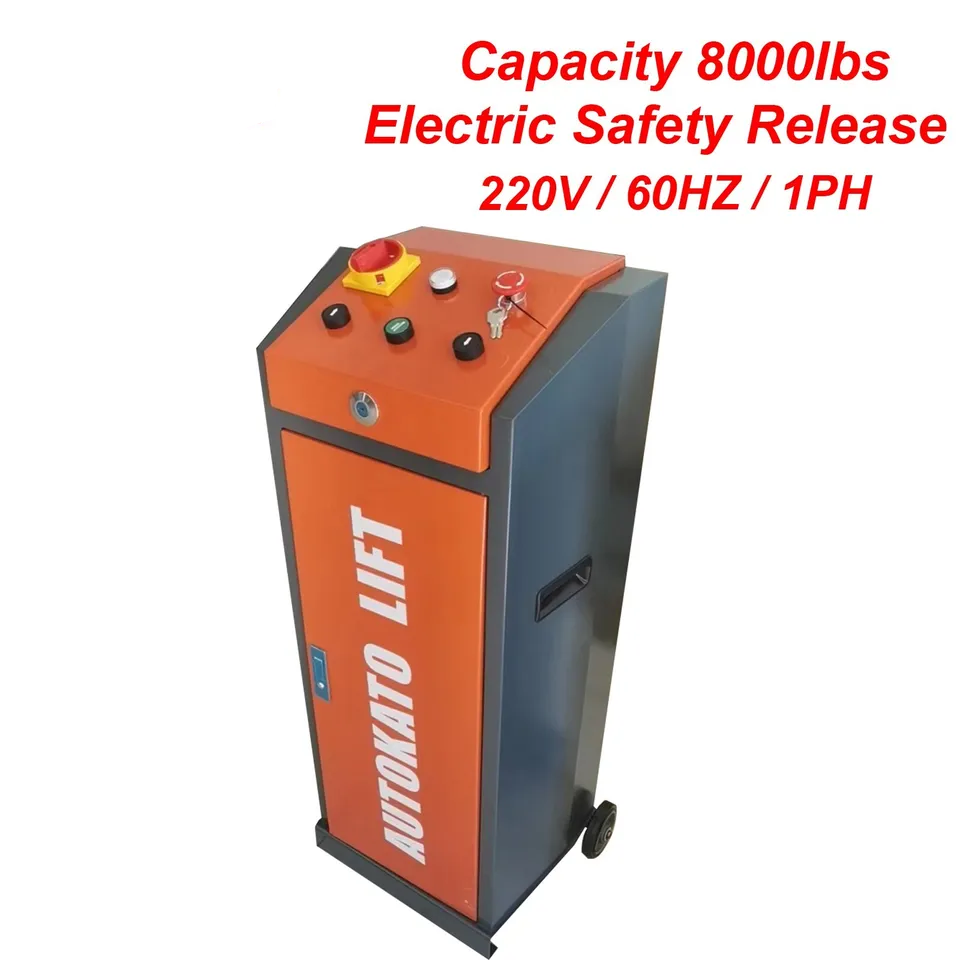

• Control System: 24V
• Motor: 110V or 220V AC, 60Hz, single-phase; confirm selected configuration
• Net Weight: Approximately 1,213 lbs (550 kg)

This professional-grade electric mid-rise scissor lift delivers 8,000 lbs of lifting capacity, making it ideal for demanding auto shops. Features electronic safety release, max height limit switch, and a 24V safe control system. The motor cooling fan assists heat dissipation; follow the supplied duty-cycle and operating instructions. Portable mobile kit included; move only without a vehicle for repositioning the unloaded lift according to the supplied instructions. Self-lubricated bushings and bearings minimize maintenance.

Confirm utilities before ordering: Katool lists electric safety release, while the shared X85E/X85 manual also specifies an air supply. Confirm the supplied release configuration, any compressed-air requirement and the required voltage/circuit with ALLIZOE.

Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge. Optional extended parts coverage is offered only when an enabled add-on is shown for this eligible main machine. If purchased, it adds 24 months after the standard parts warranty ends. Parts only; labor is not included, and the structural warranty is not extended.

• Covers: Cylinders, power units, motors, displays, electronics, etc.
• Standard manufacturer structural warranty: 3 years on structural components.
• Claims must fall within the warranty period and require the original order number.
• Replacement parts provided at no cost, including free shipping.
• Labor is not included in the warranty.

• Professional Auto Shops: 8,000 lb capacity handles cars, SUVs, and light trucks
• Brake & Suspension Work: 40.15" max height gives excellent undercarriage access
• High-Volume Shops: Electronic safety release for fast, efficient operation
• Mobile or Fixed Use: Portable mobile kit included; move only without a vehicle for repositioning the unloaded lift according to the supplied instructions
• Safety-First Shops: Max height limit switch and electronic safety release

Katool manufactures its scissor lifts to rigorous industrial standards using Q235 and Q245 high-strength steel construction.

Price & Freight — Before Tax

For one machine in its listed standard configuration within the contiguous United States:

• Warehouse Pickup: $2,399 before tax; no freight or handling fee. Confirm supplier stock, warehouse and pickup appointment with ALLIZOE before ordering. No same-day pickup.
• Pickup at Carrier Terminal: $2,399 product + $300 freight = $2,699 before tax.
• Commercial Delivery (Forklift Required): $2,399 product + $300 freight = $2,699 before tax.
• Residential Delivery (Forklift Required): $2,399 product + $400 freight = $2,799 before tax.

Tax and optional accessories or upgrades are additional. The optional $349 extended parts warranty is also additional. Select the option matching your address and unloading equipment. Where a liftgate option is listed, confirm current package weight and dimensions, carrier limits and site access with ALLIZOE before ordering. For terminal pickup where offered, bring a suitable vehicle or trailer and arrange final unloading. Review the final total at checkout; orders containing other products may have different combined shipping charges.

Product price and freight charges are separate. Delivery charges vary by destination and selected service.

• Supplier warehouse pickup: No freight or handling fee. Allizoe confirms stock and the pickup warehouse before payment; warehouse address can be shared before payment.
• Scheduling: No same-day pickup. After confirmation, the supplier provides a pickup release form. Blind pickup may be arranged.
• Carrier terminal pickup: Freight to a carrier terminal is separate from free supplier warehouse pickup. Bring a suitable vehicle or trailer and arrange unloading at your final destination.
• Commercial or residential delivery: Select the service matching your address and unloading equipment.

Confirm unloading arrangements before delivery.
