Electric scissor lift set with control unit, orange frame, black ramps, and rubber pads

Katool KT-X90E 8,000 lb Mid-Rise Electric Scissor Lift

Pickup at Carrier Terminal
$2,599.00
Skip to product information
Electric scissor lift set with control unit, orange frame, black ramps, and rubber pads
1/16

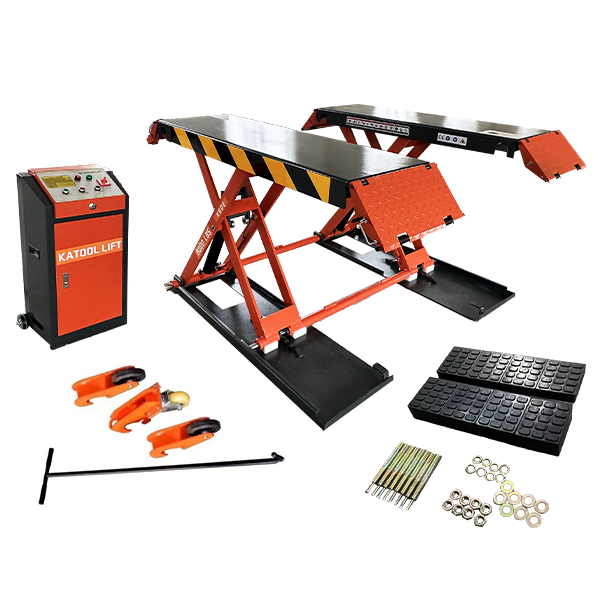

  • Electric scissor lift set with control unit, orange frame, black ramps, and rubber pads

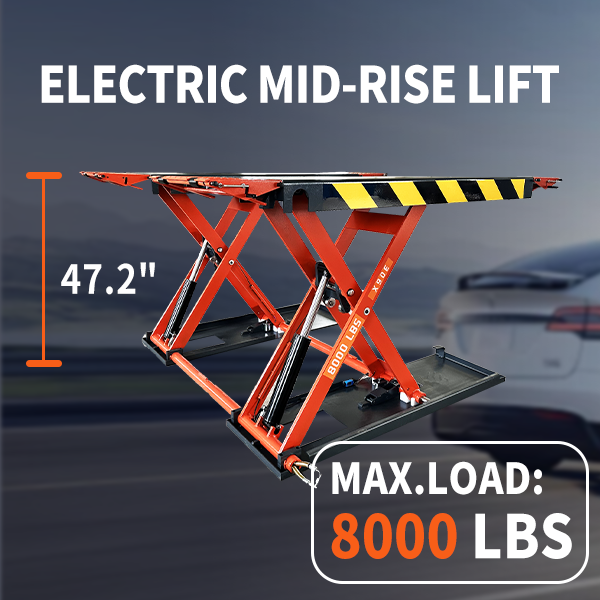

  • Electric mid-rise scissor lift with raised orange frame and black lifting platforms

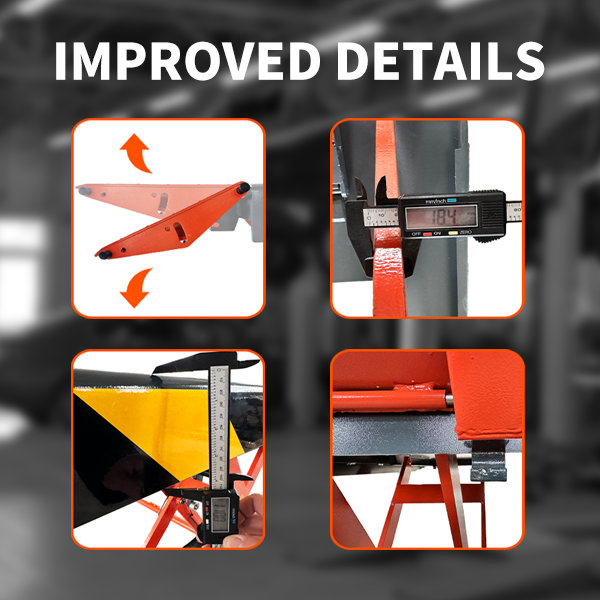

  • Electric scissor lift detail view with orange arms and a digital measurement display

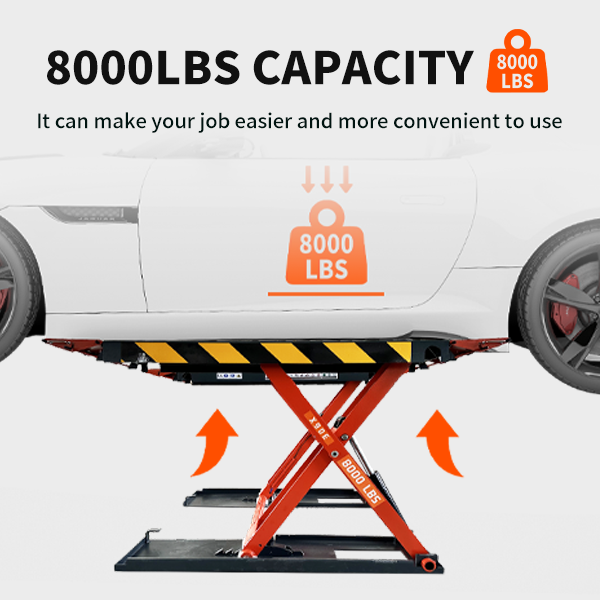

  • Electric mid-rise scissor lift with orange base frame and black platforms

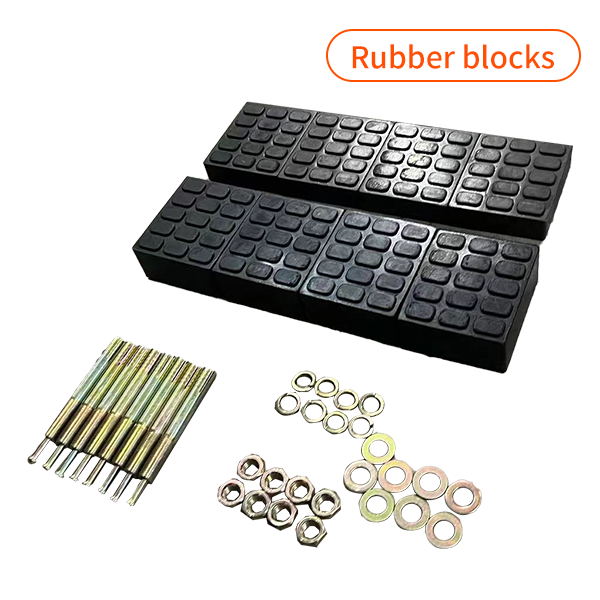

  • Rubber blocks and hardware kit for electric scissor lift platforms

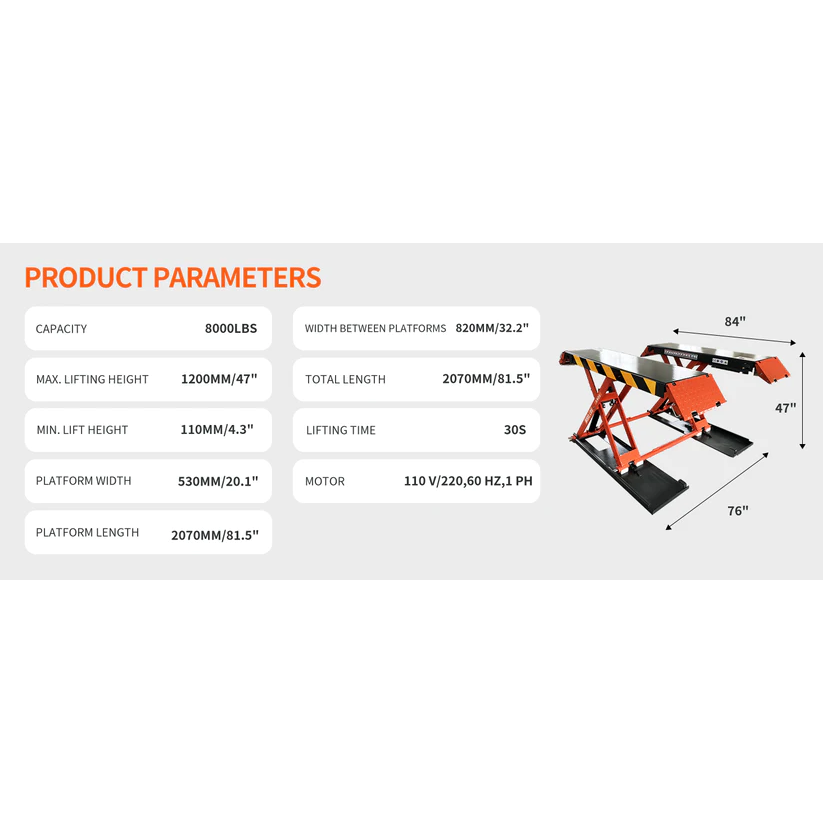

  • Electric scissor lift with product dimensions diagram and orange frame

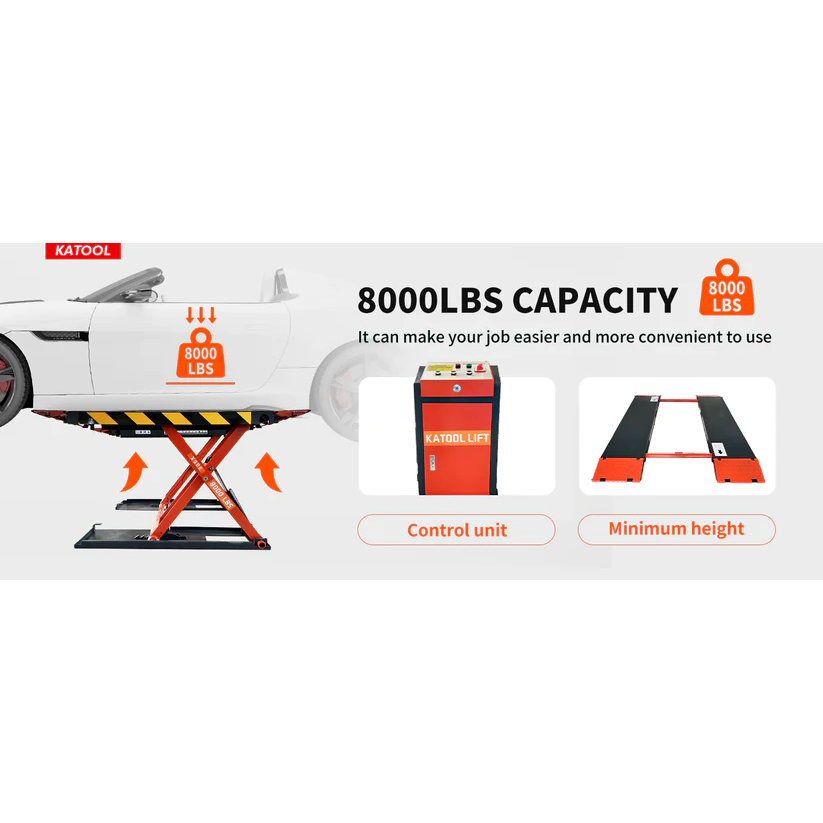

  • Electric scissor lift system with control unit and black lifting platforms

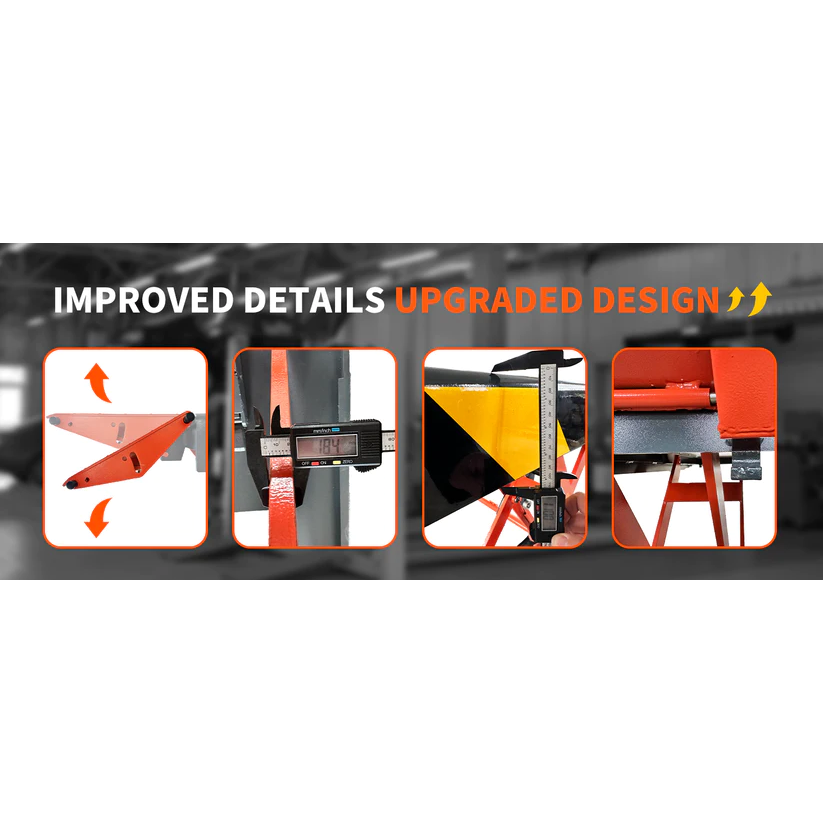

  • Electric scissor lift upgraded details collage of orange mechanisms and sensor parts

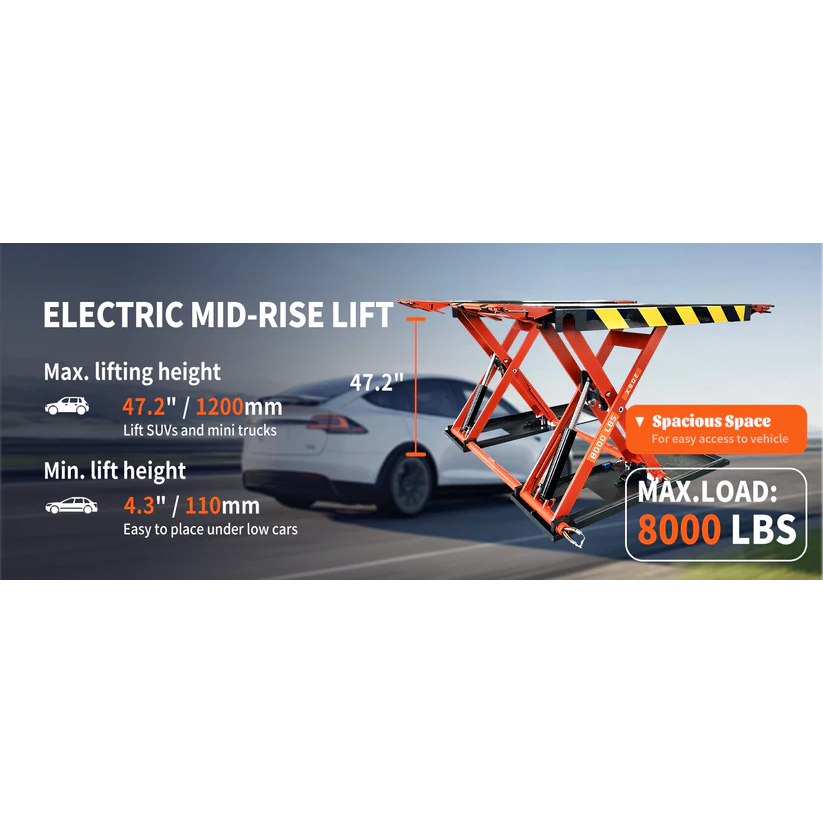

  • Electric mid-rise scissor lift with orange frame, black ramps, and yellow safety stripes

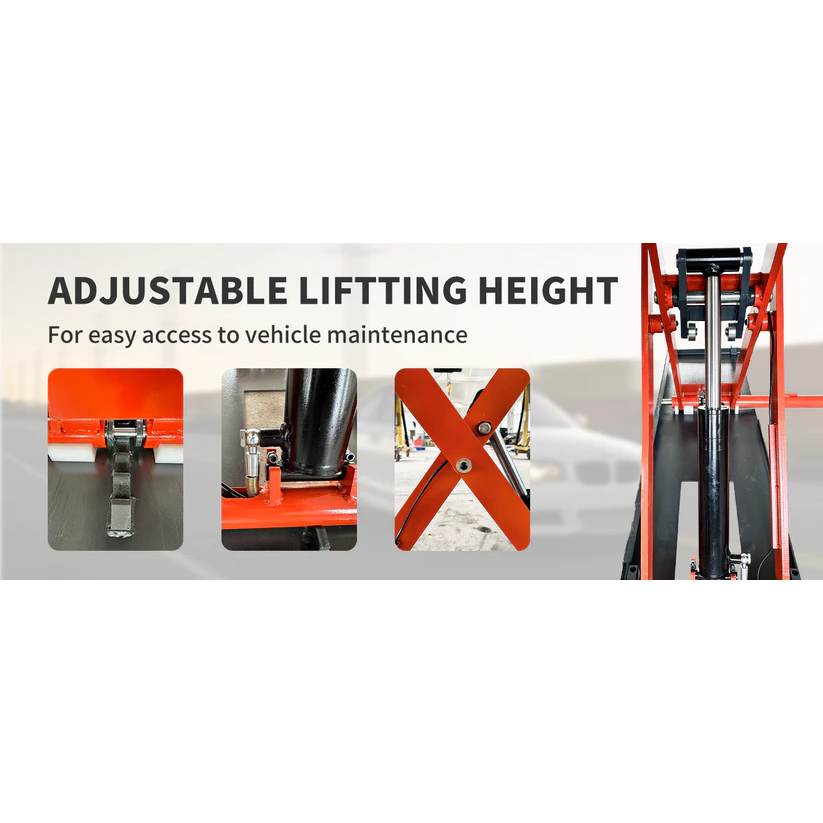

  • Electric scissor lift height adjustment detail with orange arms and lifting posts

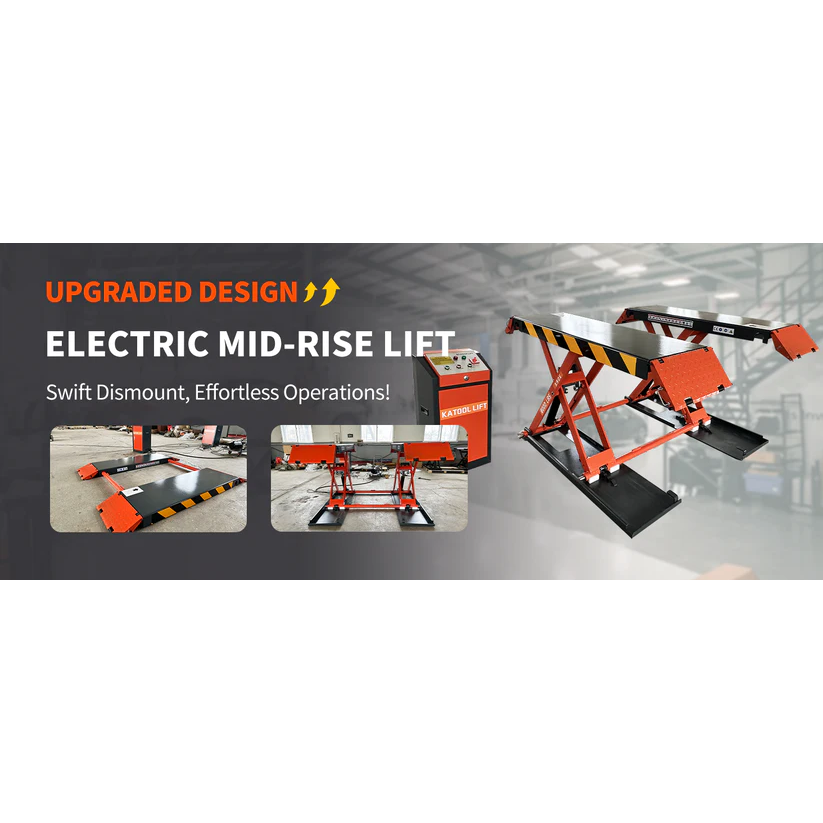

  • Orange electric mid-rise scissor lift with black platform decks and safety rails
  • Orange electric scissor lift with two black platforms and adjustable lift structure

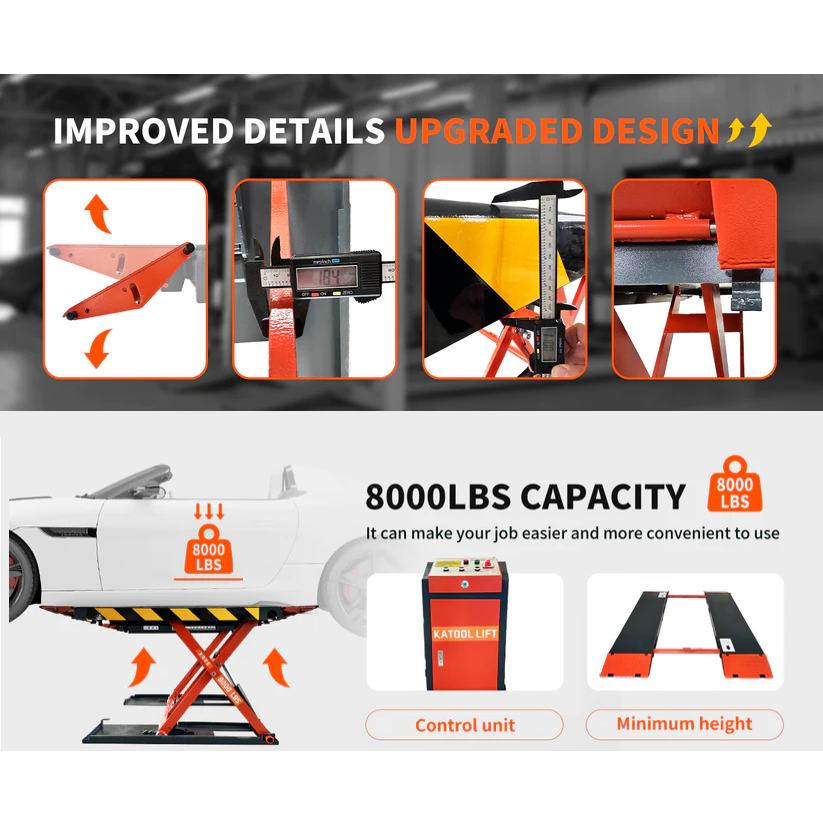

  • Orange electric scissor lift control display and lift mechanism detail

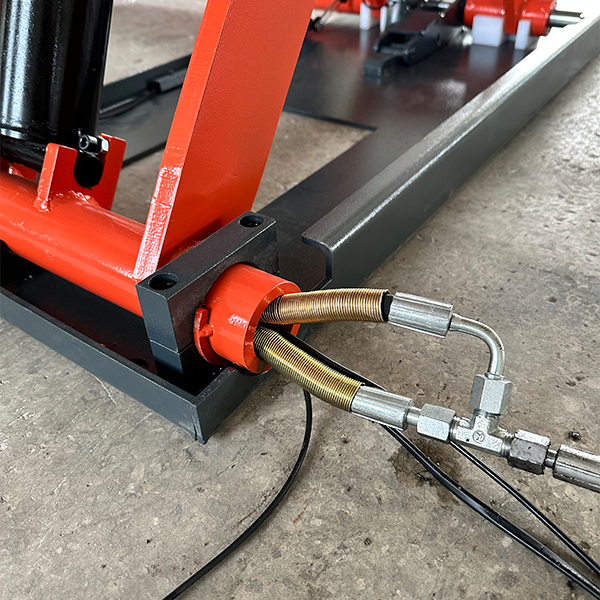

  • Orange hydraulic actuator and threaded screw on an electric scissor lift base

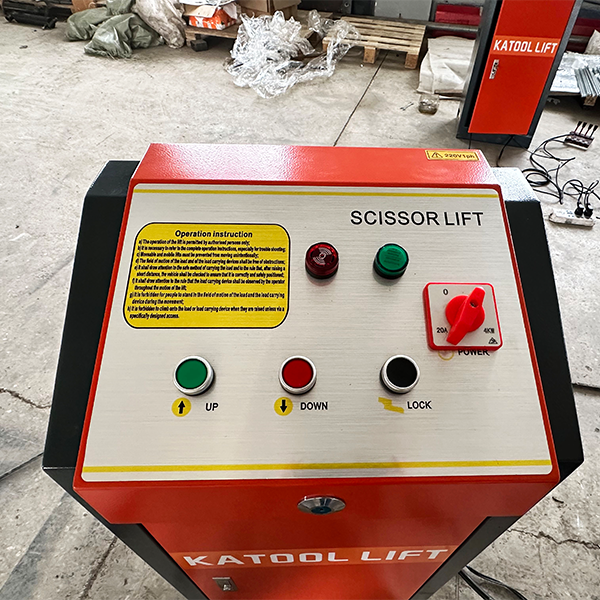

  • Orange control unit for a scissor lift with red and green push buttons

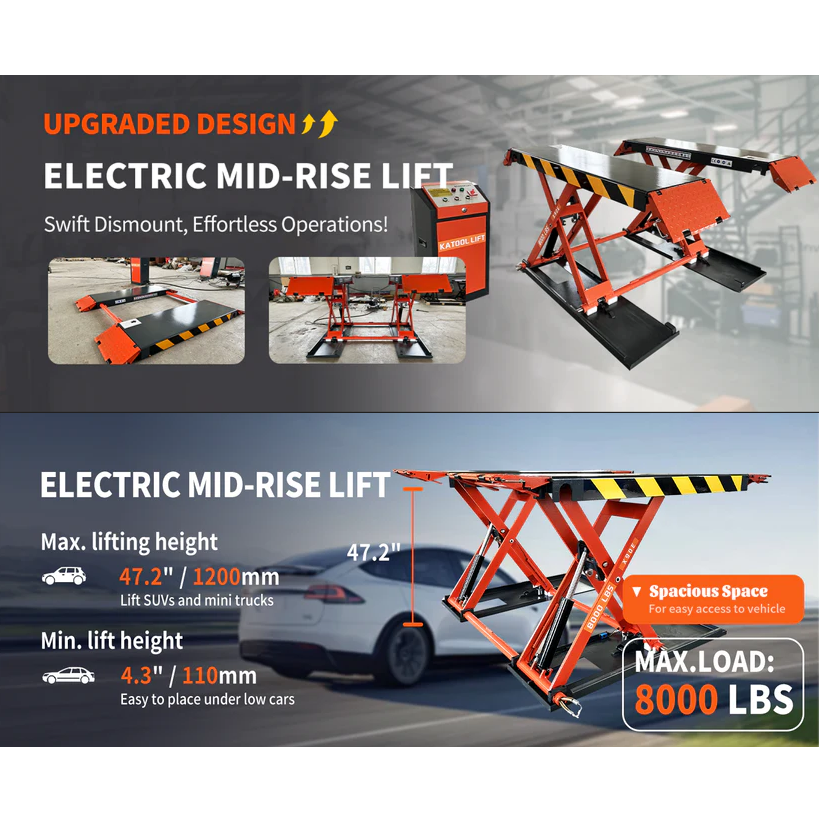

  • Orange electric mid-rise scissor lift with black platforms and raised deck
Katool KT-X90E 8,000 lb Mid-Rise Electric Scissor Lift

Katool KT-X90E 8,000 lb Mid-Rise Electric Scissor Lift

$2,599.00

Shop Pay Installments

Eligible customers can split their purchase into payments with Shop Pay. Available plans and terms are shown at checkout.

How it works:

  • Choose Shop Pay at checkout
  • Select your preferred payment plan
  • Review the payment schedule and any down payment at checkout
  • Pay the rest over time with automatic payments

Payment options are subject to eligibility. Interest may apply. Review your rate, payment schedule, and total cost before completing your purchase.

🚚 Shipping availability and rates vary by product, delivery option, and destination.

Delivery Options
Free warehouse pickup · Confirm first Ask us to confirm stock and the supplier pickup location before ordering. No same-day pickup or handling fee. Contact us to arrange pickup →
Carrier Terminal Pickup: Bring a suitable vehicle or trailer. The terminal will load the shipment, but the customer is responsible for unloading at the final destination.
⚠️ Warehouse Pickup – Please Contact Us First. Due to varying inventory across our warehouse locations, please contact us before placing your order to confirm stock availability at your preferred location.
Contact Us to Check Availability

Adds 24 months after the standard parts warranty ends. Parts only; labor is not included. One plan per machine.

View coverage and terms

🇺🇸 US-Based Business: We offer specialized support and flexible shipping and delivery options.

🏭
Expert SupportUS-Based Team
🚚
Shipping OptionsVary by Product & Destination
🛡️
Manufacturer WarrantySee Product Terms
🔬
Product SupportContact ALLIZOE
📍
Pickup Options May Be AvailableContact us to confirm location & availability
Learn More >
Warranty

Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge. Optional extended parts coverage is offered only when an enabled add-on is shown for this eligible main machine. If purchased, it adds 24 months after the standard parts warranty ends. Parts only; labor is not included, and the structural warranty is not extended.

  • Covers: Cylinders, power units, motors, displays, electronics, etc.
  • Standard manufacturer structural warranty: 3 years on structural components.
  • Claims must fall within the warranty period and require the original order number.
  • Replacement parts provided at no cost, including free shipping.
  • Labor is not included in the warranty.
Shipping

Shipping availability, charges and estimated timing vary by product, delivery option and destination. Review the selected option and confirm any unloading equipment or delivery services required before ordering. Warehouse pickup requires stock and location confirmation, an appointment and written pickup authorization; no same-day pickup. Pickup has no shipping or handling fee. View full Shipping & Delivery details →

⚠️ Safety Warning

Contact with line power voltages can cause death or serious injury.

  • Do not operate equipment with a damaged power cord.
  • If an extension cord is necessary, use one with a current rating equal to or greater than the equipment.
  • Do not expose the equipment to rain or wet environment.
  • Make sure to connect the unit with proper electrical power.
  • Use a certified electrician to connect the electrical power.
  • Do not remove or bypass grounding pin.
  • Only qualified service personnel should service this equipment.
  • Disconnect power to the unit before servicing.

Contact with moving parts could cause injury.

  • Keep hands and other body parts away from moving surfaces.
  • Do not bypass any safety features.
  • During lifting and lowering, stay clear of moving parts — confirm no one is in the hazardous area before lifting.
  • When platform height is less than 1.75 meters, avoid hitting your head when entering.
  • An improper docking, improperly parked vehicle, or oversized vehicle can cause the vehicle to fall at risk.
  • Do not stand or sit on the lift platform during lifting operation.

Debris, dirt, and fluids can cause serious eye injury.

  • Wear approved safety glasses during mount and demount procedures.
  • Lubricating oil around the lift can cause slip risks — keep the area clean and promptly clean up oil spills.

Tools that break or slip can cause injury.

  • Read and understand the operation instructions before using the equipment.
  • Frequently inspect, clean, and lubricate (if recommended) where designated.

Price & Freight — Before Tax

For one machine in its listed standard configuration within the contiguous United States:

  • Warehouse Pickup: $2,599 before tax; no freight or handling fee. Confirm supplier stock, warehouse and pickup appointment with ALLIZOE before ordering. No same-day pickup.
  • Pickup at Carrier Terminal: $2,599 product + $300 freight = $2,899 before tax.
  • Commercial Delivery (Forklift Required): $2,599 product + $400 freight = $2,999 before tax.
  • Residential Delivery (Forklift Required): $2,599 product + $500 freight = $3,099 before tax.

Tax and optional accessories or upgrades are additional. The optional $349 extended parts warranty is also additional. Select the option matching your address and unloading equipment. Where a liftgate option is listed, confirm current package weight and dimensions, carrier limits and site access with ALLIZOE before ordering. For terminal pickup where offered, bring a suitable vehicle or trailer and arrange final unloading. Review the final total at checkout; orders containing other products may have different combined shipping charges.

The KT-X90E is an 8,000 lb electric-hydraulic mid-rise scissor lift with a maximum lifting height of 47.25 inches (1,200 mm). It provides access for brake, tire, inspection, and general maintenance work, with a 24V control system and a caster kit for repositioning the unloaded lift.

  • 8,000 lbs lifting capacity
  • 47.25" maximum lift height
  • 24V safe control system
  • Electronic safety release
  • Portable mobile kit included
  • Self-lubricated bushings & bearings
  • Drive-up ramps with extension included
  • Composite rubber lifting blocks
  • 110V or 220V supply configuration; confirm supplied voltage, nameplate current and circuit requirements before ordering. Qualified electrical installation required.
KT-X66 KT-X77 KT-X80 KT-X85 KT-X90E KT-X95 KT-X99
Lift Type Mid-Rise Mid-Rise Mid-Rise Mid-Rise Mid-Rise In-Ground Full-Rise Full-Rise
Lifting Capacity 6,600 lbs 7,000 lbs 8,000 lbs 8,000 lbs 8,000 lbs 8,000 lbs 7,700 lbs
Max Lift Height 48" 39.37" 41.25" 40.15" 47.25" 72.3" ~76"
Power Source Electric-hydraulic; manual release Electric-hydraulic; air required Electric-hydraulic; pneumatic release Electric-hydraulic; electric release listed; confirm air requirements Electric-hydraulic; confirm air setup Electric-hydraulic; pneumatic release Electric-hydraulic; confirm air setup
Installation Surface Surface Surface Surface Surface In-Ground Surface
Portable Kit ✓ ✓ ✓ ✓ ✓ — —

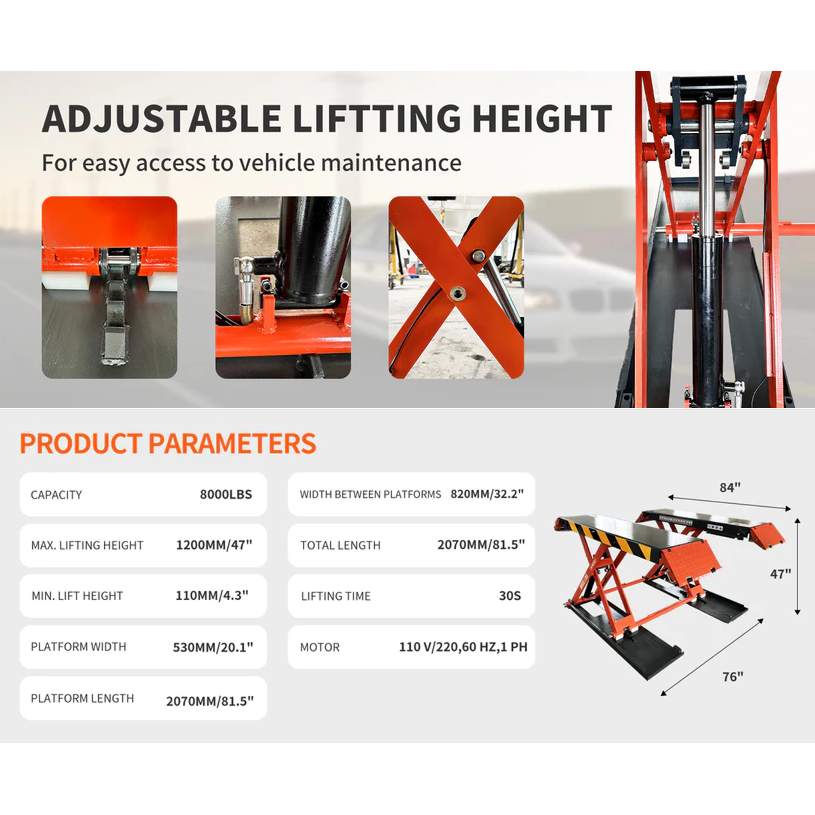

  • Lifting Capacity: 8,000 lbs (3,650 kg)
  • Max. Lifting Height: 47.25" (1,200 mm)
  • Min. Height: 4.33" (110 mm)
  • Lifting Time: ≤30 seconds
  • Lowering Time: ≥30 seconds
  • Overall Width: 77.56" (1,970 mm)
  • Platform Width: 20.87" (530 mm)
  • Platform Length: 81.5" (2,070 mm)
  • Platform Spacing: 32.28" (820 mm)
  • Air Pressure Required: 87–116 psi (6–8 bar)
  • Motor: 110V or 220V configuration, 60Hz, single-phase; confirm supplied motor rating, current and circuit requirements before ordering
  • Material: Q235 and Q245 Steel
  • Net Weight: 1,179 lbs (535 kg) + pump 110 lbs (50 kg)
  • Shipping Weight: Confirm current gross shipment weight and package dimensions with ALLIZOE; published manual figures differ from the store packaging reference
  • Noise Level: ≤75dB(A)

This professional-grade mid-rise electric scissor lift delivers 8,000 lbs of lifting capacity with an 47.25" maximum lift height. Features a 24V safe control system, electronic safety release, and portable mobile kit. The fast 30-second lift time maximizes shop productivity. Self-lubricated bushings and bearings minimize maintenance requirements.

Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge. Optional extended parts coverage is offered only when an enabled add-on is shown for this eligible main machine. If purchased, it adds 24 months after the standard parts warranty ends. Parts only; labor is not included, and the structural warranty is not extended.

  • Covers: Cylinders, power units, motors, displays, electronics, etc.
  • Standard manufacturer structural warranty: 3 years on structural components.
  • Claims must fall within the warranty period and require the original order number.
  • Replacement parts provided at no cost, including free shipping.
  • Labor is not included in the warranty.
  • Professional Auto Shops: 8,000 lb capacity with 47.25" maximum mid-rise lifting height
  • Brake, Tire & Inspection Work: Mid-rise access for general vehicle maintenance
  • High-Volume Shops: Fast 30-second lift time keeps bays productive
  • Mobile or Fixed Use: Portable mobile kit included for flexible shop layouts
  • Safety-First Shops: 24V safe control system with electronic safety release

Katool manufactures its scissor lifts to rigorous industrial standards using Q235 and Q245 high-strength steel construction.

Price & Freight — Before Tax

For one machine in its listed standard configuration within the contiguous United States:

  • Warehouse Pickup: $2,599 before tax; no freight or handling fee. Confirm supplier stock, warehouse and pickup appointment with ALLIZOE before ordering. No same-day pickup.
  • Pickup at Carrier Terminal: $2,599 product + $300 freight = $2,899 before tax.
  • Commercial Delivery (Forklift Required): $2,599 product + $400 freight = $2,999 before tax.
  • Residential Delivery (Forklift Required): $2,599 product + $500 freight = $3,099 before tax.

Tax and optional accessories or upgrades are additional. The optional $349 extended parts warranty is also additional. Select the option matching your address and unloading equipment. Where a liftgate option is listed, confirm current package weight and dimensions, carrier limits and site access with ALLIZOE before ordering. For terminal pickup where offered, bring a suitable vehicle or trailer and arrange final unloading. Review the final total at checkout; orders containing other products may have different combined shipping charges.

Product price and freight charges are separate. Delivery charges vary by destination and selected service.

  • Supplier warehouse pickup: No freight or handling fee. Allizoe confirms stock and the pickup warehouse before payment; warehouse address can be shared before payment.
  • Scheduling: No same-day pickup. After confirmation, the supplier provides a pickup release form. Blind pickup may be arranged.
  • Carrier terminal pickup: Freight to a carrier terminal is separate from free supplier warehouse pickup. Bring a suitable vehicle or trailer and arrange unloading at your final destination.
  • Commercial or residential delivery: Select the service matching your address and unloading equipment.

Confirm unloading arrangements before delivery.

Package Size

L x W x H (in) 82 x 67 x 9 / 39 x 20 x 15
Weight (lbs) 1839

Product Manual

Download the complete product manual and installation guide.
Download Manual

Complete Your Shop Setup

Explore equipment for your shop
Tire Service Packages Collection Banner

Tire Service Packages

2-Post Lifts Category Image

2-Post Lift

4-Post Lifts Category Image

4-Post Lifts

Tire Changer

Tire Changer

Wheel Balancer

Wheel Balancer

Shop Accessories Collection Banner

Shop Accessories

Frequently Asked Questions

  • The KT-X90E has a maximum lifting capacity of 8,000 lbs (3,629 kg), suitable for most passenger cars, SUVs, and light trucks.
  • The KT-X90E is a mid-rise scissor lift with a maximum lifting height of 47.25 inches (1,200 mm).
  • Katool's published X-90E manual lists an air supply of 87–116 psi (6–8 bar). Confirm the safety-release configuration and utility requirements of the supplied unit with Allizoe before ordering.
  • The package includes the scissor lift unit, hydraulic power unit, safety locks, drive-up ramps, and all necessary hardware for installation.
  • Setup time depends on site conditions and installer experience. Follow the supplied manual for floor suitability, electrical and air connections, hydraulic setup, and initial testing before use.
  • The store packaging reference lists 1,839 lbs and two packages: 82 × 67 × 9 inches and 39 × 20 × 15 inches. These reference figures differ from the published X-90E manual and are not confirmed for the current shipment. Contact ALLIZOE before ordering to verify the current package count, gross weight and dimensions with the supplier before arranging transport or unloading.
  • Yes, the KT-X90E comes with a manufacturer warranty. Please contact us for warranty terms and after-sales support.
  • Katool lists 110V and 220V supply options. Contact ALLIZOE before ordering to confirm the required version, supplier availability, motor nameplate and circuit requirements. Do not assume the supplied unit can be switched between voltages. Have a qualified electrician confirm the installation.
