Katool KT-X77 mid-rise scissor lift with red frame, black deck, and control unit

Katool KT-X77 7,000 lb Mid-Rise Scissor Lift - Drive-On - CE Approved

Warehouse Pickup
$1,899.00
Skip to product information
Katool KT-X77 mid-rise scissor lift with red frame, black deck, and control unit
1/8
  • Katool KT-X77 mid-rise scissor lift with red frame, black deck, and control unit

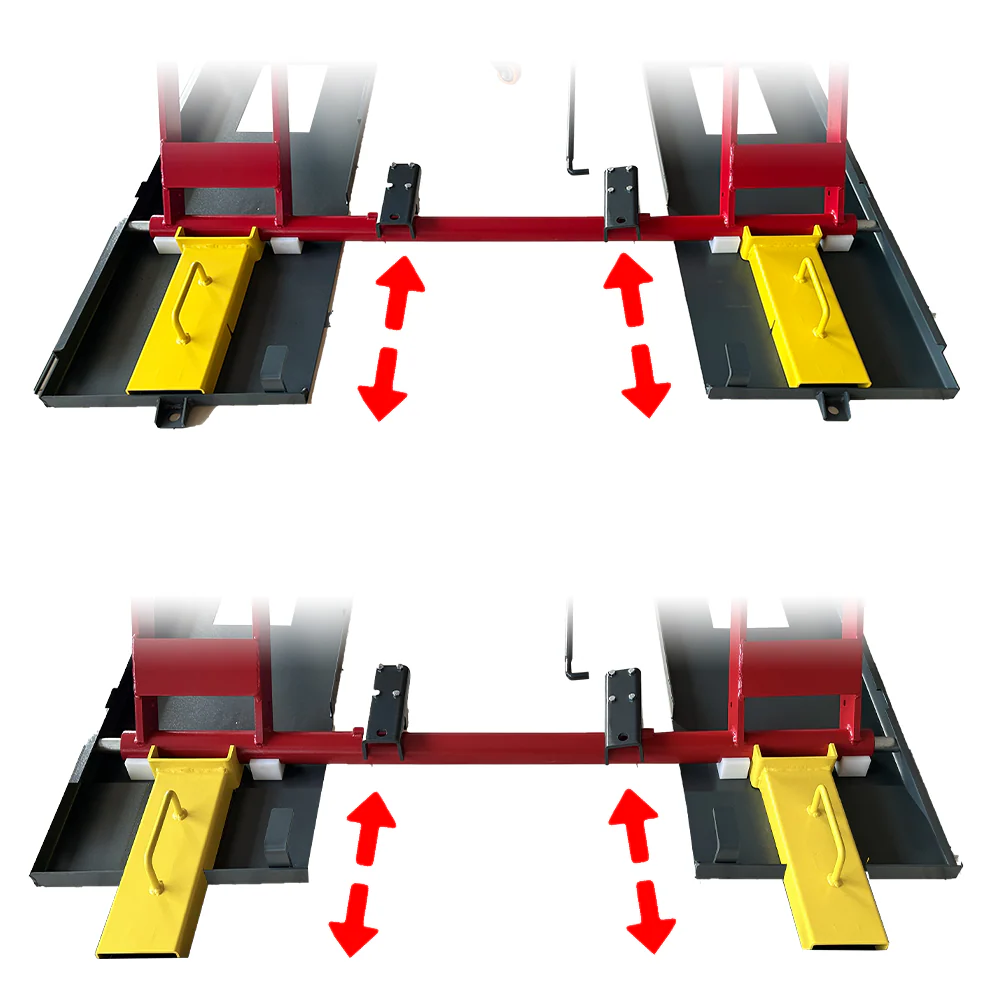

  • Katool KT-X77 drive-on scissor lift platform with yellow ramps and lifting arrows

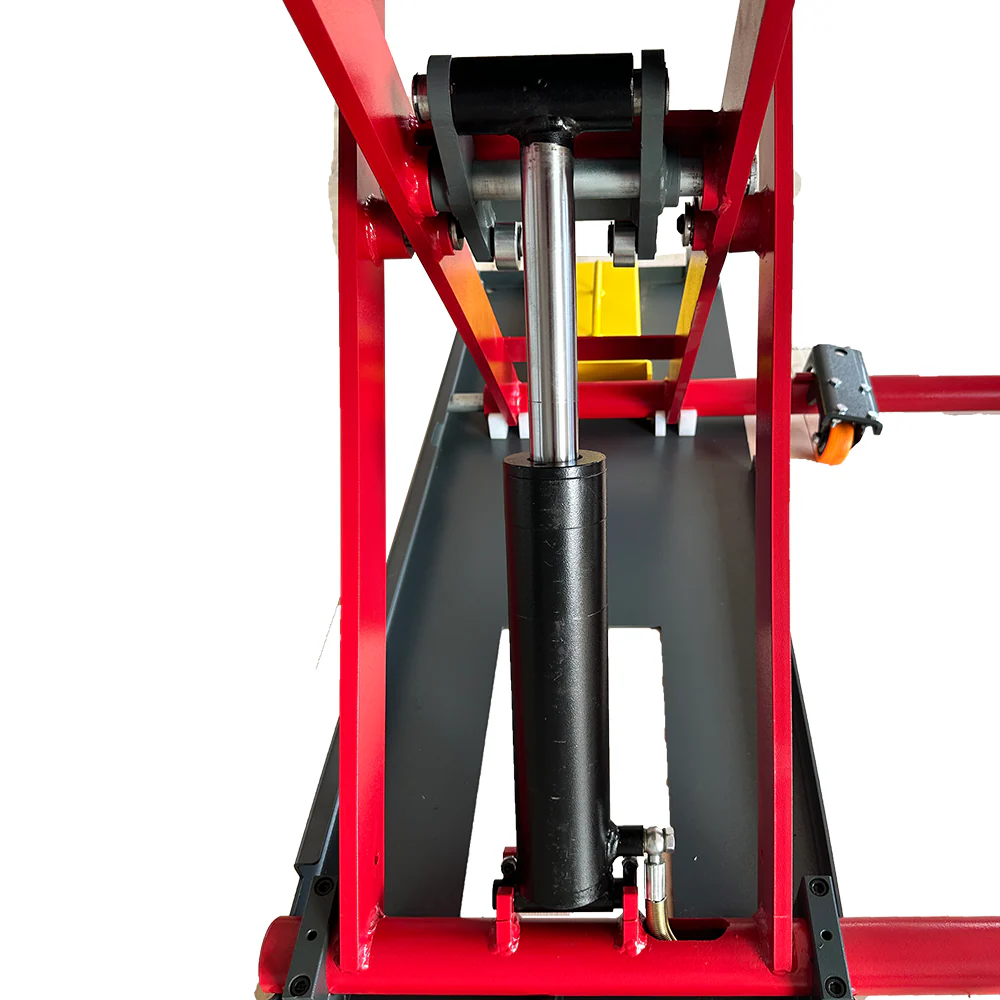

  • Katool KT-X77 scissor lift hydraulic cylinder and metal lift mechanism

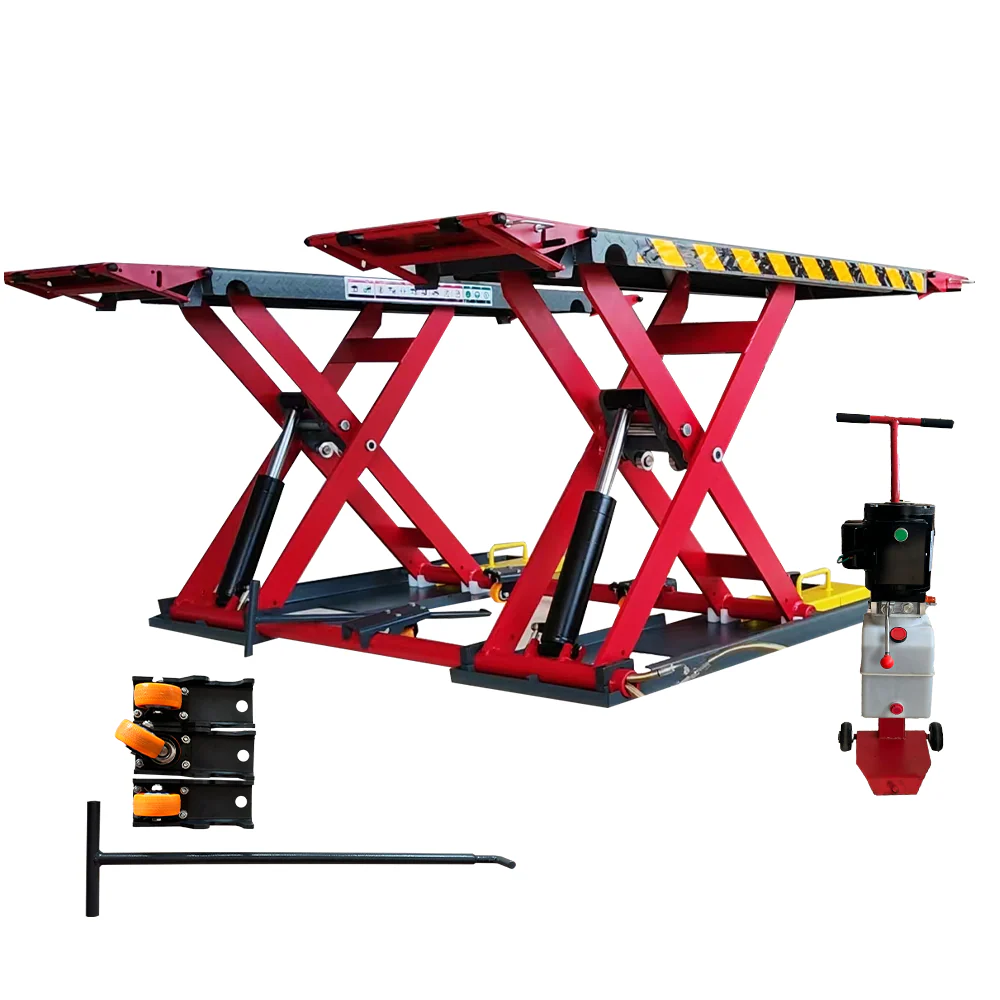

  • Katool KT-X77 mid-rise scissor lift with deck, red scissors frame, and pump controls

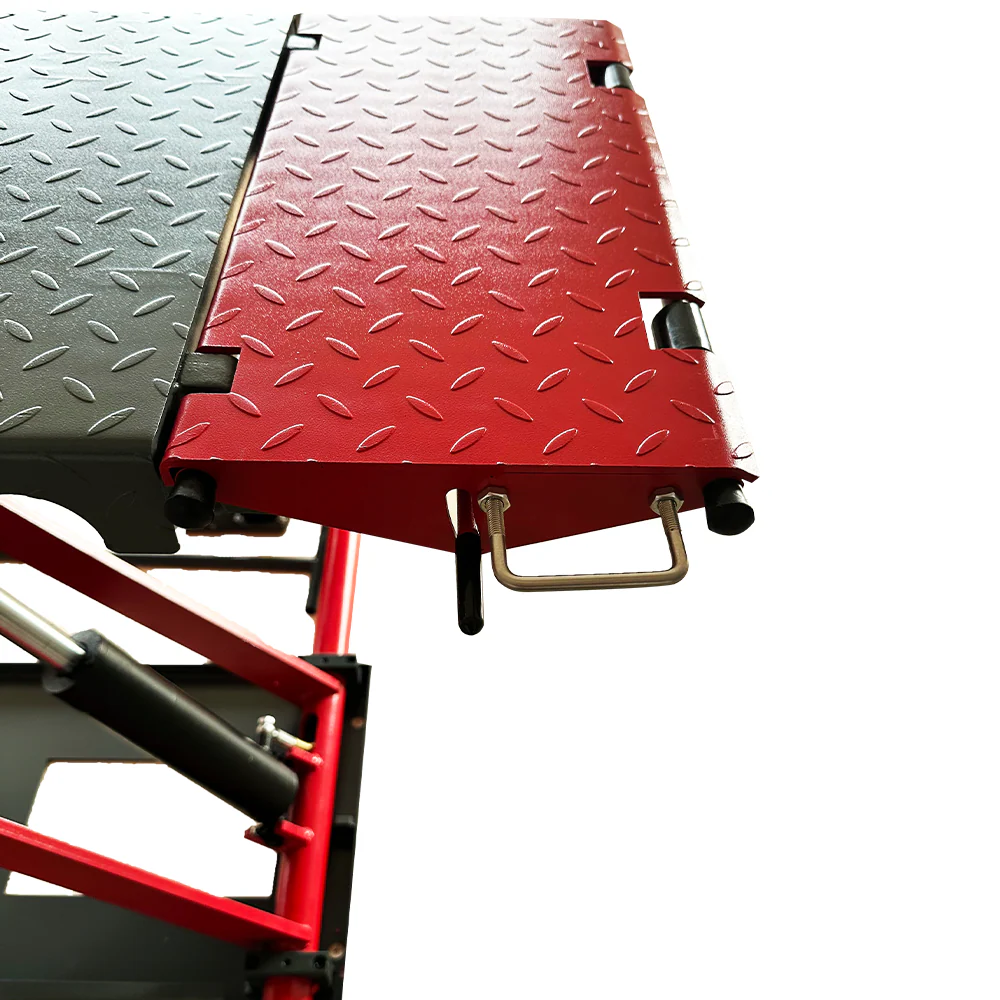

  • Katool KT-X77 scissor lift textured red platform plate with corner mounting hardware

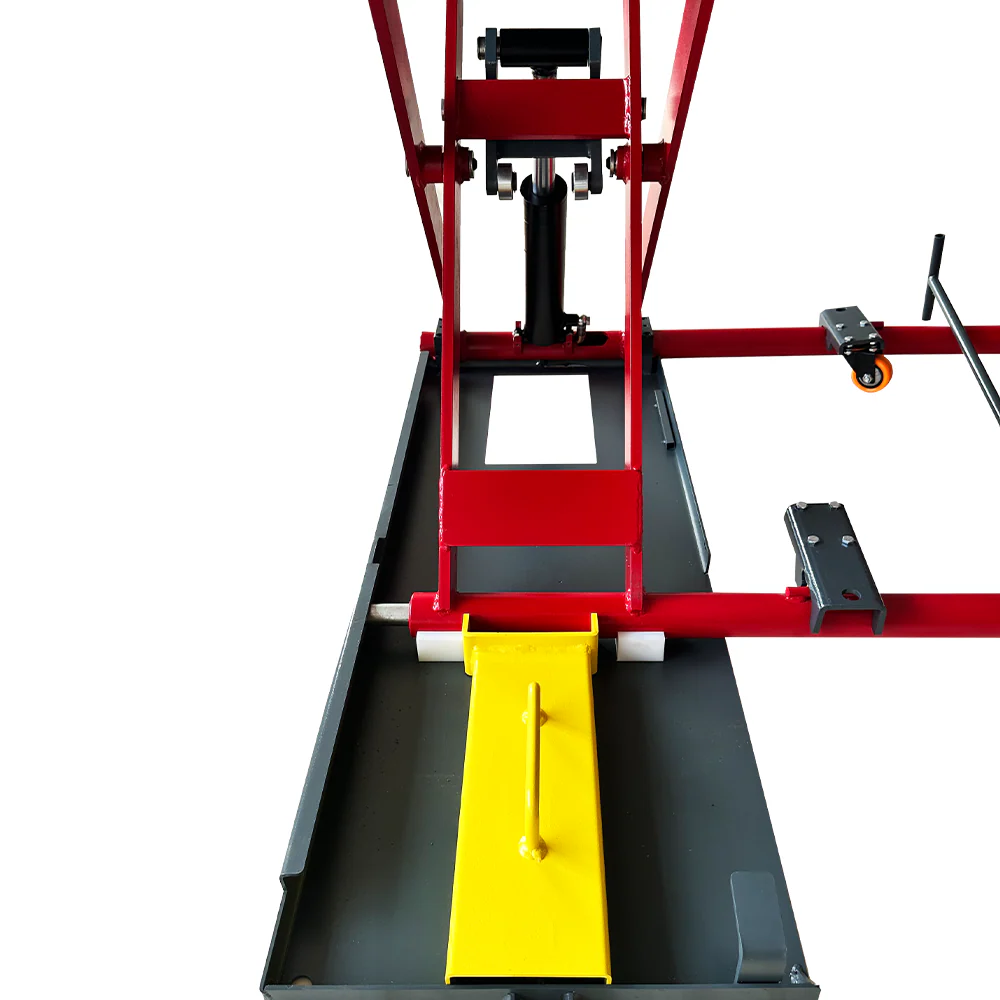

  • Katool KT-X77 drive-on scissor lift base with black deck and yellow center ramp

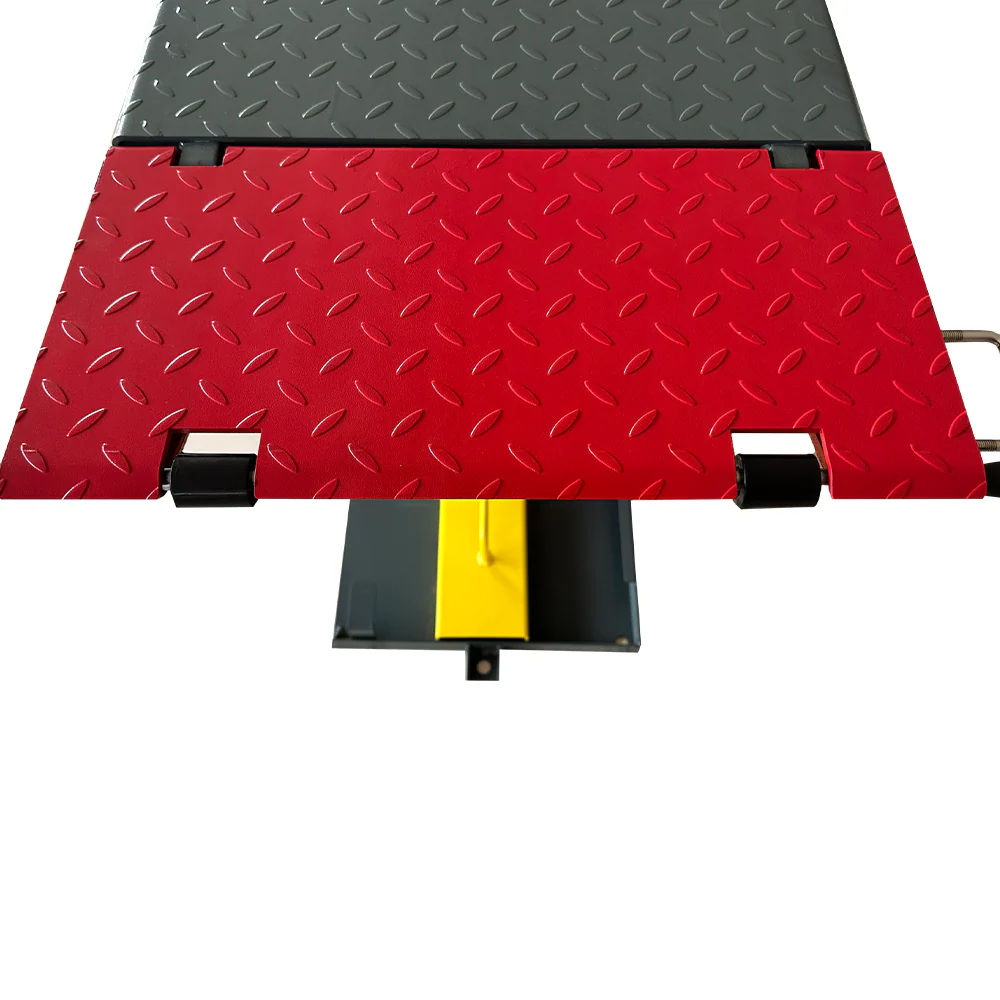

  • Katool KT-X77 scissor lift top plate with red textured surface and black support wheels

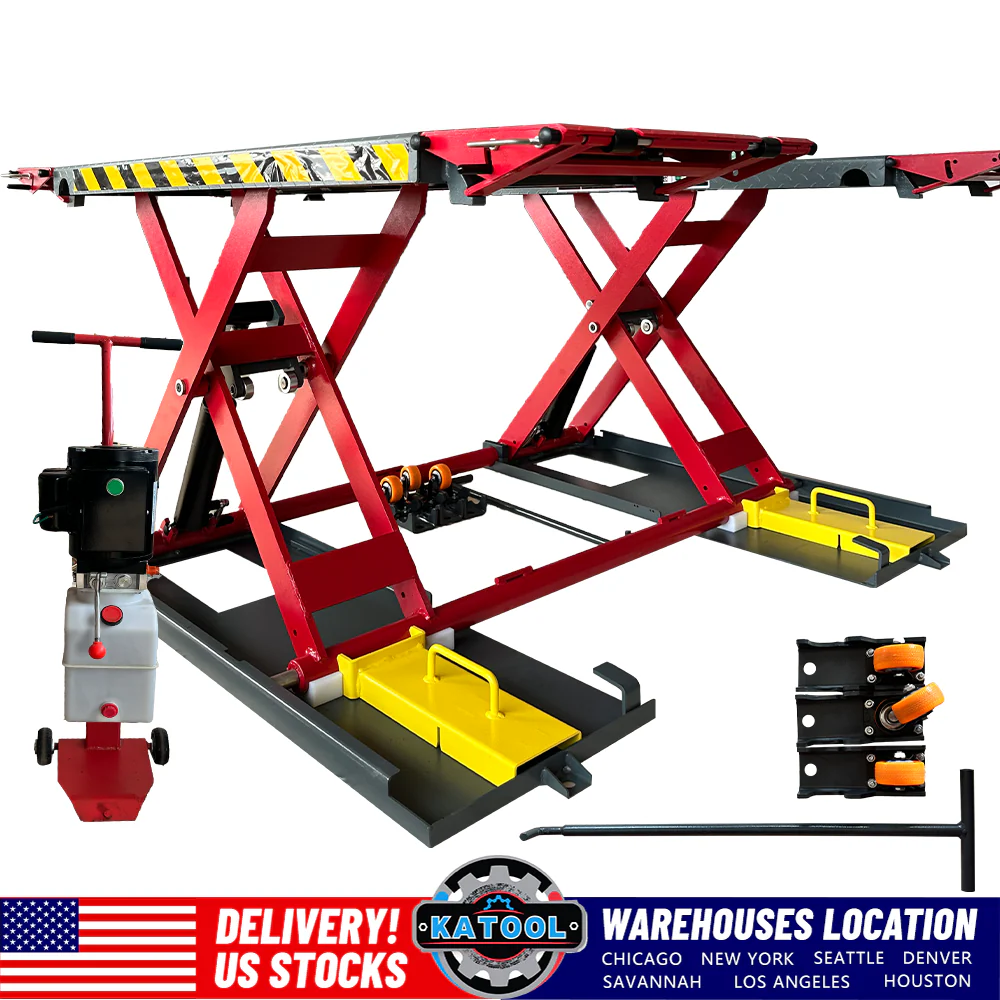

  • Katool KT-X77 scissor lift side view with yellow safety ramps and control console
Katool KT-X77 7,000 lb Mid-Rise Scissor Lift - Drive-On - CE Approved

Katool KT-X77 7,000 lb Mid-Rise Scissor Lift - Drive-On - CE Approved

$1,899.00

🚚 Delivery option includes free freight to the lower 48 states.

Delivery Options

Shop Pay Installments

Split your purchase into flexible installment payments with Shop Pay. Pay over time with no hidden fees.

How it works:

  • Choose Shop Pay at checkout
  • Select your preferred payment plan
  • Make your first payment today
  • Pay the rest over time with automatic payments

No interest. No hidden fees. Just flexible payments that work for you.

🇺🇸 US-Based Business: Unlike big out-of-state sellers, we offer specialized support and $0 Sales Tax outside Illinois.

💰
Tax-Free Outside IL
🚚
Free Freight Lower 48 States
🛡️
1-Yr Warranty Full Parts Support
🔬
Safety Tested Load & Function Tested
📍
Local Pickup Nationwide Save up to $1,400 in freight costs
Learn More >
Katool scissor lift support bar kit with orange bar and black mounting pads

Katool KT-XS1 Scissor Lift Support Bar Kit - Narrow Frame Vehicles

$649.00
+ shipping if applicable
Tire changer with red-and-black wheel clamp and upright bead-breaking arm

Katool KT-T800 Tire Changer - Wheel Clamp - 2.0HP Motor - Professional Grade

$1,199.00
+ shipping if applicable
Red and black tire wheel balancer with computer display and hinged hood

Katool KT-B750 Professional Wheel Balancer - Tire Balancing Machine

$1,490.00
+ shipping if applicable
Red tire changer and wheel balancer combo with mounted wheel and control console

Katool KT-T800 + KT-B700 Tire Changer & Wheel Balancer Combo - Complete Set

$1,799.00
+ shipping if applicable
Warranty

Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge. A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.

  • Covers: Cylinders, power units, motors, displays, electronics, etc.
  • Vehicle lifts include an additional 3-year (36 months) warranty on structural components.
  • Claims must fall within the warranty period and require the original order number.
  • Replacement parts provided at no cost, including free shipping.
  • Labor is not included in the warranty.
Shipping

Free freight shipping to the contiguous 48 US states. Estimated delivery: 6–10 business days. Curbside delivery only — forklift or pallet jack required. Carrier will call 24–48 hrs before delivery. View full Shipping & Delivery details →

⚠️ Safety Warning

Contact with line power voltages can cause death or serious injury.

  • Do not operate equipment with a damaged power cord.
  • If an extension cord is necessary, use one with a current rating equal to or greater than the equipment.
  • Do not expose the equipment to rain or wet environment.
  • Make sure to connect the unit with proper electrical power.
  • Use a certified electrician to connect the electrical power.
  • Do not remove or bypass grounding pin.
  • Only qualified service personnel should service this equipment.
  • Disconnect power to the unit before servicing.

Contact with moving parts could cause injury.

  • Keep hands and other body parts away from moving surfaces.
  • Do not bypass any safety features.
  • During lifting and lowering, stay clear of moving parts — confirm no one is in the hazardous area before lifting.
  • When platform height is less than 1.75 meters, avoid hitting your head when entering.
  • An improper docking, improperly parked vehicle, or oversized vehicle can cause the vehicle to fall at risk.
  • Do not stand or sit on the lift platform during lifting operation.

Debris, dirt, and fluids can cause serious eye injury.

  • Wear approved safety glasses during mount and demount procedures.
  • Lubricating oil around the lift can cause slip risks — keep the area clean and promptly clean up oil spills.

Tools that break or slip can cause injury.

  • Read and understand the operation instructions before using the equipment.
  • Frequently inspect, clean, and lubricate (if recommended) where designated.

The KT-X77 is Katool's workhorse mid-rise scissor lift, built for shops that need reliability and speed. At 7,000 lbs and CE Approved, it handles the full range of passenger vehicles and light trucks. The pneumatic locking system provides rock-solid stability at any height, while the 24V safe control system protects both operator and vehicle. Drive-up ramps with extensions make vehicle loading fast and safe.

  • 7,000 lbs lifting capacity
  • CE Approved — 115% dynamic and 150% static load tested
  • Pneumatic locking system for maximum safety
  • 24V safe control system
  • Mobile or fixed mount options
  • Self-lubricated bushings & bearings
  • Drive-up ramps with extension included
  • Composite rubber lifting blocks
  • 110V/220V dual-voltage motor
KT-X66 KT-X77 KT-X80 KT-X85 KT-X90E KT-X95 KT-X99
Lift Type Mid-Rise Mid-Rise Mid-Rise Mid-Rise Full-Rise In-Ground Full-Rise Full-Rise
Lifting Capacity 6,600 lbs 7,700 lbs 8,000 lbs 8,000 lbs 8,000 lbs 7,716 lbs 7,716 lbs
Max Lift Height 40" 40" 40" 40" 76" 74.8" 70.9"
Power Source Pneumatic Pneumatic Pneumatic Electric Electric Electric Pneumatic
Installation Surface Surface Surface Surface Surface In-Ground Surface
CE Approved ✓ ✓ ✓ ✓ ✓ ✓ ✓
Portable Kit ✓ ✓ ✓ ✓ — — —
  • Lifting Capacity: 7,000 lbs (3,200 kg)
  • Max. Lifting Height: 39.37" (1,000 mm)
  • Min. Height: 4.25" (110 mm)
  • Lifting Time: ≤30 seconds
  • Lowering Time: ≥45 seconds
  • Overall Width: 72.83" (1,850 mm)
  • Platform Width: 20.87" (530 mm)
  • Platform Length: 74.8"–81.5" (1,900–2,070 mm)
  • Platform Spacing: 31.1" (790 mm)
  • Air Pressure Required: 85–120 psi (6–8 bar)
  • Motor: 110V/220V, 60Hz, 1Ph, 3.0HP (2.2KW)
  • Material: Q235 and Q245 Steel
  • Net Weight: 1,059 lbs (480 kg) + pump 133 lbs (60 kg)
  • Noise Level: ≤75dB(A)
  • Safety Certifications: CE Approved (115% dynamic / 150% static load tested)

This professional-grade mid-rise scissor lift delivers 7,000 lbs of lifting capacity with a fast 30-second lift time, making it ideal for high-volume auto shops and professional mechanics. CE approved and tested to 115% dynamic and 150% static loading capacity. The pneumatic locking system engages automatically for maximum safety. Self-lubricated bushings and bearings minimize maintenance. Available in mobile or fixed-mount configurations to suit any shop layout.

Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge. A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.

  • Covers: Cylinders, power units, motors, displays, electronics, etc.
  • Vehicle lifts include an additional 3-year (36 months) warranty on structural components.
  • Claims must fall within the warranty period and require the original order number.
  • Replacement parts provided at no cost, including free shipping.
  • Labor is not included in the warranty.
  • Professional Auto Shops: 7,000 lb capacity handles most cars, SUVs, and light trucks
  • Oil Changes & Brake Work: Drive-on design for fast vehicle positioning
  • Suspension & Exhaust Service: 39" max height gives excellent undercarriage access
  • Mobile or Fixed Use: Optional mobile kit for flexible shop layouts
  • High-Volume Shops: Fast 30-second lift time keeps bays moving

Katool manufactures its scissor lifts to rigorous industrial standards using Q235 and Q245 high-strength steel construction. Every KT-X77 unit is CE approved and load-tested to ensure consistent quality and long-term reliability in professional workshop environments.

The KT-X77 ships via freight carrier in 2 packages. Delivery typically takes 6–10 business days after order processing. Freight shipping is included in the product price. A liftgate or forklift is recommended for unloading — please select your preferred delivery option at checkout.

Package Size

L x W x H (in) 78 x 66 x 11 / 29 x 14 x 15
Weight (lbs) 1155

Product Manual

Download the complete product manual and installation guide.
Download Manual

Complete Your Shop Setup

Everything a professional tire shop needs
Tire Service Packages Collection Banner

Tire Service Packages

2-Post Lifts Category Image

2-Post Lift

4-Post Lifts Category Image

4-Post Lifts

Tire Changer

Tire Changer

Wheel Balancer

Wheel Balancer

Shop Accessories Collection Banner

Shop Accessories

Frequently Asked Questions

  • The KT-X77 has a maximum lifting capacity of 7,700 lbs (3,500 kg), suitable for most passenger cars, SUVs, and light trucks.
  • The KT-X77 is a portable mid-rise scissor lift designed for surface-mounted use. No pit excavation required — it sits on your shop floor and can be repositioned as needed.
  • Yes, the KT-X77 is pneumatic-hydraulic powered and requires an air compressor with 87–116 psi (6–8 bar) output.
  • Yes, the KT-X77 is CE approved and meets international safety standards for professional automotive workshop equipment.
  • The package includes the scissor lift unit, hydraulic power unit, drive-up ramps with extensions, safety locks, rubber lifting blocks, portable mobile kit, and all necessary hardware.
  • The KT-X77 is portable and requires no permanent installation. Simply position the lift, connect to your air compressor, and it is ready to use.
  • The KT-X77 ships in 2 packages with a total net weight of 1,433 lbs (650 kg). Overall platform width is 76.77" (1,950 mm).
  • Yes, the KT-X77 comes with a limited one-year (12 months) manufacturer warranty on all parts and defects, free of charge. A 2-year extended warranty plan is also available.
