Katool KT-X66 6,600 lb Mid-Rise Scissor Lift - Portable

Commercial Delivery (Forklift Available)
$2,399.00
Skip to product information
Portable scissor lift with red steel frame, black platform, and two lifting posts
1/16

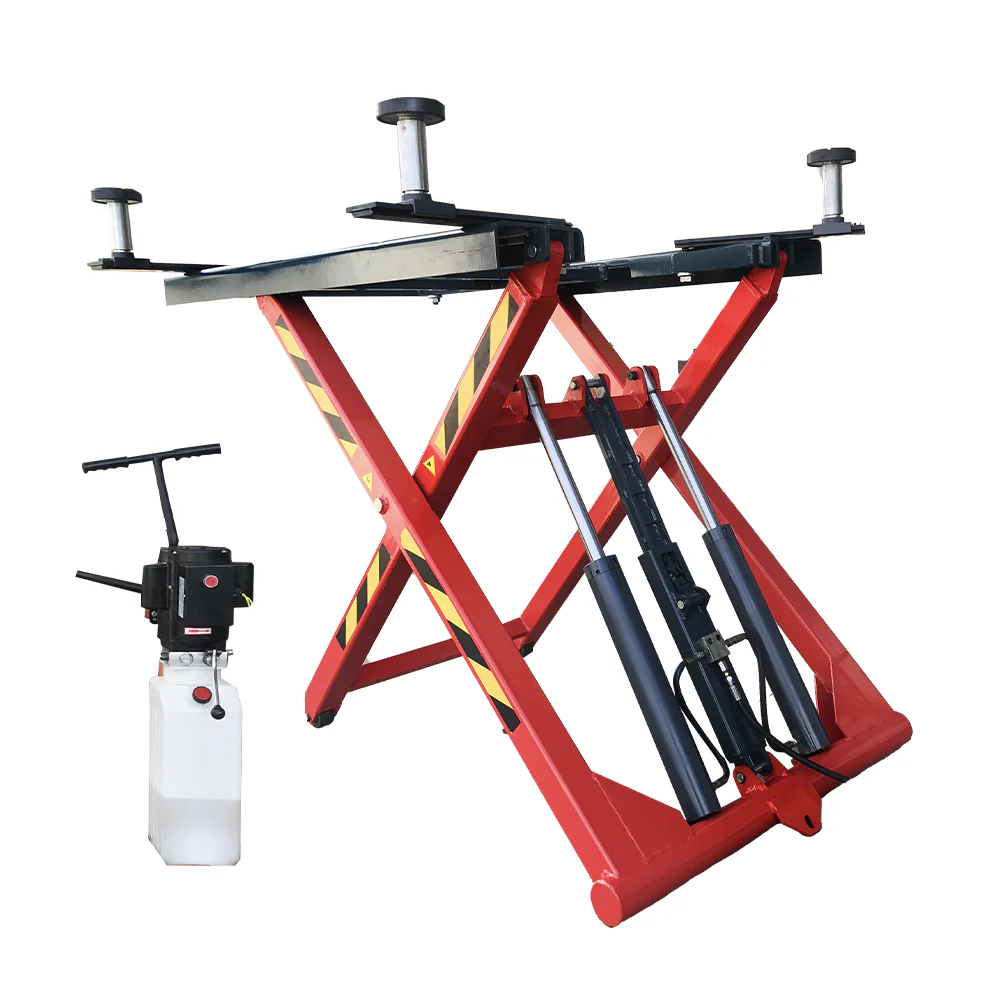

  • Portable scissor lift with red steel frame, black platform, and two lifting posts

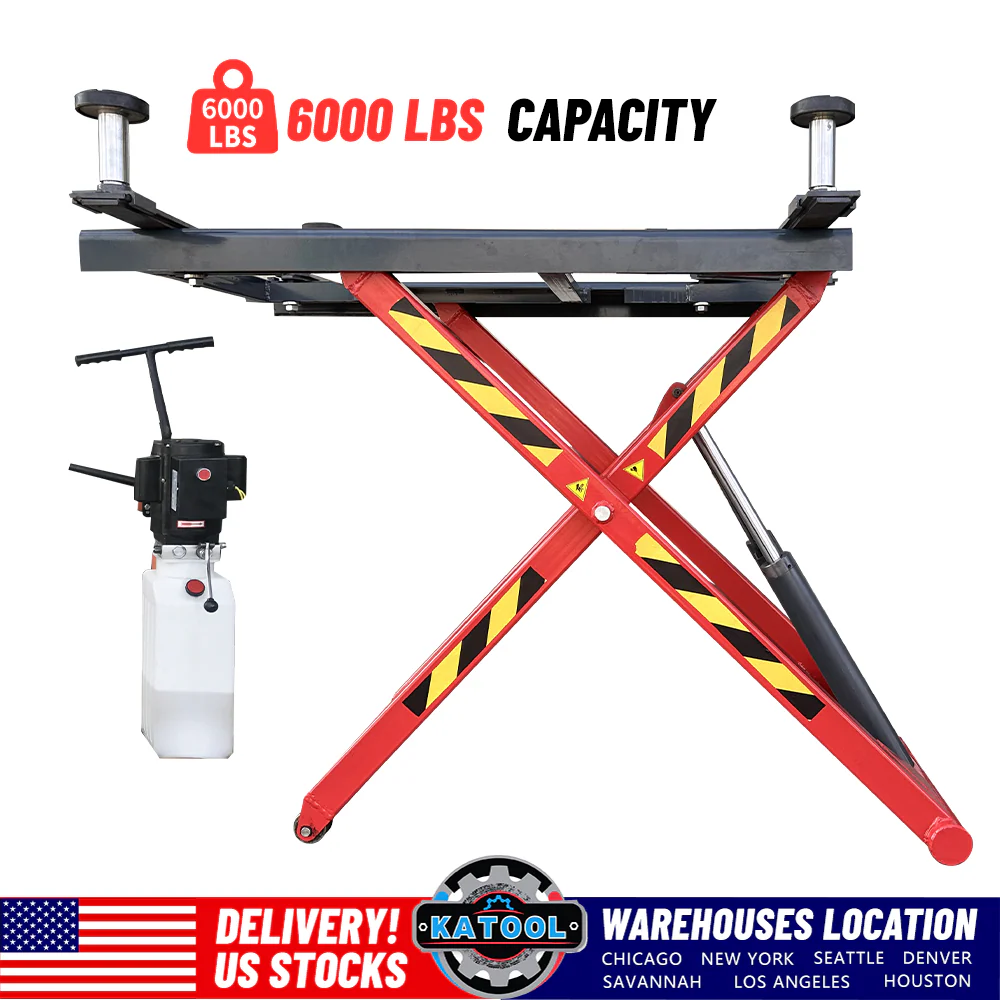

  • Mid-rise scissor lift with red X-frame, black base platform, and four lift pads

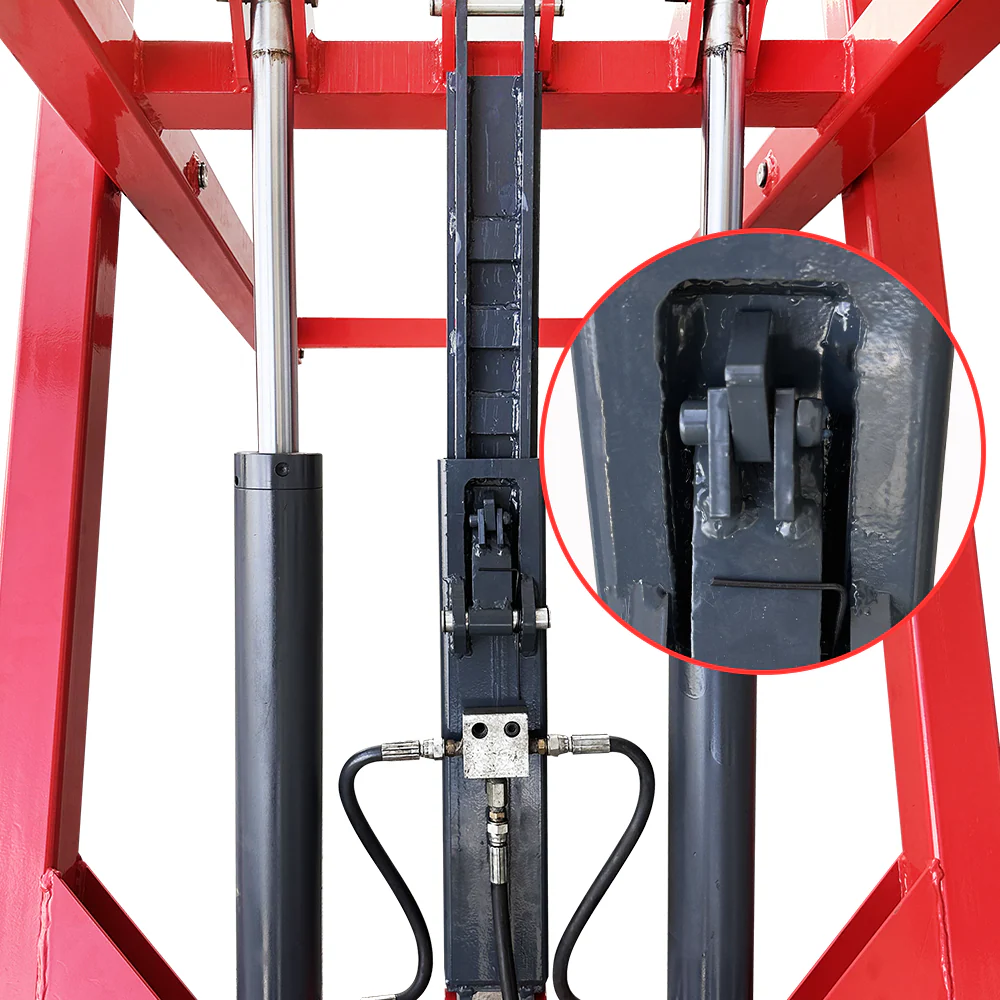

  • Hydraulic lift cylinder and black valve assembly on a red scissor lift frame

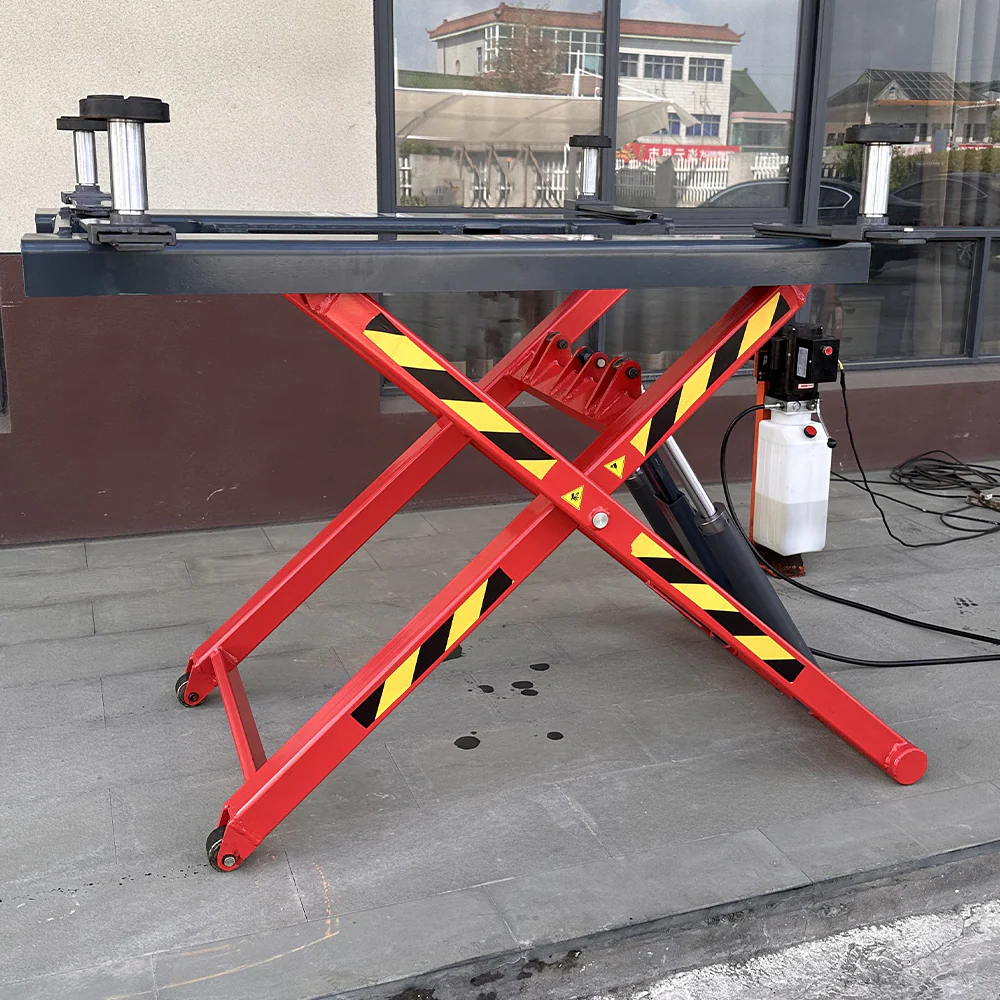

  • Red scissor lift base with black platform and yellow hazard stripe cross braces

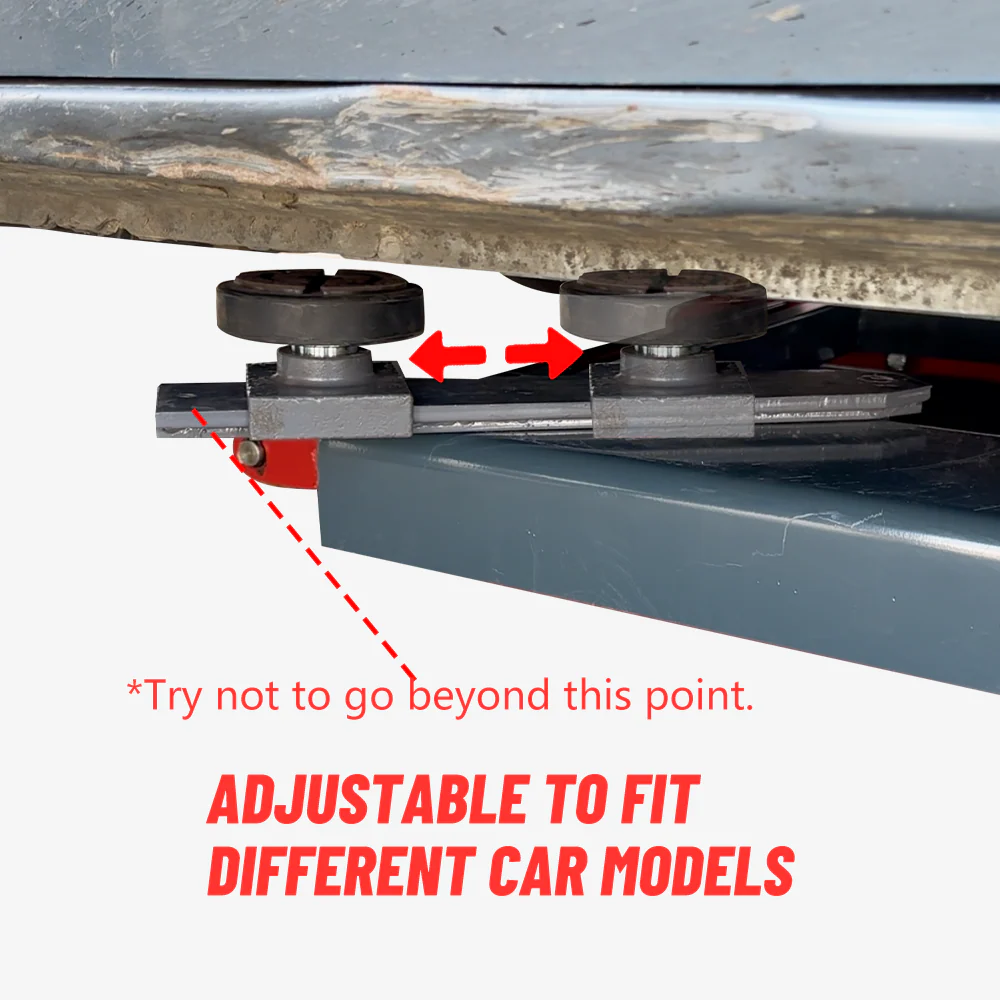

  • Adjustable vehicle contact rollers on a dark base beam under a lift platform

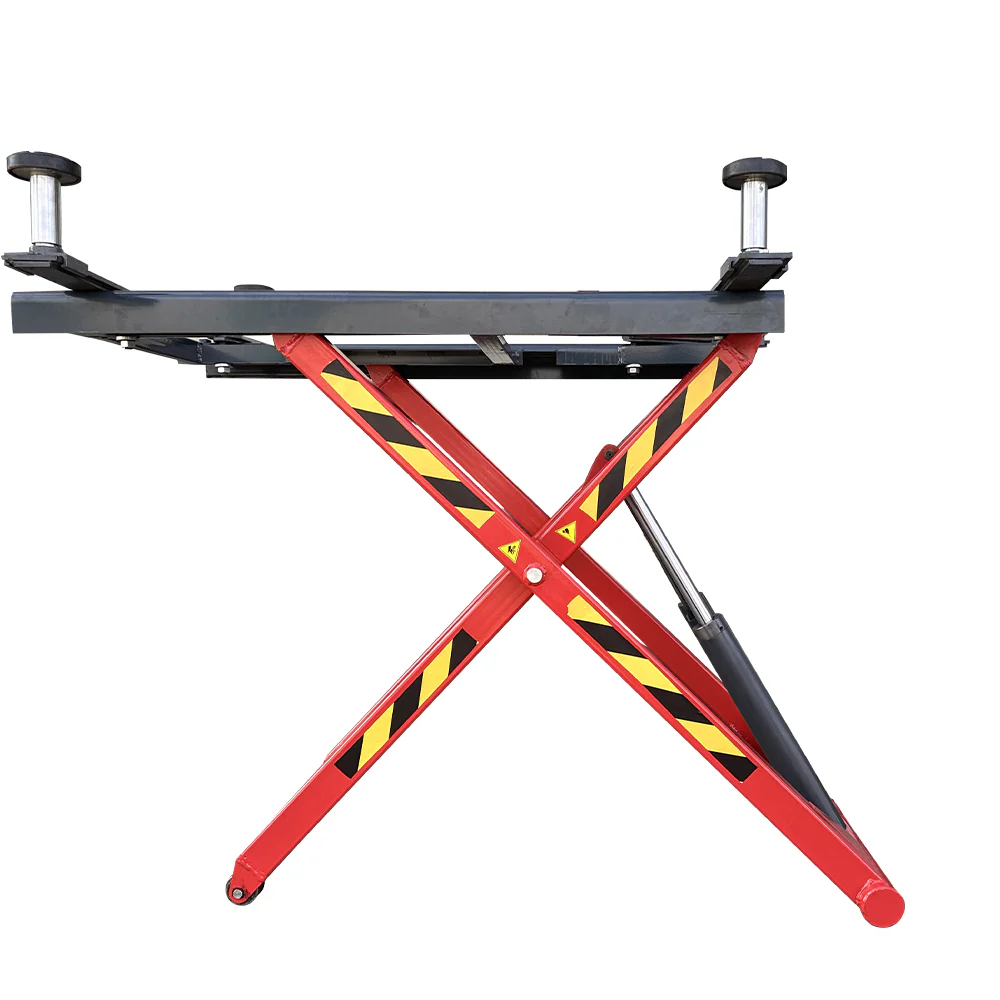

  • Scissor lift platform with two top lift posts and red cross-brace underframe

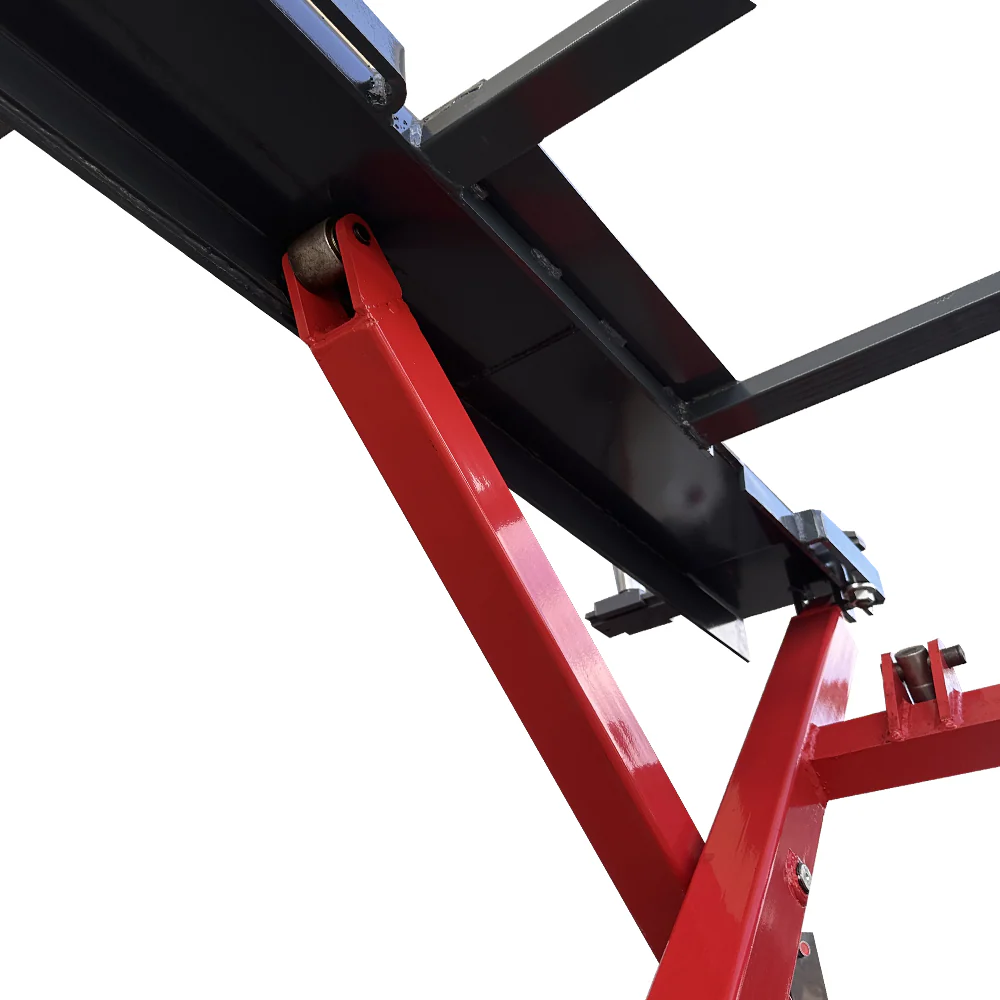

  • Close-up of red and black scissor lift linkage and mounting bracket under the platform

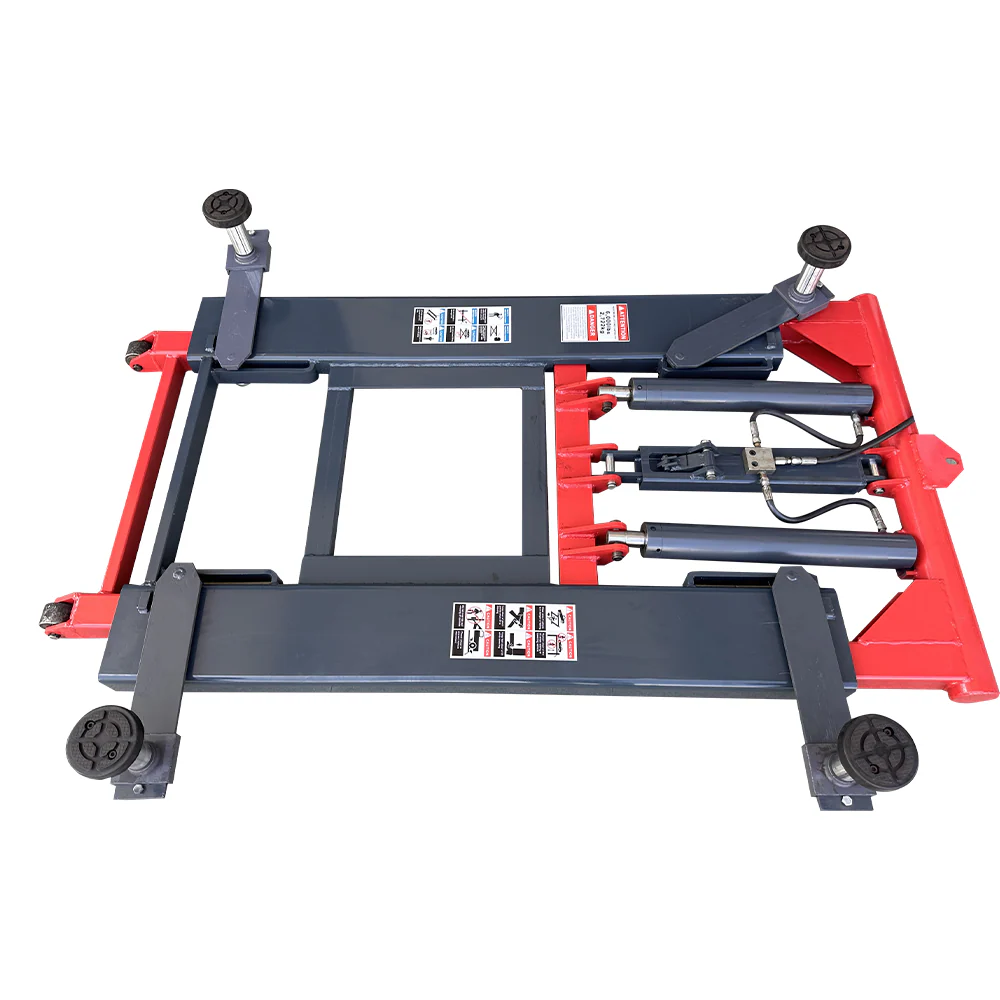

  • Complete scissor lift with four caster feet, black base, and red frame rails

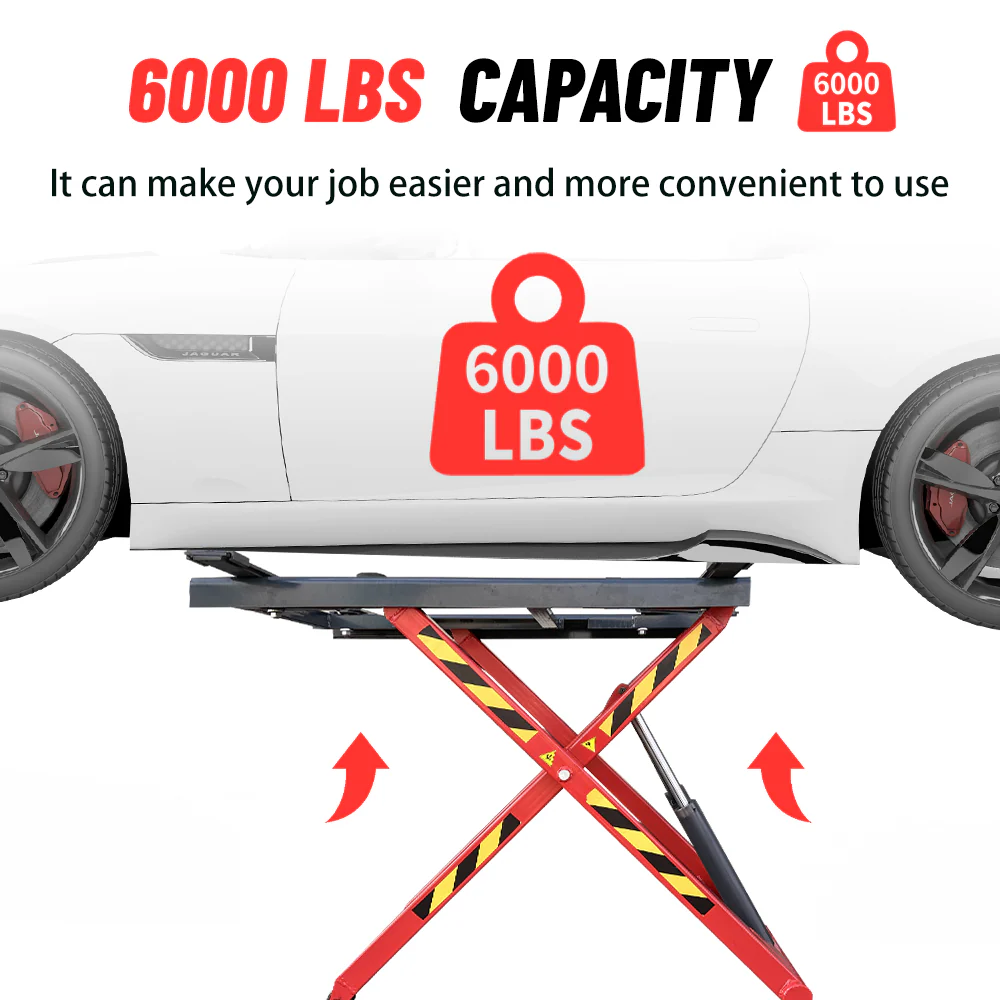

  • Scissor lift positioned under a white car with lift platform centered beneath

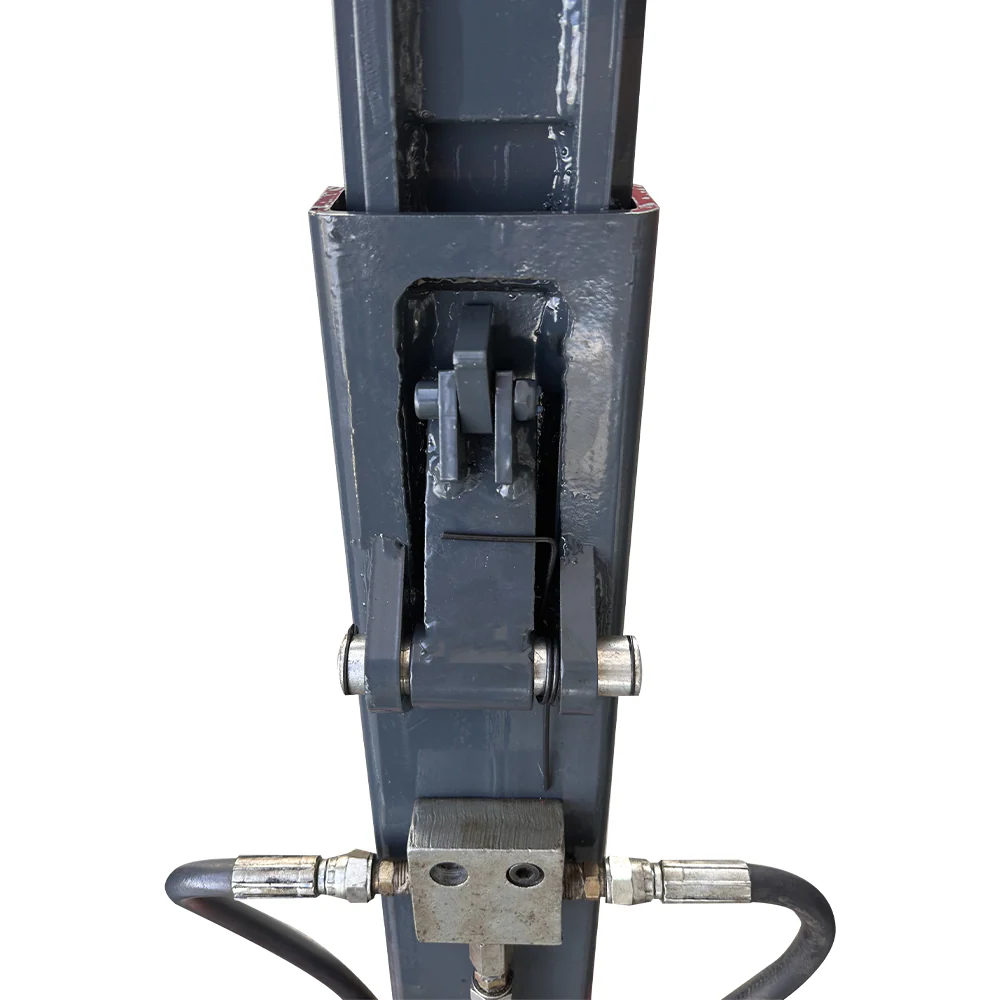

  • Close-up of hydraulic actuator and guide bracket on the scissor lift post

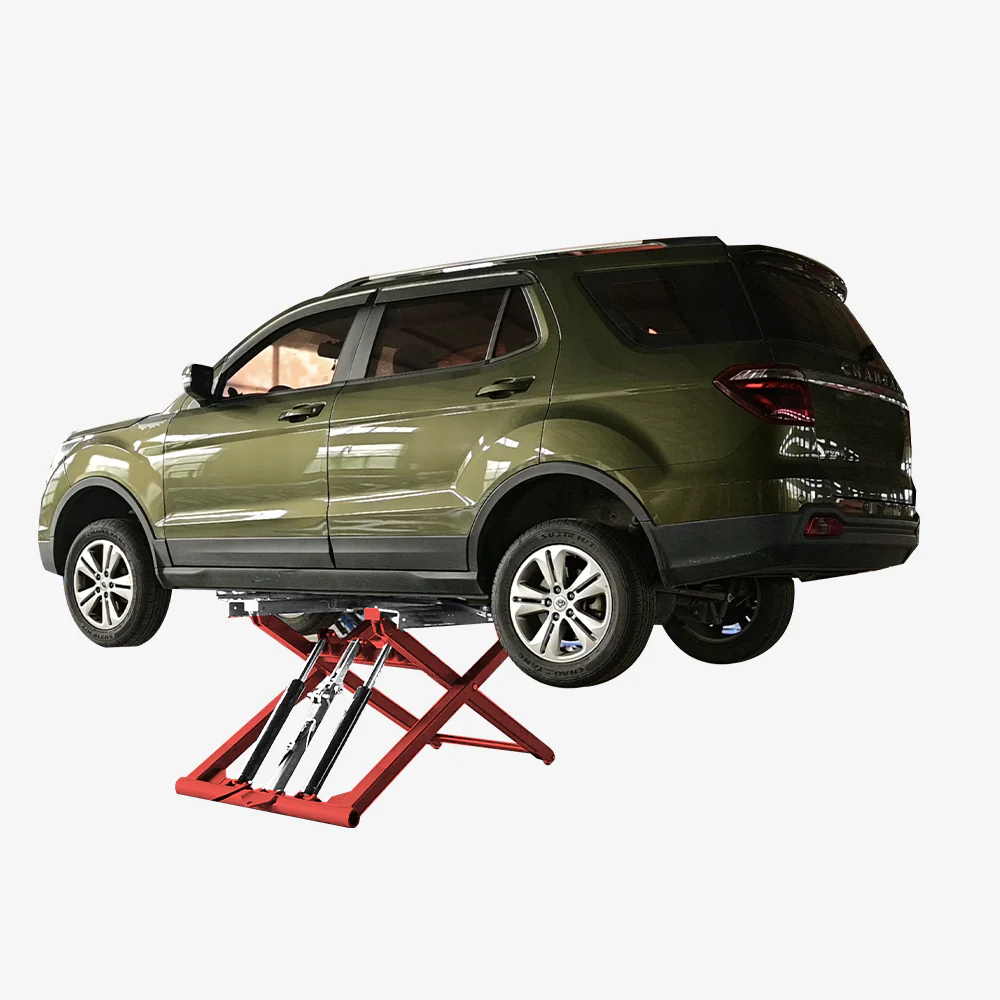

  • Portable scissor car lift with red frame and raised platform under an olive SUV

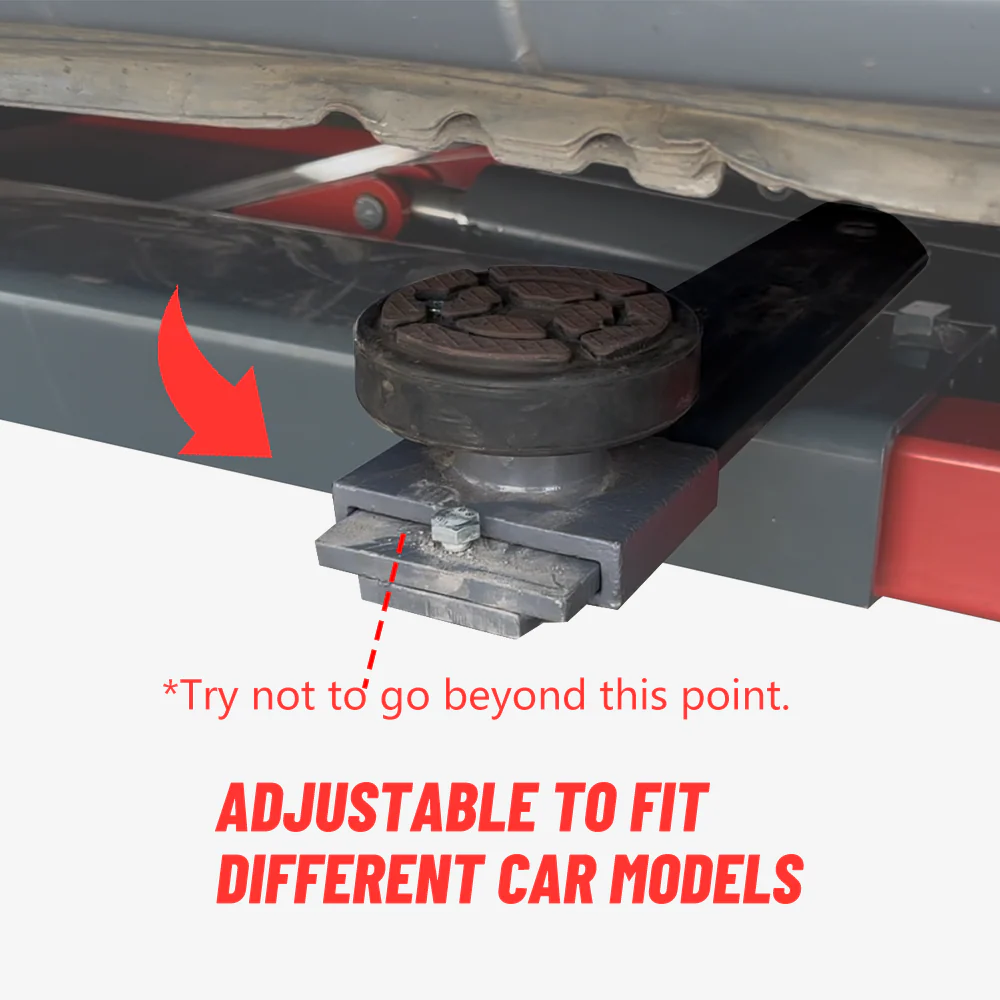

  • Adjustable lift pad and support plate with black rubber base on scissor lift platform

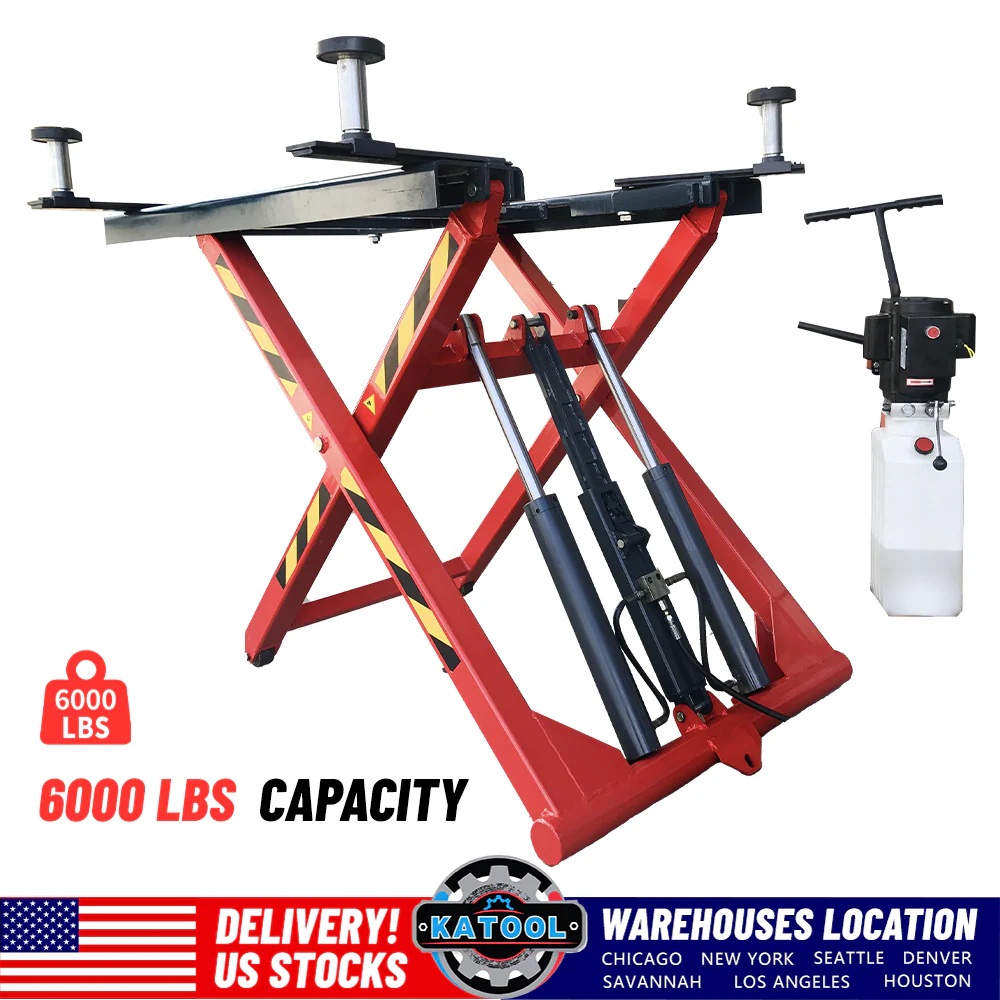

  • Red and black scissor car lift with platform, hydraulic post, and four lift points

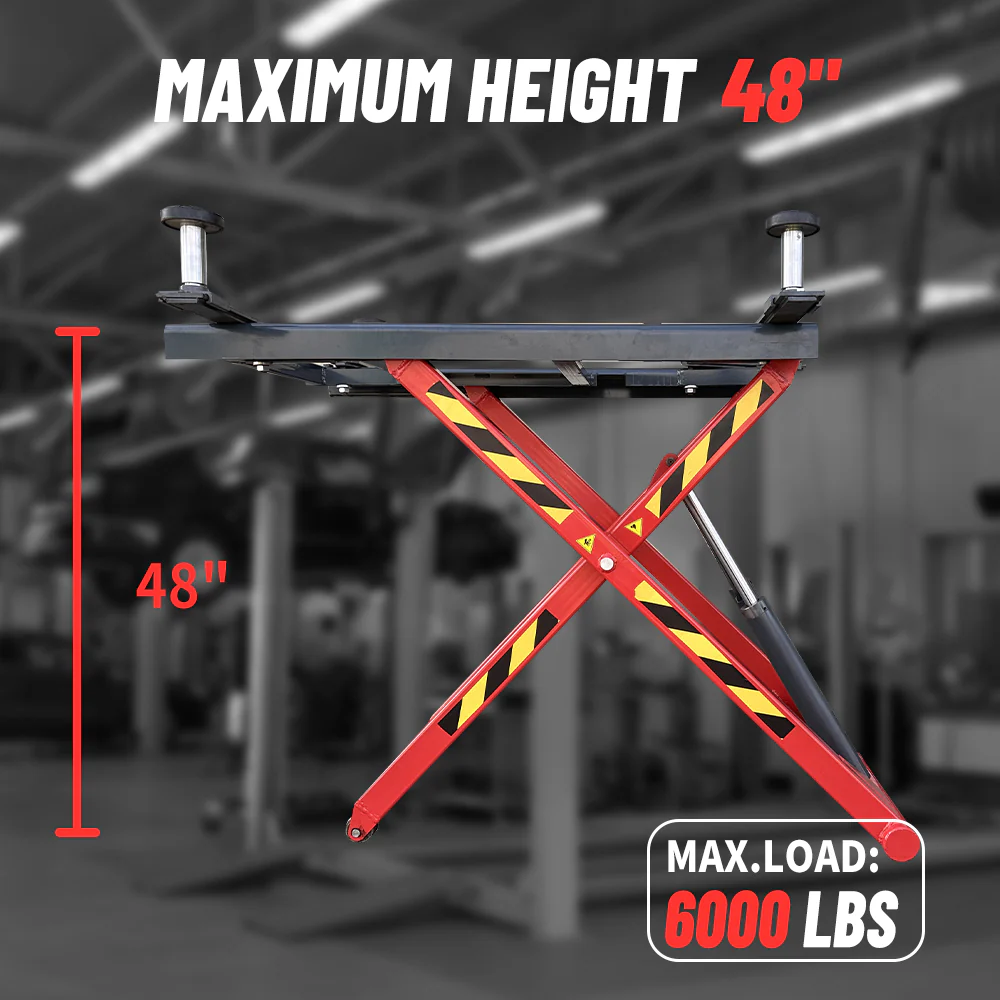

  • Scissor car lift with red cross-brace arms and raised steel platform

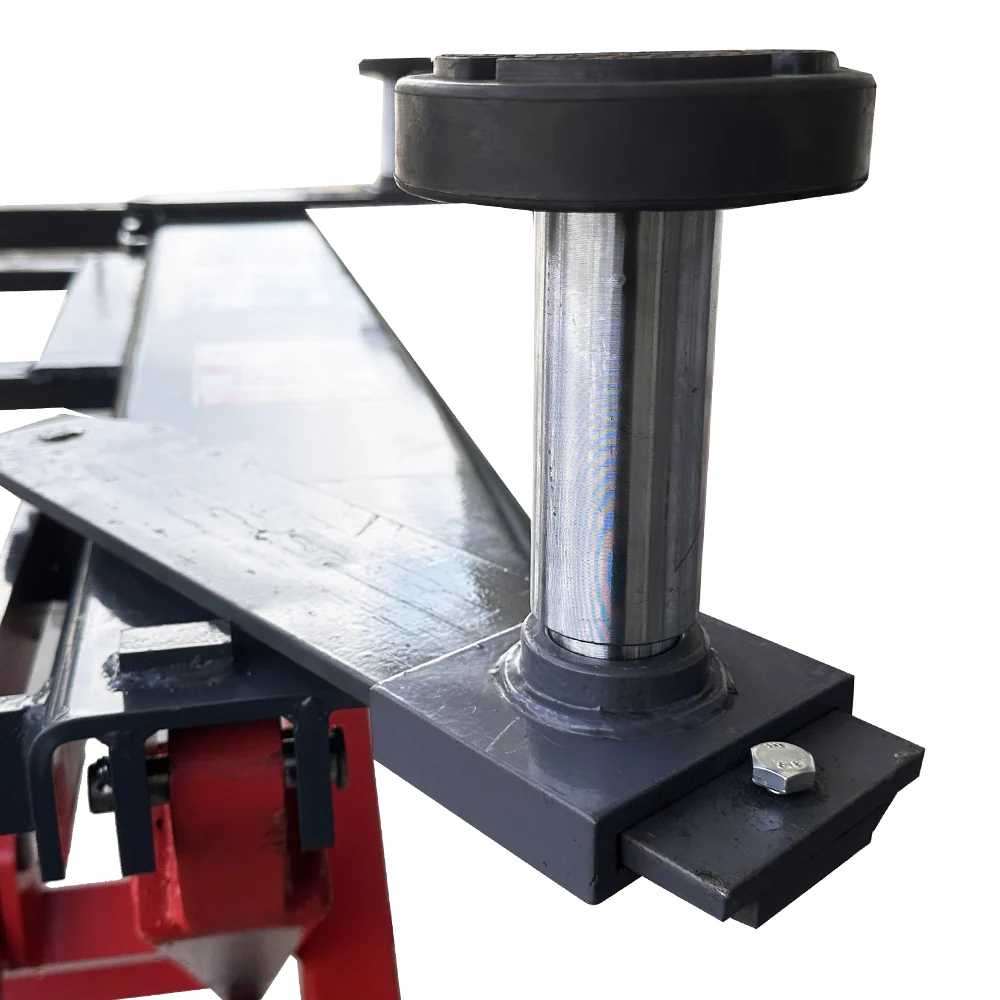

  • Scissor lift lift post and round black support pad on steel base plate

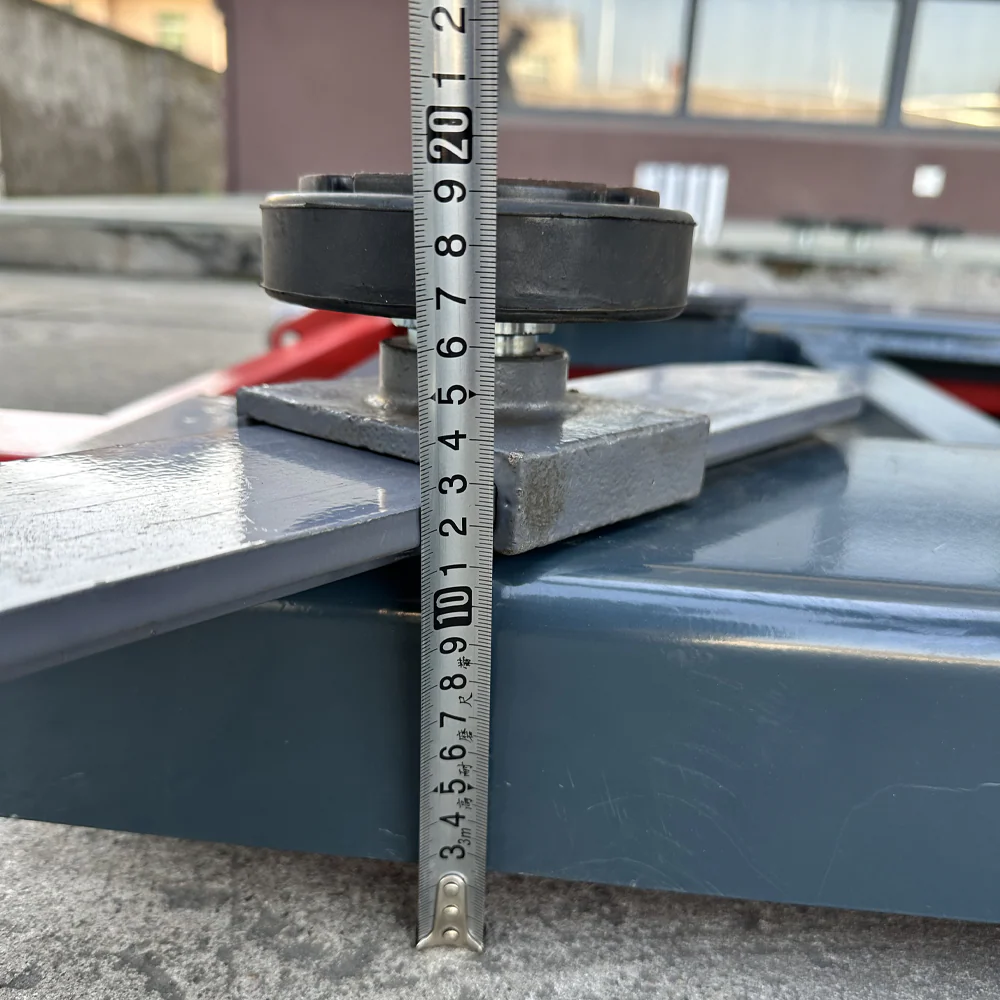

  • Height measurement on scissor lift platform with ruler and black rubber pad
Katool KT-X66 6,600 lb Mid-Rise Scissor Lift - Portable

Katool KT-X66 6,600 lb Mid-Rise Scissor Lift - Portable

$2,399.00

Shop Pay Installments

Eligible customers can split their purchase into payments with Shop Pay. Available plans and terms are shown at checkout.

How it works:

  • Choose Shop Pay at checkout
  • Select your preferred payment plan
  • Review the payment schedule and any down payment at checkout
  • Pay the rest over time with automatic payments

Payment options are subject to eligibility. Interest may apply. Review your rate, payment schedule, and total cost before completing your purchase.

🚚 Shipping availability and rates vary by product, delivery option, and destination.

Delivery Options
Free warehouse pickup · Confirm first Ask us to confirm stock and the supplier pickup location before ordering. No same-day pickup or handling fee. Contact us to arrange pickup →
Carrier Terminal Pickup: Bring a suitable vehicle or trailer. The terminal will load the shipment, but the customer is responsible for unloading at the final destination.
⚠️ Warehouse Pickup – Please Contact Us First. Due to varying inventory across our warehouse locations, please contact us before placing your order to confirm stock availability at your preferred location.
Contact Us to Check Availability

Adds 24 months after the standard parts warranty ends. Parts only; labor is not included. One plan per machine.

View coverage and terms

🇺🇸 US-Based Business: We offer specialized support and flexible shipping and delivery options.

🏭
Expert SupportUS-Based Team
🚚
Shipping OptionsVary by Product & Destination
🛡️
Manufacturer WarrantySee Product Terms
🔬
Product SupportContact ALLIZOE
📍
Pickup Options May Be AvailableContact us to confirm location & availability
Learn More >
Warranty

Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge. Optional extended parts coverage is offered only when an enabled add-on is shown for this eligible main machine. If purchased, it adds 24 months after the standard parts warranty ends. Parts only; labor is not included, and the structural warranty is not extended.

  • Covers: Cylinders, power units, motors, displays, electronics, etc.
  • Standard manufacturer structural warranty: 3 years on structural components.
  • Claims must fall within the warranty period and require the original order number.
  • Replacement parts provided at no cost, including free shipping.
  • Labor is not included in the warranty.
Shipping

Shipping availability, charges and estimated timing vary by product, delivery option and destination. Review the selected option and confirm any unloading equipment or delivery services required before ordering. Warehouse pickup requires stock and location confirmation, an appointment and written pickup authorization; no same-day pickup. Pickup has no shipping or handling fee. View full Shipping & Delivery details →

⚠️ Safety Warning

Contact with line power voltages can cause death or serious injury.

  • Do not operate equipment with a damaged power cord.
  • If an extension cord is necessary, use one with a current rating equal to or greater than the equipment.
  • Do not expose the equipment to rain or wet environment.
  • Make sure to connect the unit with proper electrical power.
  • Use a certified electrician to connect the electrical power.
  • Do not remove or bypass grounding pin.
  • Only qualified service personnel should service this equipment.
  • Disconnect power to the unit before servicing.

Contact with moving parts could cause injury.

  • Keep hands and other body parts away from moving surfaces.
  • Do not bypass any safety features.
  • During lifting and lowering, stay clear of moving parts — confirm no one is in the hazardous area before lifting.
  • When platform height is less than 1.75 meters, avoid hitting your head when entering.
  • An improper docking, improperly parked vehicle, or oversized vehicle can cause the vehicle to fall at risk.
  • Do not stand or sit on the lift platform during lifting operation.

Debris, dirt, and fluids can cause serious eye injury.

  • Wear approved safety glasses during mount and demount procedures.
  • Lubricating oil around the lift can cause slip risks — keep the area clean and promptly clean up oil spills.

Tools that break or slip can cause injury.

  • Read and understand the operation instructions before using the equipment.
  • Frequently inspect, clean, and lubricate (if recommended) where designated.

Price & Freight — Before Tax

For one machine in its listed standard configuration within the contiguous United States:

  • Warehouse Pickup: $2,399 before tax; no freight or handling fee. Confirm supplier stock, warehouse and pickup appointment with ALLIZOE before ordering. No same-day pickup.
  • Commercial Delivery (Forklift Available): $2,399 product + $300 freight = $2,699 before tax.
  • Commercial Delivery (Liftgate Required): $2,399 product + $400 freight = $2,799 before tax.
  • Residential Delivery (Forklift Available): $2,399 product + $400 freight = $2,799 before tax.
  • Residential Delivery (Liftgate Required): $2,399 product + $500 freight = $2,899 before tax.

Tax and optional accessories or upgrades are additional. The optional $349 extended parts warranty is also additional. Select the option matching your address and unloading equipment. Where a liftgate option is listed, confirm current package weight and dimensions, carrier limits and site access with ALLIZOE before ordering. For terminal pickup where offered, bring a suitable vehicle or trailer and arrange final unloading. Review the final total at checkout; orders containing other products may have different combined shipping charges.

The KT-X66 portable mid-rise scissor lift offers 6,600 lb lifting capacity for shops that need flexible bay use. Self-lubricating bushings and bearings help reduce maintenance, while the included caster kit allows repositioning.

  • 6,600 lbs lifting capacity
  • Portable surface-mounted design; complete the required setup and initial testing before use
  • Self-lubricating bushings & bearings for low maintenance
  • Drive-up ramps with extension included
  • 110V or 220V power-unit configurations; confirm the supplied configuration and circuit requirements with ALLIZOE before ordering
  • Manual safety release system
  • Composite rubber lifting blocks included
KT-X66 KT-X77 KT-X80 KT-X85 KT-X90E KT-X95 KT-X99
Lift Type Mid-Rise Mid-Rise Mid-Rise Mid-Rise Mid-Rise In-Ground Full-Rise Full-Rise
Lifting Capacity 6,600 lbs 7,000 lbs 8,000 lbs 8,000 lbs 8,000 lbs 8,000 lbs 7,700 lbs
Max Lift Height 48" 39.37" 41.25" 40.15" 47.25" 72.3" ~76"
Power Source Electric-hydraulic; manual release Electric-hydraulic; air required Electric-hydraulic; pneumatic release Electric-hydraulic; electric release listed; confirm air requirements Electric-hydraulic; confirm air setup Electric-hydraulic; pneumatic release Electric-hydraulic; confirm air setup
Installation Surface Surface Surface Surface Surface In-Ground Surface
Portable Kit ✓ ✓ ✓ ✓ ✓ — —
  • Lifting Capacity: 6,600 lbs (3,000 kg)
  • Max. Lifting Height: 48" (1,200 mm)
  • Min. Height: 4.72" (120 mm)
  • Overall Length: 91.54" (2,325 mm)
  • Platform Width: 39.57" (1,005 mm)
  • Overall Width: 41.89" (1,064 mm)
  • Power options: 110V or 220V AC, 60Hz, single-phase configurations; confirm the supplied power unit before ordering
  • Material: Q235 and Q245 Steel
  • Net Weight: 1,212 lbs (550 kg)

This mid-rise scissor lift has a 6,600 lb lifting capacity for home garages, mobile mechanics, and small auto shops. The portable design allows repositioning between bays according to the supplied moving instructions. Self-lubricating bushings and bearings help reduce maintenance. 110V or 220V power-unit configurations; confirm the supplied configuration and circuit requirements with ALLIZOE before ordering.

Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge. Optional extended parts coverage is offered only when an enabled add-on is shown for this eligible main machine. If purchased, it adds 24 months after the standard parts warranty ends. Parts only; labor is not included, and the structural warranty is not extended.

  • Covers: Cylinders, power units, motors, displays, electronics, etc.
  • Standard manufacturer structural warranty: 3 years on structural components.
  • Claims must fall within the warranty period and require the original order number.
  • Replacement parts provided at no cost, including free shipping.
  • Labor is not included in the warranty.
  • Home Garage Enthusiasts: Portable 6,600 lb capacity for most cars and sedans
  • Flexible Bay Use: Portable design for repositioning; equipment net weight is approximately 1,212 lbs (550 kg)
  • Small Auto Shops: Portable lift with 6,600 lb capacity
  • Surface-Mounted Setup: Follow the supplied instructions for floor suitability, positioning, connections, and initial testing
  • Oil Changes & Brake Work: Ideal lift height for undercarriage access

Katool describes the KT-X66 as using Q235 and Q245 steel construction.

Price & Freight — Before Tax

For one machine in its listed standard configuration within the contiguous United States:

  • Warehouse Pickup: $2,399 before tax; no freight or handling fee. Confirm supplier stock, warehouse and pickup appointment with ALLIZOE before ordering. No same-day pickup.
  • Commercial Delivery (Forklift Available): $2,399 product + $300 freight = $2,699 before tax.
  • Commercial Delivery (Liftgate Required): $2,399 product + $400 freight = $2,799 before tax.
  • Residential Delivery (Forklift Available): $2,399 product + $400 freight = $2,799 before tax.
  • Residential Delivery (Liftgate Required): $2,399 product + $500 freight = $2,899 before tax.

Tax and optional accessories or upgrades are additional. The optional $349 extended parts warranty is also additional. Select the option matching your address and unloading equipment. Where a liftgate option is listed, confirm current package weight and dimensions, carrier limits and site access with ALLIZOE before ordering. For terminal pickup where offered, bring a suitable vehicle or trailer and arrange final unloading. Review the final total at checkout; orders containing other products may have different combined shipping charges.

Product price and freight charges are separate. Delivery charges vary by destination and selected service.

  • Supplier warehouse pickup: No freight or handling fee. Allizoe confirms stock and the pickup warehouse before payment; warehouse address can be shared before payment.
  • Scheduling: No same-day pickup. After confirmation, the supplier provides a pickup release form. Blind pickup may be arranged.
  • Commercial or residential delivery: Select the service matching your address and unloading equipment.

Confirm unloading arrangements before delivery.

Package Size

L x W x H (in) 87 x 46 x 20
Weight (lbs) 890

Complete Your Shop Setup

Explore equipment for your shop
Tire Service Packages Collection Banner

Tire Service Packages

2-Post Lifts Category Image

2-Post Lift

4-Post Lifts Category Image

4-Post Lifts

Tire Changer

Tire Changer

Wheel Balancer

Wheel Balancer

Shop Accessories Collection Banner

Shop Accessories

Frequently Asked Questions

  • The published lifting capacity is 6,600 lbs (3,000 kg). Vehicle weight alone does not establish compatibility: confirm the vehicle's lifting points, contact-pad positioning, and clearance against the supplied instructions before use.
  • The KT-X66 is a portable mid-rise scissor lift designed for surface-mounted use. No pit excavation required — it sits on your shop floor and can be repositioned as needed.
  • Katool lists an AC hydraulic power unit and manual safety release for the KT-X66. Confirm the supplied unit's utility requirements with Allizoe before ordering.
  • Katool lists 110V and 220V configuration options. Confirm the required voltage, supplied power unit, circuit requirements, availability, and any price difference with ALLIZOE before ordering. The Delivery Options on this page select fulfillment, not voltage; the voltage listing does not confirm that one supplied unit automatically works on both voltages.
  • The package includes the scissor lift unit, hydraulic power unit, drive-up ramps with extensions, safety locks, rubber lifting blocks, portable mobile kit, and all necessary hardware.
  • The KT-X66 has a portable design. Before use, follow the supplied instructions for floor suitability, positioning, electrical and hydraulic connections, and initial testing.
  • Katool lists a net weight of approximately 1,212 lbs (550 kg), overall length of 91.54 inches, and overall width of 41.89 inches. These are equipment measurements, not packaged shipping dimensions. Confirm packaged measurements before pickup or unloading.
  • The standard manufacturer parts warranty is 12 months, subject to the manufacturer's terms and claim approval. Labor is not included. The optional $349 extended parts plan adds 24 months after the standard parts warranty ends. One plan covers this machine; it does not extend structural coverage.
