Yellow and gray order picker with lift platform and hand controls

Xilin OPSM-II Order Picker – 330lb, 118in

$12,500.00
Skip to product information
Yellow and gray order picker with lift platform and hand controls
1/6

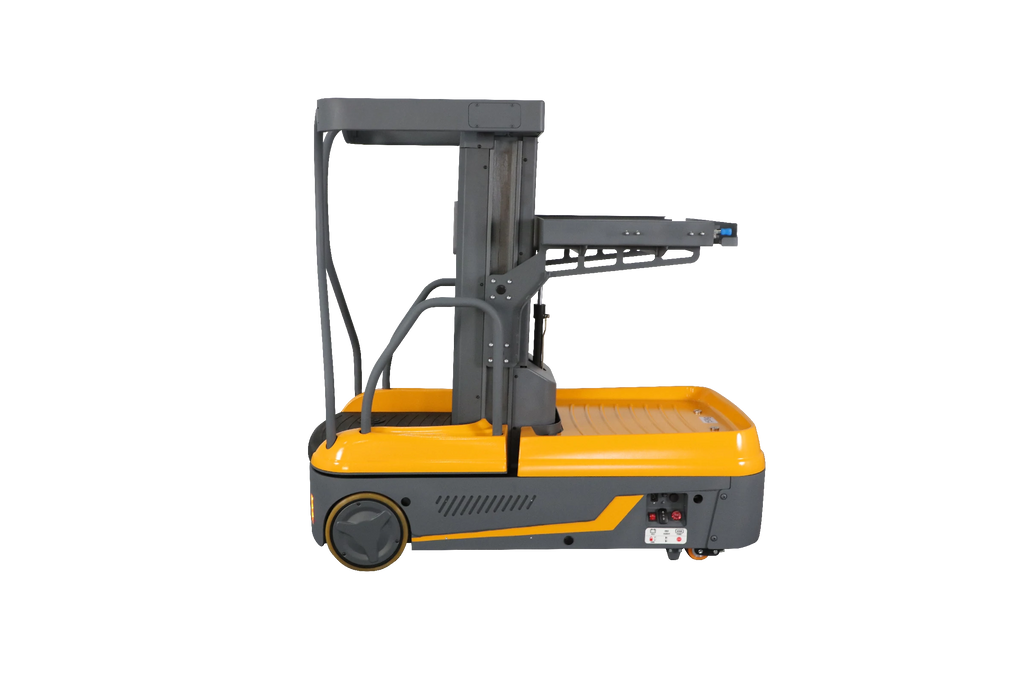

  • Yellow and gray order picker with lift platform and hand controls

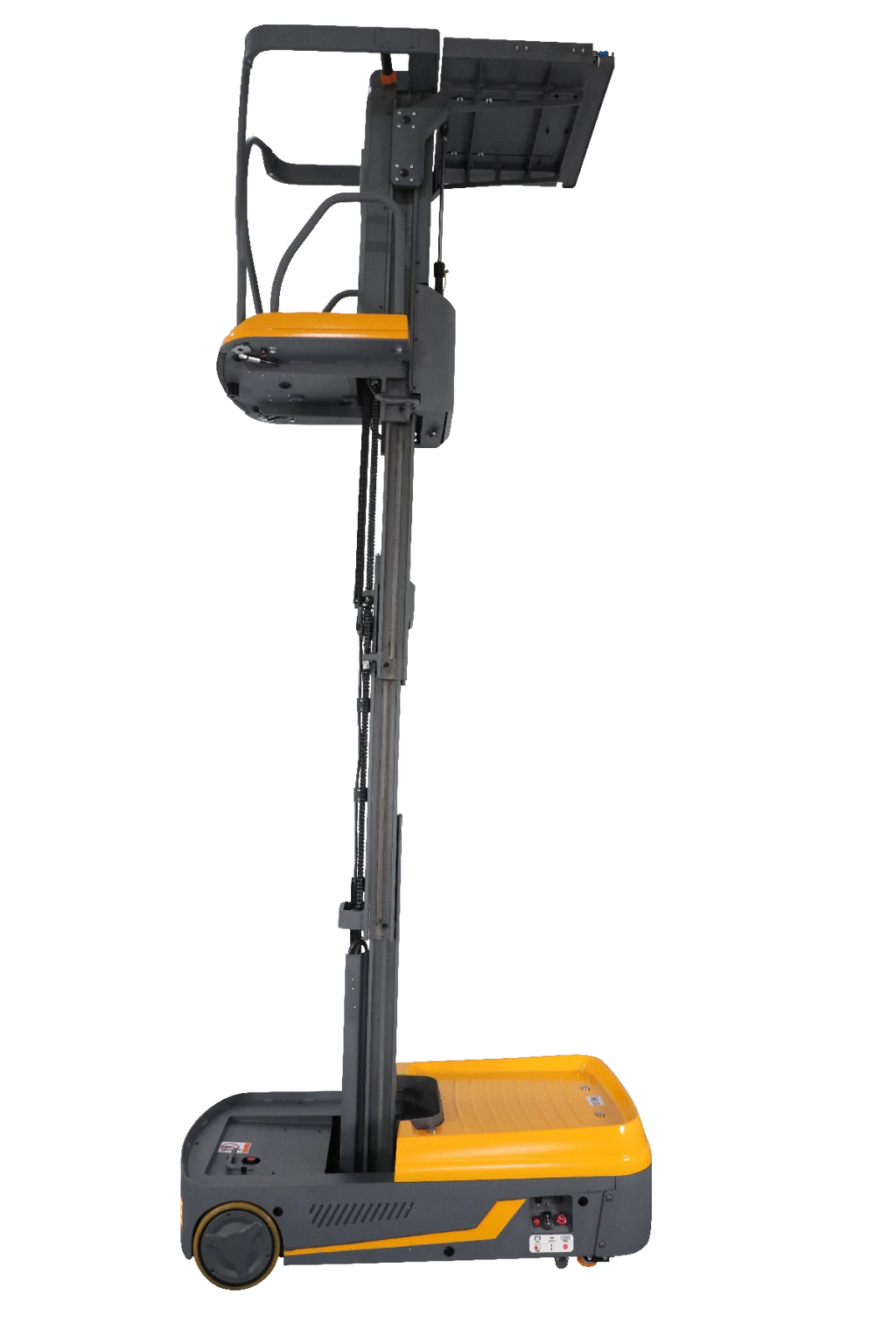

  • Orange and gray order picker with raised operator platform and control box

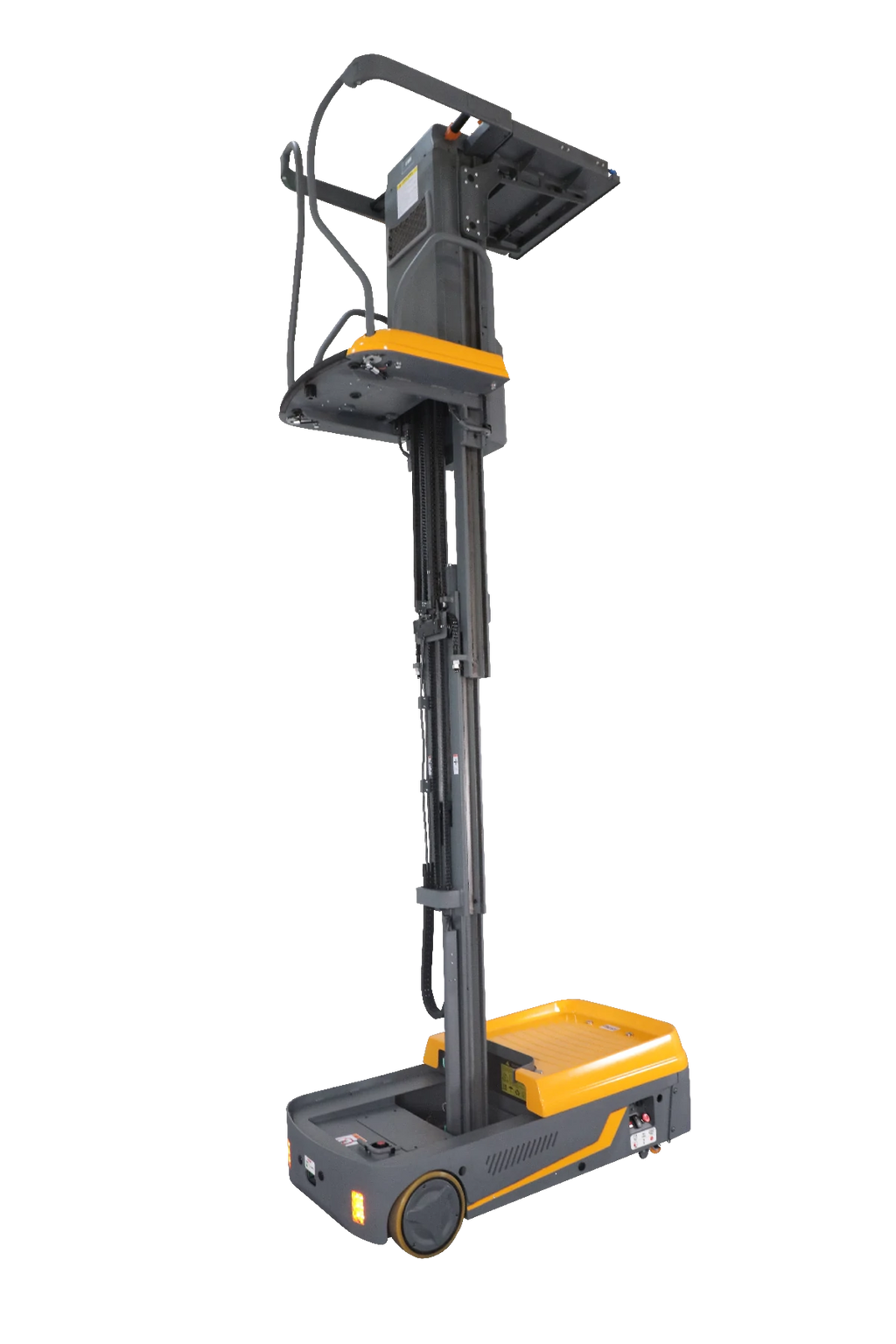

  • Orange and gray order picker with raised deck, wheels, and control mast

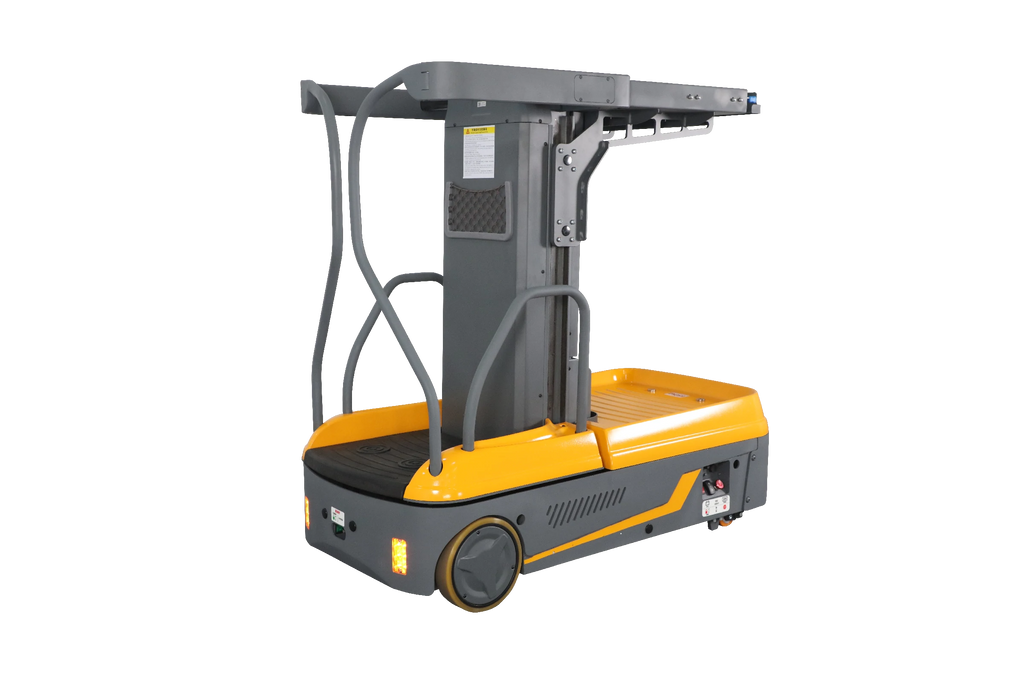

  • Orange and gray order picker with raised platform and overhead control housing

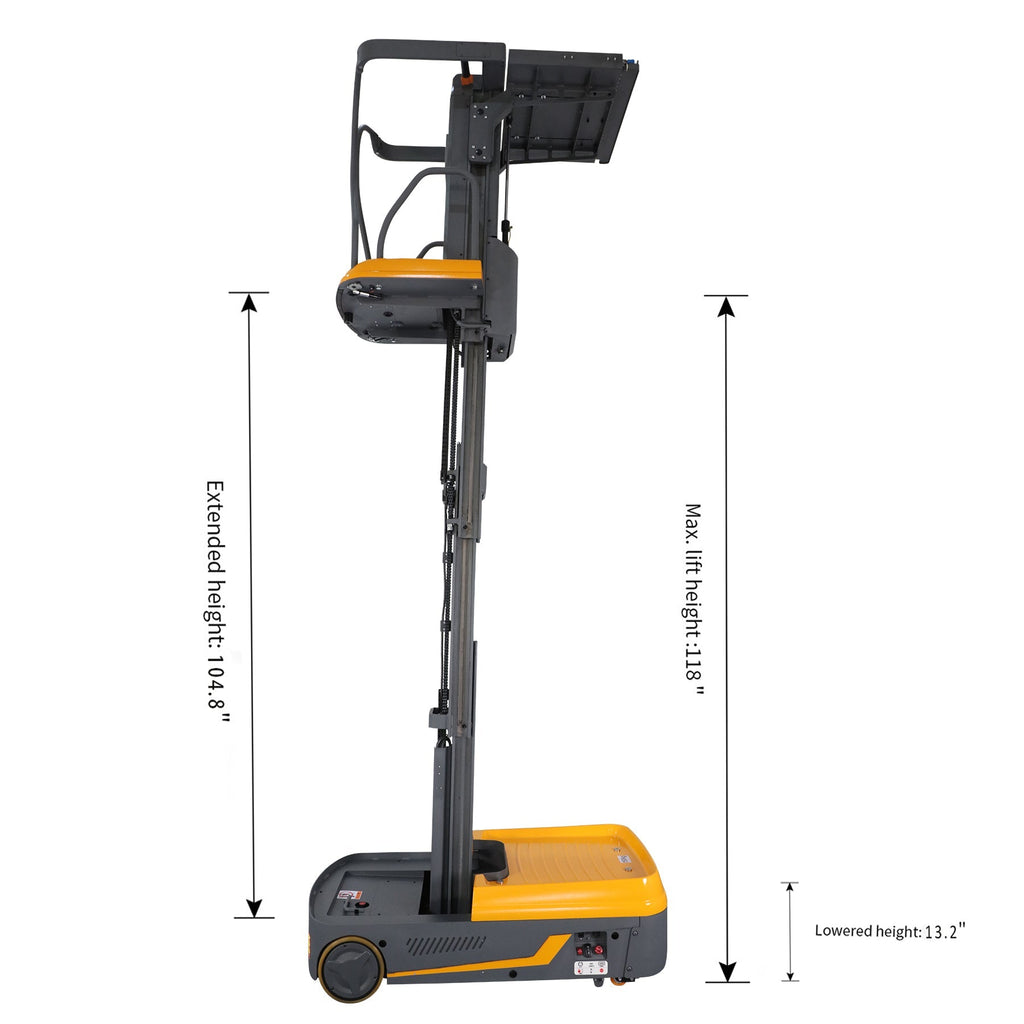

  • Orange and gray order picker with dimension diagram arrows

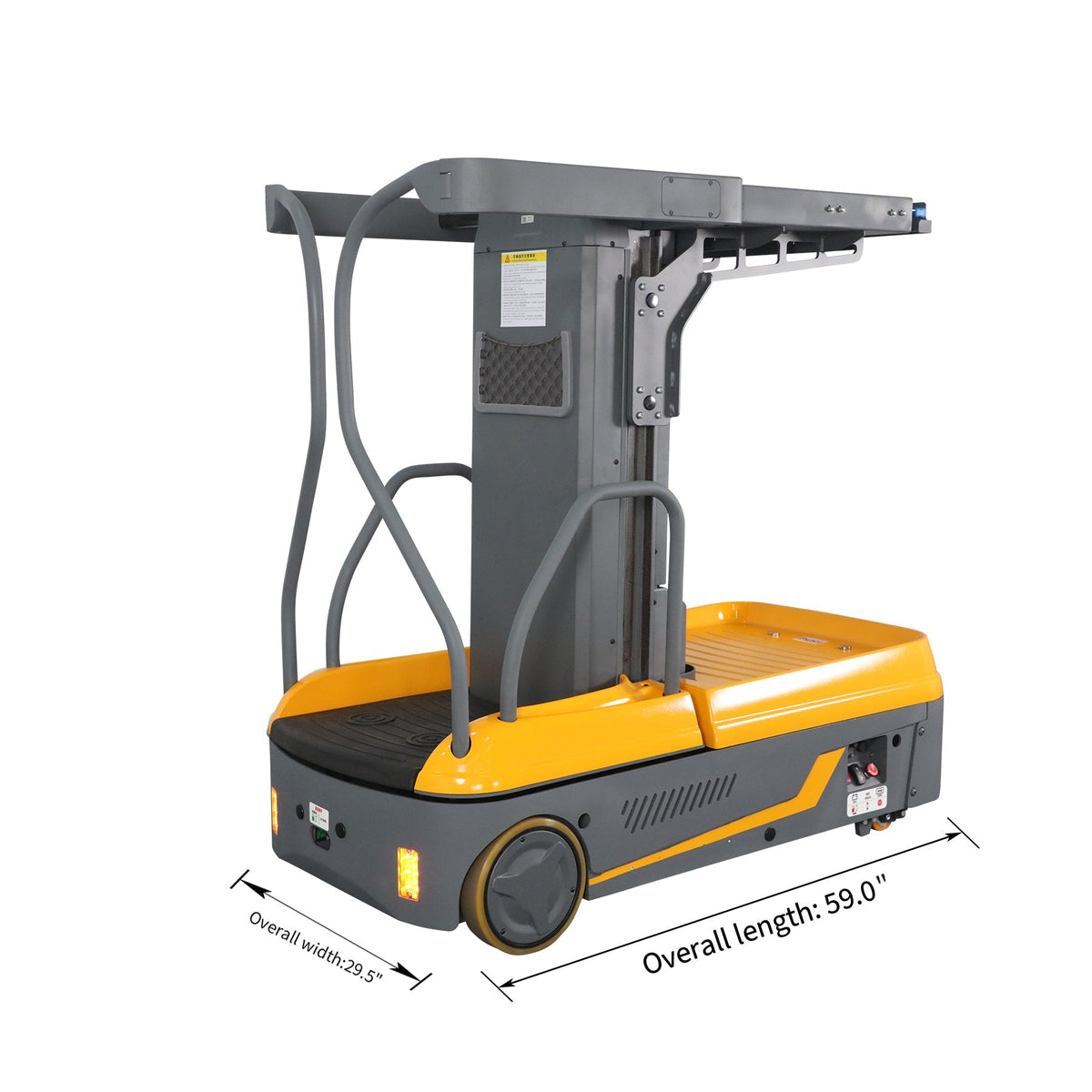

  • Orange and gray order picker with overhead arm and dimension arrows
Xilin OPSM-II Order Picker – 330lb, 118in

Xilin OPSM-II Order Picker – 330lb, 118in

$12,500.00

Shop Pay Installments

Split your purchase into flexible installment payments with Shop Pay. Pay over time with no hidden fees.

How it works:

  • Choose Shop Pay at checkout
  • Select your preferred payment plan
  • Make your first payment today
  • Pay the rest over time with automatic payments

No interest. No hidden fees. Just flexible payments that work for you.

🚚 Shipping availability and rates vary by product, delivery option, and destination.

Carrier Terminal Pickup: Bring a suitable vehicle or trailer. The terminal will load the shipment, but the customer is responsible for unloading at the final destination.
⚠️ Warehouse Pickup – Please Contact Us First. Due to varying inventory across our warehouse locations, please contact us before placing your order to confirm stock availability at your preferred location.
Contact Us to Check Availability

🇺🇸 US-Based Business: We offer specialized support and flexible shipping and delivery options.

🏭
Expert SupportUS-Based Team
🚚
Shipping OptionsVary by Product & Destination
🛡️
1-Yr WarrantyFull Parts Support
🔬
Safety TestedLoad & Function Tested
📍
Pickup Options May Be AvailableContact us to confirm location & availability
Learn More >
Warranty

One-year limited manufacturer warranty against manufacturing defects. Warranty exclusions and battery coverage may vary by model.
Shipping

Free freight shipping to the contiguous 48 US states. Estimated delivery: 6–10 business days. Curbside delivery only — forklift or pallet jack required. Carrier will call 24–48 hrs before delivery. View full Shipping & Delivery details →

⚠️ Safety Warning

Read and follow the manufacturer's operation manual before use. Confirm platform and tray load limits, operating surface, overhead clearance, and safety gate requirements. Only trained and authorized operators should use this equipment. Do not climb the guardrails or bypass safety sensors.

The OPSM Electric Order Picker offers a compact, high-reach alternative to ladders and static platforms. With a 330 lbs capacity and 118" platform lift height, it fits tight retail aisles and warehouse corridors. Designed with dual-drive steering, foot-sensor safety, and a built-in charger, this picker ensures safe and productive vertical access for picking, light maintenance, and shelf work.

Extended Reach in Narrow Spaces – 118" lift height with a 29.5" slim body for tight aisles.

Dual-Drive Steering System – 51.2" turning radius for excellent maneuverability in compact areas.

Smart Safety System – Foot sensors, speed reduction at height, and auto-locking safety gate reduce risks.

Maintenance-Free Battery – 24V / 125Ah sealed battery system ensures long, worry-free runtime.

Built-In 110V Charger – No extra equipment needed—charge anywhere with a standard wall outlet.

Adjustable Mesh Tray – Height-adjustable tray (manual/electric) supports flexible loading needs.

LED Work Light Ready – Optional lighting improves safety and visibility in dim environments.

Two-Handed Control System – Enhances operator safety by requiring both hands to activate movement/lift.

Lower Operational Costs – Replaces ladders, reduces injury risk, and increases work efficiency.

Capacity: 330 lbs

Turning Radius: 51.2"

Aisle Width: 68.9"

Overall Width: 29.5"

Overall Length: 59"

Platform Max Lifting Height: 118"

Platform Extended Height: 104.8"

Platform Lowered Height: 13.2"

Battery: 24V / 125Ah (Maintenance-Free)

Charger: 24V / 15A Built-in

Travel Speed (Laden): 5.1 mph

Lifting Speed: 7.8 in/s

Lowering Speed: 7.8 in/s

Service Weight: 1705 lbs

The OPSM Electric Order Picker offers a compact, high-reach alternative to ladders and static platforms. With a 330 lbs capacity and 118" platform lift height, it fits tight retail aisles and warehouse corridors. Designed with dual-drive steering, foot-sensor safety, and a built-in charger, this picker ensures safe and productive vertical access for picking, light maintenance, and shelf work.

One-year limited manufacturer warranty against manufacturing defects. Warranty exclusions and battery coverage may vary by model.

Retail and warehouse stock picking, shelf access, and light maintenance within the manufacturer's operating limits.

Product price and freight are separate. Freight is quoted based on the delivery ZIP code, destination type, and required delivery service. Commercial delivery, residential delivery, liftgate service, limited-access delivery, and pickup at a carrier terminal may have different costs. Inventory and freight must be confirmed before shipment.

Key Benefits

Extended Reach in Narrow Spaces

118" lift height with a 29.5" slim body for tight aisles.

Dual-Drive Steering System

51.2" turning radius for excellent maneuverability in compact areas.

Smart Safety System

Foot sensors, speed reduction at height, and auto-locking safety gate reduce risks.

Maintenance-Free Battery

24V / 125Ah sealed battery system ensures long, worry-free runtime.

Product Highlights

Compact Electric Order Picker

Compact Electric Order Picker

High-reach alternative to ladders for picking, shelf work, and light maintenance in narrow spaces.

Raised Operator Platform

Raised Operator Platform

118 inch platform lift height helps operators reach higher storage locations safely.

Compact Maneuverability

Compact Maneuverability

Slim body and tight turning radius support use in retail aisles and warehouse corridors.

Dimension Diagrams Included

Dimension Diagrams Included

Dimension images show machine height, platform reach, and working footprint.

Dimensions & Product Drawing

Official Xilin specification sheet with detailed parameter tables and dimensional drawings. Click the full-page preview or download the original PDF to view the document at full size.

Xilin opsm ii order pickers official PDF with specification tables and dimensional drawings
Download Product Drawing (PDF)

Product Manual

Download the complete product manual and installation guide.
Download Manual
