Electric pallet stacker with yellow body, black base, raised mast and control handle

Xilin CTD15R-EN-138 Full-Electric Stacker – 3300lb, 138in

$5,900.00
Skip to product information
Electric pallet stacker with yellow body, black base, raised mast and control handle
1/10

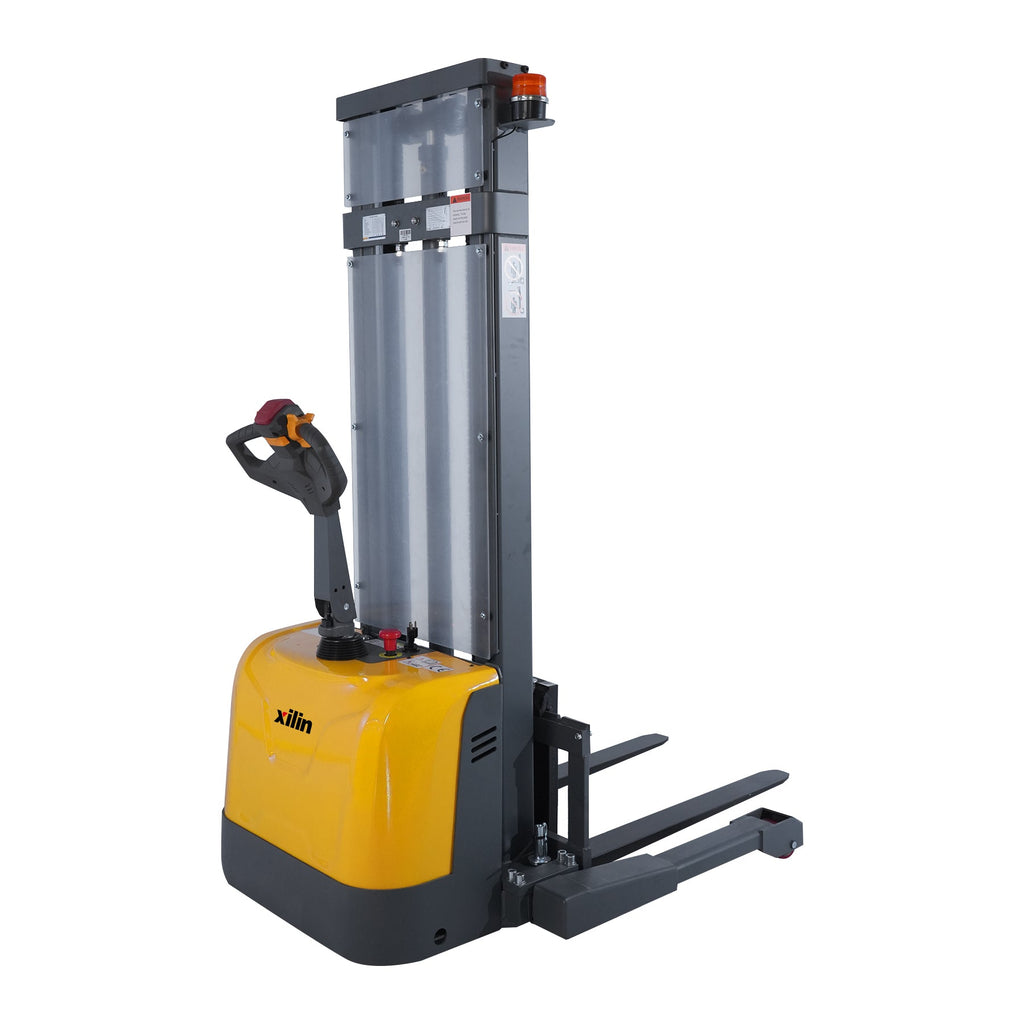

  • Electric pallet stacker with yellow body, black base, raised mast and control handle

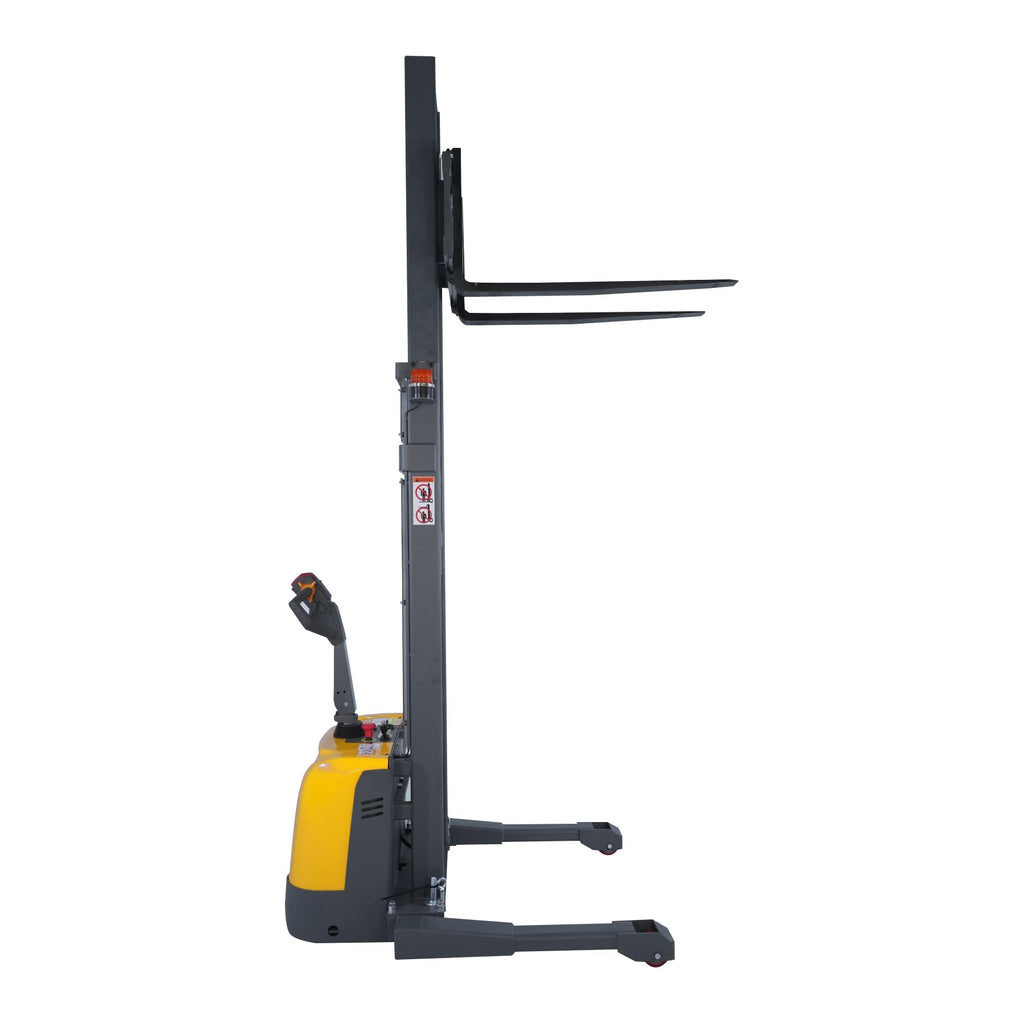

  • Full-electric stacker with gray lift mast and yellow operator base, fork tines extended
  • Electric stacker with gray mast, yellow control housing, and black fork carriage

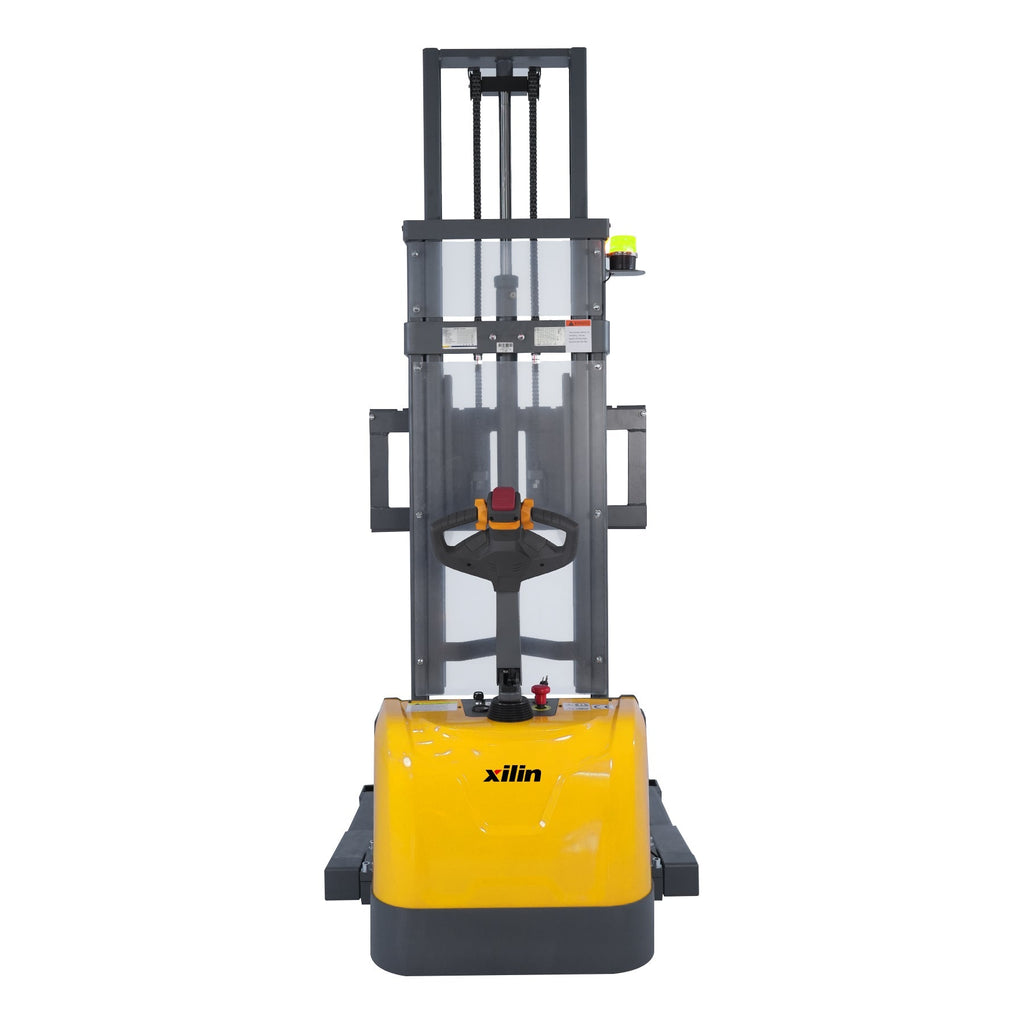

  • Xilin full-electric stacker with upright mast and yellow base, operator controls visible

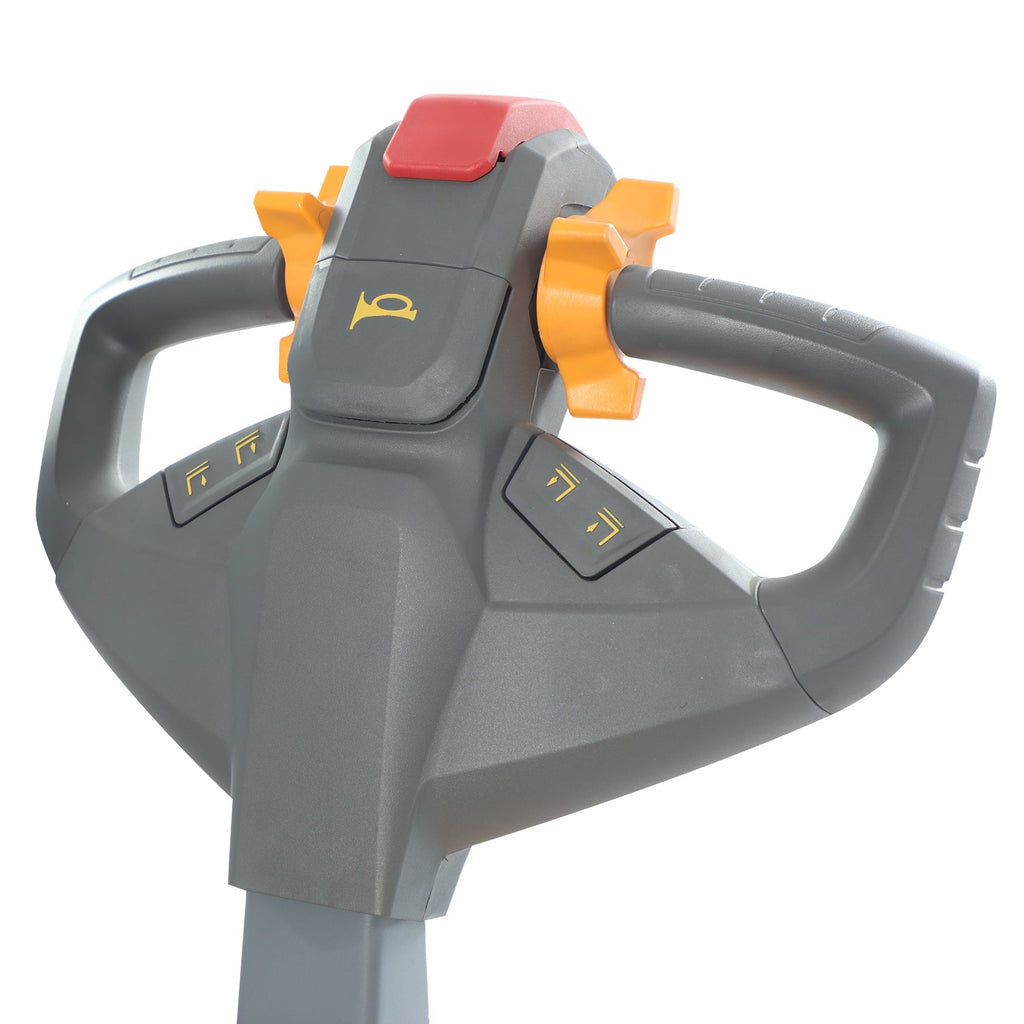

  • Gray tiller handle with orange accents and red emergency stop button

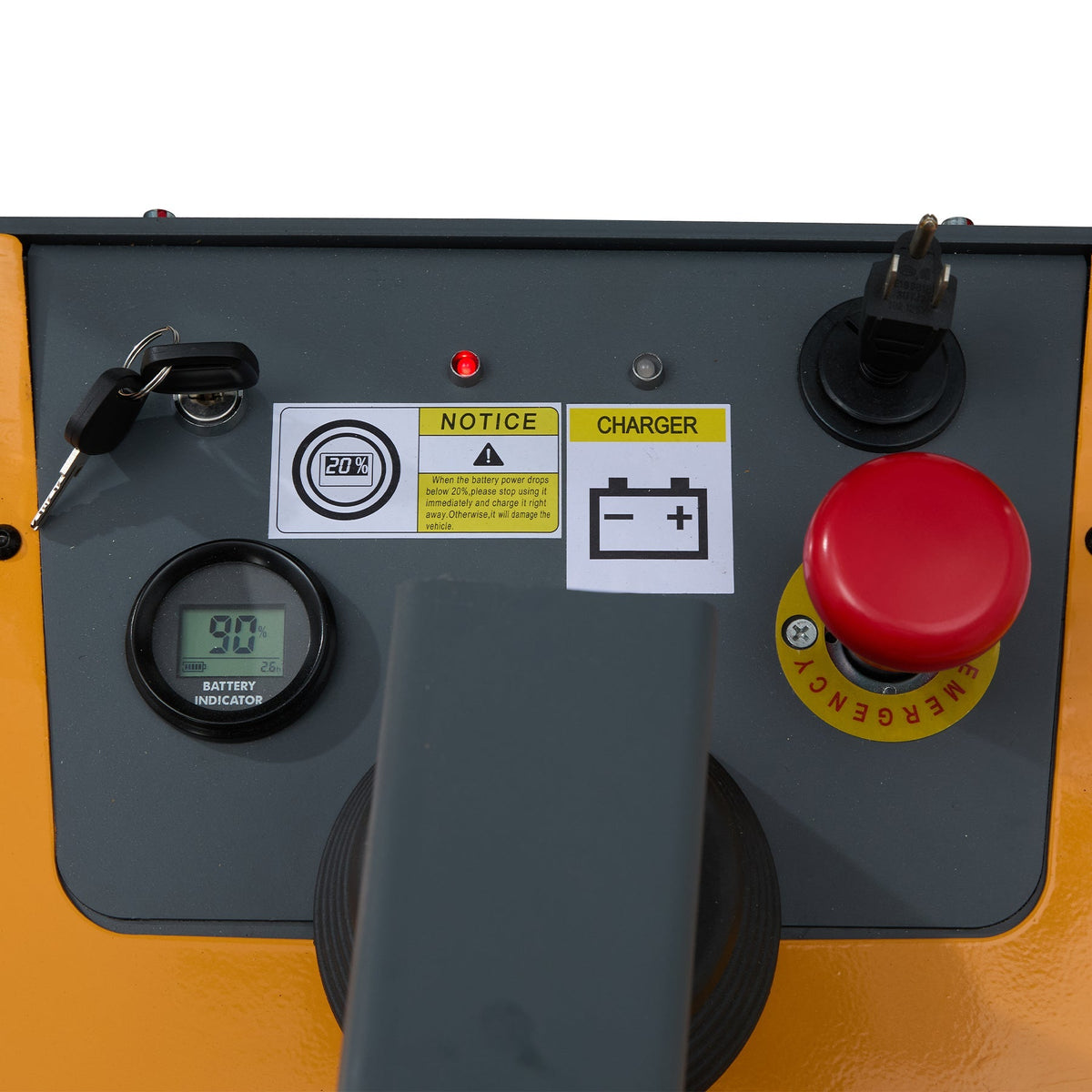

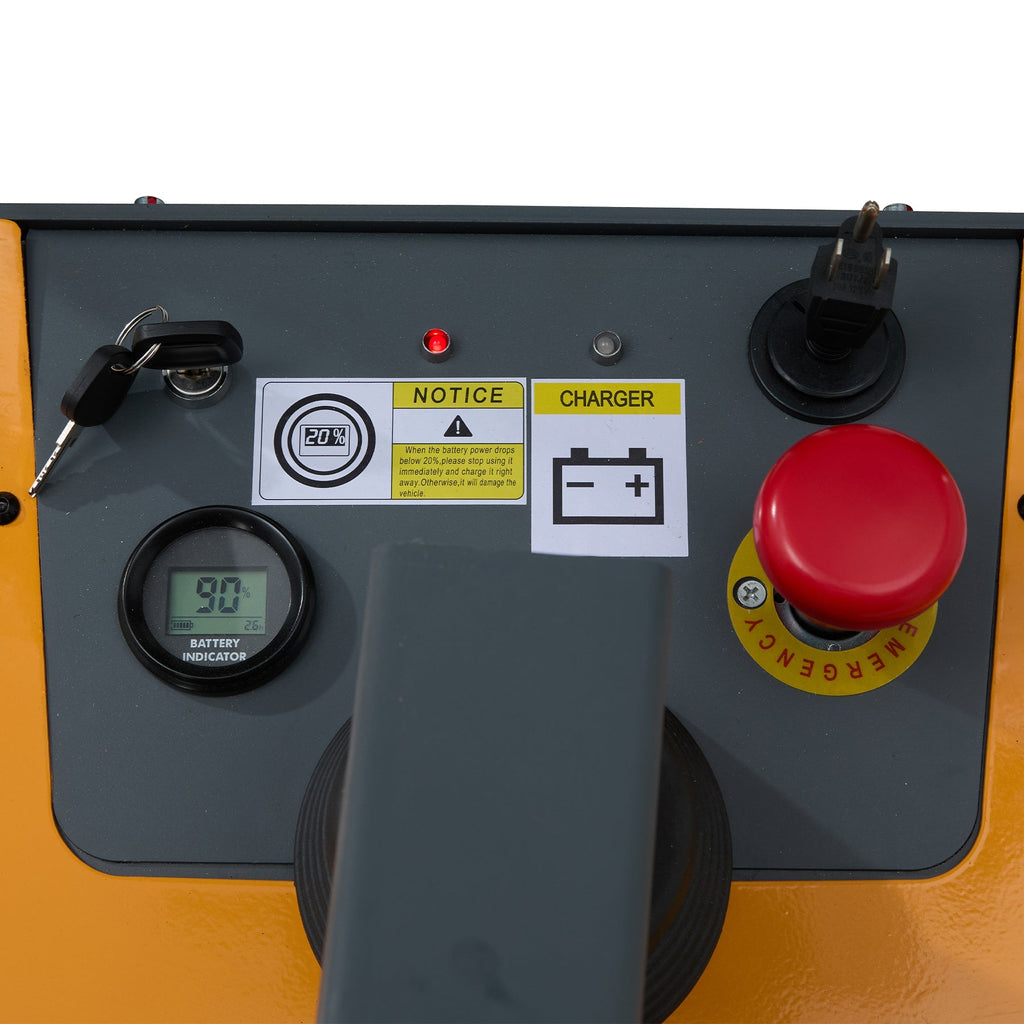

  • Operator control panel with digital battery indicator, charge label, and red emergency knob

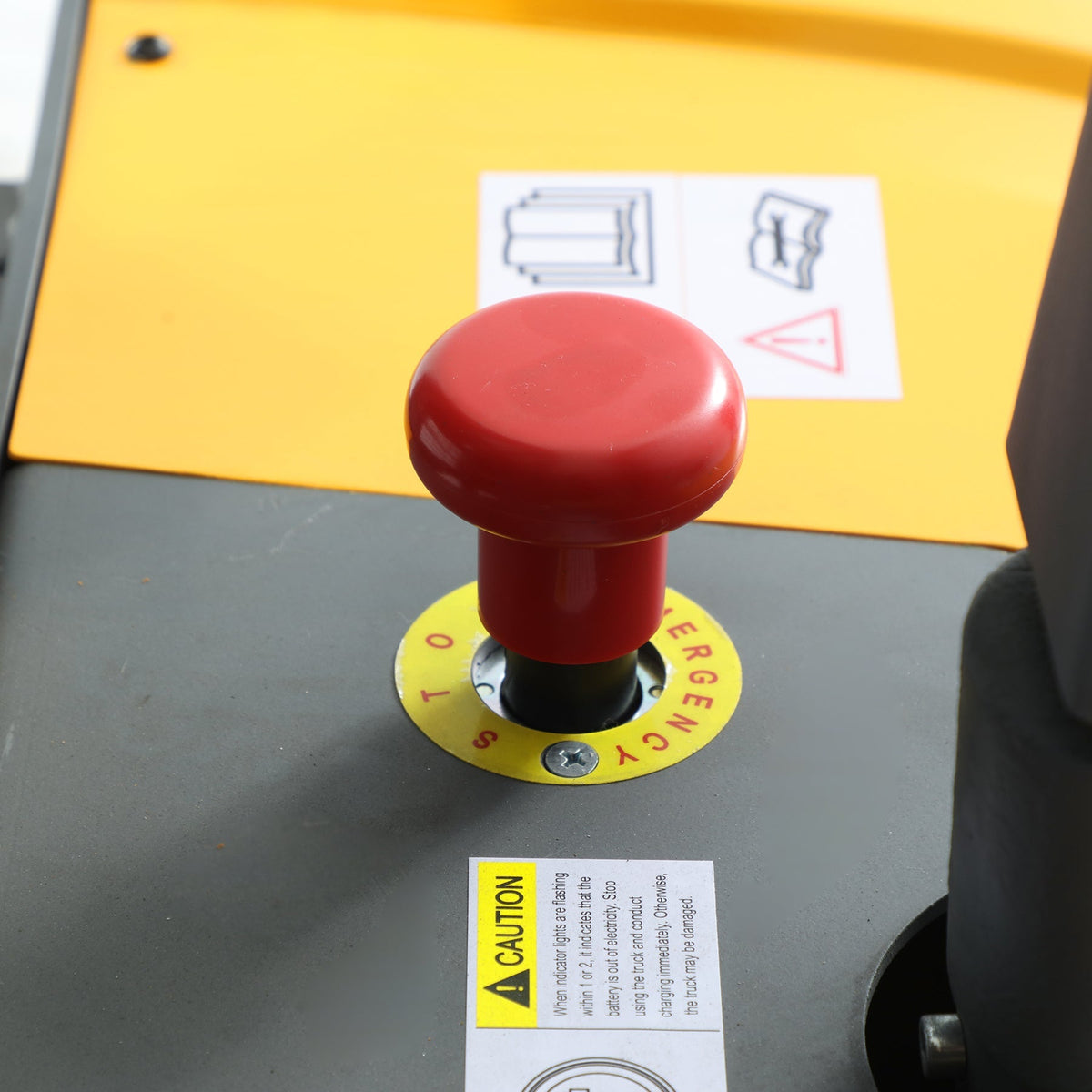

  • Red mushroom emergency stop with numbered yellow ring and caution label

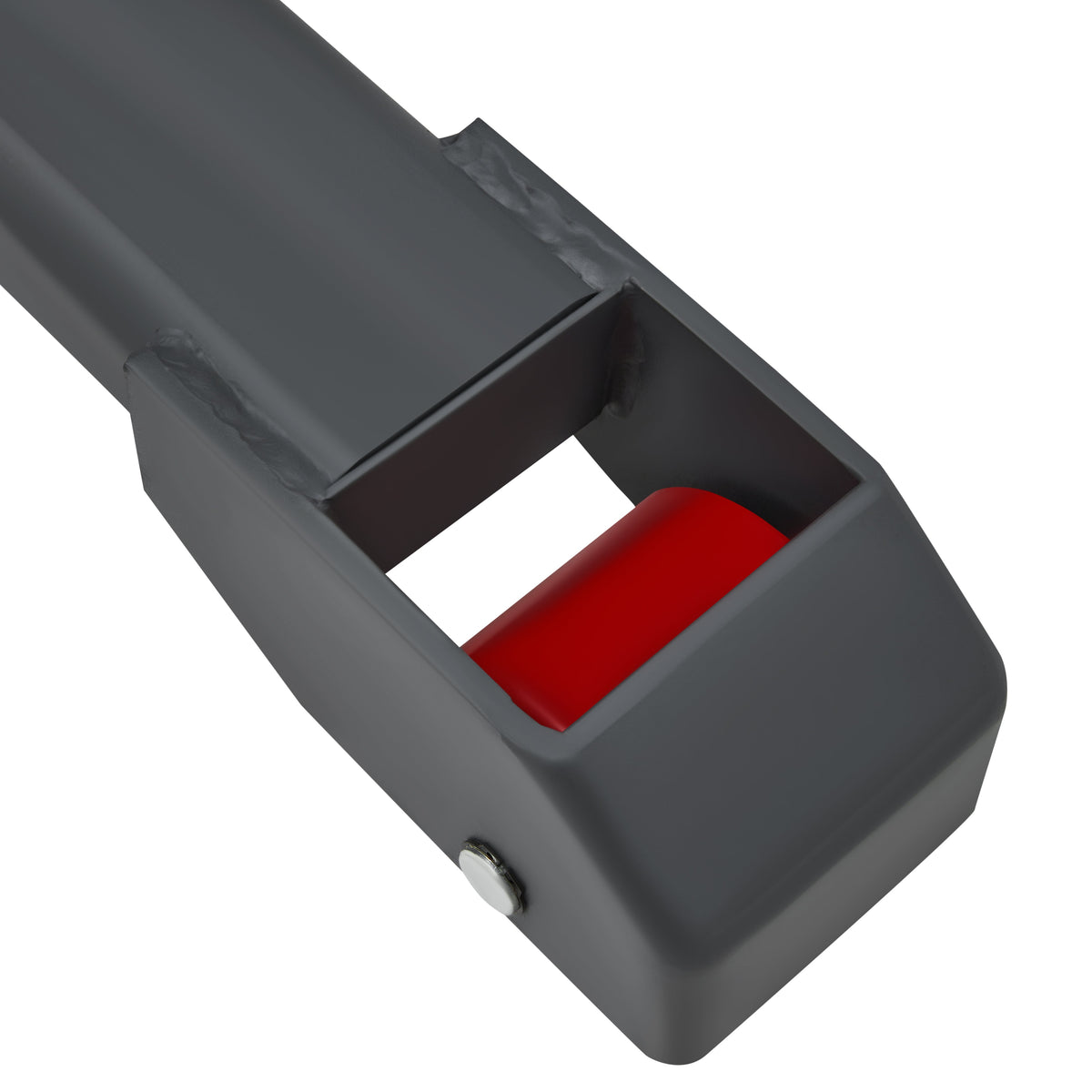

  • Front fork carriage with red safety pad and steel fork frame

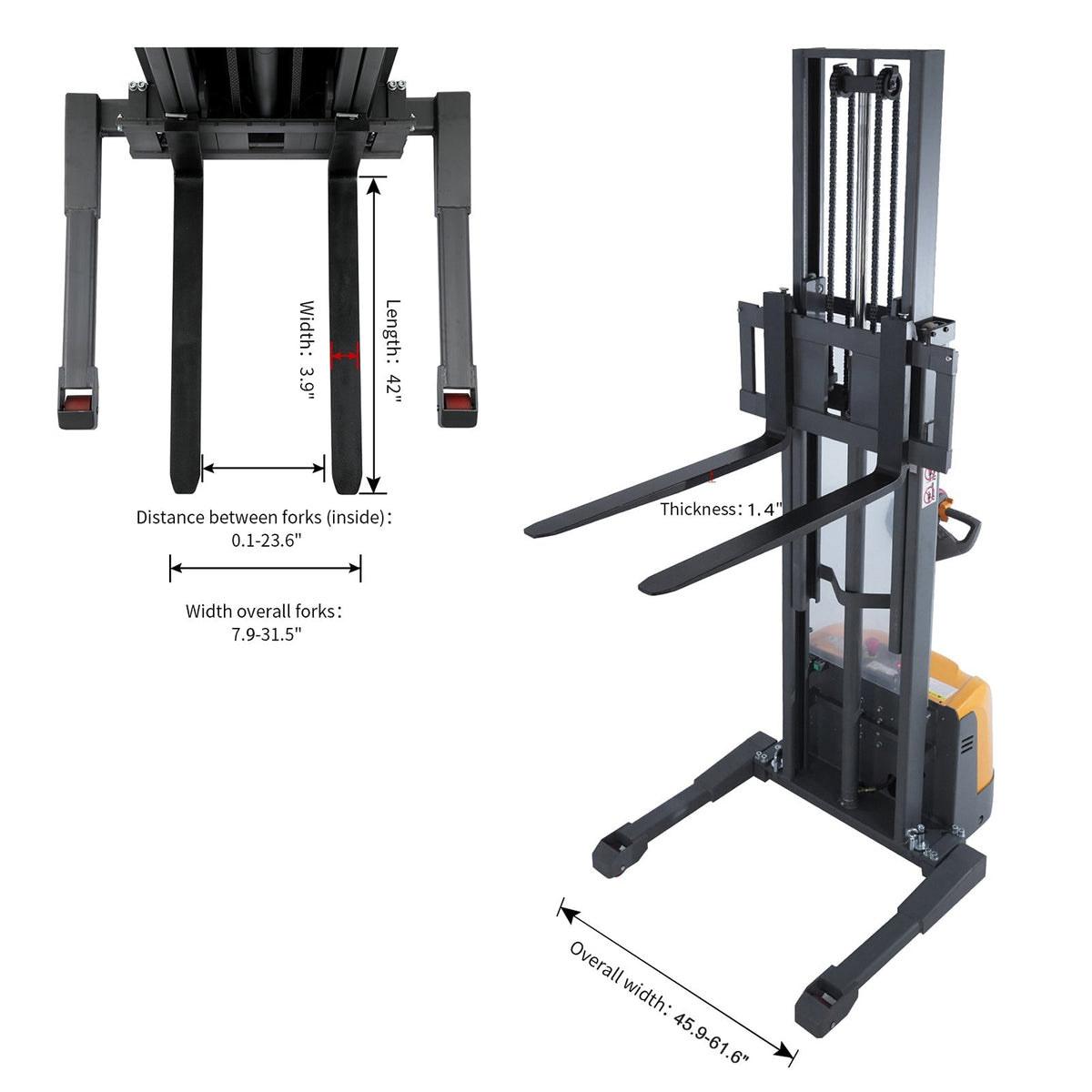

  • Electric stacker with labeled fork and mast dimensions for clearance and reach

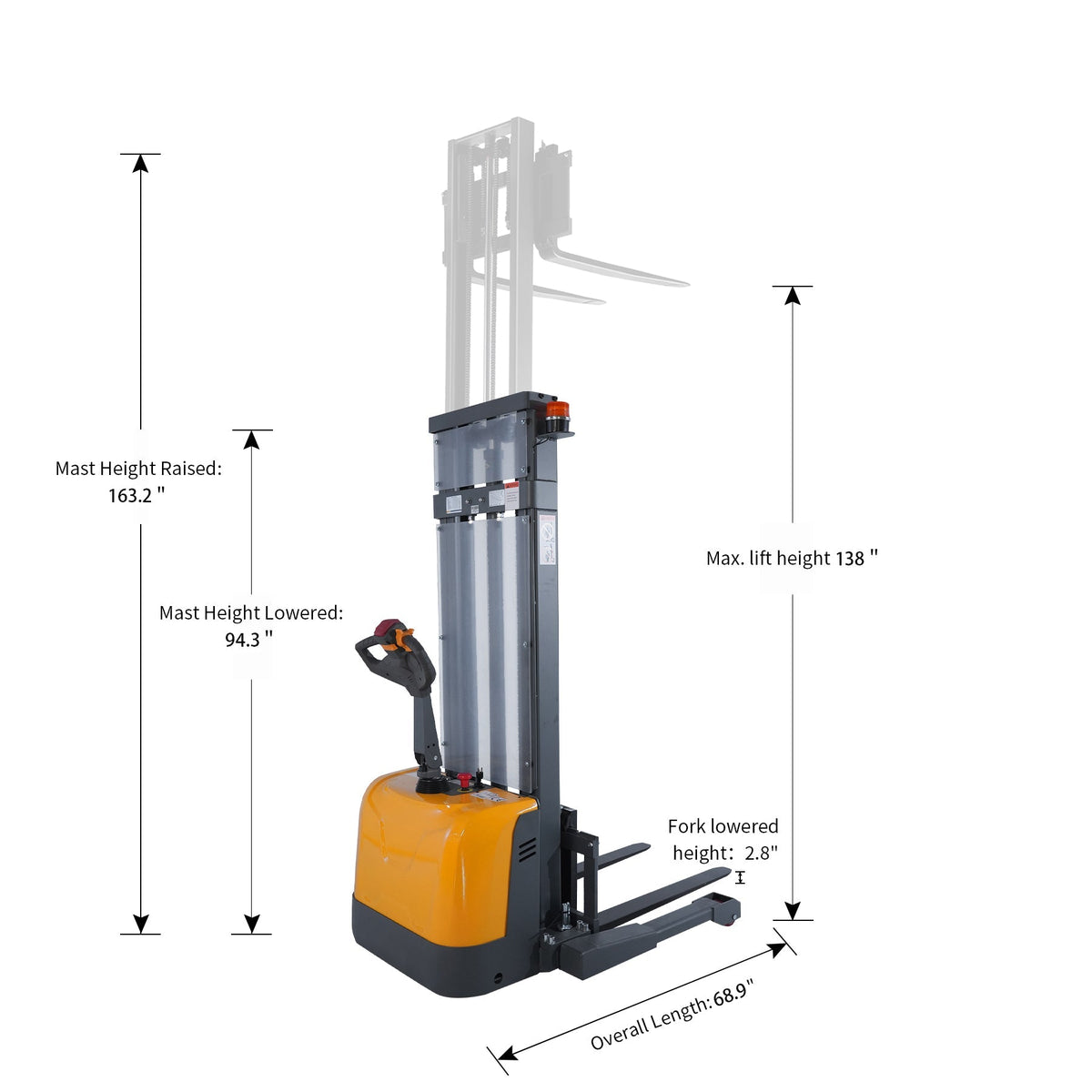

  • Electric stacker diagram showing mast heights and fork positions for raised and lowered states
Xilin CTD15R-EN-138 Full-Electric Stacker – 3300lb, 138in

Xilin CTD15R-EN-138 Full-Electric Stacker – 3300lb, 138in

$5,900.00

Shop Pay Installments

Split your purchase into flexible installment payments with Shop Pay. Pay over time with no hidden fees.

How it works:

  • Choose Shop Pay at checkout
  • Select your preferred payment plan
  • Make your first payment today
  • Pay the rest over time with automatic payments

No interest. No hidden fees. Just flexible payments that work for you.

🚚 Shipping availability and rates vary by product, delivery option, and destination.

Carrier Terminal Pickup: Bring a suitable vehicle or trailer. The terminal will load the shipment, but the customer is responsible for unloading at the final destination.
⚠️ Warehouse Pickup – Please Contact Us First. Due to varying inventory across our warehouse locations, please contact us before placing your order to confirm stock availability at your preferred location.
Contact Us to Check Availability

🇺🇸 US-Based Business: We offer specialized support and flexible shipping and delivery options.

🏭
Expert SupportUS-Based Team
🚚
Shipping OptionsVary by Product & Destination
🛡️
1-Yr WarrantyFull Parts Support
🔬
Safety TestedLoad & Function Tested
📍
Pickup Options May Be AvailableContact us to confirm location & availability
Learn More >
Warranty

One-year limited manufacturer warranty against manufacturing defects. Warranty exclusions and battery coverage may vary by model.
Shipping

Free freight shipping to the contiguous 48 US states. Estimated delivery: 6–10 business days. Curbside delivery only — forklift or pallet jack required. Carrier will call 24–48 hrs before delivery. View full Shipping & Delivery details →

⚠️ Safety Warning

Read the manufacturer's operation manual before use. Confirm rated capacity at the required load center and lift height, pallet compatibility, aisle clearance, and floor conditions. Operate only with appropriate training. Never stand beneath raised forks or use this equipment to lift people.

The CTD15R-EN-138 is a compact electric stacker with a 3,300 lb load capacity and 138" lift height. Featuring adjustable forks, straddle legs, and low center of gravity, it’s ideal for stacking in tight warehouse spaces. Powered by a 24V battery (capacity to be confirmed) battery with built-in charger, it’s the perfect upgrade from manual models.

Unified Modular Design – Steel body and consistent industrial styling across product line.

Designed for Tight Spaces – Ideal for retail, warehouse, and truck loading operations.

Top-Mounted Drive Motor – Elevated from floor for protection against dust, water, and oil.

Accessible Modular Layout – Quieter gear system with liquid oil lubrication, easy to maintain.

Stable 3-Point Chassis – Center-mounted drive + low battery position for better balance.

Plug-and-Play Charging – Built-in 24V/10A charger for convenient recharging.

Explosion-Proof Valve – Prevents uncontrolled descent in case of hydraulic failure.

Multi-Function Control Handle – Includes throttle, horn, lift/lower, turtle mode, and emergency stop.

Reliable Battery Setup – 24V battery (capacity to be confirmed), with 10-hour charge cycle and dashboard monitoring.

Adjustable Drive Parameters – Technicians can customize speed/acceleration via controller.

Comprehensive Fuse Protection – Each core component protected by dedicated fuses.

Load Capacity: 3,300 lbs

Load Center: 23.6"

Turning Radius: 53"

Aisle Width: 87.8"

Fork Dimensions: 42" L × 7.9–31.5" W × 1.4" Thick

Inside Fork Width: 0.1"–23.6"

Overall Width: 45.9"–61.6"

Overall Length: 68.9"

Max Lifting Height: 138"

Mast Height (Lowered/Extended): 94.3" / 163.2"

Fork Lowered Height: 2.8"

Battery: 24V (capacity to be confirmed)

Charger: 24V / 10A Built-in

Travel Speed (L/U): 2.8 / 3.1 mph

Lifting Speed (L/U): 3.5 / 5.9 inch/s

Lowering Speed (L/U): 5.9 / 4.3 inch/s

Service Weight: 1446 lbs

The CTD15R-EN-138 is a compact electric stacker with a 3,300 lb load capacity and 138" lift height. Featuring adjustable forks, straddle legs, and low center of gravity, it’s ideal for stacking in tight warehouse spaces. Powered by a 24V battery (capacity to be confirmed) battery with built-in charger, it’s the perfect upgrade from manual models.

One-year limited manufacturer warranty against manufacturing defects. Warranty exclusions and battery coverage may vary by model.

Warehouse and retail pallet stacking where compact electric travel and lifting are suitable.

Product price and freight are separate. Freight is quoted based on the delivery ZIP code, destination type, and required delivery service. Commercial delivery, residential delivery, liftgate service, limited-access delivery, and pickup at a carrier terminal may have different costs. Inventory and freight must be confirmed before shipment.

Key Benefits

Unified Modular Design

Steel body and consistent industrial styling across product line.

Designed for Tight Spaces

Ideal for retail, warehouse, and truck loading operations.

Top-Mounted Drive Motor

Elevated from floor for protection against dust, water, and oil.

Accessible Modular Layout

Quieter gear system with liquid oil lubrication, easy to maintain.

Product Highlights

3,300 lb Capacity, 138 in Lift

3,300 lb Capacity, 138 in Lift

Compact full-electric stacker designed for stacking in tight warehouse spaces.

Adjustable Forks & Straddle Legs

Adjustable Forks & Straddle Legs

Adjustable fork and straddle-leg layout supports different pallets and racking conditions.

Multi-Function Control Handle

Multi-Function Control Handle

Throttle, horn, lift/lower, turtle mode, and emergency reverse controls are integrated for daily use.

Battery Monitoring & Emergency Stop

Battery Monitoring & Emergency Stop

Dashboard monitoring and emergency stop controls help support safer indoor operation.

Dimensions & Product Drawing

Official Xilin specification sheet with detailed parameter tables and dimensional drawings. Click the full-page preview or download the original PDF to view the document at full size.

Xilin ctd15r en 138 full electric stackers official PDF with specification tables and dimensional drawings
Download Product Drawing (PDF)

Product Manual

Download the complete product manual and installation guide.
Download Manual

Complete Your Shop Setup

Everything a professional tire shop needs
Tire Service Packages Collection Banner

Tire Service Packages

2-Post Lifts Category Image

2-Post Lift

4-Post Lifts Category Image

4-Post Lifts

Tire Changer

Tire Changer

Wheel Balancer

Wheel Balancer

Shop Accessories Collection Banner

Shop Accessories

Frequently Asked Questions

  • Product price and freight are separate. Freight is quoted based on the delivery ZIP code, destination type, and required delivery service. Residential or liftgate delivery may cost more. Inventory is subject to confirmation before shipment.
  • Confirm pallet dimensions, load weight and center, required lift height, overhead clearance, delivery requirements, and current availability.
