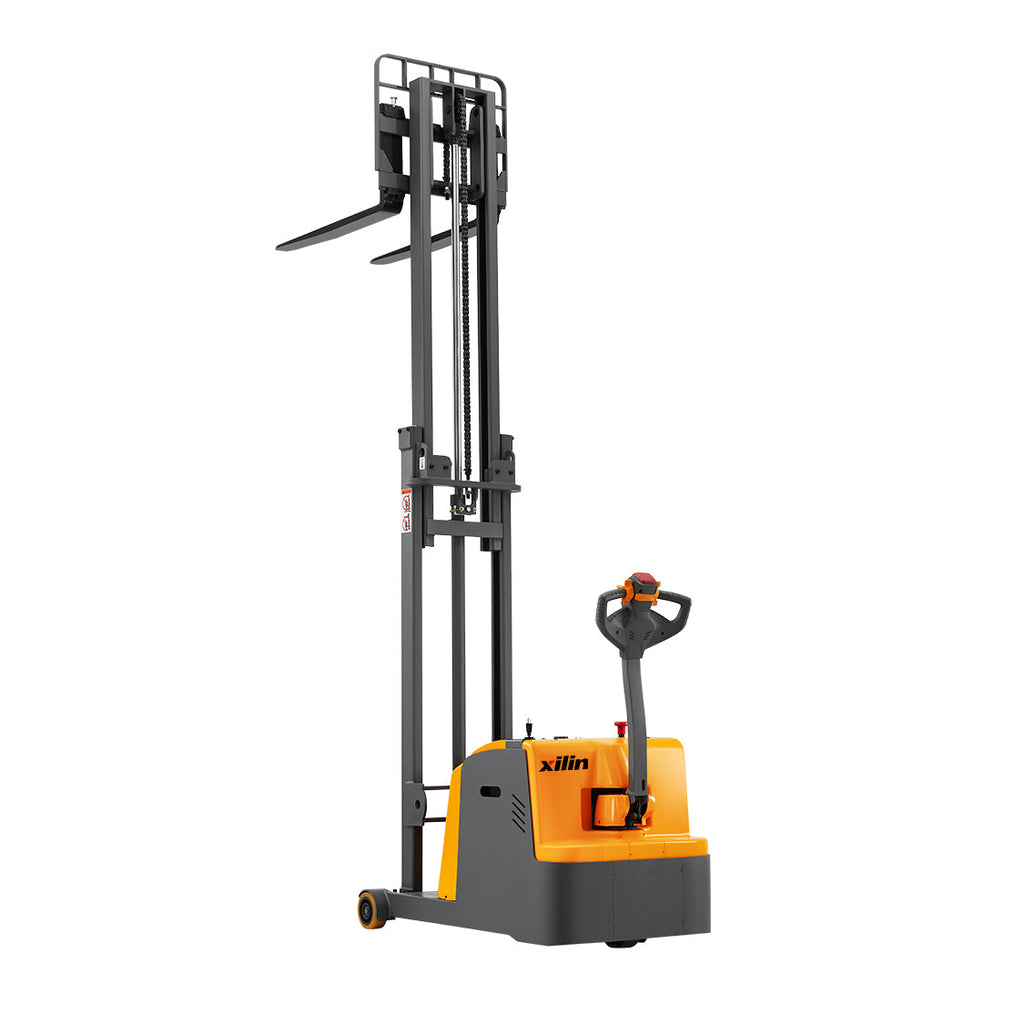

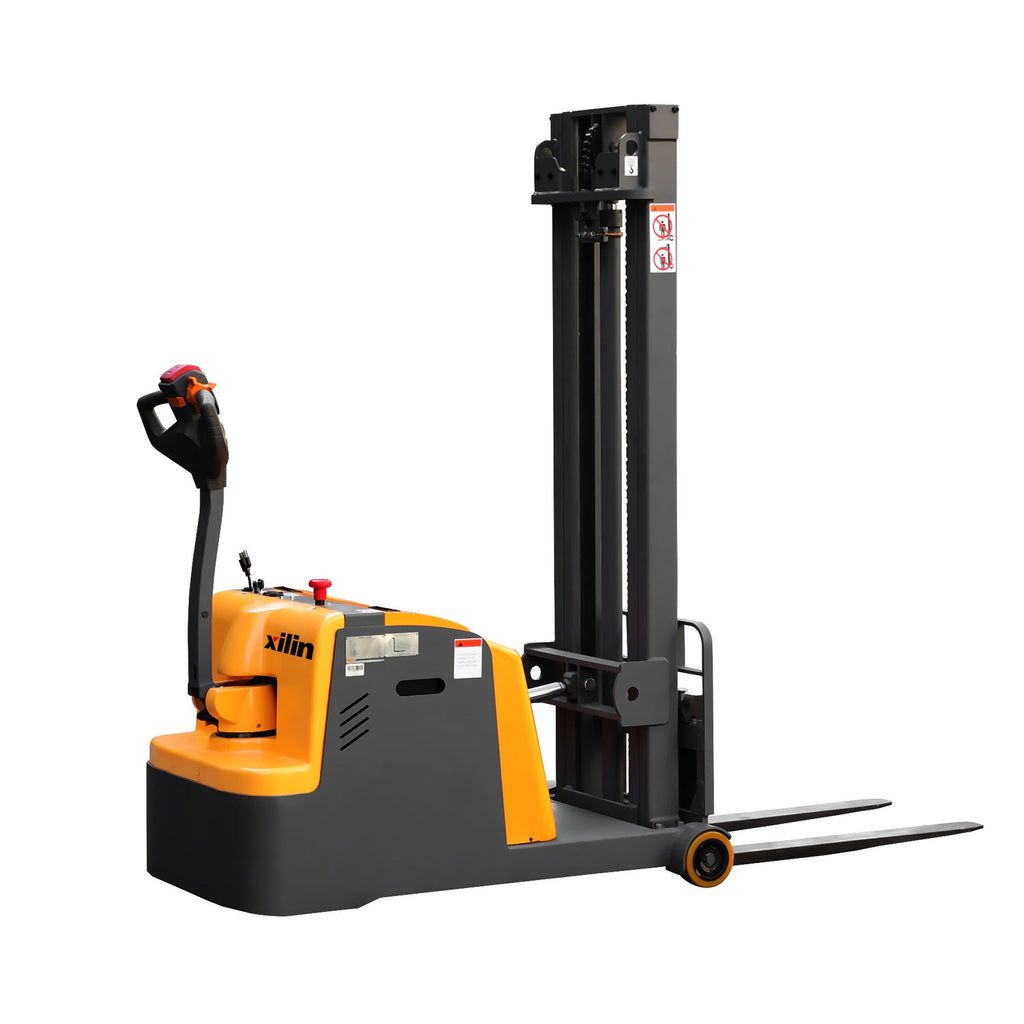

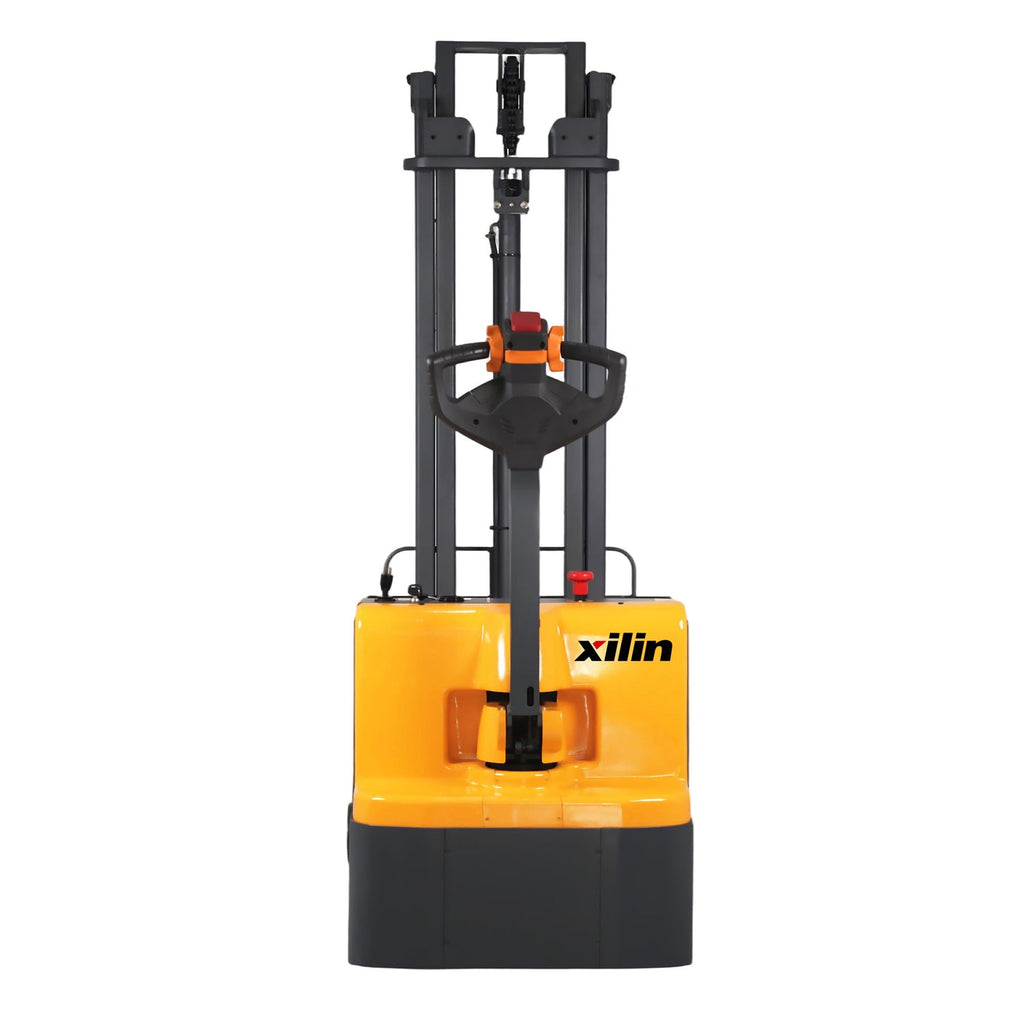

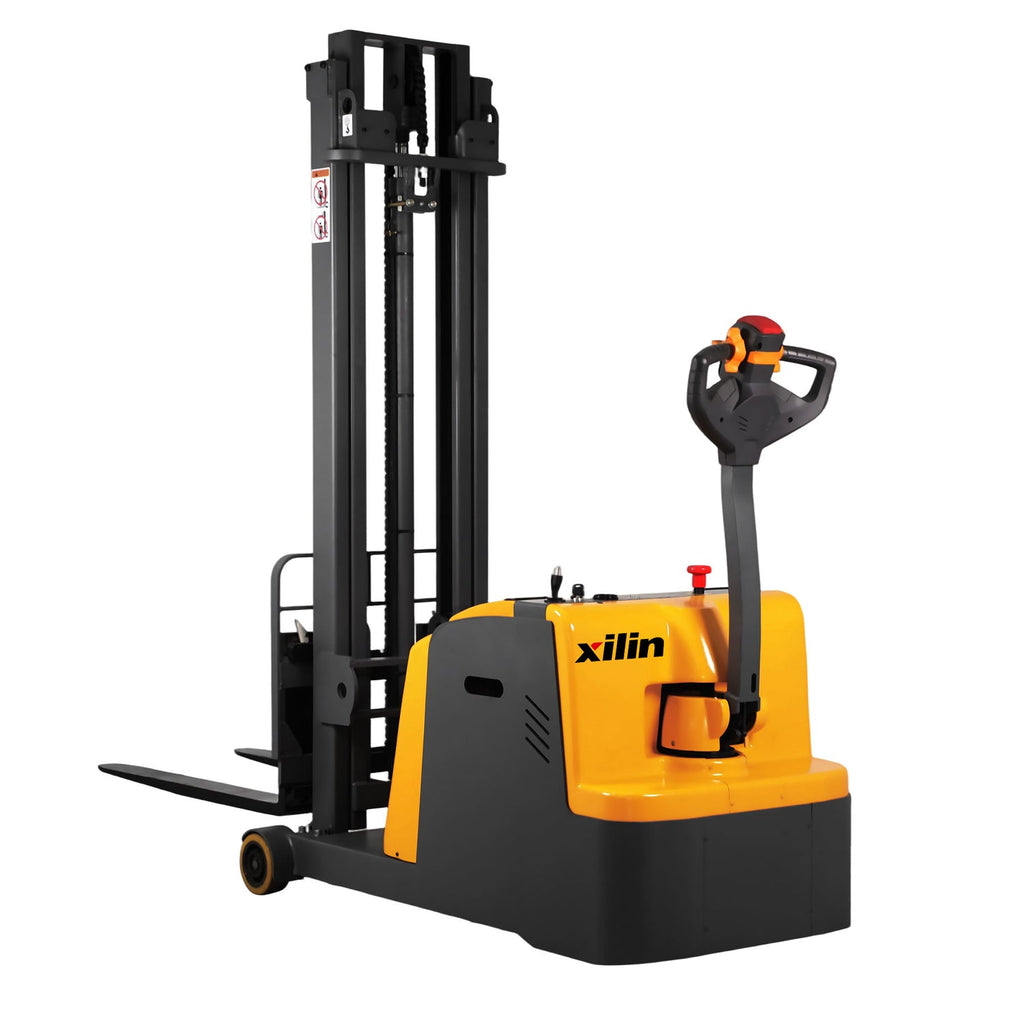

Xilin CPD10W-98 Counterbalanced Stacker – 2200lb, 98in

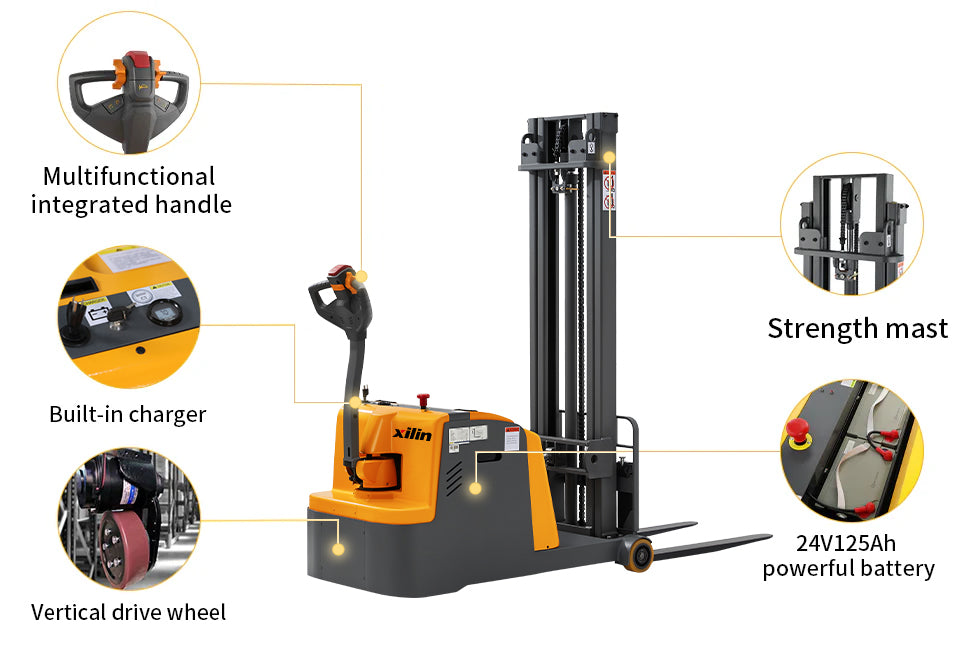

Multi-Function Handle – Lift, lower, drive, tilt, horn, reverse, and turtle mode in one grip.

Leg-Free, Low-Profile Design – Works with closed pallets and fits tight warehouse layouts.

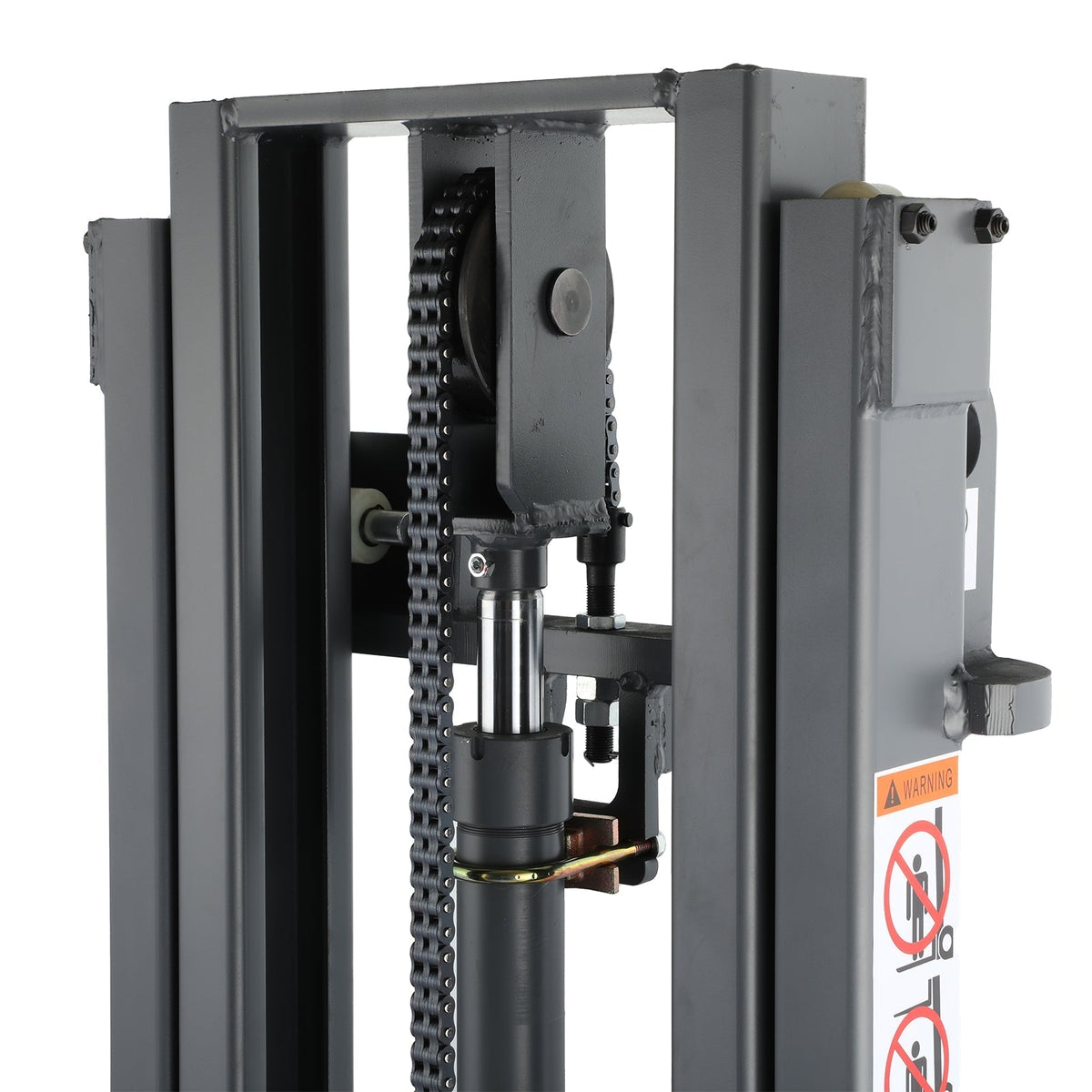

Tilt-Adjustable Mast – Forward/back tilt simplifies stacking and unloading in narrow spaces.

Top-Mounted Drive Motor – Elevated motor resists dust, with removable front for fast servicing.

Three-Point Stability – Load evenly distributed with two front load wheels and rear drive wheel.

Optional Balance Wheel – Minimizes sway, ensures centered travel during heavy-duty use.

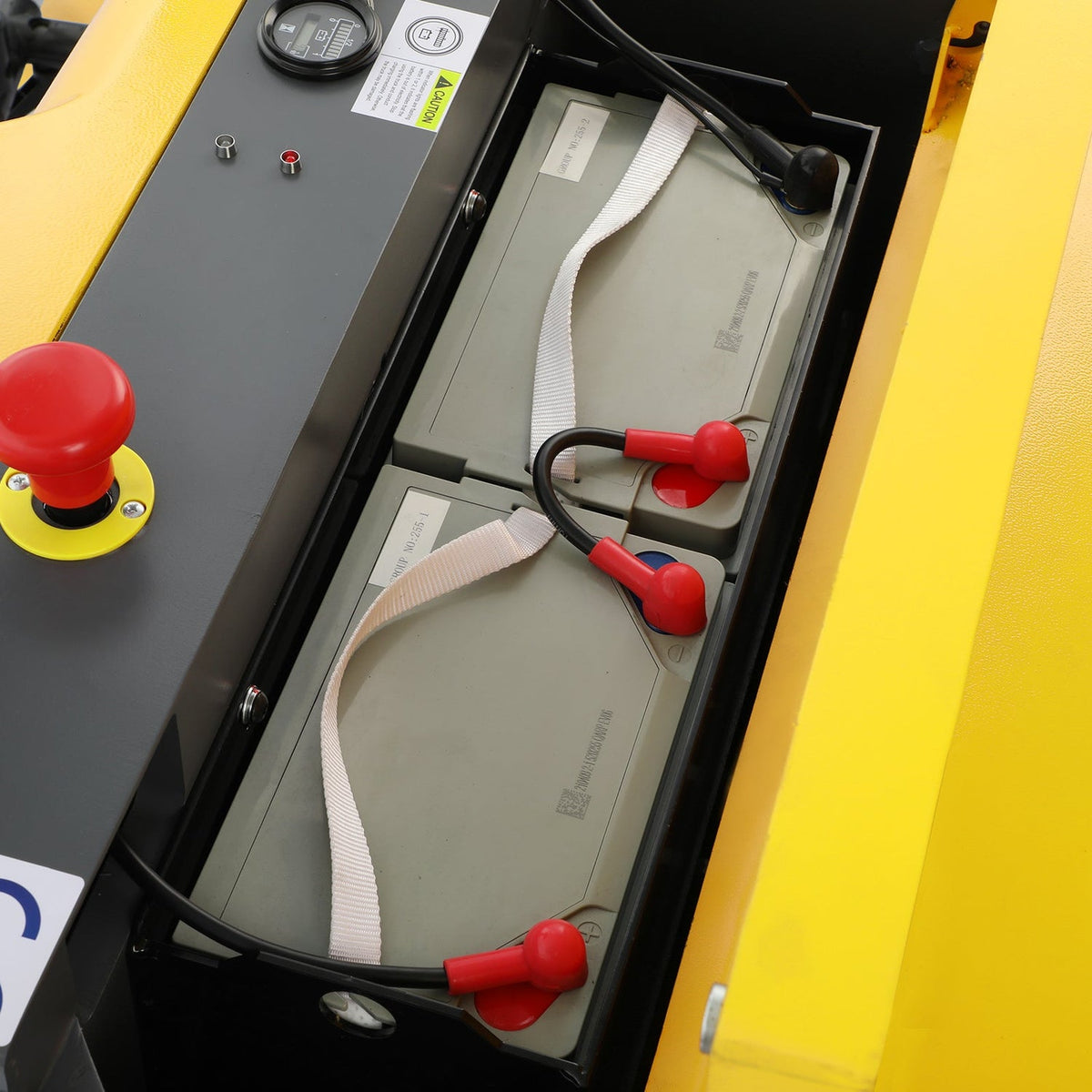

Maintenance-Free Battery – 24V/125Ah lead-acid battery with sealed casing and low-voltage protection.

Built-In Charger – Recharge from any outlet with onboard 24V/10A charger.

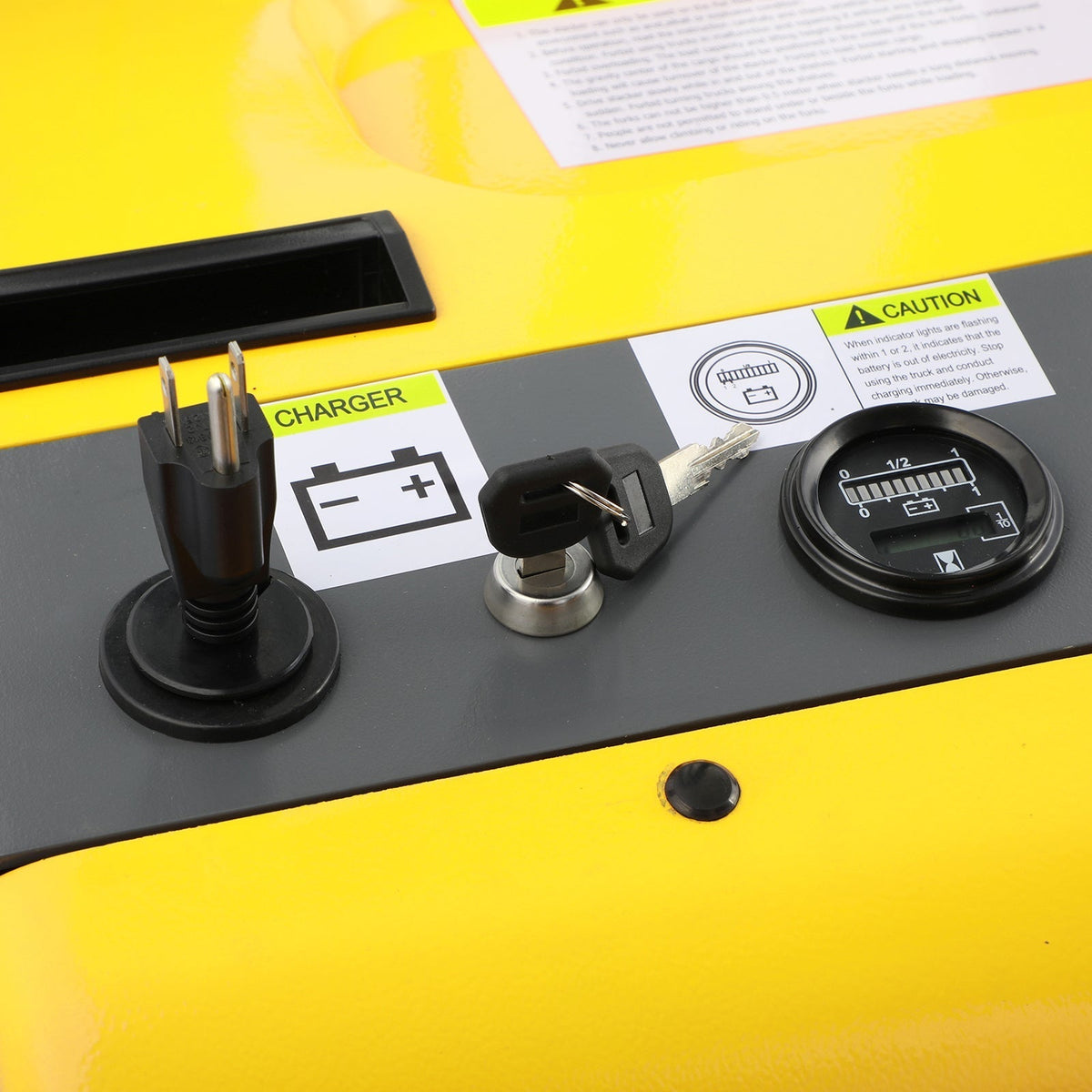

Control Panel Display – Real-time battery level and hour meter display.

Full Safety System – Includes belly switch, lift limit, e-stop, overload valve, and anti-drop mast cylinder.

Compact Turning Radius – Just 52.5", perfect for truck beds and narrow indoor spaces.

Turtle-Speed Mode – Allows slow, safe upright walking inside tight areas or containers.

Low Noise Design – Quiet operation <70 dB(A), meets DIN 12053 indoor noise standards.

Modular Layout – 90% component integration, rear battery access, and easy wiring layout.

Mechanical Steering – Simple linkage system offers smooth and reliable directional control.

Smart Throttle Zones – Electromagnetic braking in parked positions, safe speed in upright mode.

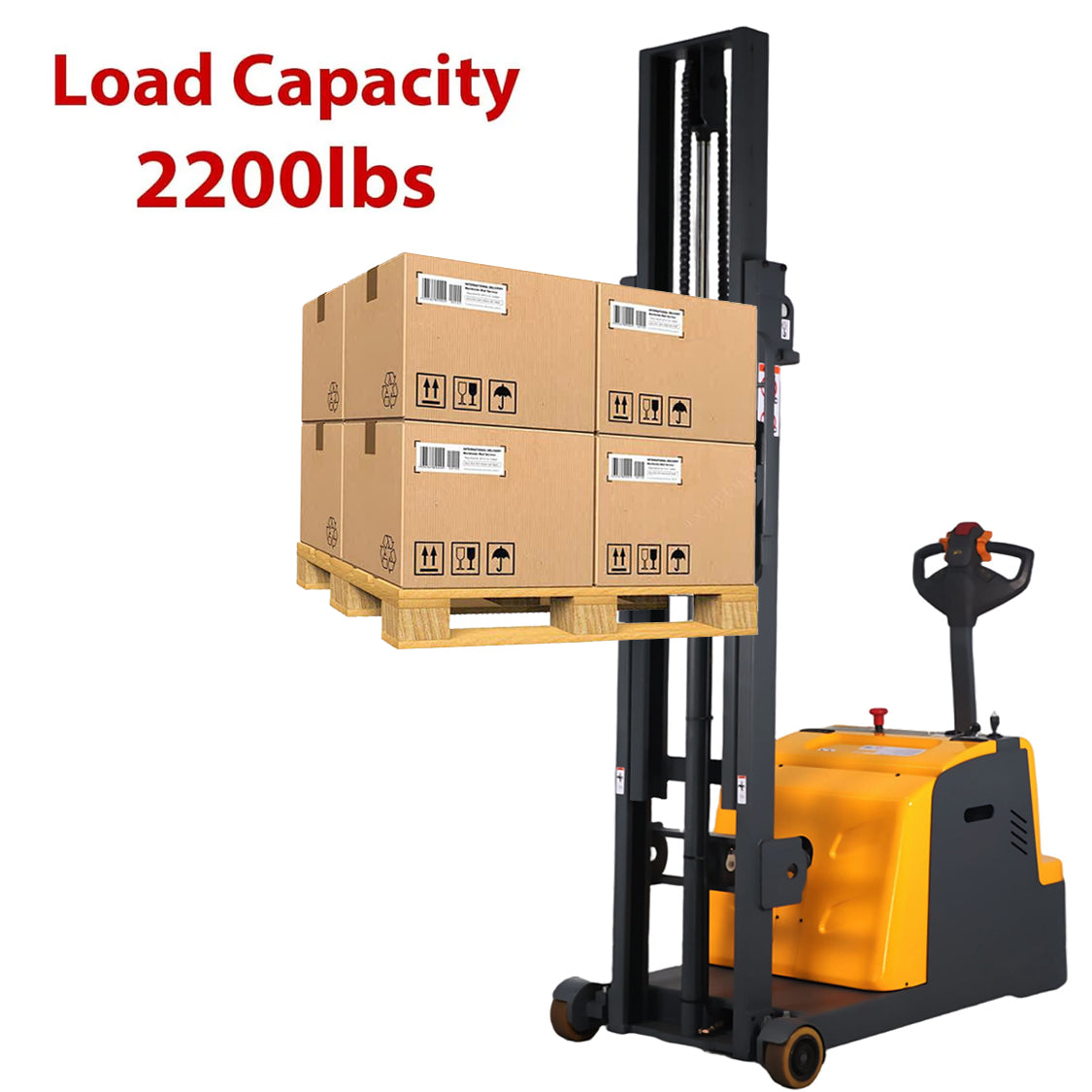

Load Capacity: 2,200 lbs

Load Center: 15.7"

Turning Radius: 52.5"

Aisle Width: 113.4"

Fork Dimensions: 37.4" L × 8.7–25.4" W × 1.3" Thick

Inside Fork Width: 0.9"–17.6"

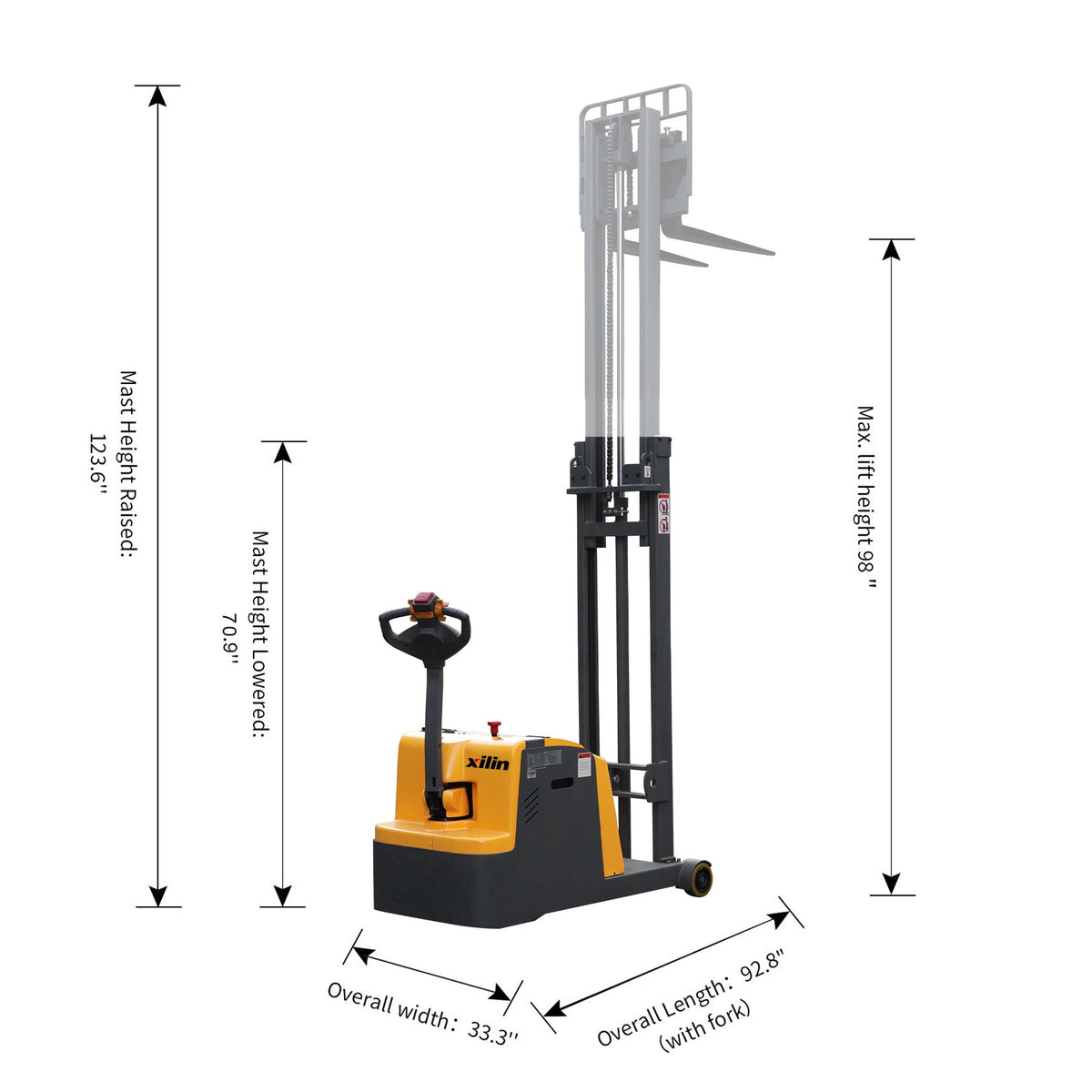

Overall Dimensions: 96.7" L × 33.3" W

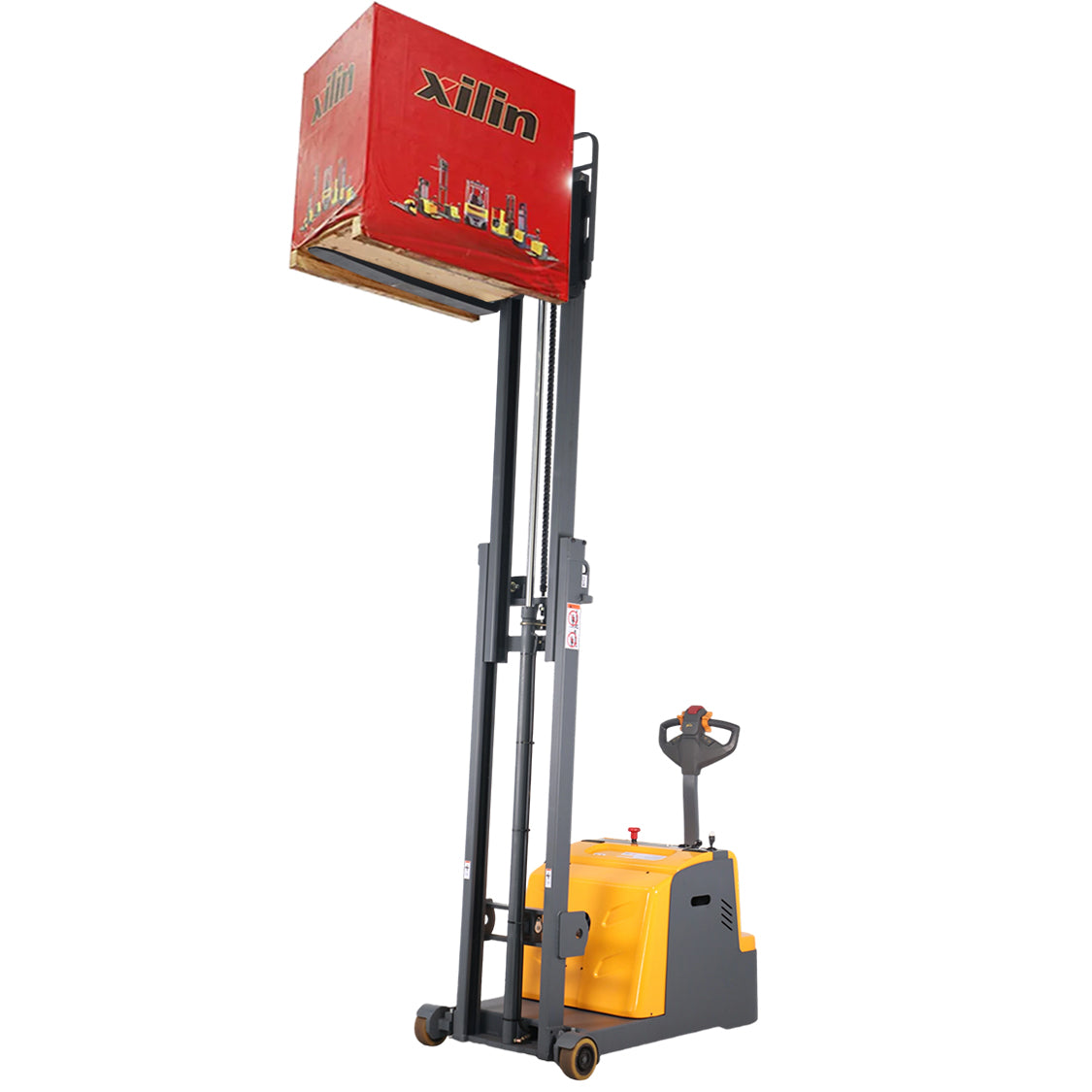

Max Lifting Height: 98"

Mast Height (Lowered/Extended): 70.9" / 123.6"

Fork Lowered Height: 1.3"

Battery: 24V / 125Ah (Maintenance-Free)

Charger: 24V / 10A Built-in

Travel Speed (L/U): 2.4 / 2.6 mph

Lifting Speed (L/U): 4.3 / 5.9 inch/s

Lowering Speed (L/U): 3.5 / 3.2 inch/s

Service Weight: 2650 lbs

The CPD10W-98 delivers efficient stacking in tight warehouse areas with a 2,200 lb capacity and 98" lift height. Its leg-free design easily handles closed-bottom pallets and narrow aisles. Powered by a sealed 24V/125Ah battery with built-in charger, it’s ideal for retail, logistics, and light industry.

One-year limited manufacturer warranty against manufacturing defects. Warranty exclusions and battery coverage may vary by model.

Warehouse, retail, and logistics pallet stacking, including closed-bottom pallets where a leg-free counterbalanced chassis is suitable.

Product price and freight are separate. Freight is quoted based on the delivery ZIP code, destination type, and required delivery service. Commercial delivery, residential delivery, liftgate service, limited-access delivery, and pickup at a carrier terminal may have different costs. Inventory and freight must be confirmed before shipment.
