Yellow semi-electric forklift stacker with vertical mast and raised forks

Xilin CDD15BE-118 Semi-Electric Stacker – 3300lb, 118in

$3,350.00
Skip to product information
Yellow semi-electric forklift stacker with vertical mast and raised forks
1/7

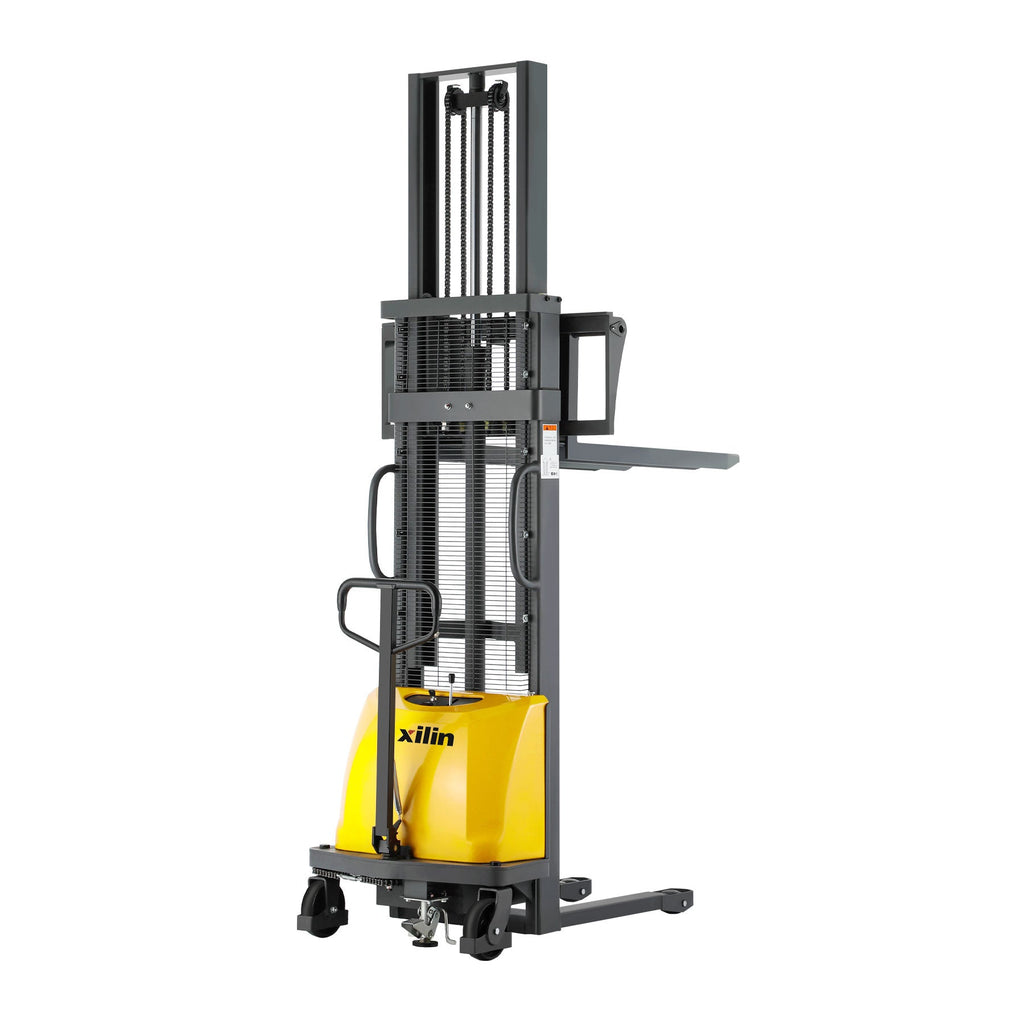

  • Yellow semi-electric forklift stacker with vertical mast and raised forks

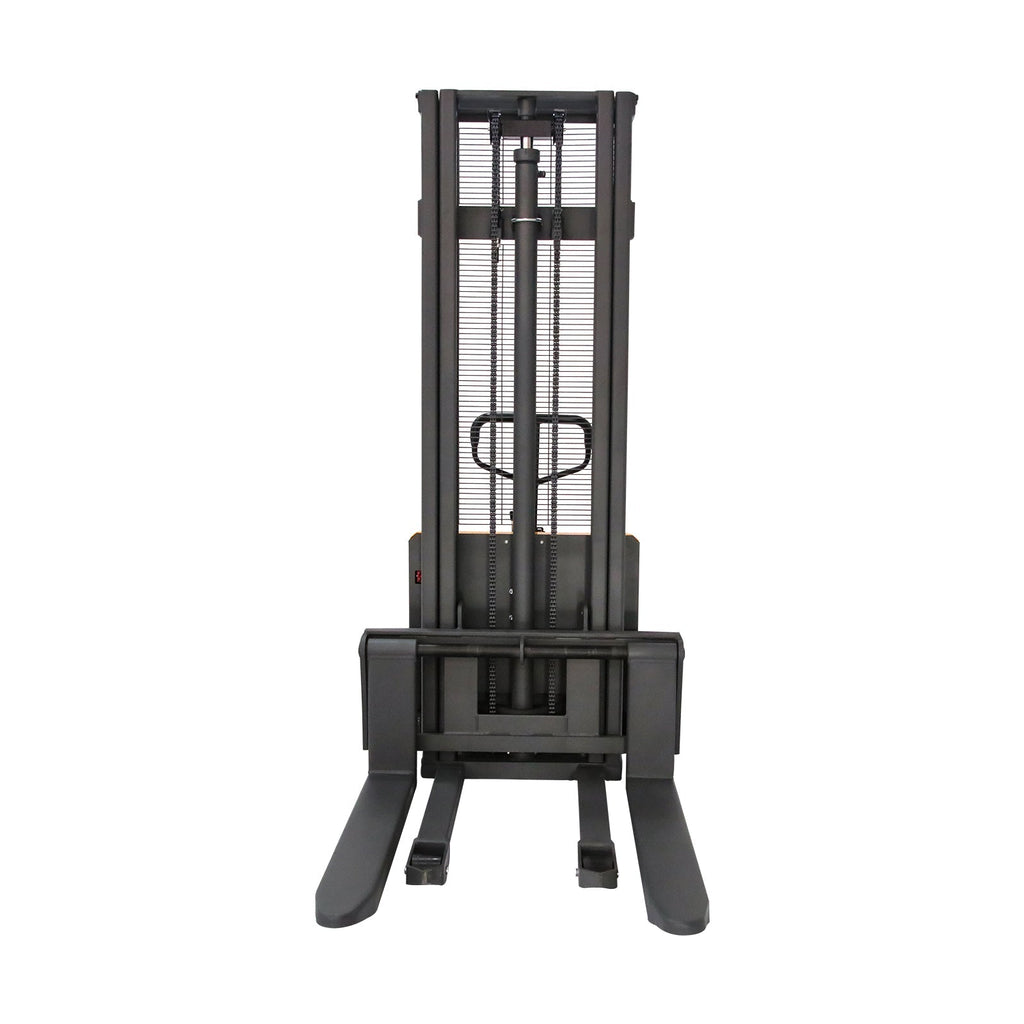

  • Semi-electric pallet stacker with raised mast and forks, black steel frame

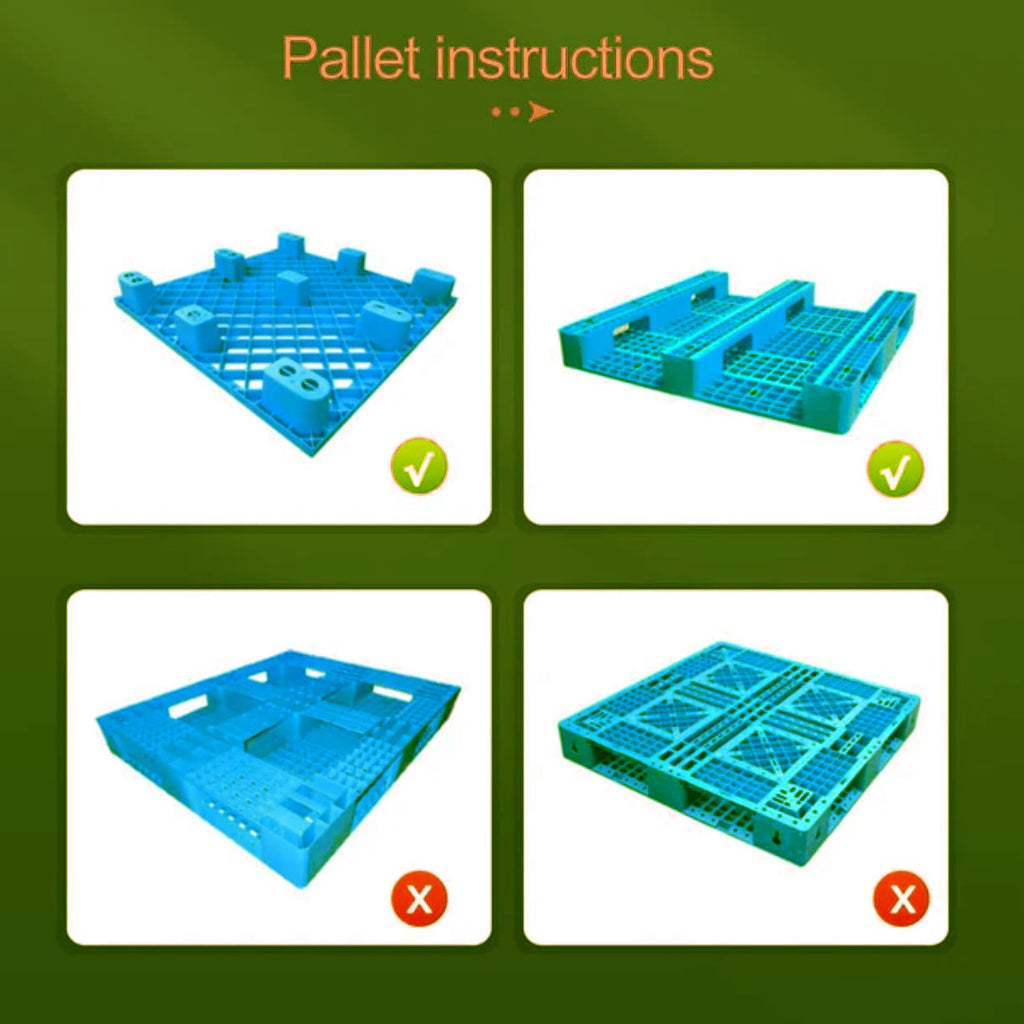

  • Pallet stacking instruction diagrams showing acceptable and rejected pallet positions

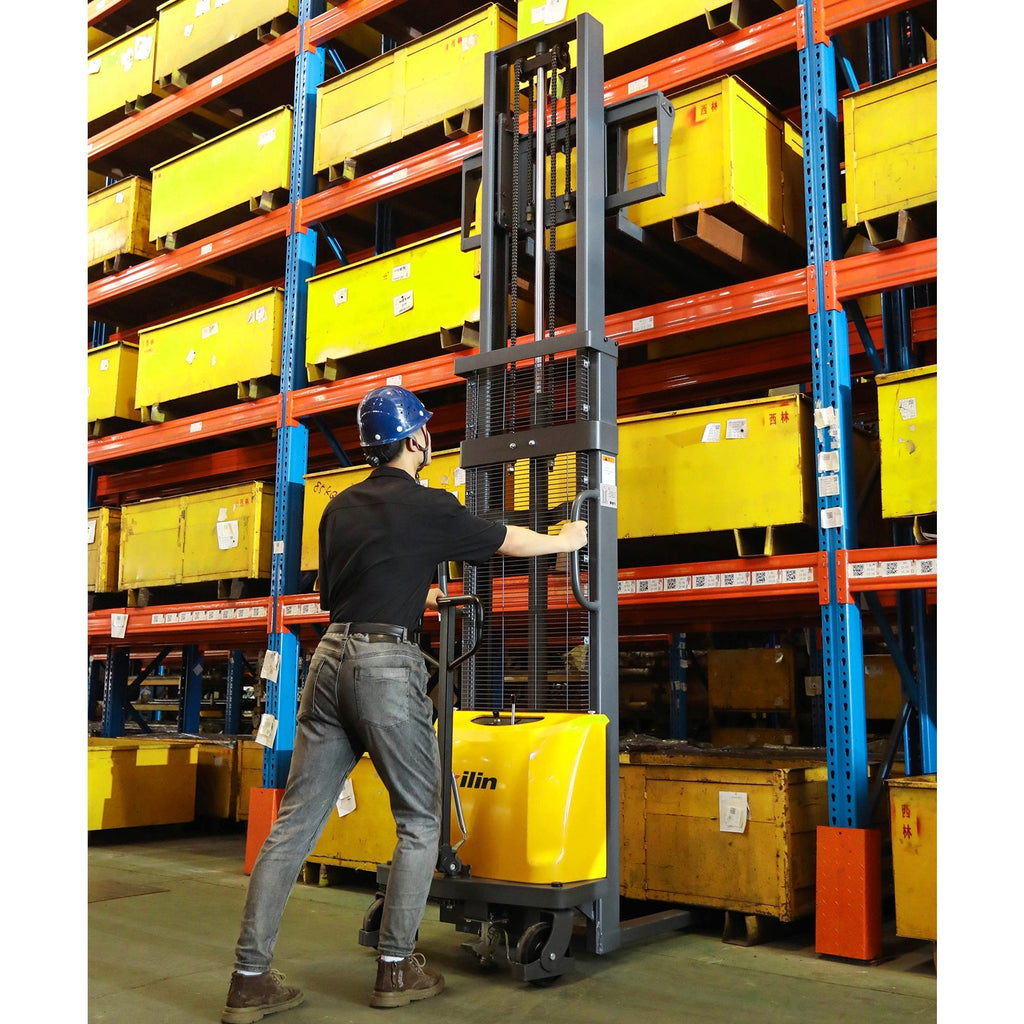

  • Semi-electric pallet stacker with tall mast and forks, operated by a worker in storage area

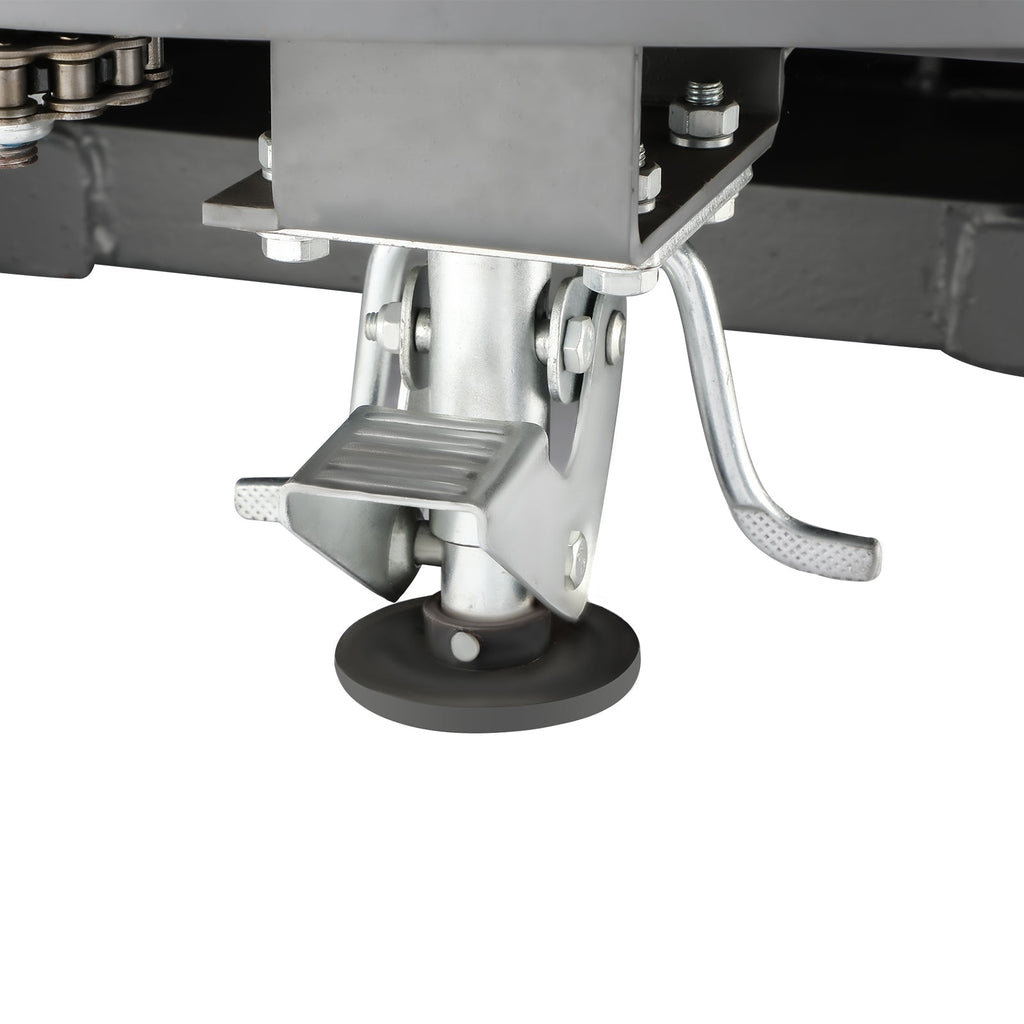

  • Control lever and black foot pedal mechanism on semi-electric pallet stacker base

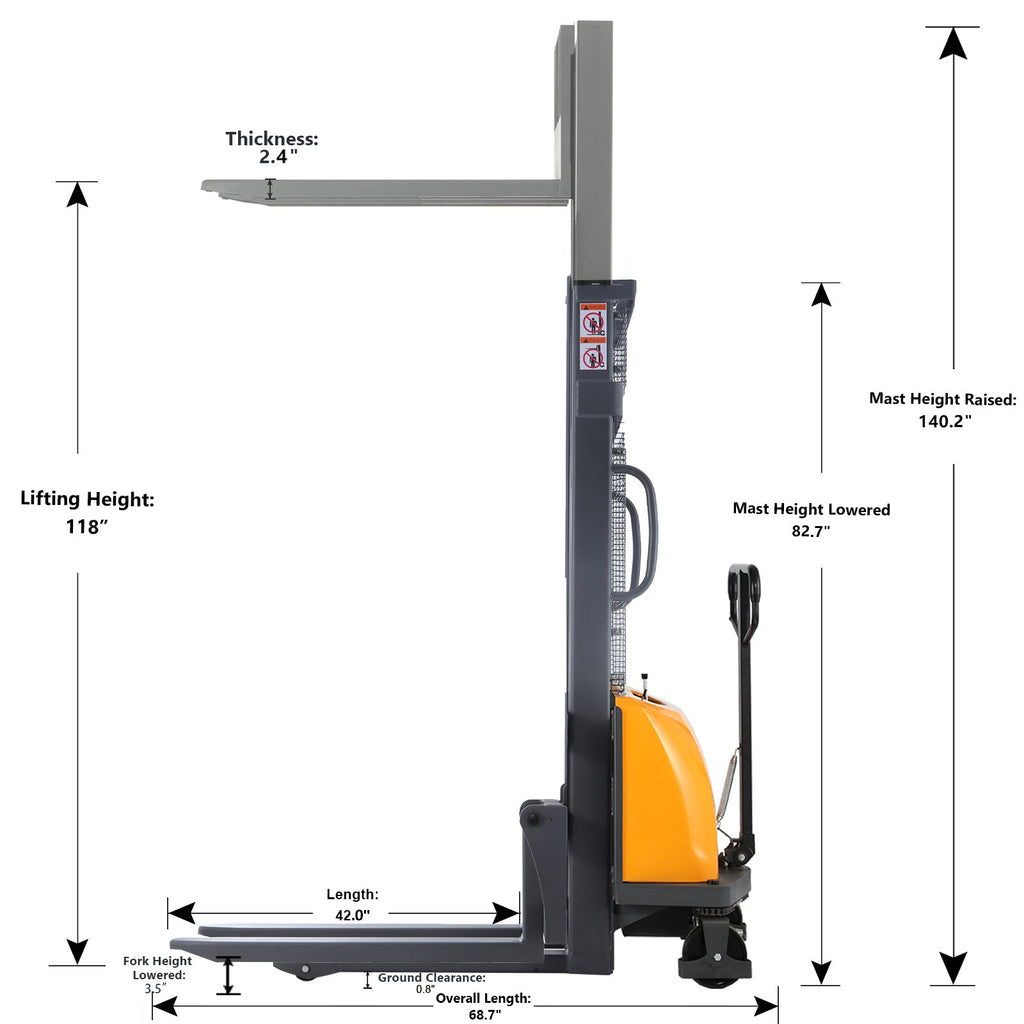

  • Side-view dimension diagram of semi-electric pallet stacker mast and lifting height

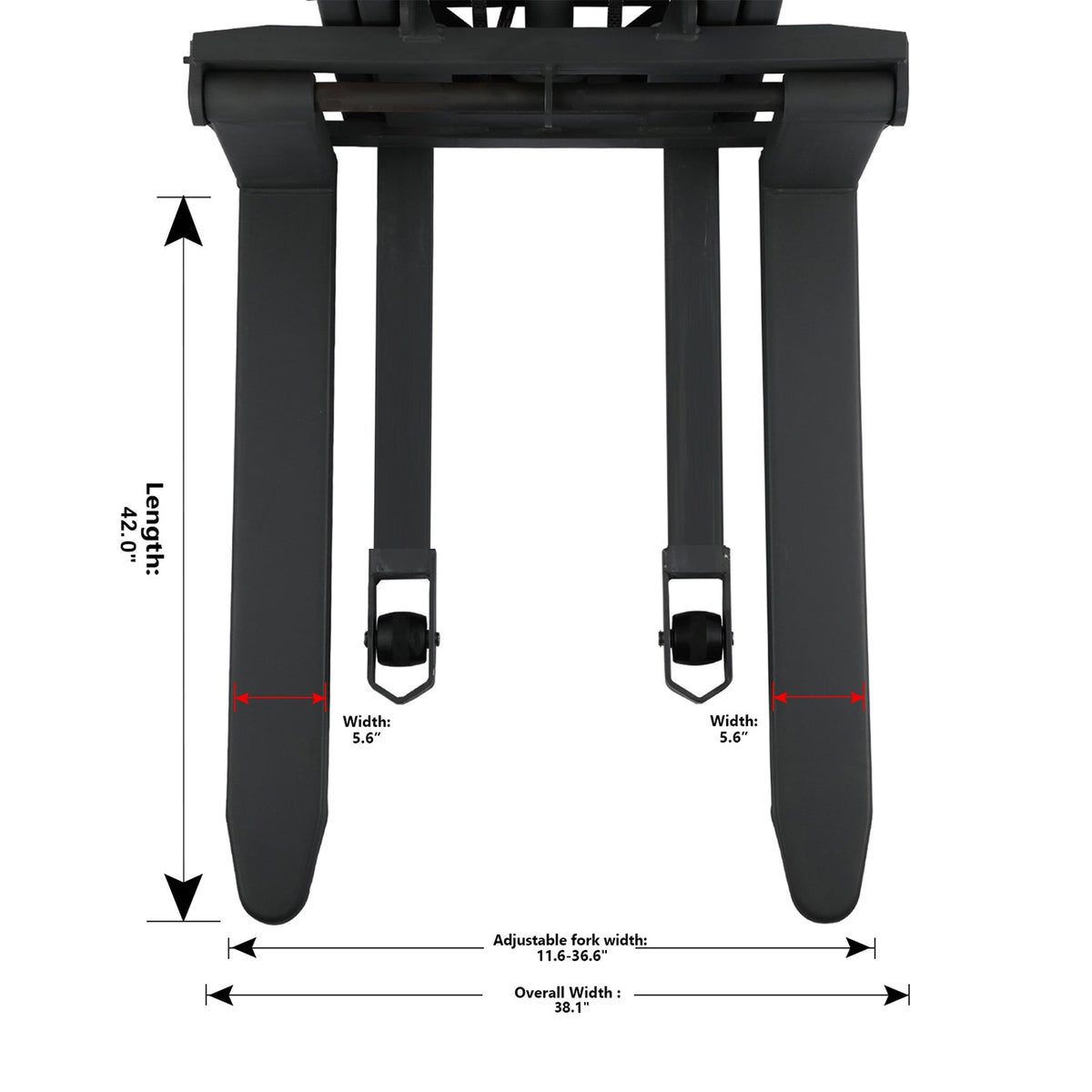

  • Dimension diagram of adjustable support legs on semi-electric pallet stacker
Xilin CDD15BE-118 Semi-Electric Stacker – 3300lb, 118in

Xilin CDD15BE-118 Semi-Electric Stacker – 3300lb, 118in

$3,350.00

Shop Pay Installments

Split your purchase into flexible installment payments with Shop Pay. Pay over time with no hidden fees.

How it works:

  • Choose Shop Pay at checkout
  • Select your preferred payment plan
  • Make your first payment today
  • Pay the rest over time with automatic payments

No interest. No hidden fees. Just flexible payments that work for you.

🚚 Shipping availability and rates vary by product, delivery option, and destination.

Carrier Terminal Pickup: Bring a suitable vehicle or trailer. The terminal will load the shipment, but the customer is responsible for unloading at the final destination.
⚠️ Warehouse Pickup – Please Contact Us First. Due to varying inventory across our warehouse locations, please contact us before placing your order to confirm stock availability at your preferred location.
Contact Us to Check Availability

🇺🇸 US-Based Business: We offer specialized support and flexible shipping and delivery options.

🏭
Expert SupportUS-Based Team
🚚
Shipping OptionsVary by Product & Destination
🛡️
1-Yr WarrantyFull Parts Support
🔬
Safety TestedLoad & Function Tested
📍
Pickup Options May Be AvailableContact us to confirm location & availability
Learn More >
Warranty

One-year limited manufacturer warranty against manufacturing defects. Warranty exclusions and battery coverage may vary by model. Contact ALLIZOE before arranging warranty service.
Shipping

Free freight shipping to the contiguous 48 US states. Estimated delivery: 6–10 business days. Curbside delivery only — forklift or pallet jack required. Carrier will call 24–48 hrs before delivery. View full Shipping & Delivery details →

⚠️ Safety Warning

Read the manufacturer's operation manual before use. Only trained and authorized operators should operate this equipment. Confirm load capacity, load center, pallet compatibility, aisle clearance, and floor conditions. Never stand beneath raised forks or use this equipment to lift people.

The CDD15BE-118 is a reliable semi-electric stacker with a 3,300 lb capacity and 118" lift height. Featuring a fixed-leg chassis and ergonomic design, it delivers safe and stable lifting performance for industrial, warehouse, and retail operations. Powered lifting combines with manual travel for improved efficiency and control.

Ergonomic, Compact Design – Easy to maneuver with comfortable grip and user-friendly structure.

Low Center of Gravity – Optimized balance for reliable control during full-load operation.

Over-Discharge Protection – Prevents battery damage and extends system lifespan.

Reinforced Mast Structure – High-strength steel with precision welds ensures long-term durability.

Chain-Driven Steering – Responsive, low-effort steering improves navigation in tight spaces.

Heavy-Duty Chain System – Reduces risk of chain failure under heavy load.

Explosion-Proof Hydraulic Valve – Prevents sudden descent if hydraulic failure occurs.

Manual Hydraulic Control – Smooth and accurate lift/lower via adjustable hydraulic leveler.

Responsive Foot Brake – Enhances control and safety during daily operations.

Upgraded Hydraulic Pump – 1.5kW configuration for consistent performance and manual lowering.

Dual Electric Protection – Ensures electrical system safety under heavy use.

Load Capacity: 3,300 lbs

Load Center: 19.7"

Turning Radius: 56.1"

Aisle Width: 90.1"

Fork Dimensions: 42" L × 11.6–36.6" W × 2.4" Thick

Inside Fork Width: 0.4"–25.4"

Fork Lowered Height: 3.5"

Overall Width: 38.1"

Overall Length: 68.7"

Max Lifting Height: 118"

Mast Height (Lowered/Extended): 82.7" / 140.2"

Battery: 12V / 100Ah

Charger: 12V / 12A Built-in

Lifting Speed (L/U): 2.0 / 3.1 inch/s

Lowering Speed (L/U): 3.9 / 3.5 inch/s

Service Weight: 960 lbs

The CDD15BE-118 is a reliable semi-electric stacker with a 3,300 lb capacity and 118" lift height. Featuring a fixed-leg chassis and ergonomic design, it delivers safe and stable lifting performance for industrial, warehouse, and retail operations. Powered lifting combines with manual travel for improved efficiency and control.

One-year limited manufacturer warranty against manufacturing defects. Warranty exclusions and battery coverage may vary by model. Contact ALLIZOE before arranging warranty service.

Warehouse, retail, and industrial pallet stacking where manual travel with powered lifting is suitable.

Product price and freight are separate. Freight is quoted based on the delivery ZIP code, destination type, and required delivery service. Commercial delivery, residential delivery, liftgate service, limited-access delivery, and pickup at a carrier terminal may have different costs. Inventory and freight must be confirmed before shipment.

Key Benefits

Ergonomic, Compact Design

Easy to maneuver with comfortable grip and user-friendly structure.

Low Center of Gravity

Optimized balance for reliable control during full-load operation.

Over-Discharge Protection

Prevents battery damage and extends system lifespan.

Reinforced Mast Structure

High-strength steel with precision welds ensures long-term durability.

Product Highlights

3,300 lb Semi-Electric Lifting

3,300 lb Semi-Electric Lifting

Powered lift with manual travel supports efficient stacking for warehouses, retail, and industrial operations.

Fixed-Leg Chassis

Fixed-Leg Chassis

Compact fixed-leg design supports stable lifting and straightforward indoor positioning.

Operator Safety Guidance

Operator Safety Guidance

Pallet-positioning guidance helps customers understand compatible stacking use cases.

Foot Brake & Manual Control

Foot Brake & Manual Control

Control lever and foot brake support smoother lifting control and safer daily operation.

Dimensions & Product Drawing

Official Xilin specification sheet with detailed parameter tables and dimensional drawings. Click the full-page preview or download the original PDF to view the document at full size.

Xilin cdd15be 118 semi electric stackers official PDF with specification tables and dimensional drawings
Download Product Drawing (PDF)

Product Manual

Download the complete product manual and installation guide.
Download Manual

Complete Your Shop Setup

Everything a professional tire shop needs
Tire Service Packages Collection Banner

Tire Service Packages

2-Post Lifts Category Image

2-Post Lift

4-Post Lifts Category Image

4-Post Lifts

Tire Changer

Tire Changer

Wheel Balancer

Wheel Balancer

Shop Accessories Collection Banner

Shop Accessories

Frequently Asked Questions

  • Product price and freight are separate. Freight is quoted based on the delivery ZIP code, destination type, and required delivery service. Residential or liftgate delivery may cost more. Inventory is subject to confirmation before shipment.
  • Manual push travel with electric lifting.
  • Yes. Please contact ALLIZOE to confirm current availability and freight arrangements before shipment.
