Xilin CBD15WE-19BC Electric Pallet Jack – 3300lb, 65Ah Battery

$2,300.00
Skip to product information
Orange and black electric pallet jack with operator handle and forks
1/12

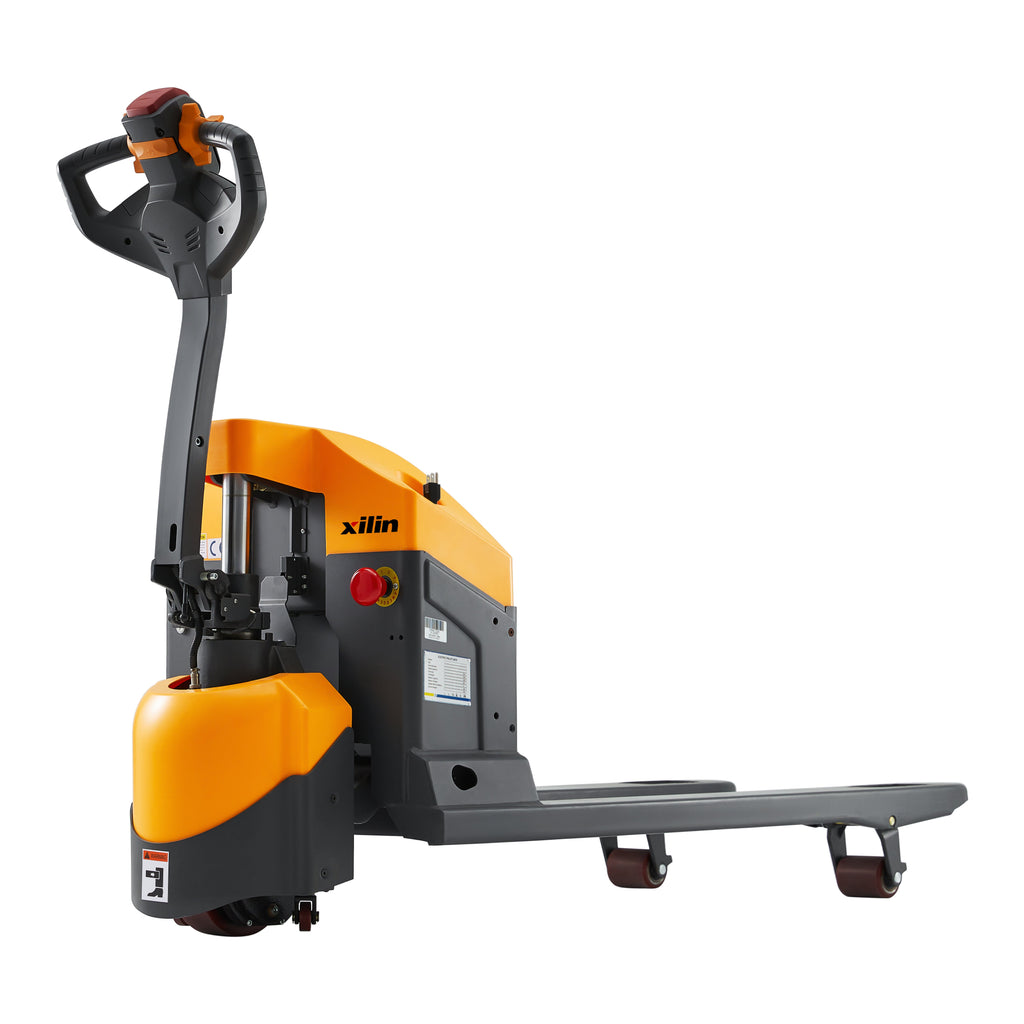

  • Orange and black electric pallet jack with operator handle and forks

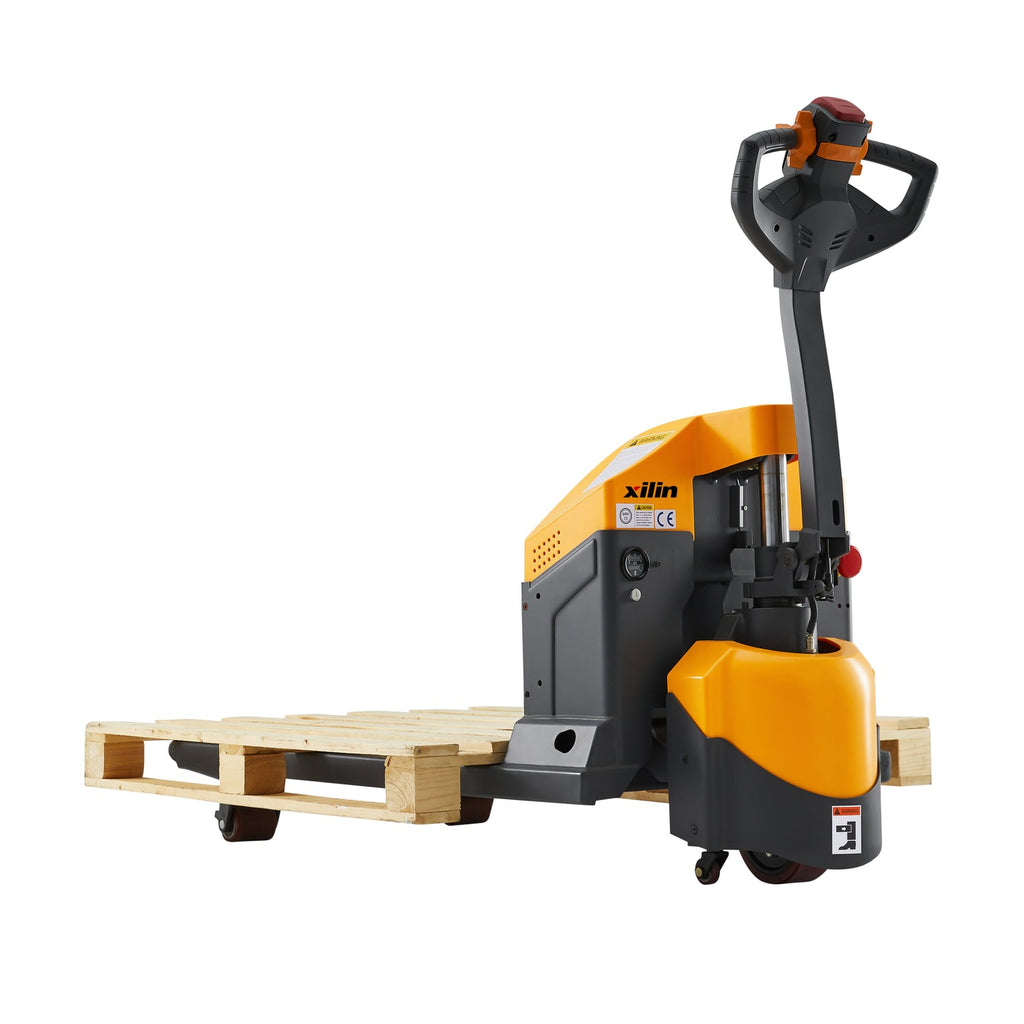

  • Orange and black electric pallet jack lifting a wooden pallet

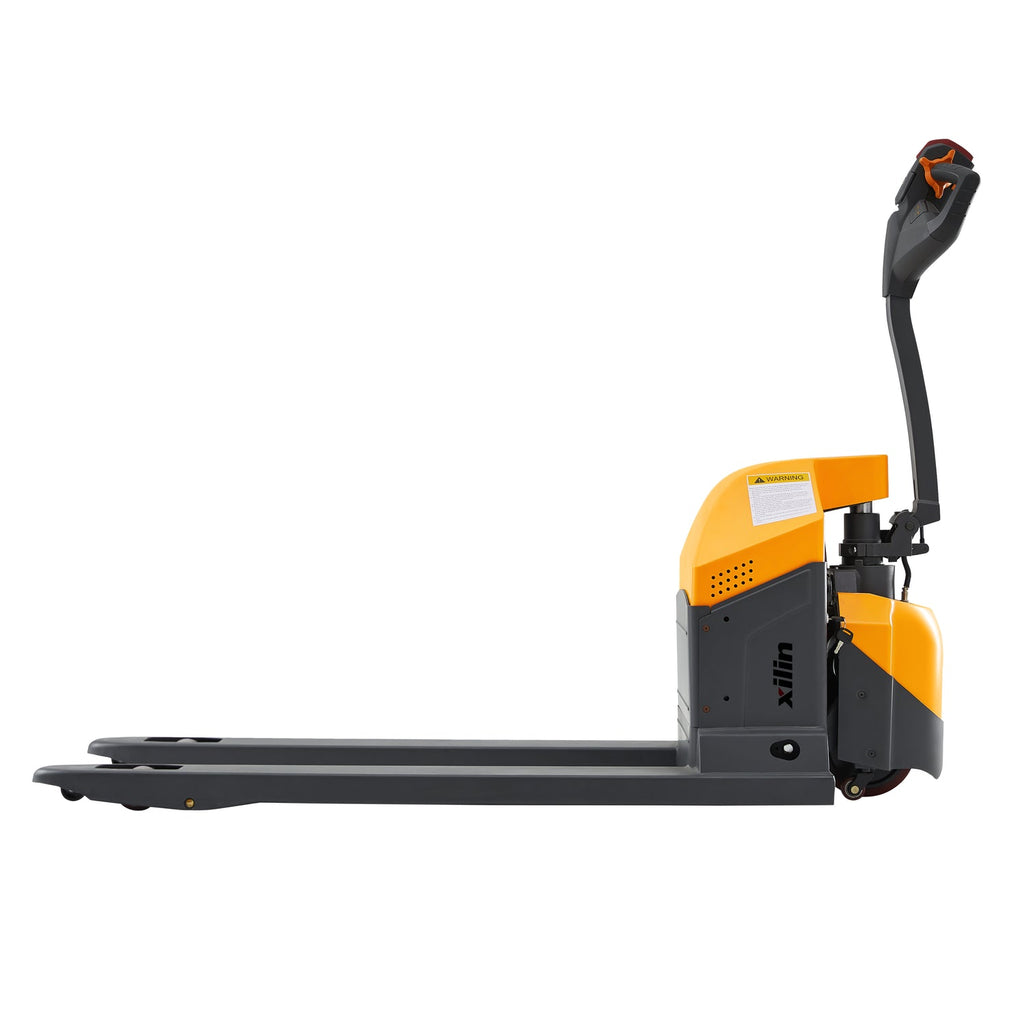

  • Orange and black electric pallet jack side view with extended forks

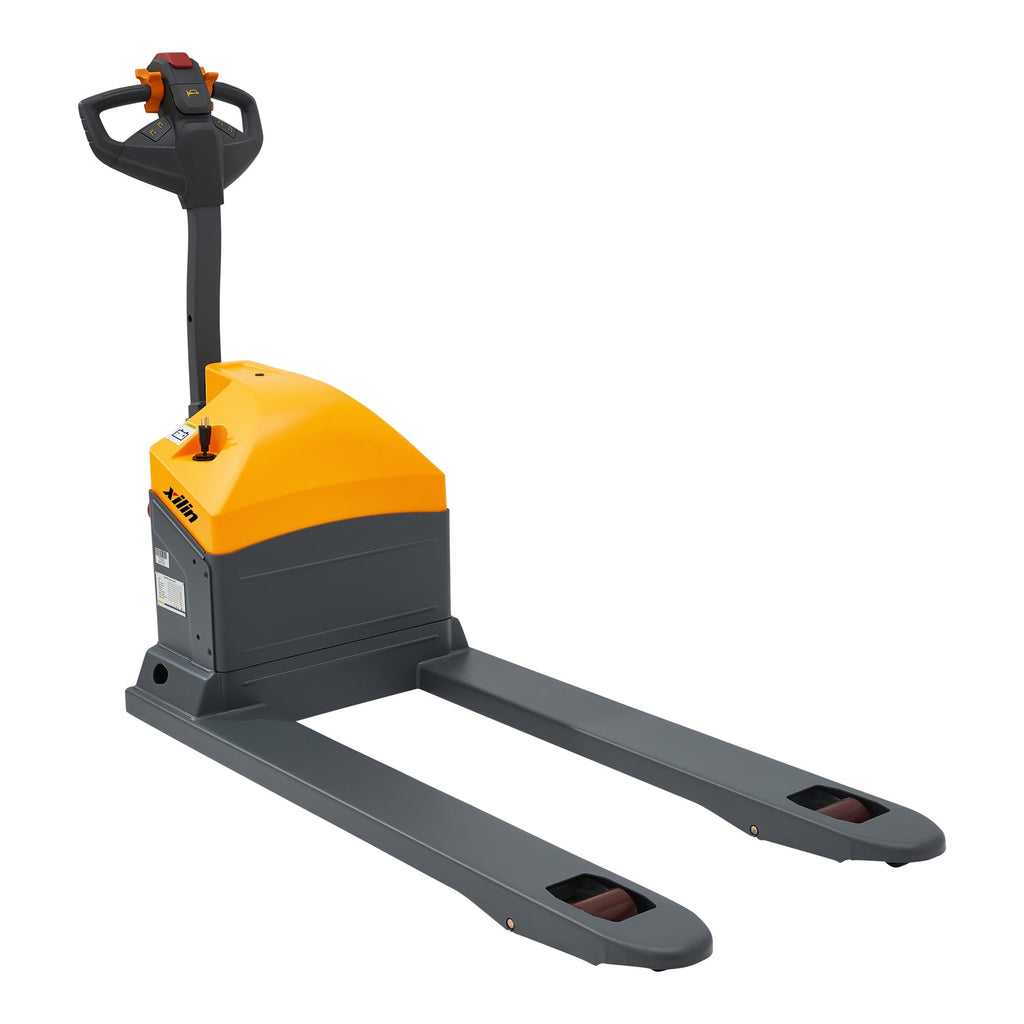

  • Orange and black electric pallet jack with low-profile forks

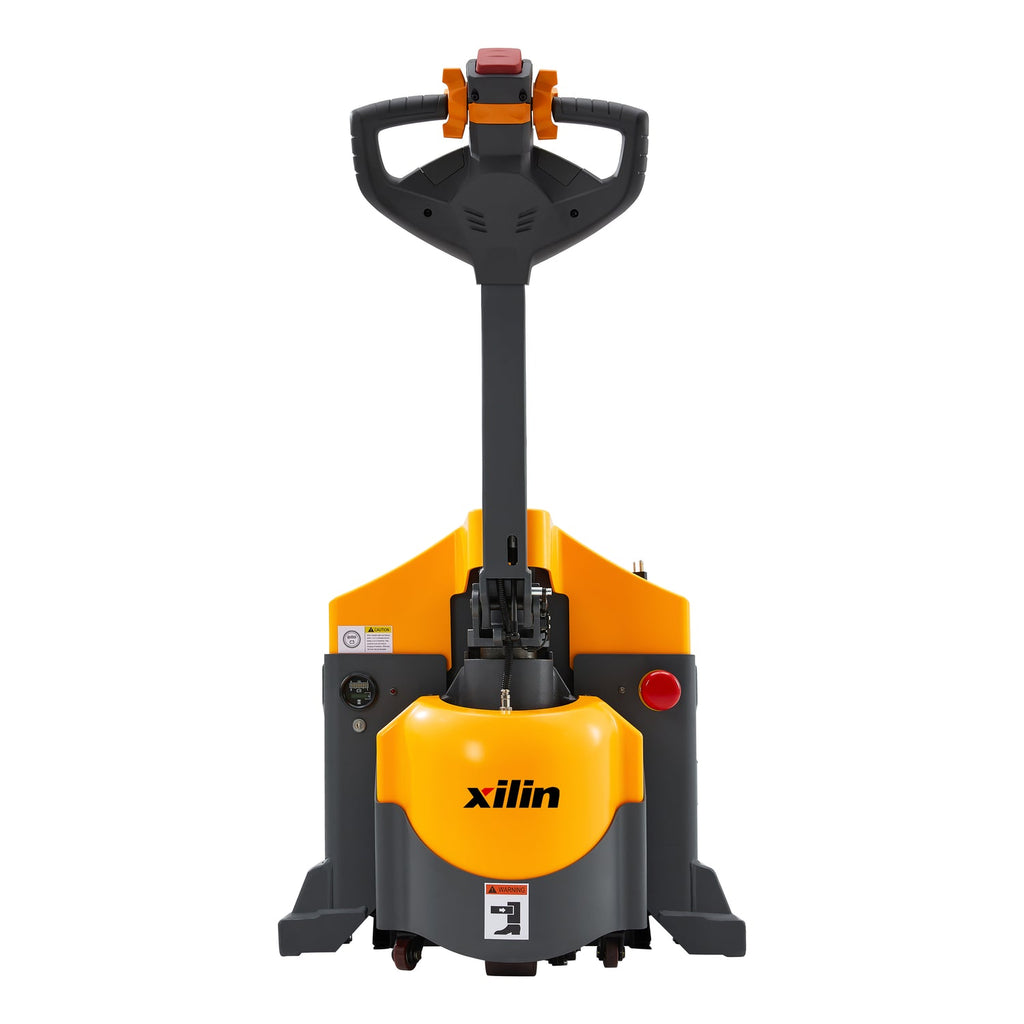

  • Orange and black electric pallet jack with front control mast

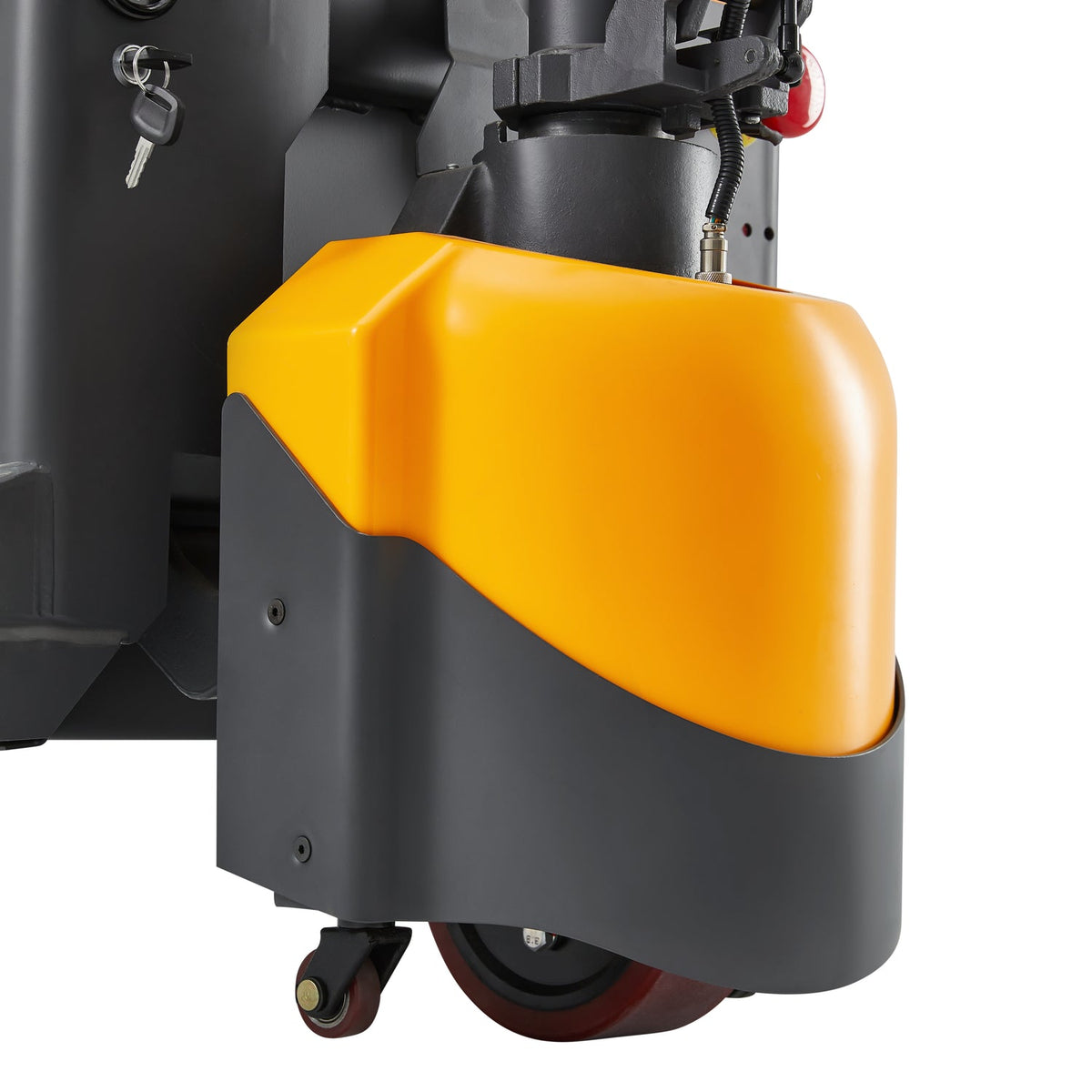

  • Orange and black electric pallet jack battery housing with caster wheels
  • Orange electric pallet jack control lever and red emergency button

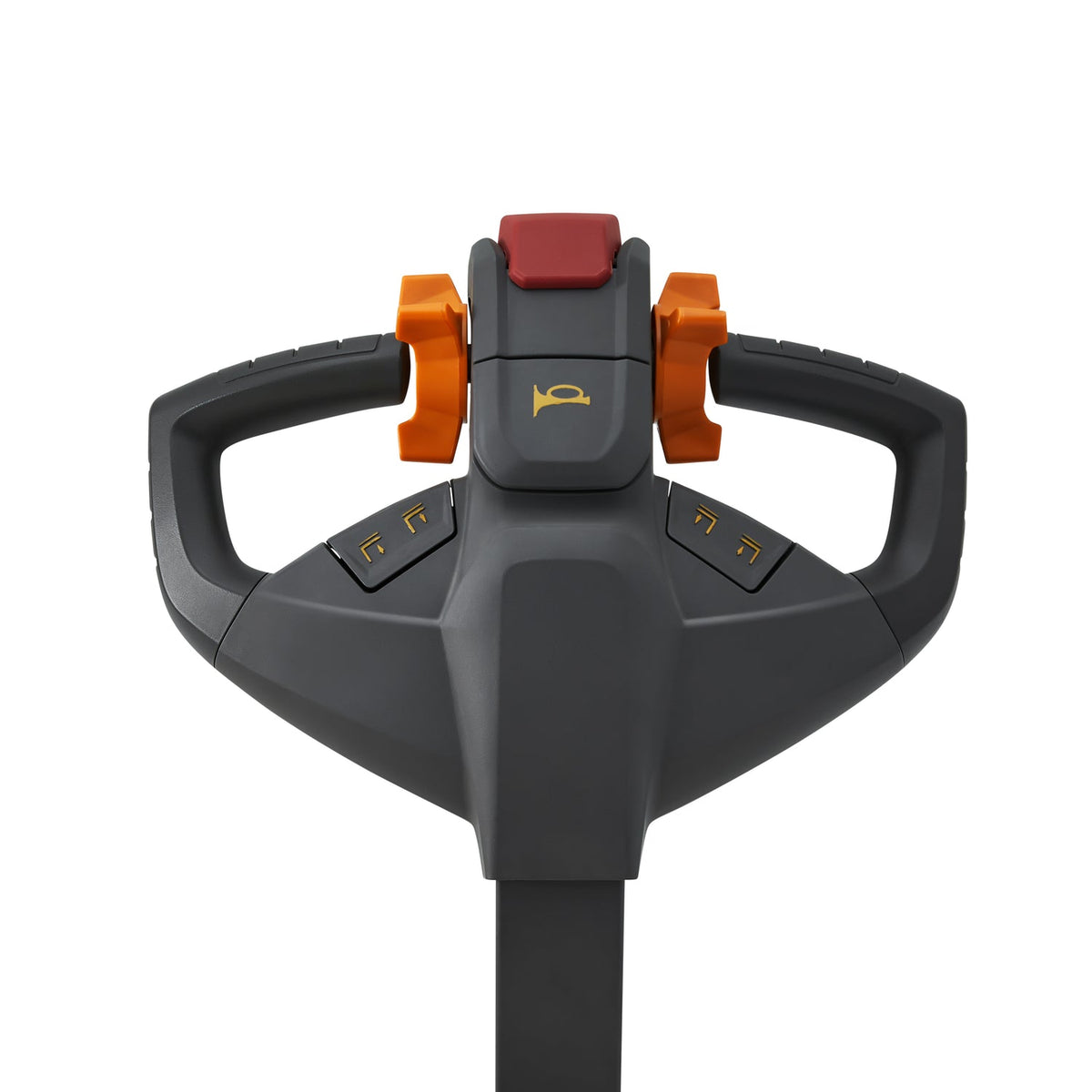

  • Electric pallet jack operator handle with red control pad and buttons

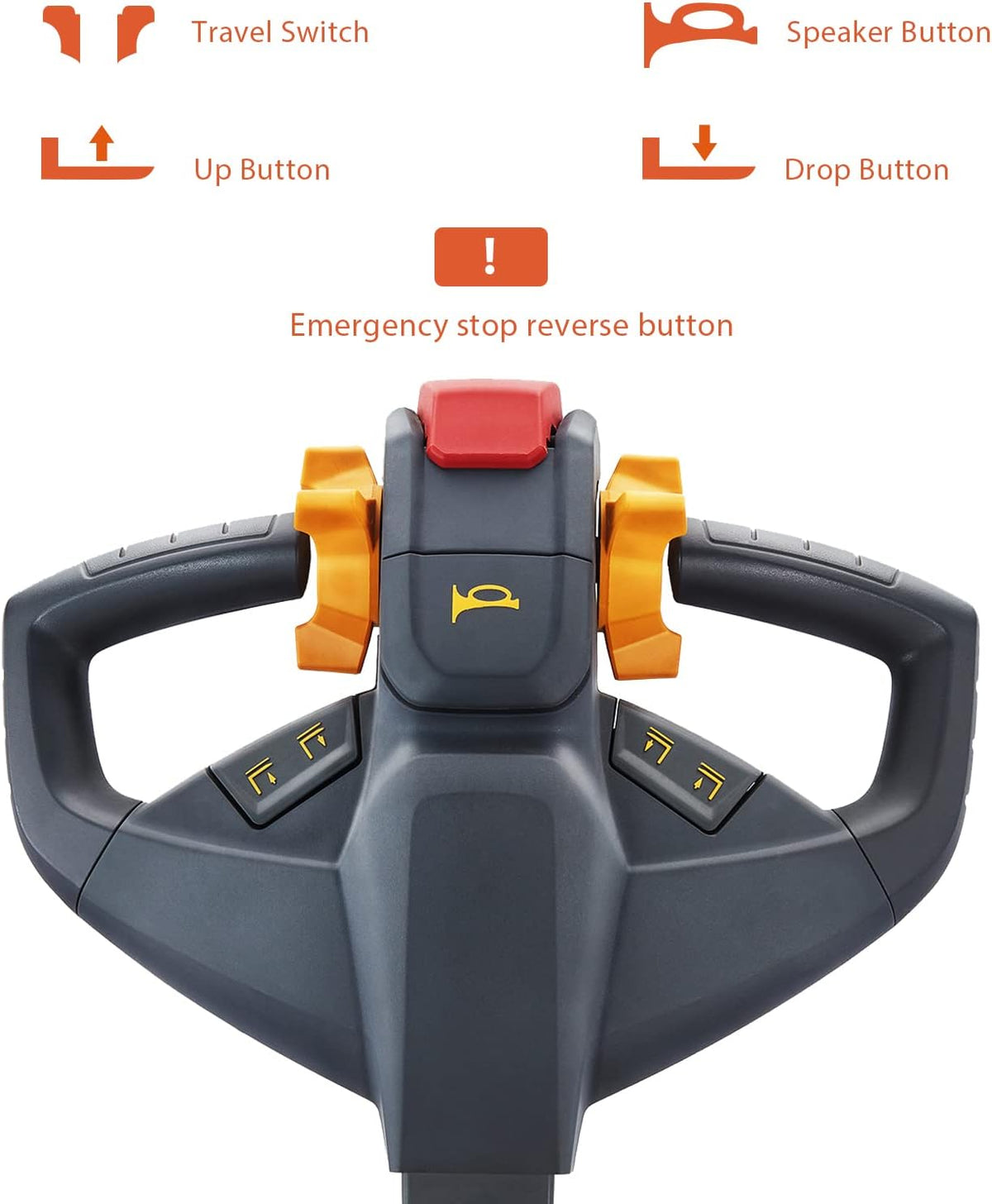

  • Electric pallet jack operator handle with red emergency stop and control buttons

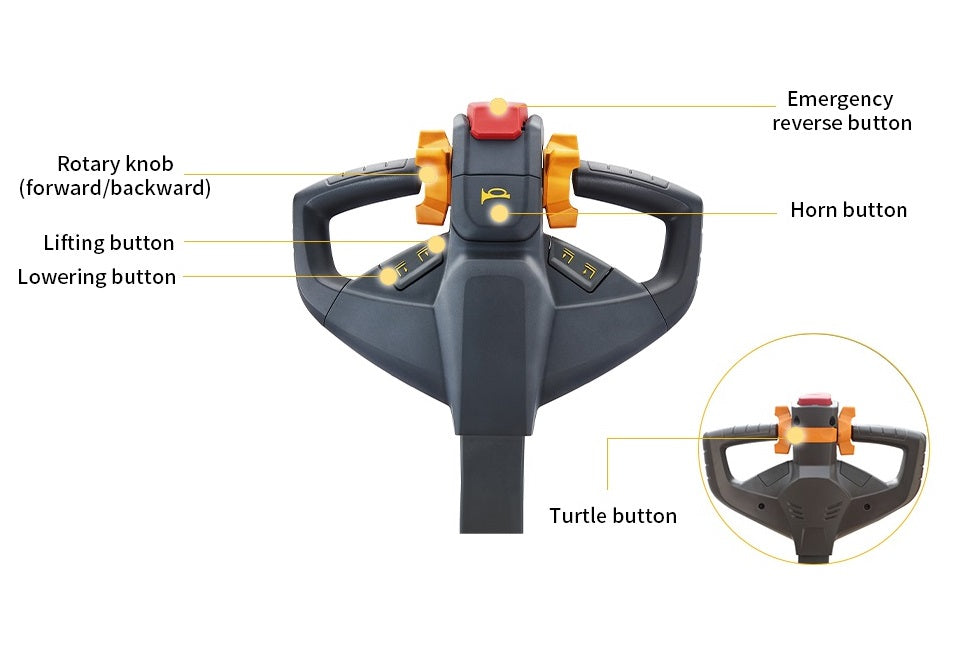

  • Electric pallet jack control handle with rotary knob, horn button, and turtle button

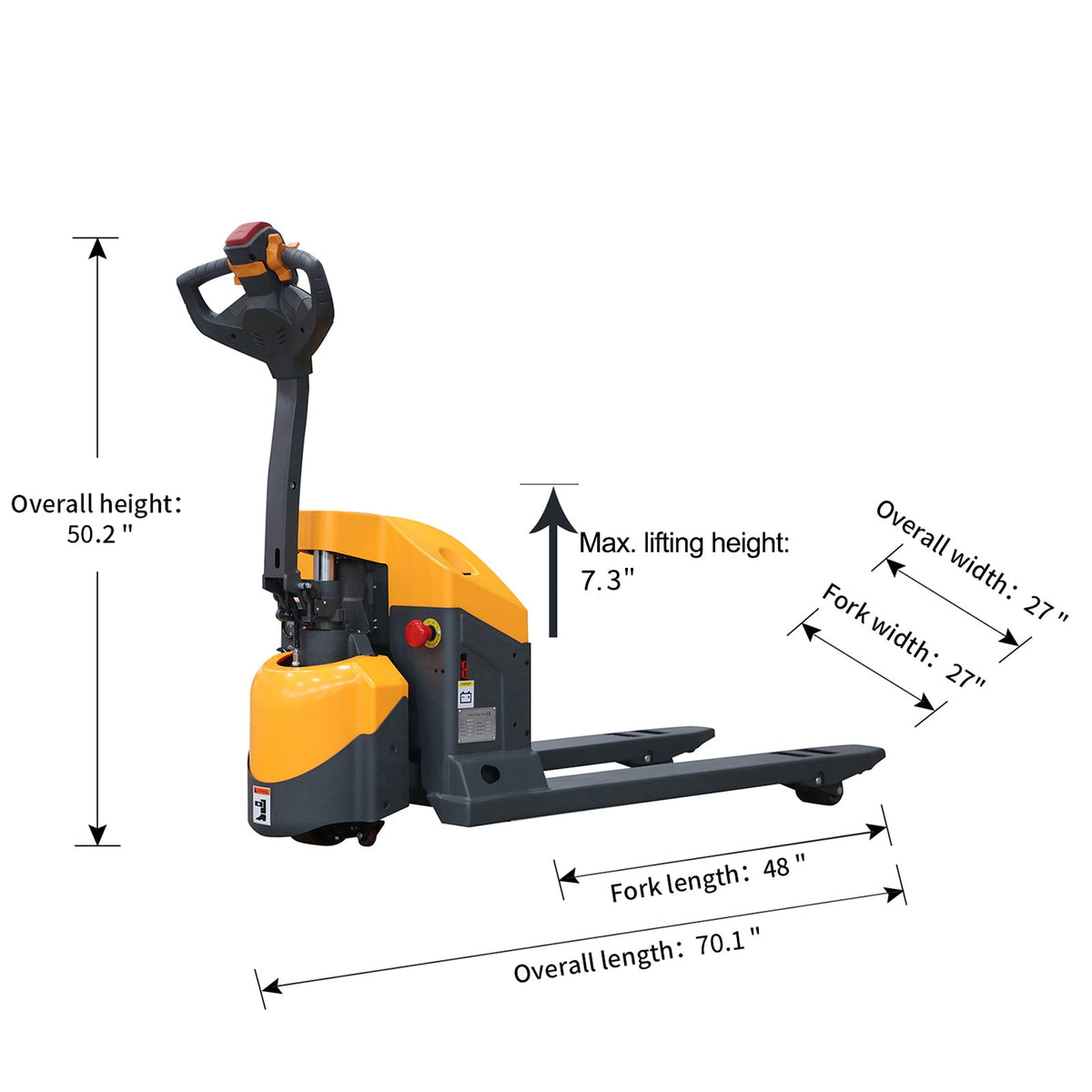

  • Electric pallet jack with raised handle and black fork arms, yellow body
  • Electric pallet jack with lowered forks and yellow-and-black body
Xilin CBD15WE-19BC Electric Pallet Jack – 3300lb, 65Ah Battery

Xilin CBD15WE-19BC Electric Pallet Jack – 3300lb, 65Ah Battery

$2,300.00

Shop Pay Installments

Split your purchase into flexible installment payments with Shop Pay. Pay over time with no hidden fees.

How it works:

  • Choose Shop Pay at checkout
  • Select your preferred payment plan
  • Make your first payment today
  • Pay the rest over time with automatic payments

No interest. No hidden fees. Just flexible payments that work for you.

🚚 Shipping availability and rates vary by product, delivery option, and destination.

Carrier Terminal Pickup: Bring a suitable vehicle or trailer. The terminal will load the shipment, but the customer is responsible for unloading at the final destination.
⚠️ Warehouse Pickup – Please Contact Us First. Due to varying inventory across our warehouse locations, please contact us before placing your order to confirm stock availability at your preferred location.
Contact Us to Check Availability

🇺🇸 US-Based Business: We offer specialized support and flexible shipping and delivery options.

🏭
Expert SupportUS-Based Team
🚚
Shipping OptionsVary by Product & Destination
🛡️
1-Yr WarrantyFull Parts Support
🔬
Safety TestedLoad & Function Tested
📍
Pickup Options May Be AvailableContact us to confirm location & availability
Learn More >
Warranty

One-year limited manufacturer warranty against manufacturing defects. Normal wear, misuse, improper maintenance, battery wear, and freight damage are excluded. Contact ALLIZOE before arranging warranty service.
Shipping

Free freight shipping to the contiguous 48 US states. Estimated delivery: 6–10 business days. Curbside delivery only — forklift or pallet jack required. Carrier will call 24–48 hrs before delivery. View full Shipping & Delivery details →

⚠️ Safety Warning

For trained operators only. Use on suitable level indoor floors and compatible pallets. Never exceed rated capacity. Keep hands, feet, and bystanders clear; inspect controls, wheels, forks, battery, charger, braking, emergency reverse, and emergency stop before operation. Follow the manufacturer manual and charging instructions.

Choose the CBD15WE-19BC for a 3,300 lb electric pallet jack with a higher-capacity 65Ah lead-acid battery, built-in charger, floating balance wheels, and stable compact handling.

Electric lift and drive

Integrated multifunction control handle with turtle mode and emergency reverse

24V / 65Ah lead-acid battery for extended runtime

Built-in 24V / 5A charger

Floating balance wheels for lateral stability

Top-mounted drive motor and service-accessible layout

Overload protection, lift limit, braking, belly switch, and emergency stop

Pallet entry rollers and quiet indoor operation

Model: CBD15WE-19BC

Load capacity: 3,300 lb

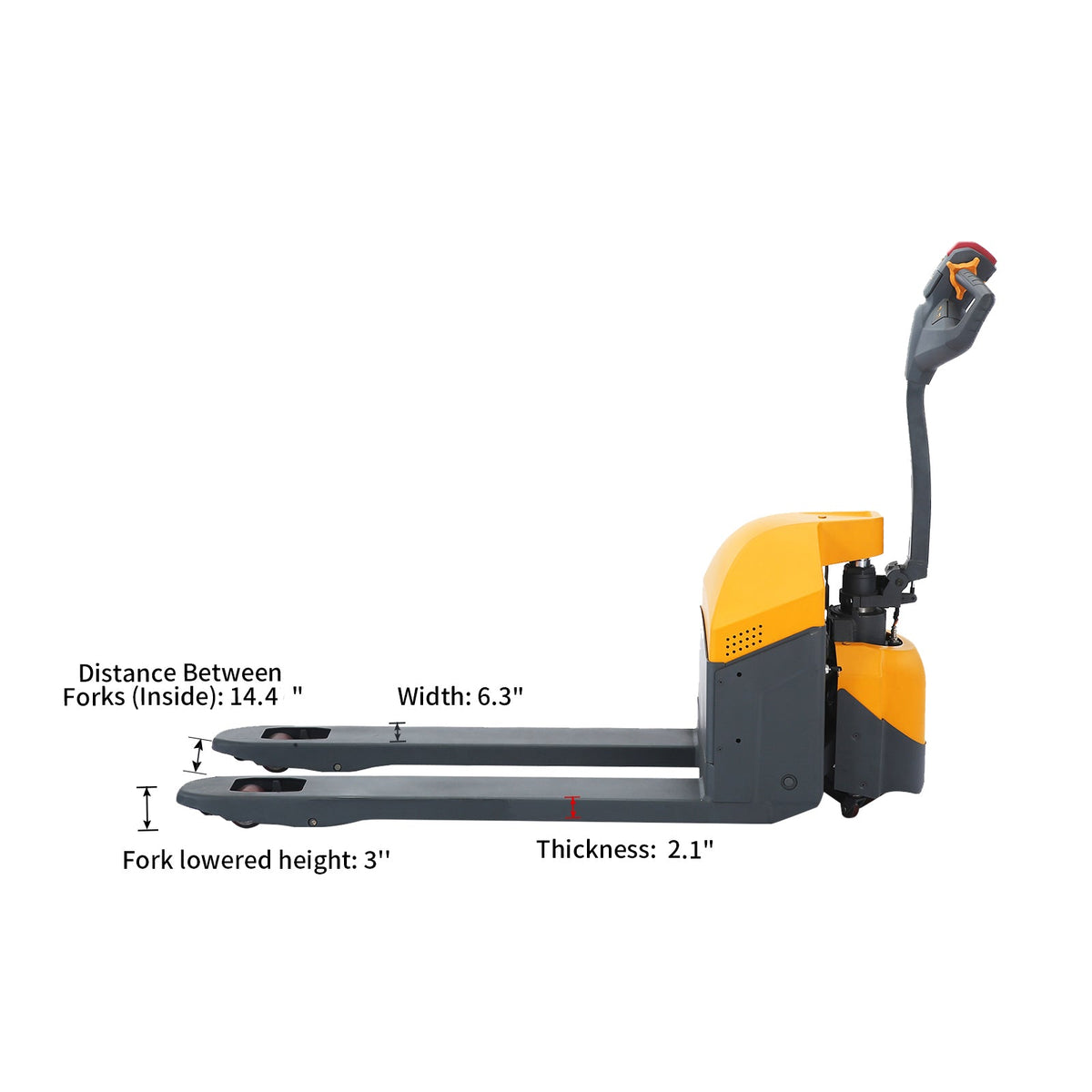

Fork size: 48 × 27 in; inside fork width: 14.4 in; fork thickness: 2.1 in

Lowered fork height: 3 in; maximum fork height: 7.3 in; lift travel: 4.3 in

Turning radius: 60 in; minimum aisle width: 93.1 in

Overall size: 70.1 × 27 × 50.2 in

Battery: 24V / 65Ah lead-acid

Charger: 24V / 5A built-in

Travel speed: 2.7 mph laden / 3.0 mph unladen

Service weight: 487 lb

The Xilin CBD15WE-19BC is a 3,300 lb walk-behind electric pallet jack for longer shifts and higher-volume pallet movement. It combines a 24V / 65Ah lead-acid battery, built-in charger, floating balance wheels, integrated controls, and compact indoor maneuverability.

One-year limited manufacturer warranty against manufacturing defects. Normal wear, misuse, improper maintenance, battery wear, and freight damage are excluded. Contact ALLIZOE before arranging warranty service.

Warehouses, distribution centers, loading areas, trucks, containers, and higher-volume indoor pallet movement where longer battery runtime is preferred.

Product price and freight are separate. Freight is quoted based on the delivery ZIP code, destination type, and required delivery service. Commercial delivery, residential delivery, liftgate service, limited-access delivery, and pickup at a carrier terminal may have different costs. Inventory and freight must be confirmed before shipment.

Key Benefits

65Ah Battery

24V / 65Ah lead-acid system supports longer working periods.

3,300 lb Capacity

Electric lift and drive reduce manual handling effort.

Stable Travel

Floating balance wheels help reduce lateral sway.

Turtle Mode

Low-speed upright travel supports control in tight spaces.

Product Highlights

Electric Lift & Drive

Electric Lift & Drive

Electric travel and lift functions reduce manual effort during longer shifts and higher-volume pallet movement.

24V / 65Ah Battery

24V / 65Ah Battery

Higher-capacity lead-acid battery and built-in charger support daily indoor warehouse use.

Integrated Control Handle

Integrated Control Handle

Travel, lift, lower, horn, turtle mode, and emergency reverse are grouped on the operator handle.

Floating Balance Wheels

Floating Balance Wheels

Floating balance wheels help improve lateral stability while traveling with pallets.

Dimensions & Product Drawing

Official Xilin specification sheet with detailed parameter tables and dimensional drawings. Click the full-page preview or download the original PDF to view the document at full size.

Xilin cbd15we 19bc electric pallet jacks official PDF with specification tables and dimensional drawings
Download Product Drawing (PDF)

Product Manual

Download the complete product manual and installation guide.
Download Manual

Complete Your Shop Setup

Everything a professional tire shop needs
Tire Service Packages Collection Banner

Tire Service Packages

2-Post Lifts Category Image

2-Post Lift

4-Post Lifts Category Image

4-Post Lifts

Tire Changer

Tire Changer

Wheel Balancer

Wheel Balancer

Shop Accessories Collection Banner

Shop Accessories

Frequently Asked Questions

  • 3,300 lb.
  • A 24V / 65Ah lead-acid battery with a built-in 24V / 5A charger.
  • 48 inches long by 27 inches wide.
  • Yes. Turtle/upright travel mode supports low-speed movement in confined areas.
  • No. Freight is quoted separately based on delivery ZIP code, destination type, and required delivery service.
