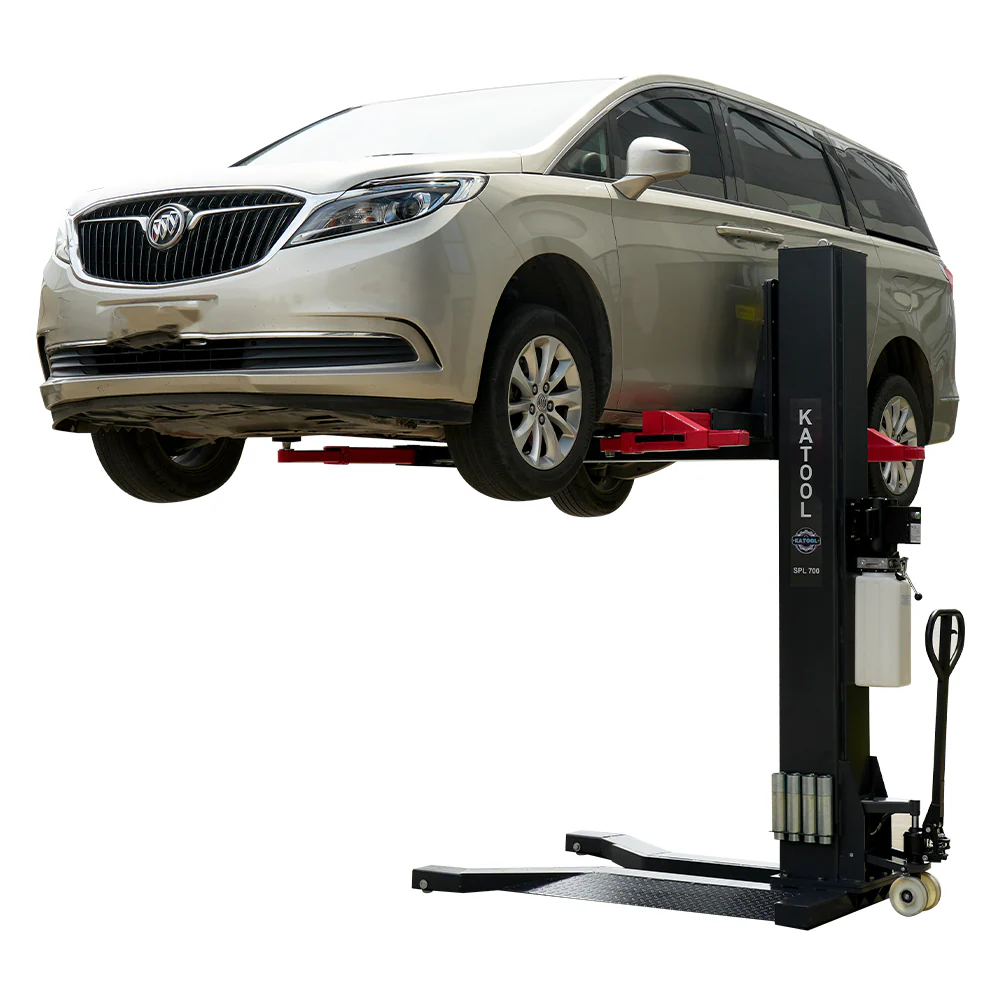

1. 7,000 lb mobile single post lift - SPL700 portable car lift front view

Katool SPL700 7,000 lb Mobile Single Post Lift - Portable & Space-Saving

Warehouse Pickup
$5,900.00
Skip to product information
1. 7,000 lb mobile single post lift - SPL700 portable car lift front view
1/18
  • 1. 7,000 lb mobile single post lift - SPL700 portable car lift front view

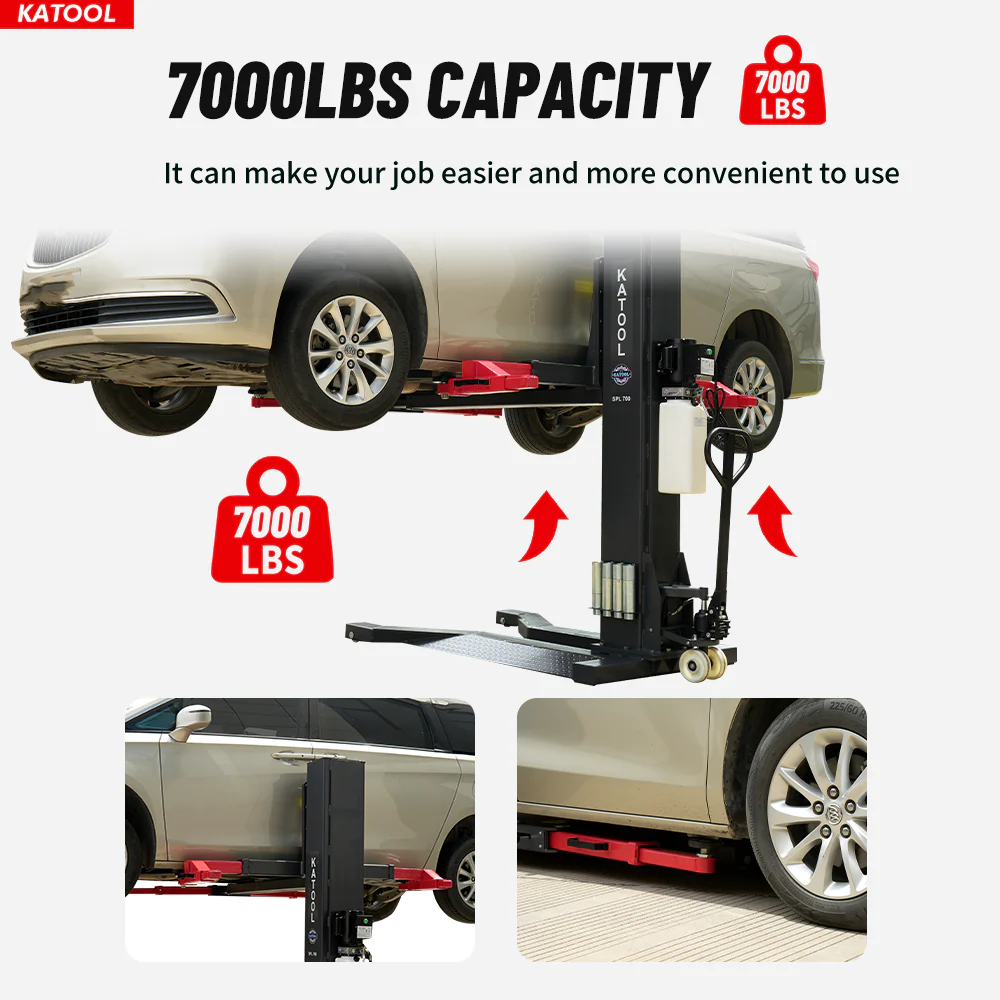

  • Mobile single-post vehicle lift with red base and black column, lifting a car

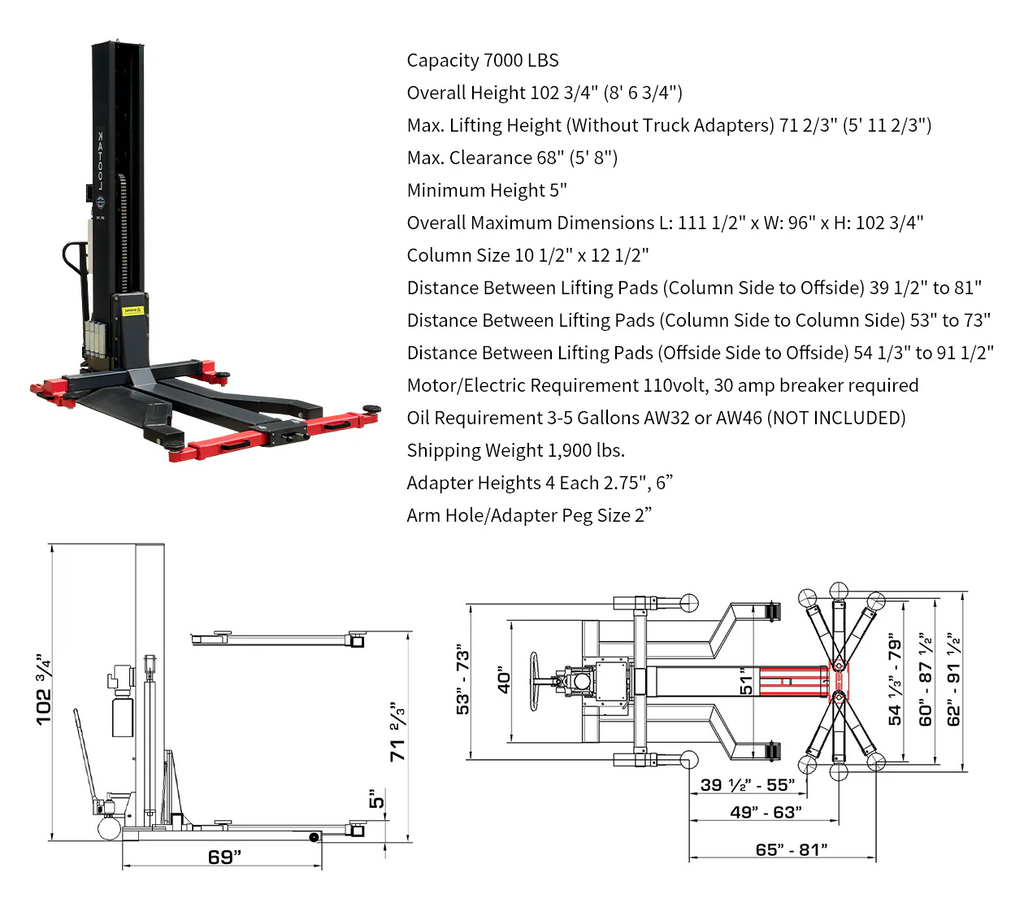

  • 3. Mobile hydraulic lift with 7,000 lb capacity for home garage

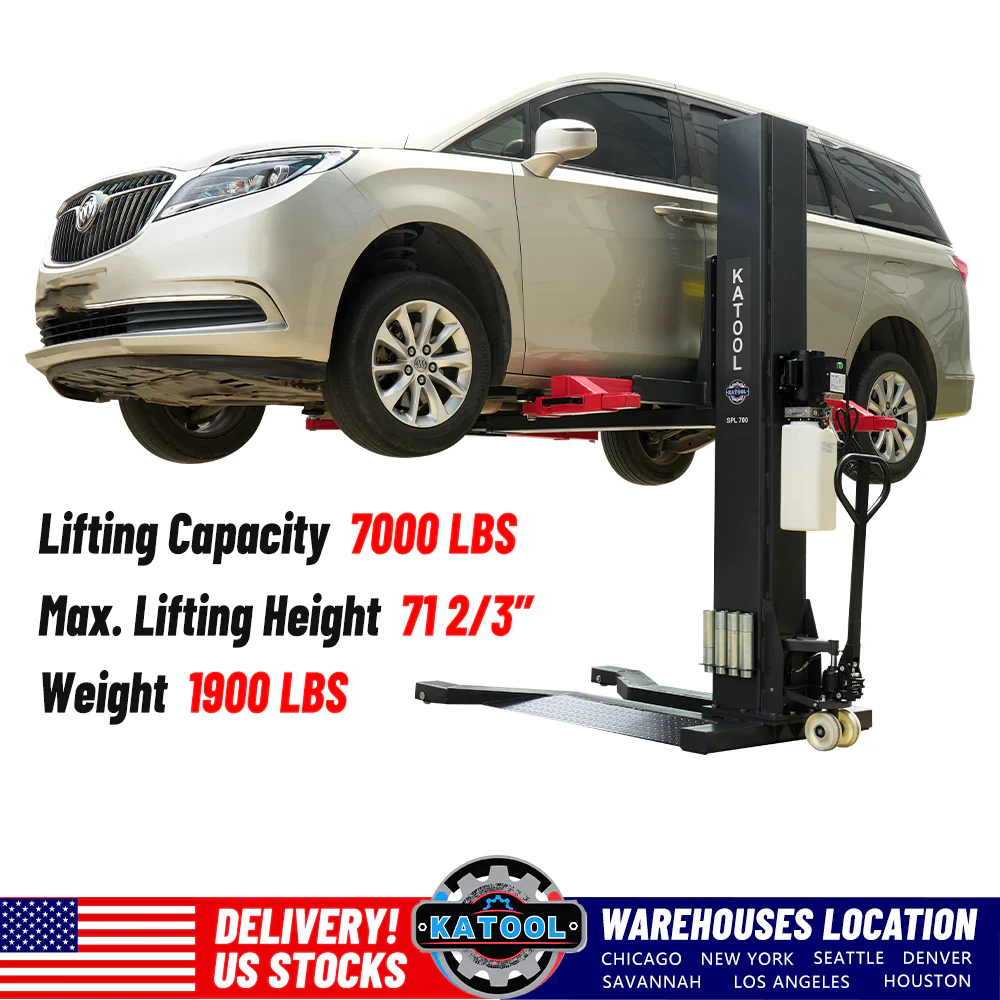

  • Mobile single-post vehicle lift with red base, black column, and lifting platform

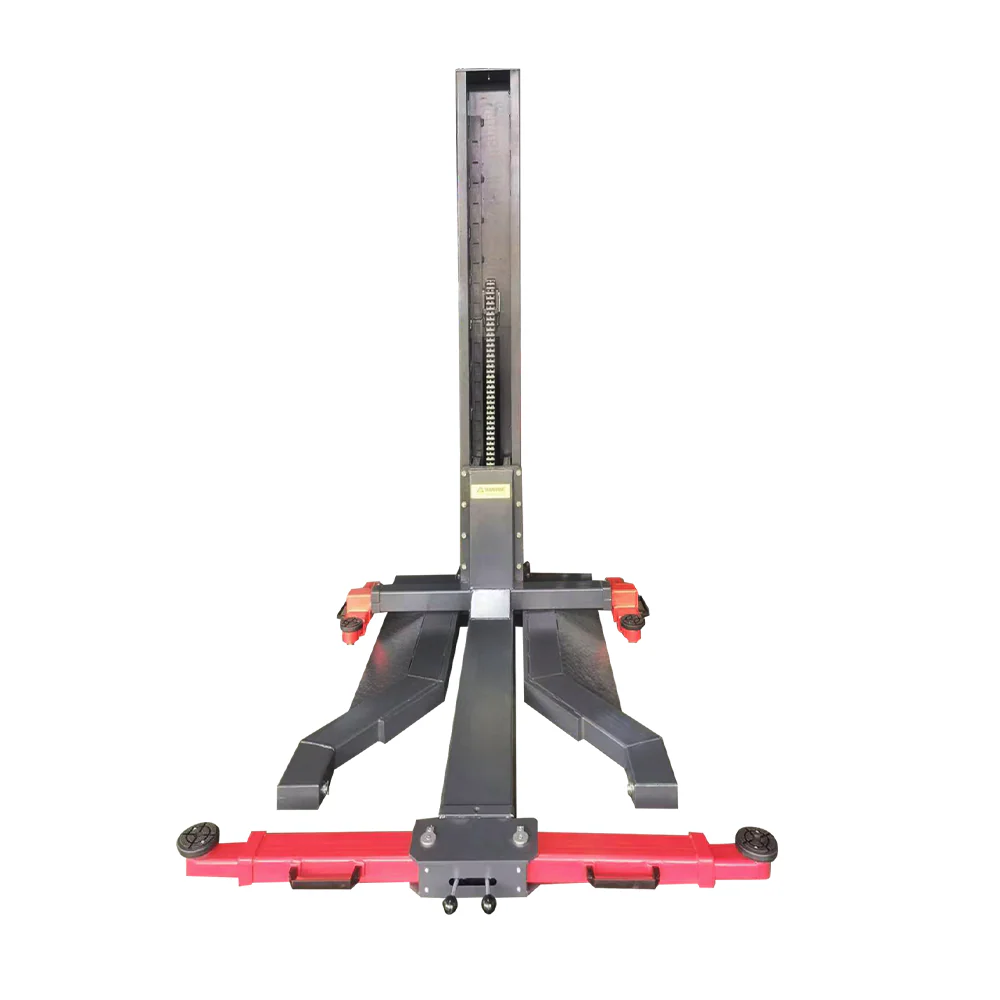

  • Mobile single-post vehicle lift stand with red crossbar, black arms, and casters

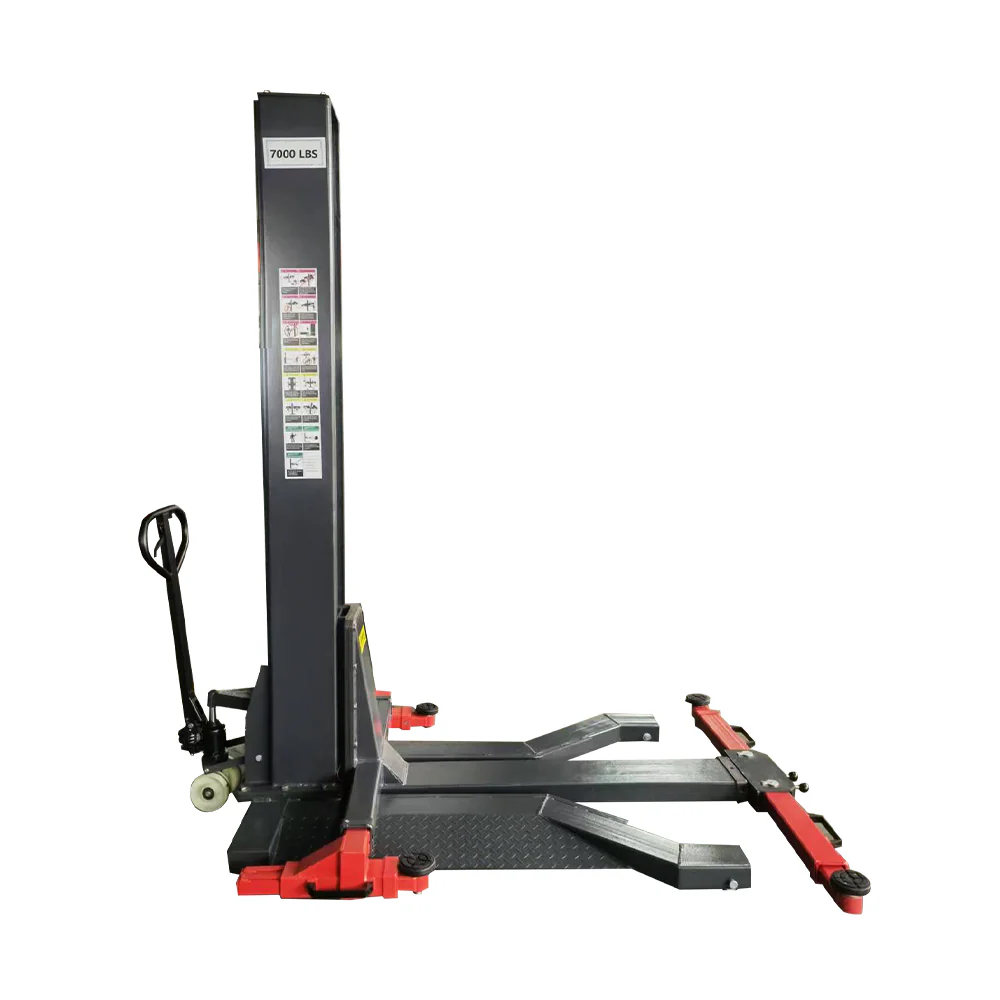

  • Mobile single-post vehicle lift with black column, red base pads, and support arms

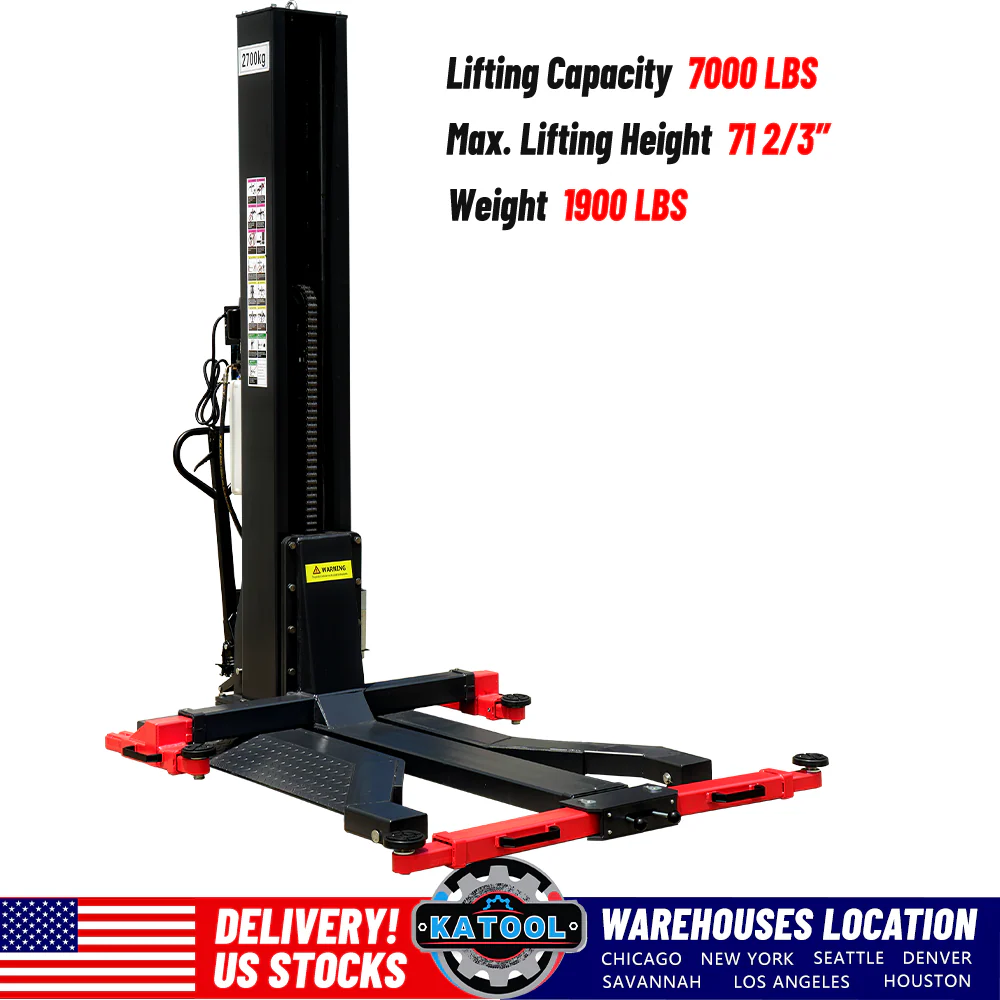

  • Mobile single-post vehicle lift with black column and red lifting deck on casters

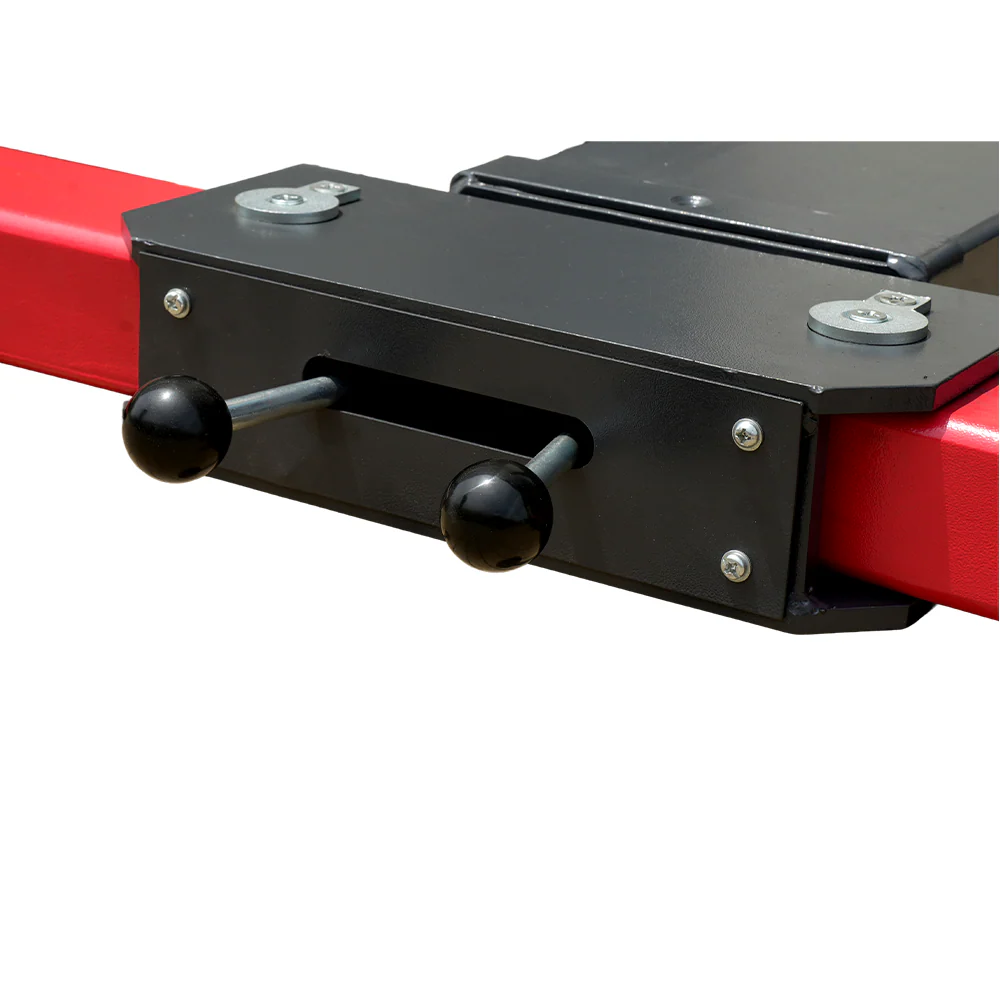

  • Vehicle lift base plate with red side rails and black lifting handle bars

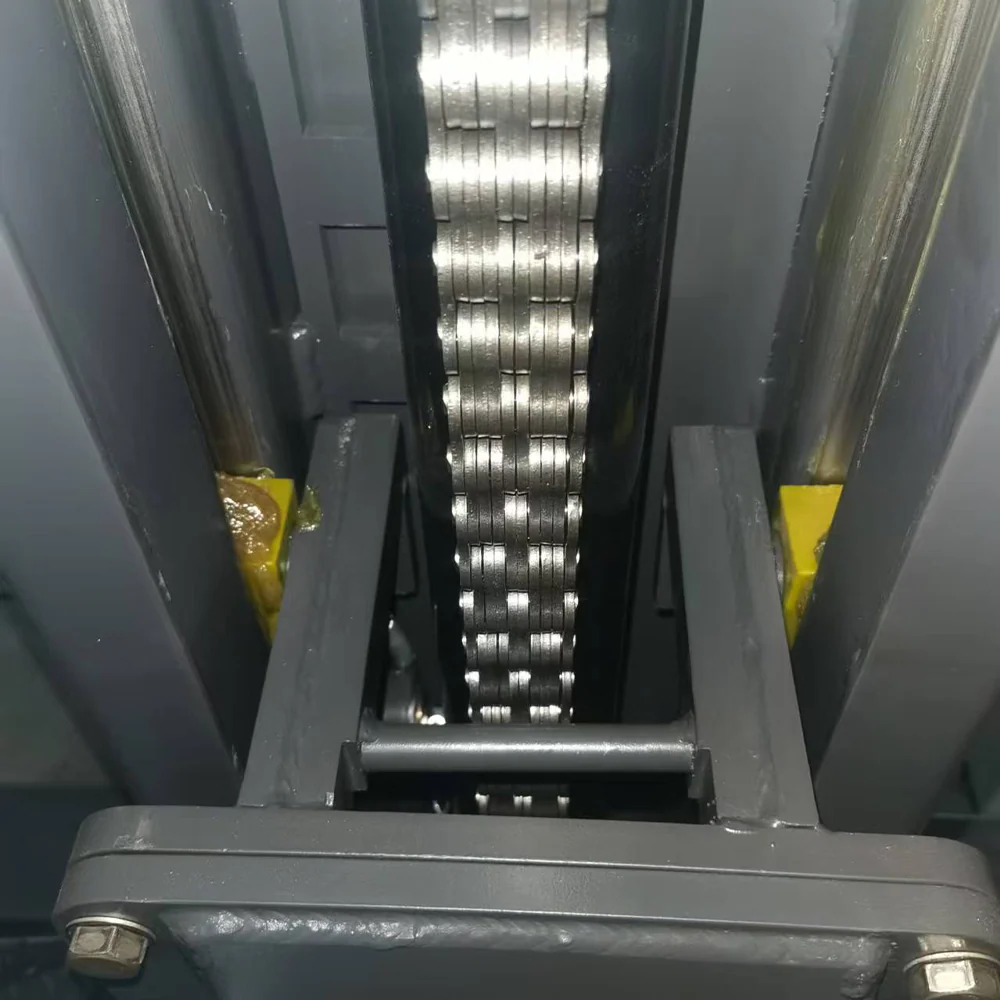

  • Vehicle lift inner rail system inside the black column

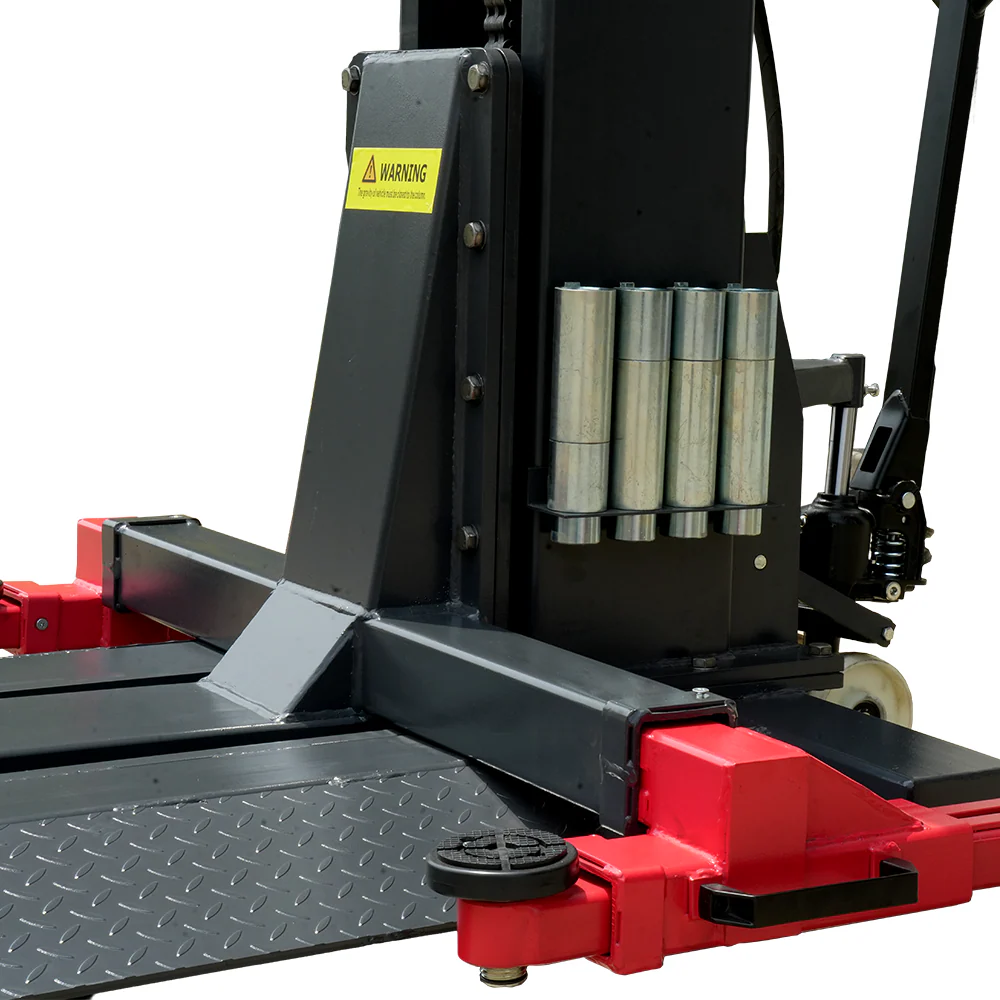

  • Vehicle lift hydraulic cylinder and pump assembly on black base

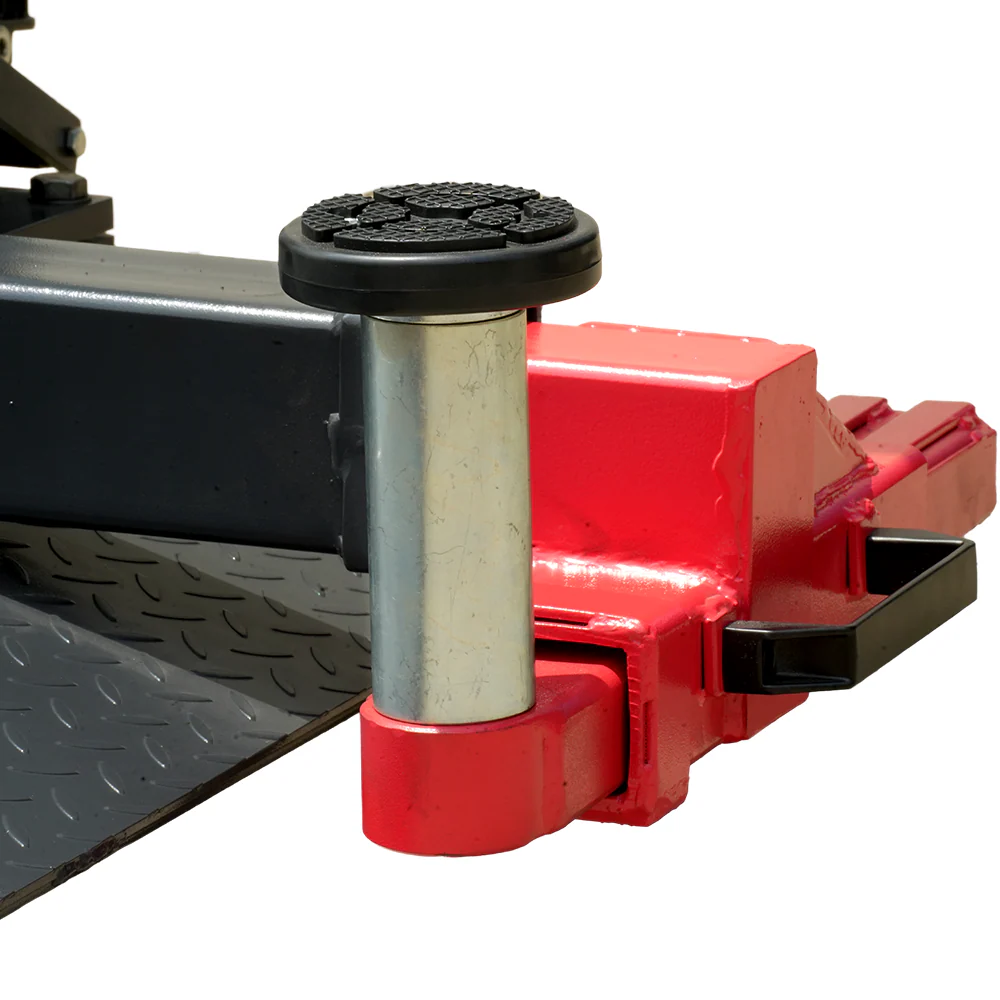

  • Vehicle lift lifting pad with black rubber top on red-and-black arm

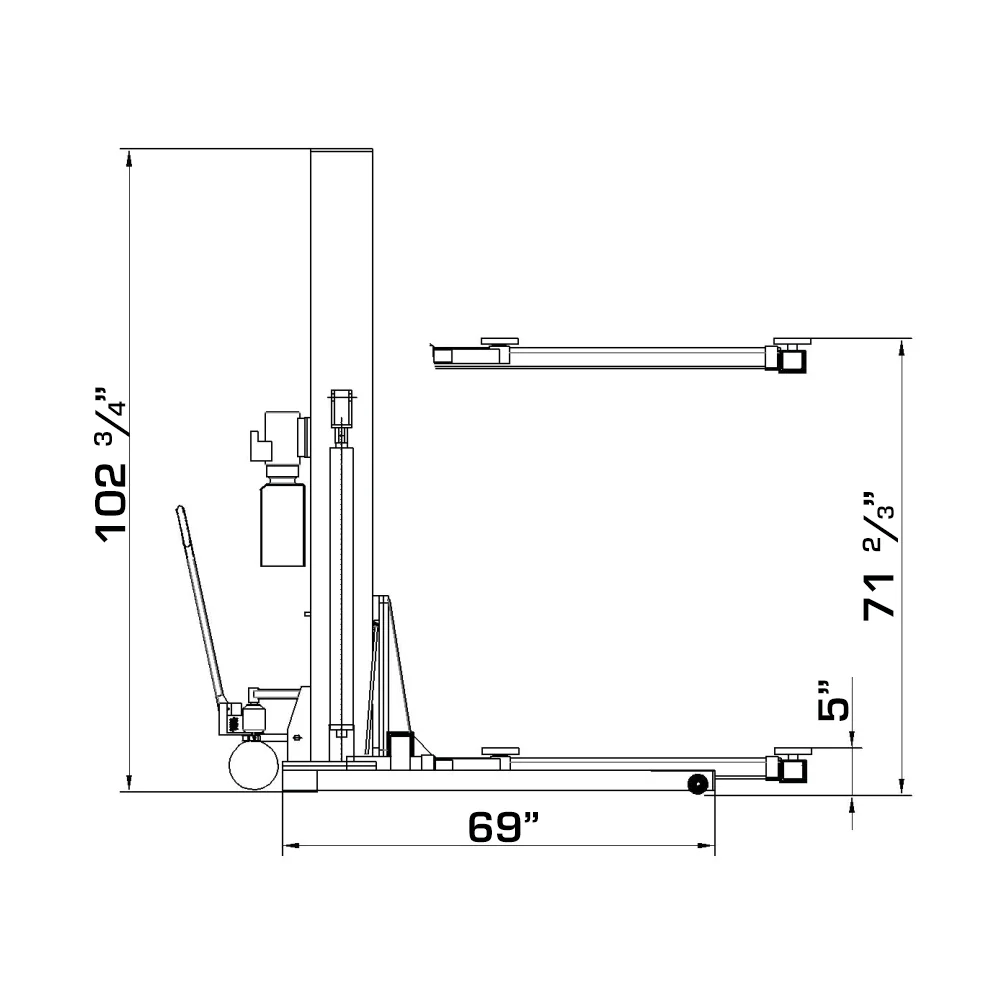

  • Vehicle lift dimensions diagram: 69 in base width, 71 2/3 in lift height

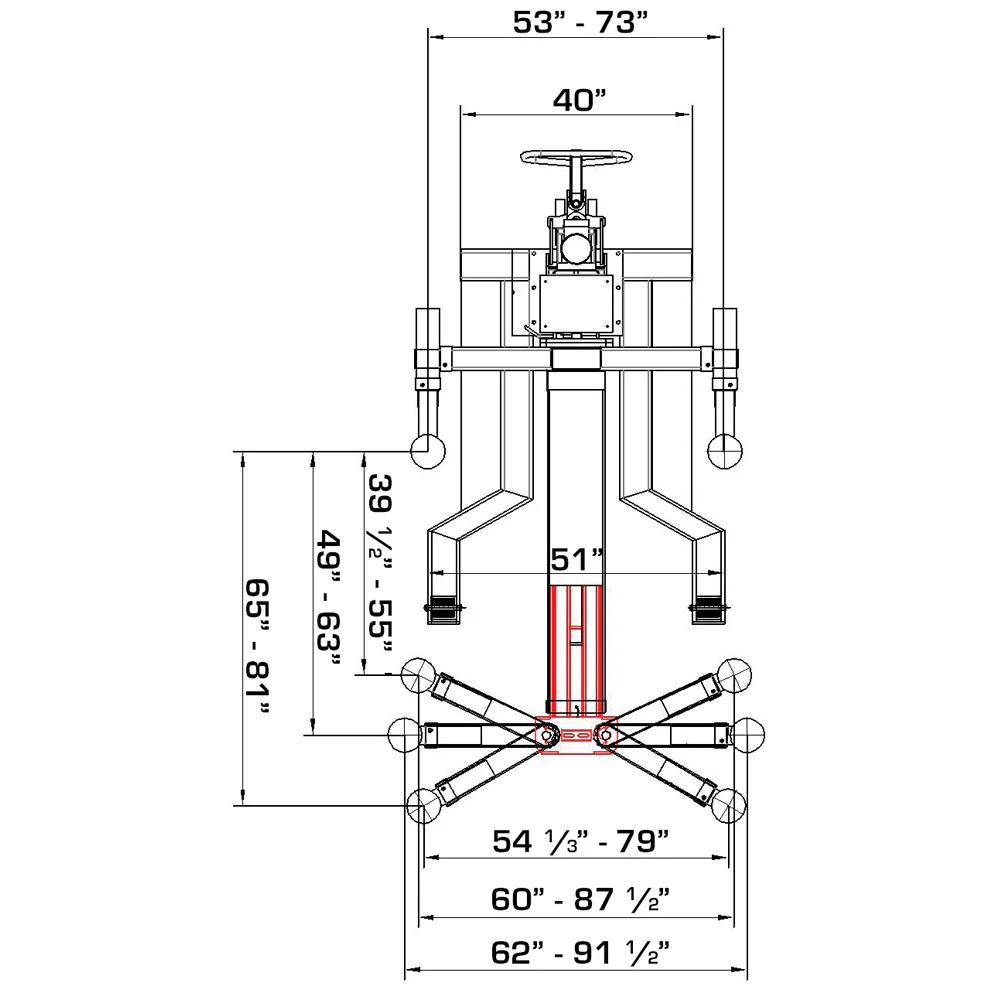

  • Single-post hydraulic car lift with scissor base and red lifting column diagram

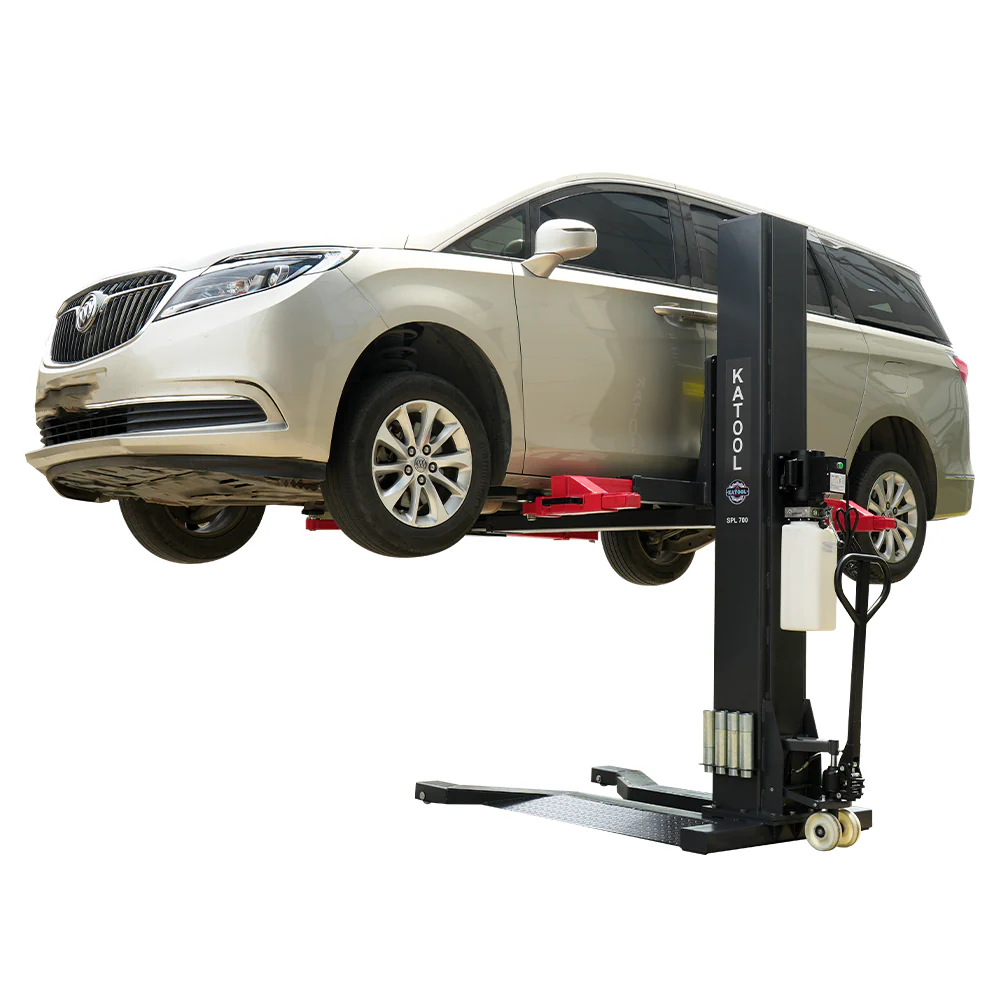

  • Portable single-post car lift with black platform, red cross supports, and upright column

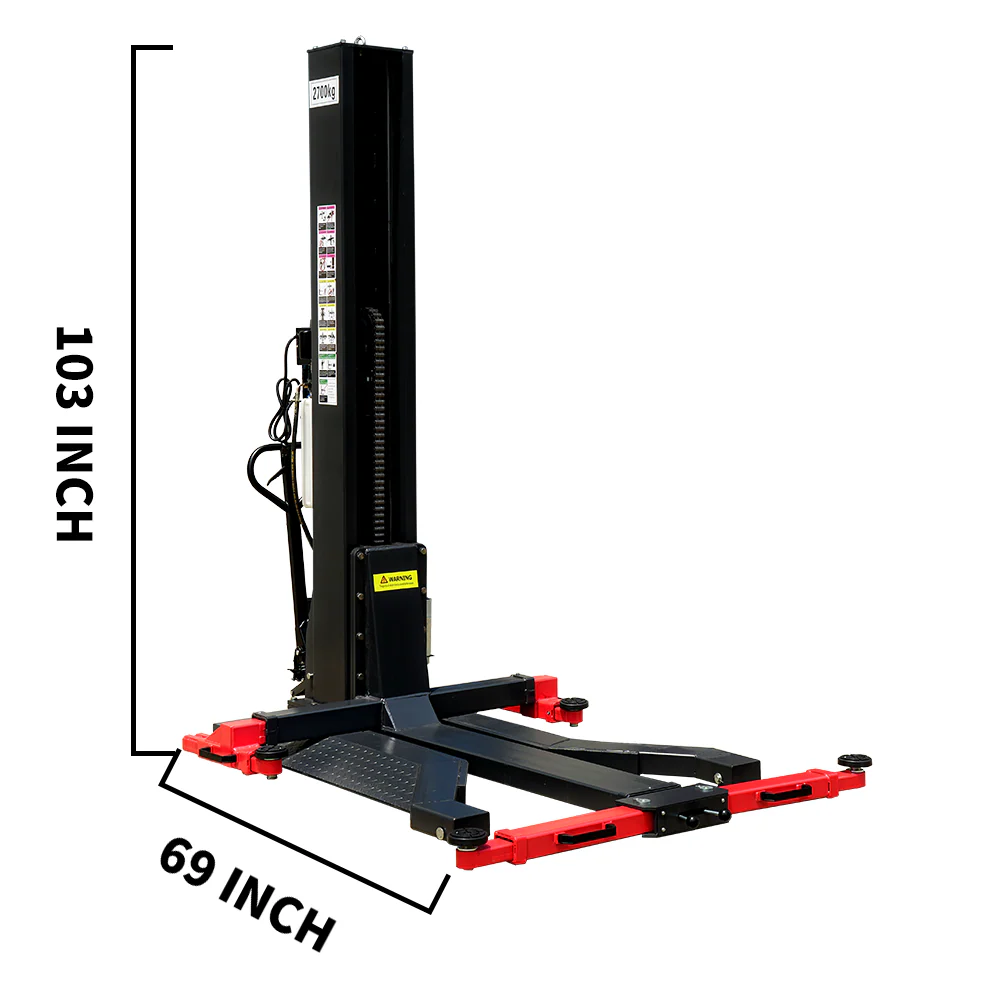

  • Mobile single-post car lift with black platform, red lift rails, and upright column

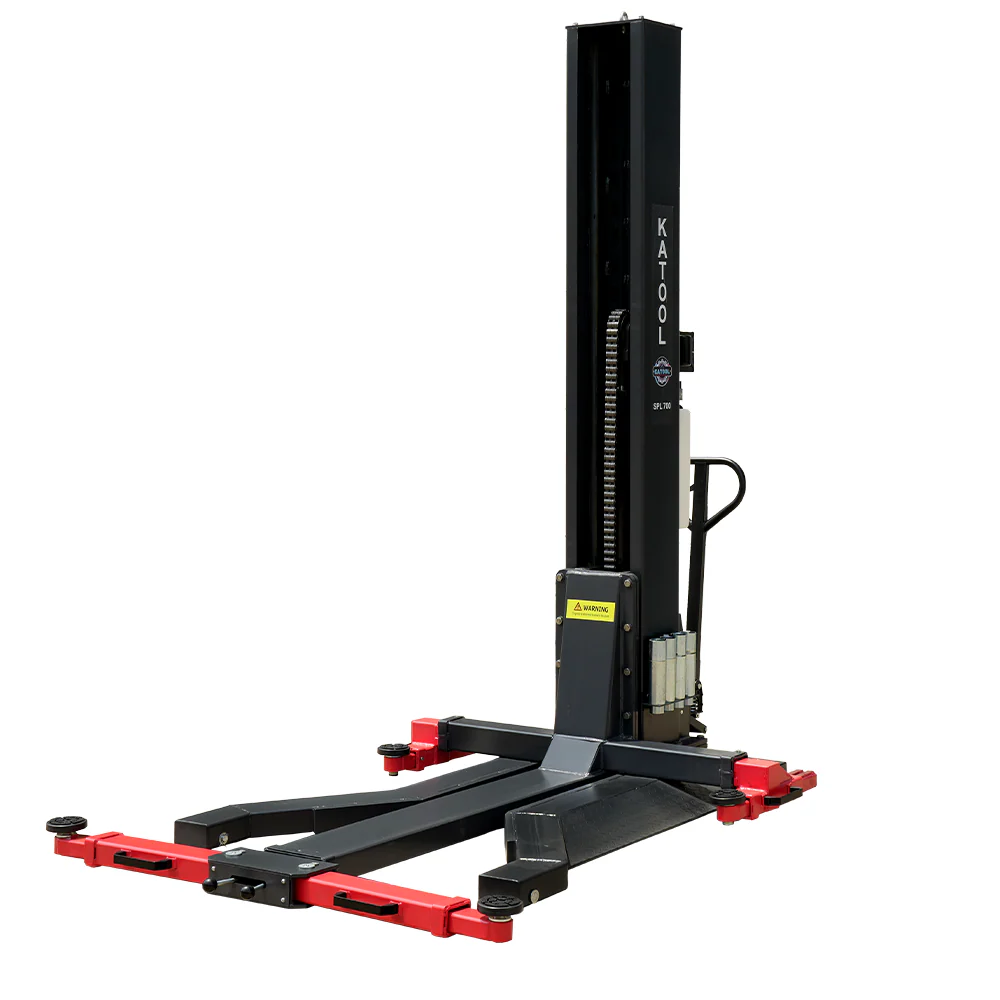

  • Single-post car lift with black base, red support rails, and vertical lifting column

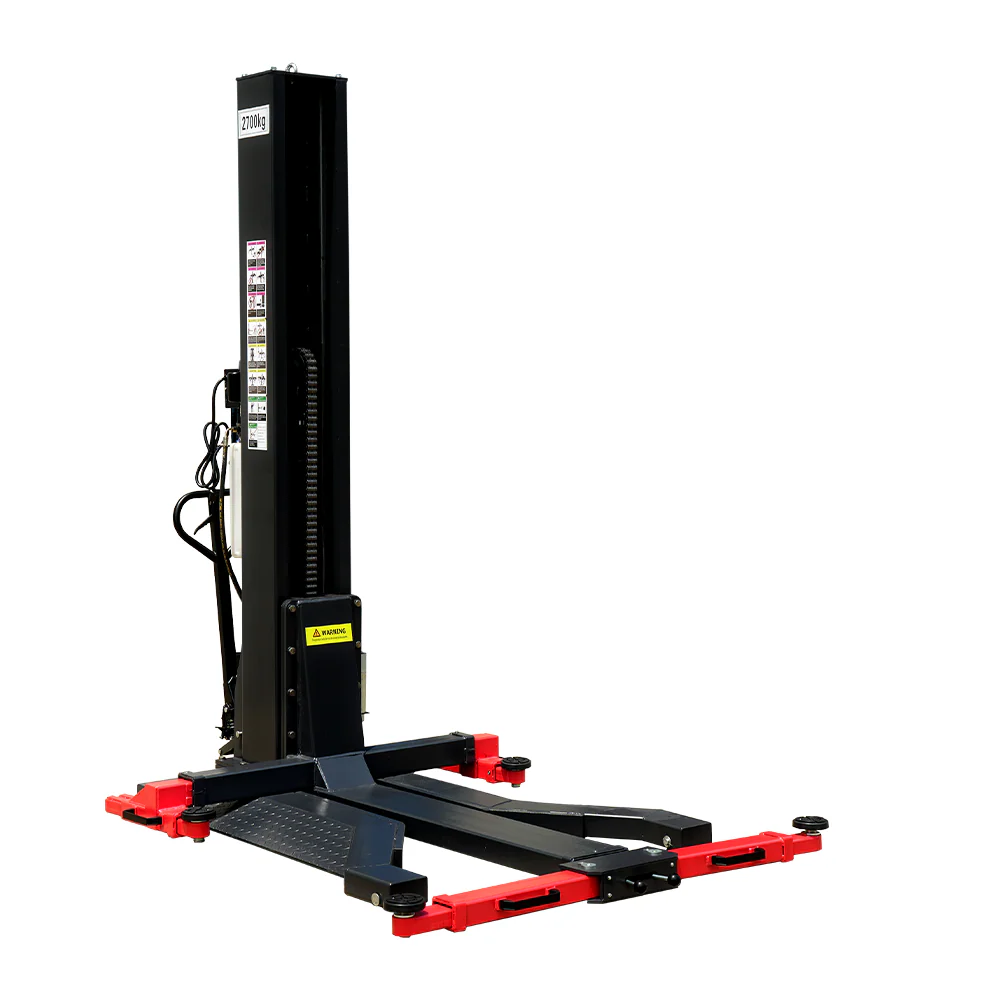

  • Mobile single-post car lift with black platform deck and red base frame rails

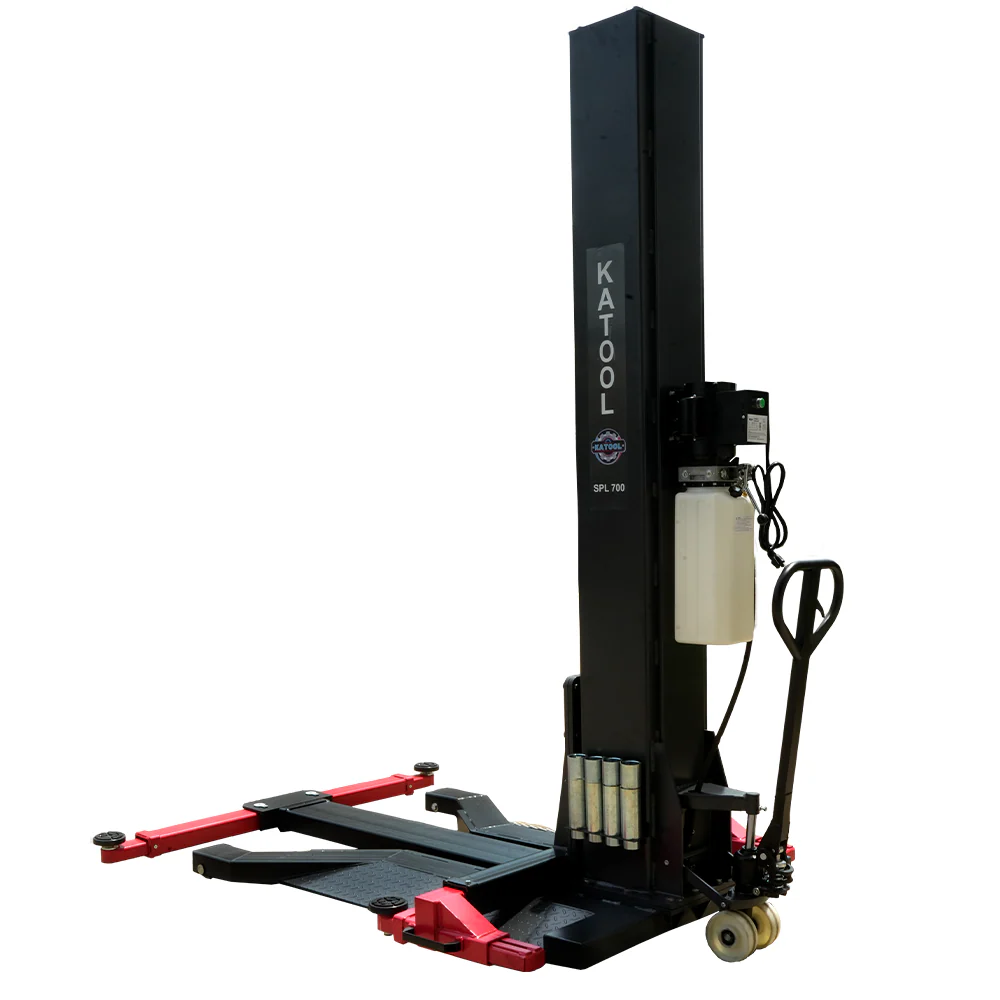

  • 18. 7,000 lb portable car lift with complete lifting system
Katool SPL700 7,000 lb Mobile Single Post Lift - Portable & Space-Saving

Katool SPL700 7,000 lb Mobile Single Post Lift - Portable & Space-Saving

$5,900.00

Shop Pay Installments

Split your purchase into flexible installment payments with Shop Pay. Pay over time with no hidden fees.

How it works:

  • Choose Shop Pay at checkout
  • Select your preferred payment plan
  • Make your first payment today
  • Pay the rest over time with automatic payments

No interest. No hidden fees. Just flexible payments that work for you.

🚚 Delivery option includes free freight to the lower 48 states.

Delivery Options
⚠️ Warehouse Pickup – Please Contact Us First. Due to varying inventory across our warehouse locations, please contact us before placing your order to confirm stock availability at your preferred location.
Contact Us to Check Availability

🇺🇸 US-Based Business: Unlike big out-of-state sellers, we offer specialized support and $0 Sales Tax outside Illinois.

💰
Tax-Free Outside IL
🚚
Free Freight Lower 48 States
🛡️
1-Yr Warranty Full Parts Support
🔬
Safety Tested Load & Function Tested
📍
Local Pickup Nationwide Save up to $1,400 in freight costs
Learn More >
Warranty

Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge. Vehicle lifts include an additional three-year (36 months) warranty on structural components. A 2-year extended warranty plan is also available.

Warranty Conditions:

  • Non-transferable — requires original order number
  • Replacement parts at no cost including free shipping
  • Labor not included
  • Do not disassemble before issue is determined
Shipping

Free freight shipping to the contiguous 48 US states. Estimated delivery: 6–10 business days. Curbside delivery only — forklift or pallet jack required. Carrier will call 24–48 hrs before delivery. View full Shipping & Delivery details →

⚠️ Safety Warning

SPL700 Mobile Single Post Lift: Requires 110V, 30-amp dedicated circuit. Use only AW32 or AW46 hydraulic oil (3-5 gallons, not included). Never exceed 7,000 lb lifting capacity. Ensure lift is on a flat, level surface before use. Do not work under a vehicle supported only by the lift without additional safety stands. Keep bystanders clear during lifting and lowering operations.

The Katool SPL700 gives you professional 7,000 lb lifting capacity without the permanent footprint of a fixed lift. Its compact single-post design maximizes workspace efficiency, while the mobile base lets you reposition or store the lift when not in use — no concrete anchors required. The adjustable pad positioning (39.5 to 81 inches column to offside) accommodates a wide range of vehicle dimensions, and four included adapters (2.75 inch and 6 inch heights) expand versatility for different frame configurations. Whether you're running a home garage or a flexible shop environment, the SPL700 delivers the performance you need with the flexibility fixed lifts can't offer.

  • Heavy-duty 7,000 lb lifting capacity for most vehicles and light trucks
  • Compact single-post design ideal for limited or flexible spaces
  • Mobile base for repositioning or storage when not in use
  • Fully adjustable lifting pad reach (39.5 to 81 inches) for diverse vehicle dimensions
  • 110V operation compatible with home or shop electrical service
  • No permanent installation or concrete anchors required
  • Includes eight adapters (four 2.75 inch and four 6 inch) for frame versatility
  • Ideal for tire, brake, and undercarriage work
Feature Fixed 2-Post Lift SPL700 Mobile Lift
Capacity 10,000-15,000 lb 7,000 lb
Installation Permanent / concrete anchors No permanent installation
Mobility Fixed position Mobile — move or store when not in use
Floor Space Large permanent footprint Compact single-post design
Power 220V 110V / 30-amp breaker
Max Lift Height 70-75 in 71.67 in
Pad Reach Fixed arm lengths 39.5-81 in adjustable
Adapters Included Varies (4) 2.75 in + (4) 6 in
Best For Dedicated shop bays Home garages, flexible spaces, mobile mechanics
  • Lifting Capacity: 7,000 lbs
  • Max Lifting Height (No Adapters): 71.67 inches
  • Max Clearance Height: 68 inches
  • Minimum Pad Height: 5 inches
  • Overall Height: 102.75 inches
  • Overall Dimensions (L x W x H): 111.5 x 96 x 102.75 inches
  • Column Size: 10.5 x 12.5 inches
  • Pad Reach (Column to Offside): 39.5 to 81 inches
  • Motor Requirement: 110V, 30-amp breaker
  • Oil Requirement: 3-5 gallons AW32 or AW46 (not included)
  • Adapters Included: (4) 2.75 inch and (4) 6 inch
  • Shipping Weight: 1,900 lbs
  • Package Size: 105 x 45 x 45 inches, 2,030 lbs

The Katool SPL700 Mobile Single Post Lift delivers professional 7,000 lb lifting capacity with the flexibility of a portable, space-saving design. Unlike fixed lifts that require permanent installation, the SPL700 moves where you need it and stores away when you don't — no concrete anchors required. The compact single-post design maximizes floor space efficiency while the adjustable pad positioning (39.5 to 81 inches column to offside) accommodates a wide range of vehicle dimensions. Eight included adapters (four 2.75 inch and four 6 inch heights) expand versatility for different frame configurations. Requires 110V, 30-amp service and 3-5 gallons of AW32 or AW46 hydraulic oil (not included).

Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge. Vehicle lifts include an additional three-year (36 months) warranty on structural components. A 2-year extended warranty plan is also available.

Warranty Conditions:

  • Non-transferable — requires original order number
  • Replacement parts at no cost including free shipping
  • Labor not included
  • Do not disassemble before issue is determined
  • Home Garage Enthusiasts: Professional-grade 7,000 lb lifting capacity that fits in tight spaces
  • Mobile Mechanics: Portable design — move it where you need it, store it when you don't
  • Small Auto Shops: Maximize floor space with compact single-post design
  • DIY Car Repair: Easy to use with professional results for home mechanics
  • Multi-Bay Shops: Add lifting capacity without permanent installation or concrete anchors

All Katool equipment is manufactured to international quality standards.

  • Quality Control — Each unit undergoes pre-shipment inspection
  • US-Based Support — Technical support provided from the United States
  • Warranty — 1-year limited manufacturer warranty included

Freight shipping included to the lower 48 states. Two delivery options available:

  • Terminal Pickup — Ship to nearest freight terminal, no forklift needed
  • Commercial/Residential Delivery — Direct delivery to your address

Contact us to confirm your preferred delivery option before ordering.

Product Manual

Download the complete product manual and installation guide.
Download Manual

Complete Your Shop Setup

Everything a professional tire shop needs
Tire Service Packages Collection Banner

Tire Service Packages

2-Post Lifts Category Image

2-Post Lift

4-Post Lifts Category Image

4-Post Lifts

Tire Changer

Tire Changer

Wheel Balancer

Wheel Balancer

Shop Accessories Collection Banner

Shop Accessories

Frequently Asked Questions

  • The KT-SPL700 is a mobile single-post lift designed for space-saving use. It lifts from a single central point, ideal for tire service, oil changes, and undercarriage inspections in compact shop spaces.
  • The KT-SPL700 is designed for mobile use and does not require permanent floor anchoring. Please refer to the installation manual for exact setup and safety requirements.
  • Ships via freight carrier to the lower 48 states. Freight cost is included. A forklift may be required for unloading depending on delivery location. Please confirm your unloading capability before ordering.
  • The KT-SPL700 is not ALI certified and does not carry CE certification. For customers requiring ALI or CE certified lifts, we recommend verifying your specific facility requirements before purchase.
  • Yes. We offer Shop Pay Installments, allowing you to split your purchase into 4 interest-free payments on qualifying orders.
  • We provide US-based technical support via email and phone. Our team assists with installation questions, troubleshooting, and parts replacement throughout your warranty period.
  • Returns are accepted within 30 days for unused equipment in original packaging. Please contact us before returning any equipment. Return freight costs are the responsibility of the buyer.
