Katool KT-X95 7,716 lb In-Ground Full-Rise Scissor Lift - CE Approved

Warehouse Pickup
$4,799.00
Skip to product information
In-ground scissor lift with orange arms, black power unit and textured steel platforms
1/5

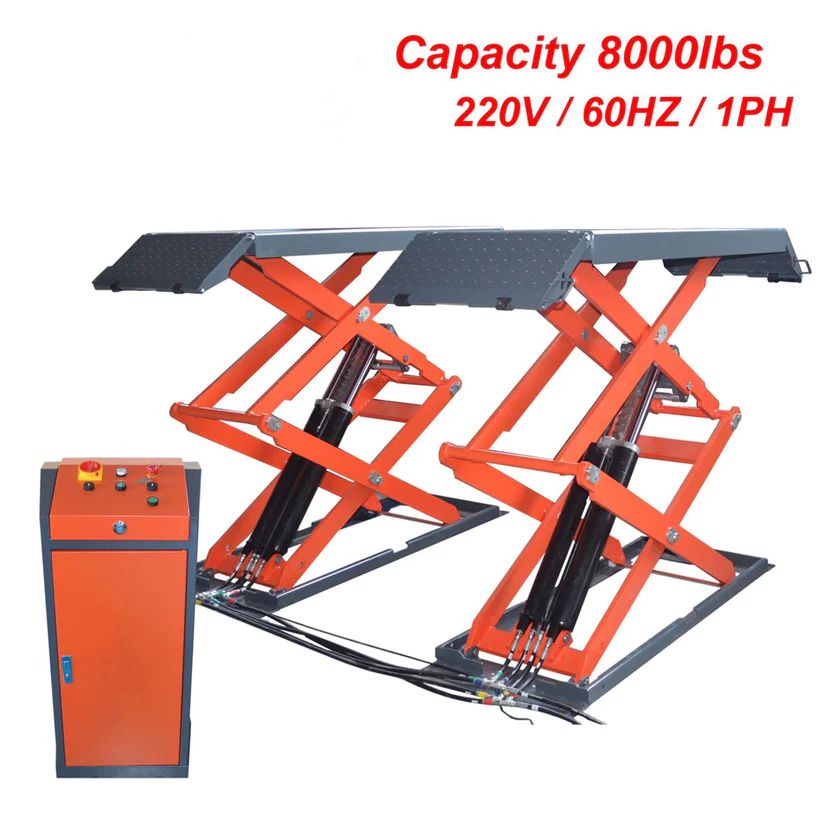

  • In-ground scissor lift with orange arms, black power unit and textured steel platforms

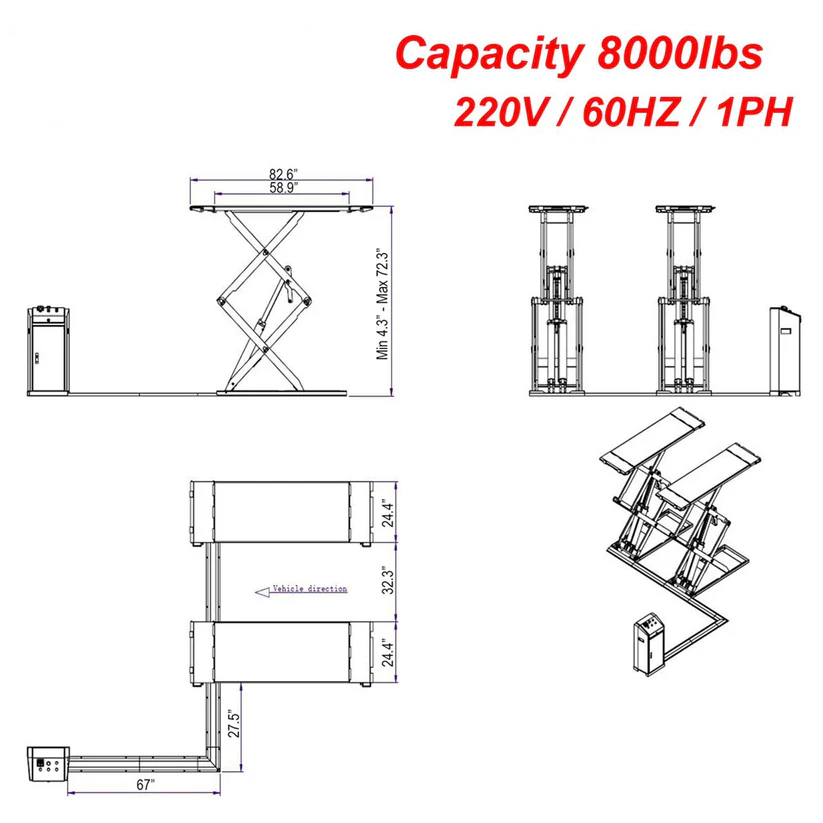

  • In-ground scissor lift technical layout with orange lift frames and control cabinet

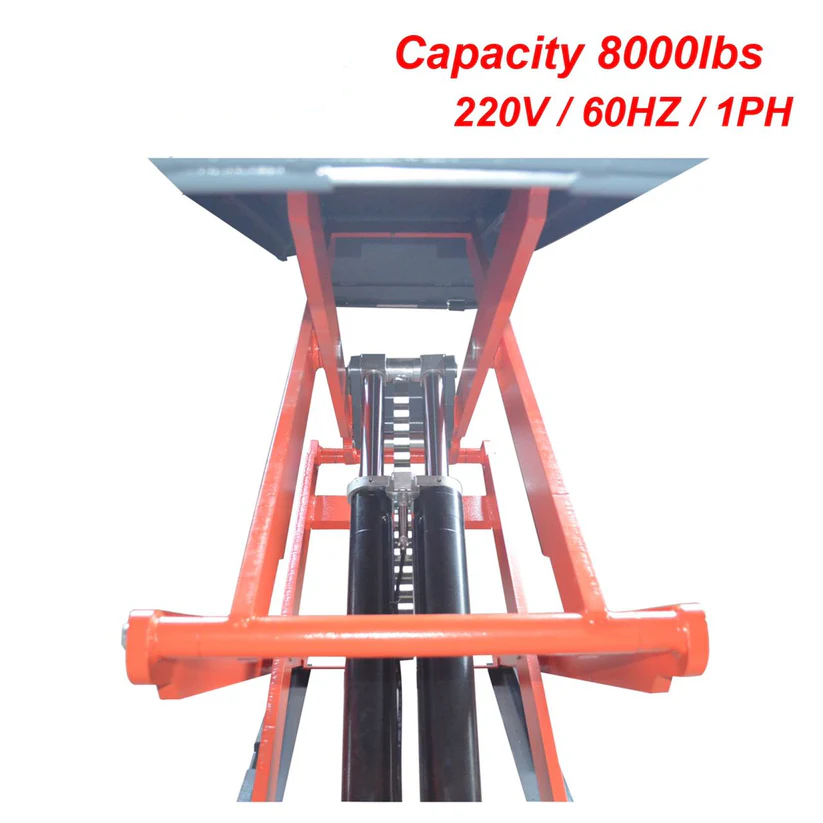

  • In-ground scissor lift underside view with orange frame and black hydraulic columns

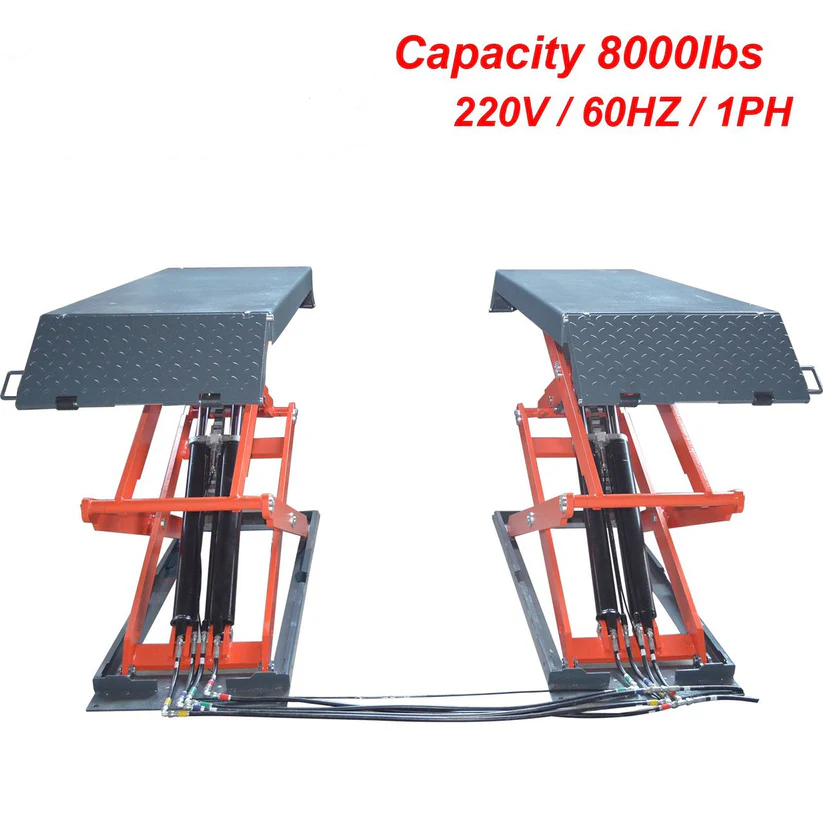

  • In-ground scissor lift with orange scissor arms and textured black steel loading platforms

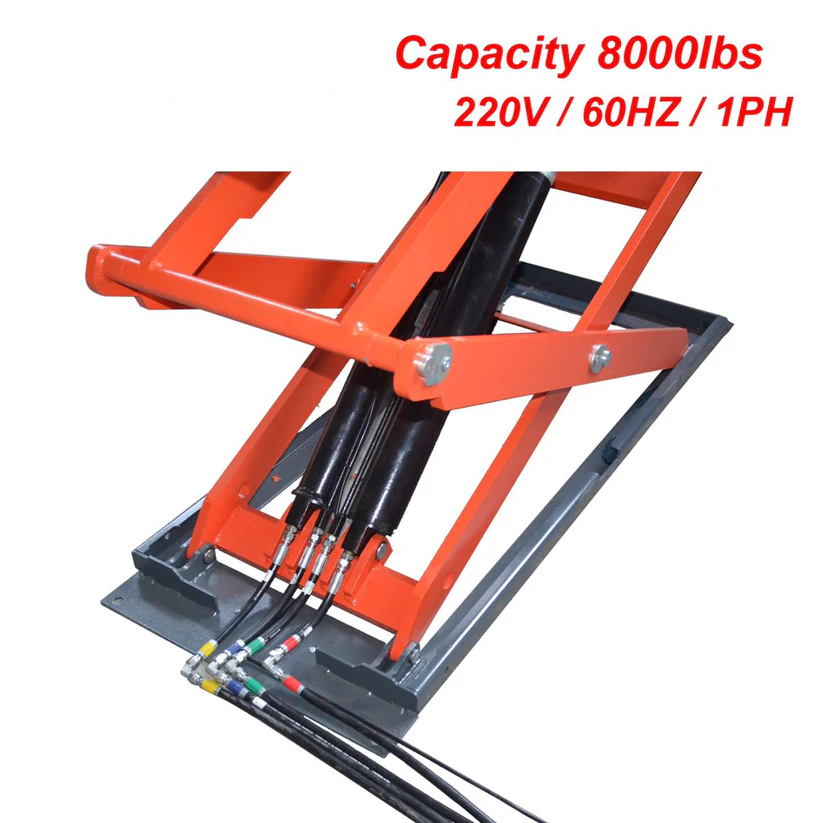

  • In-ground scissor lift with orange crossbeam, black lift columns, and hydraulic hoses
Katool KT-X95 7,716 lb In-Ground Full-Rise Scissor Lift - CE Approved

Katool KT-X95 7,716 lb In-Ground Full-Rise Scissor Lift - CE Approved

$4,799.00

Shop Pay Installments

Split your purchase into flexible installment payments with Shop Pay. Pay over time with no hidden fees.

How it works:

  • Choose Shop Pay at checkout
  • Select your preferred payment plan
  • Make your first payment today
  • Pay the rest over time with automatic payments

No interest. No hidden fees. Just flexible payments that work for you.

🚚 Delivery option includes free freight to the lower 48 states.

Delivery Options
⚠️ Warehouse Pickup – Please Contact Us First. Due to varying inventory across our warehouse locations, please contact us before placing your order to confirm stock availability at your preferred location.
Contact Us to Check Availability

🇺🇸 US-Based Business: Unlike big out-of-state sellers, we offer specialized support and $0 Sales Tax outside Illinois.

💰
Tax-Free Outside IL
🚚
Free Freight Lower 48 States
🛡️
1-Yr Warranty Full Parts Support
🔬
Safety Tested Load & Function Tested
📍
Local Pickup Nationwide Save up to $1,400 in freight costs
Learn More >
Warranty

Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge. A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.

  • Claims must fall within the warranty period and require the original order number.
  • Replacement parts provided at no cost, including free shipping.
  • Labor is not included in the warranty.
Shipping

Free freight shipping to the contiguous 48 US states. Estimated delivery: 6–10 business days. Curbside delivery only — forklift or pallet jack required. Carrier will call 24–48 hrs before delivery. View full Shipping & Delivery details →

⚠️ Safety Warning

Contact with line power voltages can cause death or serious injury.

  • Do not operate equipment with a damaged power cord.
  • If an extension cord is necessary, use one with a current rating equal to or greater than the equipment.
  • Do not expose the equipment to rain or wet environment.
  • Make sure to connect the unit with proper electrical power.
  • Use a certified electrician to connect the electrical power.
  • Do not remove or bypass grounding pin.
  • Only qualified service personnel should service this equipment.
  • Disconnect power to the unit before servicing.

Contact with moving parts could cause injury.

  • Keep hands and other body parts away from moving surfaces.
  • Do not bypass any safety features.
  • During lifting and lowering, stay clear of moving parts — confirm no one is in the hazardous area before lifting.
  • When platform height is less than 1.75 meters, avoid hitting your head when entering.
  • An improper docking, improperly parked vehicle, or oversized vehicle can cause the vehicle to fall at risk.
  • Do not stand or sit on the lift platform during lifting operation.

Debris, dirt, and fluids can cause serious eye injury.

  • Wear approved safety glasses during mount and demount procedures.
  • Lubricating oil around the lift can cause slip risks — keep the area clean and promptly clean up oil spills.

Tools that break or slip can cause injury.

  • Read and understand the operation instructions before using the equipment.
  • Frequently inspect, clean, and lubricate (if recommended) where designated.

The KT-X95 is Katool's in-ground full-rise scissor lift, delivering a flush-floor installation that transforms your shop's appearance and workflow. At 7,716 lbs and CE Approved, it handles the full range of passenger vehicles and light trucks. The in-ground design eliminates drive-up ramps entirely — vehicles simply drive straight onto the platform. At 74.8" maximum lift height, it provides the most working clearance of any scissor lift in the Katool lineup.

  • 7,716 lbs lifting capacity
  • CE Approved
  • In-ground flush-floor installation
  • 74.8" maximum lift height — maximum working clearance
  • No drive-up ramps needed — direct drive-on access
  • Indoor use only
  • Professional installation required
KT-X66 KT-X77 KT-X80 KT-X85 KT-X90E KT-X95 KT-X99
Lift Type Mid-Rise Mid-Rise Mid-Rise Mid-Rise Full-Rise In-Ground Full-Rise Full-Rise
Lifting Capacity 6,600 lbs 7,700 lbs 8,000 lbs 8,000 lbs 8,000 lbs 7,716 lbs 7,716 lbs
Max Lift Height 40" 40" 40" 40" 76" 74.8" 70.9"
Power Source Pneumatic Pneumatic Pneumatic Electric Electric Electric Pneumatic
Installation Surface Surface Surface Surface Surface In-Ground Surface
CE Approved ✓ ✓ ✓ ✓ ✓ ✓ ✓
Portable Kit ✓ ✓ ✓ ✓ — — —
  • Lifting Capacity: 7,716 lbs (3,500 kg)
  • Max. Lifting Height: 74.8" (1,900 mm)
  • Min. Height: 4.13" (105 mm)
  • Lifting Time: ≤50 seconds
  • Lowering Time: ≤60 seconds
  • Overall Length: 80.12" (2,035 mm)
  • Overall Width: 83.07" (2,110 mm)
  • Platform Width: 24.41" (620 mm)
  • Platform Spacing: 31.5" (800 mm)
  • Motor: AC 400V or 230V ±5%, 50Hz, 2.2KW
  • Material: Q235 and Q245 Steel
  • Net Weight: 2,094 lbs (950 kg)
  • Hydraulic Oil: 18L (customer supplied)
  • Installation: Indoor, concrete ≥150mm, altitude ≤1,000m
  • Noise Level: <76dB
  • Safety Certifications: CE Approved

This professional in-ground full-rise scissor lift delivers 7,716 lbs of lifting capacity with a 74.8" maximum lift height, making it the ultimate choice for professional auto shops seeking both performance and aesthetics. CE approved and tested to industry safety standards. The in-ground installation creates a flush floor surface when lowered, eliminating trip hazards and improving shop flow. Requires pit excavation and professional installation. Indoor use only, concrete floor minimum 150mm, altitude ≤1,000m.

Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge. A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.

  • Claims must fall within the warranty period and require the original order number.
  • Replacement parts provided at no cost, including free shipping.
  • Labor is not included in the warranty.
  • Professional Auto Shops: Full 74.8" lift height for complete vehicle access
  • Flush-Floor Aesthetics: In-ground design keeps your shop floor clean and open
  • High-Volume Shops: Fast drive-on access with no ramps needed
  • Full Service Work: Maximum clearance for exhaust, transmission, and drivetrain
  • Showroom-Quality Shops: Invisible when lowered for a premium shop appearance

Katool manufactures its scissor lifts to rigorous industrial standards using Q235 and Q245 high-strength steel construction. Every KT-X95 unit is CE approved and load-tested to ensure consistent quality and long-term reliability in professional workshop environments. The in-ground design undergoes additional structural validation to meet flush-floor installation requirements.

The KT-X95 ships via freight carrier in 2 packages. Delivery typically takes 6–10 business days after order processing. Freight shipping is included in the product price. Due to the in-ground installation requirement, professional installation is strongly recommended — please contact us before ordering to confirm site readiness.

Package Size

L x W x H (in) 66 x 27 x 14 / 40 x 20 x 17
Weight (lbs) 1857

Product Manual

Download the complete product manual and installation guide.
Download Manual

Complete Your Shop Setup

Everything a professional tire shop needs
Tire Service Packages Collection Banner

Tire Service Packages

2-Post Lifts Category Image

2-Post Lift

4-Post Lifts Category Image

4-Post Lifts

Tire Changer

Tire Changer

Wheel Balancer

Wheel Balancer

Shop Accessories Collection Banner

Shop Accessories

Frequently Asked Questions

  • The KT-X95 has a maximum lifting capacity of 7,716 lbs (3,500 kg), suitable for most passenger cars, SUVs, and light trucks.
  • The KT-X95 is an in-ground full-rise scissor lift, designed to be flush-mounted into the workshop floor for a clean, space-saving installation.
  • Yes, the KT-X95 is pneumatic-hydraulic powered and requires an air compressor for operation.
  • Yes, the KT-X95 is CE approved and meets international safety standards for professional automotive workshop equipment.
  • The package includes the in-ground scissor lift unit, hydraulic power unit, safety locks, and all necessary hardware for installation.
  • In-ground installation requires pit preparation and typically takes a professional installer 1–2 days depending on site conditions.
  • The KT-X95 ships in 2 packages: main unit (66 × 27 × 14 in) and power unit (40 × 20 × 17 in), total weight 1,857 lbs.
  • Yes, the KT-X95 comes with a manufacturer warranty. Please contact us for warranty terms and after-sales support.
