What vehicle types does this tire changer support?

The KT-TV910 is designed for heavy-duty trucks, buses, and tractors. It handles large commercial tires that standard tire changers cannot accommodate.

What is the maximum rim size supported?

Please refer to the product specifications for exact rim size range. The KT-TV910 is built for commercial and agricultural applications with large diameter tires.

What power supply is required?

The KT-TV910 requires a 220V single-phase power supply. Please ensure your shop has the correct electrical setup before ordering. A licensed electrician is recommended for wiring.

How is this tire changer delivered?

Ships via freight carrier to the lower 48 states. Freight cost is included. Due to the size and weight, a forklift or loading dock may be required for unloading. Please confirm your unloading capability before ordering.

Do you offer financing or installment payments?

Yes. We offer Shop Pay Installments, allowing you to split your purchase into 4 interest-free payments on qualifying orders.

What after-sales support do you provide?

We provide US-based technical support via email and phone for installation, troubleshooting, and parts replacement throughout your warranty period.

What is your return policy?

Returns accepted within 30 days for unused equipment in original packaging. Please contact us before returning. Return freight costs are the buyer's responsibility.

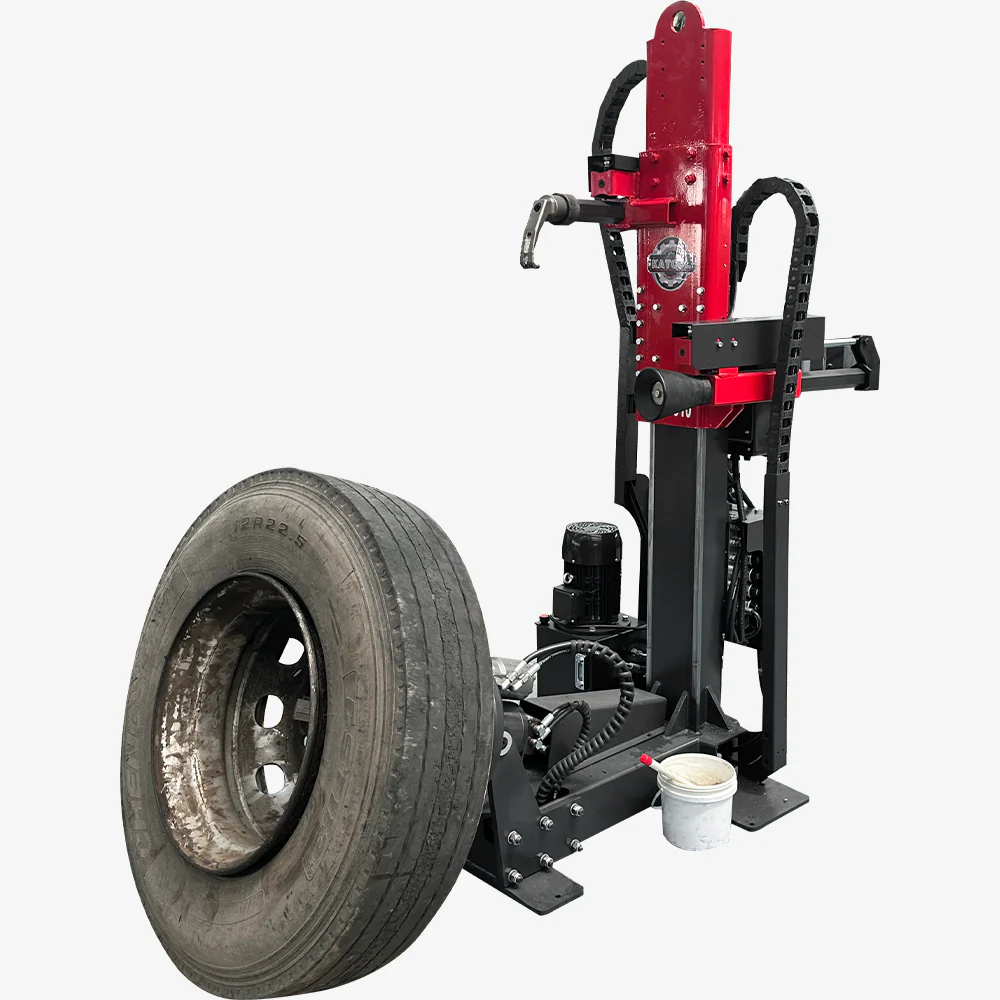

Hydraulic tire changer with red frame, black base, clamp arm, and mounting plate

Katool KT-TV910 Heavy Duty Hydraulic Tire Changer - Trucks, Buses & Tractors

Warehouse Pickup

$6,299.00 $7,199.00

1/7

Katool KT-TV910 Heavy Duty Hydraulic Tire Changer - Trucks, Buses & Tractors

$6,299.00 $7,199.00

🚚 Delivery option includes free freight to the lower 48 states.

Delivery Options Warehouse Pickup Commercial Delivery (Forklift Available) Commercial Delivery (No Forklift) Residential Delivery (Forklift Available) Residential Delivery (No Forklift)

Select Pickup Location *

Shop Pay Installments

Split your purchase into flexible installment payments with Shop Pay. Pay over time with no hidden fees.

How it works:

Choose Shop Pay at checkout
Select your preferred payment plan
Make your first payment today
Pay the rest over time with automatic payments

No interest. No hidden fees. Just flexible payments that work for you.

🇺🇸 US-Based Business: Unlike big out-of-state sellers, we offer specialized support and $0 Sales Tax outside Illinois.

💰

Tax-Free Outside IL

🚚

Free Freight Lower 48 States

🛡️

1-Yr Warranty Full Parts Support

🔬

Safety Tested Load & Function Tested

📍

Local Pickup Nationwide Save up to $1,400 in freight costs

Learn More >

Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge. A 2-year extended warranty plan is available.

Warranty Conditions:

Non-transferable — requires original order number
Replacement parts at no cost including free shipping
Labor not included
Do not disassemble before issue is determined

Free freight shipping to the contiguous 48 US states. Estimated delivery: 6–10 business days. Curbside delivery only — forklift or pallet jack required. Carrier will call 24–48 hrs before delivery. View full Shipping & Delivery details →

⚠️ Safety Warning

KT-TV910 Heavy Duty Hydraulic Tire Changer: Requires 220V single-phase power — verify electrical supply before installation. Do not exceed rated clamp range (14-42 inches). Maintain air pressure at or below 130 bar. This machine is designed for commercial heavy-duty use only — ensure operators are trained. Keep all bystanders clear during operation.

The Katool KT-TV910 is a professional-grade electro-hydraulic tire changer engineered for versatility and performance in demanding commercial applications. Its electro-hydraulic system accommodates wheels from 14 to 42 inches in diameter, making it suitable for everything from standard vehicles to heavy-duty commercial and off-road equipment. The precision bead-breaking mechanism features a robust bead and disk design that protects delicate rims while delivering powerful, consistent action. Intuitive multifunctional controls allow safe operation from any position, while ergonomically positioned foot pedals and levers minimize operator fatigue during extended use. Built with low-voltage electrical safety components, this machine combines reliability with user-focused design for demanding workshop environments.

Electro-hydraulic system for trucks, buses, tractors, and earth-moving equipment
Large clamping capacity — externally clamps wheels up to 42 inches
Precision bead-breaking mechanism with robust bead and disk design
Multifunctional controls for safe operation from any position
Ergonomically positioned foot pedals and levers to minimize operator fatigue
Low-voltage electrical safety components for complete user safety
Handles everything from standard vehicles to heavy-duty off-road equipment

	Feature	AK-T900	KT-TV910
System Type	Fully Automatic Lever-less	Electro-Hydraulic	Electro-Hydraulic
Max Wheel Diameter	47" (1200mm)	63" (1600mm)	62"
Wheel Clamp Range	12"–30"	14"–42"	14"–26"
Max Wheel Width	16" (406mm)	31" (780mm)	30"
Motor Power	1.5KW / 2HP	3.0KW / 4HP	2.2KW / 3HP
Power Supply	110V / 1PH	220V / 1PH	220V / 1PH
Air Pressure	0.8–1.0 MPa	≤130 bar	≤130 bar
Net Weight	414 lbs	1,257 lbs	1,257 lbs
Best For	Premium tire shops, all vehicle types	Trucks, buses, tractors, earthmoving	Trucks, buses, tractors, earthmoving

Max Wheel Diameter: 63 inches (1,600mm)
Max Wheel Width: 31 inches (780mm)
Outer Rim Clamp: 14 to 42 inches
Working Pressure: ≤130 bar
Power Supply: 220V / 1PH / 60Hz
Hydraulic Motor: 3.0KW (4.0HP)
Max Flow of Oil: 315 ml/r
Tire Tire Weight: 3,306 lbs (1,500 kg)
Net Weight: 570 kg (1,257 lbs)
Package Size: 51 x 72 x 43 inches, 1,256 lbs

The Katool KT-TV910 Heavy Duty Hydraulic Tire Changer is a professional-grade electro-hydraulic machine engineered for versatility and performance in demanding commercial applications. Its electro-hydraulic system accommodates wheels from 14 to 42 inches in diameter — suitable for everything from standard vehicles to heavy-duty trucks, buses, tractors, and earth-moving equipment. The precision bead-breaking mechanism features a robust bead and disk design that protects delicate rims while delivering powerful, consistent action. Intuitive multifunctional controls allow safe operation from any position, with ergonomically positioned foot pedals and levers to minimize operator fatigue during extended use.

Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge. A 2-year extended warranty plan is available.

Warranty Conditions:

Non-transferable — requires original order number
Replacement parts at no cost including free shipping
Labor not included
Do not disassemble before issue is determined

Commercial Truck Shops: Heavy-duty hydraulic system for trucks, buses, tractors, and earth-moving equipment
Agricultural Equipment: Designed for tractors and farm equipment construction sites
Heavy Equipment Service: Electro-hydraulic system for demanding commercial applications with 14-42 inch capacity
Fleet Maintenance: Large clamping capacity to externally clamp wheels up to 42 inches
Versatile Service: Handles everything from standard vehicles to heavy-duty commercial and off-road equipment

Freight shipping included to the lower 48 states. Two delivery options available:

Terminal Pickup — Ship to nearest freight terminal, no forklift needed
Commercial/Residential Delivery — Direct delivery to your address, no forklift required

Contact us to confirm your preferred delivery option before ordering.

Package Size

L x W x H (in)	51 x 72 x 43
Weight (lbs)	1256

Product Manual

Download the complete product manual and installation guide.

Download Manual
