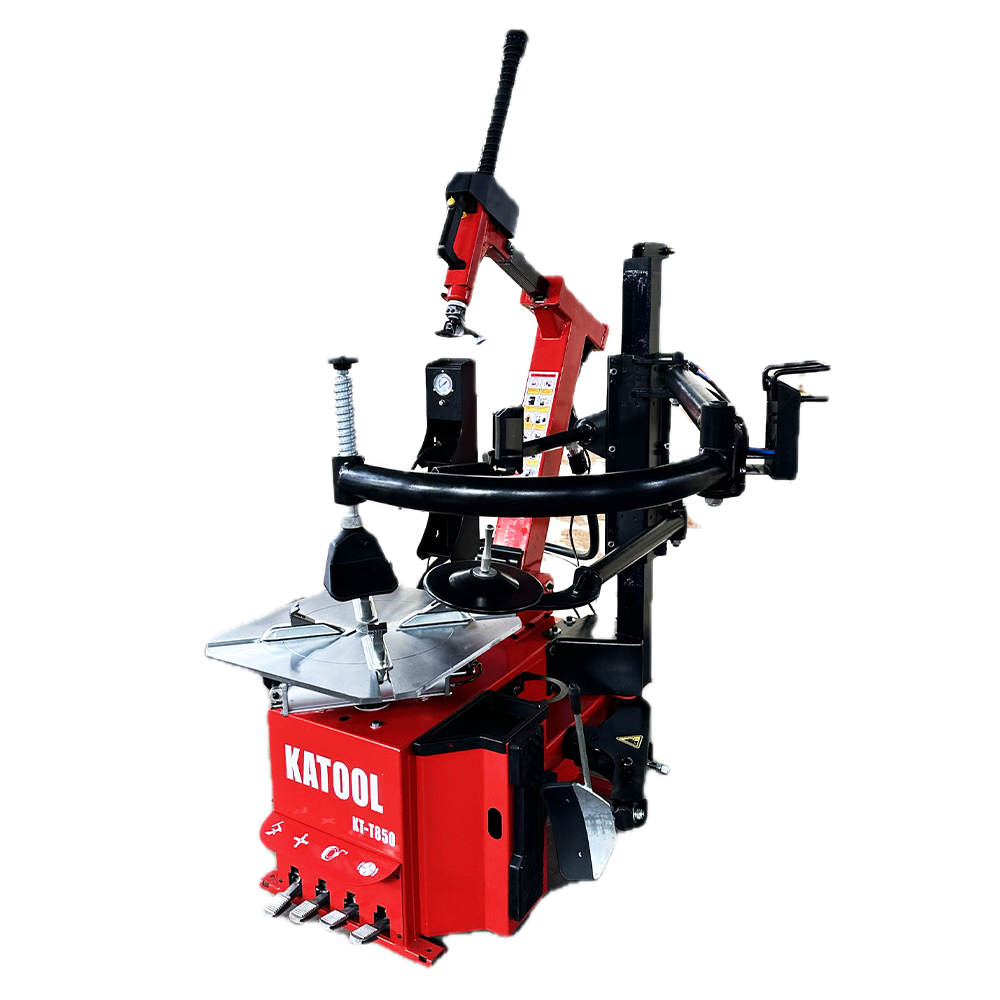

  • Red and black tire changer machine with tilt arm, wheel clamp, and mounting tower

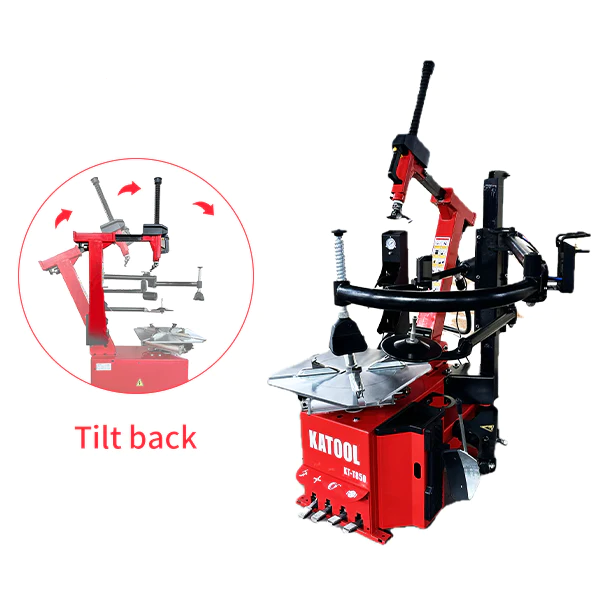

  • Tilt-back tire changer with wheel clamp and mounting arm over a metal turntable

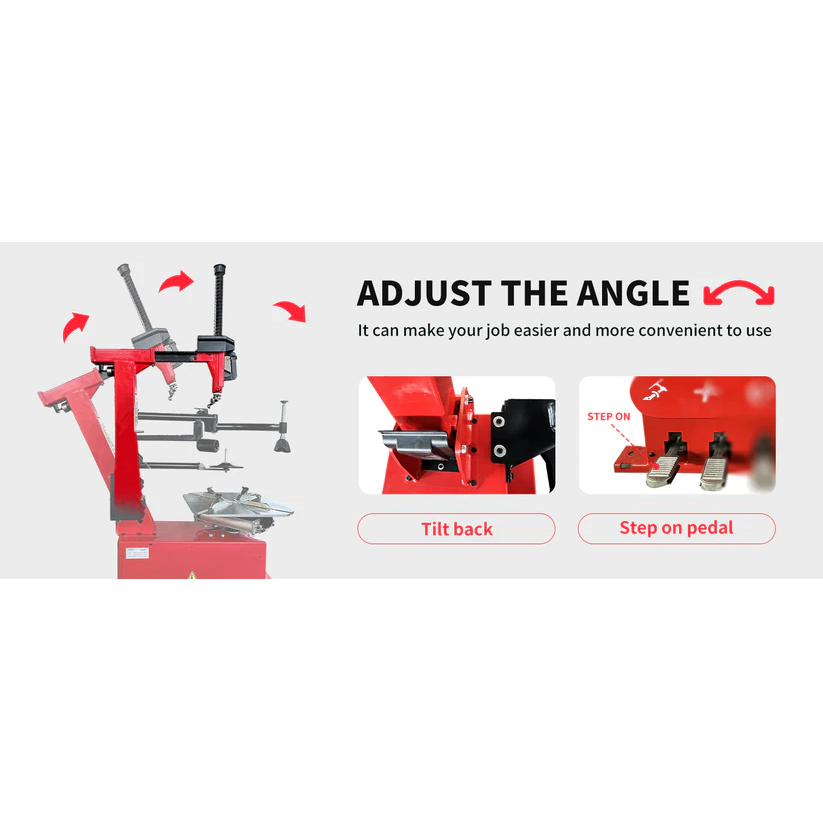

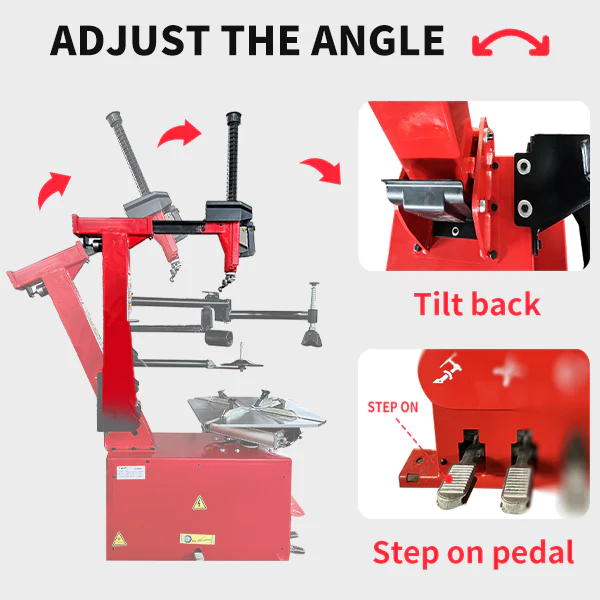

  • Tire changer angle adjustment system with step-on pedal and tilt-back arm
  • Tire changer with red base and black clamp arm for mounting and removing tires

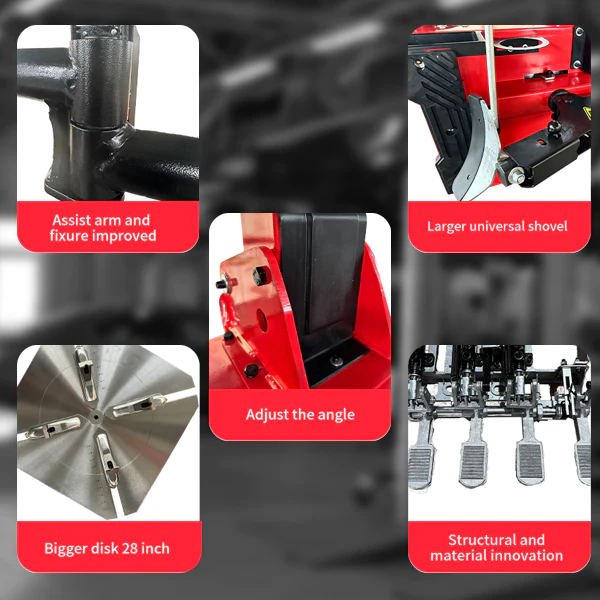

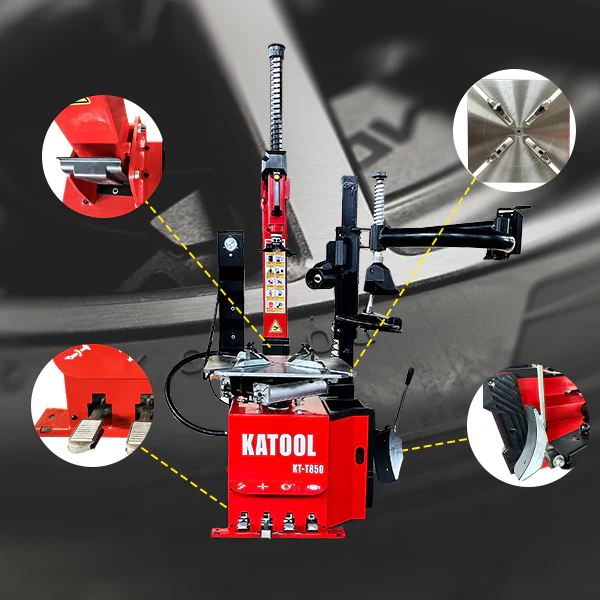

  • Tire changer component close-ups showing assist arm, angle adjustment, and universal shovel
  • Tire changer feature tiles showing larger disc, assist arm, and universal shovel parts

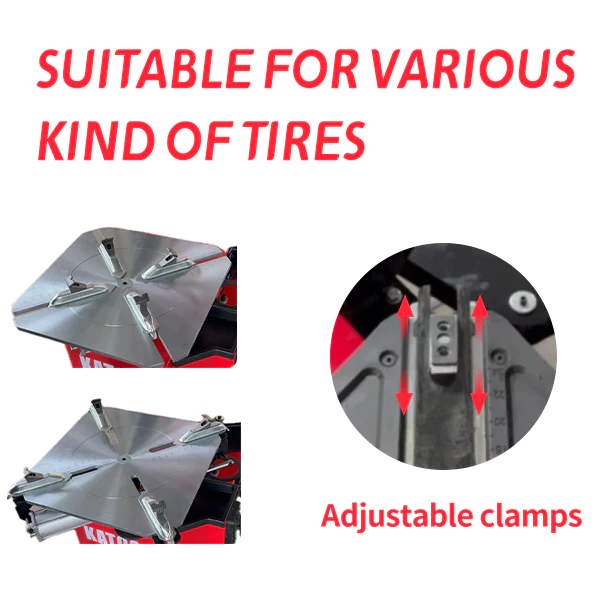

  • Tire changer with adjustable clamps holding a wheel on the mounting platform

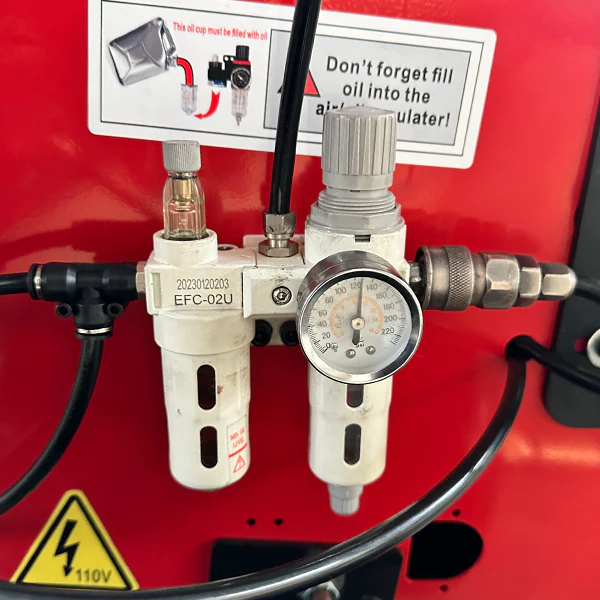

  • Tire changer regulator and filter assembly with pressure gauge on the red control panel

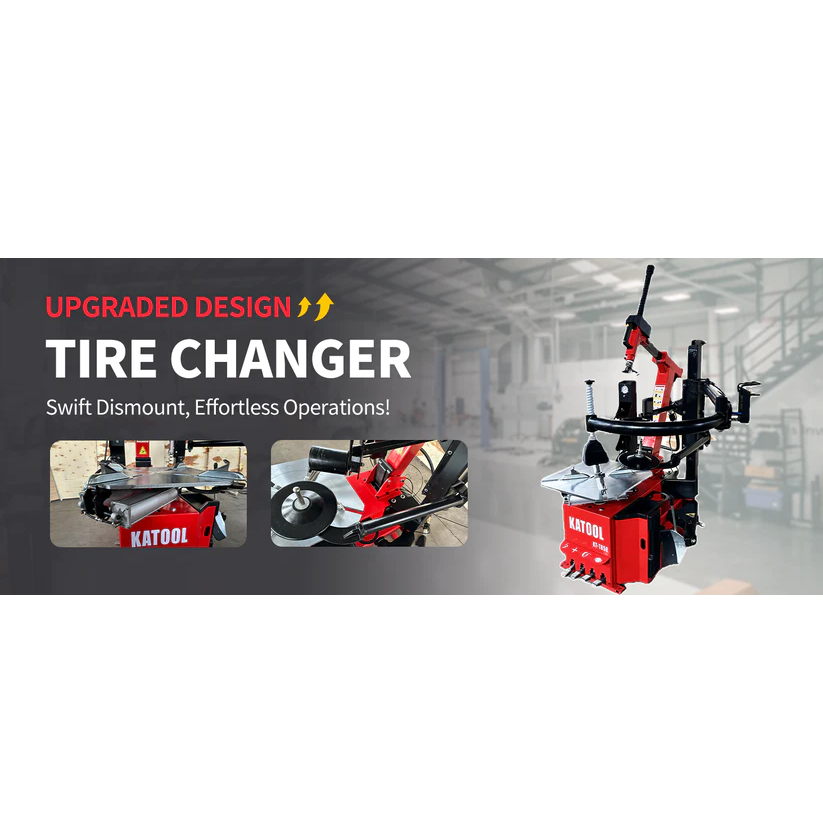

  • Tire changer with red base, mounting head, and tilt arm positioned over a turntable

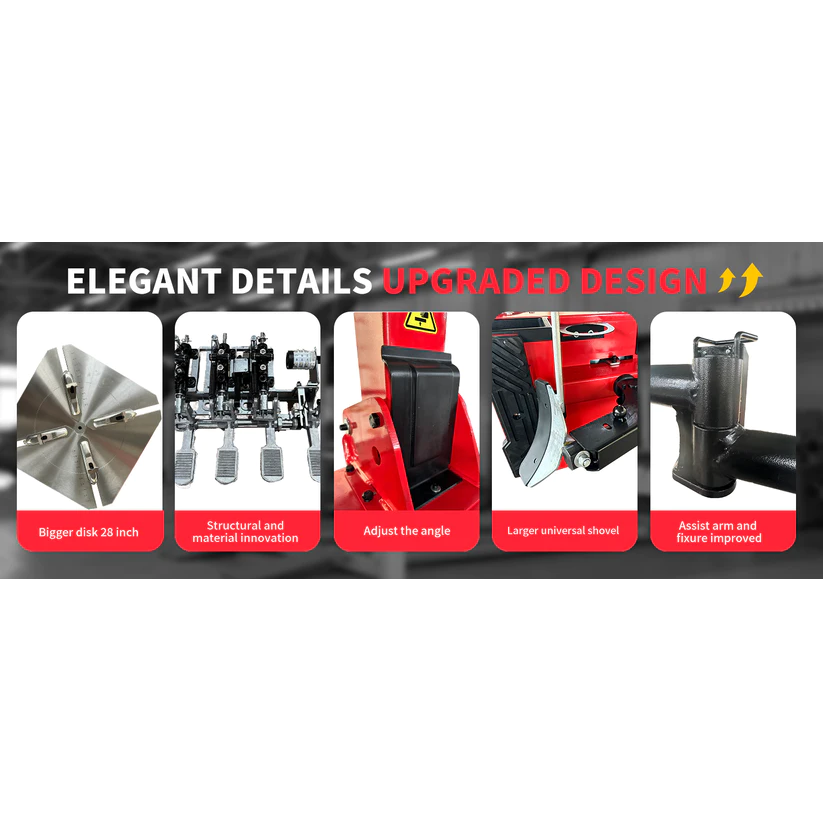

  • Tire changer feature tiles showing disc, pedal tread, angle adjust, universal shovel, assist arm
  • Red tilt-arm tire changer with wheel clamp and manual step control

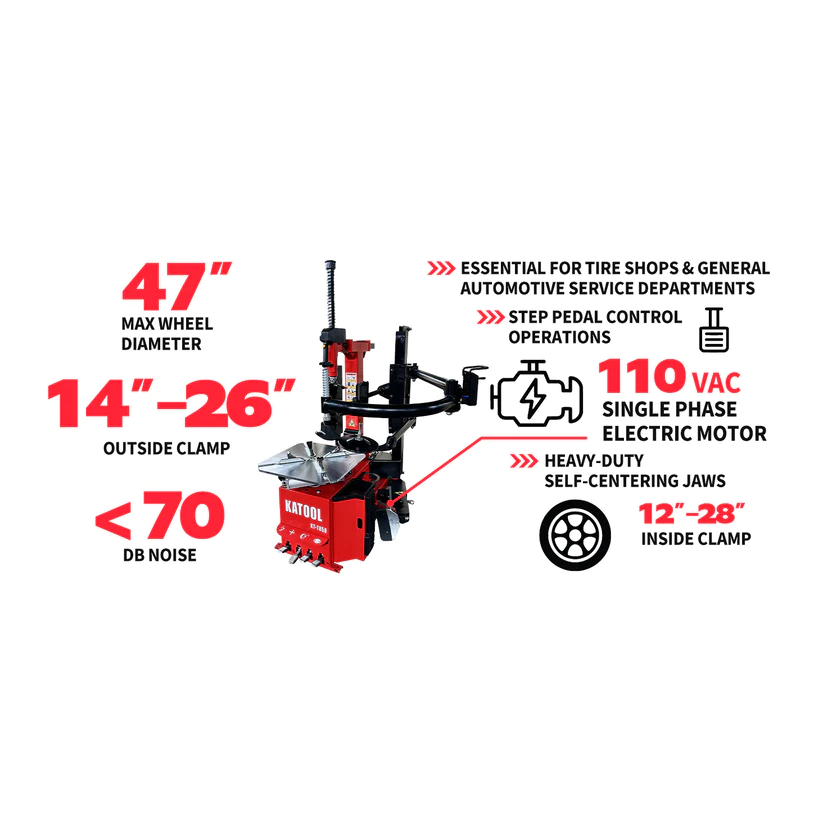

  • Red car tire changer with step-pedal control and 110V single-phase electric motor
  • Red tire changer with upgraded design, larger disk and easier operation
  • Tire changer supports outside clamp 14–26 in and inside clamp 16–28 in

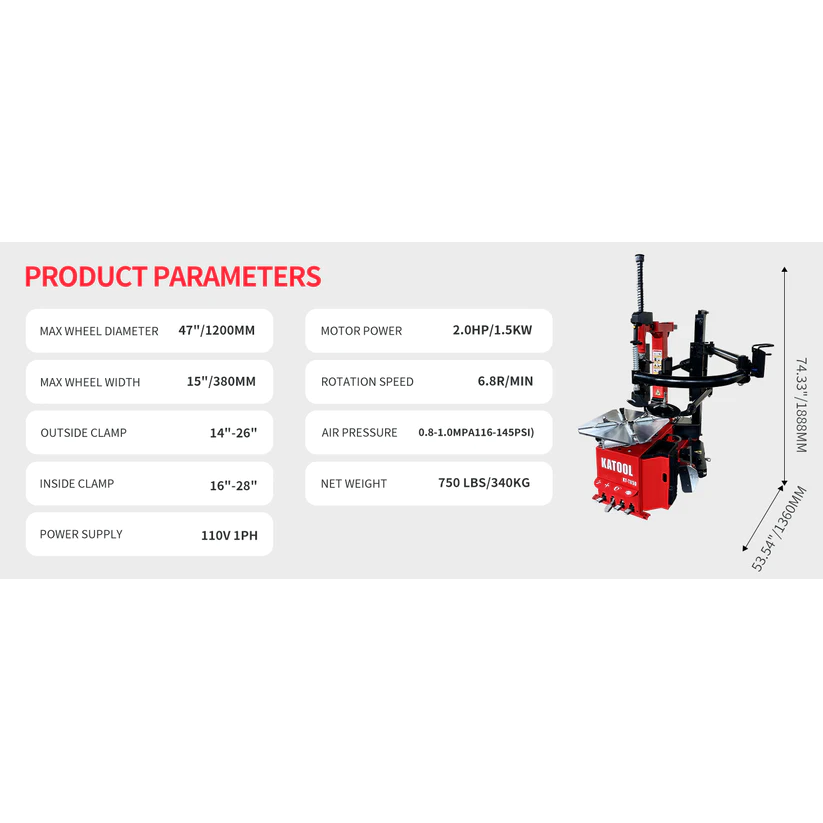

  • Red tire changer machine with specifications panel showing max wheel diameter 47 in

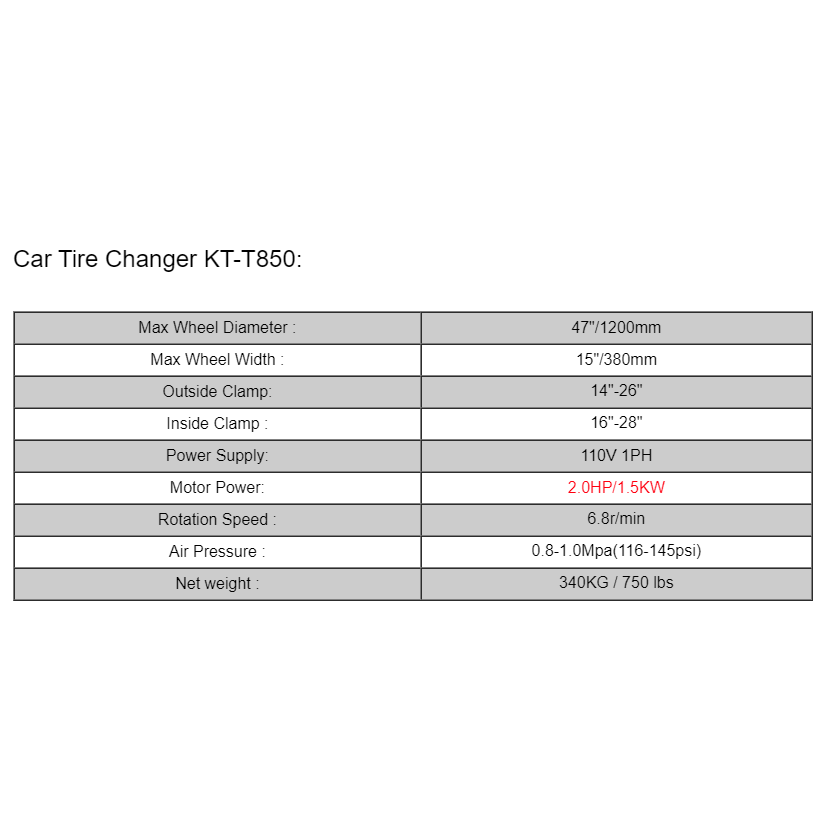

  • Specification table: max wheel diameter 47 in, max width 15 in for tire changer
Katool KT-T850 Premium Tire Changer - Tilt-Arm - Wheel Clamp - 2.0HP Motor

Katool KT-T850 Premium Tire Changer - Tilt-Arm - Wheel Clamp - 2.0HP Motor

$2,699.00 $3,499.00

🚚 Delivery option includes free freight to the lower 48 states.

Delivery Options

Shop Pay Installments

Split your purchase into flexible installment payments with Shop Pay. Pay over time with no hidden fees.

How it works:

  • Choose Shop Pay at checkout
  • Select your preferred payment plan
  • Make your first payment today
  • Pay the rest over time with automatic payments

No interest. No hidden fees. Just flexible payments that work for you.

🇺🇸 US-Based Business: Unlike big out-of-state sellers, we offer specialized support and $0 Sales Tax outside Illinois.

💰
Tax-Free Outside IL
🚚
Free Freight Lower 48 States
🛡️
1-Yr Warranty Full Parts Support
✅
CE Approved International Quality
📍
Local Pickup Nationwide Save up to $1,400 in freight costs
Learn More >
Motorcycle wheel adaptor with black mounting blocks and steel clamp arms

Katool KT-MC1 Motorcycle Wheel Adaptor - Tire Changer Accessory

$129.00
+ shipping if applicable
Warranty

Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge. A 2-year extended warranty plan is available.

Warranty Conditions:

  • Non-transferable — requires original order number
  • Replacement parts at no cost including free shipping
  • Labor not included
  • Do not disassemble before issue is determined
Shipping

Free freight shipping to the contiguous 48 US states. Estimated delivery: 6–10 business days. Curbside delivery only — forklift or pallet jack required. Carrier will call 24–48 hrs before delivery. View full Shipping & Delivery details →

⚠️ Safety Warning

WARNING: Always disconnect power and air supply before maintenance. Do not exceed rated wheel diameter or width capacity. Keep hands clear of rotating components and tilt-arm during operation. Use caution when operating bead blast seater — ensure tire is properly seated before inflation.

The Katool KT-T850 is the premium tilt-arm tire changer built for demanding professional tire service operations. Its advanced tilt-arm design provides unique advantages for difficult tire changes that fixed-arm machines cannot handle. The alloy steel jaw features carburization treatment (0.8-1.1mm depth) with full quenching for a hardened exterior and tough interior core, protected by a jaw cover. The stainless steel mounting head undergoes solution treatment and precision polishing for optimal rim protection. Equipped with assist arms, a bead blast seater, and a 200mm aluminum bead breaker cylinder, the KT-T850 handles the most challenging tire service operations with confidence. A premium 2.0HP pure copper motor and superior lubrication system ensure reliable performance across extended service cycles.

  • Tilt-arm design for advanced performance on difficult tire changes
  • Assist arms included for enhanced tire service capabilities

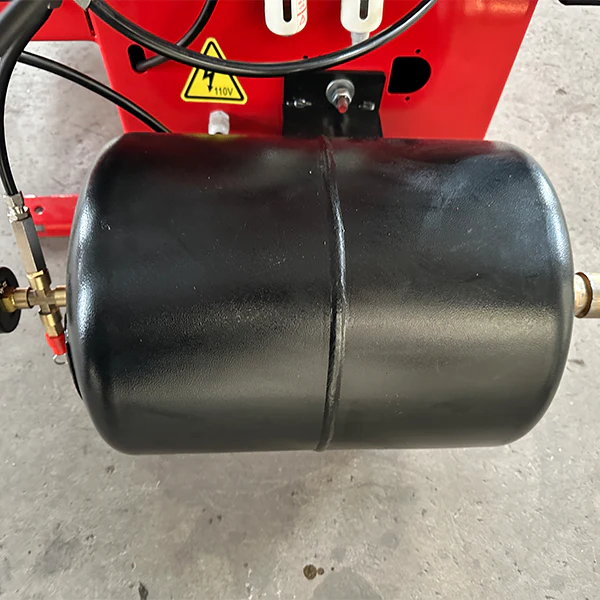

  • Bead blast seater with 200mm aluminum bead breaker cylinder
  • Alloy steel jaw with carburization treatment (0.8-1.1mm depth) and full quenching
  • Protective jaw cover for rim protection
  • Stainless steel mounting head with solution treatment and precision polishing
  • 2.0HP pure copper motor for maximum power and extended service life
  • Pull-type pedal control system for intuitive operation
  • High-quality spade cover prevents rim damage
  • Superior lubrication system for consistent performance across extended service cycles
  • 110V 1PH — North America standard outlet compatible
Feature KT-T800 KT-T810 KT-T830 KT-T835 KT-T850 KT-T880
Max Wheel Diameter 41 in 41 in 41 in 48 in 47 in —
Outside Clamp 12"–22" 12"–22" 12"–22" 10"–24" 14"–26" 13"–26"
Inside Clamp 14"–24" 14"–24" 14"–24" 12"–26" 16"–28" —
Motor Power 2.0HP 2.0HP 2.0HP 2.0HP 2.0HP 2.0HP
Power Supply 110V 120V 120V 110V 110V —
Assist Arms — — — Single Yes —
Operation Manual Manual Manual Manual Manual Automatic
Net Weight 410 lbs 410 lbs 529 lbs 582 lbs 750 lbs 410 lbs
  • Max Wheel Diameter: 47 inches (1200mm)
  • Max Wheel Width: 15 inches (380mm)
  • Outside Clamp: 14 to 26 inches
  • Inside Clamp: 16 to 28 inches
  • Power Supply: 110V 1PH
  • Motor Power: 2.0HP (1.5KW)
  • Rotation Speed: 6.8 r/min
  • Air Pressure: 0.8-1.0 MPa (116-145 psi)
  • Machine Weight: 750 lbs (340 kg)
  • Package Size: 46 x 34 x 67 inches
  • Shipping Weight: 750 lbs

The Katool KT-T850 Premium Tilt-Arm Tire Changer is engineered for demanding professional tire service operations that require advanced capabilities. Its tilt-arm design handles difficult tire changes that fixed-arm machines cannot, supported by assist arms and a bead blast seater with 200mm aluminum bead breaker cylinder. The alloy steel jaw features carburization treatment (0.8-1.1mm depth) with full quenching for a hardened exterior and tough interior core, protected by a jaw cover. The stainless steel mounting head undergoes solution treatment and precision polishing for optimal rim protection. A premium 2.0HP pure copper motor and superior lubrication system deliver reliable, consistent performance across extended service cycles in the most demanding shop environments.

Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge. A 2-year extended warranty plan is available.

Warranty Conditions:

  • Non-transferable — requires original order number
  • Replacement parts at no cost including free shipping
  • Labor not included
  • Do not disassemble before issue is determined
  • Premium Tire Shops: Tilt-arm design with 2.0HP motor for advanced performance on difficult tire changes
  • Professional Service Centers: Wheel clamp system with outside clamp 14-26 inch and inside clamp 16-28 inch
  • Demanding Operations: Alloy steel jaw with carburization treatment handles the toughest tire service jobs
  • Large Wheel Service: Handles up to 47 inch (1200mm) wheel diameter
  • Advanced Facilities: Tilt-arm technology with assist arms and bead blast seater for complete tire service

All Katool equipment is manufactured to international quality standards.

  • CE Certified — Meets European safety and quality standards
  • Quality Control — Each unit undergoes pre-shipment inspection
  • US-Based Support — Technical support provided from the United States
  • Warranty — 1-year limited manufacturer warranty included

Freight shipping included to the lower 48 states. Two delivery options available:

  • Terminal Pickup — Ship to nearest freight terminal, no forklift needed
  • Commercial/Residential Delivery — Direct delivery to your address, no forklift required

Contact us to confirm your preferred delivery option before ordering.

Package Size

L x W x H (in) 46 x 34 x 67
Weight (lbs) 750

Product Manual

Download the complete product manual and installation guide.
Download Manual

Complete Your Shop Setup

Everything a professional tire shop needs
Tire Service Packages Collection Banner

Tire Service Packages

2-Post Lifts Category Image

2-Post Lift

4-Post Lifts Category Image

4-Post Lifts

Tire Changer

Tire Changer

Wheel Balancer

Wheel Balancer

Shop Accessories Collection Banner

Shop Accessories

Frequently Asked Questions

  • The KT-T850 supports outside clamp 10"-24" and inside clamp 12"-26", covering passenger cars, SUVs, and light trucks.
  • Yes. The KT-T850 includes a built-in bead blaster and tilt-arm design for easier low-profile and run-flat tire mounting.
  • The KT-T850 requires a standard 110V single-phase power supply and compressed air (90-120 PSI). No special electrical work required.
  • Ships via freight carrier to the lower 48 states. Freight cost is included in the price. Options include Terminal Pickup or Commercial/Residential Delivery. No forklift required for unloading.
  • Yes. We offer Shop Pay Installments, allowing you to split your purchase into 4 interest-free payments on qualifying orders.
  • We provide US-based technical support via email and phone for installation, troubleshooting, and parts replacement throughout your warranty period.
  • Returns accepted within 30 days for unused equipment in original packaging. Please contact us before returning. Return freight costs are the buyer's responsibility.
