What tire sizes does this tire changer support?

The KT-T800 supports outside clamp 10"-24" and inside clamp 12"-26", covering passenger cars, SUVs, and light trucks.

Is the bead blaster included?

The bead blaster is included on select models (KT-T810, KT-T830, KT-T835). The KT-T800 does not include a bead blaster.

What power supply is required?

The KT-T800 requires a standard 110V single-phase power supply and compressed air (90-120 PSI). No special electrical work required.

How is this tire changer delivered?

Ships via freight carrier to the lower 48 states. Freight cost is included in the price. Options include Terminal Pickup or Commercial/Residential Delivery. No forklift required for unloading.

Do you offer financing or installment payments?

Yes. We offer Shop Pay Installments, allowing you to split your purchase into 4 interest-free payments on qualifying orders.

What after-sales support do you provide?

We provide US-based technical support via email and phone for installation, troubleshooting, and parts replacement throughout your warranty period.

What is your return policy?

Returns accepted within 30 days for unused equipment in original packaging. Please contact us before returning. Return freight costs are the buyer's responsibility.

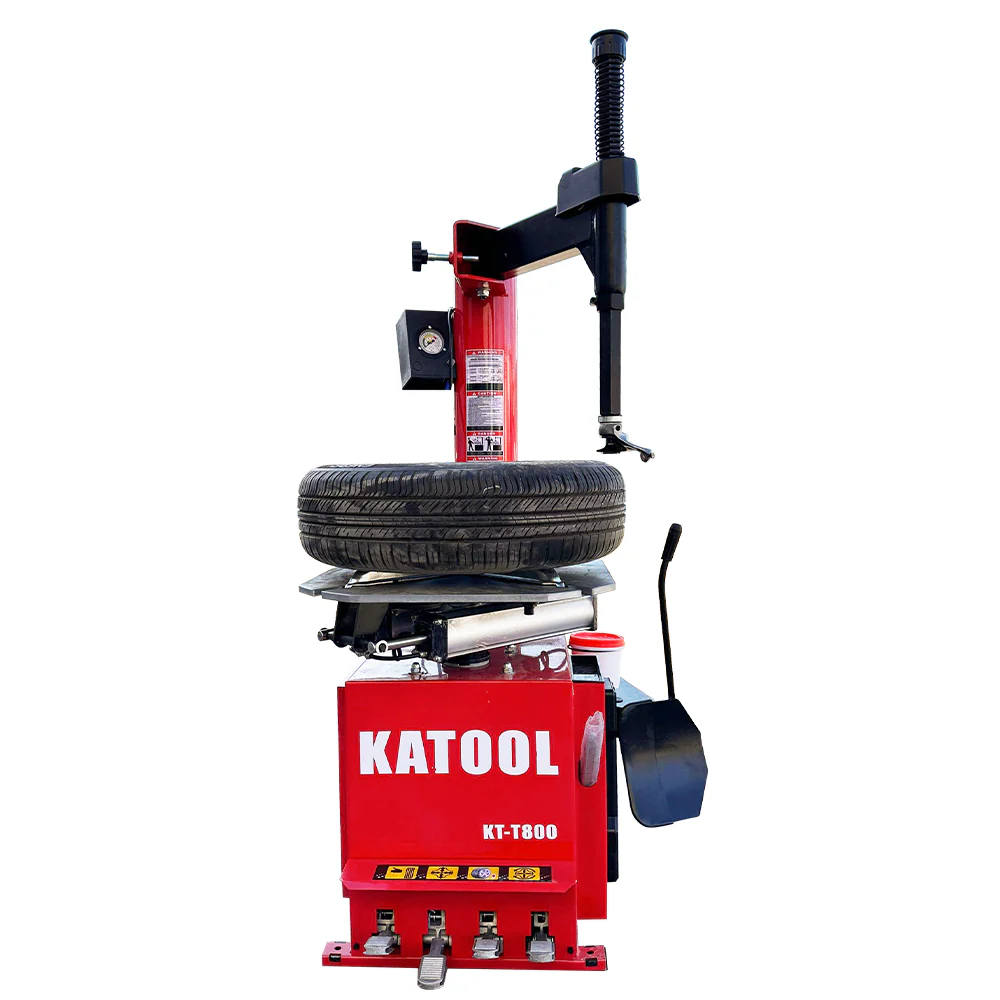

Tire changer with red-and-black wheel clamp and upright bead-breaking arm

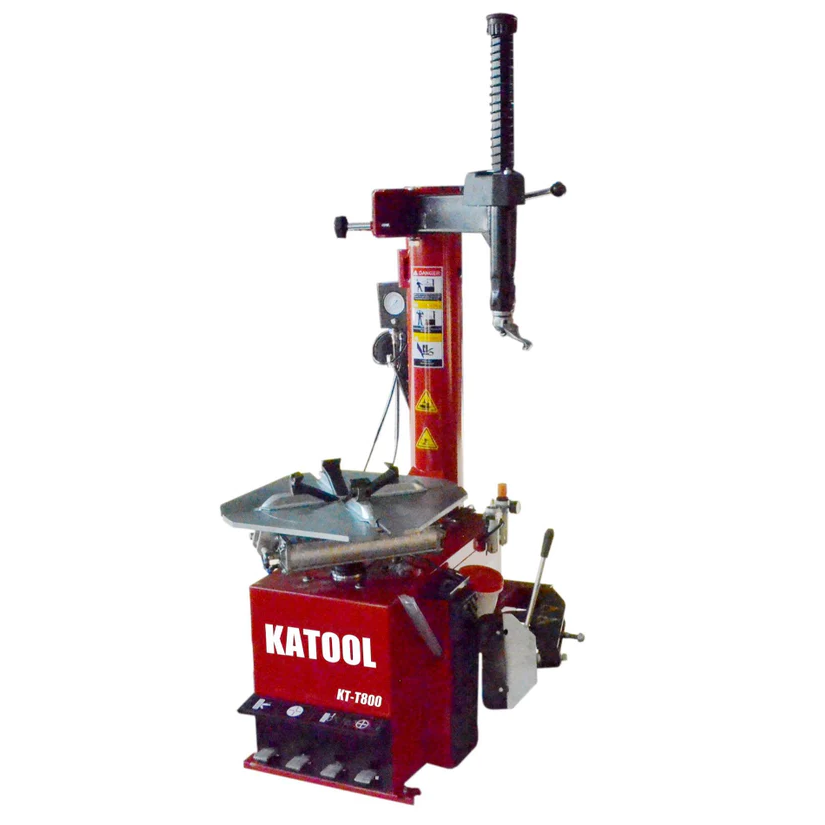

Katool KT-T800 Tire Changer - Wheel Clamp - 2.0HP Motor - Professional Grade

Warehouse Pickup

$1,199.00 $2,099.00

1/11

Katool KT-T800 Tire Changer - Wheel Clamp - 2.0HP Motor - Professional Grade

$1,199.00 $2,099.00

🚚 Delivery option includes free freight to the lower 48 states.

Delivery Options Warehouse Pickup Commercial Delivery (Forklift Available) Commercial Delivery (No Forklift) Residential Delivery (Forklift Available) Residential Delivery (No Forklift)

Select Pickup Location *

Shop Pay Installments

Split your purchase into flexible installment payments with Shop Pay. Pay over time with no hidden fees.

How it works:

Choose Shop Pay at checkout
Select your preferred payment plan
Make your first payment today
Pay the rest over time with automatic payments

No interest. No hidden fees. Just flexible payments that work for you.

🇺🇸 US-Based Business: Unlike big out-of-state sellers, we offer specialized support and $0 Sales Tax outside Illinois.

💰

Tax-Free Outside IL

🚚

Free Freight Lower 48 States

🛡️

1-Yr Warranty Full Parts Support

🔬

Safety Tested Load & Function Tested

📍

Local Pickup Nationwide Save up to $1,400 in freight costs

Learn More >

Katool KT-MC1 Motorcycle Wheel Adaptor - Tire Changer Accessory

$129.00

+ shipping if applicable

Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge. A 2-year extended warranty plan is available.

Warranty Conditions:

Non-transferable — requires original order number
Replacement parts at no cost including free shipping
Labor not included
Do not disassemble before issue is determined

Free freight shipping to the contiguous 48 US states. Estimated delivery: 6–10 business days. Curbside delivery only — forklift or pallet jack required. Carrier will call 24–48 hrs before delivery. View full Shipping & Delivery details →

⚠️ Safety Warning

WARNING: Always disconnect power and air supply before maintenance. Do not exceed rated wheel diameter or width capacity. Keep hands clear of rotating components during operation.

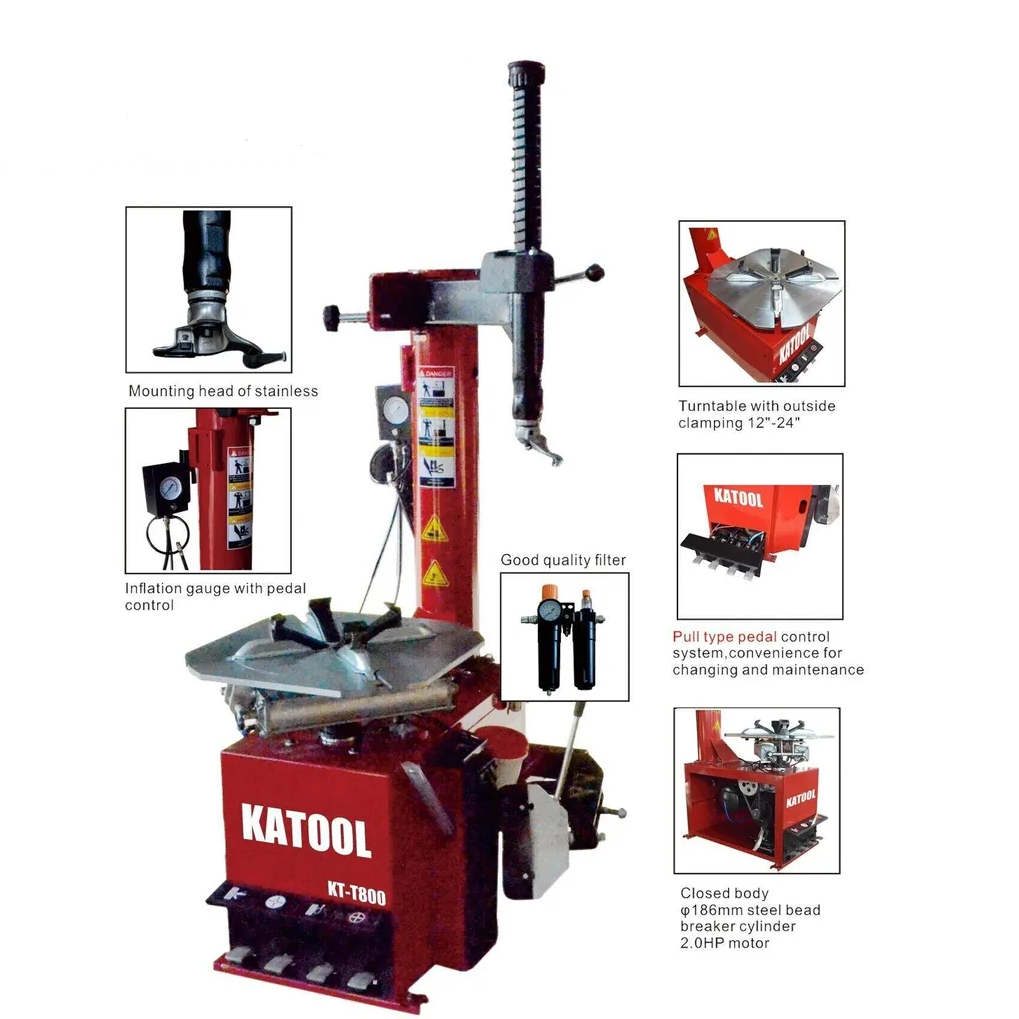

The Katool KT-T800 delivers professional-grade tire changing performance for automotive service shops with its powerful 2.0HP motor and durable construction. Engineered with an alloy steel jaw featuring carburized hardening (0.8-1.1mm depth) and full quenching, it combines exceptional durability with internal toughness. The stainless steel mounting head undergoes solution treatment and precision polishing for reliable grip and longevity. A powerful 2.0HP motor with pure copper windings ensures rapid operation and efficient heat dissipation, while the pedal-controlled inflation gauge and pull-type activation system streamline tire changes. Protective covers on both the jaw and spade safeguard wheel rims throughout the process.

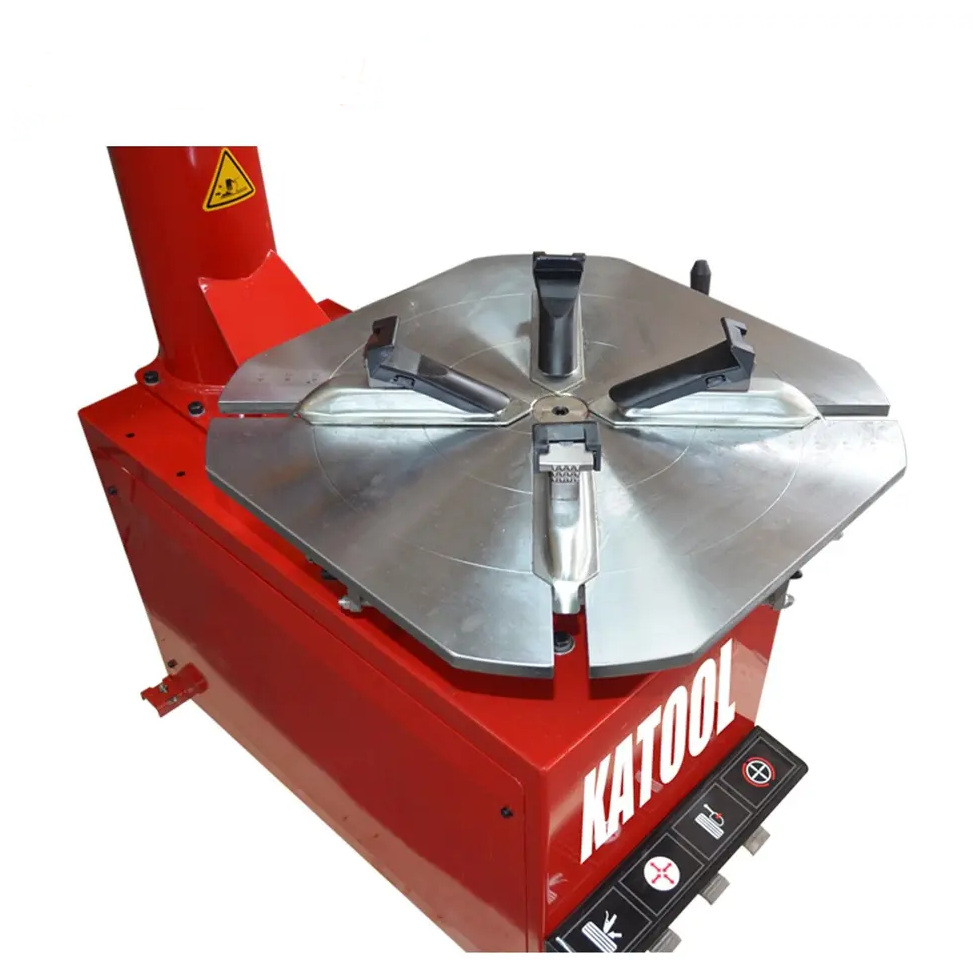

Alloy steel jaw with carburized hardening (0.8-1.1mm depth) and full quenching
Stainless steel mounting head with solution treatment and precision polishing

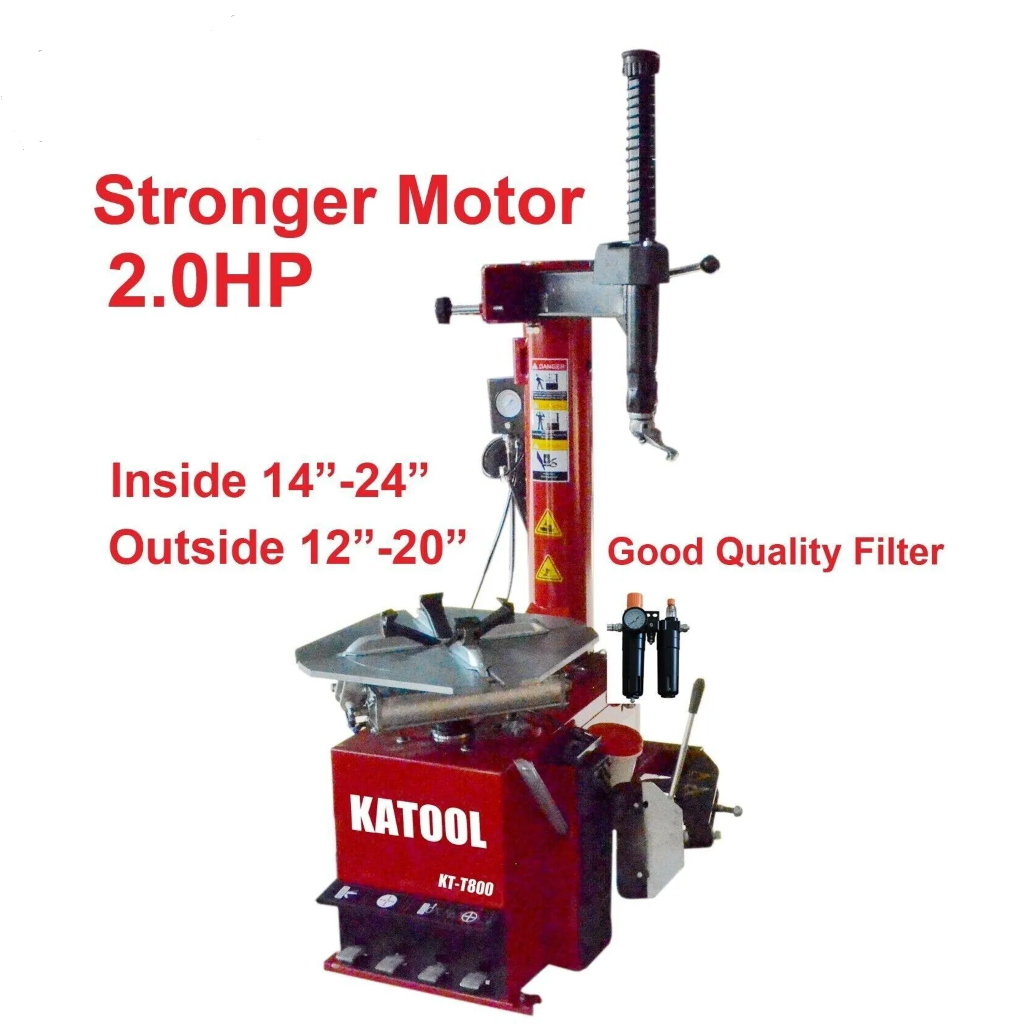

2.0HP pure copper motor windings for rapid operation and efficient heat dissipation

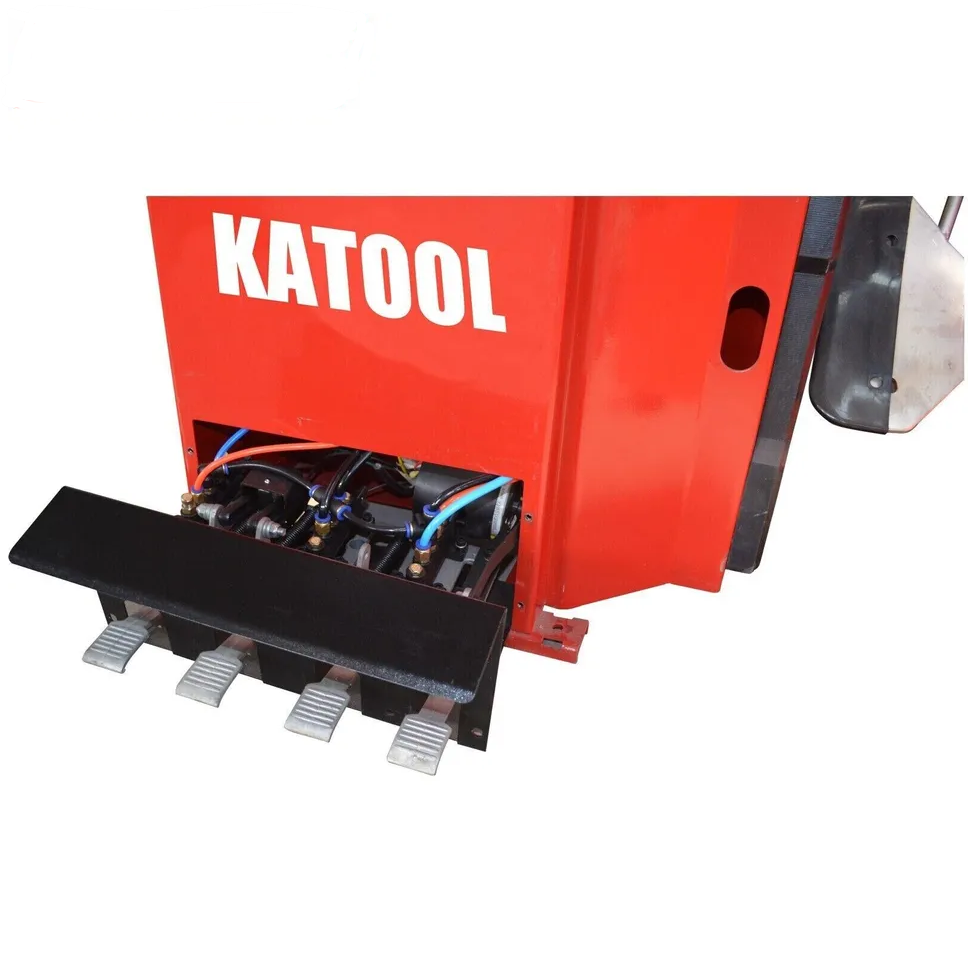

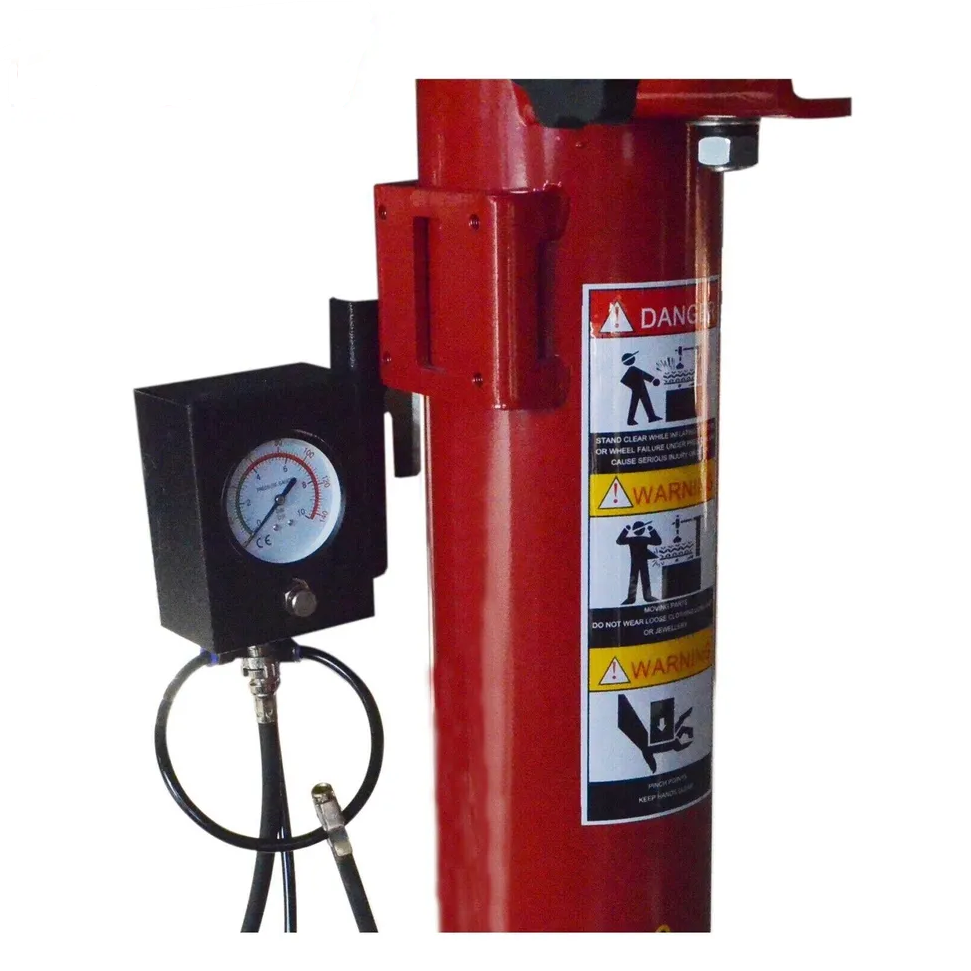

Pedal-controlled inflation gauge with pull-type activation system
Protective covers on jaw and spade safeguard wheel rims

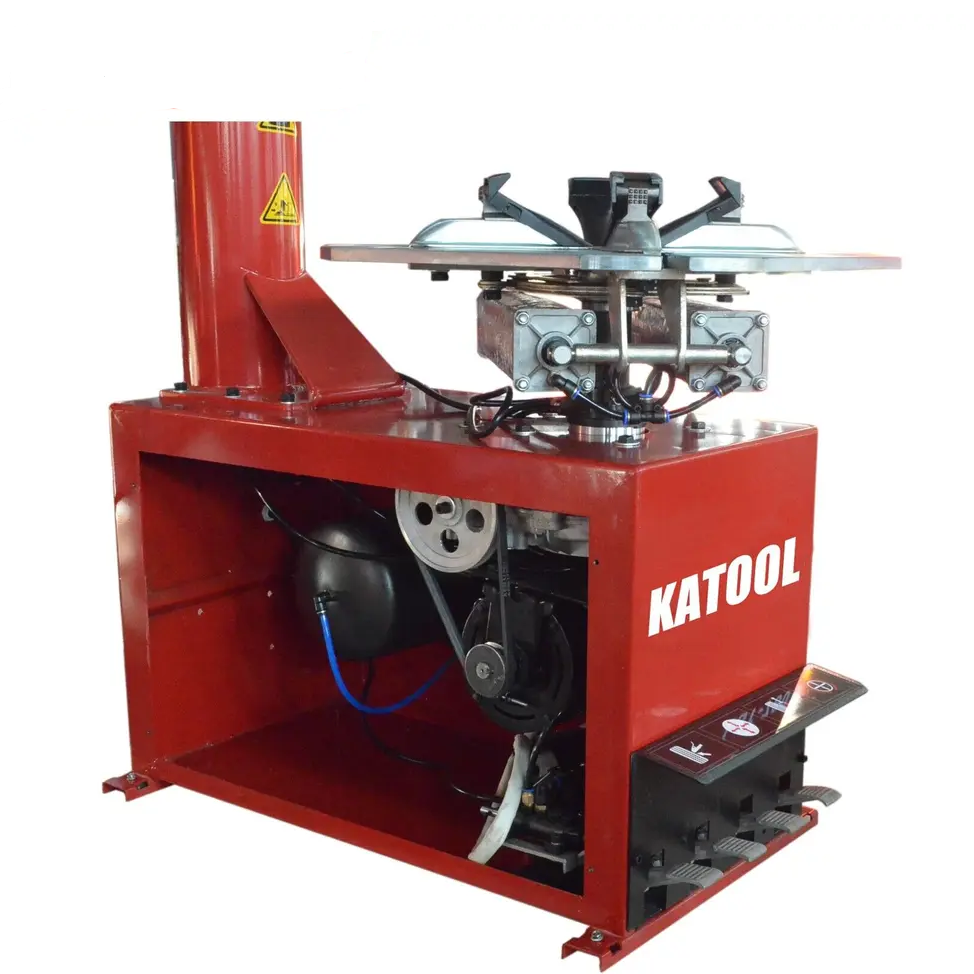

Closed body design protects internal components
High-quality lubricator for reliable oil-drop and compressed air filtration
110V single phase — standard outlet compatible

	Feature	KT-T800	KT-T810	KT-T830	KT-T835	KT-T850
Max Wheel Diameter	41 in	41 in	41 in	48 in	47 in	—
Outside Clamp	12"–22"	12"–22"	12"–22"	10"–24"	14"–26"	13"–26"
Inside Clamp	14"–24"	14"–24"	14"–24"	12"–26"	16"–28"	—
Motor Power	2.0HP	2.0HP	2.0HP	2.0HP	2.0HP	2.0HP
Power Supply	110V	120V	120V	110V	110V	—
Assist Arms	—	—	—	Single	Yes	—
Operation	Manual	Manual	Manual	Manual	Manual	Automatic
Net Weight	410 lbs	410 lbs	529 lbs	582 lbs	750 lbs	410 lbs

Max Wheel Diameter: 41 in (1040mm)
Max Wheel Width: 15 in (380mm)
Outside Clamp: 12-22 in
Inside Clamp: 14-24 in
Power Supply: 120V 1PH
Motor Power: 2.0HP (1.5KW)
Rotation Speed: 6.8 r/min
Air Pressure: 0.8-1.0 MPa (116-145 psi)
Machine Weight: 410 lbs (186 kg)
Package Size: 45 x 30 x 34 in
Shipping Weight: 520 lbs

The Katool KT-T800 Wheel Clamp Tire Changer delivers professional-grade performance for automotive service shops with its powerful 2.0HP motor and durable construction. Engineered with an alloy steel jaw featuring carburized hardening (0.8-1.1mm depth) and full quenching, it combines exceptional durability with internal toughness. The stainless steel mounting head undergoes solution treatment and precision polishing for reliable grip and longevity. The pedal-controlled inflation gauge and pull-type activation system streamline tire changes, while protective covers on both the jaw and spade safeguard wheel rims throughout the process. Built for demanding workshop environments, the KT-T800 balances robust construction with user-friendly operation.

Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge. A 2-year extended warranty plan is available.

Warranty Conditions:

Non-transferable — requires original order number
Replacement parts at no cost including free shipping
Labor not included
Do not disassemble before issue is determined

Auto Repair Shops: Professional-grade 2.0HP performance for high-volume tire changing
Tire Service Centers: Wheel clamp design handles standard car and light truck tires efficiently
Car & Light Truck Service: Outside clamp 12-20 inch, inside clamp 14-24 inch compatibility
Daily Use Environments: Durable alloy steel jaw with carburized hardening for longevity
Professional Shops: Stainless steel mounting head with precision polishing protects alloy wheels

All Katool equipment is manufactured to international quality standards.

Quality Control — Each unit undergoes pre-shipment inspection
US-Based Support — Technical support provided from the United States
Warranty — 1-year limited manufacturer warranty included

Freight shipping included to the lower 48 states. Two delivery options available:

Terminal Pickup — Ship to nearest freight terminal, no forklift needed
Commercial/Residential Delivery — Direct delivery to your address, no forklift required

Contact us to confirm your preferred delivery option before ordering.

Package Size

L x W x H (in)	45 x 30 x 34
Weight (lbs)	520

Product Manual

Download the complete product manual and installation guide.

Download Manual

Complete Your Shop Setup

Everything a professional tire shop needs

Tire Service Packages

2-Post Lift

4-Post Lifts

Tire Changer

Wheel Balancer

Shop Accessories

Frequently Asked Questions

The KT-T800 supports outside clamp 10"-24" and inside clamp 12"-26", covering passenger cars, SUVs, and light trucks.
The bead blaster is included on select models (KT-T810, KT-T830, KT-T835). The KT-T800 does not include a bead blaster.
The KT-T800 requires a standard 110V single-phase power supply and compressed air (90-120 PSI). No special electrical work required.
Ships via freight carrier to the lower 48 states. Freight cost is included in the price. Options include Terminal Pickup or Commercial/Residential Delivery. No forklift required for unloading.
Yes. We offer Shop Pay Installments, allowing you to split your purchase into 4 interest-free payments on qualifying orders.
We provide US-based technical support via email and phone for installation, troubleshooting, and parts replacement throughout your warranty period.
Returns accepted within 30 days for unused equipment in original packaging. Please contact us before returning. Return freight costs are the buyer's responsibility.
