Red wheel balancer with black turntable and monitor, showing KT-B760 label.

Katool KT-B760 Entry-Level Wheel Balancer - Tire Balancing Machine

Warehouse Pickup
$1,199.00 $1,599.00
Skip to product information
Red wheel balancer with black turntable and monitor, showing KT-B760 label.
1/4

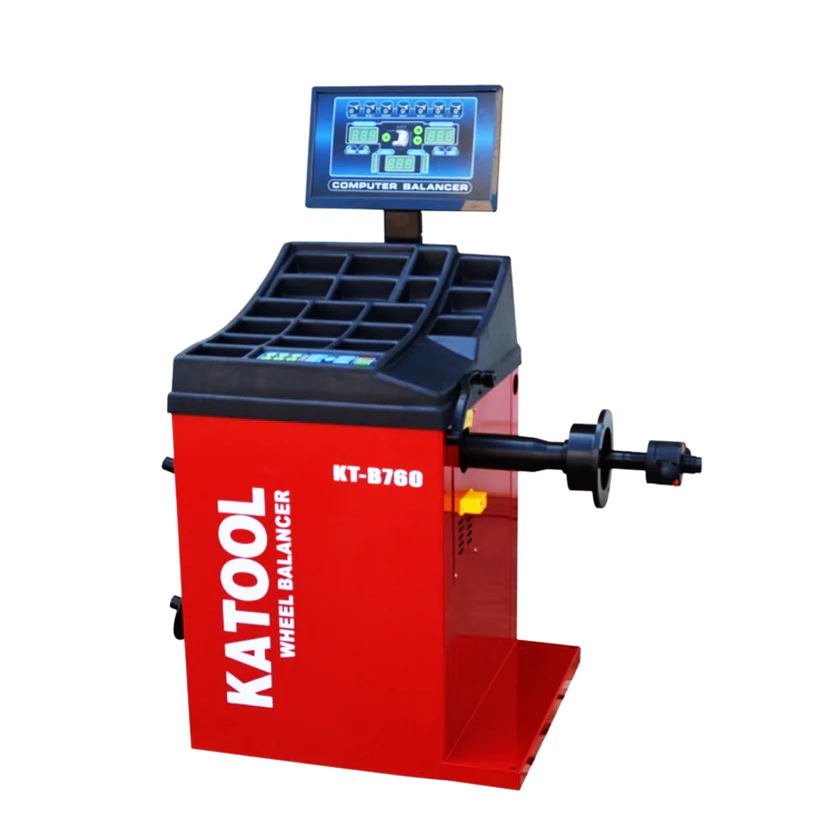

  • Red wheel balancer with black turntable and monitor, showing KT-B760 label.

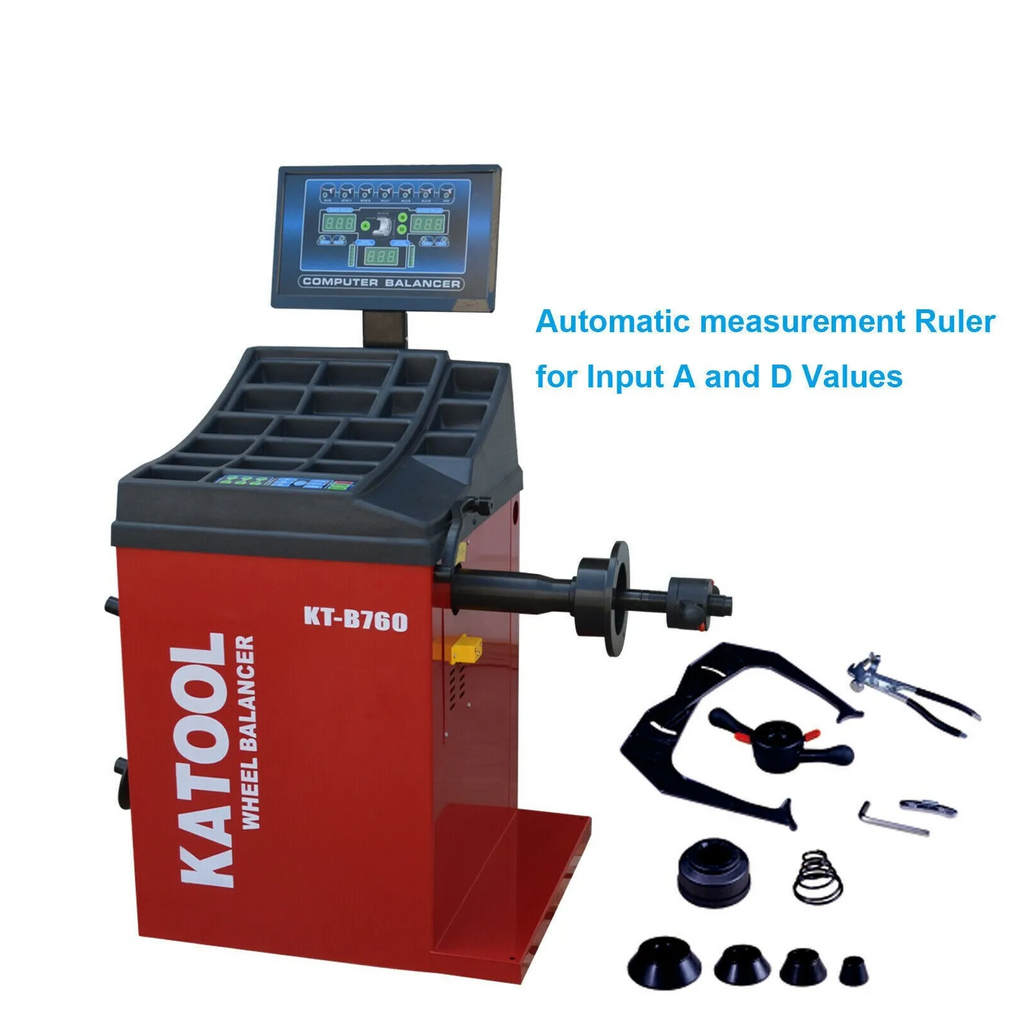

  • Red wheel balancer with monitor and included wheel-weight cones and tools.

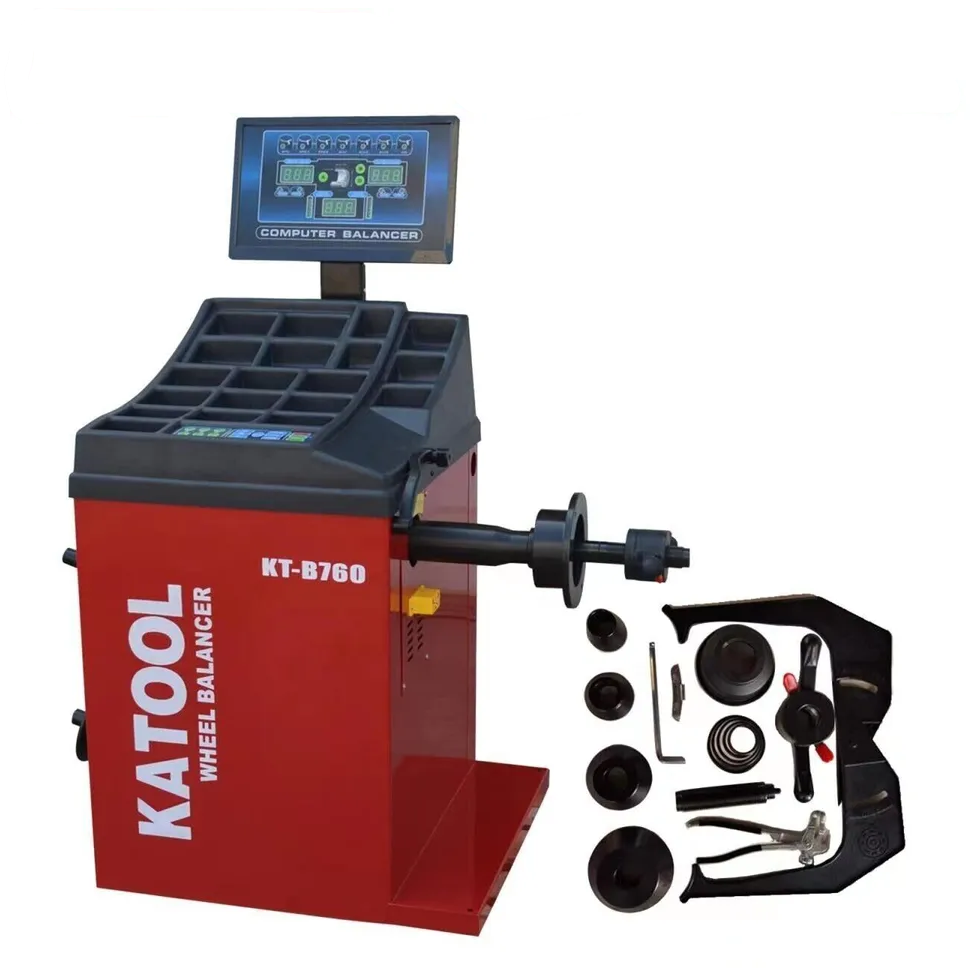

  • Red wheel balancer with monitor and mounted axle, with balancing accessory assortment.

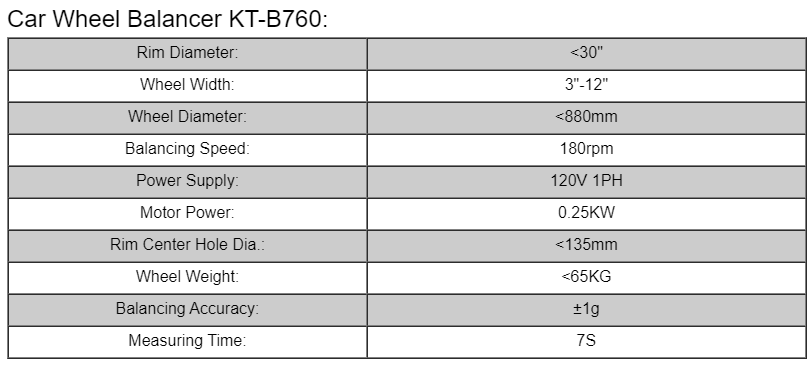

  • Wheel balancer specs table listing rim diameter, wheel width, speed, power, and accuracy.
Katool KT-B760 Entry-Level Wheel Balancer - Tire Balancing Machine

Katool KT-B760 Entry-Level Wheel Balancer - Tire Balancing Machine

$1,199.00 $1,599.00

🚚 Delivery option includes free freight to the lower 48 states.

Delivery Options

Shop Pay Installments

Split your purchase into flexible installment payments with Shop Pay. Pay over time with no hidden fees.

How it works:

  • Choose Shop Pay at checkout
  • Select your preferred payment plan
  • Make your first payment today
  • Pay the rest over time with automatic payments

No interest. No hidden fees. Just flexible payments that work for you.

🇺🇸 US-Based Business: Unlike big out-of-state sellers, we offer specialized support and $0 Sales Tax outside Illinois.

💰
Tax-Free Outside IL
🚚
Free Freight Lower 48 States
🛡️
1-Yr Warranty Full Parts Support
🔬
Safety Tested Load & Function Tested
📍
Local Pickup Nationwide Save up to $1,400 in freight costs
Learn More >
Black motorcycle wheel adaptor accessory with clamp stand and extendable shaft

Katool KT-MC2 Motorcycle Wheel Adaptor - Wheel Balancer Accessory

$199.00
+ shipping if applicable
Warranty

Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge. A 2-year extended warranty plan is available.

Warranty Conditions:

  • Non-transferable — requires original order number
  • Replacement parts at no cost including free shipping
  • Labor not included
  • Do not disassemble before issue is determined
Shipping

Free freight shipping to the contiguous 48 US states. Estimated delivery: 6–10 business days. Curbside delivery only — forklift or pallet jack required. Carrier will call 24–48 hrs before delivery. View full Shipping & Delivery details →

⚠️ Safety Warning

WARNING: Always disconnect power before maintenance. Do not exceed 143 lbs (65 kg) wheel weight capacity.

The Katool KT-B760 delivers professional wheel balancing performance at an entry-level price. Featuring a top-lever motor with pure copper winding, hardened 36mm shaft, and moisture and dust proof computer board, it is built for reliable daily shop use. Multiple balancing modes (Static, Dynamic, ALU, ALU2, ALU3) with self-calibration and no pre-set parameters make it easy to operate for technicians of all experience levels. The 7-second cycle time and 120V operation make it a practical, high-value choice for shops looking to upgrade their balancing capability.

  • Top-lever motor with pure copper winding
  • Hardened 36mm shaft for durability
  • Moisture and dust proof computer board
  • 5 balancing modes: Static, Dynamic, ALU, ALU2, ALU3
  • Self-calibration with double idle calibration
  • No pre-set parameters required
  • 7-second cycle time
  • 120V standard outlet compatible
Feature B700 KT-B750 KT-B760 B795L KT-710G
Max Wheel Weight 154 lbs 154 lbs 154 lbs 330 lbs 154 lbs
Rim Diameter 10"–28" 10"–28" 10"–28" 10"–26" 10"–24"
Max Rim Width 20 in — 20 in 15 in —
Max RPM 200 RPM — — 200 RPM —
Cycle Time 7 sec 7 sec 7 sec 8 sec 7 sec
Measurement Speed — — — — 3 sec
Power 120V 120V 120V 120V —
Design Fixed Fixed Fixed Fixed Portable
Laser Guided — — — Yes —
Machine Weight 211 lbs 143 lbs 132 lbs 375 lbs —
Best For Professional shops Professional shops Entry-level shops Trucks & buses Mobile service
  • Max Wheel Weight: 143 lbs (65 kg)
  • Rim Diameter: <30 in (880mm)
  • Max Rim Width: 20 in
  • Balancing Speed: 180 rpm
  • Cycle Time: 7 seconds
  • Balancing Accuracy: ±1g
  • Rim Center Hole Dia.: <135mm (5.31 in)
  • Motor Power: 0.25KW
  • Power Supply: 110V 1PH
  • Dimensions: 53.4 x 27.6 x 43.3 in
  • Package Weight: 132 lbs

The Katool KT-B760 Entry-Level Professional Wheel Balancer delivers reliable precision balancing with a top-lever motor, pure copper winding, and hardened 36mm shaft built for daily shop use. The moisture and dust proof computer board ensures consistent performance in demanding environments. Five balancing modes (Static, Dynamic, ALU, ALU2, ALU3) with self-calibration and no pre-set parameters make it accessible for technicians of all experience levels. With a 7-second cycle time, 154 lb capacity, and 120V operation, the KT-B760 is the practical, high-value choice for shops upgrading their wheel balancing capability.

Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge. A 2-year extended warranty plan is available.

Warranty Conditions:

  • Non-transferable — requires original order number
  • Replacement parts at no cost including free shipping
  • Labor not included
  • Do not disassemble before issue is determined
  • Entry-Level Shops: Professional performance at an accessible price point
  • Alloy Wheel Service: Multiple ALU modes (ALU, ALU2, ALU3) protect alloy wheels
  • High-Volume Use: 7-second cycle time for fast throughput
  • Demanding Environments: Moisture and dust proof computer board
  • New Technicians: Self-calibration and no pre-set parameters required

All Katool equipment is manufactured to international quality standards.

  • Quality Control — Each unit undergoes pre-shipment inspection
  • US-Based Support — Technical support provided from the United States
  • Warranty — 1-year limited manufacturer warranty included

Freight shipping included to the lower 48 states. Two delivery options available:

  • Terminal Pickup — Ship to nearest freight terminal, no forklift needed
  • Commercial/Residential Delivery — Direct delivery to your address, no forklift required

Contact us to confirm your preferred delivery option before ordering.

Package Size

L x W x H (in) 40 x 30 x 35
Weight (lbs) 245

Product Manual

Download the complete product manual and installation guide.
Download Manual

Complete Your Shop Setup

Everything a professional tire shop needs
Tire Service Packages Collection Banner

Tire Service Packages

2-Post Lifts Category Image

2-Post Lift

4-Post Lifts Category Image

4-Post Lifts

Tire Changer

Tire Changer

Wheel Balancer

Wheel Balancer

Shop Accessories Collection Banner

Shop Accessories

Frequently Asked Questions

  • The KT-B760 supports standard passenger car wheels. Please refer to the product specifications for exact rim diameter and weight capacity.
  • Yes. The KT-B760 is designed as an entry-level professional wheel balancer, offering reliable performance at an accessible price point for new or small shops.
  • Yes. Initial calibration is required before first use. A calibration guide is included. Our technical support team can assist remotely if needed.
  • The KT-B760 requires a standard 110V single-phase power supply. No compressed air required.
  • Ships via freight carrier to the lower 48 states. Freight cost is included in the price. No forklift required for unloading.
  • Yes. We offer Shop Pay Installments, allowing you to split your purchase into 4 interest-free payments on qualifying orders.
  • Returns accepted within 30 days for unused equipment in original packaging. Please contact us before returning. Return freight costs are the buyer's responsibility.
