Katool KT-AV9 PRO 3D Four Wheel Aligner — Professional Wheel Alignment System

Katool KT-AV9 PRO 3D Four Wheel Aligner — Professional Wheel Alignment System

$5,899.00

🚚 Delivery option includes free freight to the lower 48 states.

Delivery Options

Shop Pay Installments

Split your purchase into flexible installment payments with Shop Pay. Pay over time with no hidden fees.

How it works:

  • Choose Shop Pay at checkout
  • Select your preferred payment plan
  • Make your first payment today
  • Pay the rest over time with automatic payments

No interest. No hidden fees. Just flexible payments that work for you.

🇺🇸 US-Based Business: Unlike big out-of-state sellers, we offer specialized support and $0 Sales Tax outside Illinois.

💰
Tax-Free Outside IL
🚚
Free Freight Lower 48 States
🛡️
1-Yr Warranty Full Parts Support
🔬
Safety Tested Load & Function Tested
📍
Local Pickup Nationwide Save up to $1,400 in freight costs
Learn More >
Katool KT-TP1 Alignment Turntables — Wheel Alignment Turn Plates (Set of 2)

Katool KT-TP1 Alignment Turntables — Wheel Alignment Turn Plates (Set of 2)

$169.00
+ shipping if applicable
Warranty

1-Year Limited Warranty on parts and defects. Covers cameras, Android box, motors, displays, and electronics. Replacement parts provided at no cost with free shipping. Optional 2-year extended warranty available. Non-transferable. Labor not included. Full details:https://www.allizoe.com/pages/warranty
Shipping

Free freight shipping to the contiguous 48 US states. Estimated delivery: 6–10 business days. Curbside delivery only — forklift or pallet jack required. Carrier will call 24–48 hrs before delivery. View full Shipping & Delivery details →

⚠️ Safety Warning

Ensure vehicle is properly secured on alignment rack before beginning measurement. Keep camera beam area clear of obstructions during measurement. Do not operate without reading the full operation manual. Printer is not included — connect a compatible USB thermal printer if alignment report printing is required. For professional use only.

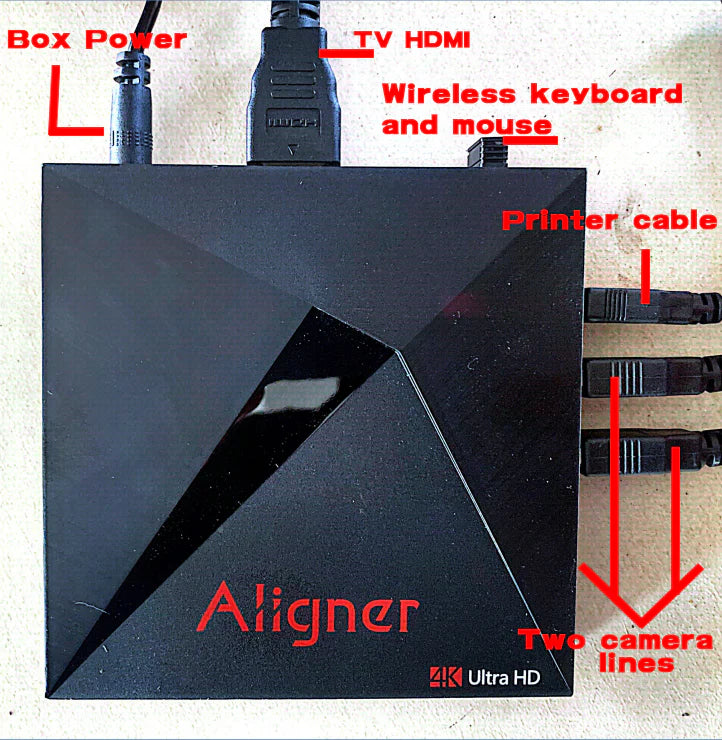

The KT-AV9 PRO sets itself apart with dual-platform compatibility — run the e3D alignment software on Android or stream to any Apple iOS device as a secondary display. With a 5MP camera system, 1,500–3,000mm working distance, and automatic runout compensation, your technicians get accurate results faster. The 4K Android Box centralizes all connections — power, HDMI, camera lines, printer, and wireless peripherals — keeping your bay clean and efficient. Backed by Katool's 1-year warranty with free replacement parts shipping.

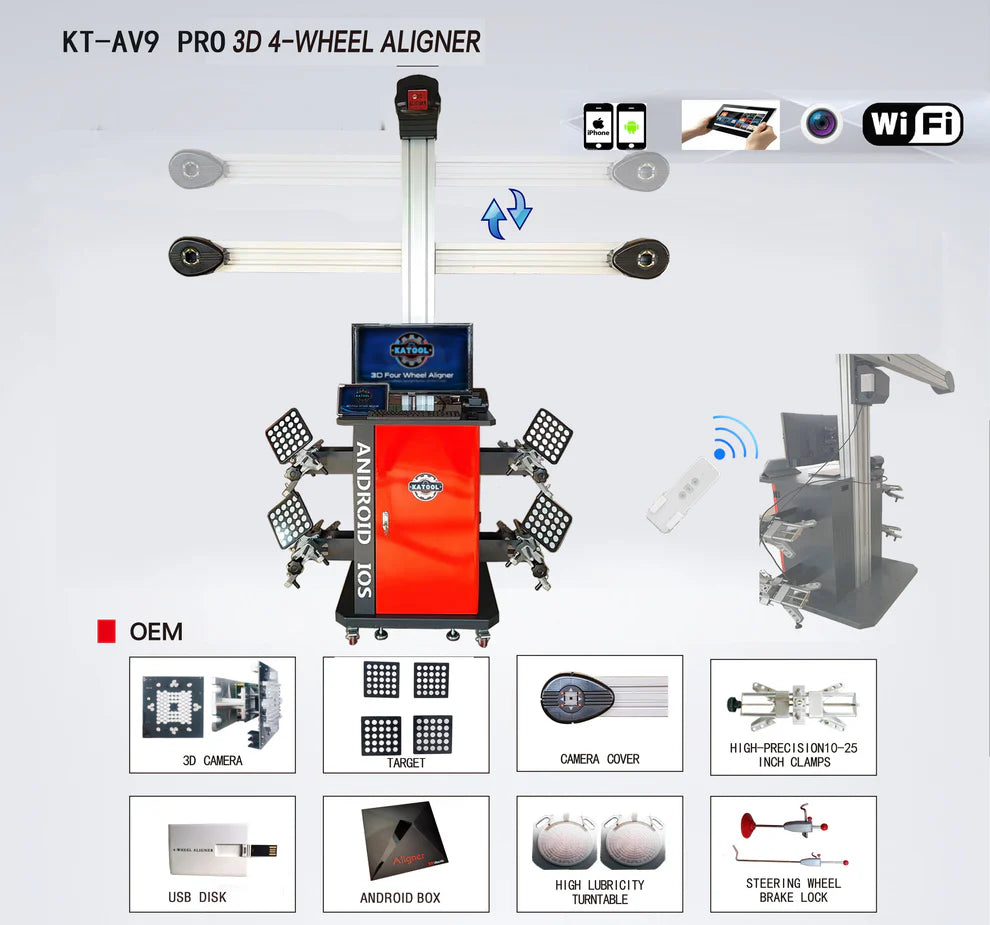

  • 3D camera-based four-wheel alignment — 5MP cameras, 1,500–3,000mm working range

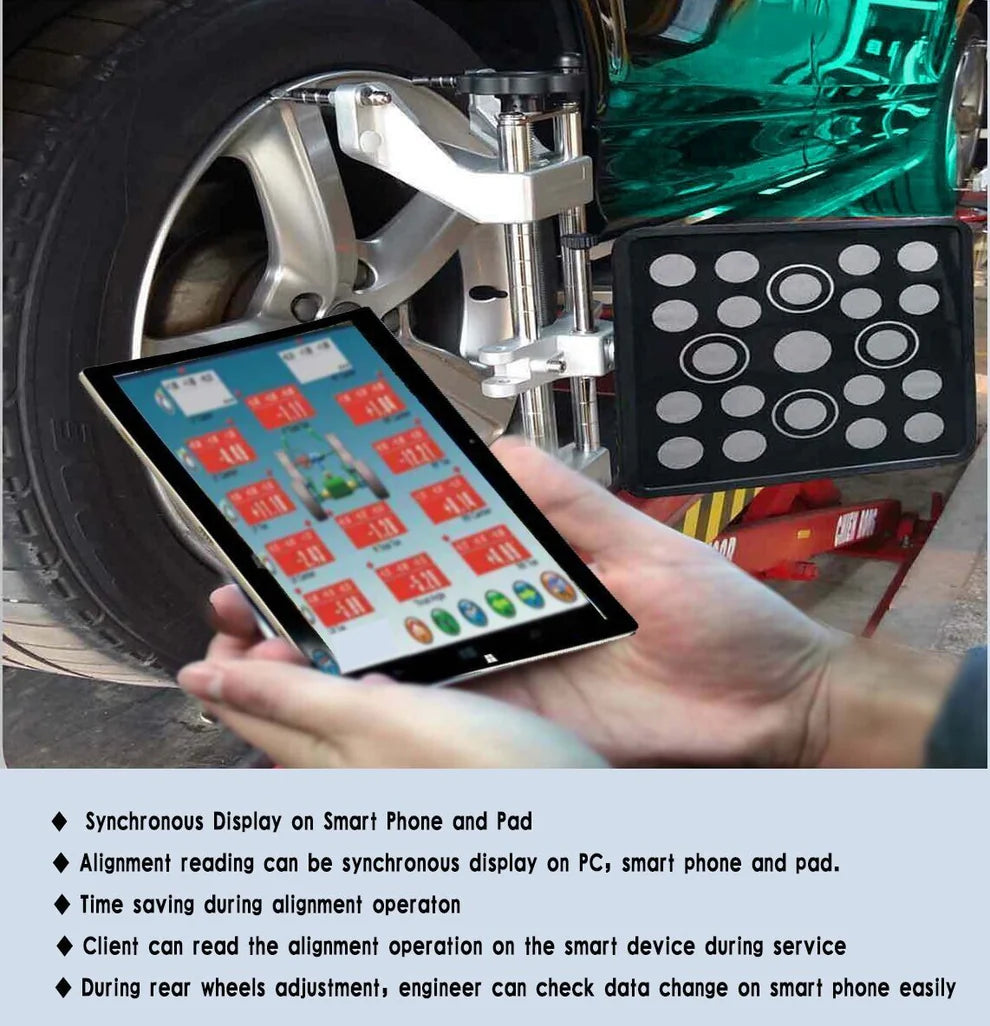

  • Android system with iOS tablet/mobile compatibility (display terminal)
  • e3D software with built-in vehicle database and manufacturer specs
  • Automatic runout compensation — no manual input required
  • Real-time simultaneous display of all four wheel angles
  • Jack-up (Pit) measurement mode for lifted vehicles
  • Chassis measurement and fault detection system
  • Customer maintenance record system with printable reports
  • Supports: Toe, Camber, Caster, SAI, Kingpin Inclination, Setback, Thrust Angle, Included Angle
  • Compatible with 2-post lifts and full-rise scissor lifts

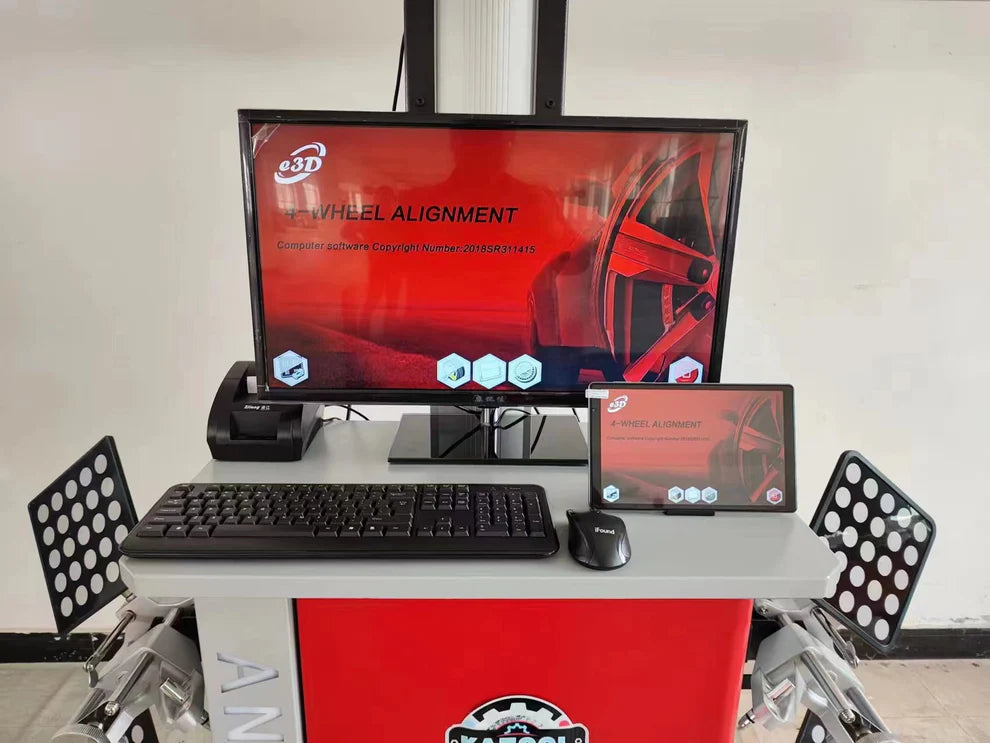

  • Wireless keyboard, mouse, and tablet PC operation
  • 4K Ultra HD Android Box (Aligner) with HDMI output
Feature KT-5DA KT-AV9 PRO KT-AV651 KT-AV6 PRO KT-AV533
Measurement Technology 5D (5-axis) 3D 3D 3D 3D
Camera Dual HD removable columns Dual 5MP optical Dual cameras Dual cameras Dual cameras
Display Large color monitor 4K Android Box + HDMI HD Monitor HD Monitor HD Monitor
Software Cloud + one-click updates e3D (Android + iOS) e3D Android Android wireless Android wireless
Motorized Column — — — Yes (remote control) —
Integrated Printer — — Yes — Yes
Toe-out on Turns — — — — Yes (20°)
Cloud / Remote Support Yes — — — —
Clamp Range 10–25 in 10–25 in 10–25 in 10–25 in 10–25 in
Certification CE CE CE CE CE
Warranty 1 Year 1 Year 1 Year 1 Year 1 Year
Starting Price $6,899 $5,899 Contact us Contact us Contact us

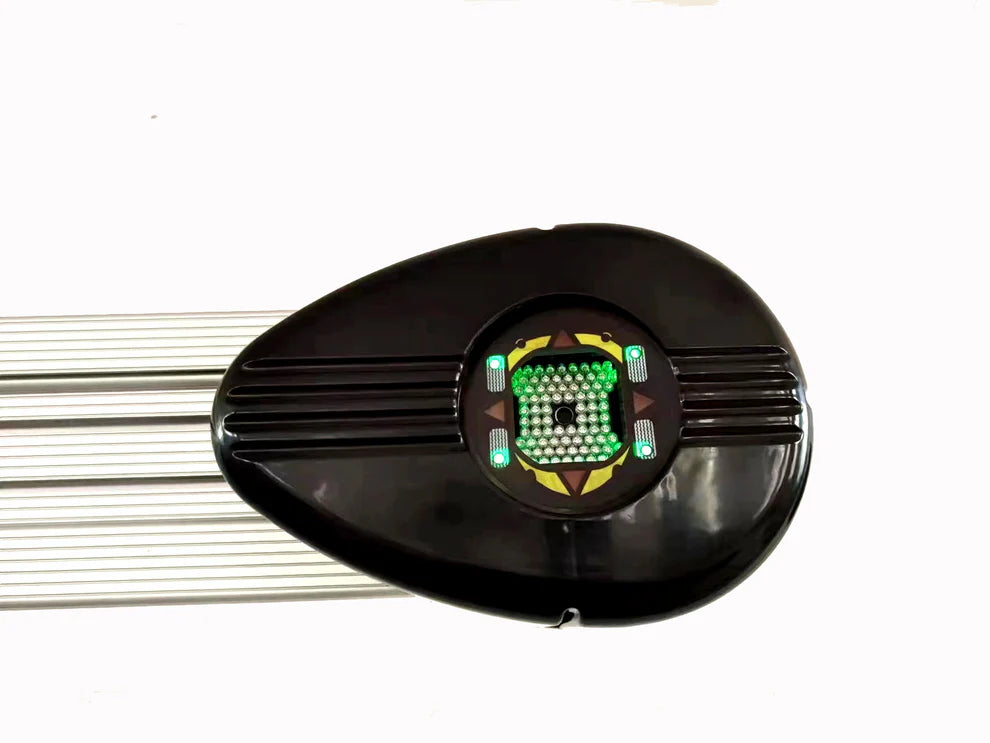

  • Camera System: 5MP optical cameras (×2)
  • Working Distance: 1,500–3,000mm (59–118 in)
  • Software: e3D (Android-based)
  • Display Compatibility: Android + Apple iOS (tablet/mobile)
  • Display Output: 4K Ultra HD via HDMI
  • Tire Diameter: 9 27/32 – 31 1/2 in
  • Wheelbase: 1.6–2.1 m
  • Track Width: 1.8–4.5 m
  • Clamp Range: 10–25 inches
  • Power Supply: 100–240V AC
  • Lift Compatibility: 2-post lifts, full-rise scissor lifts
  • Country of Origin: China
  • Certification: CE
  • Warranty: 1 Year Limited

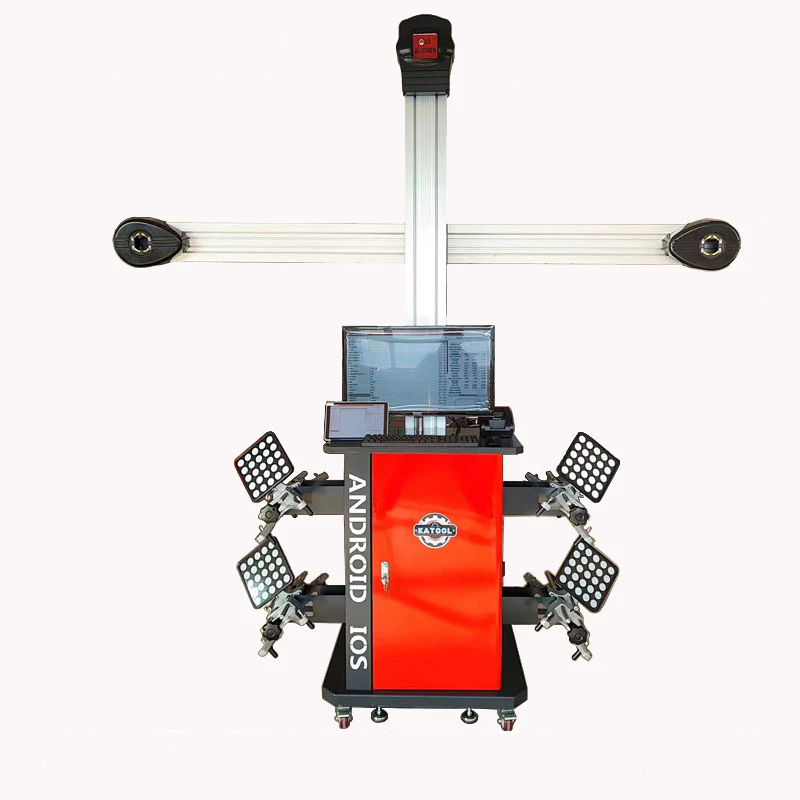

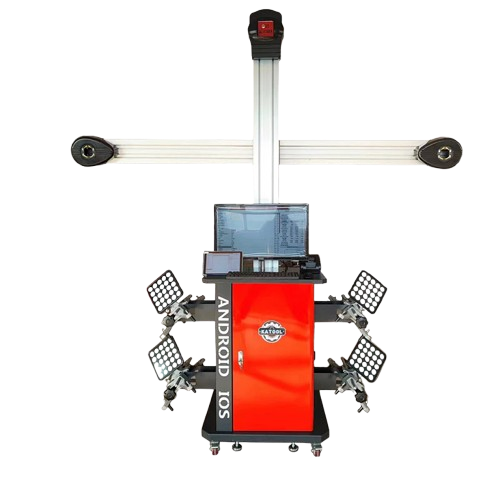

The Katool KT-AV9 PRO is a professional-grade 3D four-wheel alignment system built for high-volume automotive workshops. Powered by the latest Android 3D camera measurement technology and fully compatible with Apple iOS tablets and mobile phones as display terminals, the KT-AV9 PRO delivers unmatched flexibility on the shop floor.

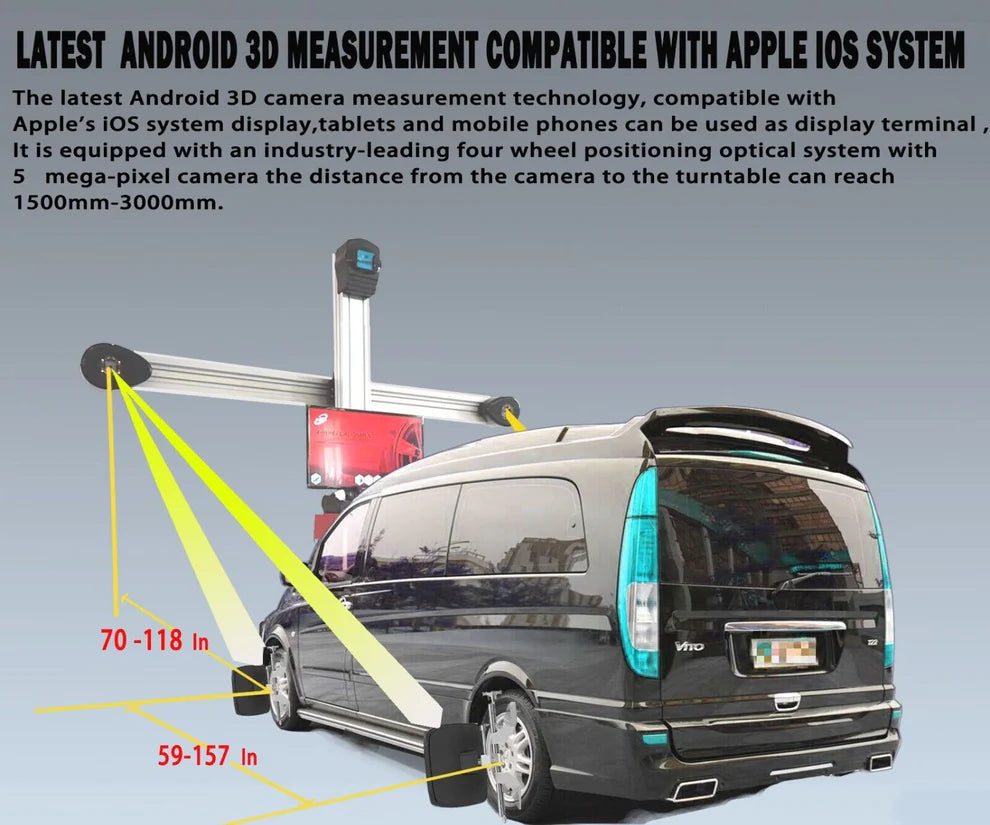

Equipped with a 5-megapixel optical camera system with a working distance of 1,500–3,000mm (59–118 in), it captures all four wheel angles simultaneously with precision. The included e3D software features a built-in vehicle database, automatic runout compensation, jack-up (pit) measurement mode, chassis measurement, and a customer maintenance record system — everything your shop needs to deliver fast, accurate alignments and keep customers coming back.

1-Year Limited Warranty on parts and defects. Covers cameras, Android box, motors, displays, and electronics. Replacement parts provided at no cost with free shipping. Optional 2-year extended warranty available. Non-transferable. Labor not included. Full details:https://www.allizoe.com/pages/warranty

  • Professional auto repair shops and tire service centers
  • Wheel alignment specialists
  • Dealership service departments
  • High-volume shops needing fast, accurate 3D alignment

Package Size

L x W x H (in) 36×40×47 in / 110×17×15 in
Weight (lbs) 485

Product Manual

Download the complete product manual and installation guide.
Download Manual

Complete Your Shop Setup

Everything a professional tire shop needs
Tire Service Packages Collection Banner

Tire Service Packages

2-Post Lifts Category Image

2-Post Lift

4-Post Lifts Category Image

4-Post Lifts

Tire Changer

Tire Changer

Wheel Balancer

Wheel Balancer

Shop Accessories Collection Banner

Shop Accessories

Frequently Asked Questions

  • We offer four options: Warehouse Pickup ($5,899), Freight to Business ($6,299), With Lift Gate ($6,399), and Residential with Lift Gate ($6,499).
  • Professional installation is strongly recommended. The KT-AV9 PRO requires a level floor and adequate space for the dual camera columns (working distance 59–118 inches). A detailed manual is included and our US-based team is available for setup support.
  • Compatible with passenger cars, light trucks, SUVs, and pickups with tire diameters of 9 27/32–31 1/2 in, wheelbase 62–82 in, and track width 70–177 in. Supports 2-post lifts and full-rise scissor lifts. Clamp range: 10–25 inches.
  • The KT-AV9 PRO features dual 5-megapixel optical cameras with a 1,500–3,000mm working distance, a 4K Ultra HD Android Box with HDMI output, and compatibility with both Android and Apple iOS devices as display terminals. The e3D software includes jack-up/pit measurement mode, chassis measurement, and a customer maintenance record system.
  • Yes. Shop Pay Installments allows you to split your purchase into 4 interest-free payments on orders from $5,000 and up.
  • US-based technical support via email and phone for installation, calibration, troubleshooting, and parts throughout your 1-year limited warranty. Optional 2-year extended warranty available.
  • Returns accepted within 30 days for unused equipment in original packaging. Contact us before returning. Return freight costs are the buyer's responsibility.
