What delivery options are available?

Please contact us for freight options including Warehouse Pickup, Terminal Pickup, Commercial Delivery, and Residential Delivery.

Is professional installation required?

Professional installation is strongly recommended. The KT-AV6 PRO features motorized electro-columns with remote-control height adjustment, making positioning easier during setup. A detailed manual and US-based support are included.

What vehicles are compatible?

Compatible with most passenger cars, light trucks, SUVs, and pickups. Clamp range: 10–25 inches. Works with 2-post lifts and full-rise scissor lifts. Built-in vehicle database supports all major brands.

What is the motorized electro-column feature?

The KT-AV6 PRO is the only model in our lineup with a motorized electro-column system. Camera column height adjusts automatically via a remote-control unit — no manual cranking required, saving time and reducing technician fatigue during high-volume alignment work.

Do you offer financing or installment payments?

Yes. Shop Pay Installments allows you to split your purchase into 4 interest-free payments on qualifying orders.

What after-sales support do you provide?

US-based technical support via email and phone for installation, calibration, troubleshooting, and parts throughout your 1-year limited warranty. Optional 2-year extended warranty available.

What is your return policy?

Returns accepted within 30 days for unused equipment in original packaging. Contact us before returning. Return freight costs are the buyer's responsibility.

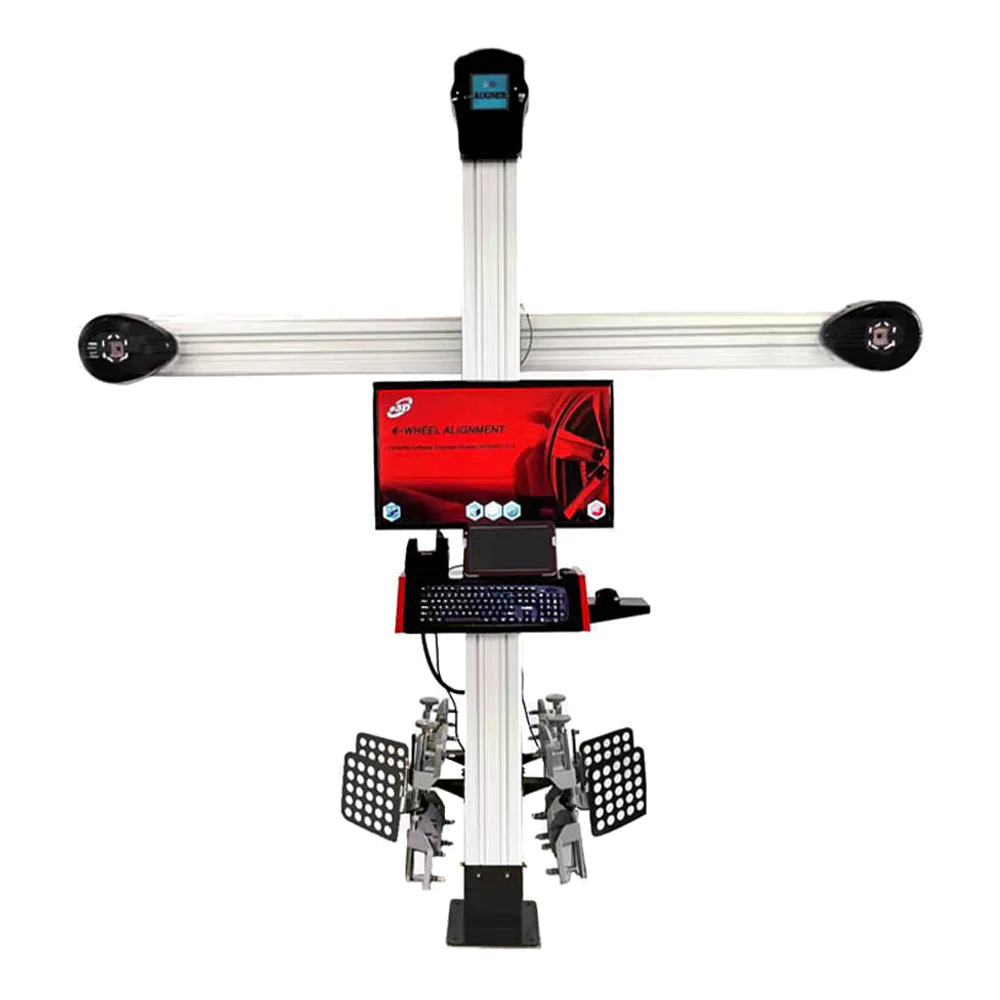

Katool KT-AV6 PRO 3D four-wheel aligner full front view with electro column and camera beam

Katool KT-AV6 PRO 3D Four Wheel Aligner — Professional Wheel Alignment System

Warehouse Pickup

$5,490.00

1/8

Katool KT-AV6 PRO 3D Four Wheel Aligner — Professional Wheel Alignment System

$5,490.00

🚚 Delivery option includes free freight to the lower 48 states.

Delivery Options Warehouse Pickup Commercial Delivery (Forklift Available) Commercial Delivery (No Forklift) Residential Delivery (Forklift Available) Residential Delivery (No Forklift)

Select Pickup Location *

Shop Pay Installments

Split your purchase into flexible installment payments with Shop Pay. Pay over time with no hidden fees.

How it works:

Choose Shop Pay at checkout
Select your preferred payment plan
Make your first payment today
Pay the rest over time with automatic payments

No interest. No hidden fees. Just flexible payments that work for you.

🇺🇸 US-Based Business: Unlike big out-of-state sellers, we offer specialized support and $0 Sales Tax outside Illinois.

💰

Tax-Free Outside IL

🚚

Free Freight Lower 48 States

🛡️

1-Yr Warranty Full Parts Support

🔬

Safety Tested Load & Function Tested

📍

Local Pickup Nationwide Save up to $1,400 in freight costs

Learn More >

Katool KT-TP1 Alignment Turntables — Wheel Alignment Turn Plates (Set of 2)

$169.00

+ shipping if applicable

1-Year Limited Warranty on parts and defects. Covers cylinders, power units, motors, displays, and electronics. Replacement parts provided at no cost with free shipping. Optional 2-year extended warranty available. Non-transferable. Labor not included. Full details: https://www.allizoe.com/pages/warranty

Free freight shipping to the contiguous 48 US states. Estimated delivery: 6–10 business days. Curbside delivery only — forklift or pallet jack required. Carrier will call 24–48 hrs before delivery. View full Shipping & Delivery details →

⚠️ Safety Warning

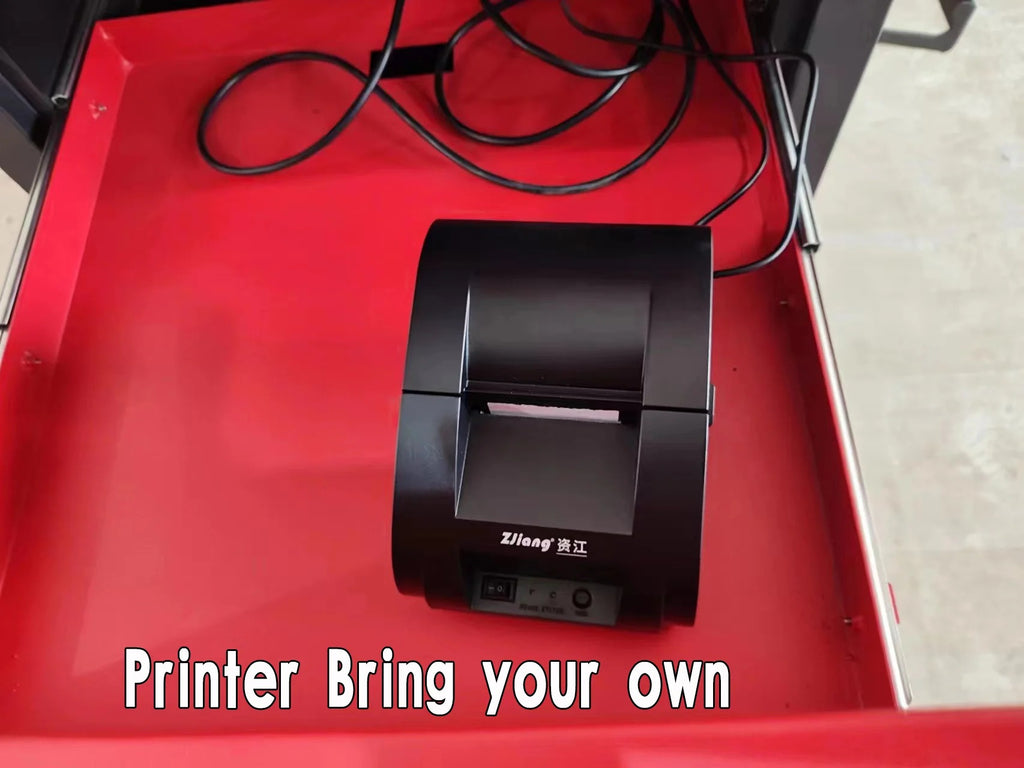

Ensure vehicle is properly secured on alignment rack before beginning measurement. Keep camera beam area clear of obstructions during measurement. Do not operate without reading the full operation manual. Printer is not included — connect a compatible USB thermal printer if alignment report printing is required. For professional use only.

The KT-AV6 PRO delivers professional-grade 3D alignment accuracy with the added convenience of a motorized electro-column and wireless tablet control. With automatic runout compensation, a built-in vehicle database, and a 10–25 inch clamp range, your shop can complete alignments faster and more accurately — keeping customers coming back.

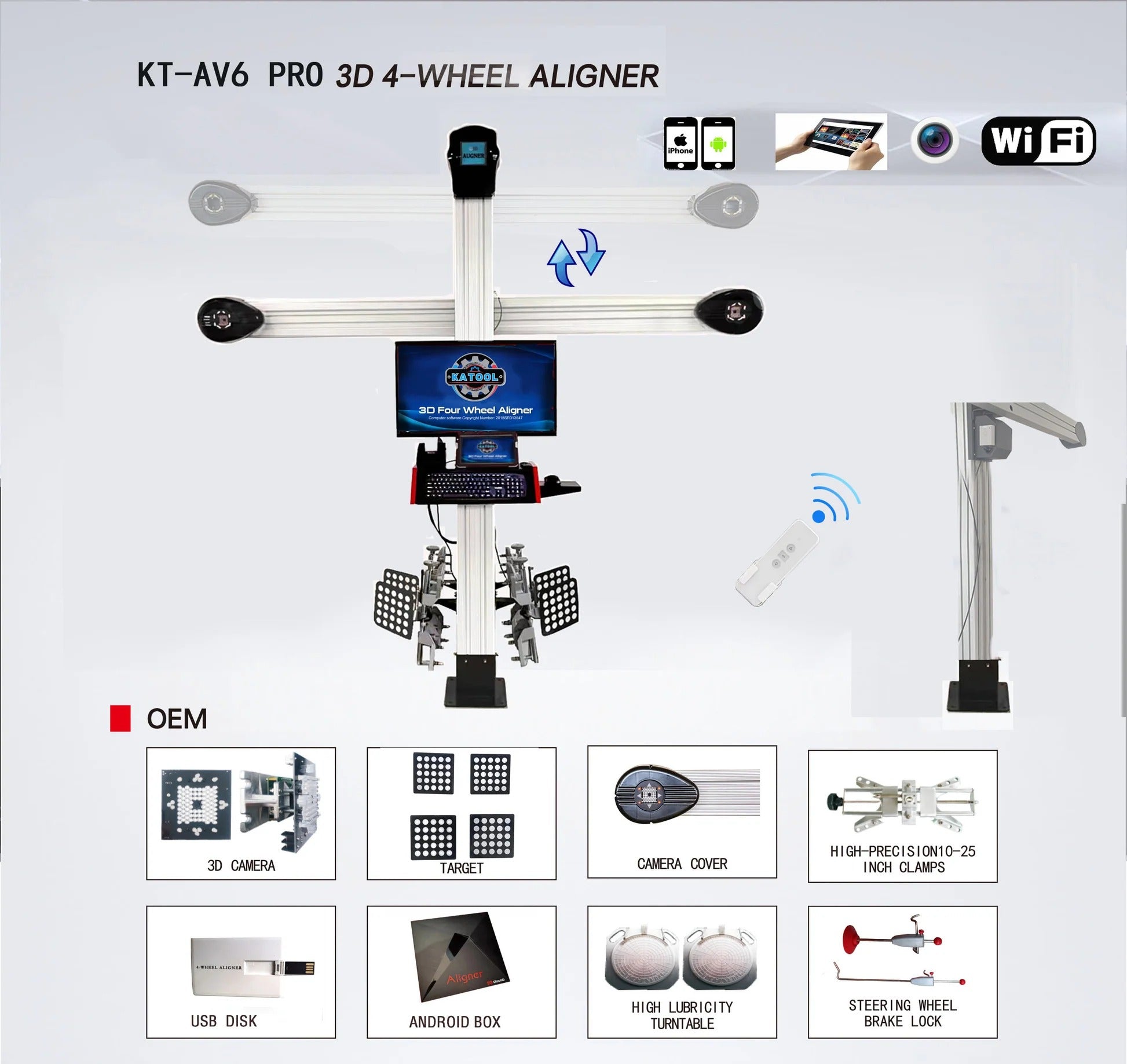

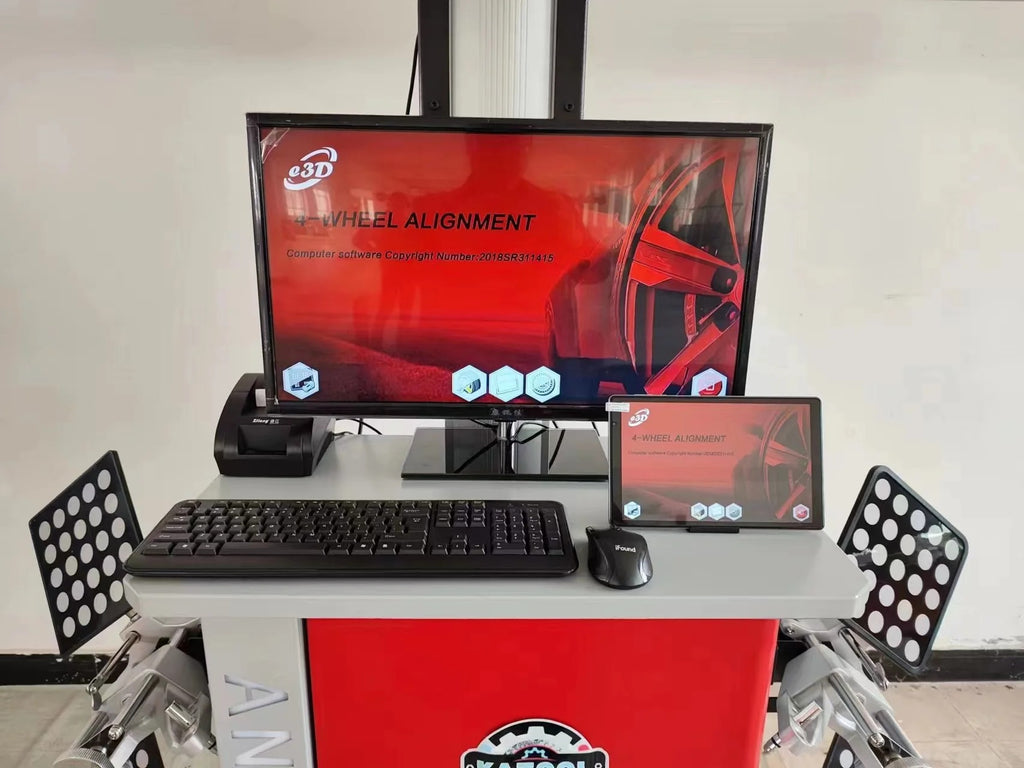

3D camera-based four-wheel alignment measurement | Electro-column with remote-control unit for effortless height adjustment | Wireless tablet PC operation with Android-based software | Built-in vehicle database with manufacturer alignment specs | Automatic runout compensation for fast, accurate readings | Real-time display of all four wheel angles simultaneously | Jack-up (pit) measurement mode supported | Customer maintenance record system | Supports Toe, Camber, Caster, SAI, Kingpin Inclination, Set-back, Thrust Angle, Included Angle | Supports Cars, Light Trucks, SUVs | Compatible with 2-post lifts and full-rise scissor lifts

	Feature	KT-5DA	KT-AV9 PRO	KT-AV651	KT-AV6 PRO
Measurement Technology	5D (5-axis)	3D	3D	3D	3D
Camera	Dual HD removable columns	Dual 5MP optical	Dual cameras	Dual cameras	Dual cameras
Display	Large color monitor	4K Android Box + HDMI	HD Monitor	HD Monitor	HD Monitor
Software	Cloud + one-click updates	e3D (Android + iOS)	e3D Android	Android wireless	Android wireless
Motorized Column	—	—	—	Yes (remote control)	—
Integrated Printer	—	—	Yes	—	Yes
Toe-out on Turns	—	—	—	—	Yes (20°)
Cloud / Remote Support	Yes	—	—	—	—
Clamp Range	10–25 in	10–25 in	10–25 in	10–25 in	10–25 in
Certification	CE	CE	CE	CE	CE
Warranty	1 Year	1 Year	1 Year	1 Year	1 Year
Starting Price	$6,899	$5,899	Contact us	Contact us	Contact us

The Katool KT-AV6 PRO is a professional-grade 3D four-wheel alignment system built for high-volume automotive workshops that demand precision, speed, and reliability. Compatible with 2-post lifts and full-rise scissor lifts. Featuring an advanced electro-column camera beam system with wireless tablet control, the KT-AV6 PRO delivers accurate alignment readings across all four wheels simultaneously — helping your shop reduce tire wear, improve vehicle handling, and increase customer satisfaction.

1-Year Limited Warranty on parts and defects. Covers cylinders, power units, motors, displays, and electronics. Replacement parts provided at no cost with free shipping. Optional 2-year extended warranty available. Non-transferable. Labor not included. Full details: https://www.allizoe.com/pages/warranty

Professional auto repair shops, tire service centers, wheel alignment specialists, dealership service departments

Package Size

L x W x H (in)	110×17×15 in / 27×36×36 in
Weight (lbs)	430

Product Manual

Download the complete product manual and installation guide.

Download Manual
