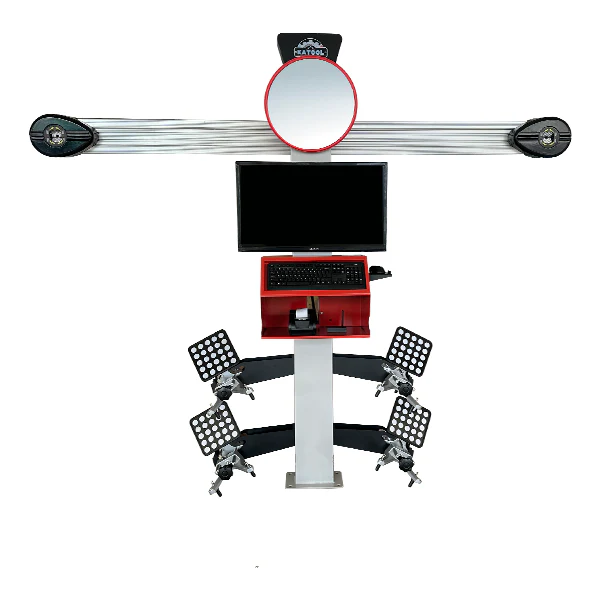

  • 3D four-wheel wheel aligner with central display and four clamp units
  • 4-wheel alignment machine with overhead camera and vehicle alignment platform

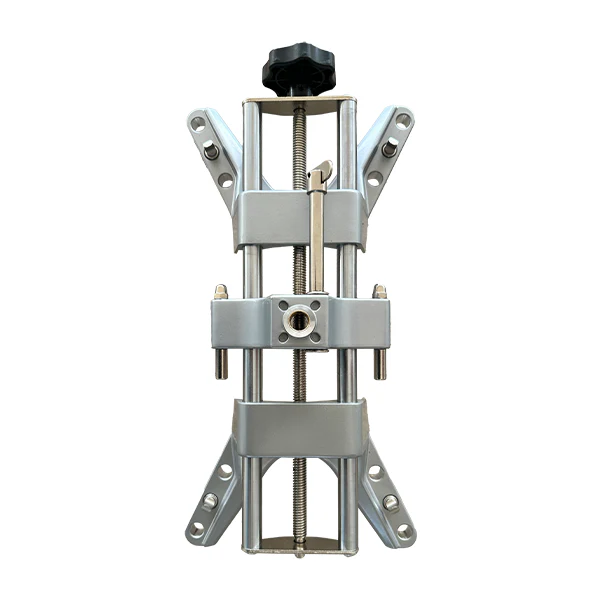

  • Wheel alignment machine with wheel clamp, camera module, and control screen

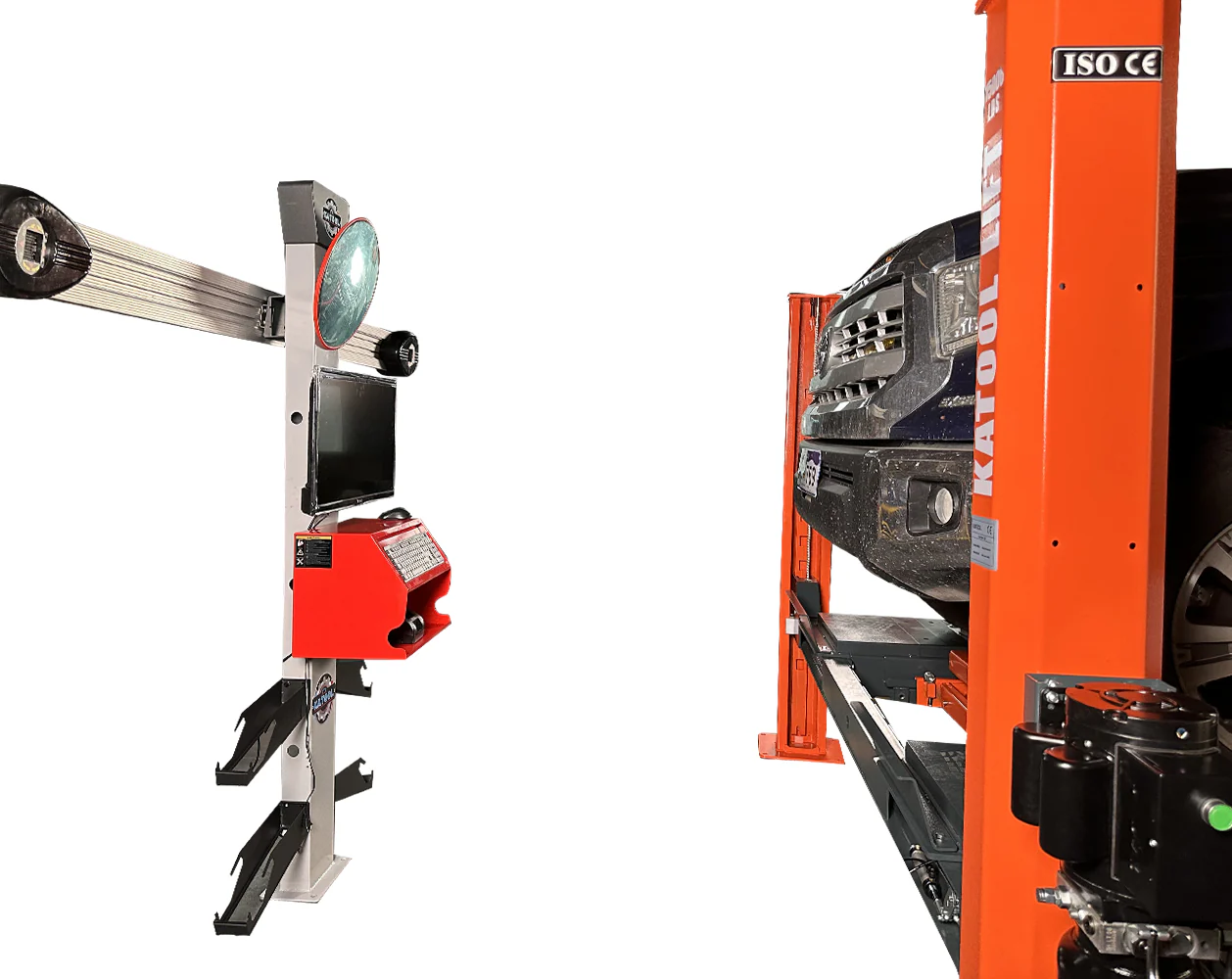

  • 3D wheel alignment machine rear setup with alignment arms and display

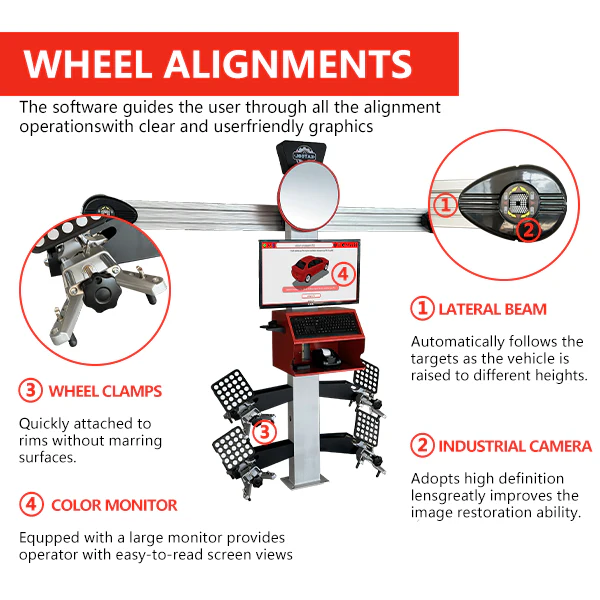

  • Wheel alignment machine diagram with color monitor, wheel clamps, and lateral beam

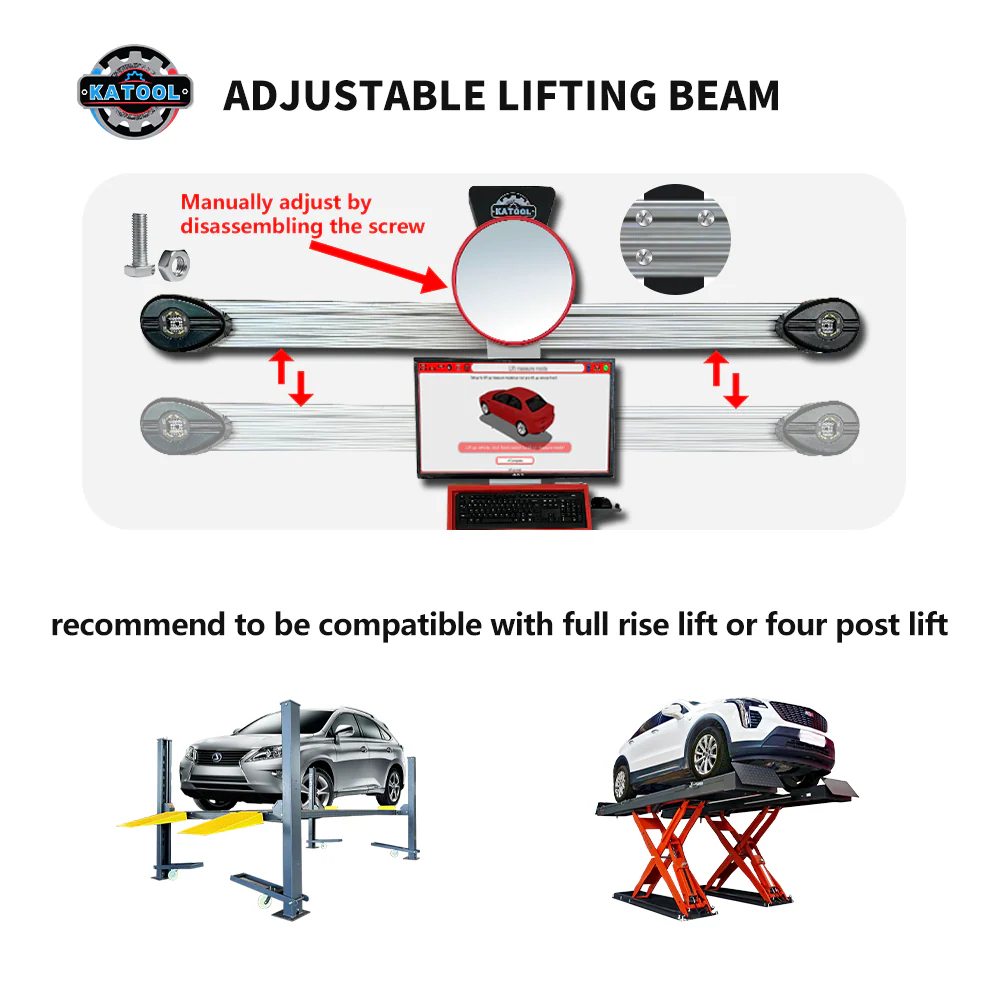

  • Adjustable lifting beam for vehicle alignment with camera and display

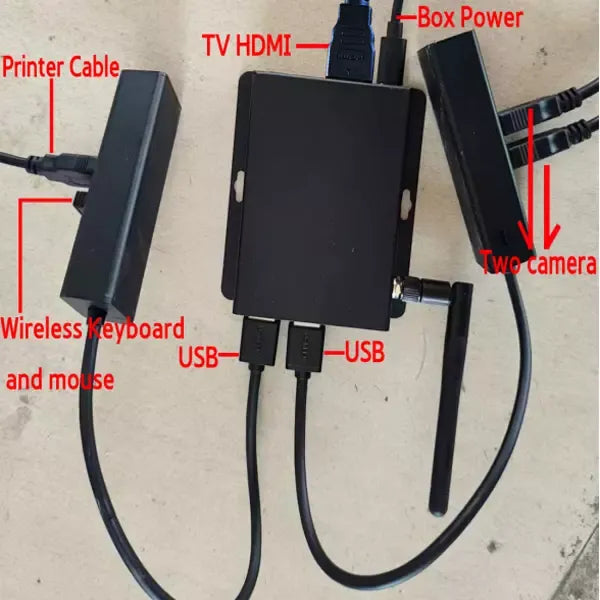

  • Alignment machine cable box with HDMI, USB, printer cable, and wireless inputs
  • Wheel aligner power supply unit with label and electrical connection ports

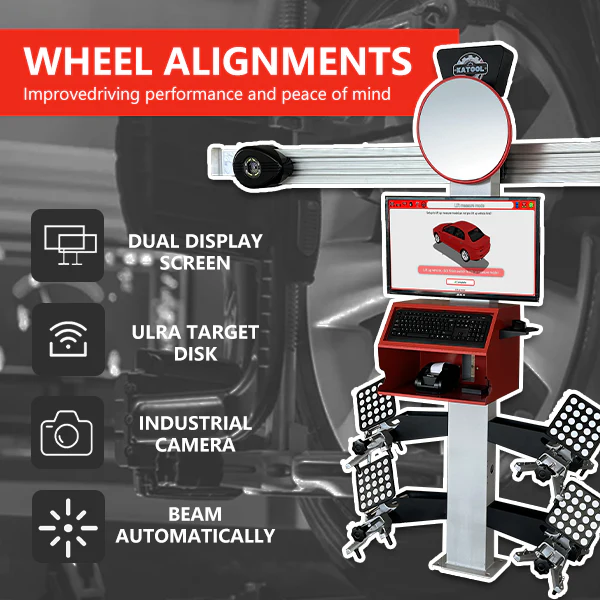

  • Wheel alignment machine features panel with dual display screen and industrial camera
  • Adjustable lifting beam assembly with screw columns and mounting brackets
  • 3D four-wheel car alignment machine control screen and sensor bracket

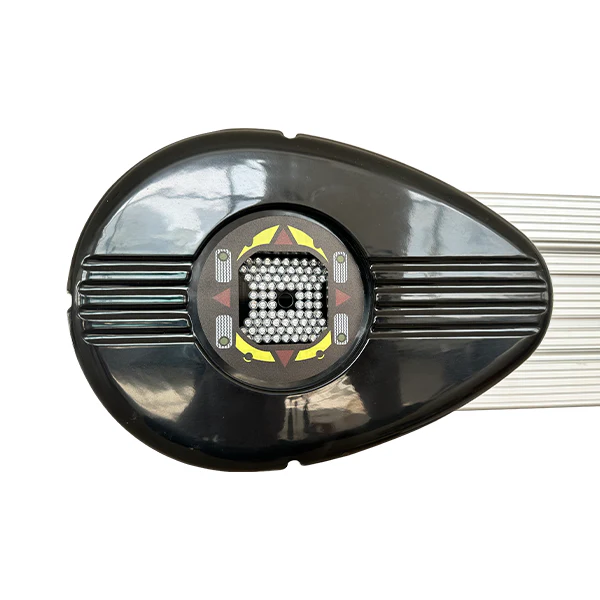

  • Circular alignment sensor module with pin grid and color ring
  • Mobile device displays controlling a car wheel alignment machine

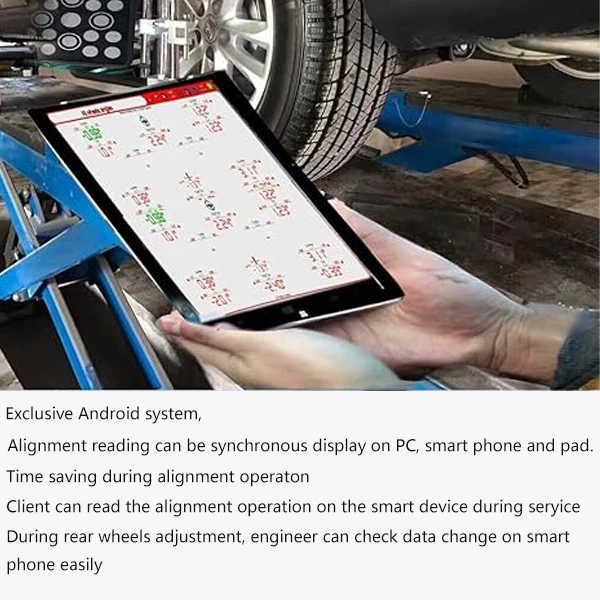

  • Tablet screen showing wheel alignment readings on a lift platform

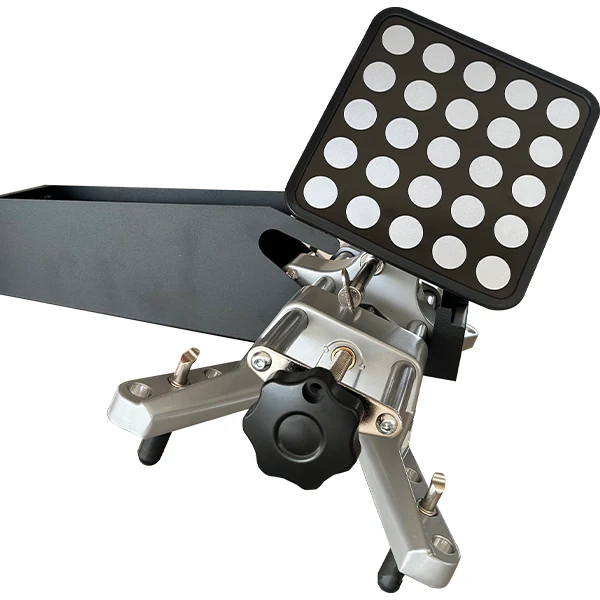

  • Wheel alignment machine towers with mounted sensor arms and clamps

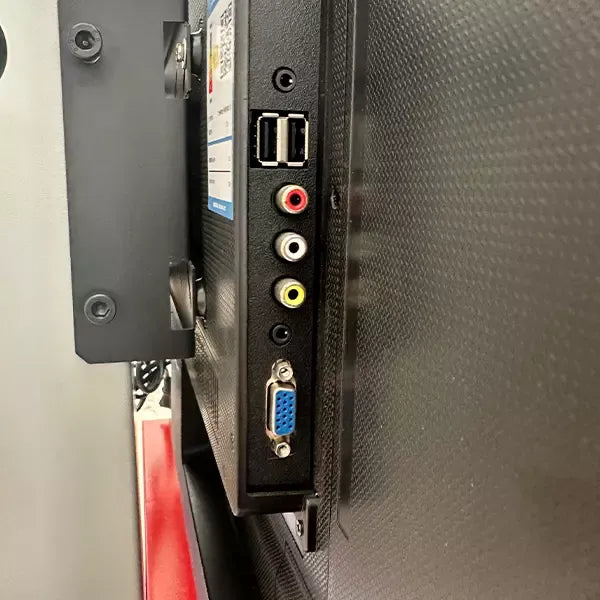

  • Wheel alignment machine rear panel with USB, video, and audio ports
Katool KT-AV533 3D Four Wheel Aligner - Professional Alignment Machine

Katool KT-AV533 3D Four Wheel Aligner - Professional Alignment Machine

$3,999.00

Shop Pay Installments

Split your purchase into flexible installment payments with Shop Pay. Pay over time with no hidden fees.

How it works:

  • Choose Shop Pay at checkout
  • Select your preferred payment plan
  • Make your first payment today
  • Pay the rest over time with automatic payments

No interest. No hidden fees. Just flexible payments that work for you.

🚚 Delivery option includes free freight to the lower 48 states.

Delivery Options
⚠️ Warehouse Pickup – Please Contact Us First. Due to varying inventory across our warehouse locations, please contact us before placing your order to confirm stock availability at your preferred location.
Contact Us to Check Availability

🇺🇸 US-Based Business: Unlike big out-of-state sellers, we offer specialized support and $0 Sales Tax outside Illinois.

💰
Tax-Free Outside IL
🚚
Free Freight Lower 48 States
🛡️
1-Yr Warranty Full Parts Support
🔬
Safety Tested Load & Function Tested
📍
Local Pickup Nationwide Save up to $1,400 in freight costs
Learn More >
Warranty

1-YearLimitedWarranty on parts and defects.Covers cylinders, power units, motors, displays, and electronics.Replacement parts provided at no cost with free shipping.Optional2-year extended warranty available.Non-transferable.Labor not included.Full details: https://www.allizoe.com/pages/warranty
Shipping

Free freight shipping to the contiguous 48 US states. Estimated delivery: 6–10 business days. Curbside delivery only — forklift or pallet jack required. Carrier will call 24–48 hrs before delivery. View full Shipping & Delivery details →

⚠️ Safety Warning

Ensure vehicle is properly secured on alignment rack before beginning measurement.Keep camera beam area clear of obstructions during measurement.Do not operate without reading the full operation manual.For professional use only.

TheKT-AV533 delivers professional-grade 3D alignment accuracy at a fraction of dealer pricing.With automatic runout compensation, a built-in vehicle database, and an integrated printer, your shop can complete alignments faster and more accurately — keeping customers coming back.

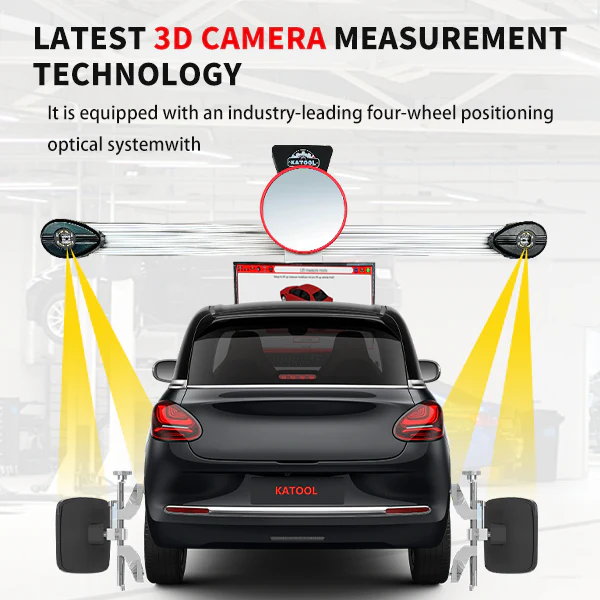

3D camera-based four-wheel alignment |Automatic runout compensation |Real-time display of all four wheel angles |Built-in vehicle database with manufacturer specs |Customer maintenance record system |Integrated printer for alignment reports |Jack-up measurement mode |Android system with wireless operation |SupportsCars,LightTrucks,SUVs

KT-5DA KT-AV9 PRO KT-AV651 KT-AV6 PRO KT-AV533
Measurement Technology 5D (5-axis) 3D 3D 3D 3D
Camera Dual HD removable columns Dual 5MP optical Dual cameras Dual cameras Dual cameras
Display Large color monitor 4K Android Box + HDMI HD Monitor HD Monitor HD Monitor
Software Cloud + one-click updates e3D (Android + iOS) e3D Android Android wireless Android wireless
Motorized Column — — — Yes (remote control) —

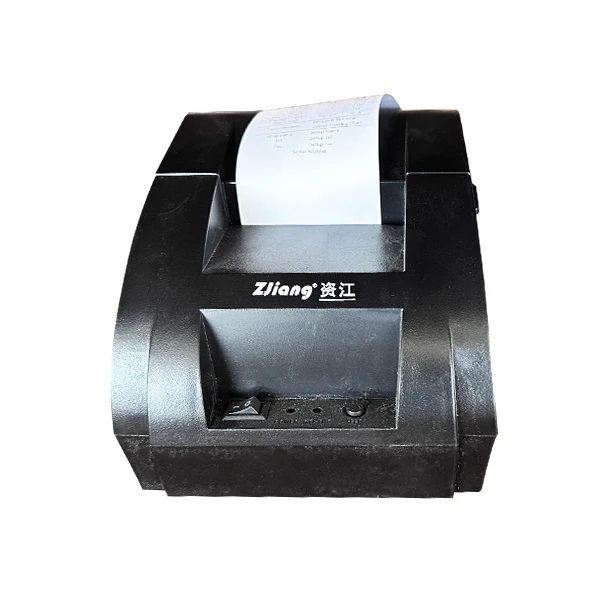

Integrated Printer — — Yes — Yes
Toe-out on Turns — — — — Yes (20°)
Cloud / Remote Support Yes — — — —
Clamp Range 10–25 in 10–25 in 10–25 in 10–25 in 10–25 in
Certification CE CE CE CE CE
Warranty 1 Year 1 Year 1 Year 1 Year 1 Year
Starting Price $6,899 $5,899 Contact us Contact us Contact us

MeasurementSystem: 3D Camera-Based|MeasuringParameters:Toe,Camber,Caster,SAI,Set-back,ThrustAngle,IncludedAngle|Display:HDMonitor|Software:Android-based, wireless mouse & keyboard |VehicleDatabase:Built-in, supports major brands(BMW,Ford,Honda,GM,Chrysler,Cadillac, etc.)|RunoutCompensation:Automatic|Printer:Built-in|Power:AC-powered |Origin:China|Certification:CE

The Katool KT-AV533 is a professional-grade 3D four-wheel alignment system designed for automotive workshops that demand precision, speed, and reliability. Compatible with 2-post lifts and full-rise scissor lifts. With advanced camera-based measurement technology and an intuitive software interface, the KT-AV533 delivers accurate alignment readings across all four wheels simultaneously — helping your shop reduce tire wear, improve vehicle handling, and increase customer satisfaction.

1-YearLimitedWarranty on parts and defects.Covers cylinders, power units, motors, displays, and electronics.Replacement parts provided at no cost with free shipping.Optional2-year extended warranty available.Non-transferable.Labor not included.Full details: https://www.allizoe.com/pages/warranty

Professional auto repair shops, tire service centers, wheel alignment specialists, dealership service departments

Package Size

L x W x H (in) 112×18×16 in / 37×28×38 in
Weight (lbs) 435

Product Manual

Download the complete product manual and installation guide.
Download Manual

Complete Your Shop Setup

Everything a professional tire shop needs
Tire Service Packages Collection Banner

Tire Service Packages

2-Post Lifts Category Image

2-Post Lift

4-Post Lifts Category Image

4-Post Lifts

Tire Changer

Tire Changer

Wheel Balancer

Wheel Balancer

Shop Accessories Collection Banner

Shop Accessories

Frequently Asked Questions

  • Please contact us for freight options including Warehouse Pickup, Terminal Pickup, Commercial Delivery, and Residential Delivery.
  • Professional installation is strongly recommended. A detailed installation and calibration manual is included, and our US-based technical team is available to guide you through setup.
  • Compatible with most passenger cars, light trucks, SUVs, and pickups including BMW, Ford, Honda, GM, Chrysler, and Cadillac. Clamp range: 10–25 inches. Works with 2-post lifts and full-rise scissor lifts.
  • The KT-AV533 measures Toe, Camber, Caster, SAI, Kingpin Inclination, Set-back, Thrust Angle, Included Angle, and 20° Toe-out on Turns — the most comprehensive parameter set in our 3D aligner lineup. It also includes an integrated printer for professional alignment reports.
  • Yes. The KT-AV533 is available in multiple color options. Please contact us or check the product page for current available colors.
  • US-based technical support via email and phone for installation, calibration, troubleshooting, and parts throughout your 1-year limited warranty. Optional 2-year extended warranty available.
  • Returns accepted within 30 days for unused equipment in original packaging. Contact us before returning. Return freight costs are the buyer's responsibility.
