Katool KT-5DA 5D Four Wheel Aligner — Professional Wheel Alignment System

Katool KT-5DA 5D Four Wheel Aligner — Professional Wheel Alignment System

$6,899.00

🚚 Delivery option includes free freight to the lower 48 states.

Delivery Options

Shop Pay Installments

Split your purchase into flexible installment payments with Shop Pay. Pay over time with no hidden fees.

How it works:

  • Choose Shop Pay at checkout
  • Select your preferred payment plan
  • Make your first payment today
  • Pay the rest over time with automatic payments

No interest. No hidden fees. Just flexible payments that work for you.

🇺🇸 US-Based Business: Unlike big out-of-state sellers, we offer specialized support and $0 Sales Tax outside Illinois.

💰
Tax-Free Outside IL
🚚
Free Freight Lower 48 States
🛡️
1-Yr Warranty Full Parts Support
🔬
Safety Tested Load & Function Tested
📍
Local Pickup Nationwide Save up to $1,400 in freight costs
Learn More >
Katool KT-TP1 Alignment Turntables — Wheel Alignment Turn Plates (Set of 2)

Katool KT-TP1 Alignment Turntables — Wheel Alignment Turn Plates (Set of 2)

$169.00
+ shipping if applicable
Warranty

1-Year Limited Warranty on parts and defects. Covers cameras, columns, motors, displays, and electronics. Replacement parts provided at no cost with free shipping. Optional 2-year extended warranty available. Non-transferable. Labor not included. Full details:https://www.allizoe.com/pages/warranty
Shipping

Free freight shipping to the contiguous 48 US states. Estimated delivery: 6–10 business days. Curbside delivery only — forklift or pallet jack required. Carrier will call 24–48 hrs before delivery. View full Shipping & Delivery details →

⚠️ Safety Warning

Ensure vehicle is properly secured on alignment rack before beginning measurement. Keep camera column areas clear of obstructions during measurement. Do not operate without reading the full operation manual. For professional use only.

The KT-5DA stands apart with true 5D measurement technology — capturing five-axis alignment angles for precision that standard 3D systems simply can't match. Real-time live imaging lets technicians see adjustments as they happen, reducing correction time and improving accuracy. The removable, adjustable-distance camera columns adapt to any bay layout, while the factory-calibrated system ensures consistent results every time. Cloud Service keeps your software current with one-click updates, and remote operation support means help is always available. Backed by Katool's 1-year warranty with free replacement parts shipping.

  • Advanced 5D Alignment Technology — measures five-axis angles for higher precision than standard 3D systems
  • Real-Time Live Imaging — HD cameras track alignment adjustments in real time
  • Professional Calibration System — factory-calibrated for consistent, repeatable results

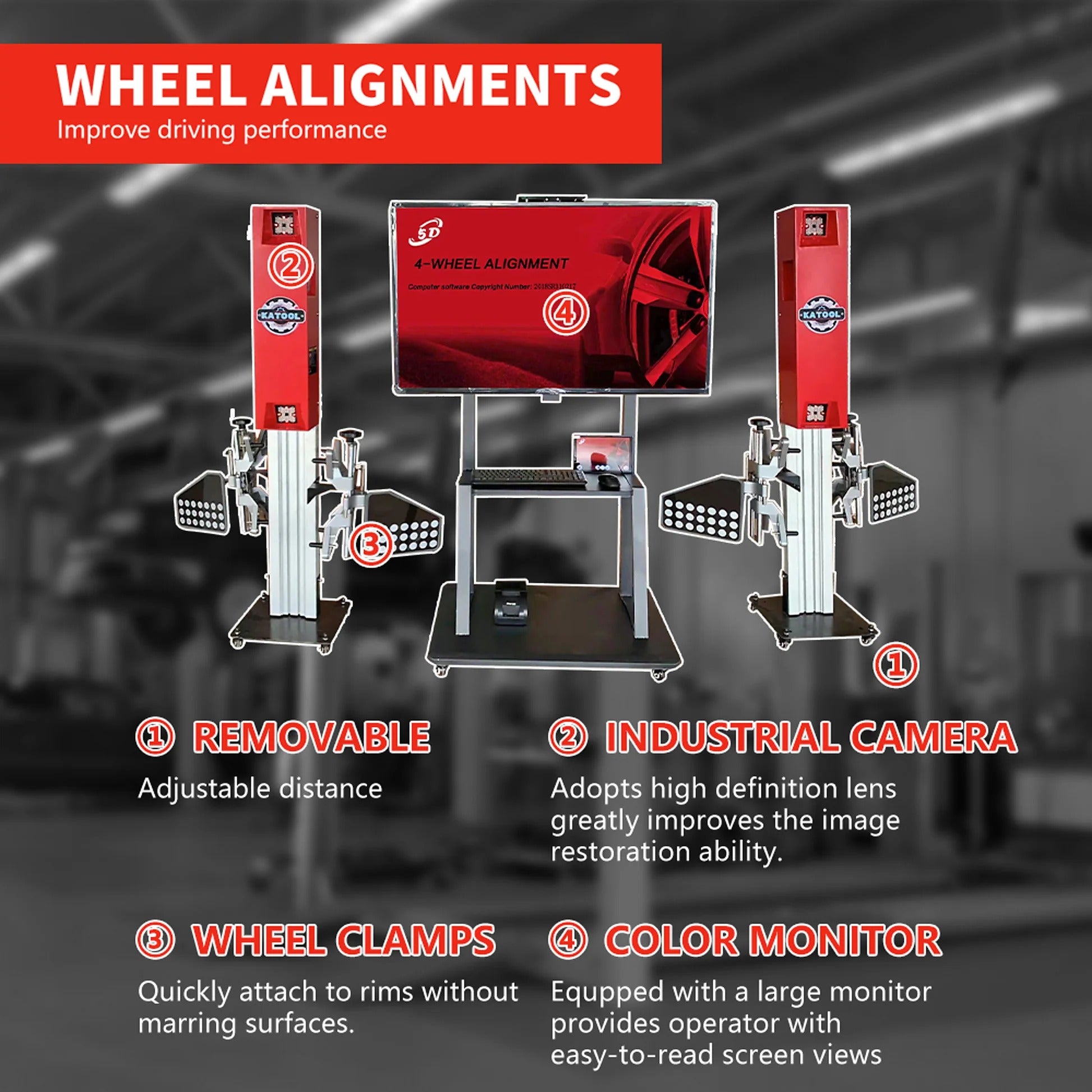

  • Removable camera columns with adjustable distance — fits any bay layout

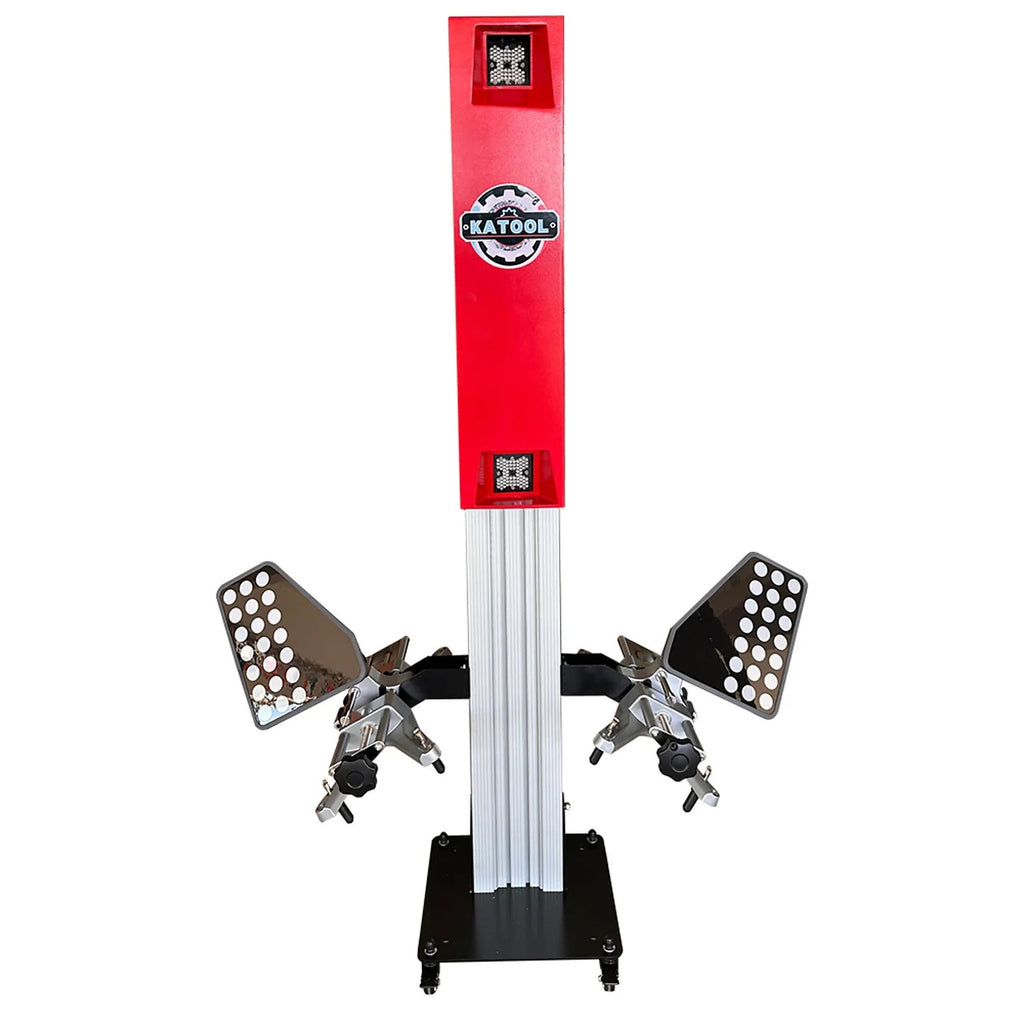

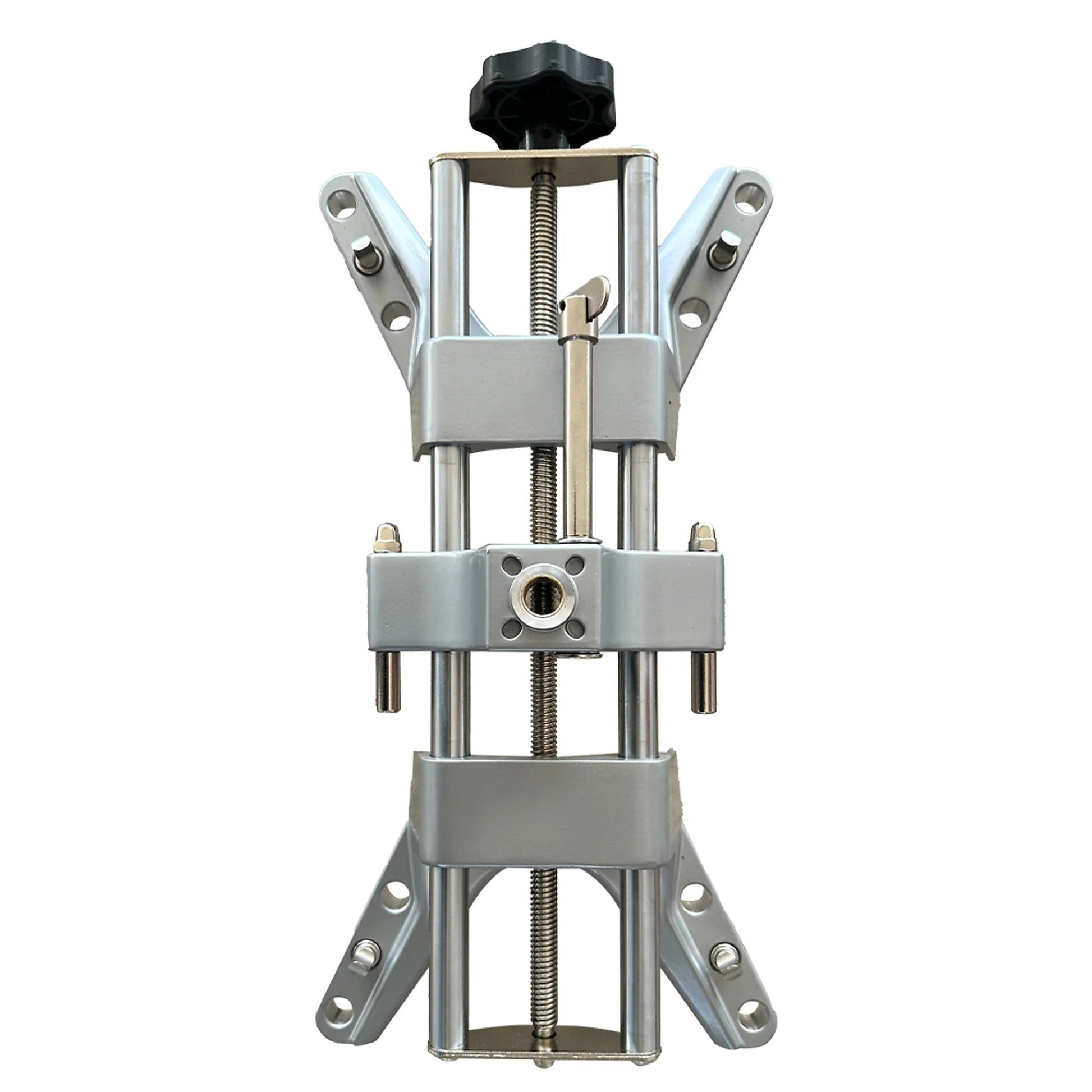

  • Quick-attach aluminum wheel clamps — no rim damage, fast installation

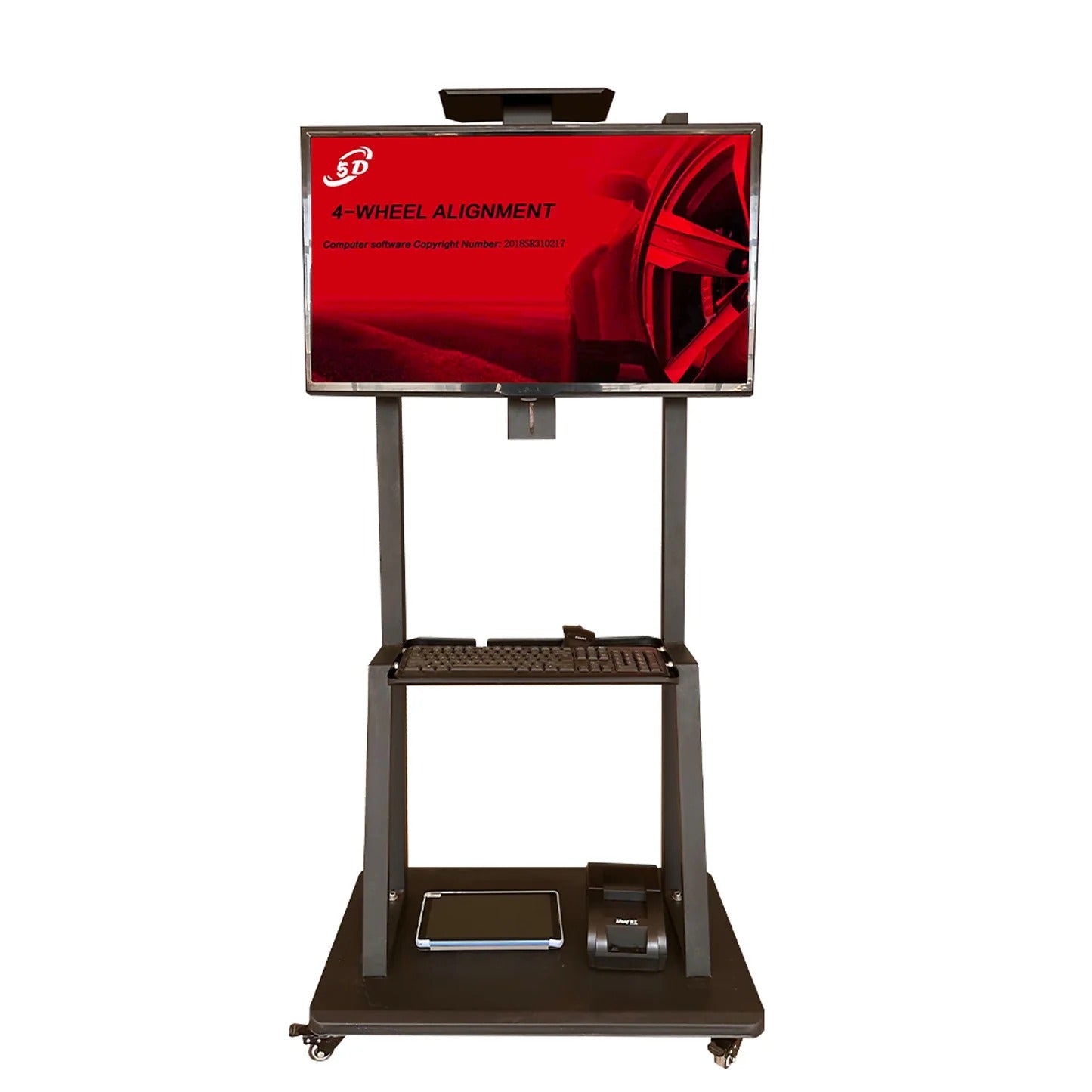

  • Large color monitor — easy-to-read screen views for operators

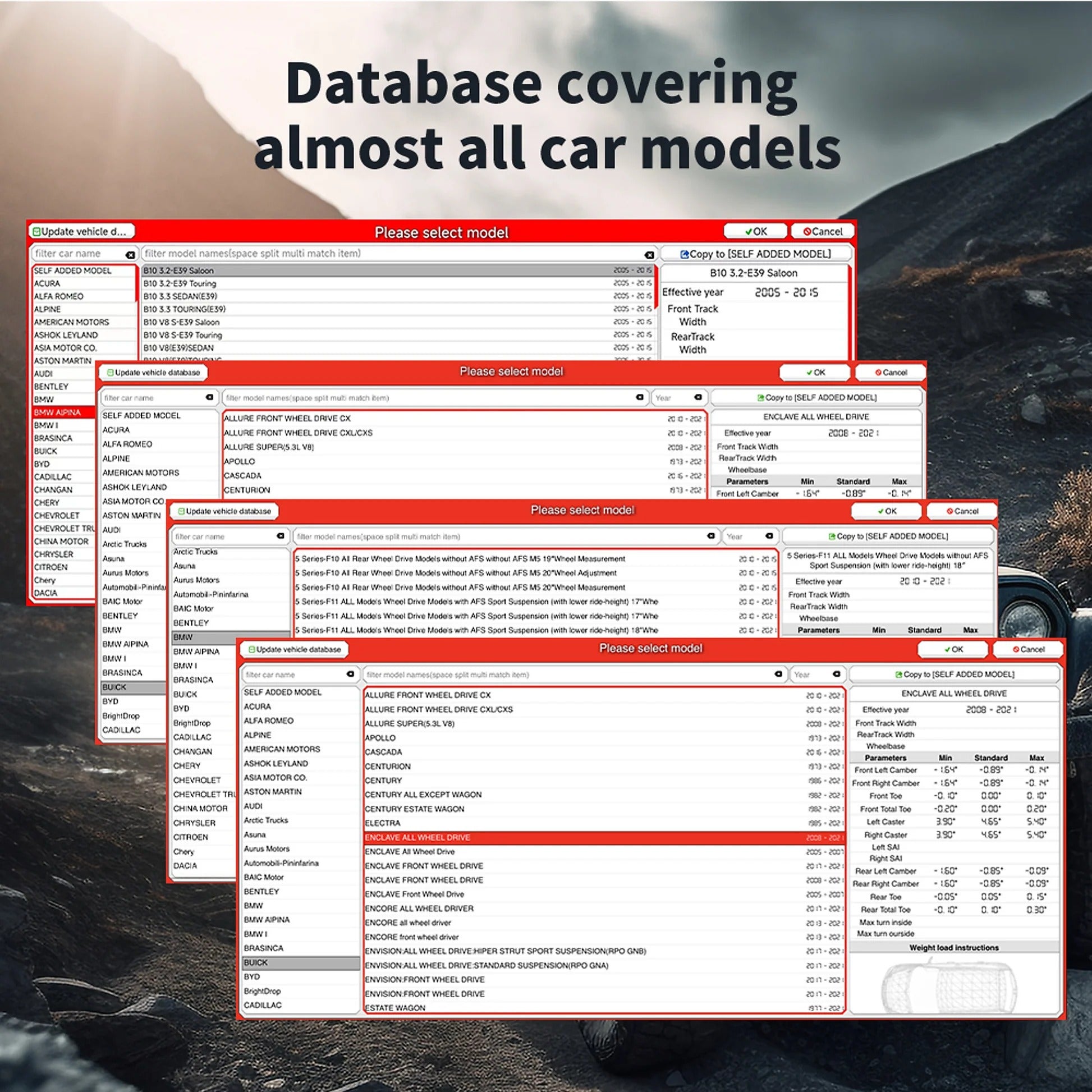

  • Built-in vehicle database covering almost all car models

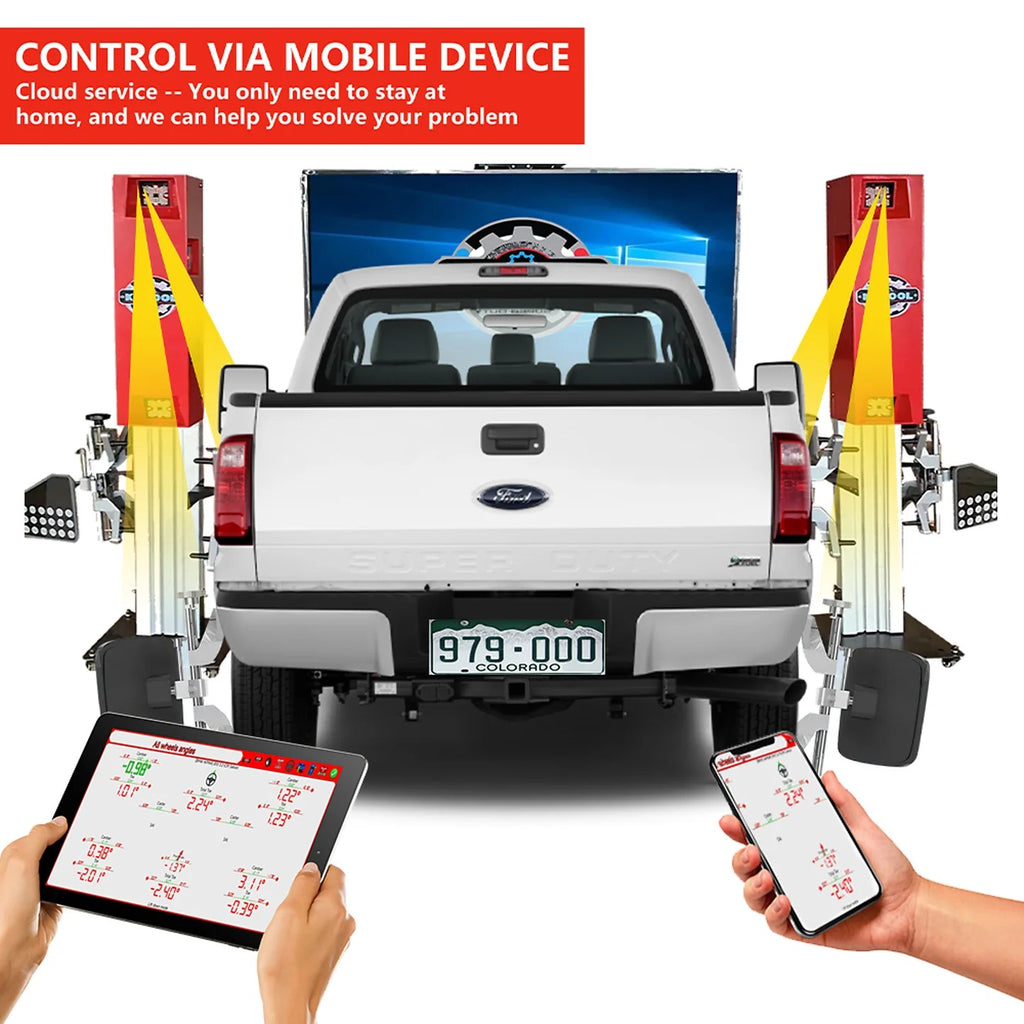

  • Cloud Service — one-click online update, remote operation support
  • Durable alloy steel construction — built for long-term reliability
  • User-friendly software interface — reduces setup time and minimizes user error

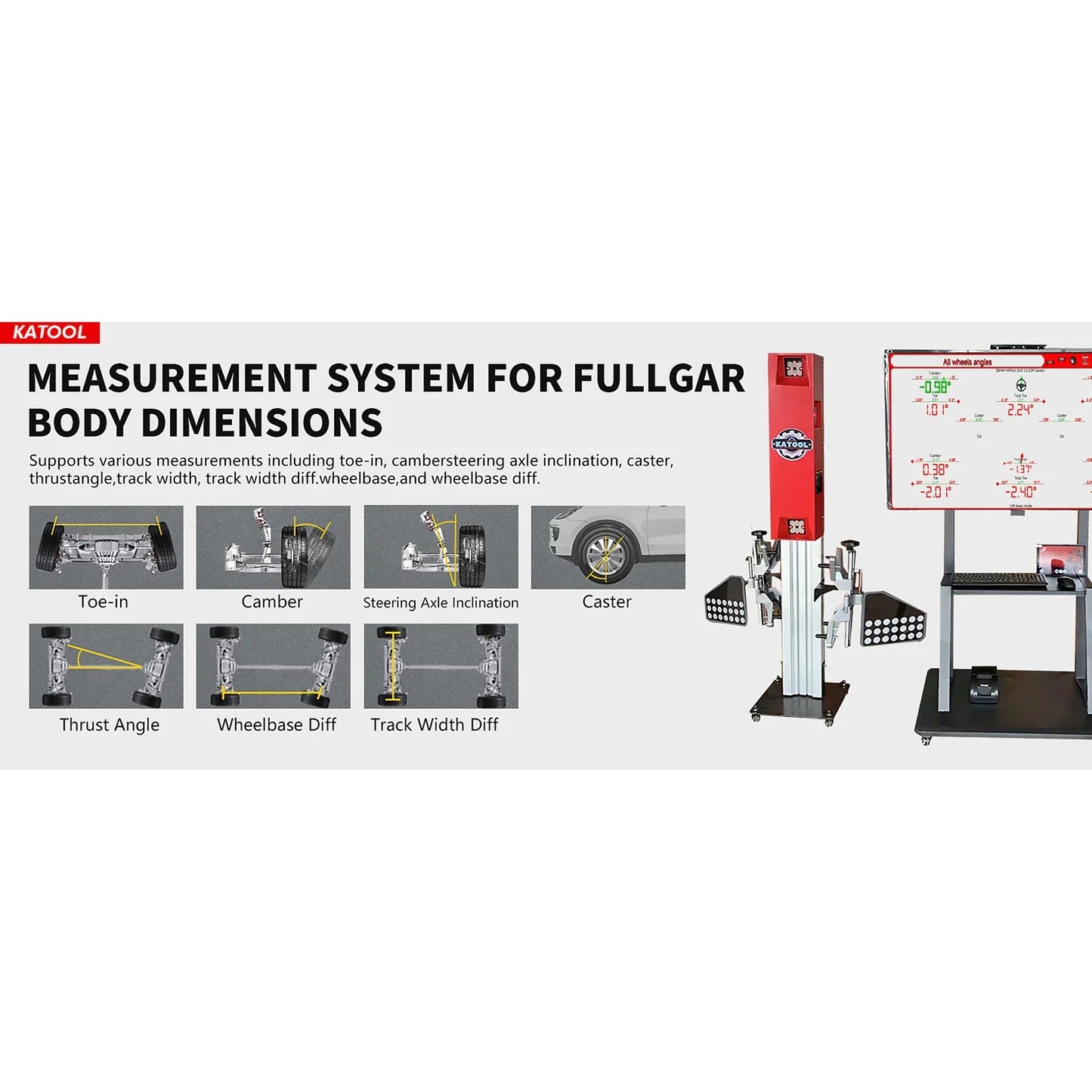

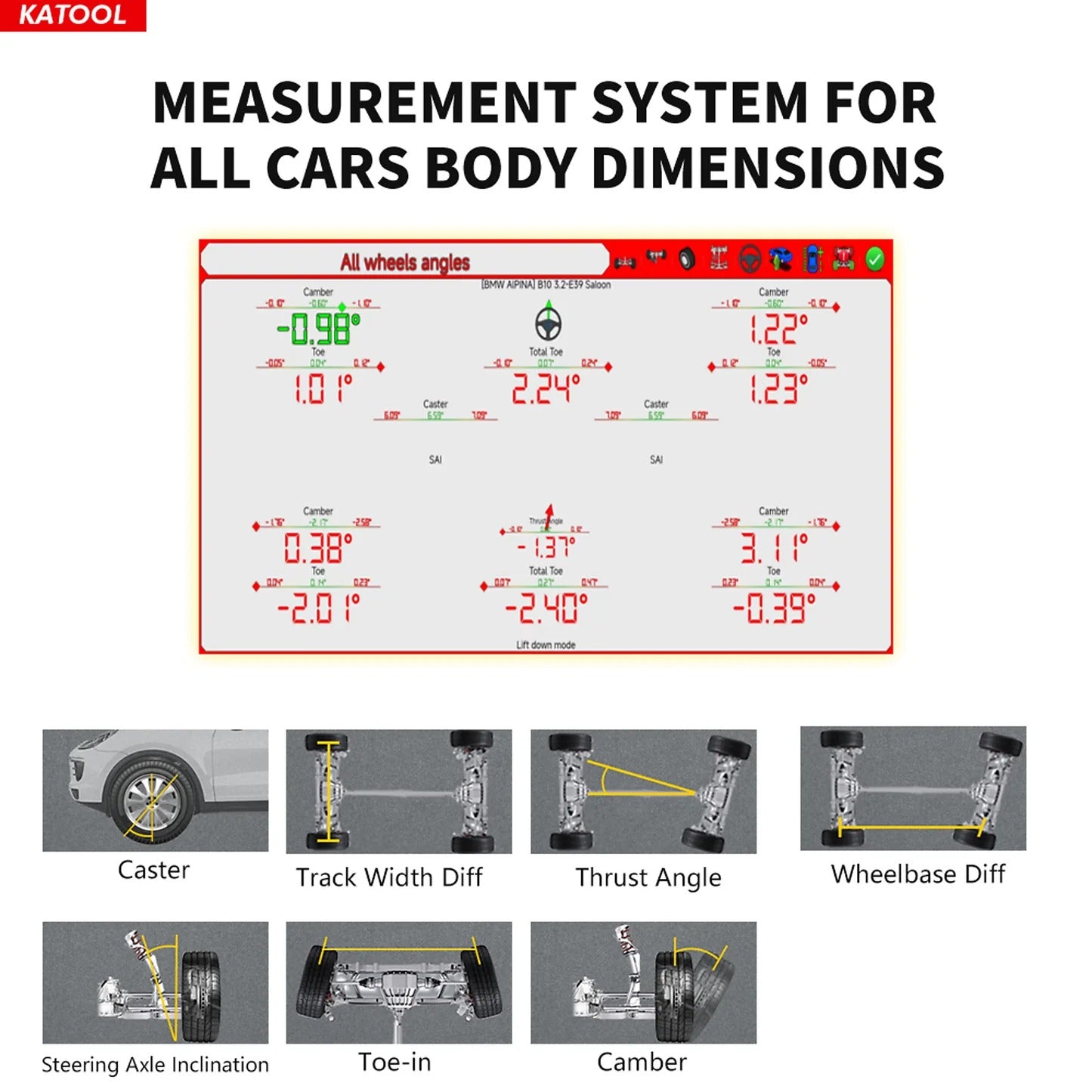

  • Supports: Toe, Camber, Caster, SAI, Kingpin Inclination, Setback, Thrust Angle, Included Angle, Track Width Diff, Wheelbase Diff

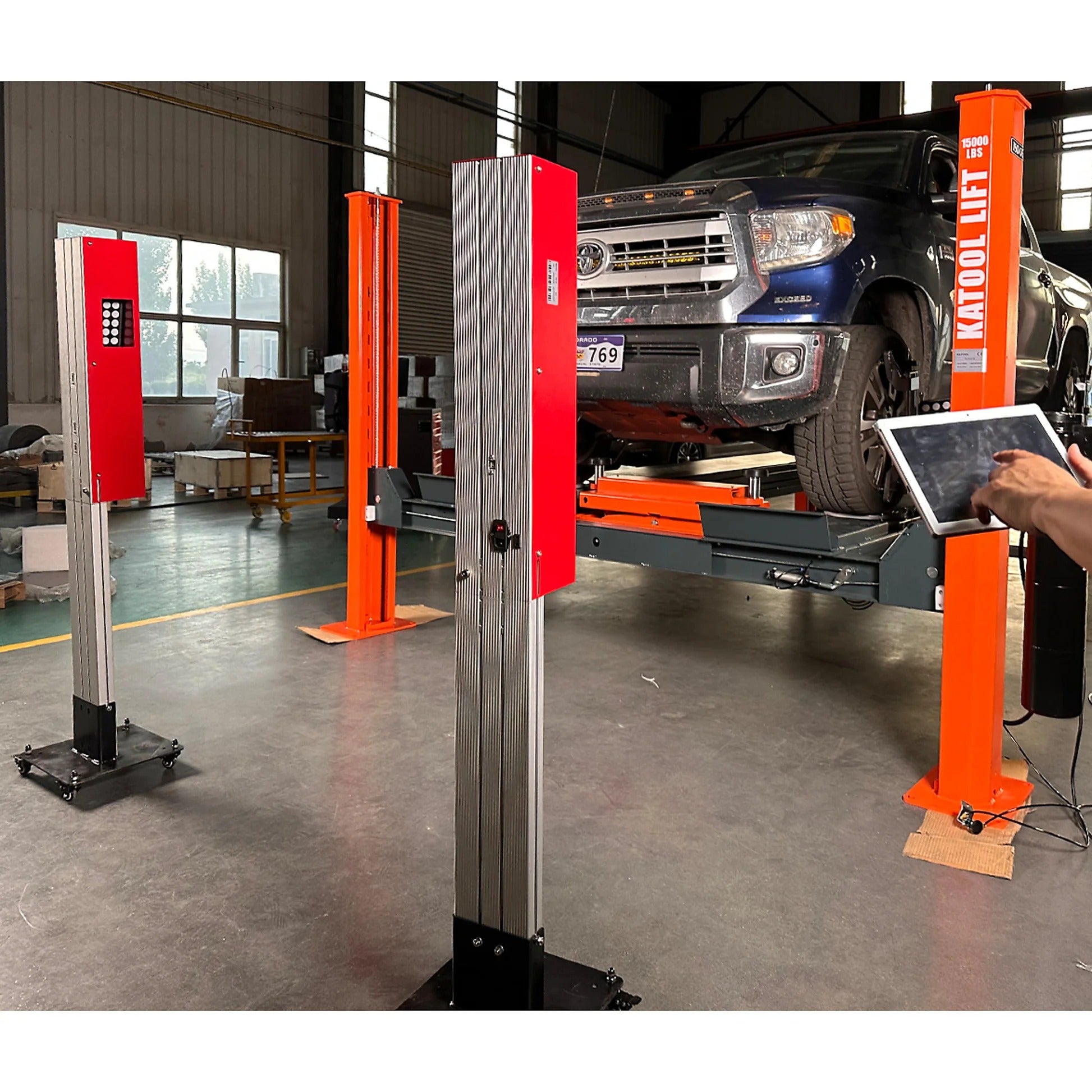

  • Compatible with 2-post lifts and full-rise scissor lifts
Feature KT-5DA KT-AV9 PRO KT-AV651 KT-AV6 PRO KT-AV533
Measurement Technology 5D (5-axis) 3D 3D 3D 3D
Camera Dual HD removable columns Dual 5MP optical Dual cameras Dual cameras Dual cameras
Display Large color monitor 4K Android Box + HDMI HD Monitor HD Monitor HD Monitor
Software Cloud + one-click updates e3D (Android + iOS) e3D Android Android wireless Android wireless
Motorized Column — — — Yes (remote control) —
Integrated Printer — — Yes — Yes
Toe-out on Turns — — — — Yes (20°)
Cloud / Remote Support Yes — — — —
Clamp Range 10–25 in 10–25 in 10–25 in 10–25 in 10–25 in
Certification CE CE CE CE CE
Warranty 1 Year 1 Year 1 Year 1 Year 1 Year
Starting Price $6,899 $5,899 Contact us Contact us Contact us
  • Model: KT-5DA
  • Alignment Type: 3D / 5D Measurement System
  • Technology: Real-Time Camera Imaging
  • Operation: Computer-Controlled Alignment
  • Material: Alloy Steel
  • Color: Red
  • Power Supply: 100–240V AC
  • Product Dimensions: 29" × 47" × 48"
  • Product Weight: 229 lbs
  • Shipping Weight: 441 lbs
  • Lift Compatibility: 2-post lifts, full-rise scissor lifts
  • Country of Origin: China
  • Warranty: 1 Year Limited

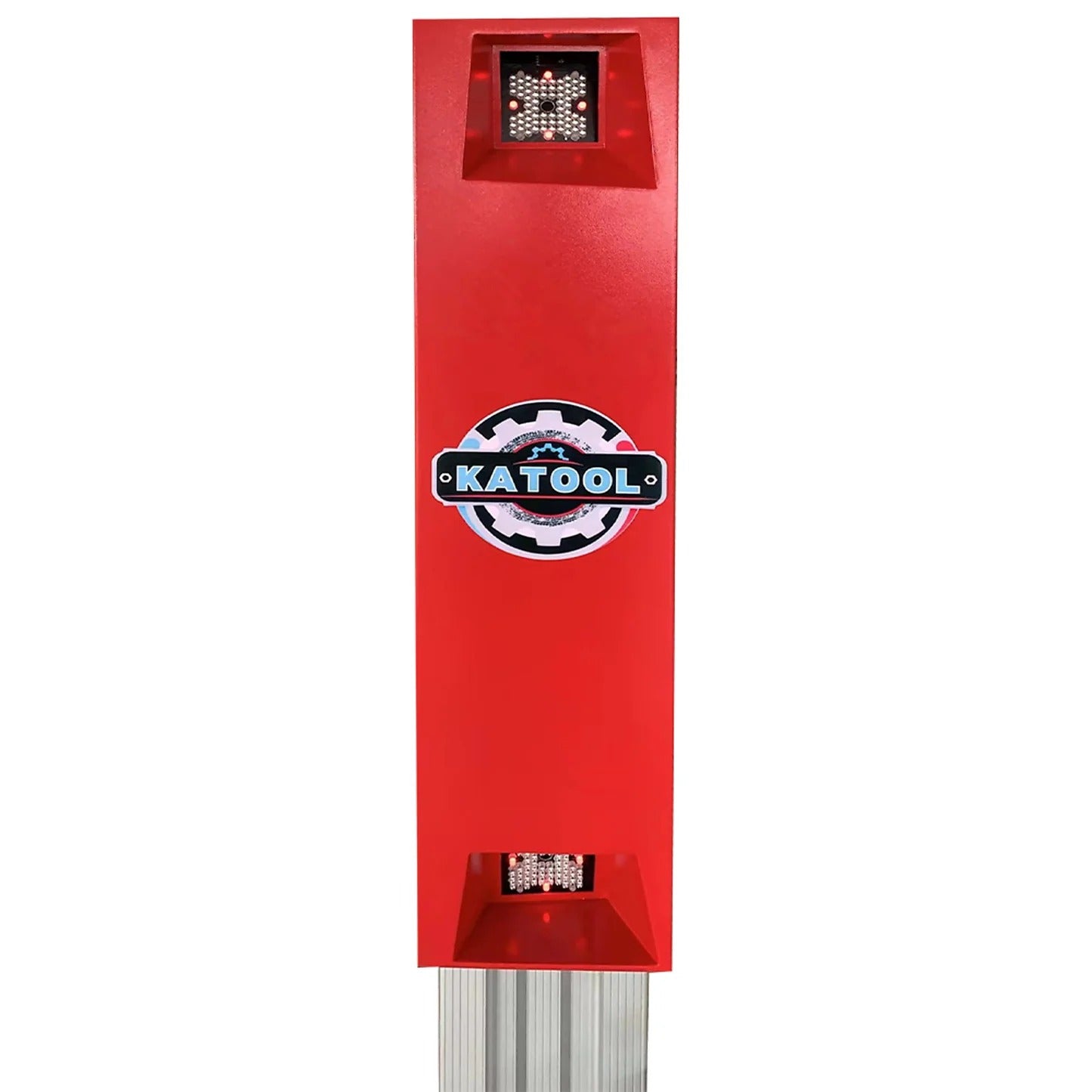

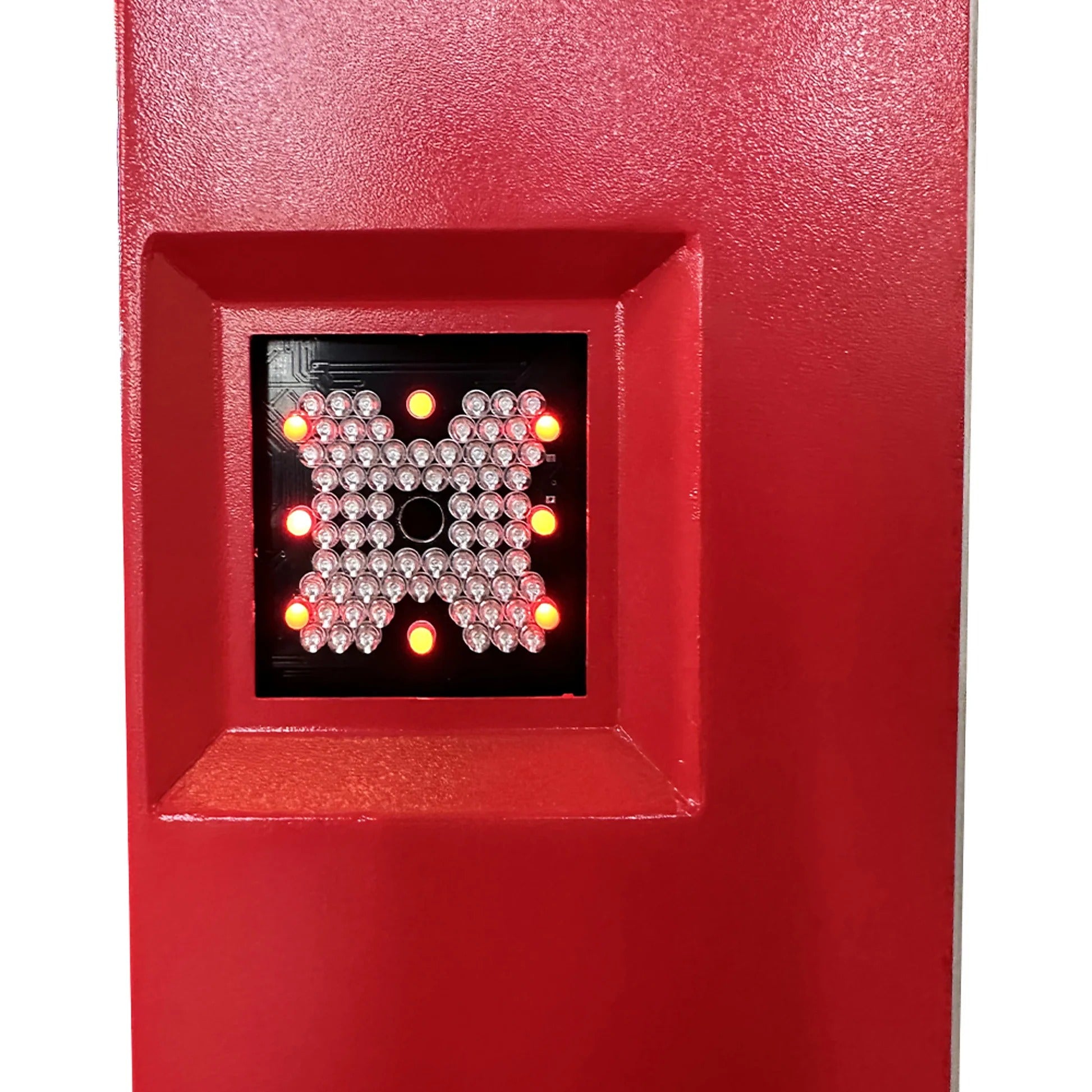

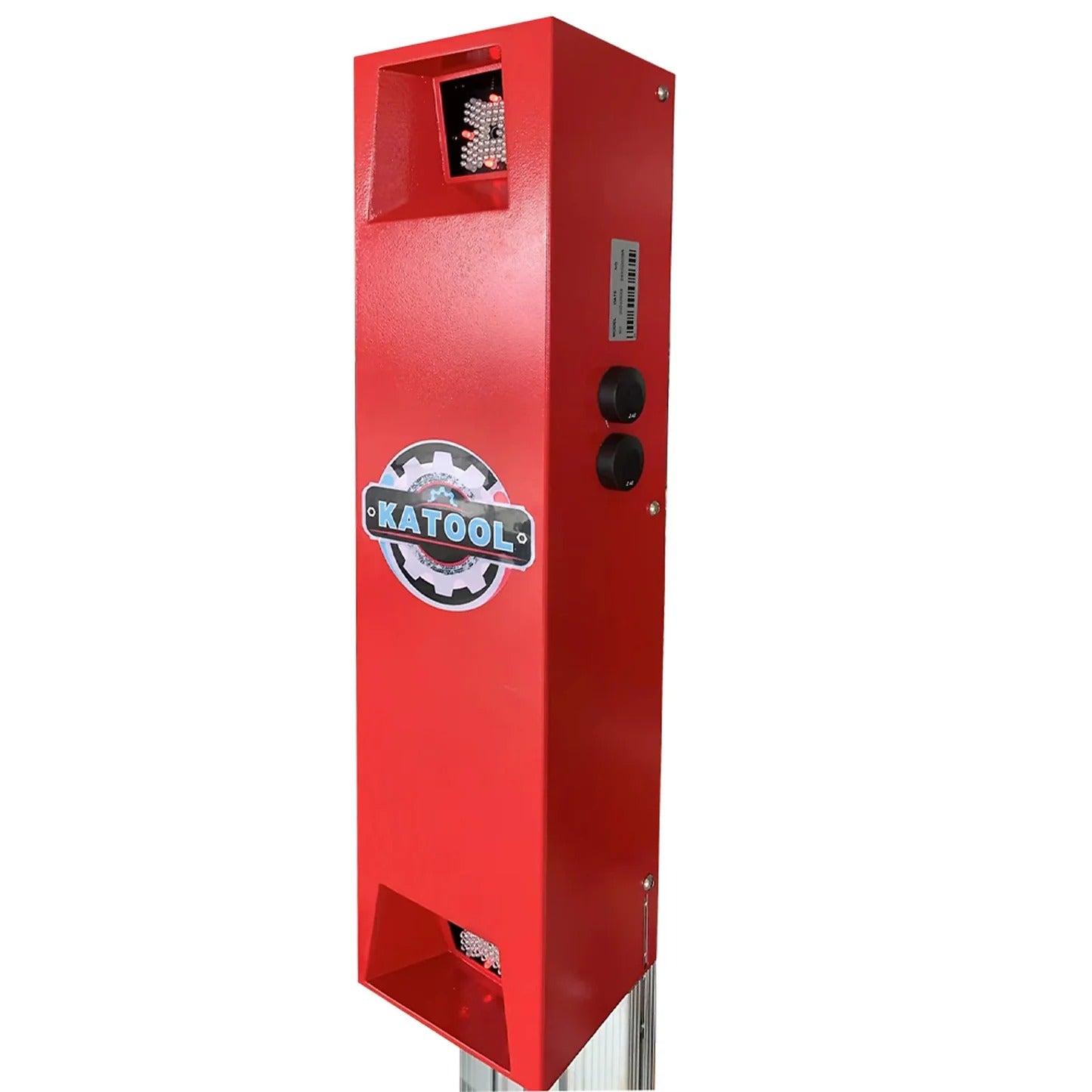

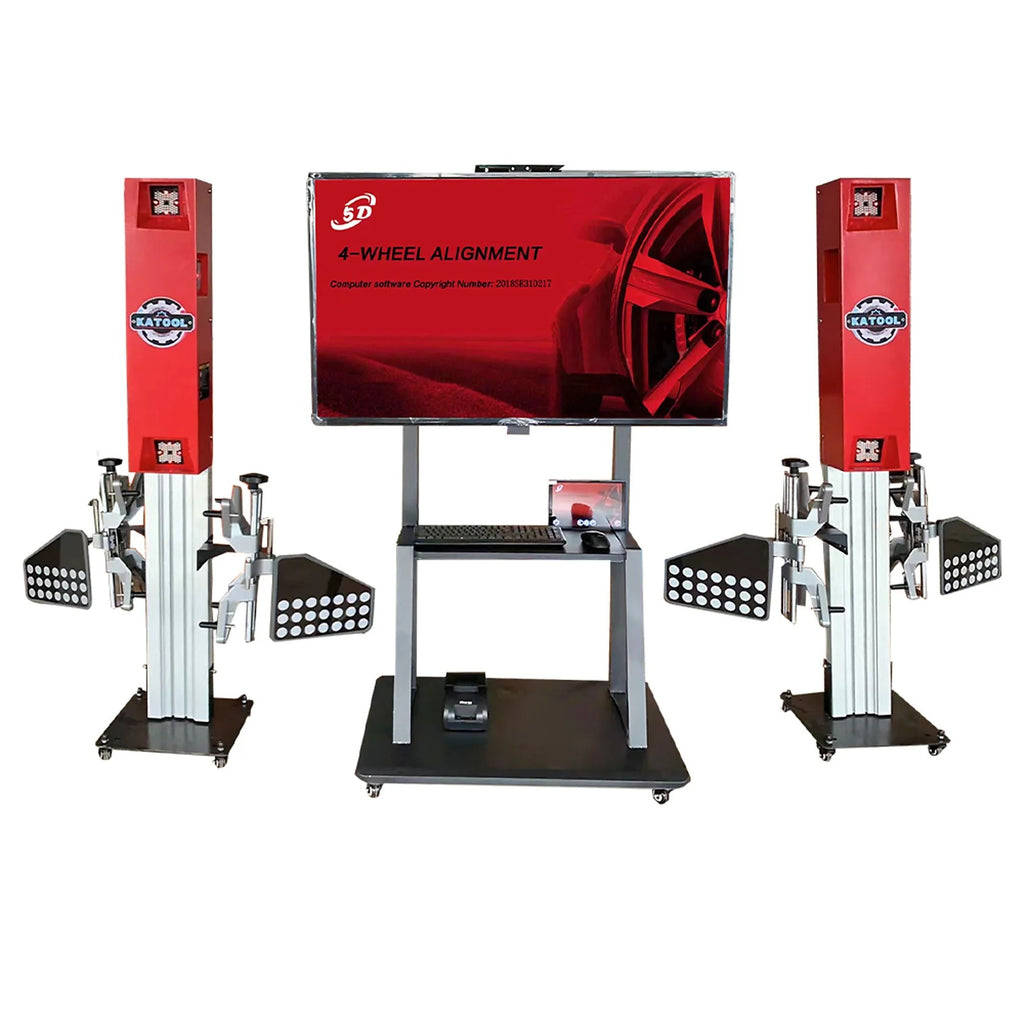

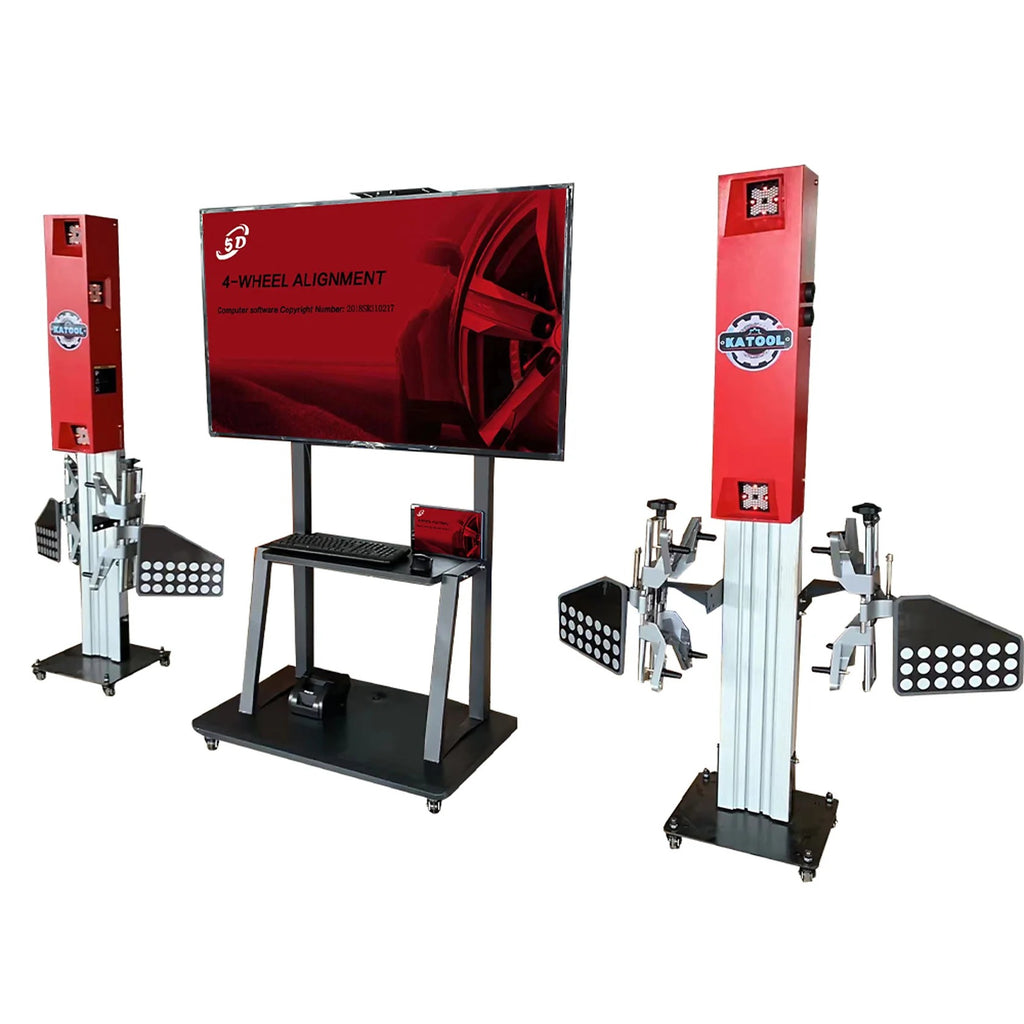

TheKatool KT-5DAis a professional-grade 3D/5D four-wheel alignment system engineered for high-volume automotive workshops. Featuring dual removable camera columns with industrial-grade HD lenses and LED arrays, the KT-5DA delivers real-time live imaging with higher precision than standard 3D systems. Built from alloy steel with a factory-calibrated measurement system, it delivers consistent, repeatable results across a wide range of vehicles. Cloud Service with one-click online updates and remote operation support keeps your shop connected and your technicians efficient.

1-Year Limited Warranty on parts and defects. Covers cameras, columns, motors, displays, and electronics. Replacement parts provided at no cost with free shipping. Optional 2-year extended warranty available. Non-transferable. Labor not included. Full details:https://www.allizoe.com/pages/warranty

  • Professional auto repair and alignment shops
  • Performance and tuning garages
  • Tire and suspension specialists
  • High-volume service centers
  • Dealership service departments

Package Size

L x W x H (in) 41×28×48 in
Weight (lbs) 309

Complete Your Shop Setup

Everything a professional tire shop needs
Tire Service Packages Collection Banner

Tire Service Packages

2-Post Lifts Category Image

2-Post Lift

4-Post Lifts Category Image

4-Post Lifts

Tire Changer

Tire Changer

Wheel Balancer

Wheel Balancer

Shop Accessories Collection Banner

Shop Accessories

Frequently Asked Questions

  • Due to the size and weight of this aligner (shipping weight approx. 309 lbs), we offer four options: Warehouse Pickup ($6,899), Freight to Business ($7,299), With Lift Gate ($7,399), and Residential with Lift Gate ($7,499).
  • Professional installation is strongly recommended. The KT-5DA requires a level concrete floor and adequate ceiling clearance. A detailed installation and calibration manual is included, and our US-based technical team is available to guide you through setup.
  • The KT-5DA is compatible with virtually all passenger cars, light trucks, SUVs, and pickups using 2-post lifts or full-rise scissor lifts. Its built-in vehicle database covers almost all car models worldwide.
  • Unlike standard 3D aligners, the KT-5DA measures 5 axes of alignment angles simultaneously — including Toe, Camber, Caster, SAI, Kingpin Inclination, Setback, Thrust Angle, Included Angle, Track Width Difference, and Wheelbase Difference. Real-time live imaging via dual removable HD camera columns ensures maximum precision.
  • Yes. The KT-5DA includes built-in Cloud Service with one-click online software updates and remote operation support — no technician visit required for updates.
  • US-based technical support via email and phone. Our team assists with installation, calibration, troubleshooting, and parts replacement throughout your 1-year limited warranty period. An optional 2-year extended warranty is also available.
  • Returns are accepted within 30 days for unused equipment in original packaging. Please contact us before returning. Return freight costs are the buyer's responsibility.
