Katool KT-308 Mobile Truck Tire Changer - Portable On-Site Service

Warehouse Pickup
$6,694.00 $8,033.00
Skip to product information
Red and black truck tire changer machine on wheeled base with control box
1/10

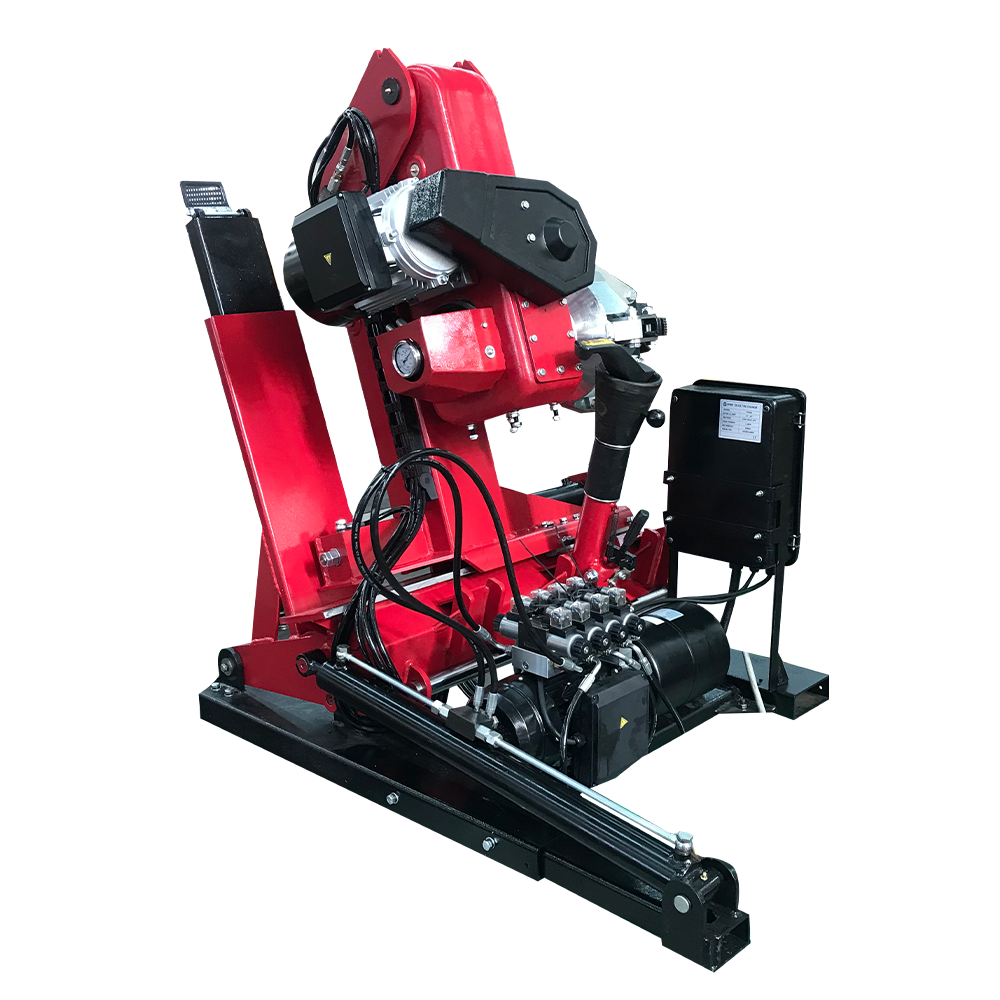

  • Red and black truck tire changer machine on wheeled base with control box
  • Truck tire changer with large wheel clamped in red and black machine frame

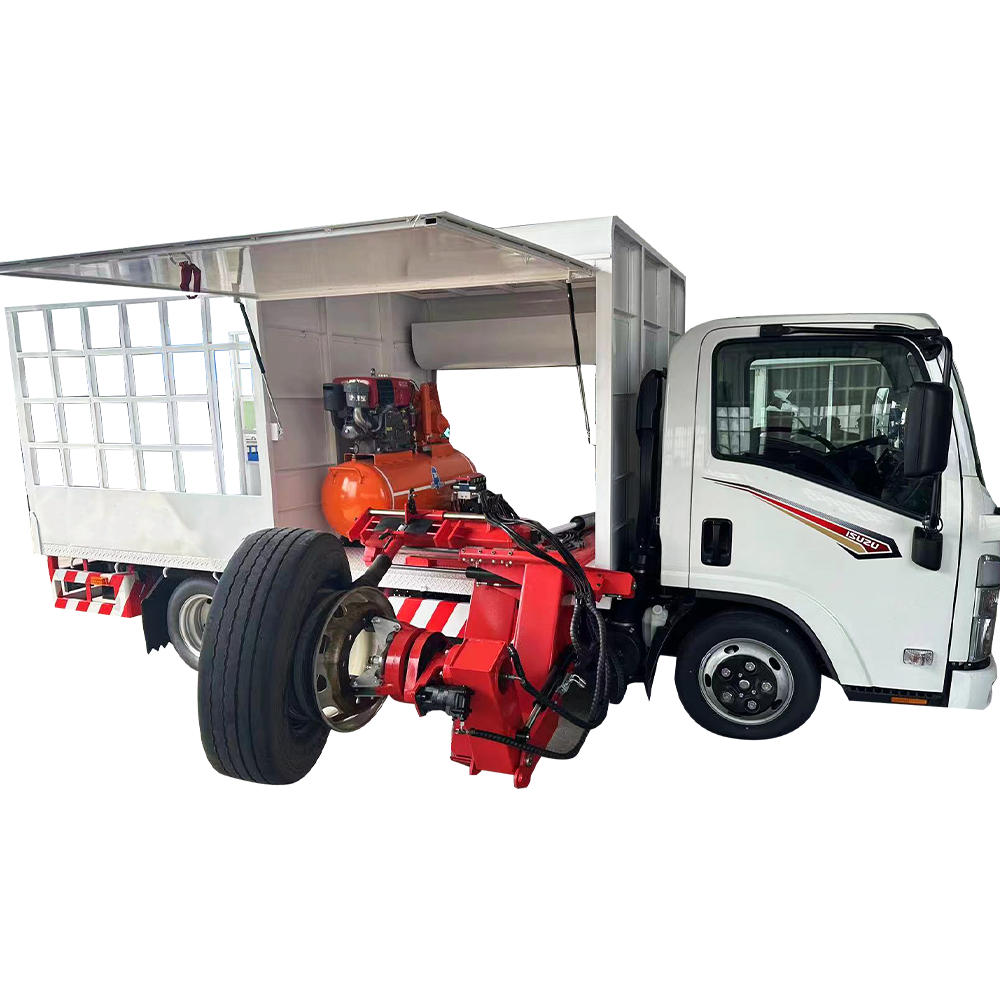

  • Mobile truck tire changer mounted in open service cargo box on white truck

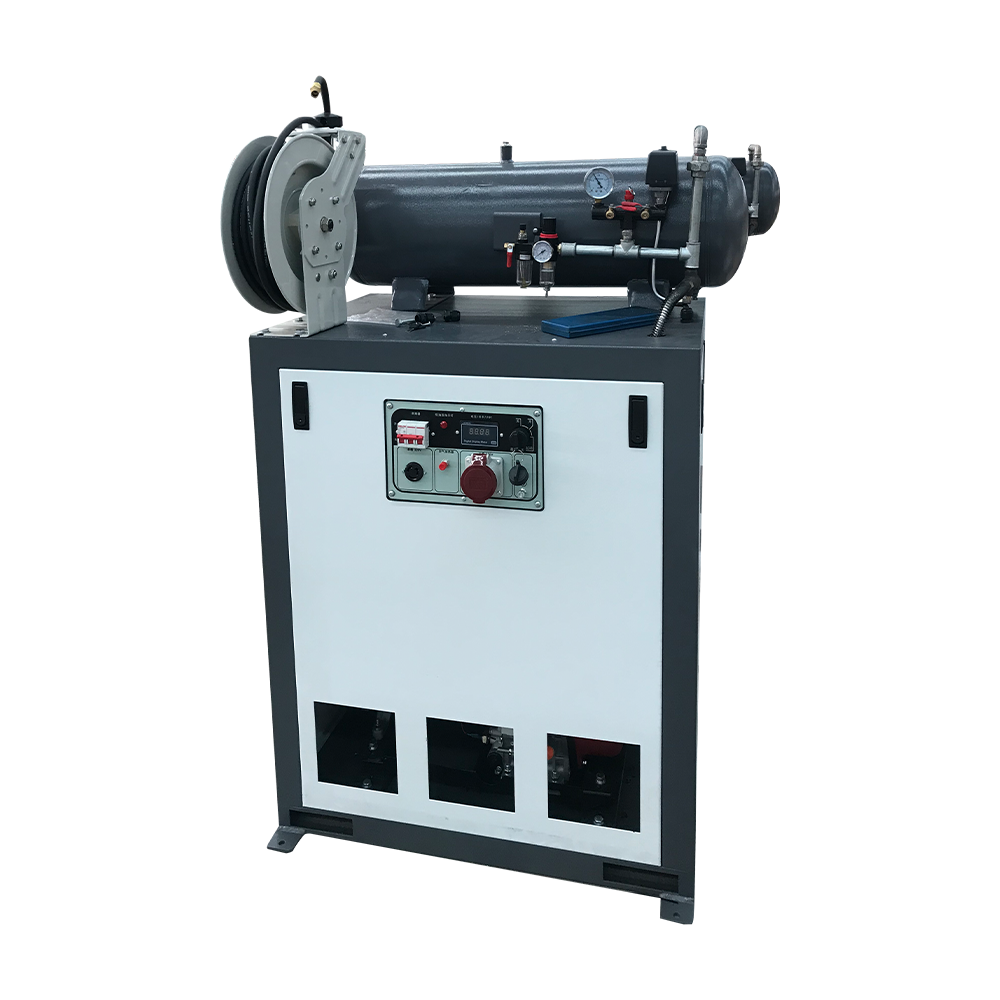

  • Black and gray tire changer hydraulic cylinder with control panel on base unit

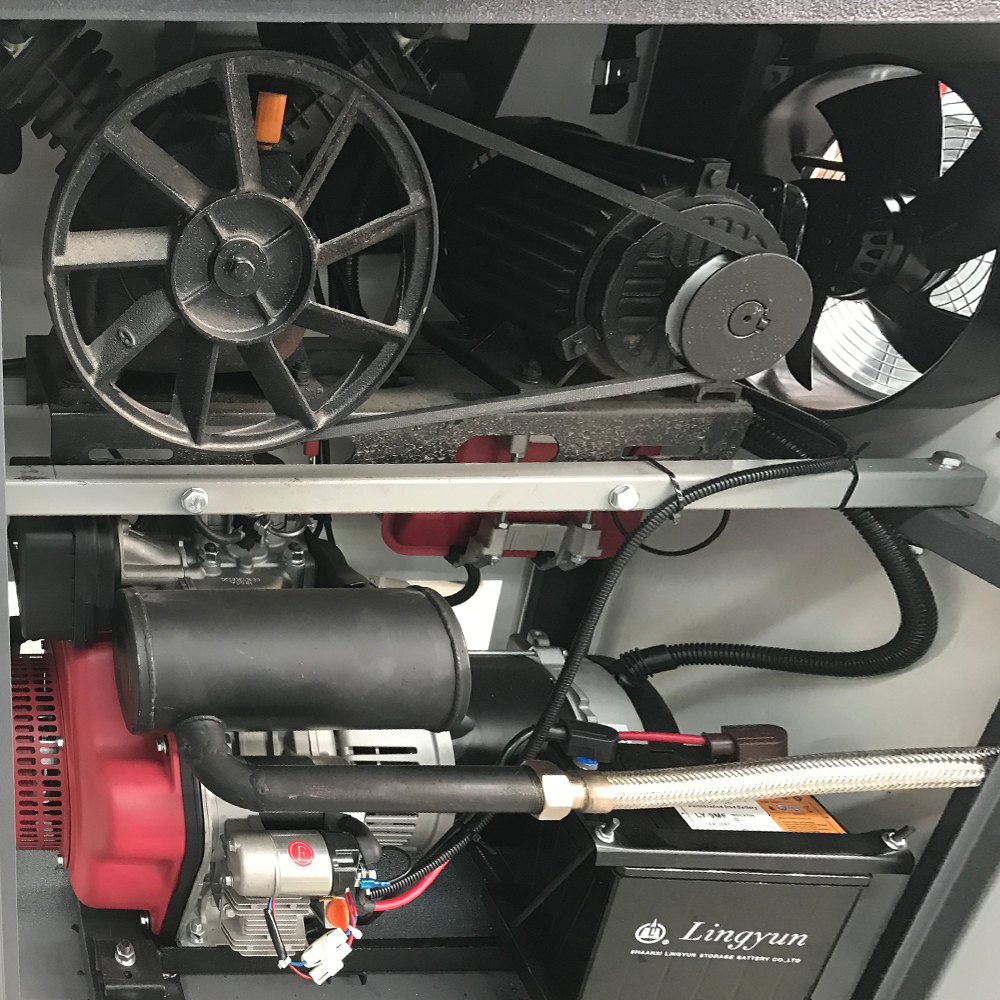

  • Close-up of tire changer motor, fan, hoses, and wiring inside control housing

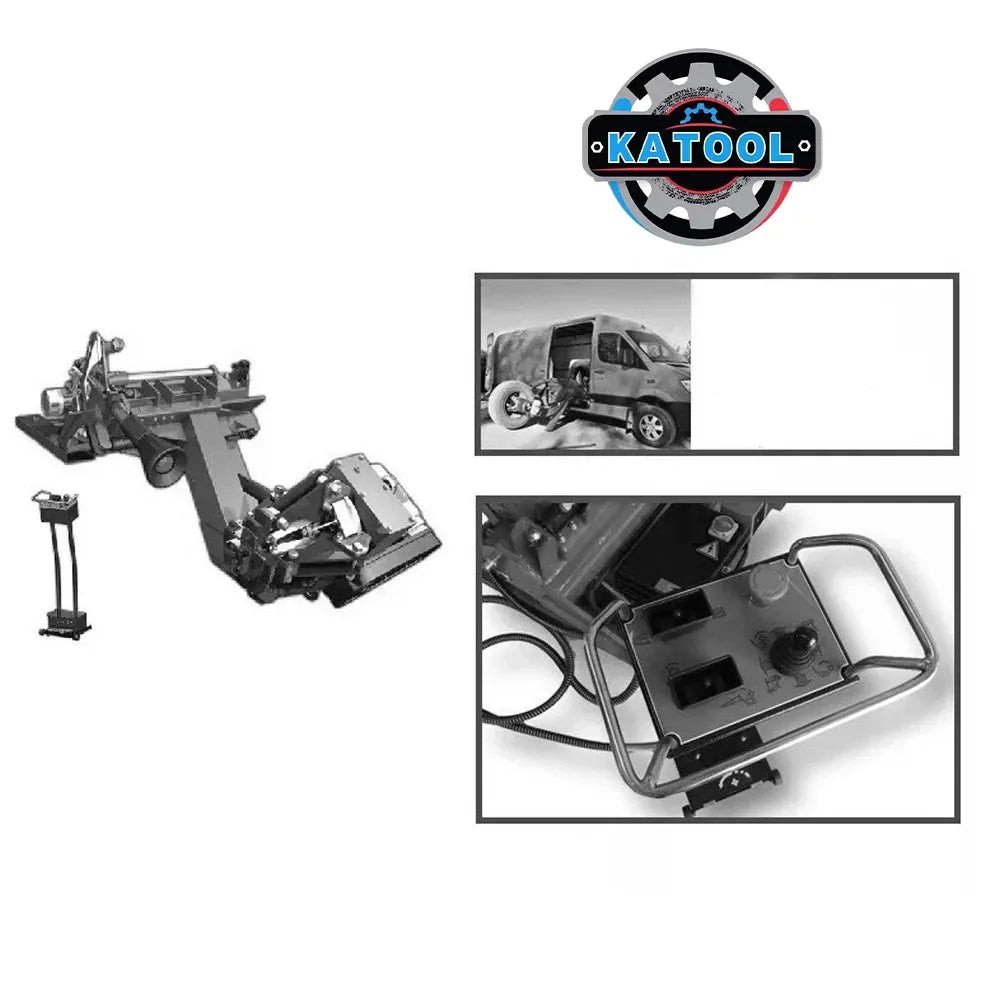

  • KATOOl promotional graphic showing mobile tire changer model with vehicle inset

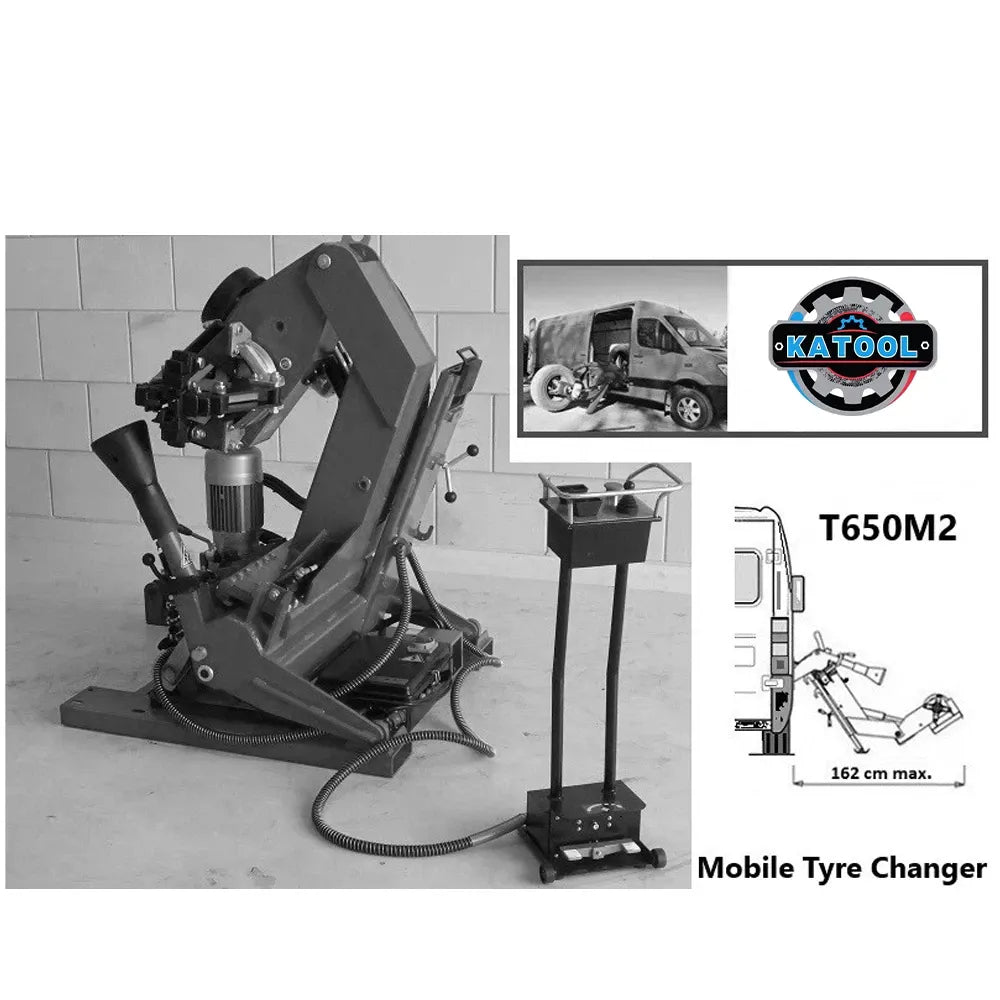

  • Mobile tire changer system with stand and tool head shown in promotional layout

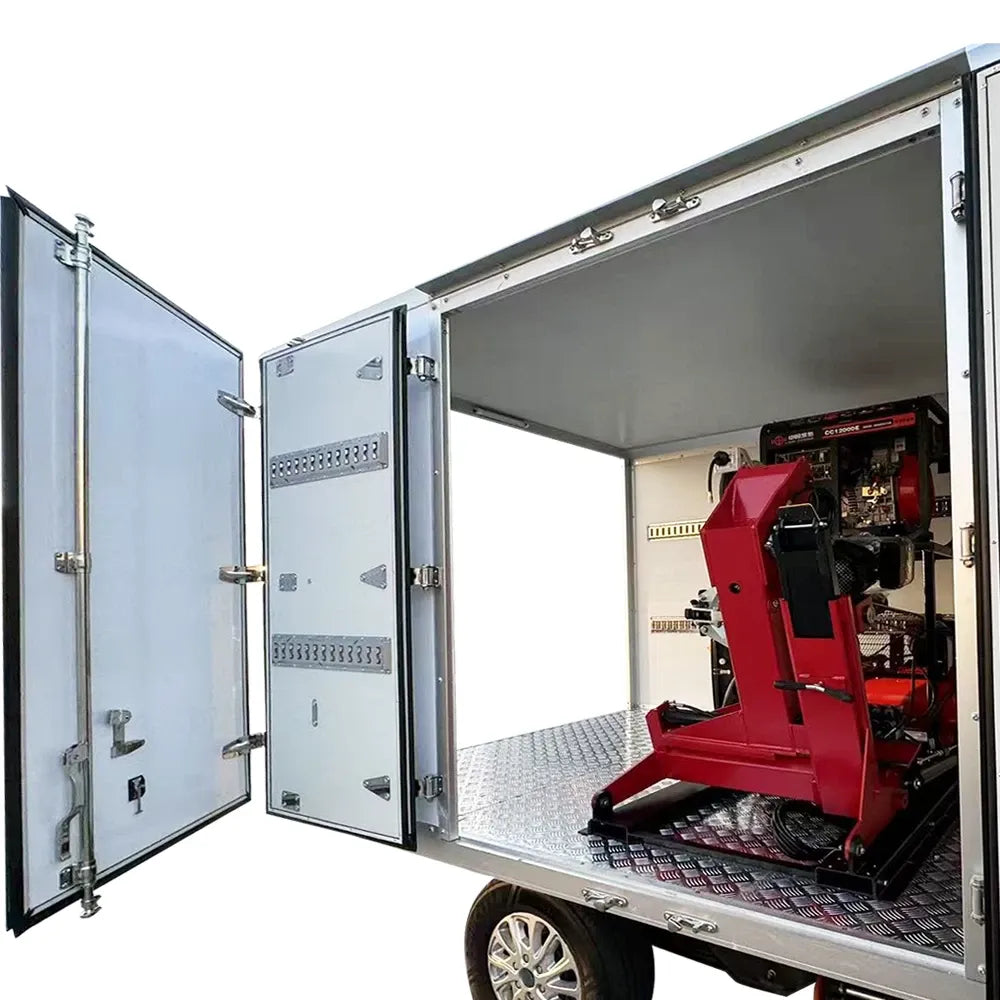

  • Red tire changer inside open trailer compartment with silver side doors
  • Road rescue promotional scene with orange warning triangle and vehicle on road
  • Road rescue promotional scene with vehicle and mobile tire changer beside wheel
Katool KT-308 Mobile Truck Tire Changer - Portable On-Site Service

Katool KT-308 Mobile Truck Tire Changer - Portable On-Site Service

$6,694.00 $8,033.00

Shop Pay Installments

Split your purchase into flexible installment payments with Shop Pay. Pay over time with no hidden fees.

How it works:

  • Choose Shop Pay at checkout
  • Select your preferred payment plan
  • Make your first payment today
  • Pay the rest over time with automatic payments

No interest. No hidden fees. Just flexible payments that work for you.

🚚 Delivery option includes free freight to the lower 48 states.

Delivery Options
⚠️ Warehouse Pickup – Please Contact Us First. Due to varying inventory across our warehouse locations, please contact us before placing your order to confirm stock availability at your preferred location.
Contact Us to Check Availability

🇺🇸 US-Based Business: Unlike big out-of-state sellers, we offer specialized support and $0 Sales Tax outside Illinois.

💰
Tax-Free Outside IL
🚚
Free Freight Lower 48 States
🛡️
1-Yr Warranty Full Parts Support
🔬
Safety Tested Load & Function Tested
📍
Local Pickup Nationwide Save up to $1,400 in freight costs
Learn More >
Warranty

Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge. A 2-year extended warranty plan is available.

Warranty Conditions:

  • Non-transferable — requires original order number
  • Replacement parts at no cost including free shipping
  • Labor not included
  • Do not disassemble before issue is determined
Shipping

Free freight shipping to the contiguous 48 US states. Estimated delivery: 6–10 business days. Curbside delivery only — forklift or pallet jack required. Carrier will call 24–48 hrs before delivery. View full Shipping & Delivery details →

⚠️ Safety Warning

WARNING: Always disconnect power before maintenance. Do not exceed maximum wheel weight (750kg) or diameter (54 inches). Requires 400V 3-phase power supply — verify electrical capacity and grounding before operation. Ensure machine is properly anchored before use. Keep hands clear of hydraulic clamping arm and bead-breaking mechanism during operation. Minimum vehicle space required: 104cm width x 145cm height x 122cm depth.

The Katool KT-308 is the ultimate mobile tire changer for professional truck and commercial vehicle service — anywhere you need it. Its powerful hydraulic system with 1.5kW rotary motor and 1.1kW hydraulic pump handles wheels up to 54 inches in diameter and 750kg in weight, with 2500kg impression force at 130 bar operating pressure. The practical 24V control unit ensures smooth workflow and precise control, while the automatic hydraulic clamping arm provides quick, secure positioning. A 7 rpm bidirectional claw system and 400V 3-phase drive voltage deliver stable torque output with noise levels of just 40-65 dB. Compact enough to fit inside most service vans, the KT-308 gives mobile tire businesses the freedom to service customers on-site with professional-grade results.

  • Mobile-ready design fits inside most service vans (104cm W x 145cm H x 122cm D)
  • Handles wheels up to 54 inches diameter and 750kg weight
  • Practical 24V control unit for smooth workflow and precise control
  • Automatic hydraulic clamping arm moves horizontally for quick, secure positioning
  • 7 rpm bidirectional claw system for efficient tire removal and installation
  • 1.5kW rotary motor and 1.1kW hydraulic pump for stable torque output
  • 2500kg impression force at 130 bar operating pressure
  • 400V 3-phase fully electric system — no air compressor required
  • Low noise operation: 40-65 dB
  • Reinforced steel construction for years of demanding mobile service
KT-T160 KT-T260 KT-T260PRO KT-TV910 KT-308
Rim Range 14–26" 14–26" 14–26" 14–42" 14–26"
Max Wheel Dia. 62" 63" — 63" 63"
Max Wheel Width 30" 30" — 30" 30"
Pump Motor 1.5KW 1.5KW 1.5KW 1.5KW 1.5KW
Gearbox Motor 2.2KW 2.2KW 2.2KW 2.2KW 2.2KW
Power 220V 220V 220V 220V 220V
Portable — — — — ✓
Best For Truck & bus Truck & agricultural Pro truck shops Heavy agri & OTR Mobile on-site
  • Rim Diameter Range: 13 to 26 inches
  • Claw Clamping Range: 10 to 68.5 cm (27 inches)
  • Maximum Wheel Diameter: 54 inches (138 cm)
  • Maximum Wheel Width: 70 cm
  • Maximum Wheel Weight: 750 kg
  • Impression Force: 2500 kg (24.515 kN)
  • Operating Pressure: 130 bar
  • Rotary Motor Power: 1.5 kW
  • Hydraulic Pump Power: 1.1 kW
  • Drive Voltage: 400V 3-Phase
  • Control Unit: 24V
  • Noise Level: 40 to 65 dB
  • Machine Weight: 470 kg
  • Footprint: 122 x 104 cm
  • Package Size: 48 x 34 x 63 inches
  • Shipping Weight: 2870 lbs

The Katool KT-308 Mobile Truck Tire Changer is a heavy-duty, mobile-ready solution designed for professional on-site tire service for trucks, buses, and commercial vehicles. With a maximum wheel diameter of 54 inches, 750kg wheel weight capacity, and 2500kg impression force at 130 bar operating pressure, it handles the biggest commercial tires with ease. The practical 24V control unit ensures smooth workflow and precise control, while the automatic hydraulic clamping arm and 7 rpm bidirectional claw system deliver fast, accurate tire removal and installation. A 1.5kW rotary motor and 1.1kW hydraulic pump provide stable torque output with noise levels of just 40-65 dB. Compact enough to fit inside most service vans, the KT-308 gives mobile tire businesses the freedom to service customers anywhere — roadside, fleet yards, or on-site.

Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge. A 2-year extended warranty plan is available.

Warranty Conditions:

  • Non-transferable — requires original order number
  • Replacement parts at no cost including free shipping
  • Labor not included
  • Do not disassemble before issue is determined
  • Mobile Tire Services: Bring professional truck tire changing directly to customers' locations
  • Roadside Assistance Companies: On-site tire service for trucks, buses, and commercial vehicles up to 54 inch diameter
  • Fleet Maintenance: Service multiple locations without fixed equipment — fits inside most service vans
  • Truck Repair Shops: Heavy-duty tire changing for wheels up to 750kg and 54 inch diameter
  • Commercial Tire Dealers: Portable solution for on-site delivery and installation services

Freight shipping included to the lower 48 states. Two delivery options available:

  • Terminal Pickup — Ship to nearest freight terminal, no forklift needed
  • Commercial/Residential Delivery — Direct delivery to your address, no forklift required

Contact us to confirm your preferred delivery option before ordering.

Package Size

L x W x H (in) 48 x 34 x 63
Weight (lbs) 2870

Complete Your Shop Setup

Everything a professional tire shop needs
Tire Service Packages Collection Banner

Tire Service Packages

2-Post Lifts Category Image

2-Post Lift

4-Post Lifts Category Image

4-Post Lifts

Tire Changer

Tire Changer

Wheel Balancer

Wheel Balancer

Shop Accessories Collection Banner

Shop Accessories

Frequently Asked Questions

  • The KT-308 is a portable on-site tire changer designed for roadside service and mobile tire shops. It can be transported to the vehicle rather than requiring the vehicle to come to the shop.
  • The KT-308 is designed for heavy-duty trucks and commercial vehicles. Ideal for fleet operators and mobile tire service businesses.
  • The KT-308 is designed for portable use. Please refer to the product specifications for exact power requirements including generator compatibility.
  • Ships via freight carrier to the lower 48 states. Freight cost is included in the price. Options include Terminal Pickup or Commercial/Residential Delivery.
  • Yes. We offer Shop Pay Installments, allowing you to split your purchase into 4 interest-free payments on qualifying orders.
  • We provide US-based technical support via email and phone for installation, troubleshooting, and parts replacement throughout your warranty period.
  • Returns accepted within 30 days for unused equipment in original packaging. Please contact us before returning. Return freight costs are the buyer's responsibility.
