Katool wheel balancer with red cabinet and control panel, plus wheel mounting arm

Katool B700 Wheel Balancer - Professional Tire Balancing Machine - Precision Sensor

Warehouse Pickup
$1,059.00 $1,499.00
Skip to product information
Katool wheel balancer with red cabinet and control panel, plus wheel mounting arm
1/14
  • Katool wheel balancer with red cabinet and control panel, plus wheel mounting arm
  • Katool wheel balancer with red body, metal tray, and spindle shaft for mounting
  • Katool wheel balancer front view with spindle and wheel mounting hub

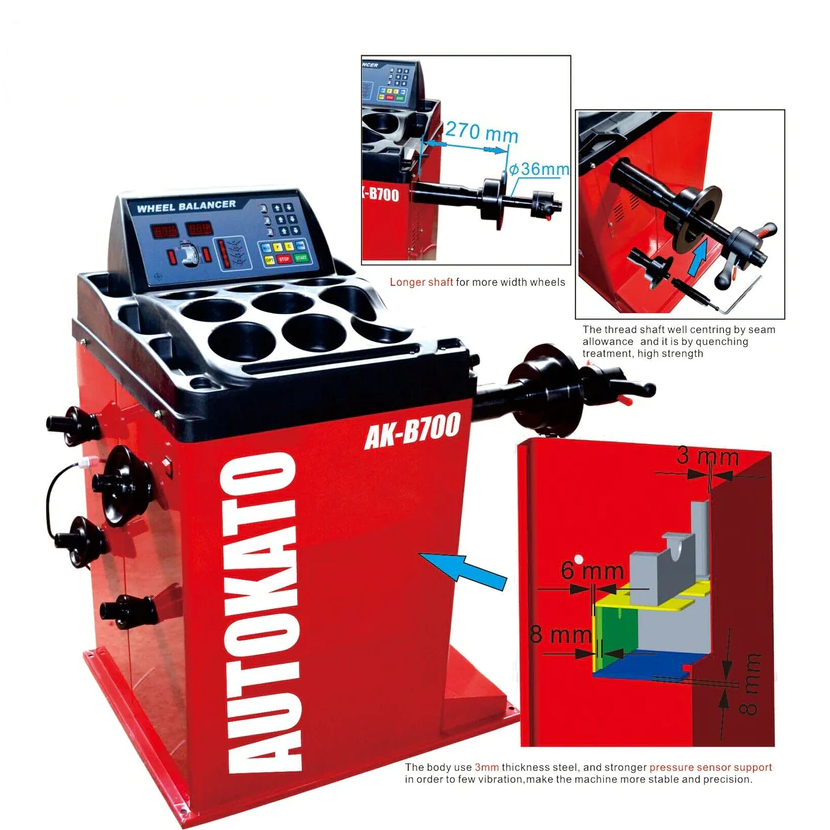

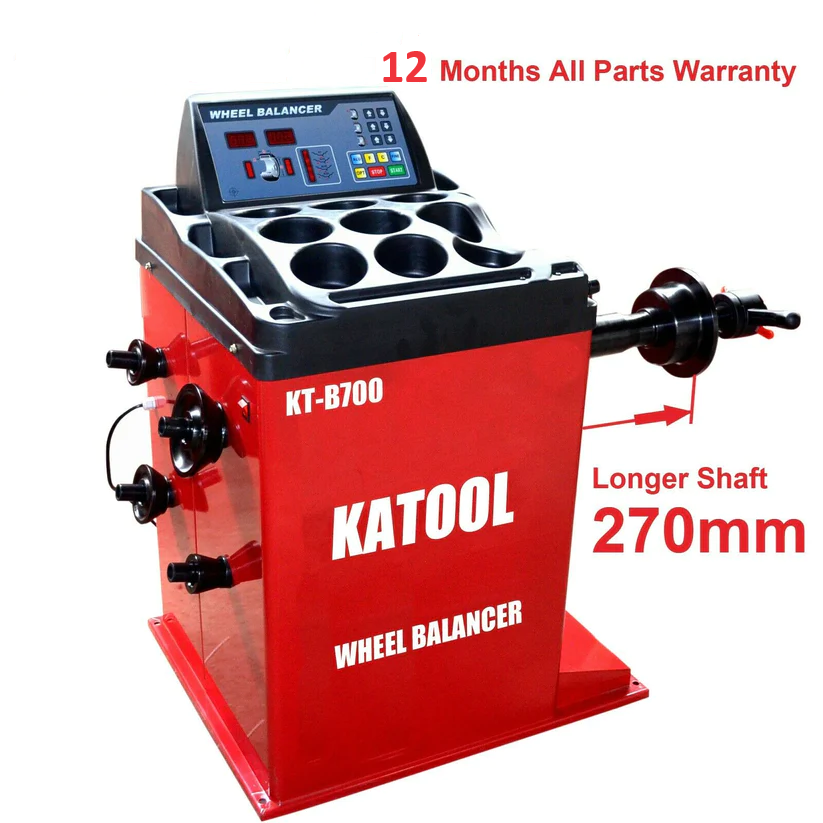

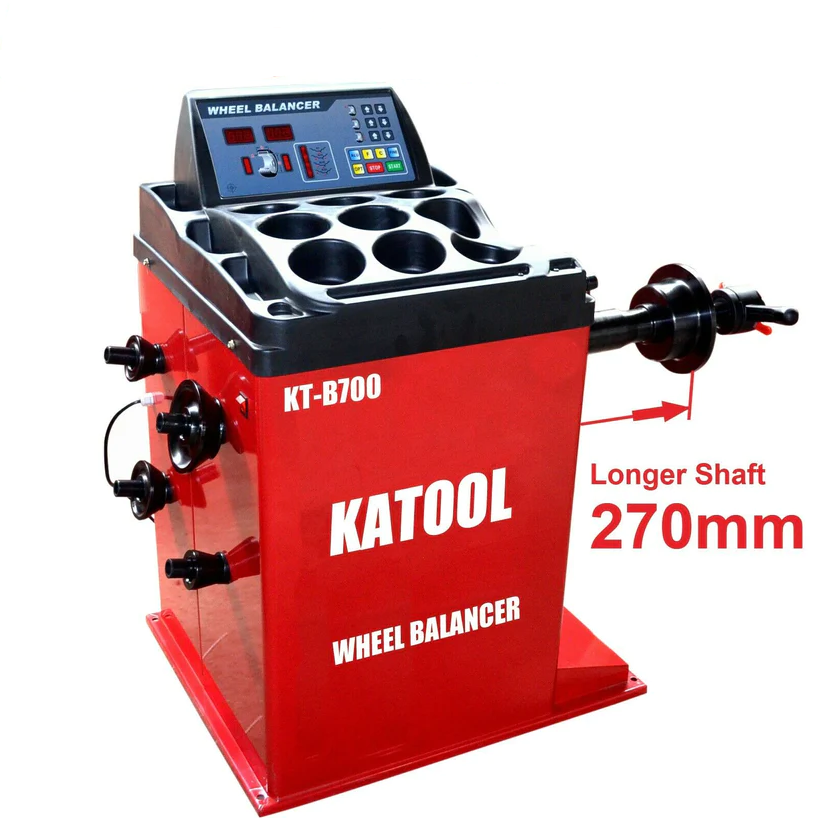

  • Katool wheel balancer with 270 mm shaft length and 36 mm spindle diameter

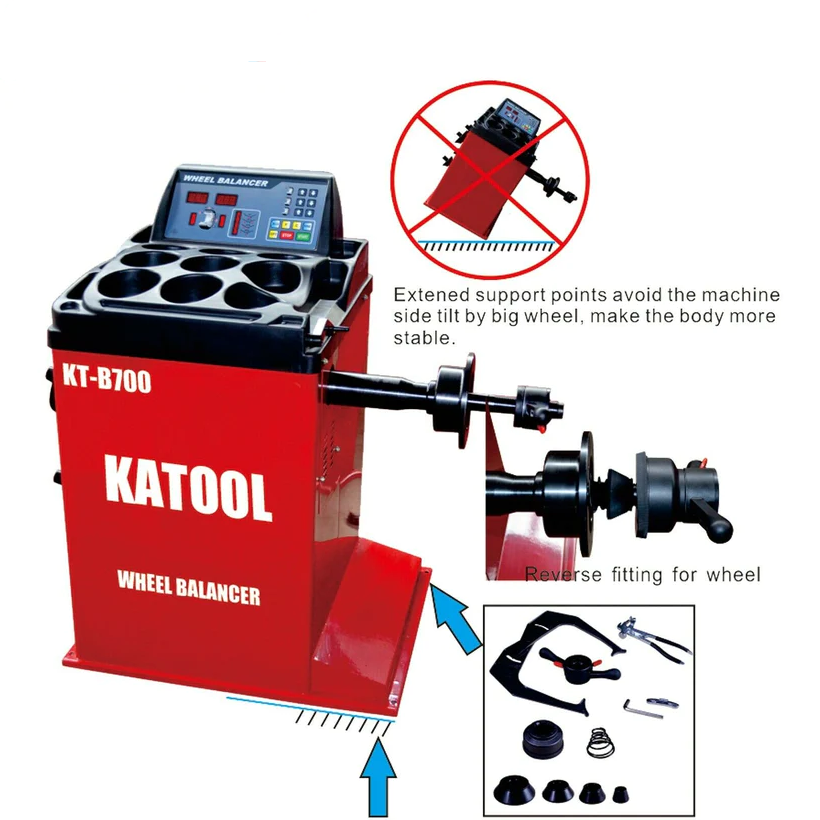

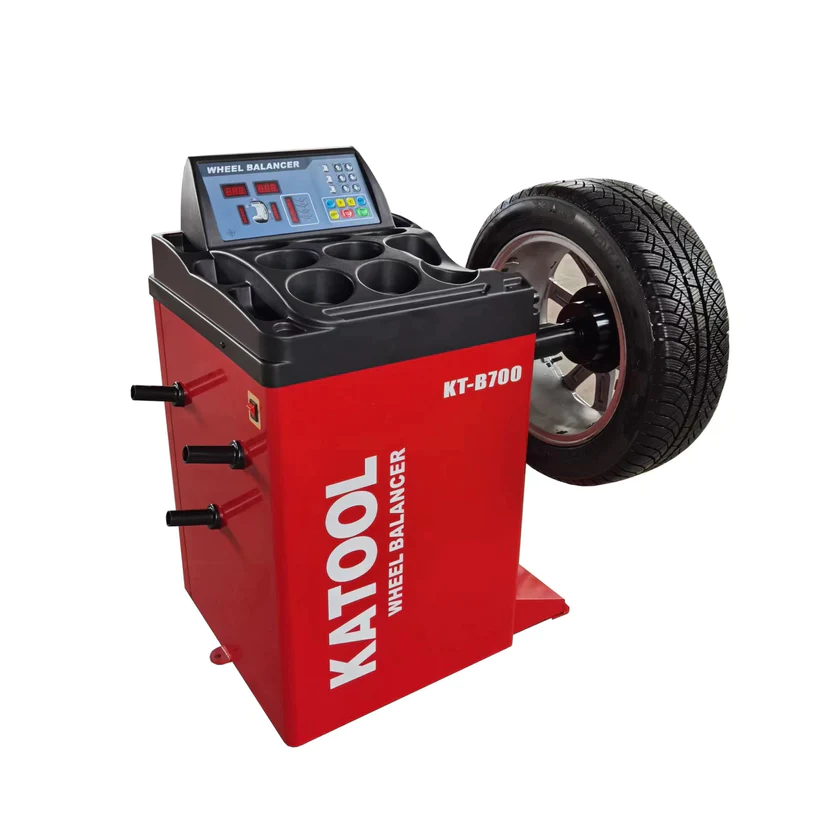

  • Katool wheel balancer with extended support points and mounted wheel assembly

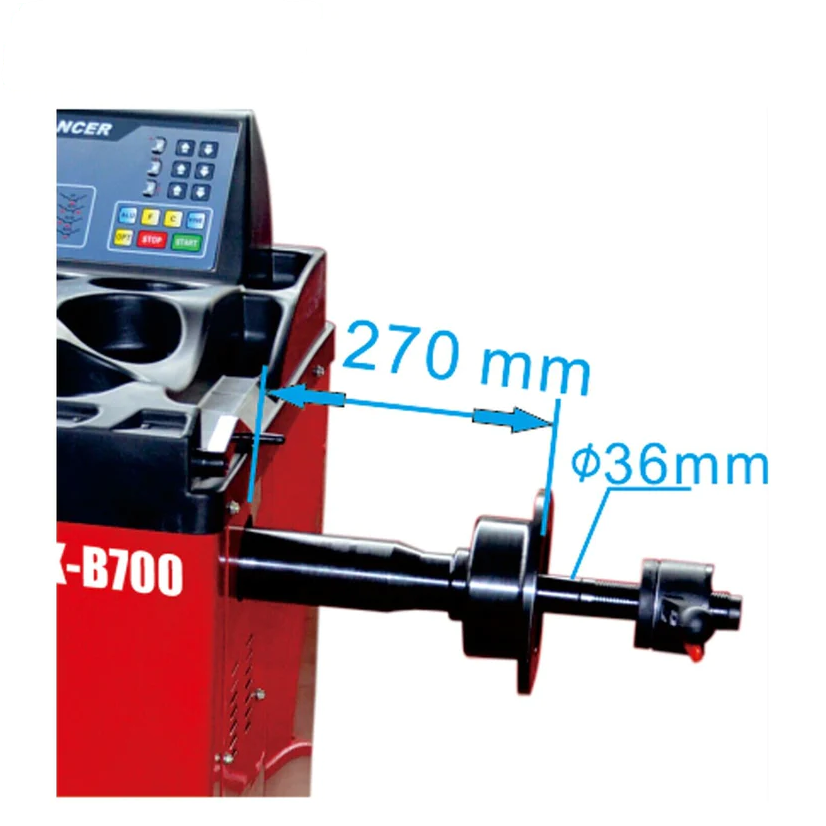

  • Katool wheel balancer spindle with 270 mm length and 36 mm diameter

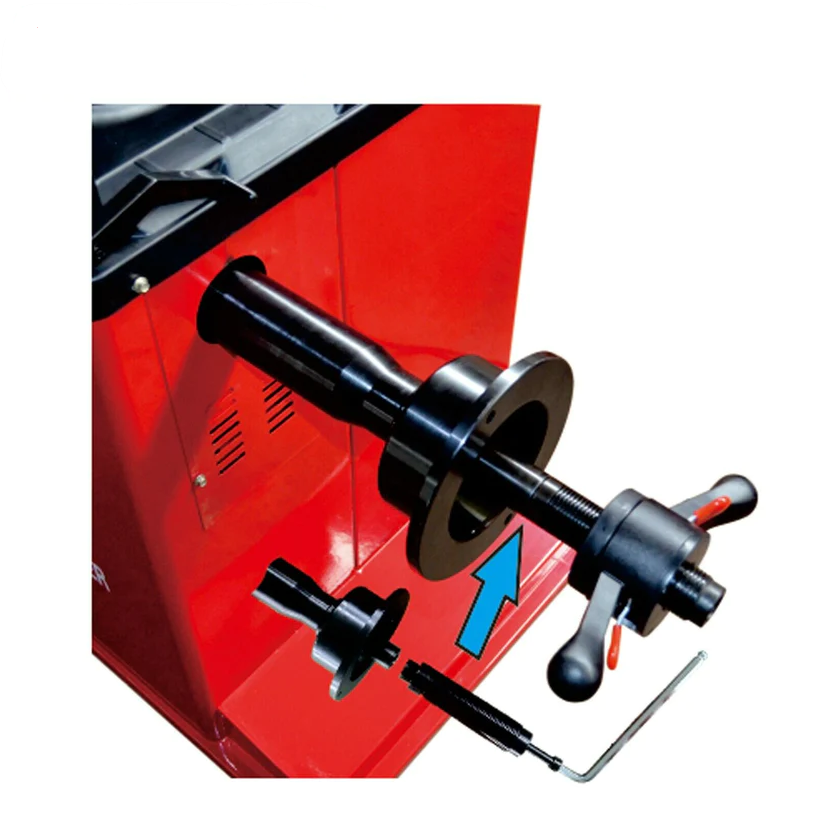

  • Katool wheel balancer shaft assembly with black cones and mounting tool

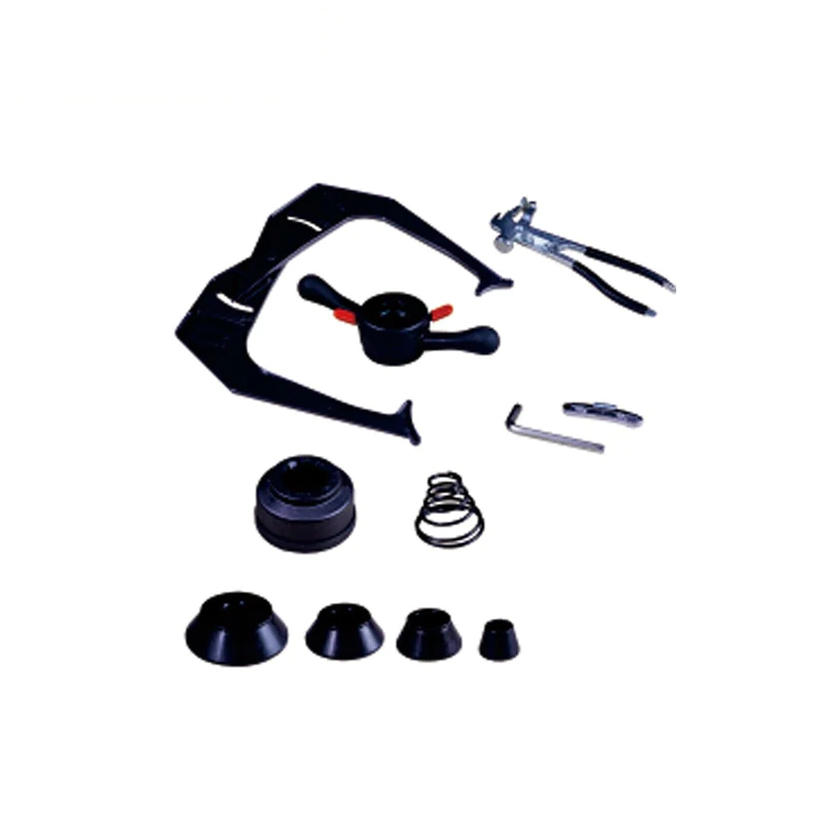

  • Katool wheel balancer accessory kit with cones, caps, springs, and handle

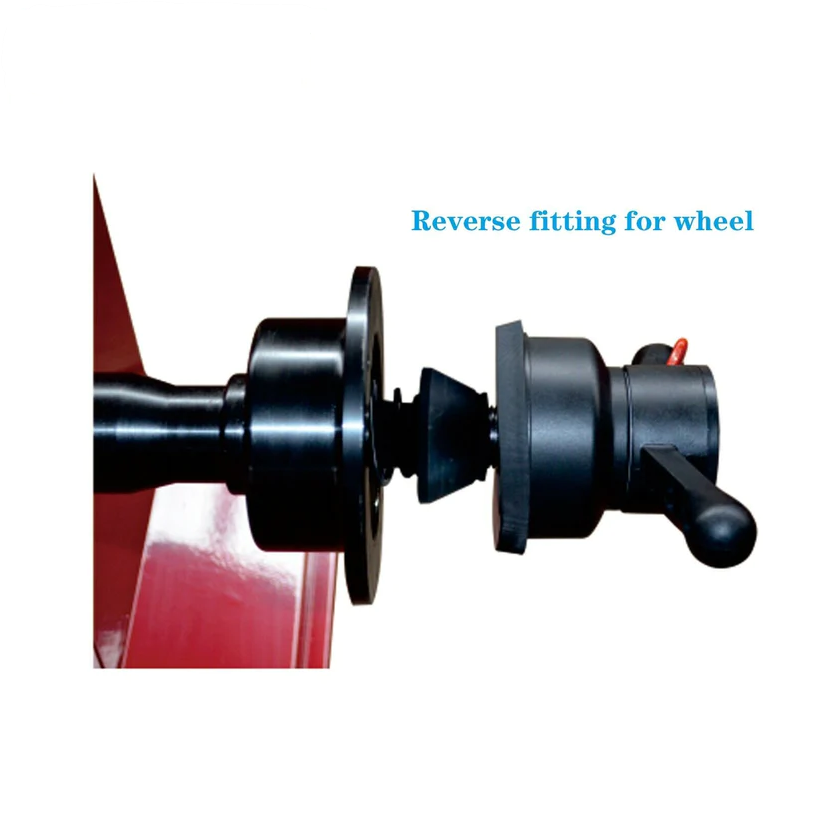

  • Katool wheel balancer reverse fitting wheel hub with spacer and cone

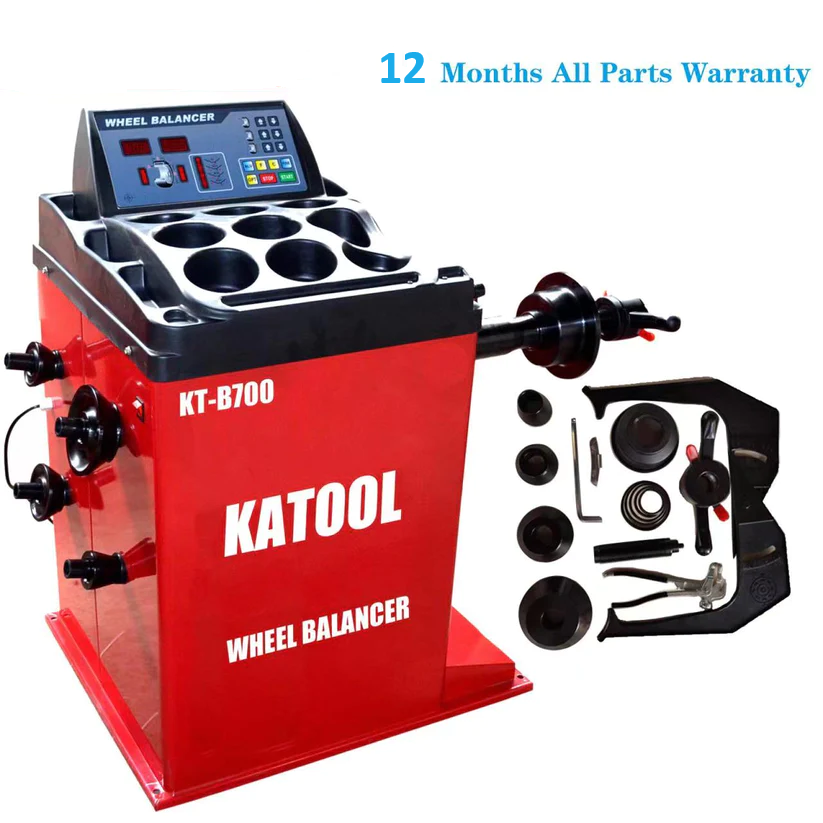

  • Katool wheel balancer with control panel and accessories kit

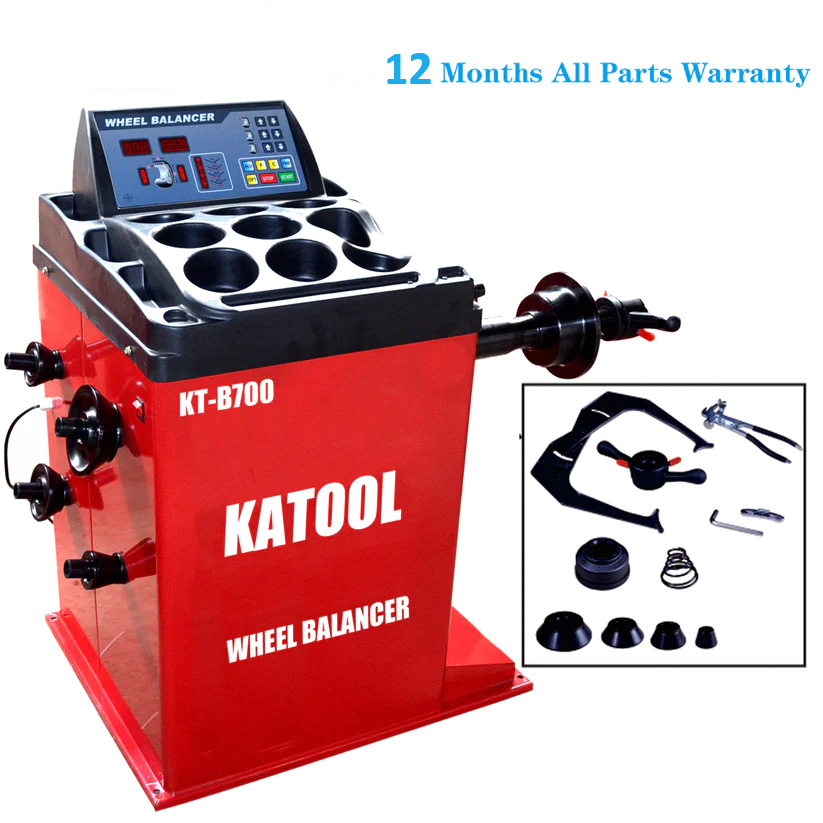

  • Katool wheel balancer machine with red housing, control panel, and rim cup set

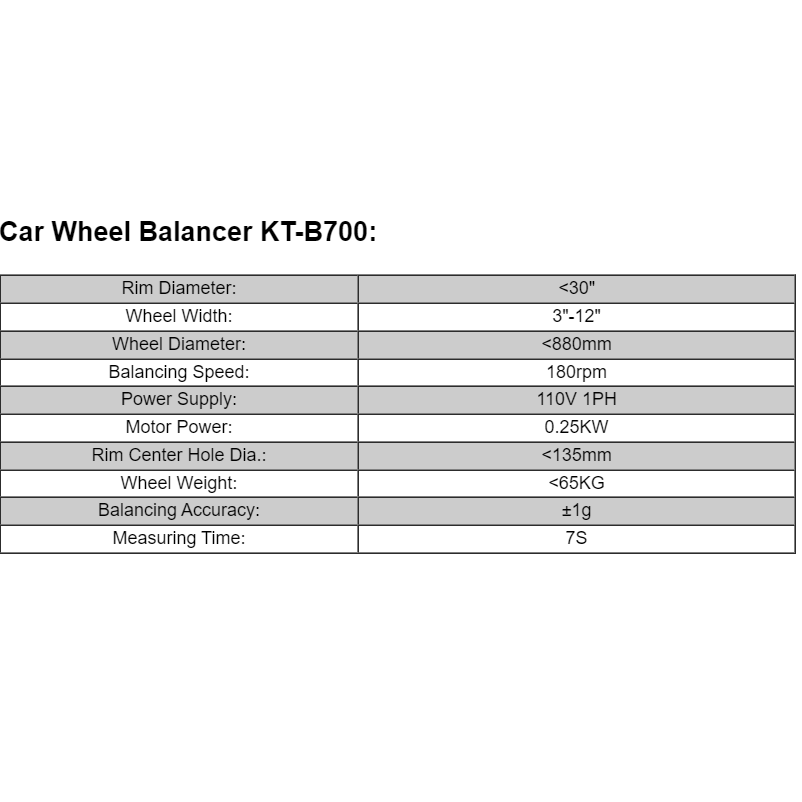

  • Wheel balancer specifications table with rim diameter, wheel width, speed, and power
  • KT-B700 professional wheel balancer features graphic with balancing modes and specs
  • Katool KT-B700 wheel balancer specs and balancing modes list with speeds and weights
Katool B700 Wheel Balancer - Professional Tire Balancing Machine - Precision Sensor

Katool B700 Wheel Balancer - Professional Tire Balancing Machine - Precision Sensor

$1,059.00 $1,499.00

Shop Pay Installments

Split your purchase into flexible installment payments with Shop Pay. Pay over time with no hidden fees.

How it works:

  • Choose Shop Pay at checkout
  • Select your preferred payment plan
  • Make your first payment today
  • Pay the rest over time with automatic payments

No interest. No hidden fees. Just flexible payments that work for you.

🚚 Delivery option includes free freight to the lower 48 states.

Delivery Options
⚠️ Warehouse Pickup – Please Contact Us First. Due to varying inventory across our warehouse locations, please contact us before placing your order to confirm stock availability at your preferred location.
Contact Us to Check Availability

🇺🇸 US-Based Business: Unlike big out-of-state sellers, we offer specialized support and $0 Sales Tax outside Illinois.

💰
Tax-Free Outside IL
🚚
Free Freight Lower 48 States
🛡️
1-Yr Warranty Full Parts Support
✅
CE Approved International Quality
📍
Local Pickup Nationwide Save up to $1,400 in freight costs
Learn More >
Warranty

Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge. A 2-year extended warranty plan is available.

Warranty Conditions:

  • Non-transferable — requires original order number
  • Replacement parts at no cost including free shipping
  • Labor not included
  • Do not disassemble before issue is determined
Shipping

Free freight shipping to the contiguous 48 US states. Estimated delivery: 6–10 business days. Curbside delivery only — forklift or pallet jack required. Carrier will call 24–48 hrs before delivery. View full Shipping & Delivery details →

⚠️ Safety Warning

WARNING: Always disconnect power before maintenance. Do not exceed 143 lbs (65 kg) wheel weight capacity.

The Katool B700 combines advanced sensor technology with pure copper motor windings and a hardened 36mm shaft for professional-grade precision tire balancing. Six balancing modes (STD, STA, ALU1, ALU2, ALU3, ALS) with no preset parameters required give operators complete control over any rim type. The 7-second cycle time, moisture-resistant dustproof housing, and 120V operation make it the ideal professional wheel balancer for high-volume shops.

• Advanced integrated pressure sensor for consistent accuracy
• Pure copper motor windings for superior power and longer life
• Hardened 36mm shaft for demanding use
• Moisture-resistant, dustproof, and anti-static housing
• 6 balancing modes: STD, STA, ALU1, ALU2, ALU3, ALS
• No preset parameters required — full operator control
• 7-second cycle time
• Robust 3mm steel body with reinforced welding
• Built-in fault diagnostics and dual-side self-calibration
• Unit selection: Ounce/Gram, MM/Inch

KT-B700 KT-B750 KT-B760 KT-B795L
Max Capacity 143 lbs 143 lbs 143 lbs 330 lbs
Rim Diameter <30" 10"–28" <30" 13"–24"
Cycle Time 7 sec 7 sec 7 sec 8 sec
Balancing Modes 6 (STD/STA/ALU1-3/ALS) 5 (Static/Dynamic/ALU1-3) 5 (Static/Dynamic/ALU1-3) 5 (Static/Dynamic/ALU1-3)
Laser Guided — — — ✓
Power 120V 110V 110V 220V
Best For High-volume pro shops Pro shops & alloy wheels Entry-level shops Truck, bus & heavy duty

Max Wheel Weight: 143 lbs (65 kg)
Rim Diameter: < 30"
Wheel Width: 3"–12"
Wheel Diameter: < 880mm / 34.64"
Balancing Speed: 180 RPM
Motor Power: 0.25KW
Rim Center Hole Dia.: < 135mm / 5.31"
Balancing Accuracy: ±1 gram
Cycle Time: 7 seconds
Power: 120V Single Phase
Machine Weight: 211 lbs

The Katool B700 Professional Wheel Balancer delivers precision tire balancing with advanced sensor technology, pure copper motor windings, and a hardened 36mm shaft built for demanding shop use. Six balancing modes (STD, STA, ALU1, ALU2, ALU3, ALS) with no preset parameters required give operators complete control over any rim type. The 7-second cycle time, moisture-resistant dustproof housing, and 120V operation make the B700 the professional choice for high-volume auto shops and service centers.

Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge. A 2-year extended warranty plan is available.

Warranty Conditions:

  • Non-transferable — requires original order number
  • Replacement parts at no cost including free shipping
  • Labor not included
  • Do not disassemble before issue is determined
  • Professional Auto Shops: Advanced sensor technology for consistent accuracy
  • High-Volume Service Centers: 7-second cycle time maximizes throughput
  • Alloy Wheel Service: ALU1, ALU2, ALU3 mode protects alloy wheels during balancing
  • Demanding Environments: Moisture-resistant dust-proof housing built for shop conditions

All Katool equipment is manufactured to international quality standards.

  • Quality Control — Each unit undergoes pre-shipment inspection
  • US-Based Support — Technical support provided from the United States
  • Warranty — 1-year limited manufacturer warranty included

Freight shipping included to the lower 48 states. Five delivery options available:

• Warehouse Pickup — Pick up directly from our US warehouse, no freight cost
• Commercial Delivery with Forklift — Direct delivery to commercial address with forklift
• Commercial Delivery without Forklift — Delivery to commercial address, liftgate service included
• Residential Delivery with Forklift — Direct delivery to residential address with forklift
• Residential Delivery without Forklift — Delivery to residential address, liftgate service included

Contact us to confirm your preferred delivery option before ordering.

Package Size

L x W x H (in) 40 x 30 x 35
Weight (lbs) 231

Product Manual

Download the complete product manual and installation guide.
Download Manual

Complete Your Shop Setup

Everything a professional tire shop needs
Tire Service Packages Collection Banner

Tire Service Packages

2-Post Lifts Category Image

2-Post Lift

4-Post Lifts Category Image

4-Post Lifts

Tire Changer

Tire Changer

Wheel Balancer

Wheel Balancer

Shop Accessories Collection Banner

Shop Accessories

Frequently Asked Questions

  • The B700 supports passenger car and light truck wheels with rim diameter up to 30", wheel width 3"–12", and wheel weight up to 143 lbs (65 kg).
  • The B700 features 6 balancing modes: STD (standard dynamic), STA (static), ALU1, ALU2, ALU3 (alloy wheel modes), and ALS (advanced alloy mode). No preset parameters required.
  • Yes. Initial calibration is required before first use. A step-by-step calibration guide is included in the installation manual. Our technical support team can assist remotely if needed.
  • The B700 requires a standard 120V single-phase power supply. No compressed air required.
  • Ships via freight carrier to the lower 48 states. Freight cost is included in the price. Five delivery options are available including warehouse pickup, commercial, and residential delivery.
  • Yes. We offer Shop Pay Installments, allowing you to split your purchase into 4 interest-free payments on qualifying orders.
  • We provide US-based technical support via email and phone for calibration, troubleshooting, and parts replacement throughout your warranty period.
  • Returns accepted within 30 days for unused equipment in original packaging. Please contact us before returning. Return freight costs are the buyer's responsibility.
