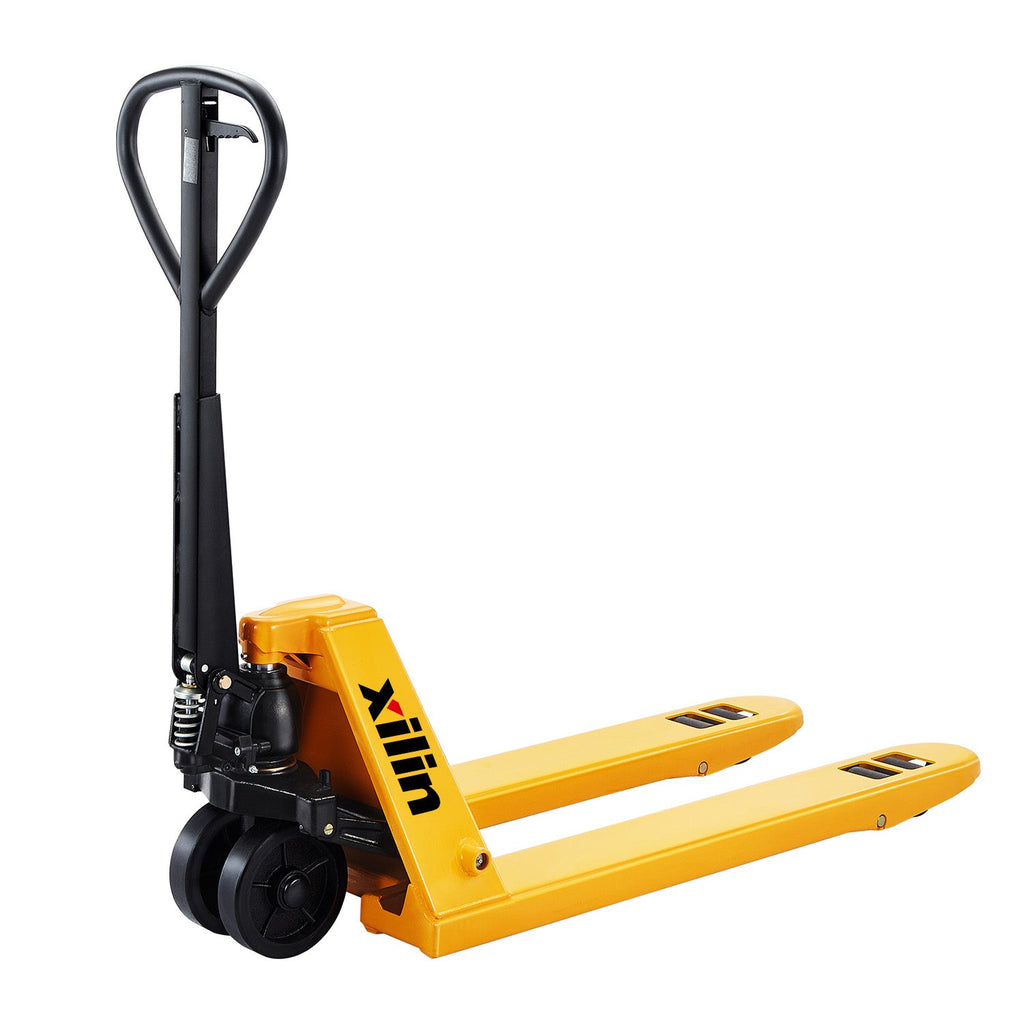

Manual pallet jack with yellow forks and black handle, two large steering wheels

Xilin WB Manual Pallet Jack – 11000lb

$799.00
Skip to product information
Manual pallet jack with yellow forks and black handle, two large steering wheels
1/4
  • Manual pallet jack with yellow forks and black handle, two large steering wheels

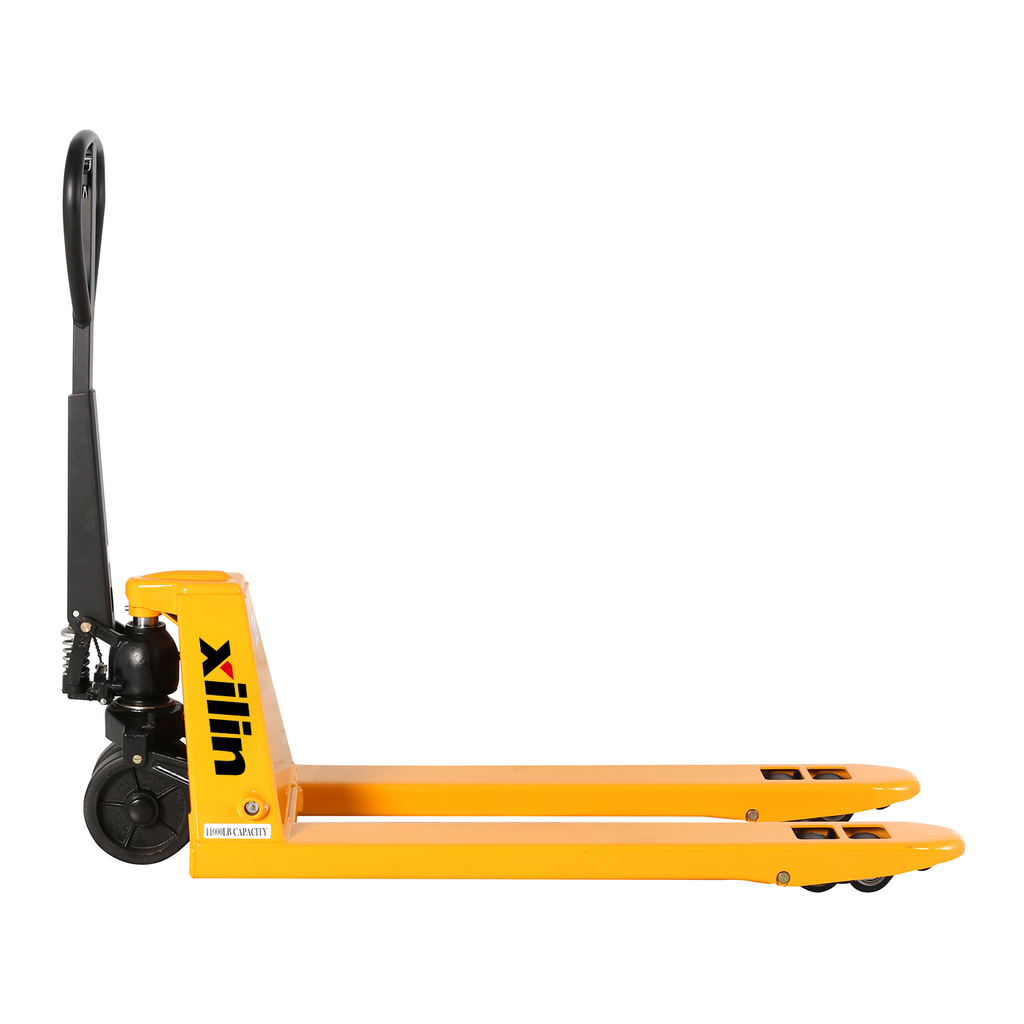

  • Xilin WB 11000 lb manual pallet jack product view

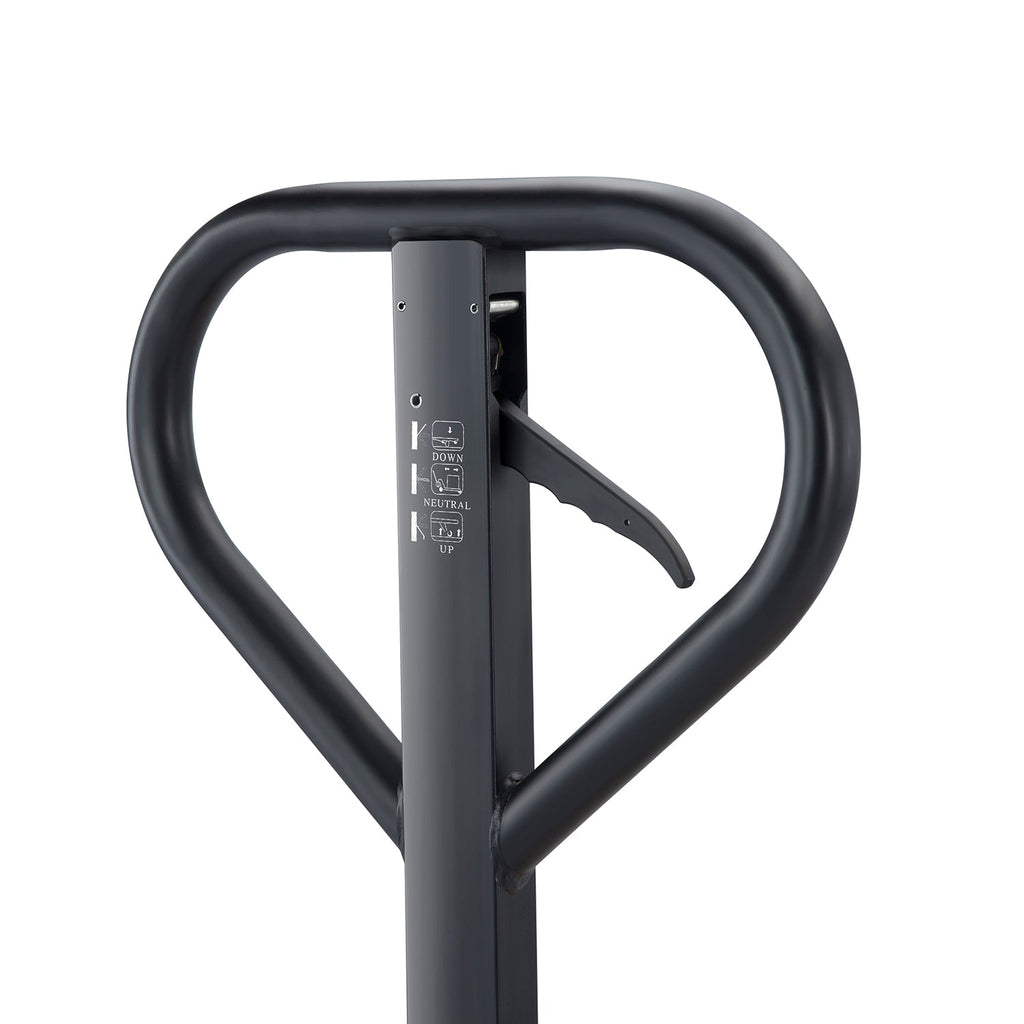

  • Manual pallet jack handle with lift lever and control label, black

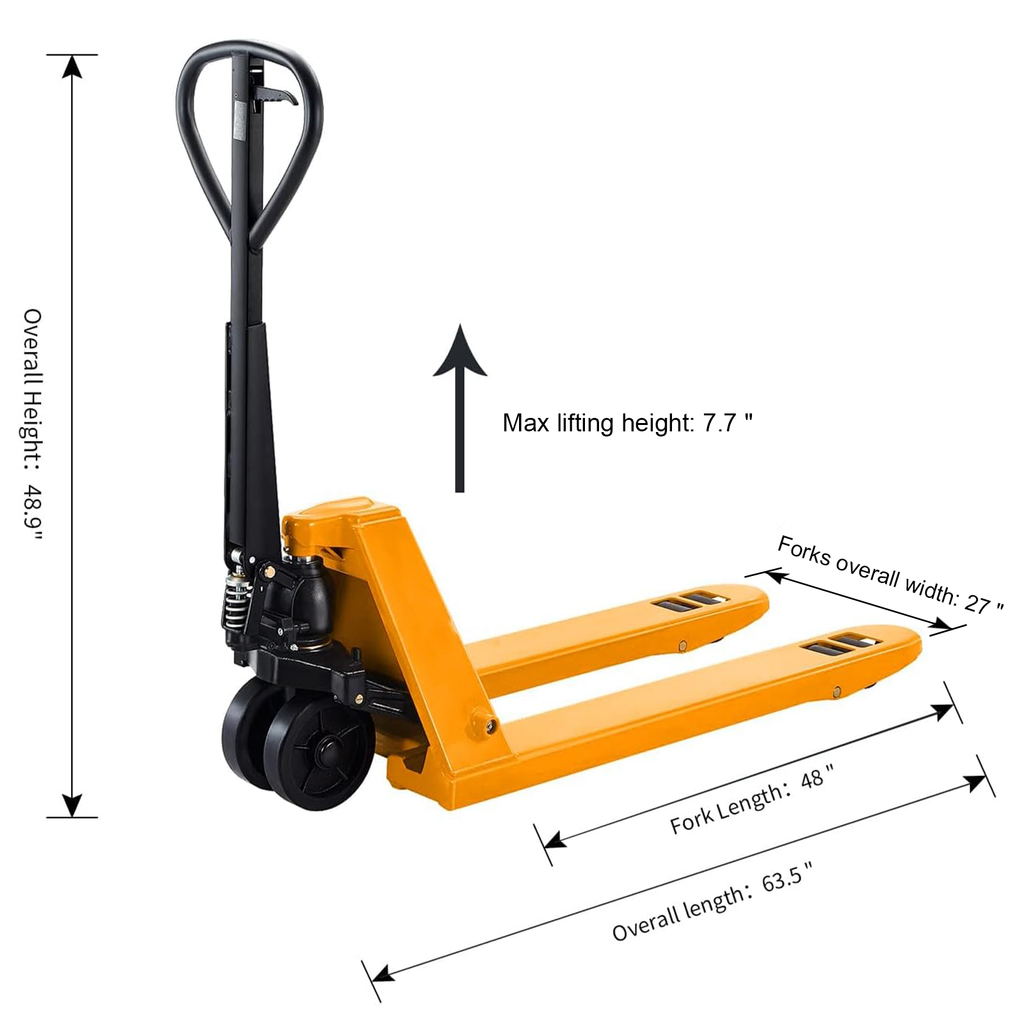

  • Orange manual pallet jack with forks and wheels, shown with lifting and length dimensions
Xilin WB Manual Pallet Jack – 11000lb

Xilin WB Manual Pallet Jack – 11000lb

$799.00

Shop Pay Installments

Split your purchase into flexible installment payments with Shop Pay. Pay over time with no hidden fees.

How it works:

  • Choose Shop Pay at checkout
  • Select your preferred payment plan
  • Make your first payment today
  • Pay the rest over time with automatic payments

No interest. No hidden fees. Just flexible payments that work for you.

🚚 Shipping availability and rates vary by product, delivery option, and destination.

Carrier Terminal Pickup: Bring a suitable vehicle or trailer. The terminal will load the shipment, but the customer is responsible for unloading at the final destination.
⚠️ Warehouse Pickup – Please Contact Us First. Due to varying inventory across our warehouse locations, please contact us before placing your order to confirm stock availability at your preferred location.
Contact Us to Check Availability

🇺🇸 US-Based Business: We offer specialized support and flexible shipping and delivery options.

🏭
Expert SupportUS-Based Team
🚚
Shipping OptionsVary by Product & Destination
🛡️
1-Yr WarrantyFull Parts Support
🔬
Safety TestedLoad & Function Tested
📍
Pickup Options May Be AvailableContact us to confirm location & availability
Learn More >
Warranty

One-year limited manufacturer warranty against manufacturing defects. Normal wear, misuse, improper maintenance, and freight damage are excluded. Contact ALLIZOE before arranging warranty service.
Shipping

Free freight shipping to the contiguous 48 US states. Estimated delivery: 6–10 business days. Curbside delivery only — forklift or pallet jack required. Carrier will call 24–48 hrs before delivery. View full Shipping & Delivery details →

⚠️ Safety Warning

Use only on firm, level surfaces. Never exceed the rated 11,000 lb capacity. Verify the pallet and floor can safely support the load, center the load across both forks, keep hands and feet clear, and inspect the frame, forks, wheels, handle, and hydraulics before operation.

Choose the WB when a standard 5,500–6,600 lb pallet jack does not provide enough capacity and you need an 11,000 lb-rated manual unit with familiar hydraulic controls.

Integrated one-piece hydraulic pump minimizes potential leak points

Reinforced load-bearing frame for high-capacity handling

Pre-drilled handle base supports quick control-chain installation

Hand-controlled smooth lowering

Built-in overload valve protects the hydraulic system

Load capacity: 11,000 lb

Turning radius: 53.9 in

Minimum aisle width: 71.4 in

Fork size: 48 in L × 27 in W

Single fork width: 6.3 in; inside fork width: 14.4 in

Fork thickness: 2.1 in

Lowered fork height: 3.1 in; maximum lift height: 7.7 in; lift travel: 4.6 in

Overall dimensions: 63.5 in L × 27 in W × 48.9 in H

The Xilin WB is a heavy-duty manual pallet jack rated for loads up to 11,000 lb. Its integrated hydraulic pump, reinforced frame, 48 × 27 inch fork set, and controlled lowering system are designed for demanding warehouse, dock, and industrial handling.

One-year limited manufacturer warranty against manufacturing defects. Normal wear, misuse, improper maintenance, and freight damage are excluded. Contact ALLIZOE before arranging warranty service.

Warehouses, loading docks, manufacturing facilities, distribution centers, and industrial operations that need unusually high manual pallet-jack capacity.

Product price and freight are separate. Freight is quoted based on the delivery ZIP code, destination type, and required delivery service. Commercial delivery, residential delivery, liftgate service, limited-access delivery, and pickup at a carrier terminal may have different costs. Inventory and freight must be confirmed before shipment.

Key Benefits

11,000 lb Capacity

Designed for heavy pallet loads in warehouses, docks, and industrial environments.

48 × 27 in Forks

Common fork size for standard pallet handling applications.

Controlled Lowering

Helps operators lower pallets smoothly and position loads with better control.

Durable Workhorse

A simple manual pallet jack choice for demanding daily material-handling use.

Product Highlights

Heavy-Duty Integrated Pump

Heavy-Duty Integrated Pump

Integrated hydraulic pump supports dependable lifting for heavy warehouse pallet handling.

Reinforced Frame Construction

Reinforced Frame Construction

Built for high-capacity applications with an 11,000 lb rated load capacity.

Controlled Lowering

Controlled Lowering

The handle and hydraulic system allow controlled lowering for safer pallet positioning.

Fork Dimensions Shown

Fork Dimensions Shown

The product drawing shows key fork and truck dimensions for fit planning before purchase.

Complete Your Shop Setup

Everything a professional tire shop needs
Tire Service Packages Collection Banner

Tire Service Packages

2-Post Lifts Category Image

2-Post Lift

4-Post Lifts Category Image

4-Post Lifts

Tire Changer

Tire Changer

Wheel Balancer

Wheel Balancer

Shop Accessories Collection Banner

Shop Accessories

Frequently Asked Questions

  • 11,000 lb.
  • 48 inches long by 27 inches wide.
  • No. This is a manual hydraulic pallet jack.
  • 7.7 inches.
  • No. Freight is quoted separately based on delivery ZIP code, destination type, and required delivery service.
