Yellow hydraulic scissor lift table with raised platform and caster wheels

Xilin SPS800 Lift Table – 1760lb, 59in Max Height

$899.00
Skip to product information
Yellow hydraulic scissor lift table with raised platform and caster wheels
1/6

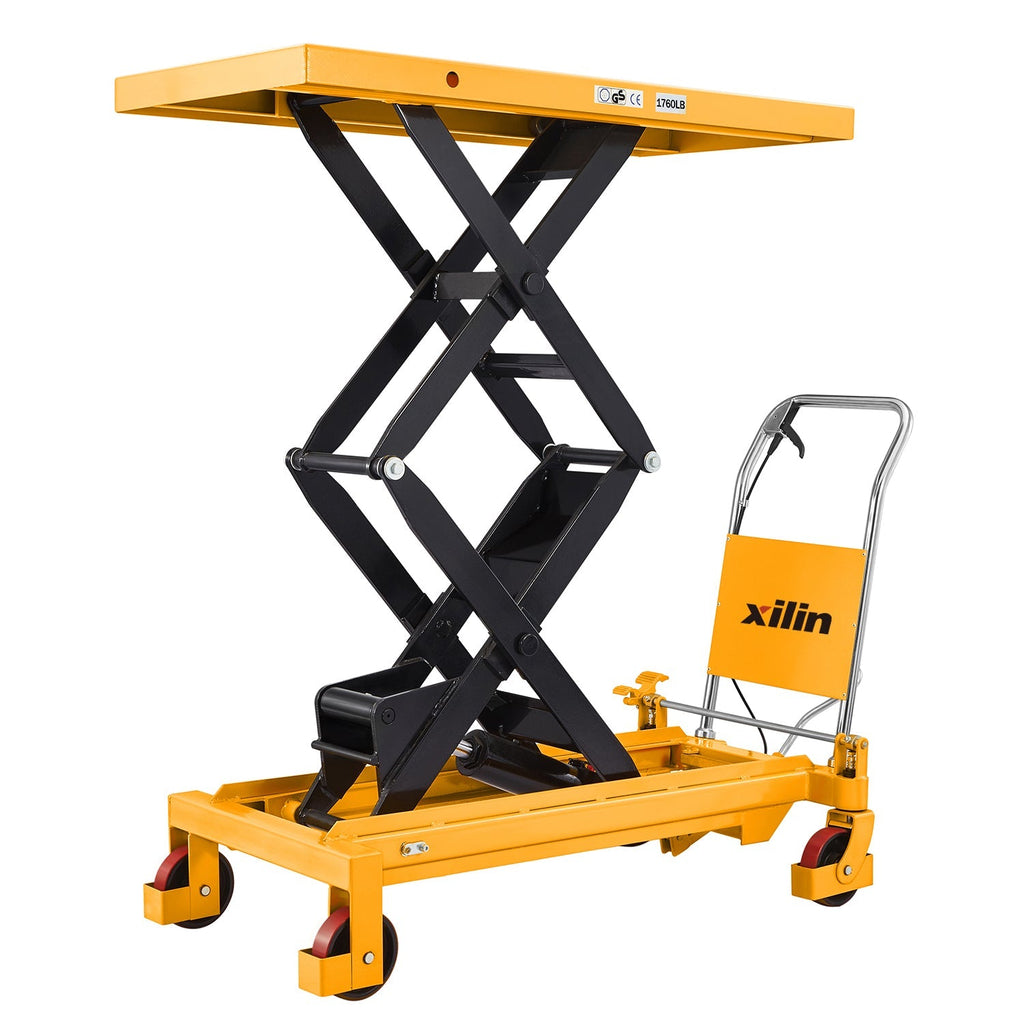

  • Yellow hydraulic scissor lift table with raised platform and caster wheels
  • Xilin lift table with orange scissor lift base, stainless handle, four caster wheels
  • Orange scissor lift table with raised platform, dark support arms, stainless handle

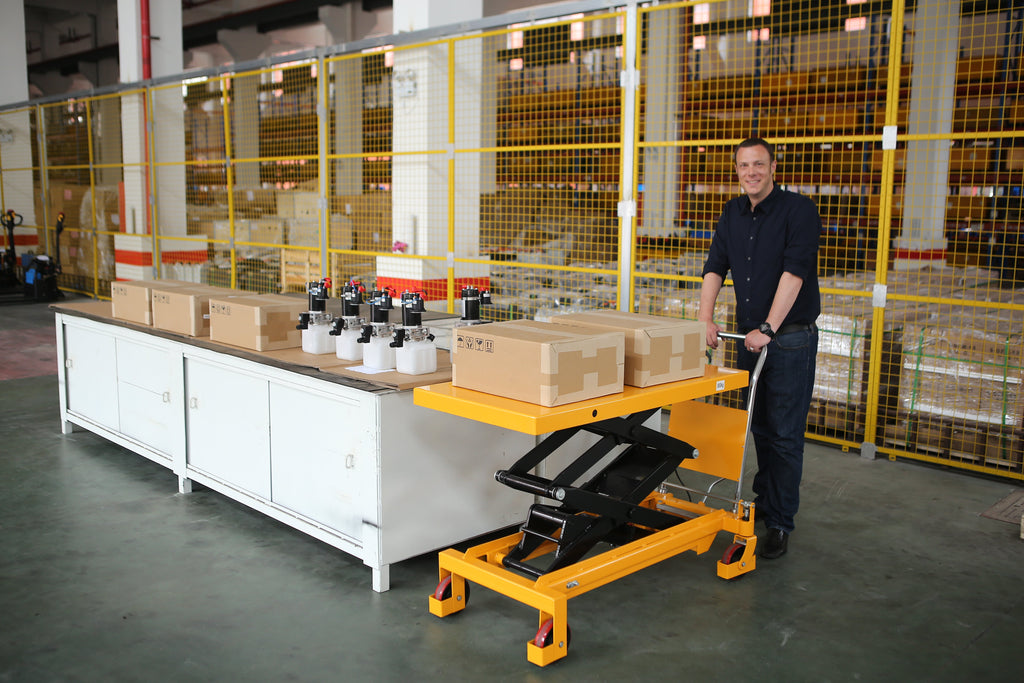

  • Orange lift table with raised platform and scissor legs, handle and caster wheels

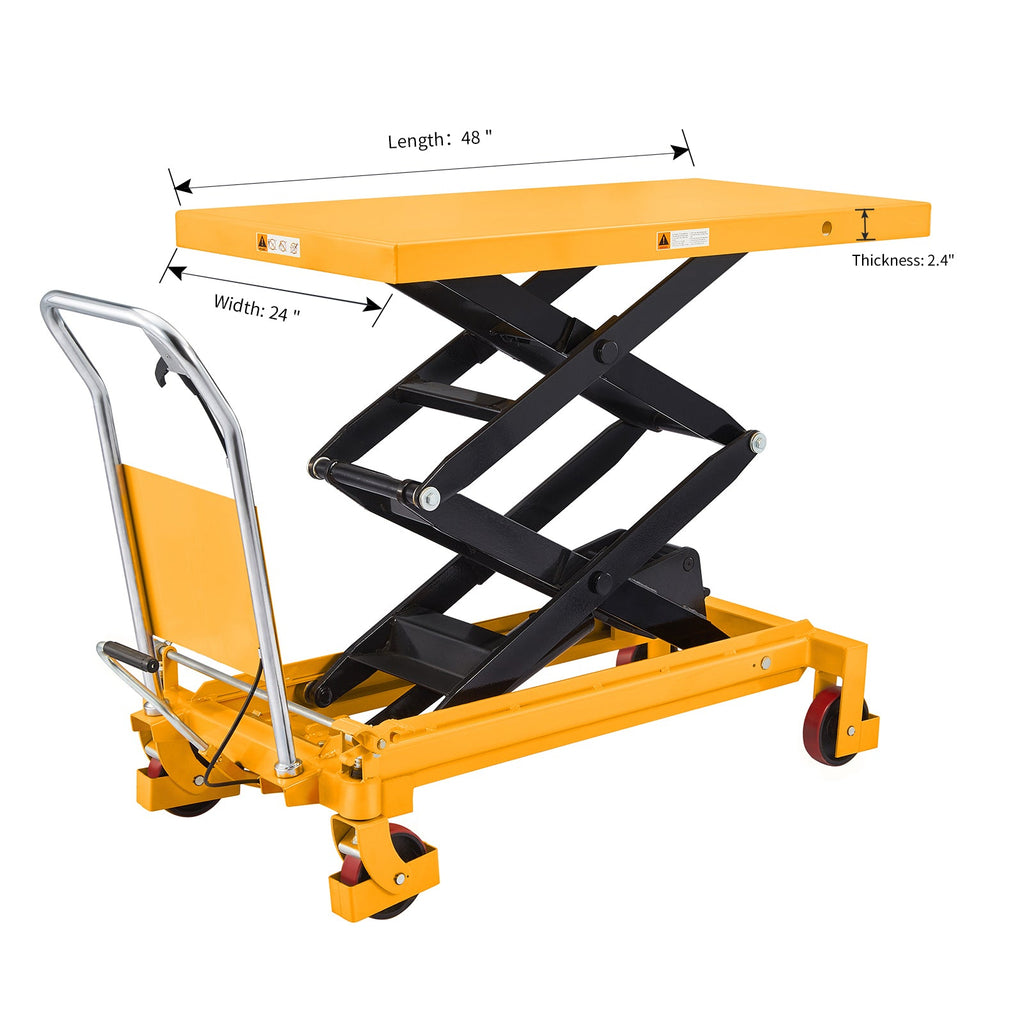

  • Orange lift table with 48 in length, 24 in width, 2.4 in thick platform

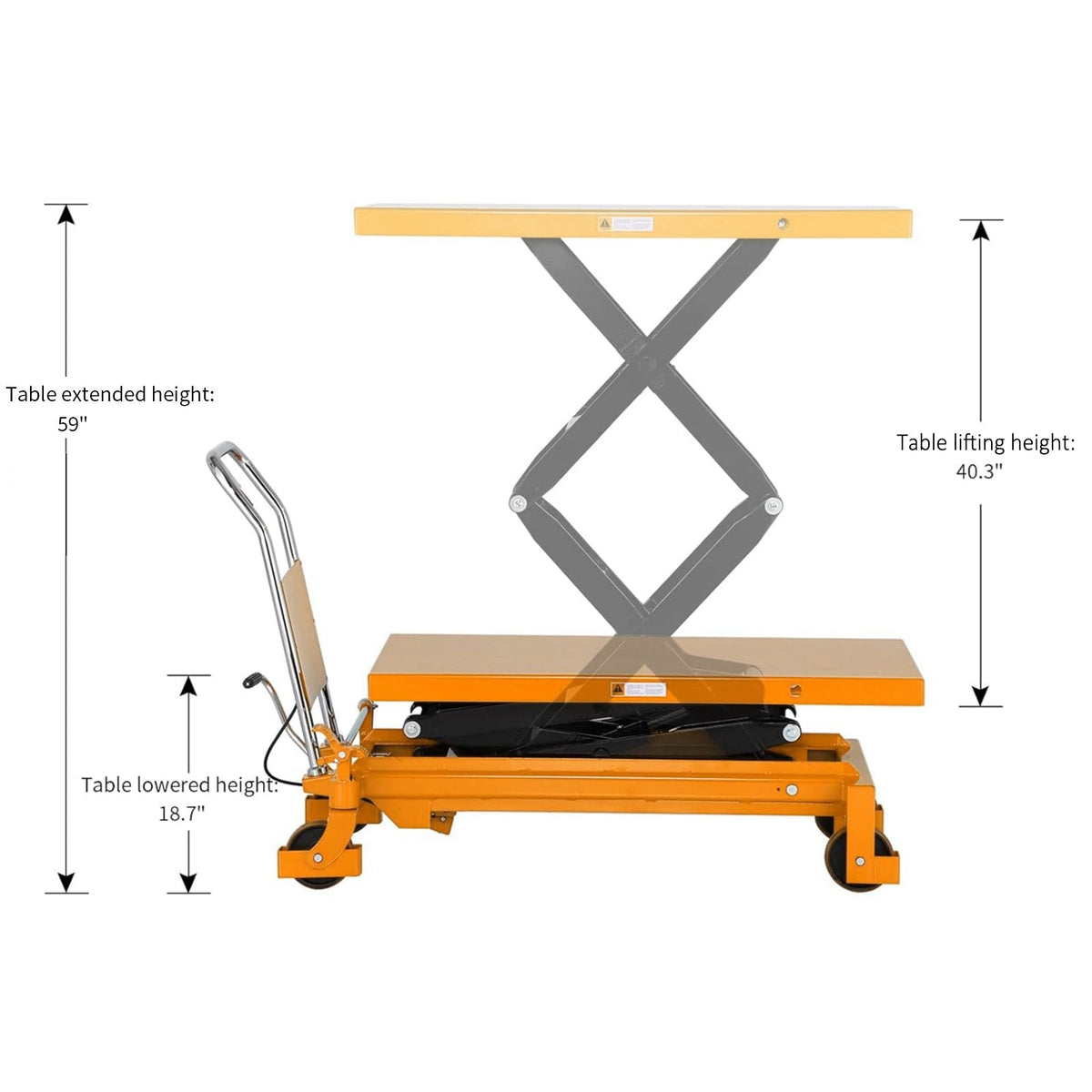

  • Lift table height diagram: 59 in extended, 40.3 in lifting, 18.7 in lowered
Xilin SPS800 Lift Table – 1760lb, 59in Max Height

Xilin SPS800 Lift Table – 1760lb, 59in Max Height

$899.00

Shop Pay Installments

Split your purchase into flexible installment payments with Shop Pay. Pay over time with no hidden fees.

How it works:

  • Choose Shop Pay at checkout
  • Select your preferred payment plan
  • Make your first payment today
  • Pay the rest over time with automatic payments

No interest. No hidden fees. Just flexible payments that work for you.

🚚 Shipping availability and rates vary by product, delivery option, and destination.

Carrier Terminal Pickup: Bring a suitable vehicle or trailer. The terminal will load the shipment, but the customer is responsible for unloading at the final destination.
⚠️ Warehouse Pickup – Please Contact Us First. Due to varying inventory across our warehouse locations, please contact us before placing your order to confirm stock availability at your preferred location.
Contact Us to Check Availability

🇺🇸 US-Based Business: We offer specialized support and flexible shipping and delivery options.

🏭
Expert SupportUS-Based Team
🚚
Shipping OptionsVary by Product & Destination
🛡️
1-Yr WarrantyFull Parts Support
🔬
Safety TestedLoad & Function Tested
📍
Pickup Options May Be AvailableContact us to confirm location & availability
Learn More >
Warranty

One-year limited manufacturer warranty against manufacturing defects. Normal wear, misuse, improper maintenance, and freight damage are excluded. Contact ALLIZOE before arranging warranty service.
Shipping

Free freight shipping to the contiguous 48 US states. Estimated delivery: 6–10 business days. Curbside delivery only — forklift or pallet jack required. Carrier will call 24–48 hrs before delivery. View full Shipping & Delivery details →

⚠️ Safety Warning

Use only on a firm, level floor. Do not exceed 1,760 lb. Center and secure the load, engage the wheel brakes before lifting, never move the table while elevated, keep hands and feet clear of the scissor mechanism, and never allow people on or beneath the platform.

Choose the SPS800 when you need both 1,760 lb load capacity and exceptional reach: a 59 in maximum platform height with 40.4 in of double-scissor travel.

Heavy-duty double-scissor mechanism provides 40.4 in of vertical travel.

Foot-operated hydraulic system supports controlled manual lifting.

Manual push design with heavy-duty casters supports positioning within the work area.

Large 48 × 24 in platform accommodates substantial loads up to 1,760 lb.

Load capacity: 1,760 lb (800 kg)

Maximum platform height: 59 in (1500 mm)

Minimum platform height: 18.7 in (475 mm)

Lift travel: 40.4 in (1025 mm)

Table size: 48 × 24 × 2.4 in (1220 × 610 × 60 mm)

Overall length: 54.1 in (1375 mm)

Handle height: 37.9 in (962 mm)

Foot-pedal cycles to maximum height: 70 or fewer

Wheel diameter: 5.9 in (150 mm)

Service weight: 379 lb (172 kg)

Package dimensions: 55.1 × 28.7 × 19.7 in

The Xilin SPS800 is a heavy-duty double-scissor hydraulic lift table rated for 1,760 lb. It raises loads to 59 in with 40.4 in of lift travel and provides a 48 × 24 in platform for high-lift ergonomic positioning in production, warehouse, and maintenance environments.

One-year limited manufacturer warranty against manufacturing defects. Normal wear, misuse, improper maintenance, and freight damage are excluded. Contact ALLIZOE before arranging warranty service.

Ideal for heavy-duty assembly, industrial maintenance, production cells, warehouses, packing areas, and high-lift ergonomic positioning.

Product price and freight are separate. Freight is quoted based on the delivery ZIP code, destination type, and required delivery service. Commercial delivery, residential delivery, liftgate service, limited-access delivery, and pickup at a carrier terminal may have different costs. Inventory and freight must be confirmed before shipment.

Key Benefits

1,760 lb Capacity

Handles heavier materials while keeping loads movable within the work area.

59 in Max Height

High lift range is useful for elevated transfer, positioning, and assembly work.

48 × 24 in Platform

Large platform supports larger parts and packages.

Manual Hydraulic Operation

Foot-pedal lift keeps the table simple to operate and maintain.

Product Highlights

High-Reach Double-Scissor Table

High-Reach Double-Scissor Table

Double-scissor design provides a 59 inch maximum height for high positioning tasks.

1,760 lb Rated Capacity

1,760 lb Rated Capacity

Heavy-duty mobile lift table for larger loads in warehouse and shop applications.

Large Platform Size

Large Platform Size

48 × 24 inch platform supports larger workpieces and palletized items.

Height Diagram Included

Height Diagram Included

Dimension diagram helps confirm the lift range and working height before purchase.

Complete Your Shop Setup

Everything a professional tire shop needs
Tire Service Packages Collection Banner

Tire Service Packages

2-Post Lifts Category Image

2-Post Lift

4-Post Lifts Category Image

4-Post Lifts

Tire Changer

Tire Changer

Wheel Balancer

Wheel Balancer

Shop Accessories Collection Banner

Shop Accessories

Frequently Asked Questions

  • The rated load capacity is 1,760 lb.
  • The platform raises to 59 in (1500 mm) and lowers to 18.7 in (475 mm).
  • The hydraulic lift is operated by a foot pedal and requires 70 pedal cycles or fewer under normal conditions.
  • No. Freight is quoted separately based on delivery ZIP code, destination type, and required delivery service.
