Xilin SP800 Lift Table – 1760lb, 39.4in Max Height

U.S.-type single-scissor frame supports loads up to 1,760 lb.

Foot-operated hydraulic system provides controlled manual lifting.

Manual push design with heavy-duty casters supports movement within the work area.

39.4 × 20.1 in platform provides useful surface area for heavy material positioning.

Load capacity: 1,760 lb (800 kg)

Maximum platform height: 39.4 in (1000 mm)

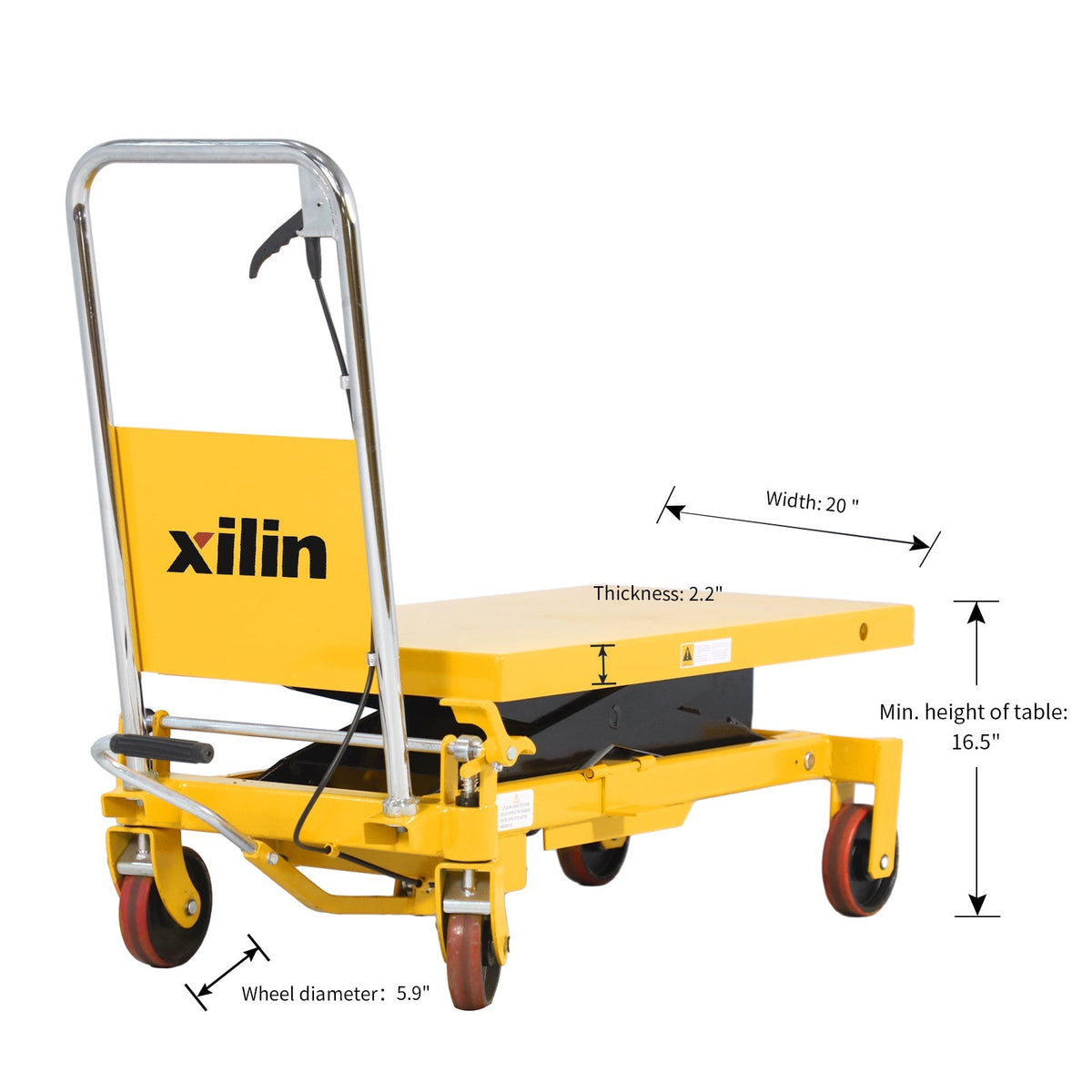

Minimum platform height: 16.5 in (420 mm)

Lift travel: 22.8 in (580 mm)

Table size: 39.4 × 20.1 × 2.2 in (1000 × 510 × 55 mm)

Overall length: 45.3 in (1150 mm)

Handle height: 39.2 in (996 mm)

Foot-pedal cycles to maximum height: 70 or fewer

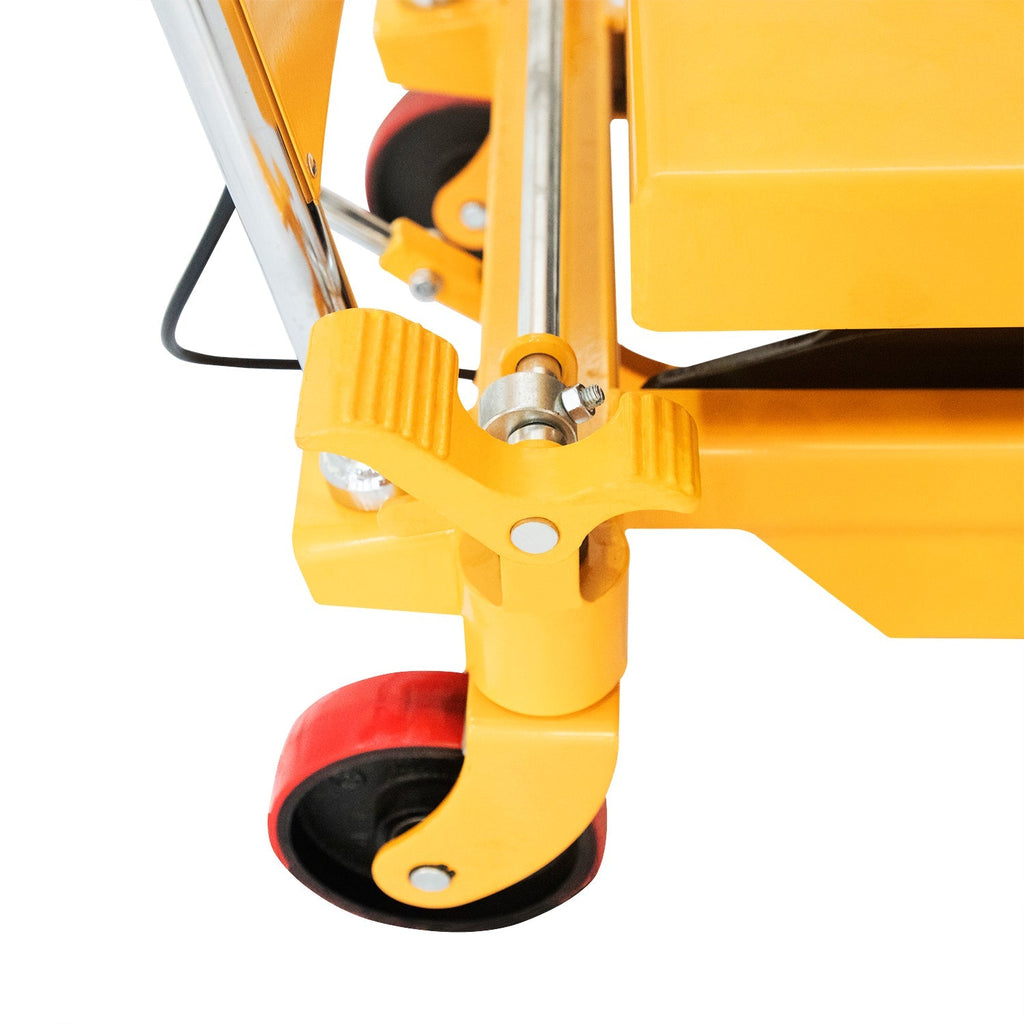

Wheel diameter: 5.9 in (150 mm)

Service weight: 271 lb (123 kg)

Package dimensions: 46.5 × 24.2 × 18.1 in

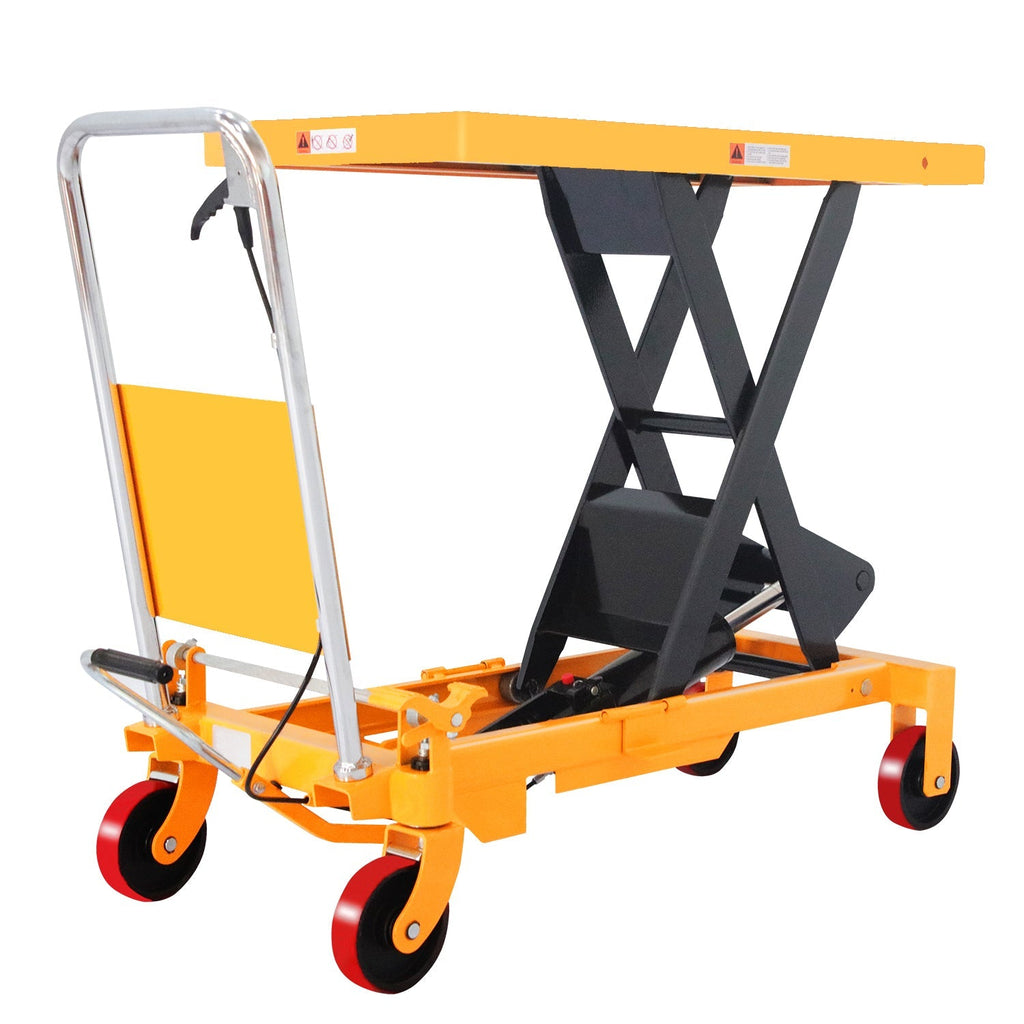

The Xilin SP800 is a U.S.-type single-scissor hydraulic lift table rated for 1,760 lb. It raises heavy loads to 39.4 in and provides a 39.4 × 20.1 in platform for ergonomic positioning in warehouses, workshops, production areas, and maintenance operations.

One-year limited manufacturer warranty against manufacturing defects. Normal wear, misuse, improper maintenance, and freight damage are excluded. Contact ALLIZOE before arranging warranty service.

Ideal for warehouses, workshops, assembly areas, maintenance facilities, production cells, and ergonomic positioning of heavy loads.

Product price and freight are separate. Freight is quoted based on the delivery ZIP code, destination type, and required delivery service. Commercial delivery, residential delivery, liftgate service, limited-access delivery, and pickup at a carrier terminal may have different costs. Inventory and freight must be confirmed before shipment.
