Xilin SDJAS1016 Straddle Manual Pallet Stacker – 2200lb, 63in Lift

$1,799.00
Skip to product information
Yellow manual pallet stacker with black forks and handle, raised platform
1/5

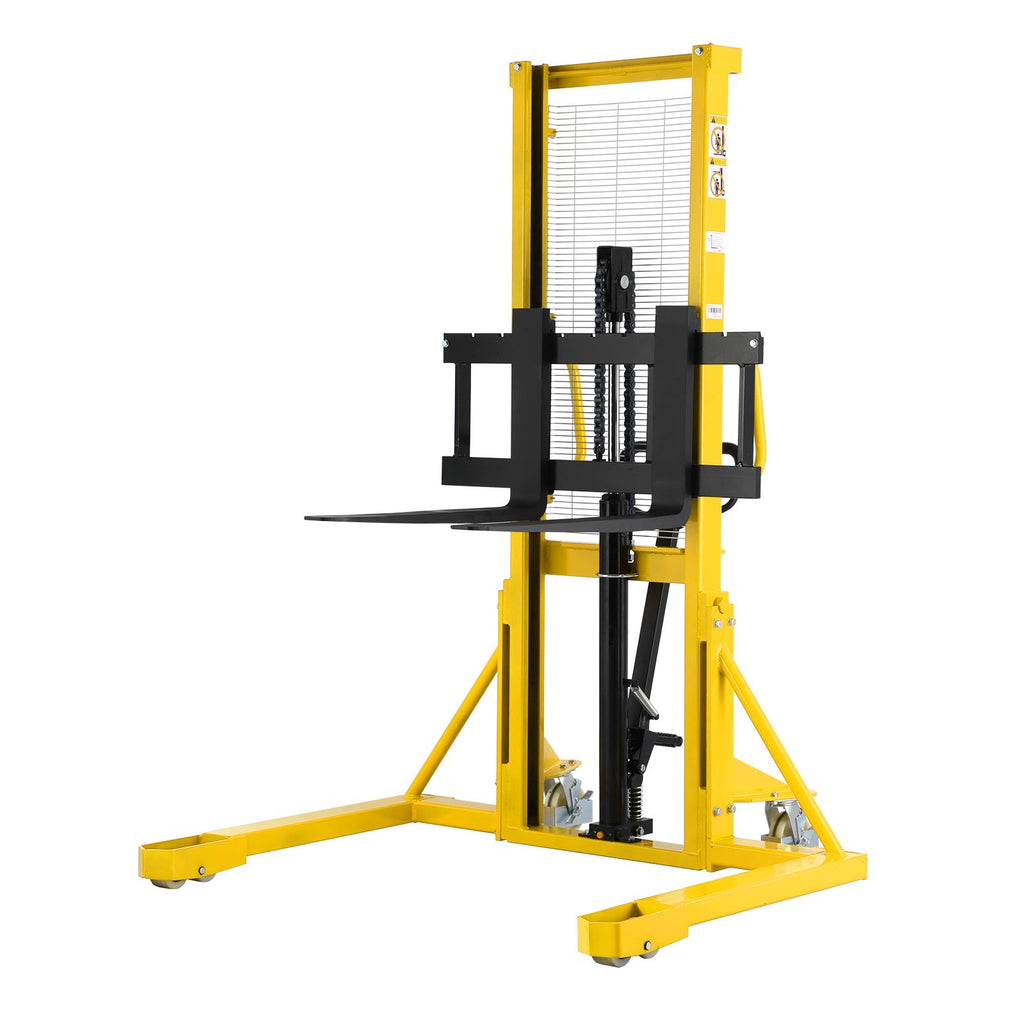

  • Yellow manual pallet stacker with black forks and handle, raised platform

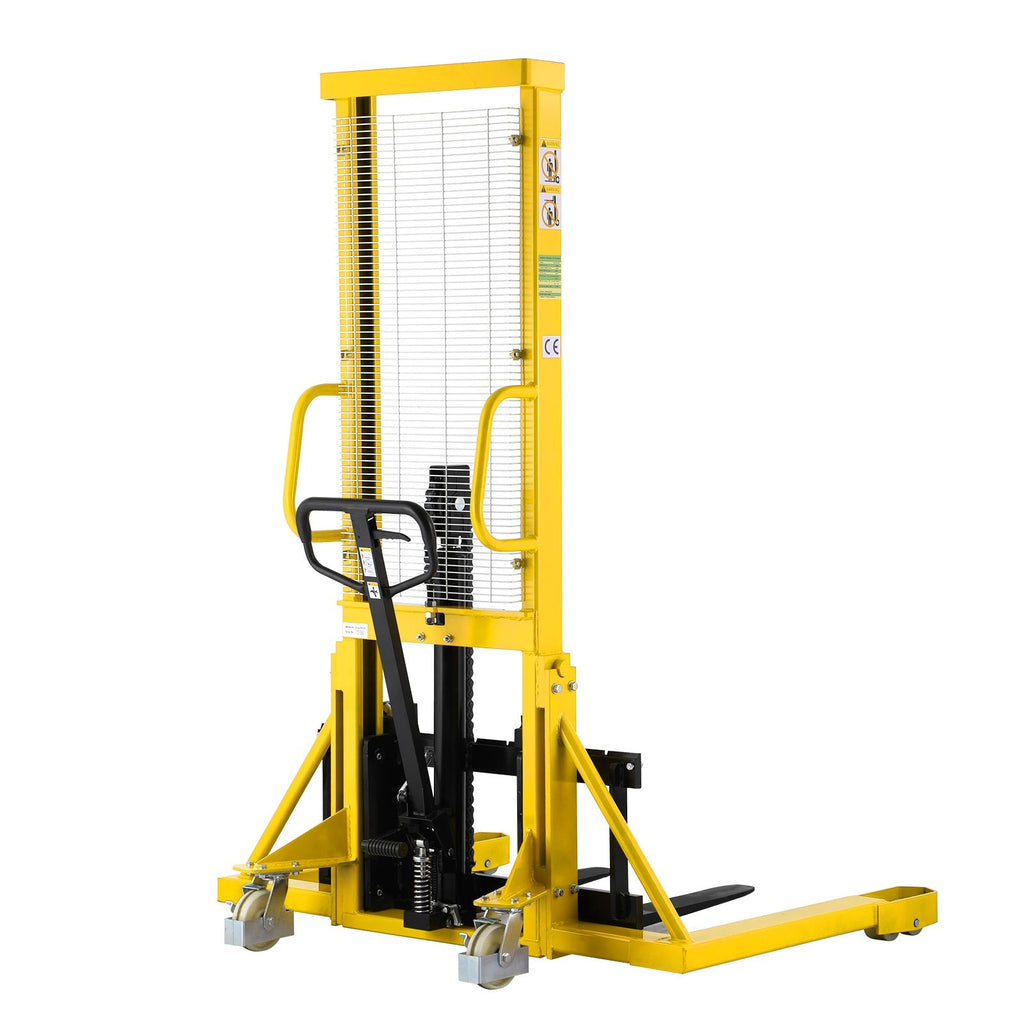

  • Manual pallet stacker with yellow lift mast, black handle and extended forks

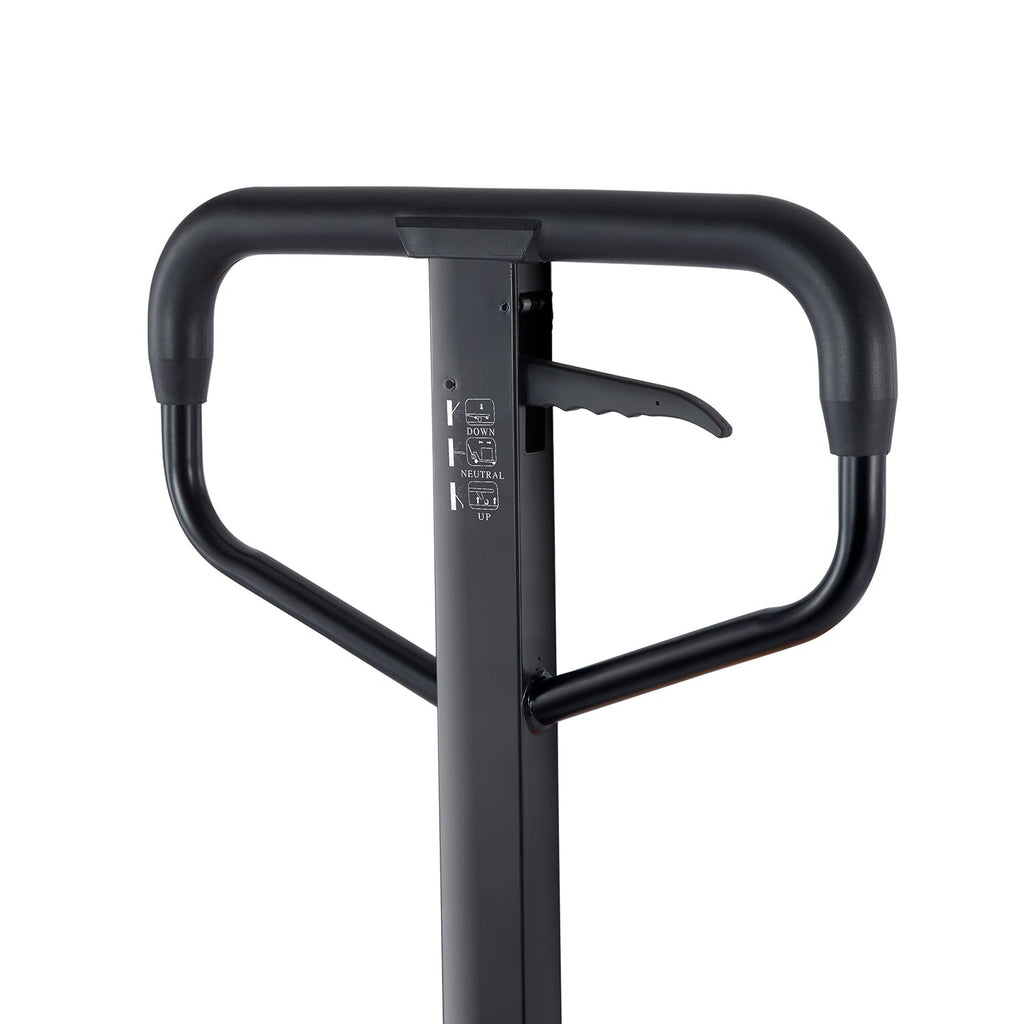

  • Manual pallet stacker handle with black control lever and gray label panel

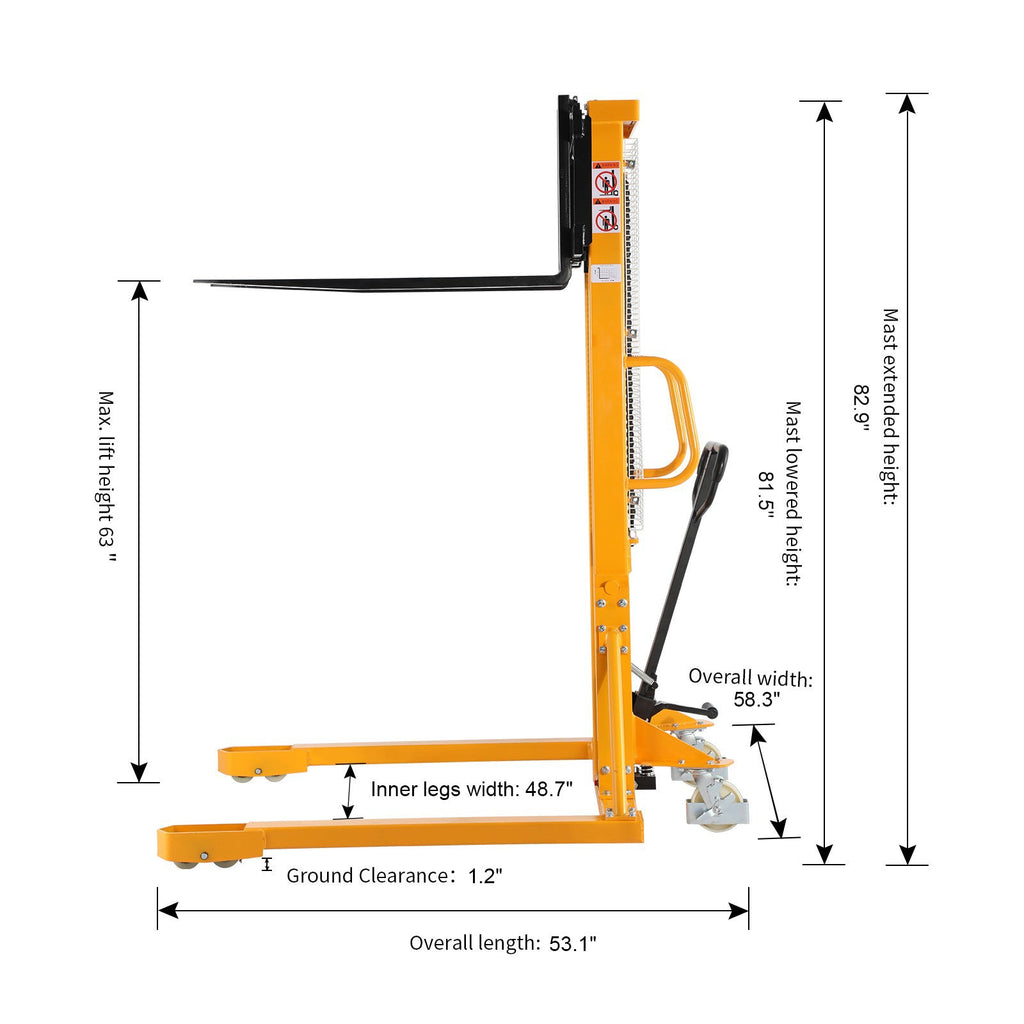

  • Manual pallet stacker side view with forks and mast, height and clearance markings

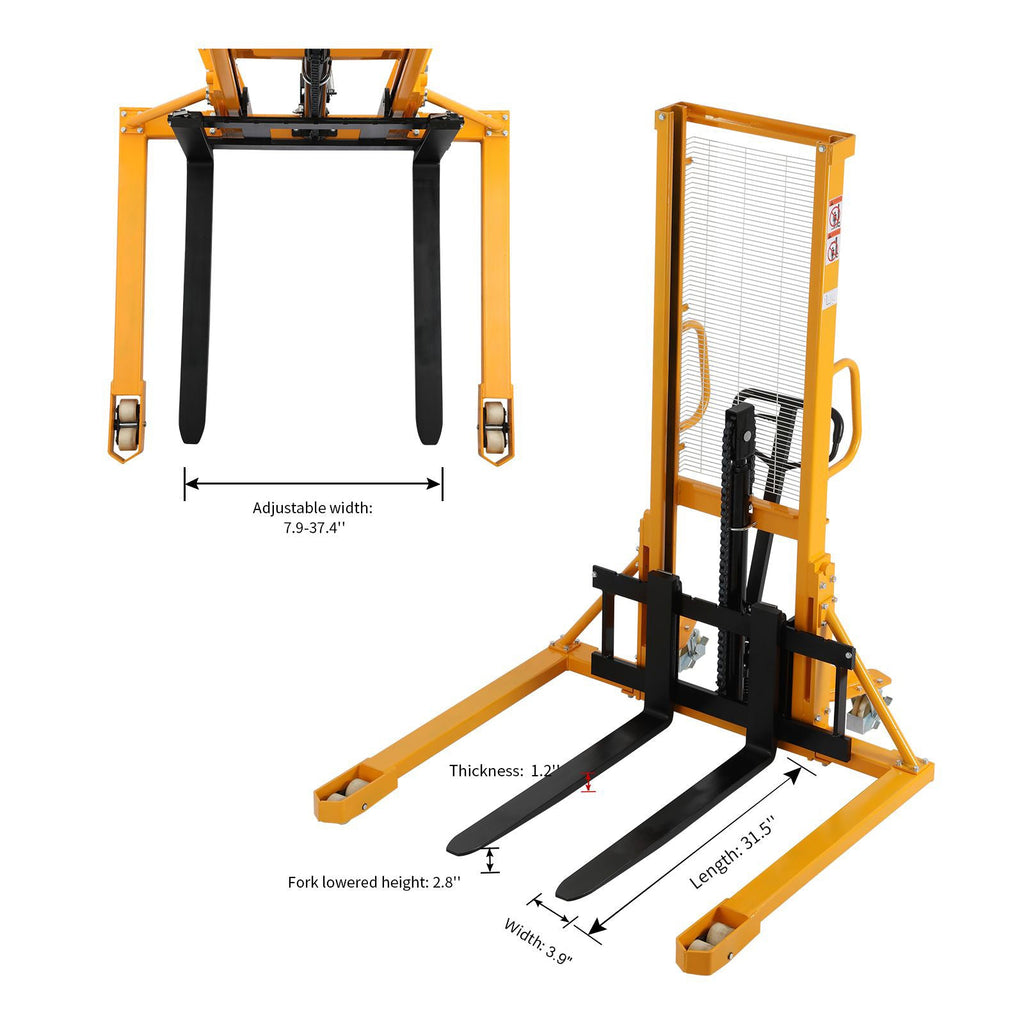

  • Manual pallet stacker with wide forks, black frame, and yellow lift mast
Xilin SDJAS1016 Straddle Manual Pallet Stacker – 2200lb, 63in Lift

Xilin SDJAS1016 Straddle Manual Pallet Stacker – 2200lb, 63in Lift

$1,799.00

Shop Pay Installments

Split your purchase into flexible installment payments with Shop Pay. Pay over time with no hidden fees.

How it works:

  • Choose Shop Pay at checkout
  • Select your preferred payment plan
  • Make your first payment today
  • Pay the rest over time with automatic payments

No interest. No hidden fees. Just flexible payments that work for you.

🚚 Shipping availability and rates vary by product, delivery option, and destination.

Carrier Terminal Pickup: Bring a suitable vehicle or trailer. The terminal will load the shipment, but the customer is responsible for unloading at the final destination.
⚠️ Warehouse Pickup – Please Contact Us First. Due to varying inventory across our warehouse locations, please contact us before placing your order to confirm stock availability at your preferred location.
Contact Us to Check Availability

🇺🇸 US-Based Business: We offer specialized support and flexible shipping and delivery options.

🏭
Expert SupportUS-Based Team
🚚
Shipping OptionsVary by Product & Destination
🛡️
1-Yr WarrantyFull Parts Support
🔬
Safety TestedLoad & Function Tested
📍
Pickup Options May Be AvailableContact us to confirm location & availability
Learn More >
Warranty

One-year limited manufacturer warranty against manufacturing defects. Normal wear, misuse, improper maintenance, and freight damage are excluded. Contact ALLIZOE before arranging warranty service.
Shipping

Free freight shipping to the contiguous 48 US states. Estimated delivery: 6–10 business days. Curbside delivery only — forklift or pallet jack required. Carrier will call 24–48 hrs before delivery. View full Shipping & Delivery details →

⚠️ Safety Warning

Operate only on a firm, level indoor surface. Do not exceed 2,200 lb. Center the load, engage the brake before lifting, lower the forks before moving, keep clear of the mast and chains, and never stand beneath raised forks or loads.

Choose the SDJAS1016 for adjustable forks and straddle legs that accommodate a wider range of pallet styles while lifting up to 2,200 lb at 63 in.

2,200 lb capacity with adjustable forks and straddle legs

Compatible with a wider range of pallet and load styles

Dual lifting control using the hand lever or foot pedal

Reinforced welded-steel mast and operator safety mesh

Rear brake casters and controlled hydraulic lowering

Load capacity: 2,200 lb

Load center: 19.7 in

Maximum lift height: 63 in

Fork lowered height: 2.8 in

Fork dimensions: 31.5 in L × 7.9–37.4 in W × 1.2 in thick

Inside fork width: 0.4–29.5 in

Overall width: 58.3 in

Overall length: 53.1 in

Turning radius: 48.6 in

Aisle width: 81.6 in

Mast height (lowered/extended): 81.5 / 82.9 in

Wheel type: Dual wheels

Fork material: Forged forks

Service weight: 660 lb

The Xilin SDJAS1016 is a heavy-duty manual hydraulic pallet stacker with adjustable forks and straddle legs. It lifts up to 2,200 lb to a maximum height of 63 in and provides flexible handling for warehouses, factories, docks, logistics operations, and retail storage.

The straddle-leg design works with a wider range of pallet styles, including many closed-bottom pallets. Confirm pallet dimensions and clearance before ordering.

One-year limited manufacturer warranty against manufacturing defects. Normal wear, misuse, improper maintenance, and freight damage are excluded. Contact ALLIZOE before arranging warranty service.

Warehouses, factories, docks, logistics operations, retail stockrooms, and facilities handling varied pallet styles.

Product price and freight are separate. Freight is quoted based on the delivery ZIP code, destination type, and required delivery service. Commercial delivery, residential delivery, liftgate service, limited-access delivery, and pickup at a carrier terminal may have different costs. Inventory and freight must be confirmed before shipment.

Key Benefits

2,200 lb Capacity

Higher capacity straddle stacker for heavier manual pallet handling.

63 in Lift Height

Useful for stacking, loading, and positioning in warehouse areas.

Straddle-Leg Flexibility

Designed to handle a wider range of pallet styles than fixed-leg stackers.

Stable Positioning

Manual stacker design supports controlled load positioning and braking during use.

Product Highlights

2,200 lb Straddle Stacker

2,200 lb Straddle Stacker

Straddle-leg manual stacker for heavier pallet handling with improved pallet compatibility.

Manual Handle Controls

Manual Handle Controls

Operator handle supports manual lifting, steering, and positioning.

Dimension Drawing

Dimension Drawing

Main drawing image shows overall equipment height and footprint.

Wide Straddle Reference

Wide Straddle Reference

Fork and straddle spacing image helps confirm fit for pallets and loads.

Dimensions & Product Drawing

Official Xilin specification sheet with detailed parameter tables and dimensional drawings. Click the full-page preview or download the original PDF to view the document at full size.

Xilin sdjas1016 manual stackers official PDF with specification tables and dimensional drawings
Download Product Drawing (PDF)

Complete Your Shop Setup

Everything a professional tire shop needs
Tire Service Packages Collection Banner

Tire Service Packages

2-Post Lifts Category Image

2-Post Lift

4-Post Lifts Category Image

4-Post Lifts

Tire Changer

Tire Changer

Wheel Balancer

Wheel Balancer

Shop Accessories Collection Banner

Shop Accessories

Frequently Asked Questions

  • The rated load capacity is 2,200 lb.
  • The maximum fork height is 63 in.
  • The straddle-leg design works with a wider range of pallet styles, including many closed-bottom pallets. Confirm pallet dimensions and clearance before ordering.
  • The manual hydraulic system can be operated with either the hand lever or foot pedal.
  • No. Freight is quoted separately based on the delivery ZIP code, destination type, and required delivery service.
