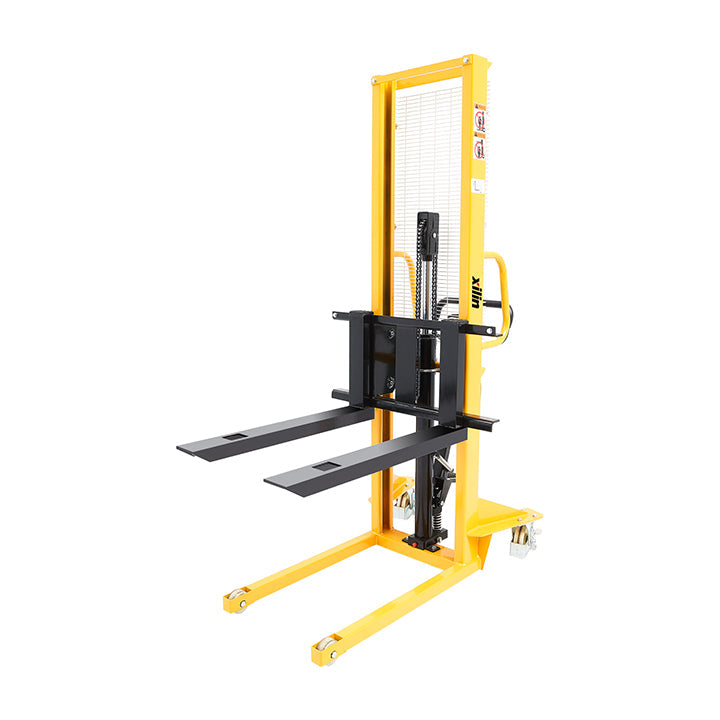

Manual pallet stacker with yellow mast and black forks, 1100 lb capacity

Xilin SDJA500 Manual Pallet Stacker – 1100lb, 63in Lift

$1,220.00
Skip to product information
Manual pallet stacker with yellow mast and black forks, 1100 lb capacity
1/6
  • Manual pallet stacker with yellow mast and black forks, 1100 lb capacity

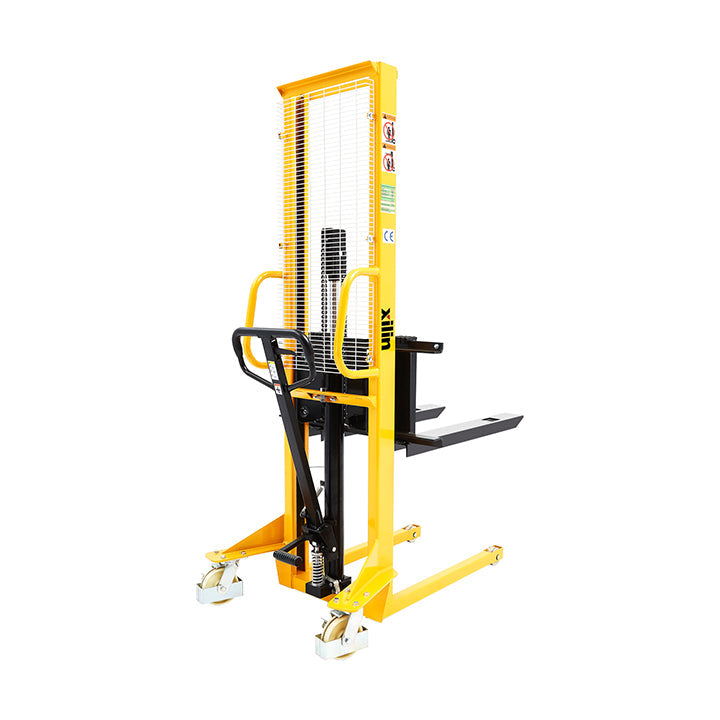

  • Manual pallet stacker with black forks, yellow frame, lifting mast, and safety handle
  • Instruction graphic showing pallet placement on blue pallets with check and cross icons
  • Manual pallet stacker with raised long black forks, yellow mast, and base wheels

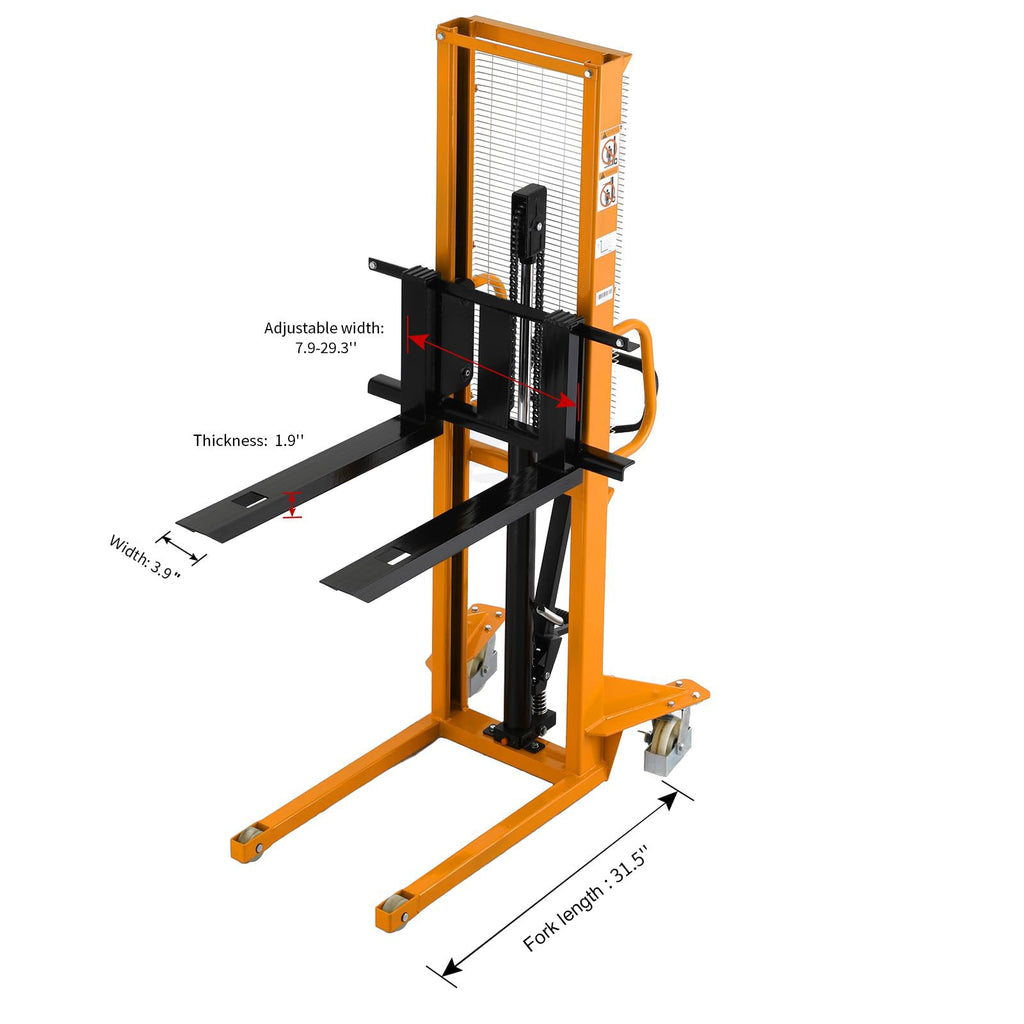

  • Pallet stacker diagram with labeled fork width, thickness, and adjustable height
  • Pallet stacker dimension diagram showing overall length, width, and ground clearance
Xilin SDJA500 Manual Pallet Stacker – 1100lb, 63in Lift

Xilin SDJA500 Manual Pallet Stacker – 1100lb, 63in Lift

$1,220.00

Shop Pay Installments

Split your purchase into flexible installment payments with Shop Pay. Pay over time with no hidden fees.

How it works:

  • Choose Shop Pay at checkout
  • Select your preferred payment plan
  • Make your first payment today
  • Pay the rest over time with automatic payments

No interest. No hidden fees. Just flexible payments that work for you.

🚚 Shipping availability and rates vary by product, delivery option, and destination.

Carrier Terminal Pickup: Bring a suitable vehicle or trailer. The terminal will load the shipment, but the customer is responsible for unloading at the final destination.
⚠️ Warehouse Pickup – Please Contact Us First. Due to varying inventory across our warehouse locations, please contact us before placing your order to confirm stock availability at your preferred location.
Contact Us to Check Availability

🇺🇸 US-Based Business: We offer specialized support and flexible shipping and delivery options.

🏭
Expert SupportUS-Based Team
🚚
Shipping OptionsVary by Product & Destination
🛡️
1-Yr WarrantyFull Parts Support
🔬
Safety TestedLoad & Function Tested
📍
Pickup Options May Be AvailableContact us to confirm location & availability
Learn More >
Warranty

One-year limited manufacturer warranty against manufacturing defects. Normal wear, misuse, improper maintenance, and freight damage are excluded. Contact ALLIZOE before arranging warranty service.
Shipping

Free freight shipping to the contiguous 48 US states. Estimated delivery: 6–10 business days. Curbside delivery only — forklift or pallet jack required. Carrier will call 24–48 hrs before delivery. View full Shipping & Delivery details →

⚠️ Safety Warning

Operate only on a firm, level indoor surface. Do not exceed 1,100 lb. Center the load, engage the brake before lifting, lower the forks before moving, keep clear of the mast and chains, and never stand beneath raised forks or loads.

Choose the SDJA500 for stable fixed-leg construction, compact manual operation, and 1,100 lb capacity at a 63 in maximum lift height.

Fixed support legs for stable daily lifting

Dual lifting control using the hand lever or foot pedal

Reinforced welded-steel mast

Safety mesh guard and rear brake casters

Manual, non-electric operation with controlled hydraulic lowering

Load capacity: 1,100 lb

Load center: 19.7 in

Maximum lift height: 63 in

Fork lowered height: 3.2 in

Fork dimensions: 31.5 in L × 7.9–29.3 in W × 1.9 in thick

Inside fork width: 0.4–21.5 in

Overall width: 31.5 in

Overall length: 54.3 in

Turning radius: 46.4 in

Aisle width: 78.6 in

Mast height (lowered/extended): 78.3 / 79.1 in

Wheel type: Single wheel

Fork material: Channel steel

Service weight: 363 lb

The Xilin SDJA500 is a compact manual hydraulic pallet stacker with fixed support legs, a 1,100 lb capacity, and a 63 in maximum lift height. It is designed for skids and open-bottom pallets in warehouses, stockrooms, retail operations, and light manufacturing.

Fixed-leg design for open-bottom pallets and skids only. It is not suitable for closed-deck or solid-bottom pallets.

One-year limited manufacturer warranty against manufacturing defects. Normal wear, misuse, improper maintenance, and freight damage are excluded. Contact ALLIZOE before arranging warranty service.

Warehouses, stockrooms, retail operations, light manufacturing, and facilities handling skids or open-bottom pallets.

Product price and freight are separate. Freight is quoted based on the delivery ZIP code, destination type, and required delivery service. Commercial delivery, residential delivery, liftgate service, limited-access delivery, and pickup at a carrier terminal may have different costs. Inventory and freight must be confirmed before shipment.

Key Benefits

1,100 lb Capacity

Suitable for light-duty pallet stacking and positioning.

63 in Lift Height

Lifts loads for stacking, shelving, and loading applications.

Hand or Foot Lift

Dual lift controls give the operator flexible manual operation.

For Open-Bottom Pallets

Fixed legs require open-bottom pallets or compatible loads.

Product Highlights

Manual Pallet Stacker

Manual Pallet Stacker

Fixed-leg manual stacker for lifting open-bottom pallets and loads up to 1,100 lb.

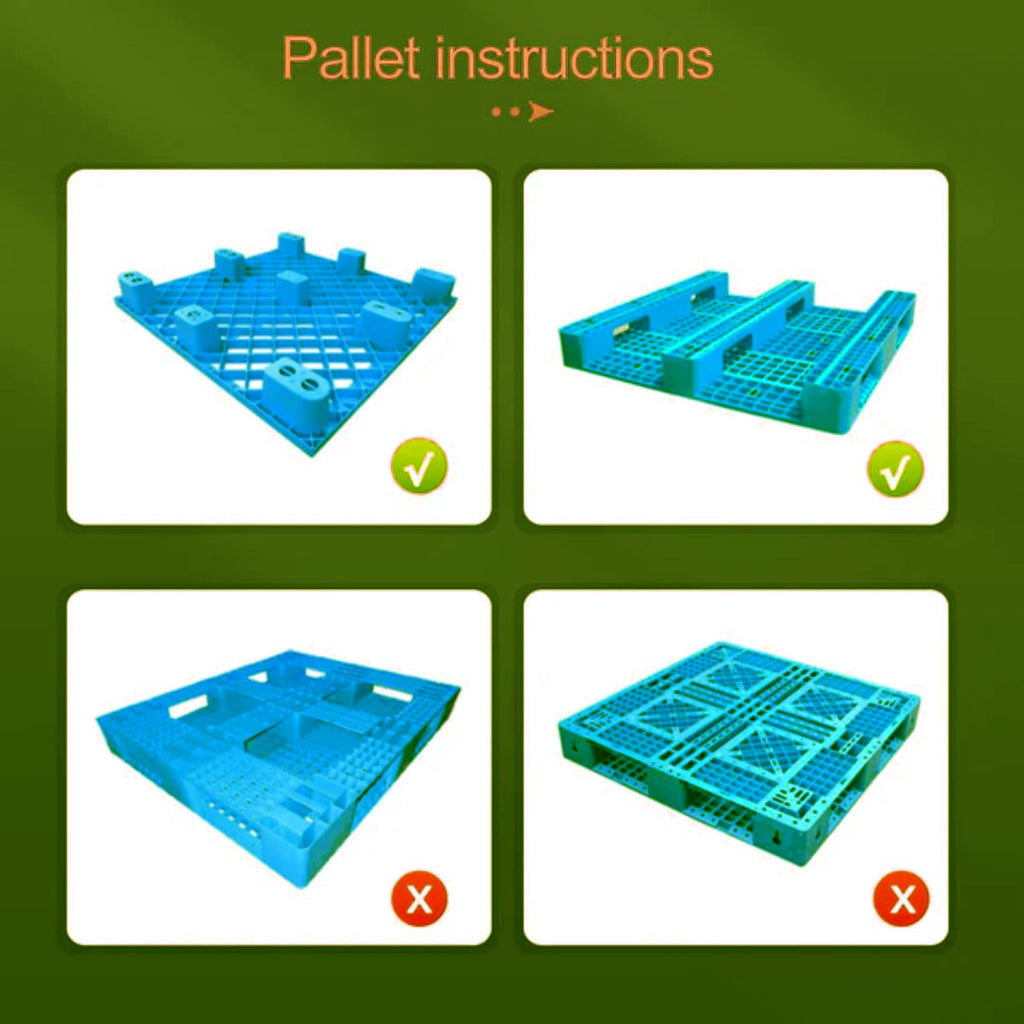

Open-Bottom Pallet Use

Open-Bottom Pallet Use

Compatibility image helps customers understand suitable pallet types before ordering.

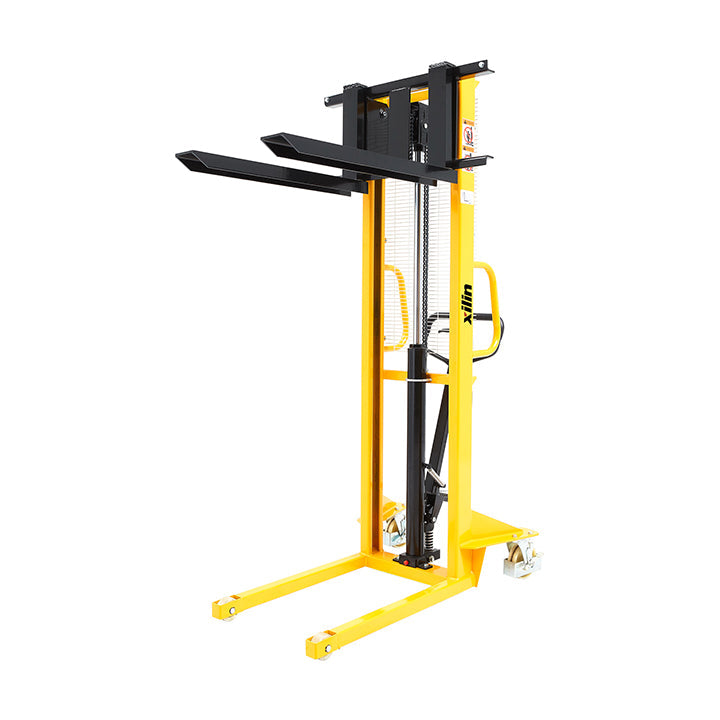

Raised Fork Height

Raised Fork Height

63 inch lift height supports light warehouse stacking and loading tasks.

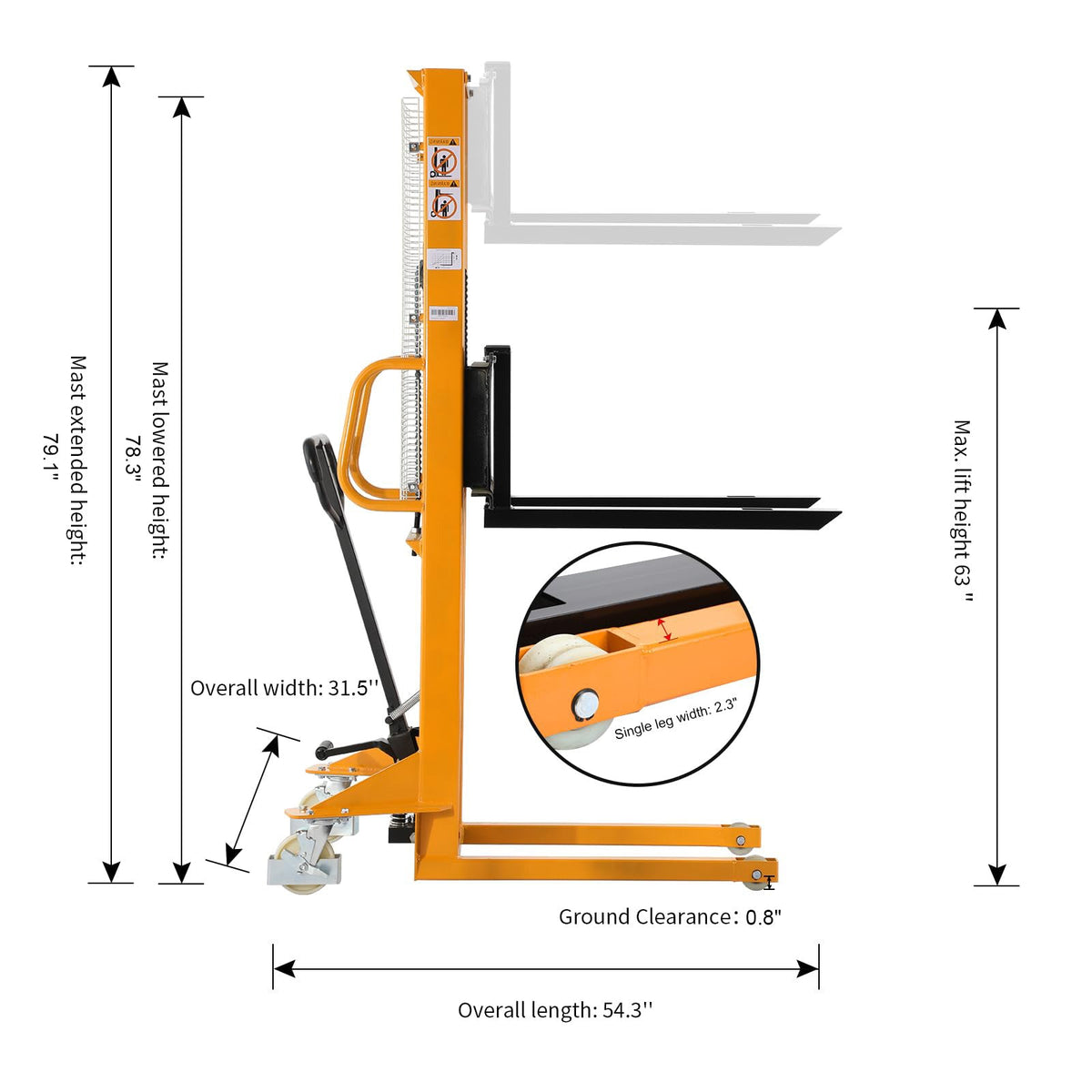

Dimension Drawing

Dimension Drawing

Product drawing shows overall and fork dimensions for fit planning.

Dimensions & Product Drawing

Official Xilin specification sheet with detailed parameter tables and dimensional drawings. Click the full-page preview or download the original PDF to view the document at full size.

Xilin sdja500 manual stackers official PDF with specification tables and dimensional drawings
Download Product Drawing (PDF)

Complete Your Shop Setup

Everything a professional tire shop needs
Tire Service Packages Collection Banner

Tire Service Packages

2-Post Lifts Category Image

2-Post Lift

4-Post Lifts Category Image

4-Post Lifts

Tire Changer

Tire Changer

Wheel Balancer

Wheel Balancer

Shop Accessories Collection Banner

Shop Accessories

Frequently Asked Questions

  • The rated load capacity is 1,100 lb.
  • The maximum fork height is 63 in.
  • Fixed-leg design for open-bottom pallets and skids only. It is not suitable for closed-deck or solid-bottom pallets.
  • The manual hydraulic system can be operated with either the hand lever or foot pedal.
  • No. Freight is quoted separately based on the delivery ZIP code, destination type, and required delivery service.
