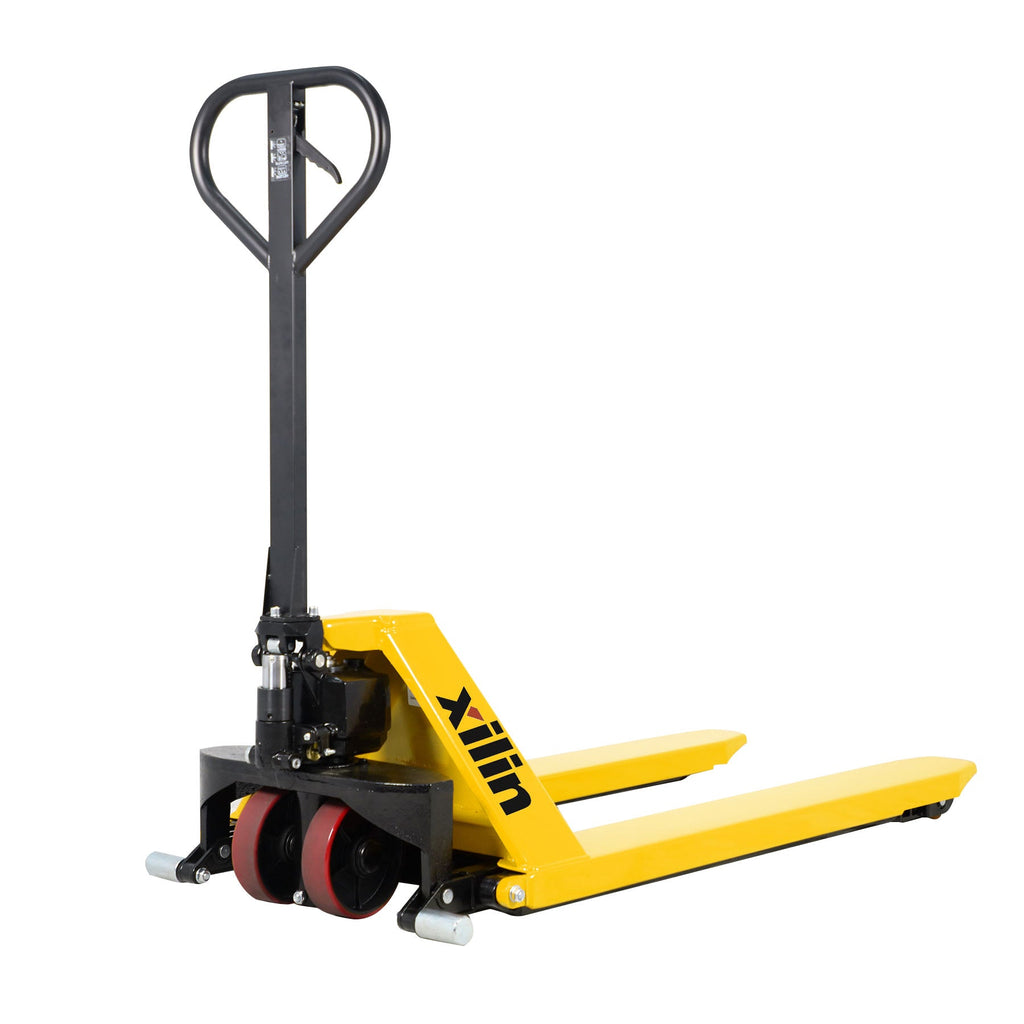

  • High lift pallet jack with yellow forks and black frame, red wheel guards

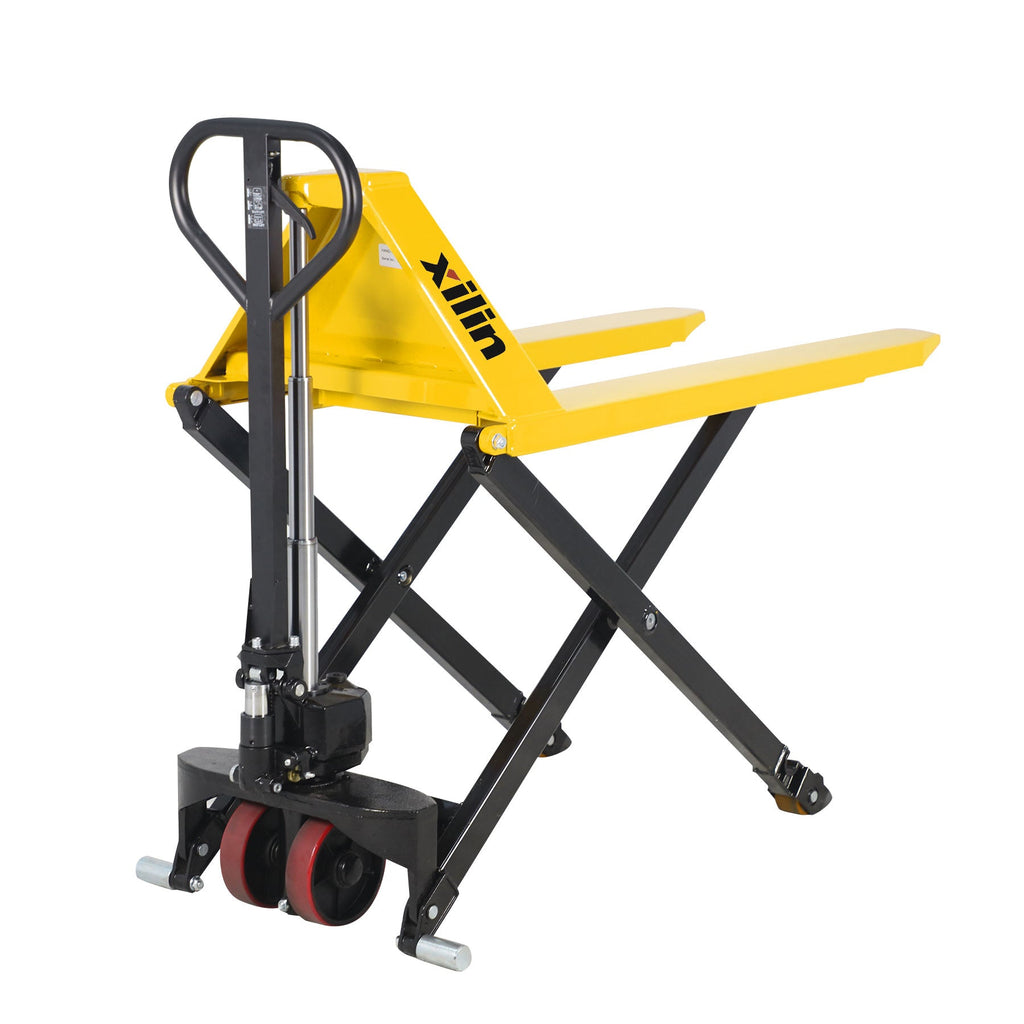

  • High lift pallet jack with yellow platform, black scissor lift, and dual caster wheels

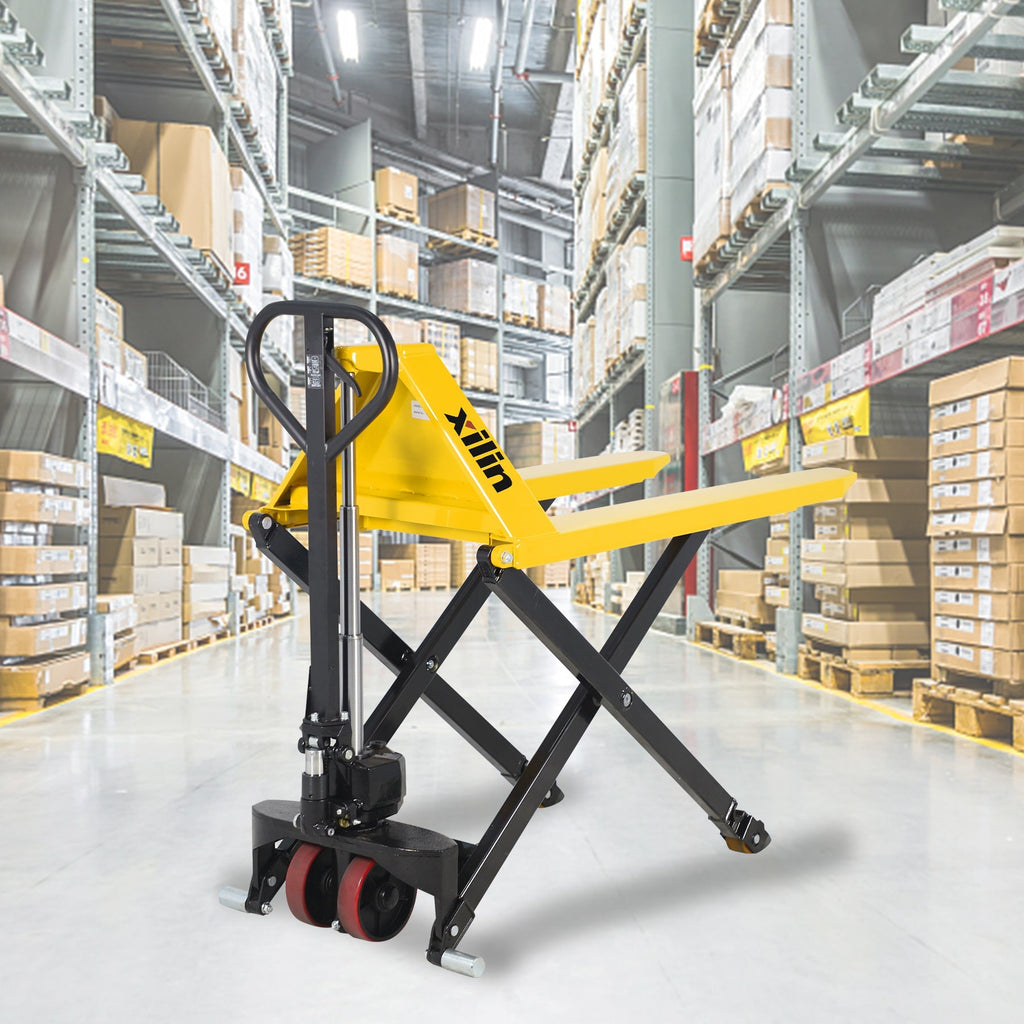

  • High lift pallet jack with raised yellow forks and black scissor frame

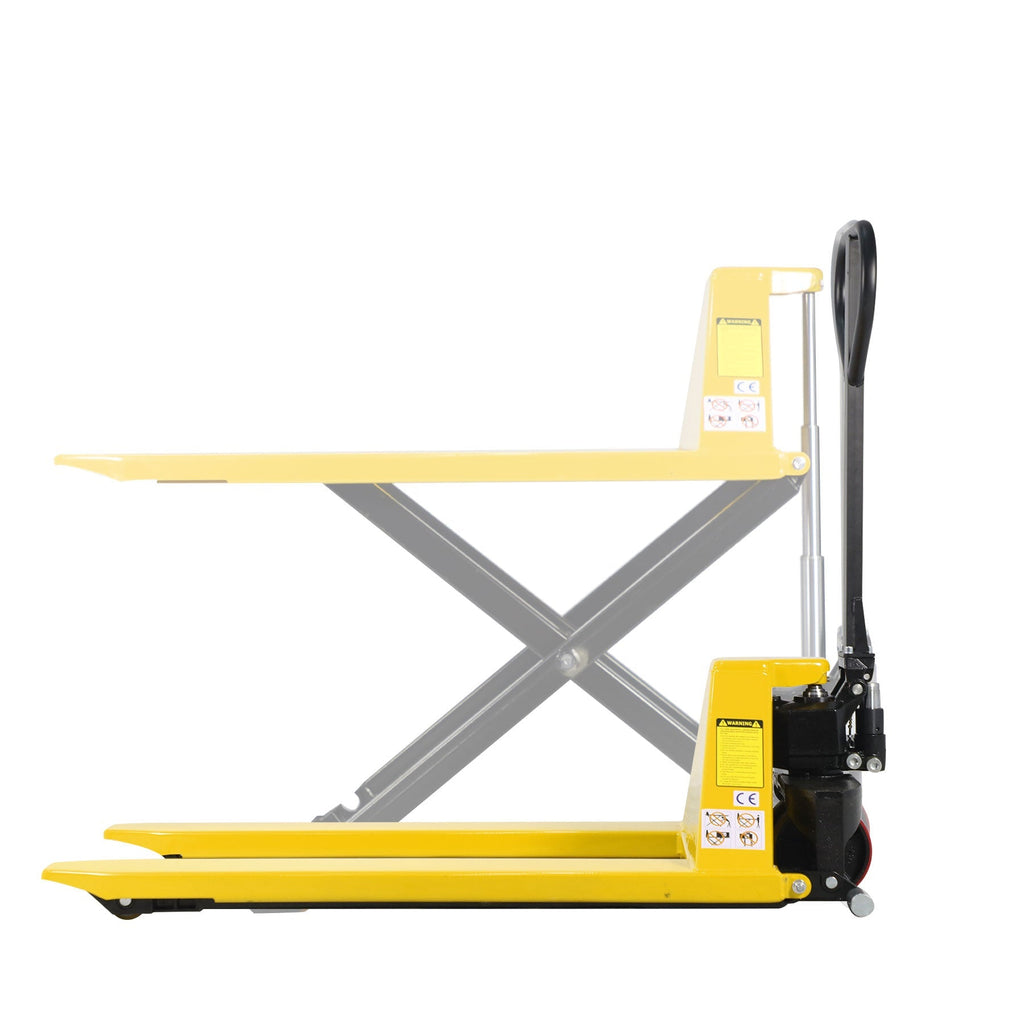

  • High lift pallet jack with extended forks and black hydraulic post, yellow body

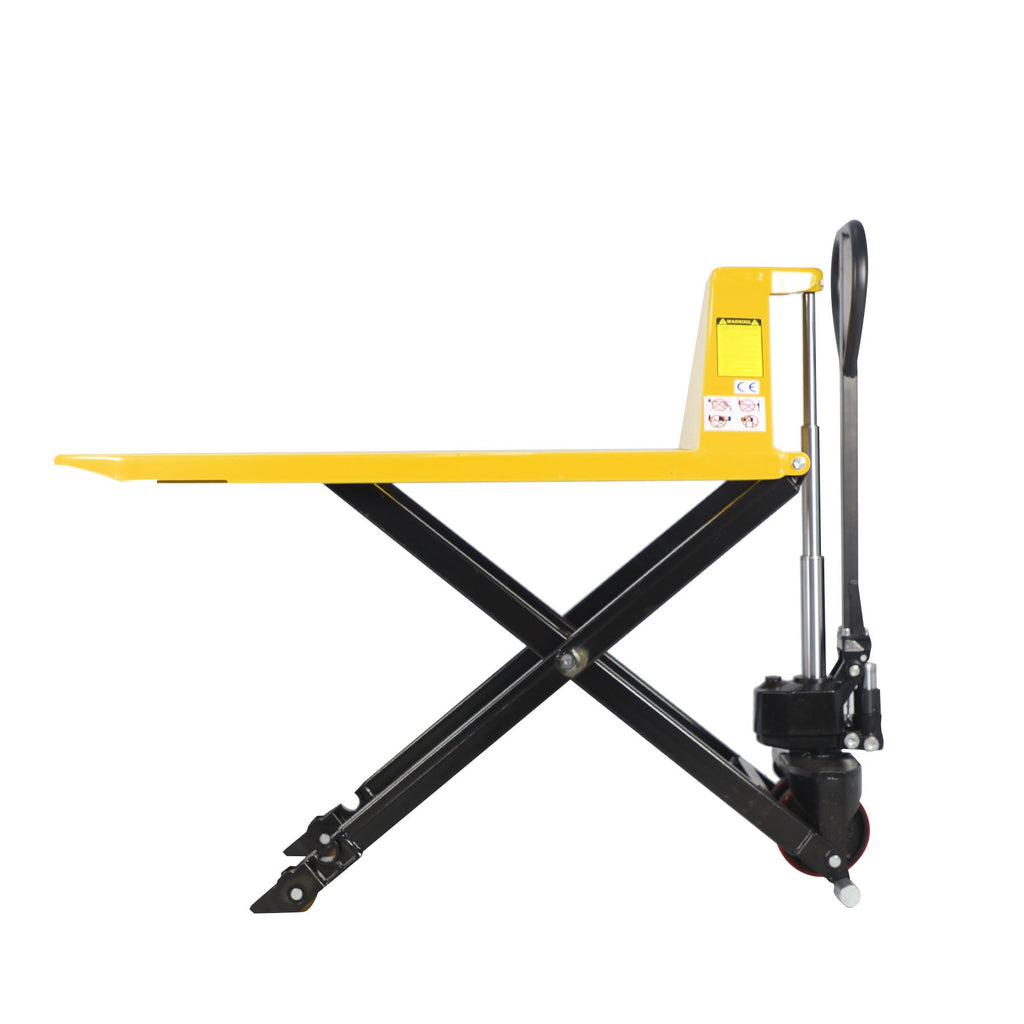

  • High lift pallet jack with black hydraulic assembly and yellow forks on scissor frame

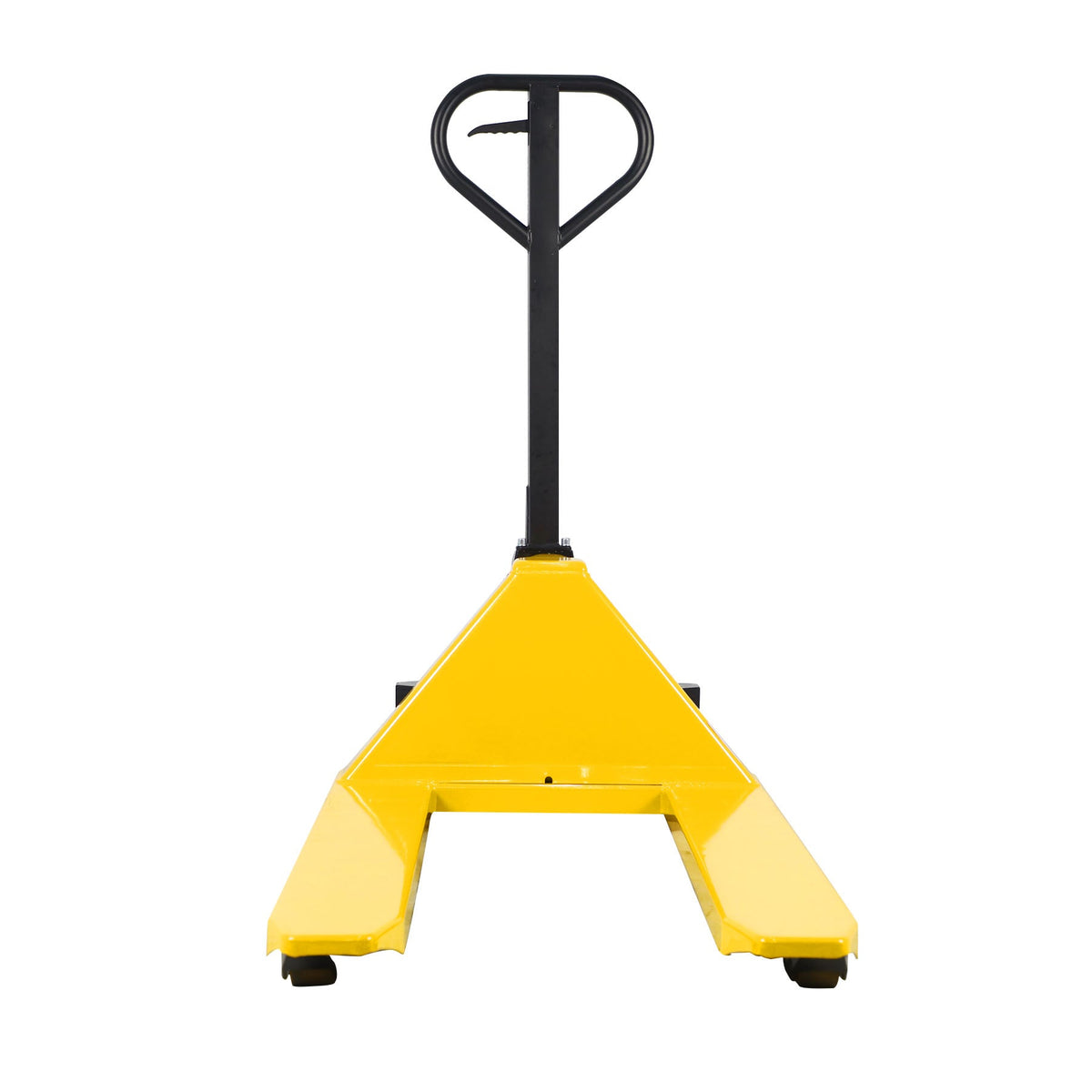

  • High lift pallet jack stand with yellow lift body and black handle, caster feet

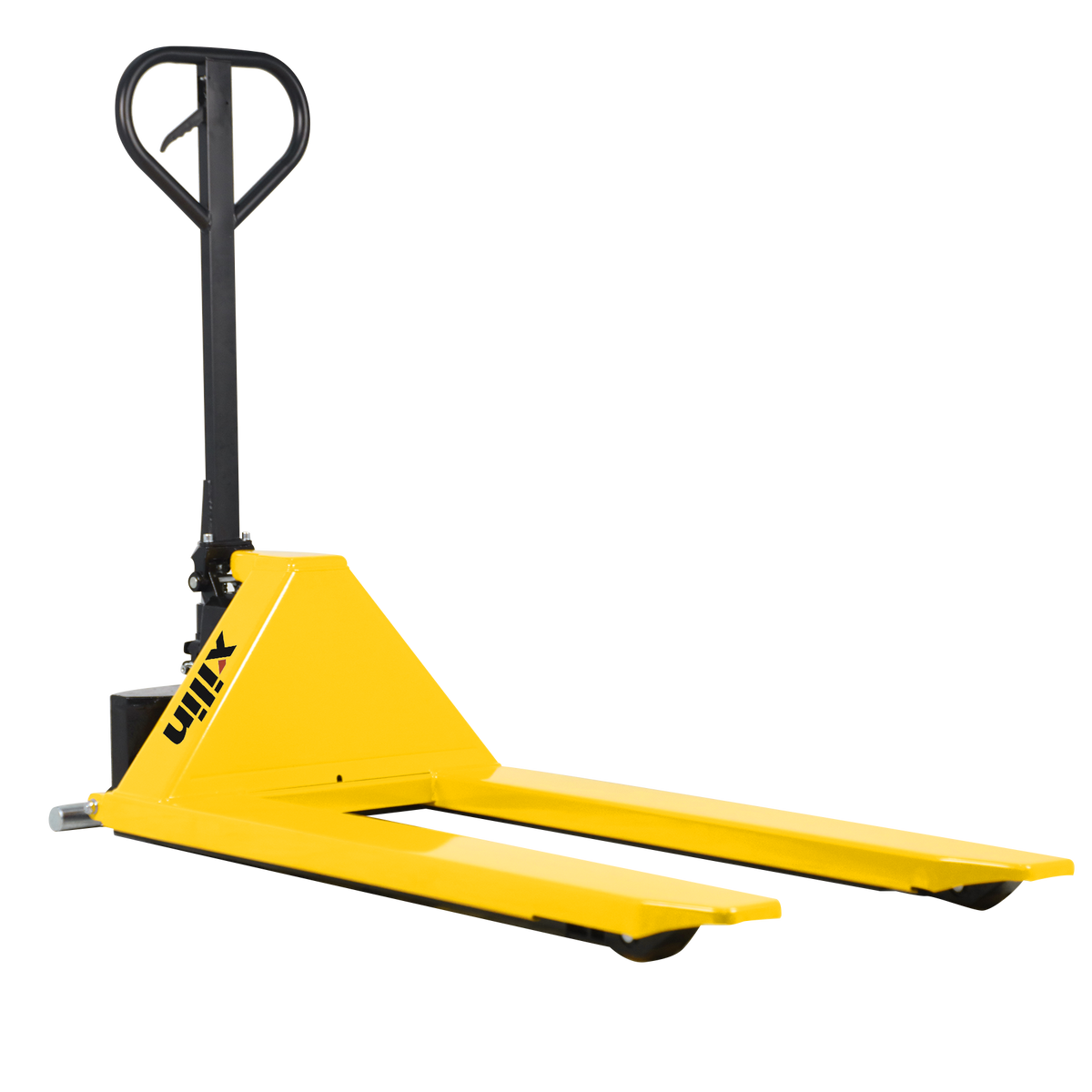

  • High lift pallet jack with yellow forks and upright handle, dark base wheels

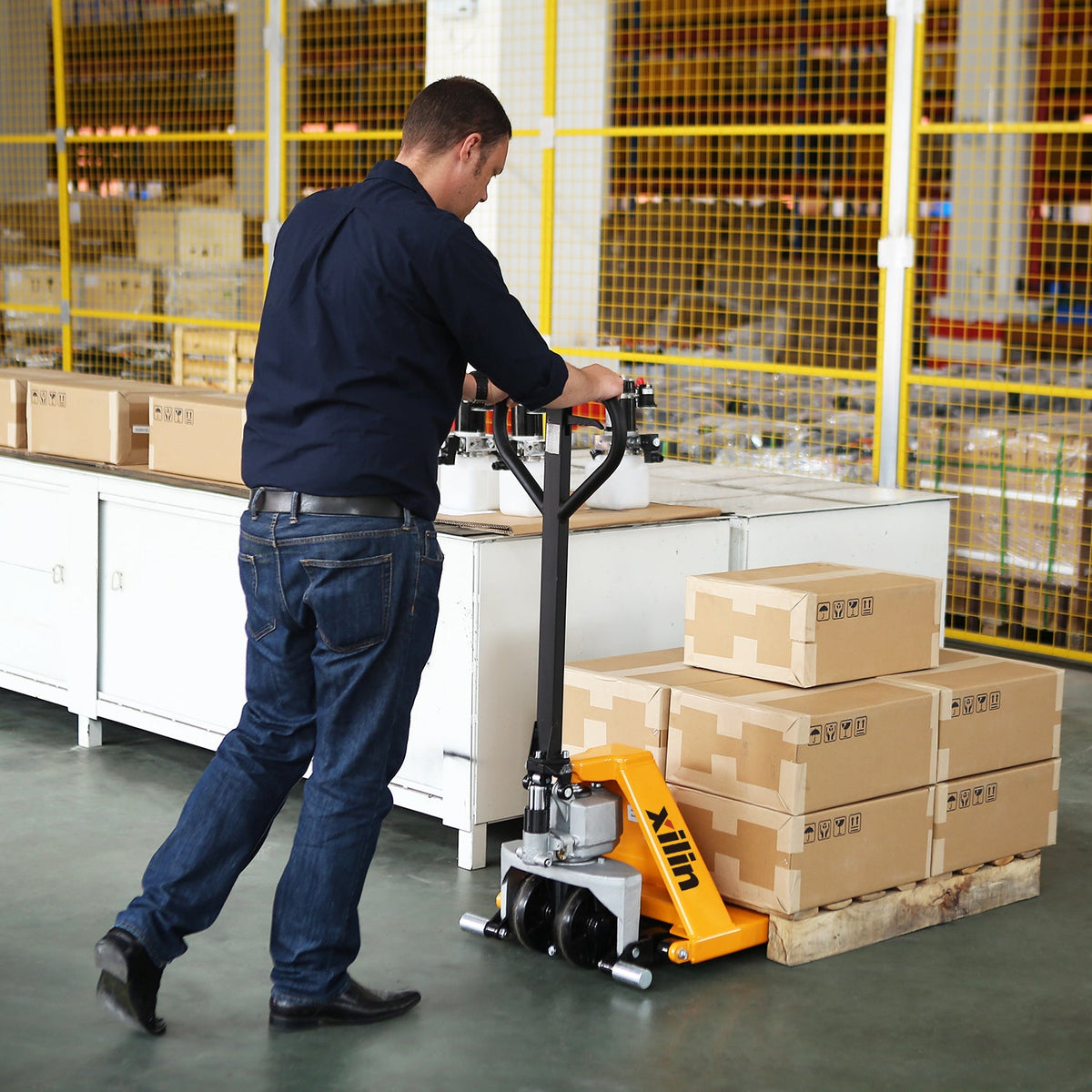

  • Operator pushing high lift pallet jack with yellow forks and black frame

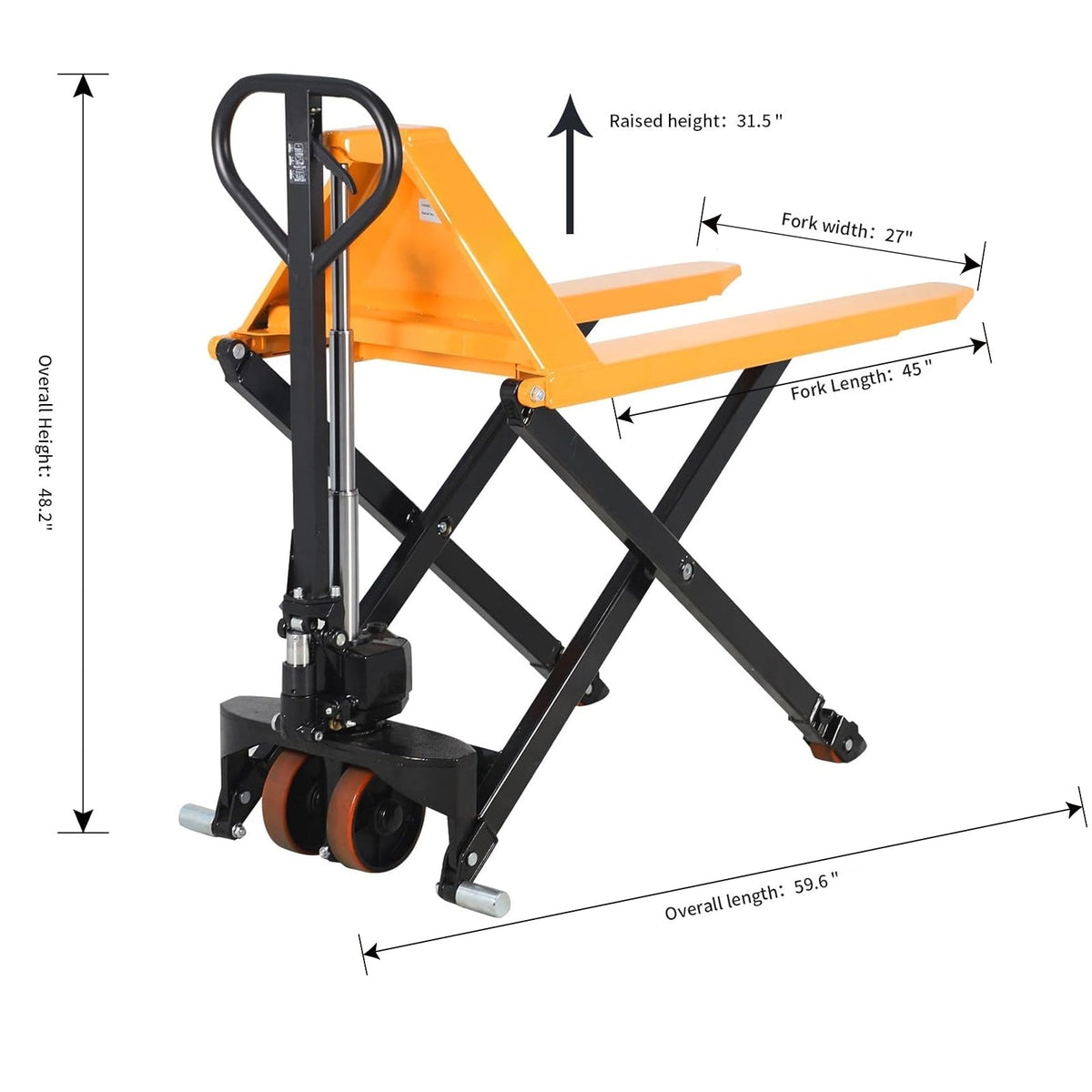

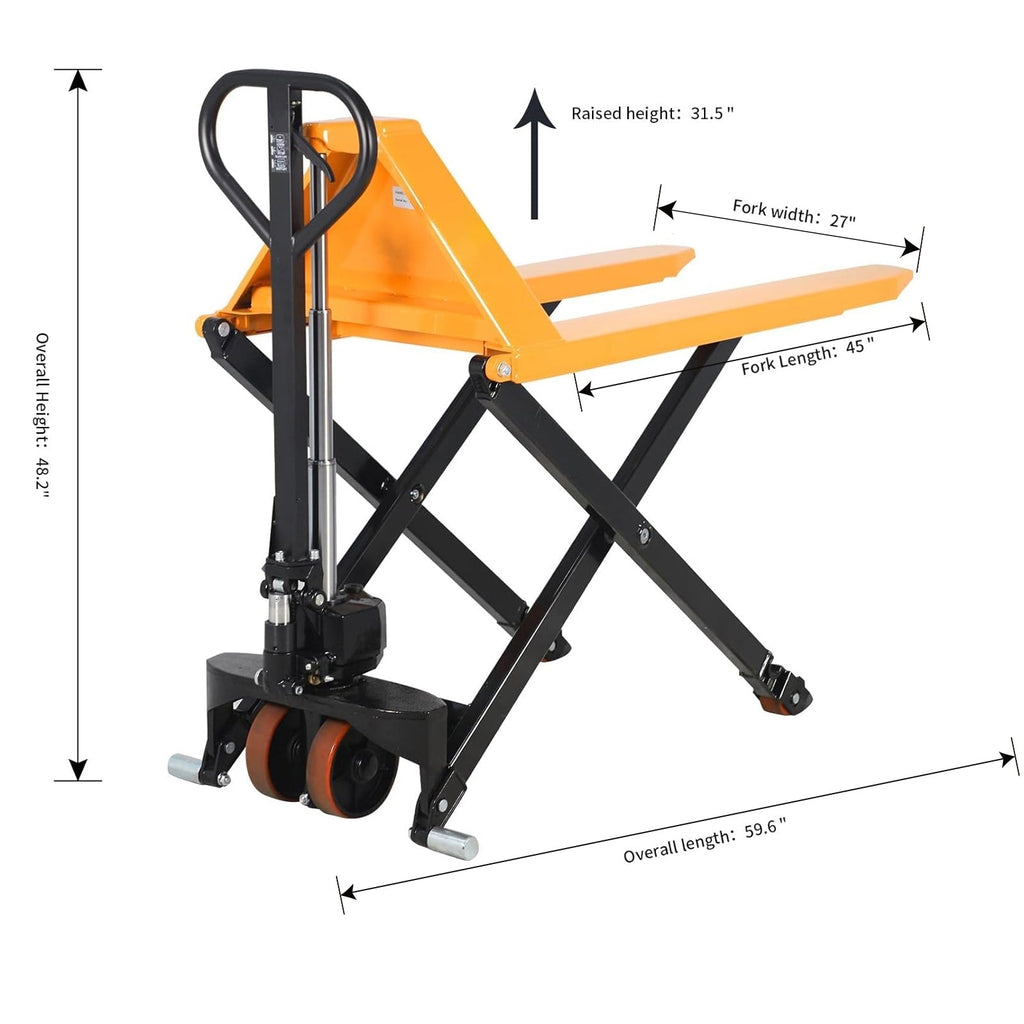

  • Orange high-lift pallet jack with black frame, raised forks and 4 roller wheels

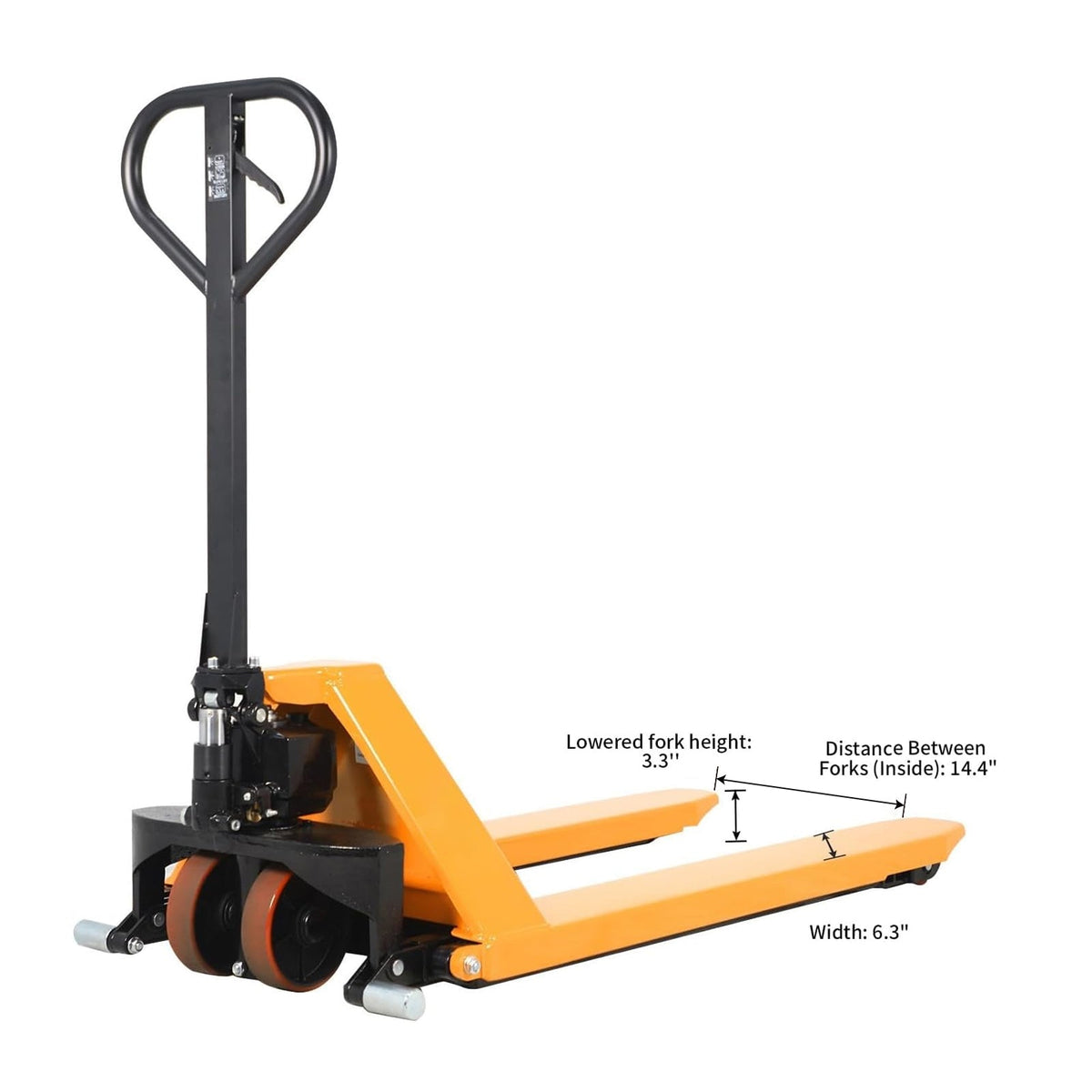

  • Orange high-lift pallet jack with black frame, lowered forks and 4 roller wheels
Xilin JF-685 High-Lift Scissor Pallet Jack – 2200lb, 31.5in Lift

Xilin JF-685 High-Lift Scissor Pallet Jack – 2200lb, 31.5in Lift

$910.00

Shop Pay Installments

Split your purchase into flexible installment payments with Shop Pay. Pay over time with no hidden fees.

How it works:

  • Choose Shop Pay at checkout
  • Select your preferred payment plan
  • Make your first payment today
  • Pay the rest over time with automatic payments

No interest. No hidden fees. Just flexible payments that work for you.

🚚 Shipping availability and rates vary by product, delivery option, and destination.

Carrier Terminal Pickup: Bring a suitable vehicle or trailer. The terminal will load the shipment, but the customer is responsible for unloading at the final destination.
⚠️ Warehouse Pickup – Please Contact Us First. Due to varying inventory across our warehouse locations, please contact us before placing your order to confirm stock availability at your preferred location.
Contact Us to Check Availability

🇺🇸 US-Based Business: We offer specialized support and flexible shipping and delivery options.

🏭
Expert SupportUS-Based Team
🚚
Shipping OptionsVary by Product & Destination
🛡️
1-Yr WarrantyFull Parts Support
🔬
Safety TestedLoad & Function Tested
📍
Pickup Options May Be AvailableContact us to confirm location & availability
Learn More >
Warranty

One-year limited manufacturer warranty against manufacturing defects. Normal wear, misuse, improper maintenance, and freight damage are excluded. Contact ALLIZOE before arranging warranty service.
Shipping

Free freight shipping to the contiguous 48 US states. Estimated delivery: 6–10 business days. Curbside delivery only — forklift or pallet jack required. Carrier will call 24–48 hrs before delivery. View full Shipping & Delivery details →

⚠️ Safety Warning

Use only on firm, level surfaces and never exceed the rated 2,200 lb capacity. The stabilizers restrict movement when the forks are raised; lower the load before relocating the truck. Center loads, keep personnel clear of the scissor mechanism, and never place people beneath or on the raised forks.

Choose the JF-685 when you need one manual unit for both pallet transport and elevated work positioning, with automatic stabilization and a wide 27-inch fork set.

Dual-purpose pallet jack and high-lift work platform

Three-piston telescopic hydraulic system

Automatic support legs deploy during lifting

Automatic safety lock helps stabilize the raised unit

Controlled lowering slows descent under heavier loads

210-degree steering angle

Side stabilizers reduce sway during elevated work

Load capacity: 2,200 lb

Turning radius: 53.5 in

Minimum aisle width: 69.5 in

Fork dimensions: 45 in L × 27 in W × 2.1 in thick

Inside fork width: 14.4 in

Lowered fork height: 3.3 in; maximum lift height: 31.5 in; lift travel: 28.2 in

Overall dimensions: 59.6 in L × 27 in W × 48.2 in H

Service weight: 252 lb

Steering angle: 210 degrees

The Xilin JF-685 combines a manual pallet truck and a scissor-lift work platform. Its 2,200 lb capacity, 27-inch-wide fork set, automatic support legs, and 31.5-inch maximum lift height make it suitable for packing stations, assembly lines, ergonomic load positioning, and warehouse handling.

One-year limited manufacturer warranty against manufacturing defects. Normal wear, misuse, improper maintenance, and freight damage are excluded. Contact ALLIZOE before arranging warranty service.

Packing stations, assembly lines, order preparation, ergonomic load positioning, warehouses, and facilities that need to move pallets and raise them to a convenient working height.

Product price and freight are separate. Freight is quoted based on the delivery ZIP code, destination type, and required delivery service. Commercial delivery, residential delivery, liftgate service, limited-access delivery, and pickup at a carrier terminal may have different costs. Inventory and freight must be confirmed before shipment.

Key Benefits

31.5 in Max Lift Height

Lifts pallets to a comfortable working height for loading and assembly tasks.

2,200 lb Capacity

Supports common warehouse and shop pallet handling needs.

Stability Support

Support legs and safety lock help stabilize the unit during elevated use.

210° Steering

Wide steering angle improves maneuverability in tight work areas.

Product Highlights

High-Lift Scissor Function

High-Lift Scissor Function

Raises loads up to 31.5 inches, allowing the unit to work as both a pallet jack and lift table.

Stable Support Legs

Stable Support Legs

Automatic support legs improve stability when the forks are raised.

Three-Piston Hydraulic Pump

Three-Piston Hydraulic Pump

The hydraulic system is designed for efficient lifting and controlled lowering.

Raised Work Height

Raised Work Height

Useful for loading, unloading, assembly work, and reducing repeated bending during material handling.

Complete Your Shop Setup

Everything a professional tire shop needs
Tire Service Packages Collection Banner

Tire Service Packages

2-Post Lifts Category Image

2-Post Lift

4-Post Lifts Category Image

4-Post Lifts

Tire Changer

Tire Changer

Wheel Balancer

Wheel Balancer

Shop Accessories Collection Banner

Shop Accessories

Frequently Asked Questions

  • 2,200 lb.
  • The maximum fork height is 31.5 inches.
  • The automatic support legs stabilize the unit as it rises. Lower the load before relocating the truck.
  • 45 inches long by 27 inches wide.
  • No. Freight is quoted separately based on delivery ZIP code, destination type, and required delivery service.
