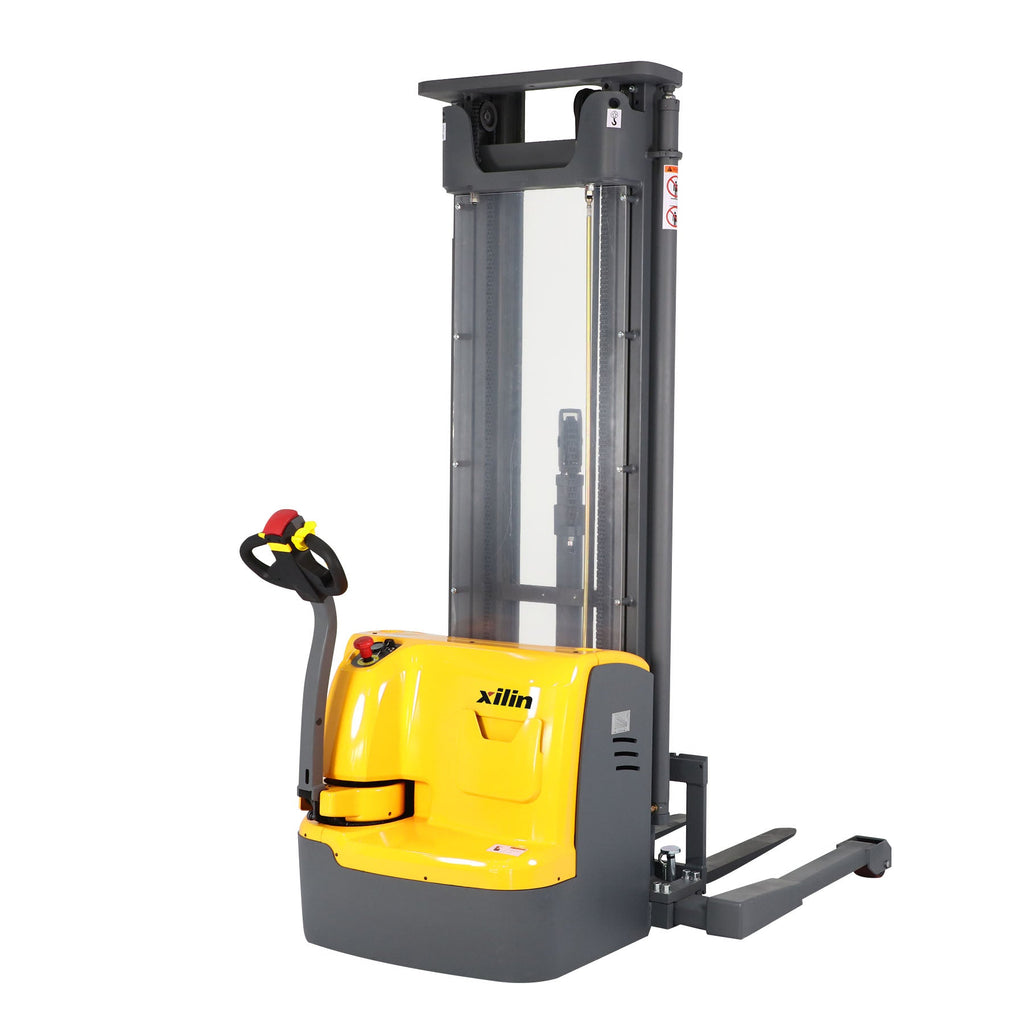

Yellow electric pallet stacker with raised mast and fork, operator handle

Xilin CTDR15-III-220 Full-Electric Stacker – 3300lb, 220in

$12,599.00
Skip to product information
Yellow electric pallet stacker with raised mast and fork, operator handle
1/9
  • Yellow electric pallet stacker with raised mast and fork, operator handle

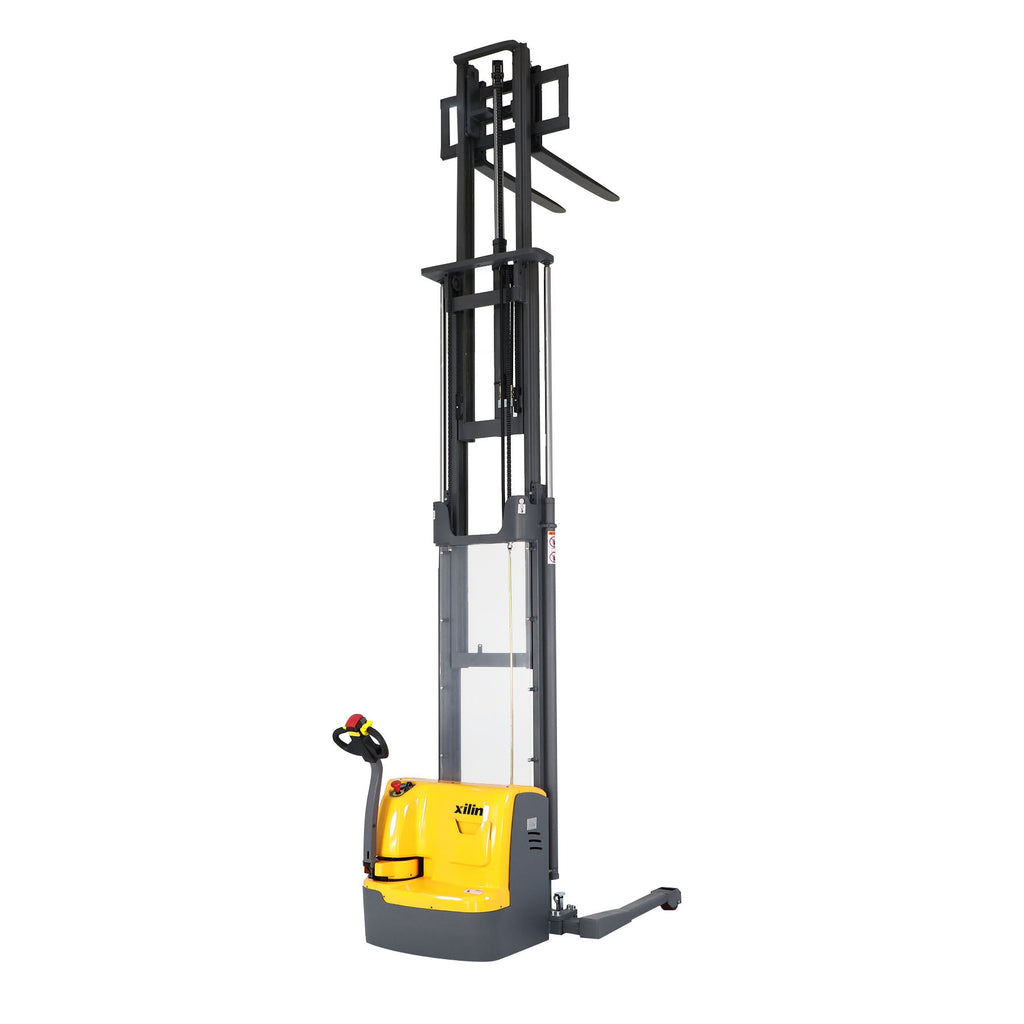

  • Yellow electric forklift stacker with tall mast, forks, and black operator controls

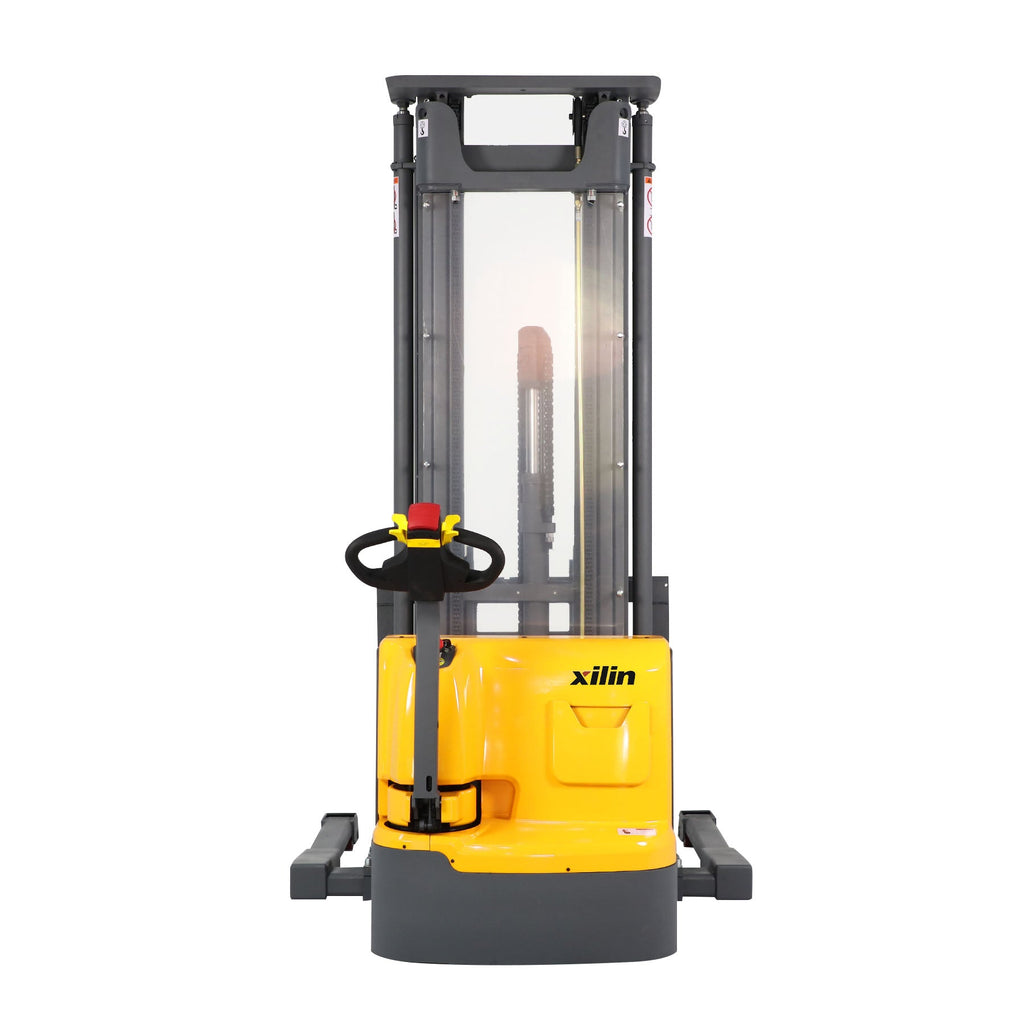

  • Yellow electric pallet stacker with front control handle and upright lifting mast

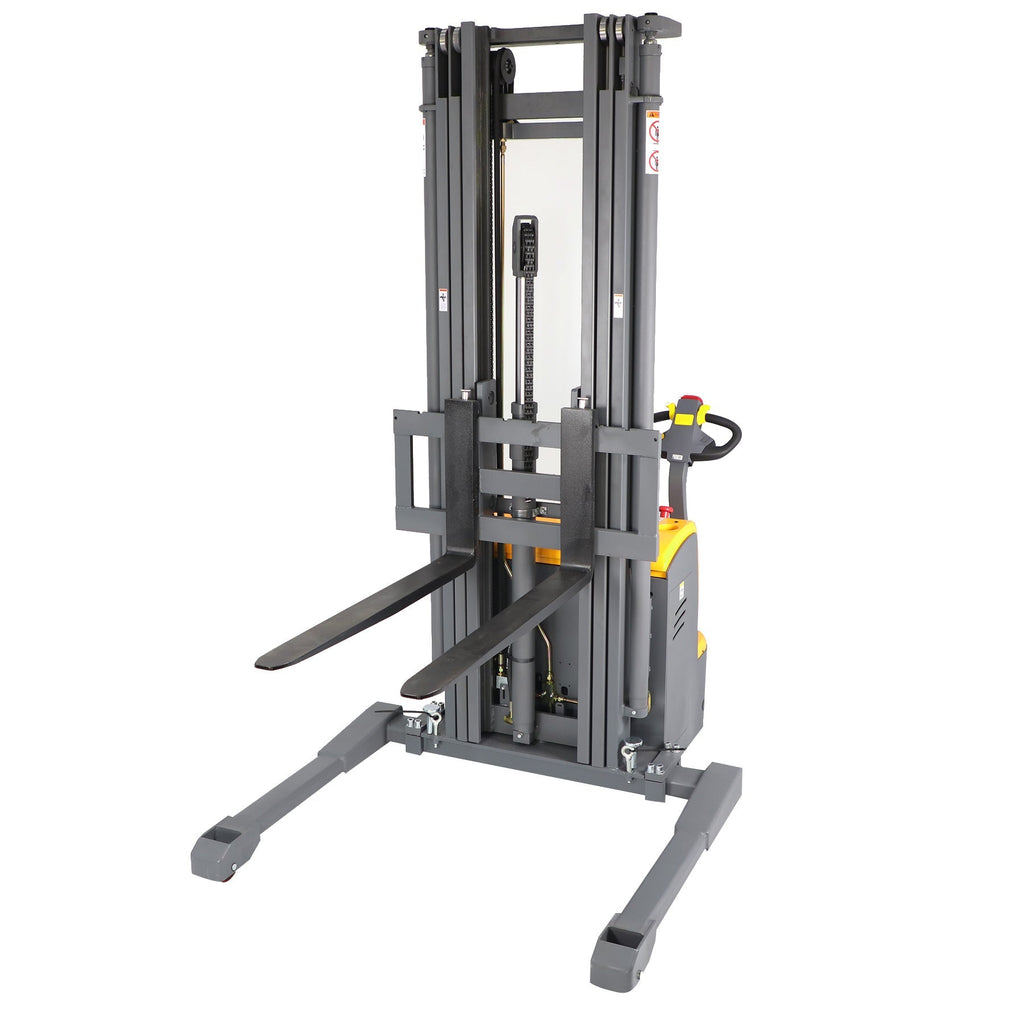

  • Grey and yellow electric pallet stacker with raised mast and side forks

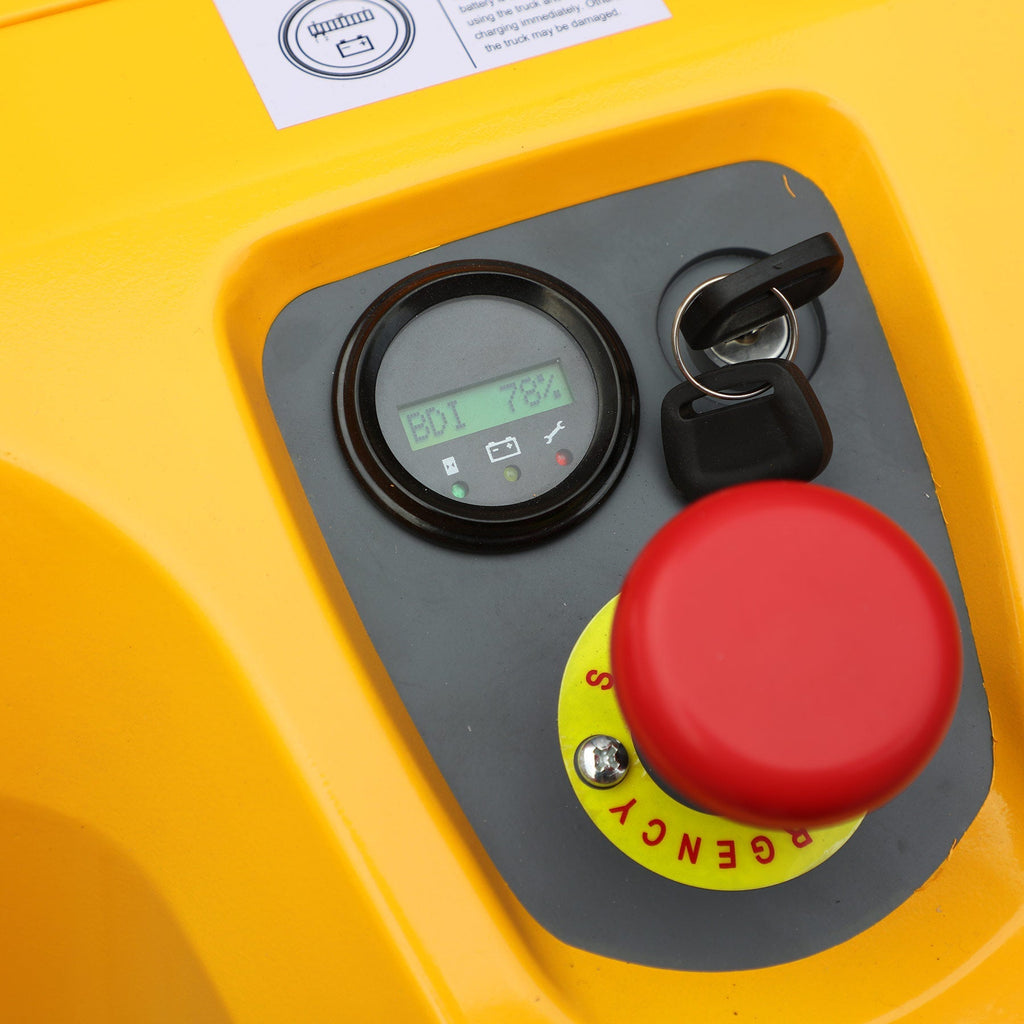

  • Yellow control panel with digital display and red emergency stop button

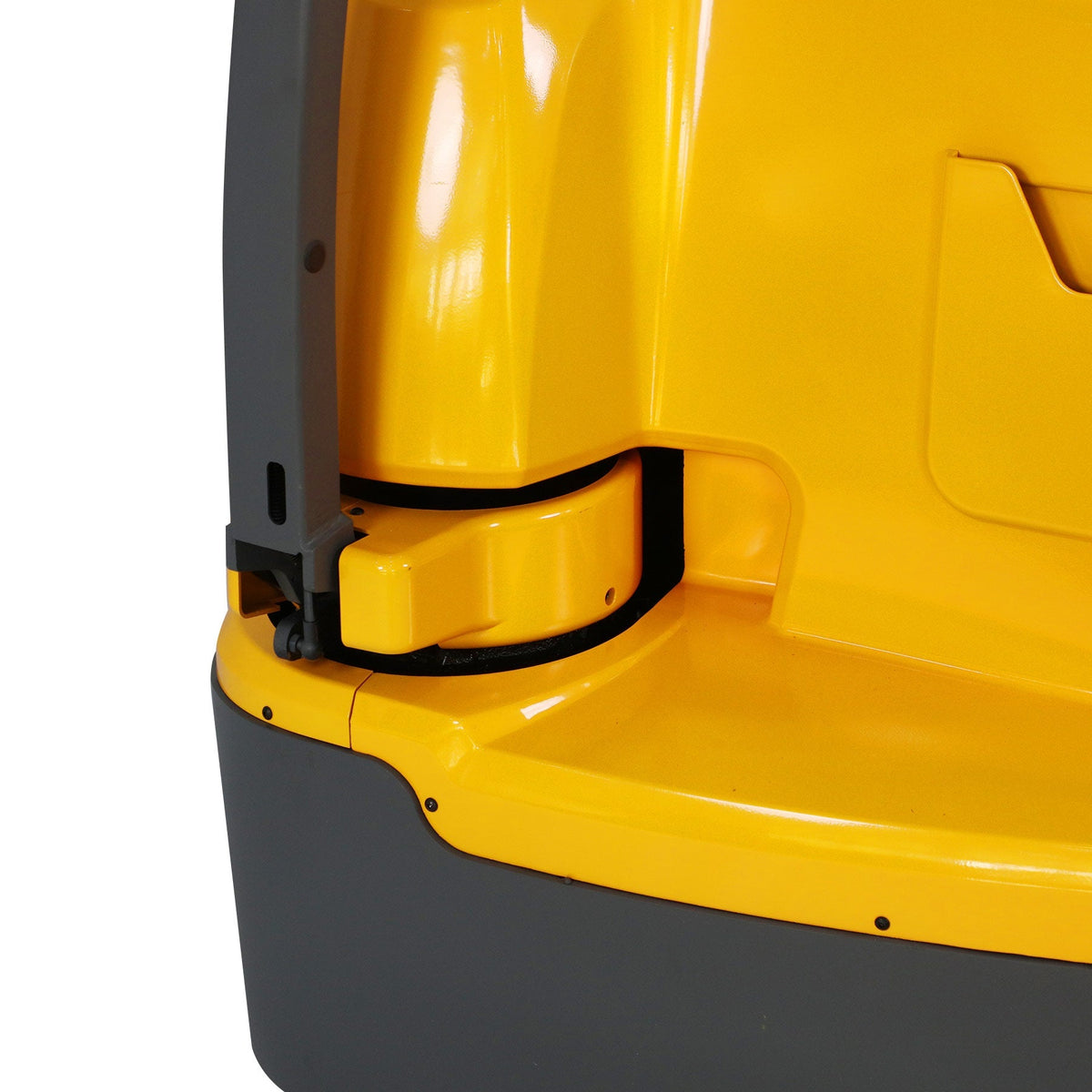

  • Yellow base housing with side access panel and black protective battery cover

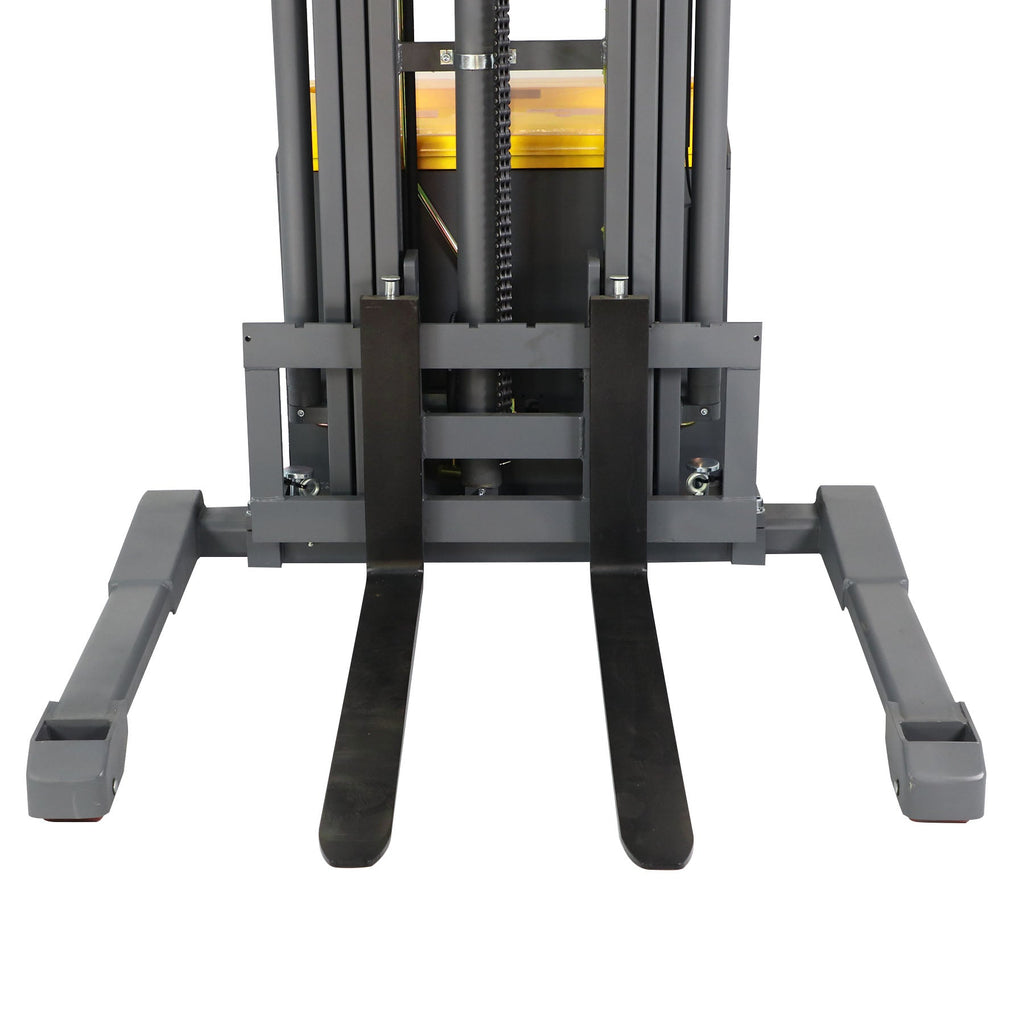

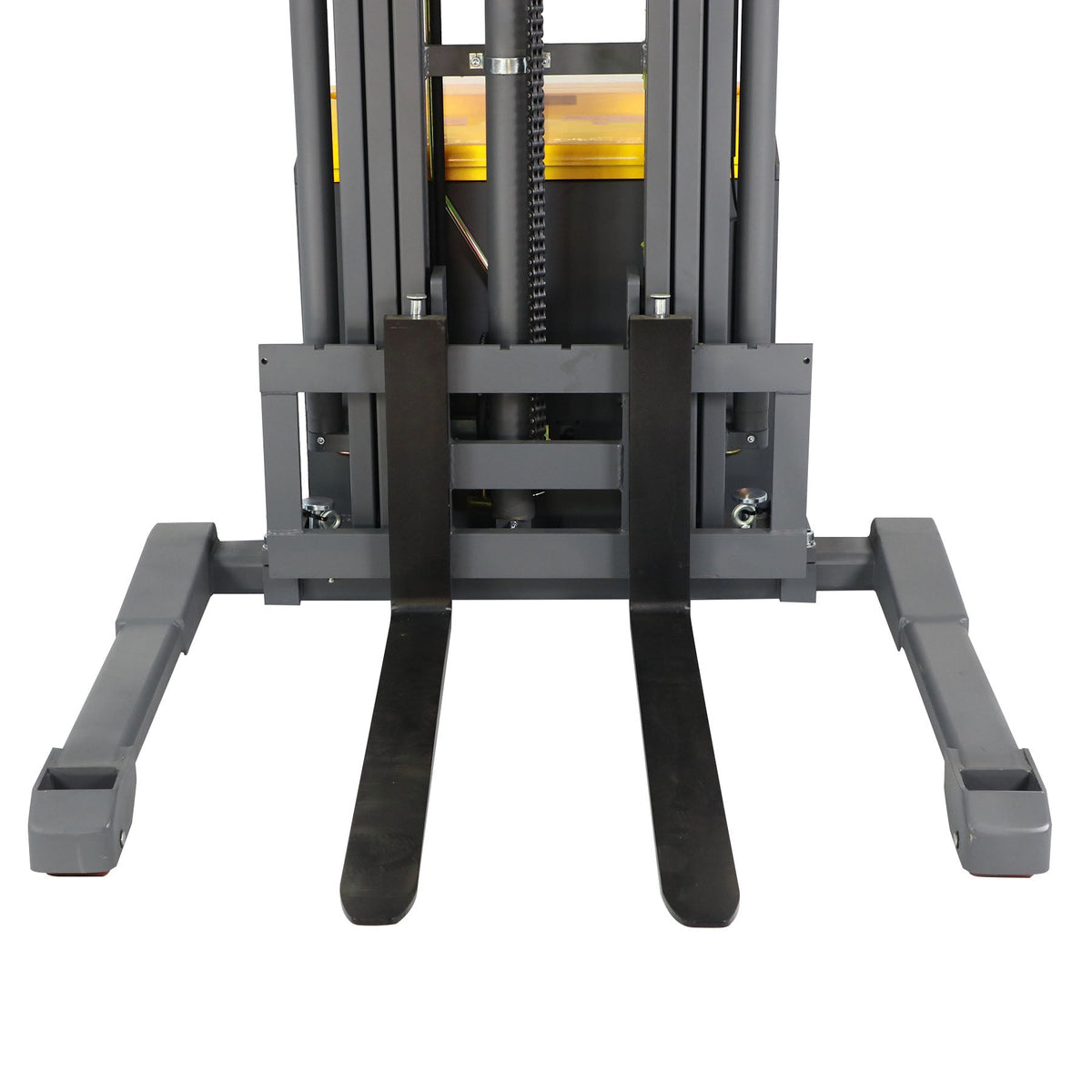

  • Under-mast view of electric pallet stacker showing lifting carriage and forks

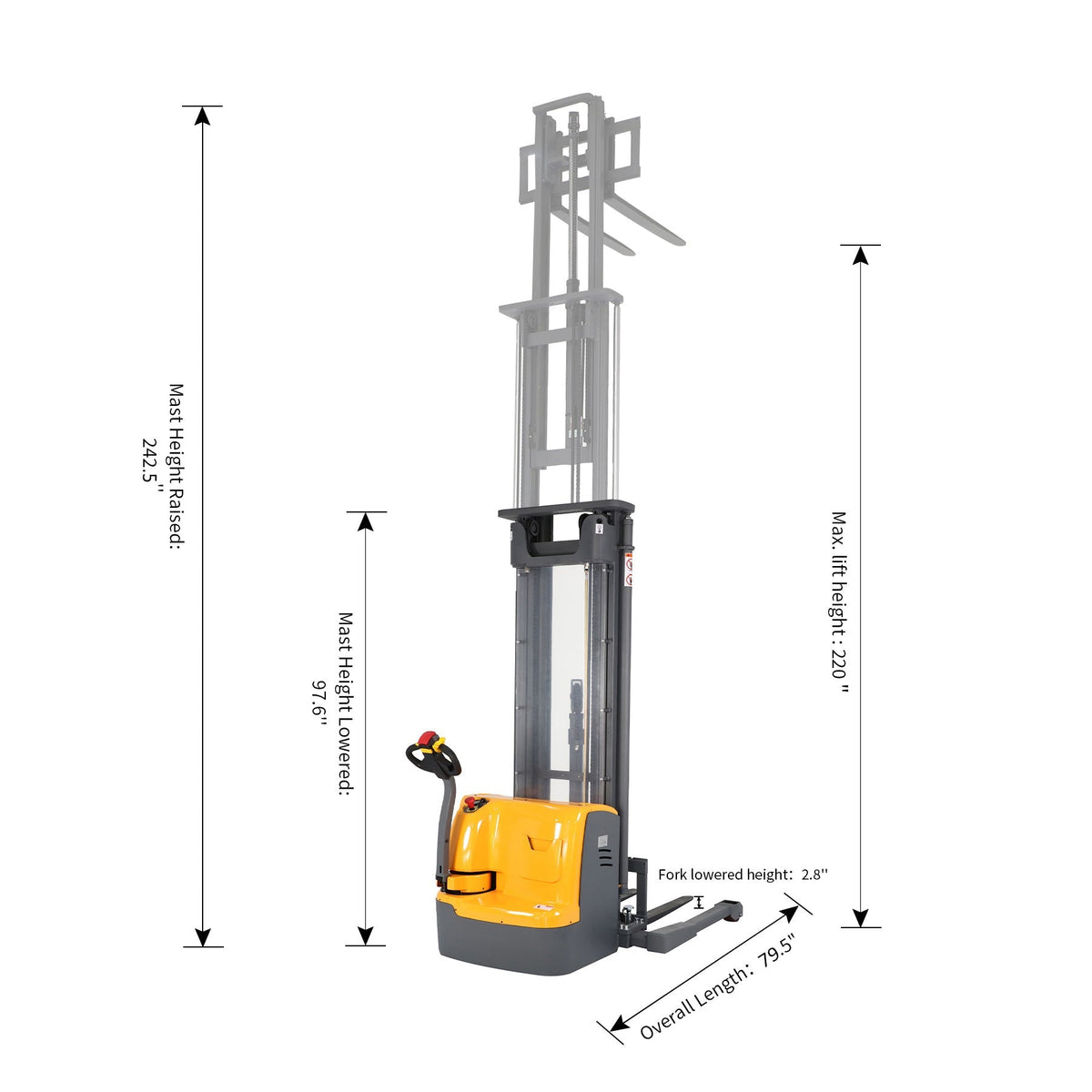

  • Electric pallet stacker with tall mast and height dimension diagram

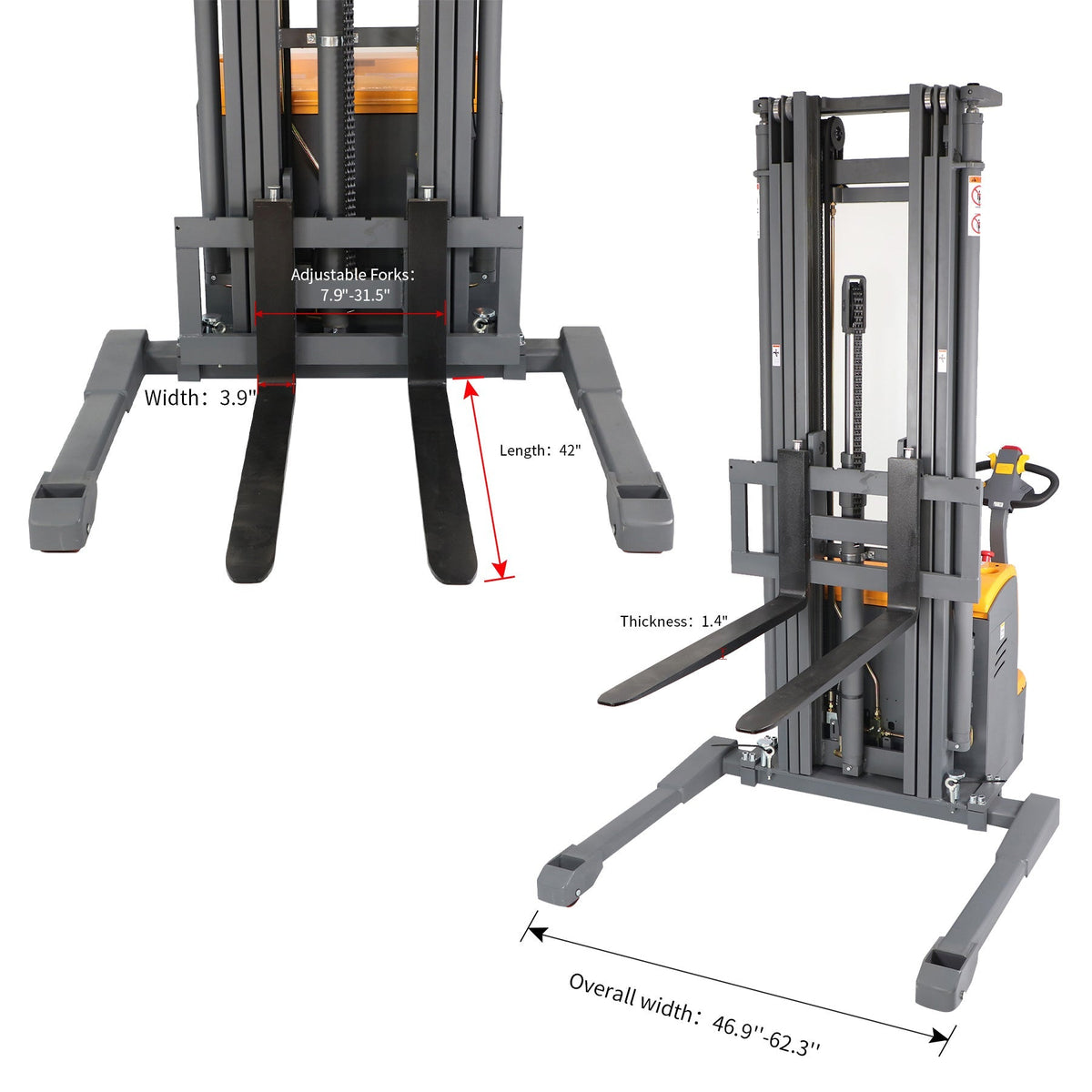

  • Electric pallet stacker with base dimension arrows, forks, and lifting mast
Xilin CTDR15-III-220 Full-Electric Stacker – 3300lb, 220in

Xilin CTDR15-III-220 Full-Electric Stacker – 3300lb, 220in

$12,599.00

Shop Pay Installments

Split your purchase into flexible installment payments with Shop Pay. Pay over time with no hidden fees.

How it works:

  • Choose Shop Pay at checkout
  • Select your preferred payment plan
  • Make your first payment today
  • Pay the rest over time with automatic payments

No interest. No hidden fees. Just flexible payments that work for you.

🚚 Shipping availability and rates vary by product, delivery option, and destination.

Carrier Terminal Pickup: Bring a suitable vehicle or trailer. The terminal will load the shipment, but the customer is responsible for unloading at the final destination.
⚠️ Warehouse Pickup – Please Contact Us First. Due to varying inventory across our warehouse locations, please contact us before placing your order to confirm stock availability at your preferred location.
Contact Us to Check Availability

🇺🇸 US-Based Business: We offer specialized support and flexible shipping and delivery options.

🏭
Expert SupportUS-Based Team
🚚
Shipping OptionsVary by Product & Destination
🛡️
1-Yr WarrantyFull Parts Support
🔬
Safety TestedLoad & Function Tested
📍
Pickup Options May Be AvailableContact us to confirm location & availability
Learn More >
Warranty

One-year limited manufacturer warranty against manufacturing defects. Warranty exclusions and battery coverage may vary by model.
Shipping

Free freight shipping to the contiguous 48 US states. Estimated delivery: 6–10 business days. Curbside delivery only — forklift or pallet jack required. Carrier will call 24–48 hrs before delivery. View full Shipping & Delivery details →

⚠️ Safety Warning

Read the manufacturer's operation manual before use. Confirm rated capacity at the required load center and lift height, pallet compatibility, aisle clearance, and floor conditions. Operate only with appropriate training. Never stand beneath raised forks or use this equipment to lift people.

The CTDR15-III-220 offers a 3,300 lb capacity and a massive 220" lift height, ideal for high-rack stacking in logistics centers, manufacturing plants, and warehouses. Equipped with an AC drive motor, side-pull battery system, and advanced control logic, it delivers stability, energy efficiency, and precise handling.

Adjustable Forks & Straddle Legs – Fits a wide range of pallets and shelf layouts.

Easy Steering & 4-Point Support – Long tiller + balanced frame ensures controlled turning.

Operator-Aligned Layout – Left-side walk-behind positioning offers great fork visibility in narrow aisles.

All-in-One Handle – Includes lift/lower, turtle speed, throttle, horn, creep mode, and upright travel.

Vertical Drive Motor – 55 dB operation with sealed housing, liquid gearbox, and long-life design.

Low-Noise Hydraulics – Rubber isolation + mast damping = smooth, quiet descent.

Reinforced Mast Design – Upper travel limit switch, side cylinders, clear oil routing, and 1.4" ground clearance.

Modular & Serviceable Frame – Bolt-on mast, 90% electrical integration, and organized internals.

Side-Pull Battery System – Quick battery swap via side access for efficient fleet operation.

Maintenance-Friendly Access – Easy reach to drive motor, balance wheels, electricals, and switches.

Stable 4-Point Frame – Enhanced load distribution for stacking without rear counterweight.

Regenerative Braking – Extends brake life and improves energy efficiency.

Proportional Lift & Lower – Smooth movement using HPI hydraulic unit + auto pressure lockout.

Smart Dashboard – Monitors battery, faults, hours, and voltage-triggered lift lockout.

AC Drive Motor – Brushless, maintenance-free, with powerful startup torque for heavy loads.

Smart Drive Zones – Brake zones A/C, drive in Zone B, creep mode upright for precision control.

Load Capacity: 3,300 lbs

Load Center: 23.6"

Turning Radius: 68.1"

Aisle Width: 101.1"

Fork Dimensions: 42" L × 7.9–31.5" W × 1.4" Thick

Inside Fork Width: 0.1"–23.6"

Overall Width: 46.9"–62.3"

Overall Length: 79.5"

Max Lifting Height: 220"

Mast Height (Lowered/Extended): 97.6" / 242.5"

Fork Lowered Height: 2.8"

Battery: 24V / 200Ah

Charger: 24V / 30A External

Travel Speed (L/U): 3.6 / 3.7 mph

Lifting Speed (L/U): 3.5 / 6.3 inch/s

Lowering Speed (L/U): 6.3 / 5.9 inch/s

Service Weight: 2980 lbs

The CTDR15-III-220 offers a 3,300 lb capacity and a massive 220" lift height, ideal for high-rack stacking in logistics centers, manufacturing plants, and warehouses. Equipped with an AC drive motor, side-pull battery system, and advanced control logic, it delivers stability, energy efficiency, and precise handling.

One-year limited manufacturer warranty against manufacturing defects. Warranty exclusions and battery coverage may vary by model.

Industrial warehouse and high-rack pallet stacking. Confirm load ratings and clearance for the intended application.

Product price and freight are separate. Freight is quoted based on the delivery ZIP code, destination type, and required delivery service. Commercial delivery, residential delivery, liftgate service, limited-access delivery, and pickup at a carrier terminal may have different costs. Inventory and freight must be confirmed before shipment.

Key Benefits

Adjustable Forks & Straddle Legs

Fits a wide range of pallets and shelf layouts.

Easy Steering & 4-Point Support

Long tiller + balanced frame ensures controlled turning.

Operator-Aligned Layout

Left-side walk-behind positioning offers great fork visibility in narrow aisles.

All-in-One Handle

Includes lift/lower, turtle speed, throttle, horn, creep mode, and upright travel.

Product Highlights

3,300 lb Capacity, 220 in Lift

3,300 lb Capacity, 220 in Lift

Massive 220 inch lift height supports high-rack stacking in logistics centers, manufacturing, and warehouses.

AC Drive & Side-Pull Battery

AC Drive & Side-Pull Battery

AC drive system and side-pull battery access support efficient operation and easier service.

Adjustable Forks & Straddle Legs

Adjustable Forks & Straddle Legs

Adjustable fork and straddle-leg layout helps fit different pallets and shelf conditions.

Dashboard & Emergency Controls

Dashboard & Emergency Controls

Digital display, control switches, and emergency stop are grouped for convenient operation monitoring.

Dimensions & Product Drawing

Official Xilin specification sheet with detailed parameter tables and dimensional drawings. Click the full-page preview or download the original PDF to view the document at full size.

Xilin ctdr15 iii 220 full electric stackers official PDF with specification tables and dimensional drawings
Download Product Drawing (PDF)

Product Manual

Download the complete product manual and installation guide.
Download Manual
