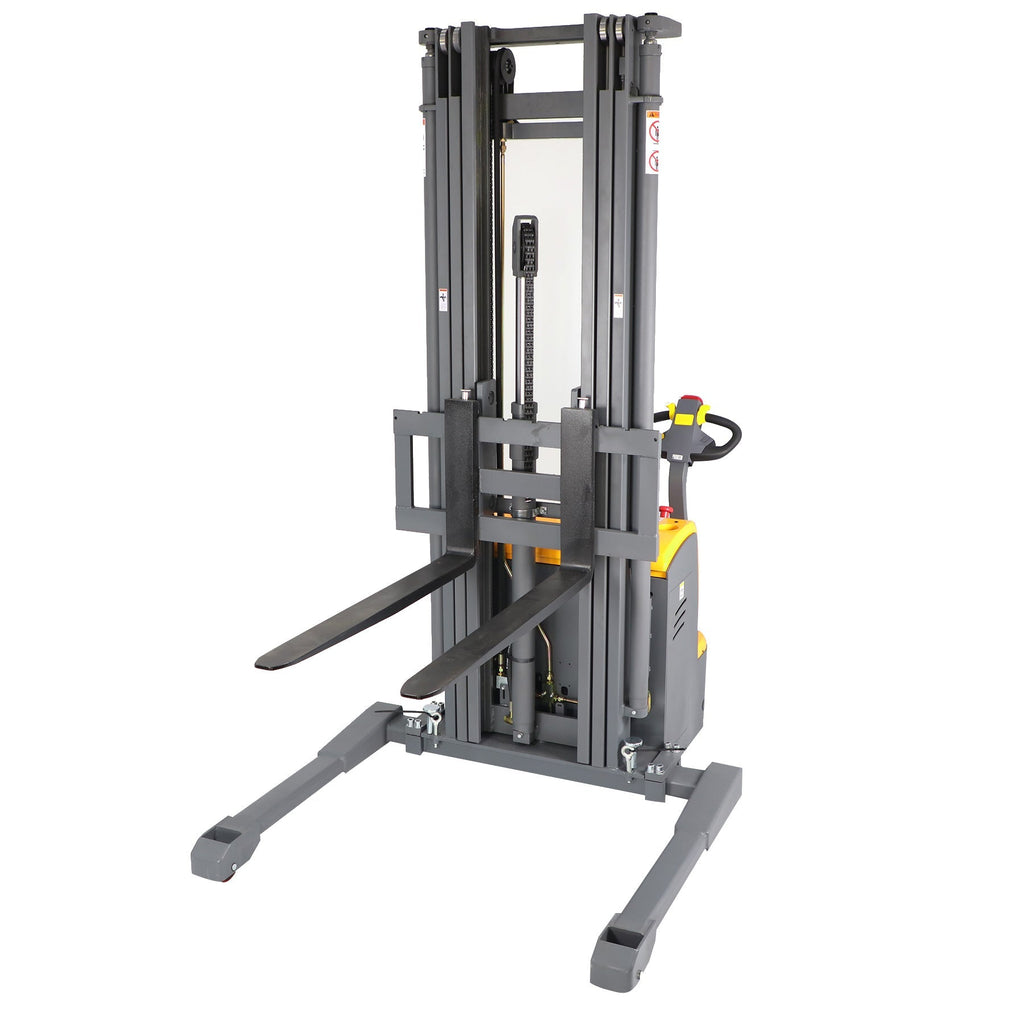

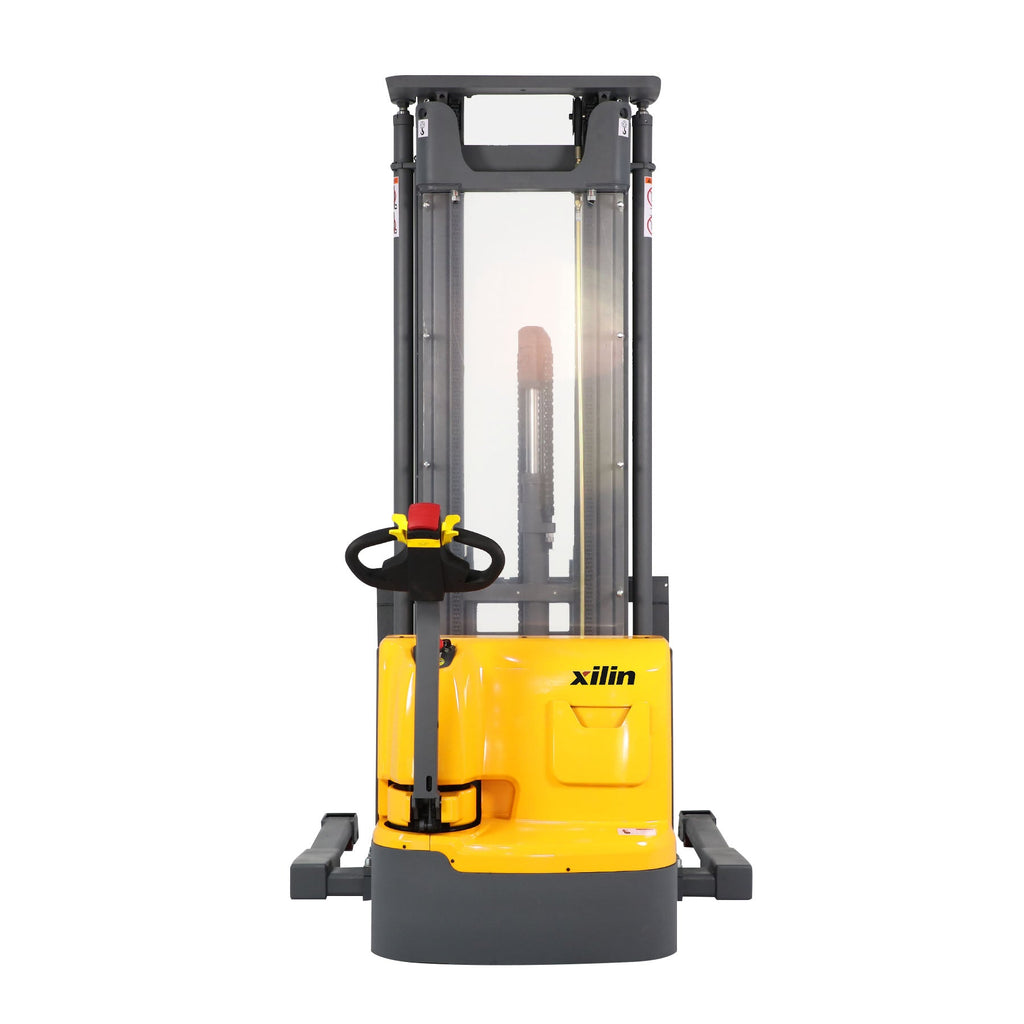

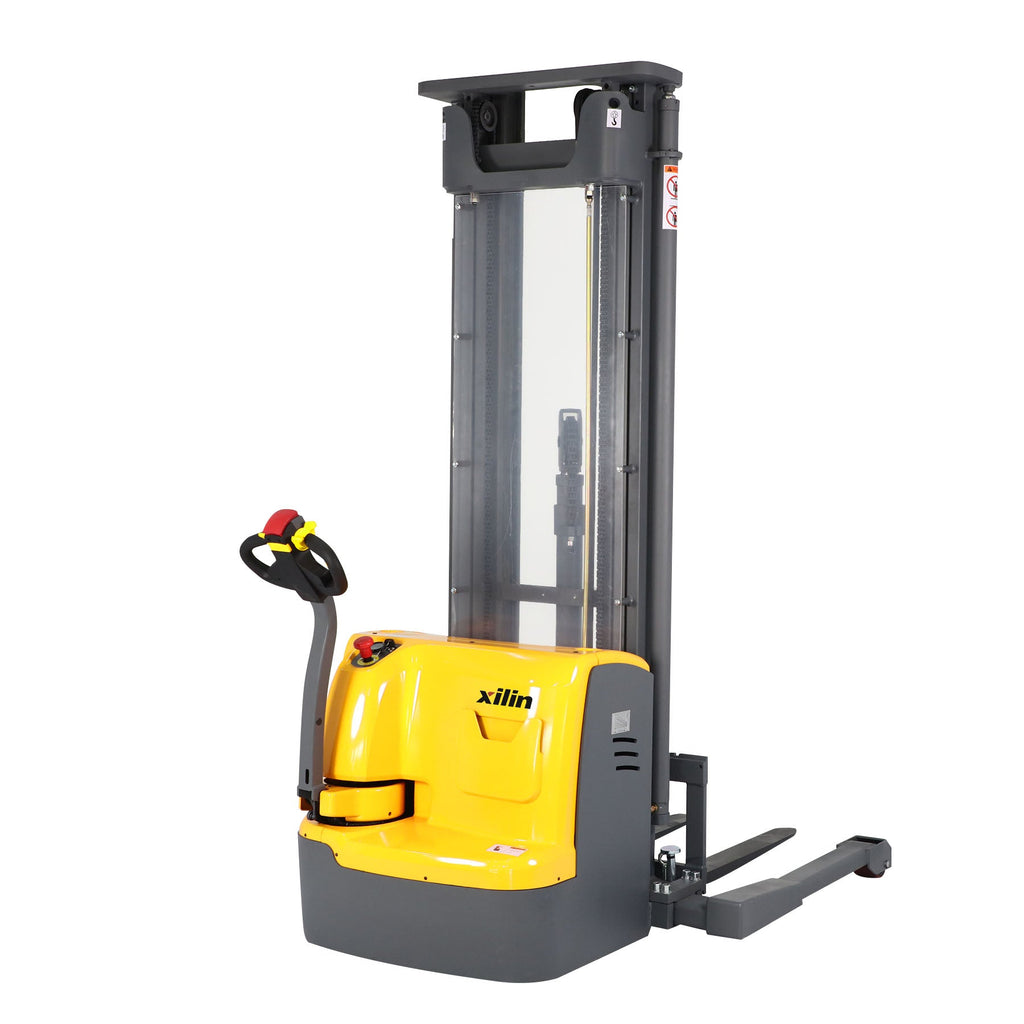

Xilin CTDR15-III-177 Full-Electric Stacker – 3300lb, 177in

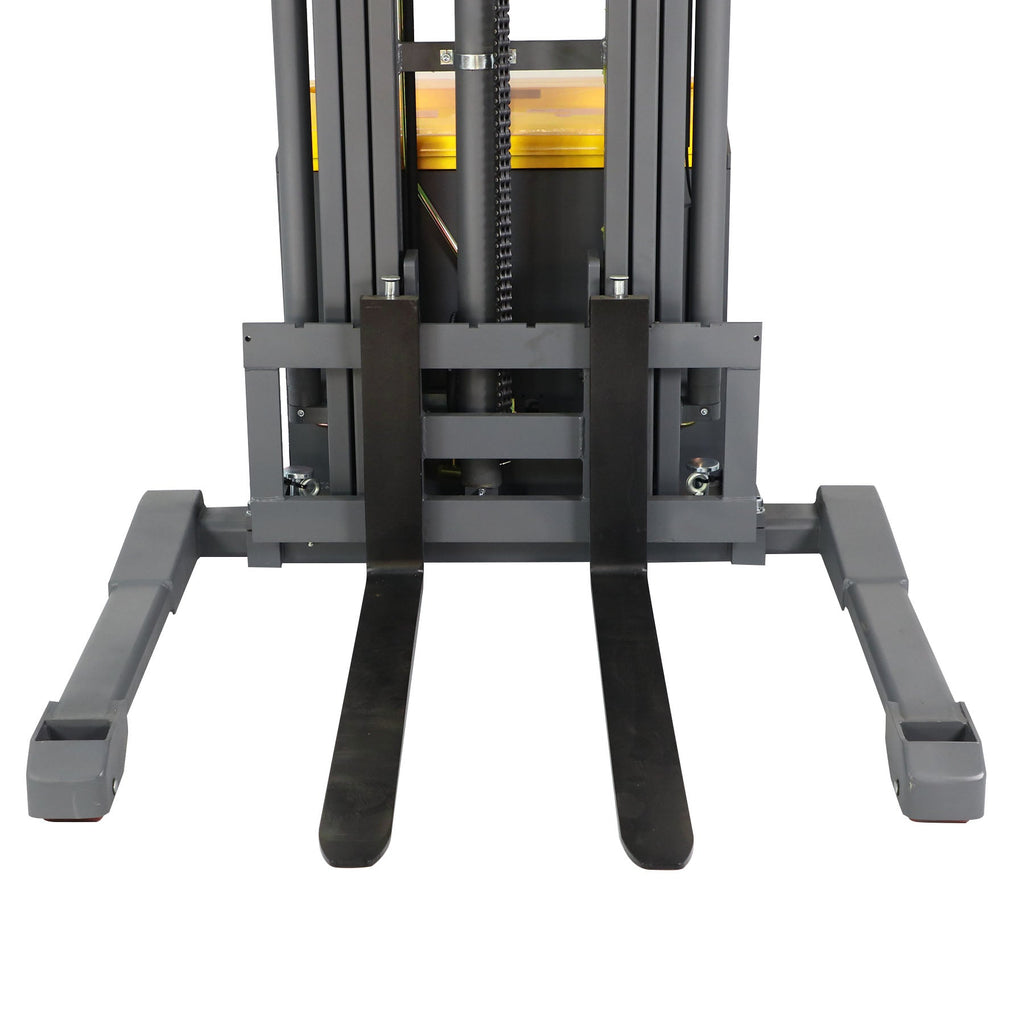

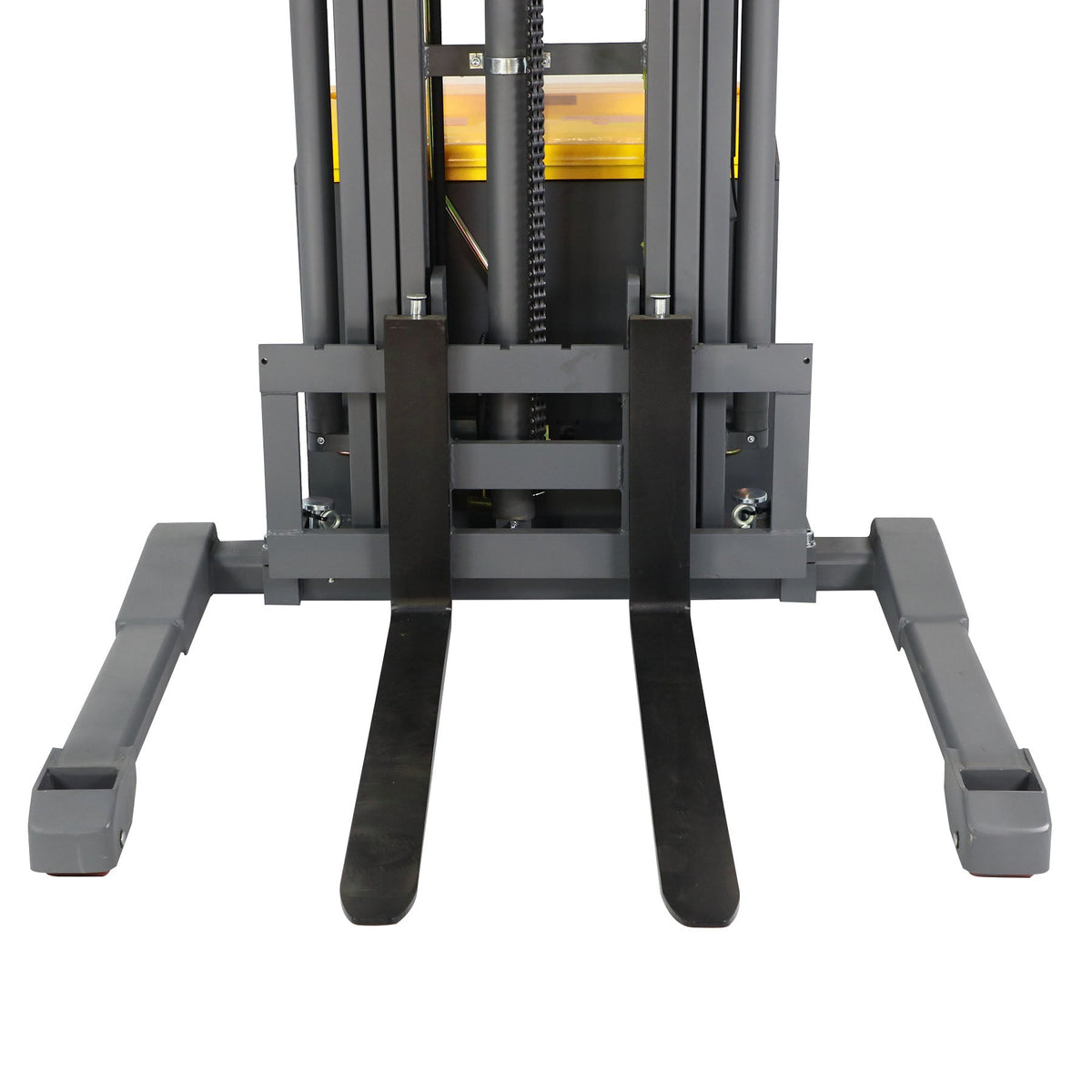

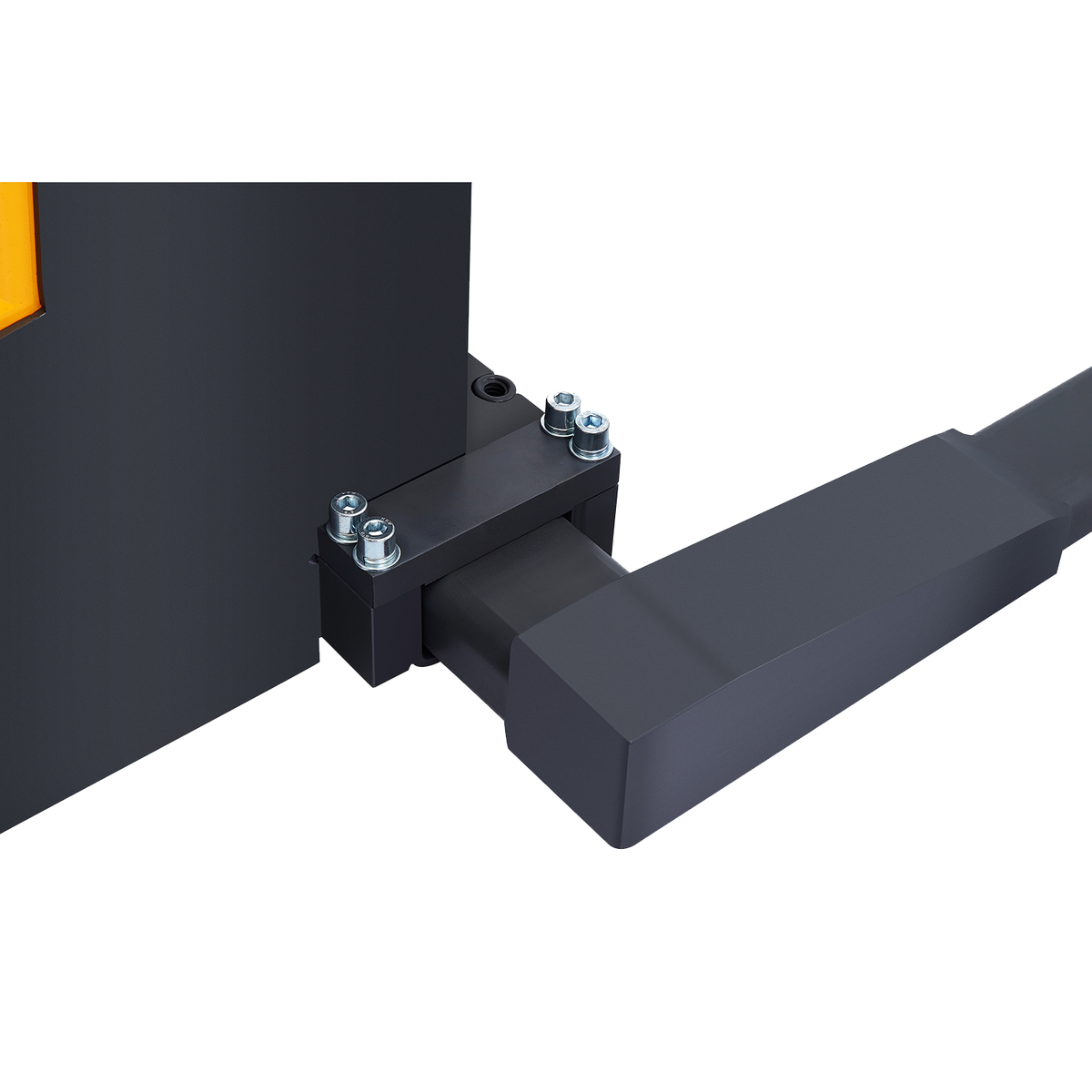

Adjustable Forks & Straddle Legs – Fits various pallet sizes and racking conditions.

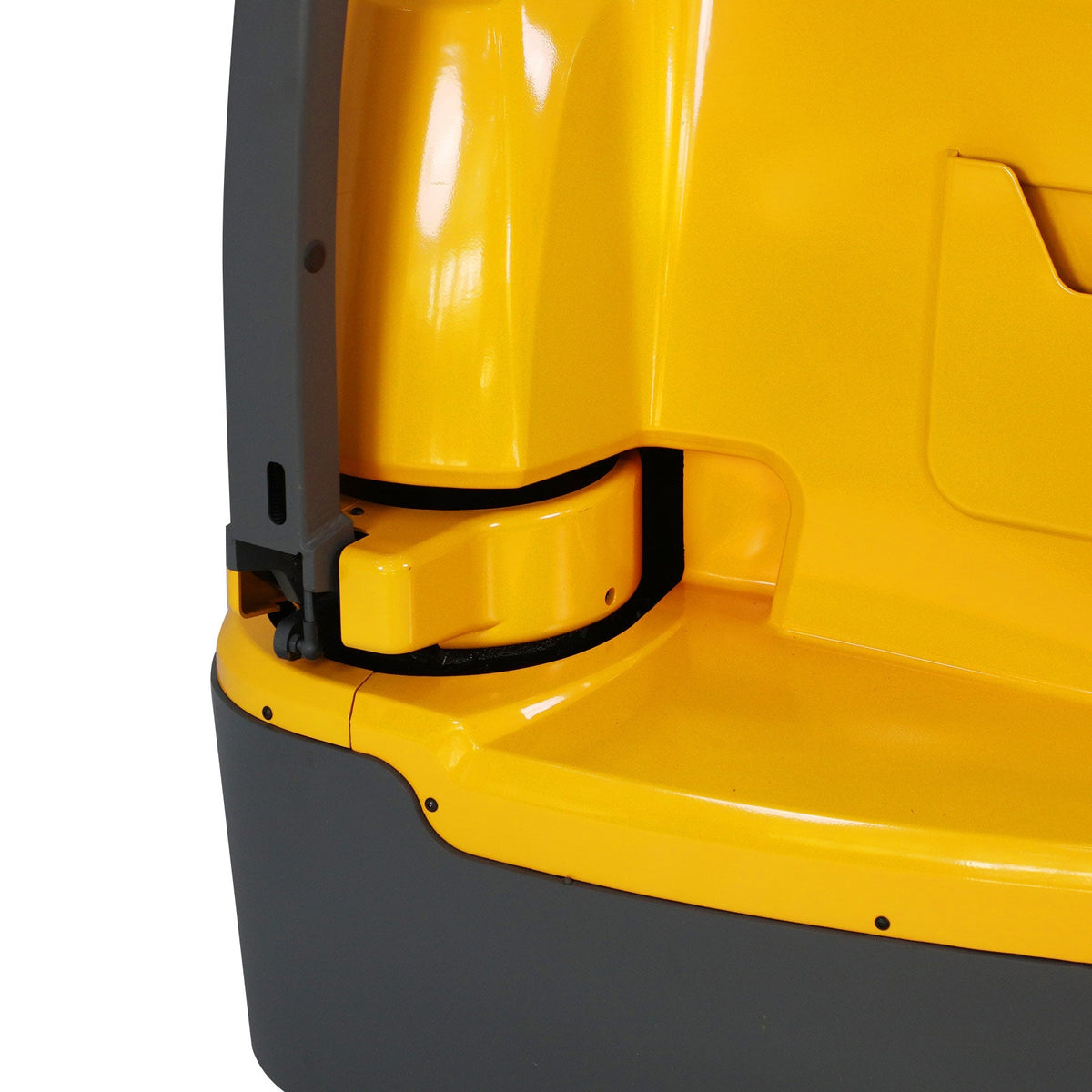

Easy Steering with Torque Arm – Long tiller + 4-point support improves turning stability.

Walk-Behind Layout – Operator-aligned position for better visibility in narrow aisles.

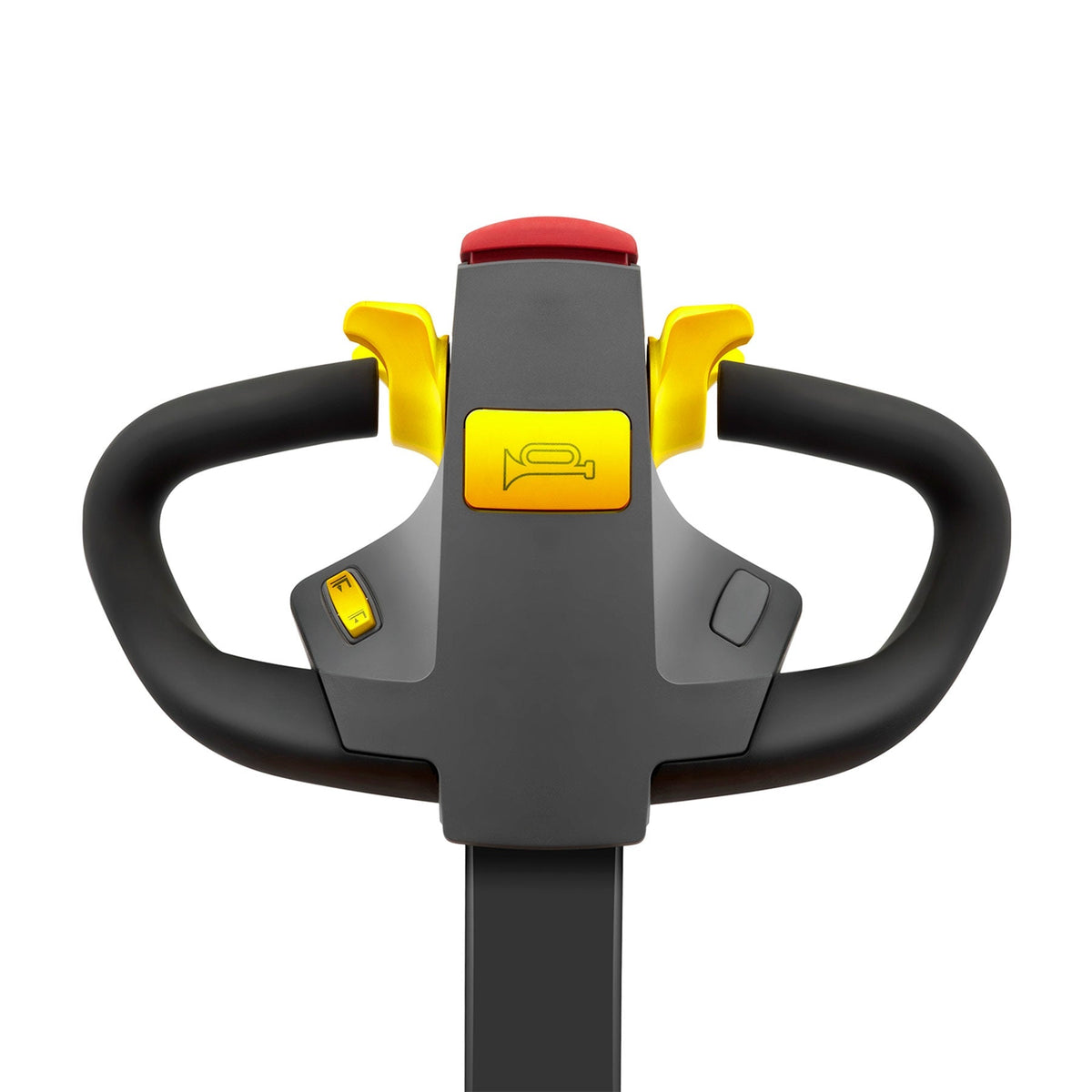

Multi-Function Handle – Lift/lower, throttle, horn, creep mode, turtle speed, and upright travel all in one control.

Vertical Drive Motor System – Liquid-lubricated gearbox, water/dust proof motor, low 55 dB(A) noise level.

Low-Noise Operation – Damped mast + rubber isolation blocks reduce shock and sound.

Wide-View Mast – Side-mounted cylinders, clean oil line routing, upper travel limit switch, and 1.4" ground clearance.

Modular Frame Design – 90% component integration, bolted mast for easy disassembly.

Side-Pull Battery – Easy battery replacement with sliding compartment and cover access.

Maintenance-Friendly Layout – Simple access to drive, balance wheels, switches, and electric parts.

4-Point Stability – Smooth stacking without the need for counterweight.

Regenerative Braking – Reduces wear, saves energy, and boosts efficiency.

HPI Hydraulic System – Auto oil pressure hold with proportional lift/lower control.

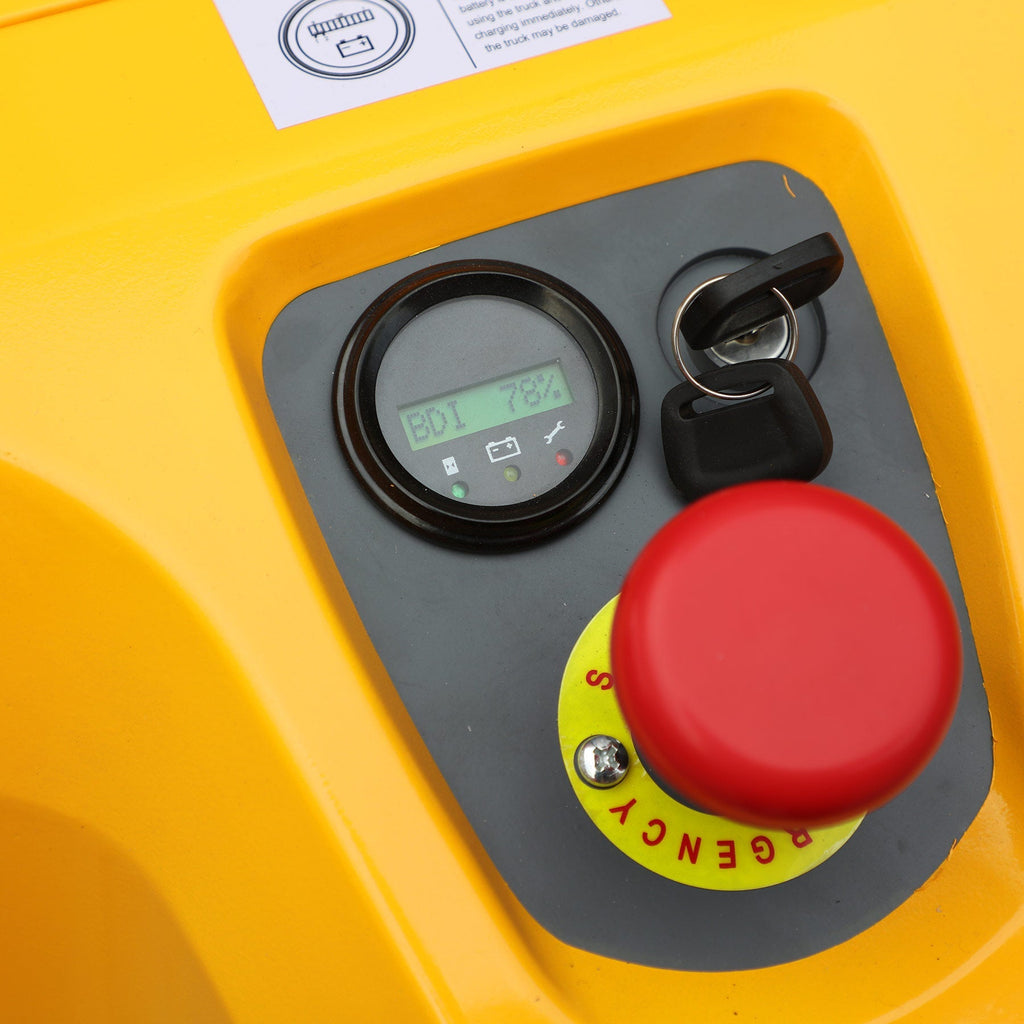

Smart Dashboard – Shows battery, fault codes, hours, and low-voltage lift lockout.

AC Drive Motor – Brushless, strong torque, maintenance-free design for long-term use.

Smart Tiller Zones – Auto brake in Zone A/C, drive in Zone B, creep mode in upright position.

Load Capacity: 3,300 lbs

Load Center: 23.6"

Turning Radius: 68.1"

Aisle Width: 101.1"

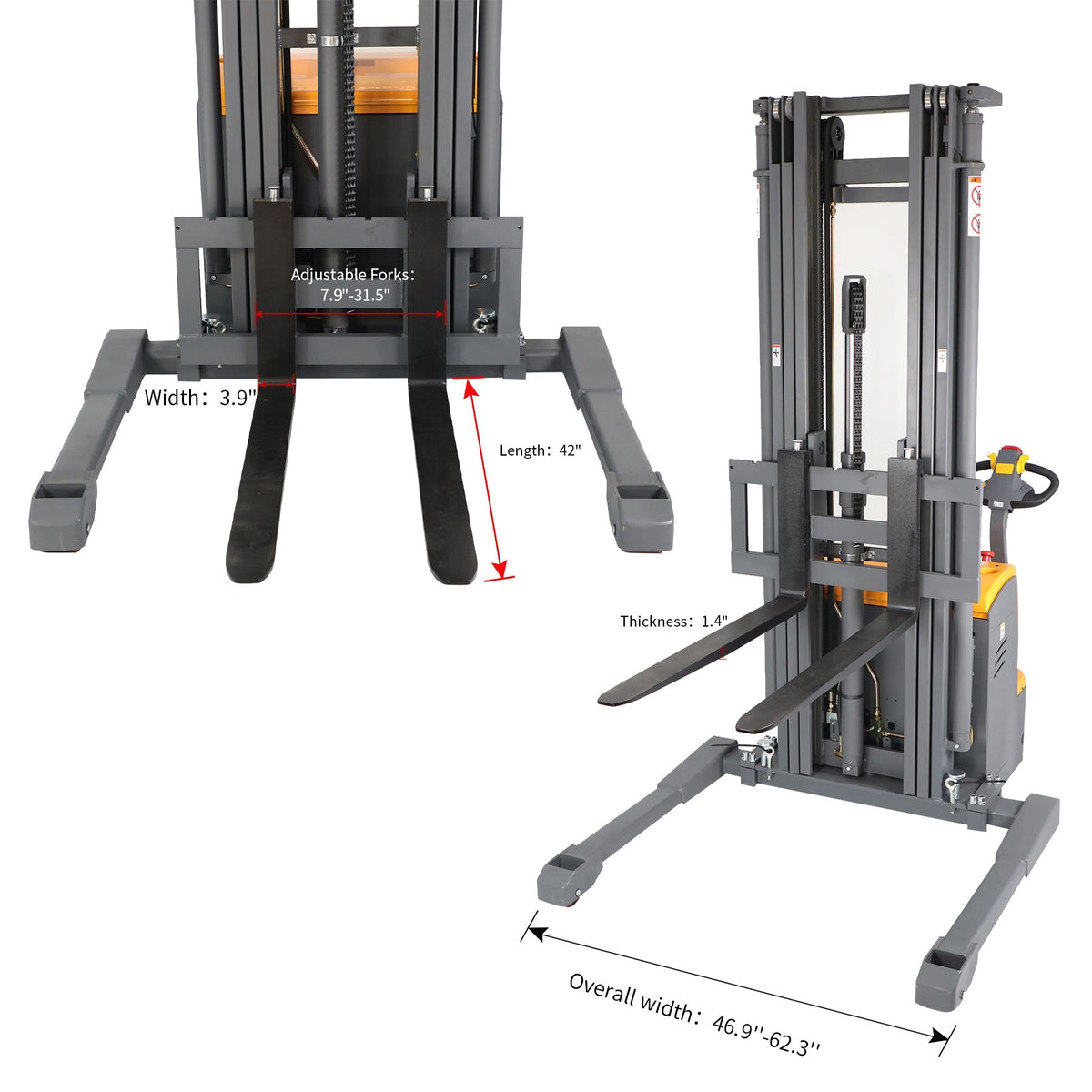

Fork Dimensions: 42" L × 7.9–31.5" W × 1.4" Thick

Inside Fork Width: 0.1"–23.6"

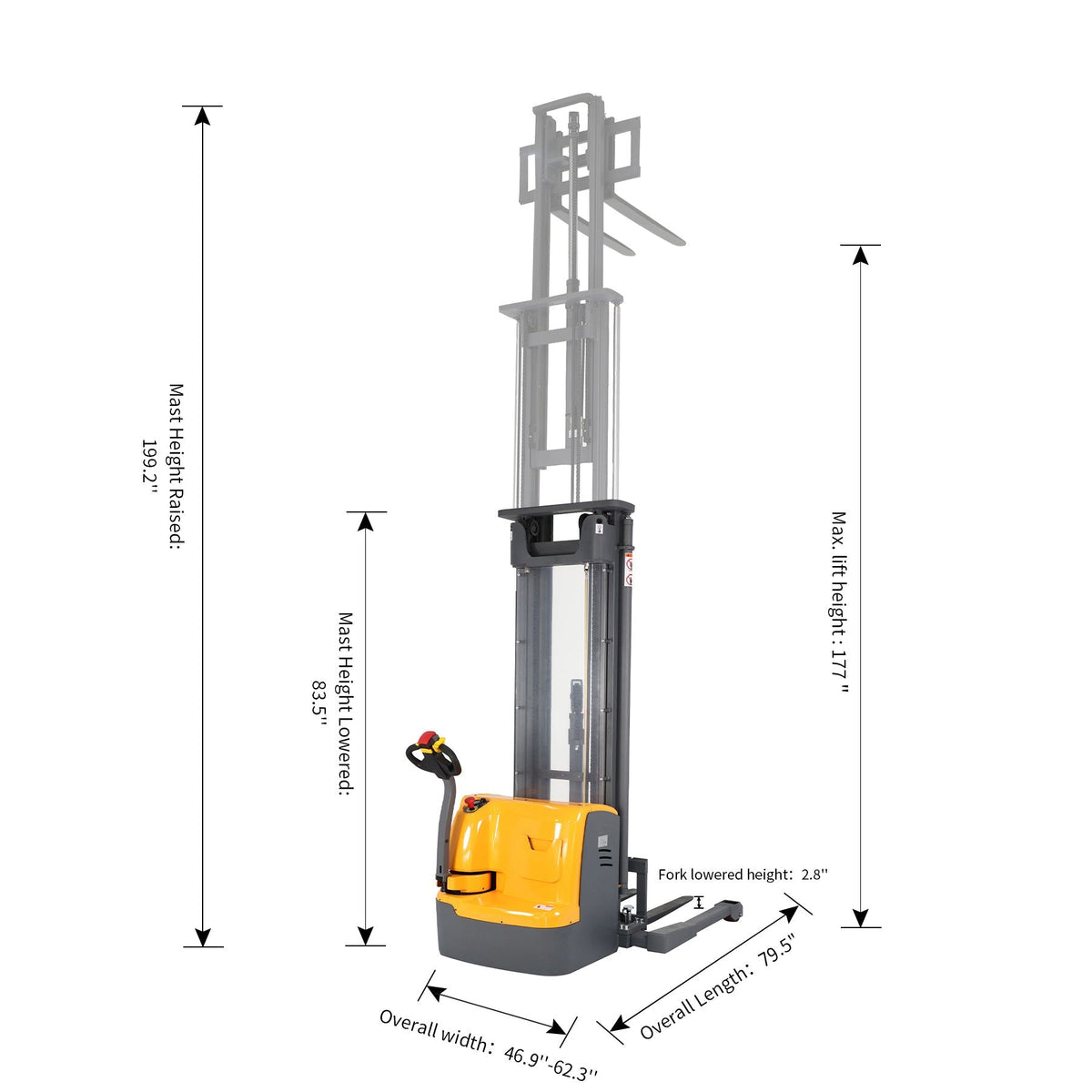

Overall Width: 46.9"–62.3"

Overall Length: 79.5"

Max Lifting Height: 177"

Mast Height (Lowered/Extended): 83.5" / 199.2"

Fork Lowered Height: 2.8"

Battery: 24V / 200Ah

Charger: 24V / 30A External

Travel Speed (L/U): 3.6 / 3.7 mph

Lifting Speed (L/U): 3.5 / 6.3 inch/s

Lowering Speed (L/U): 6.3 / 5.9 inch/s

Service Weight: 2790 lbs

The CTDR15-III-177 is built for high-density storage and precision stacking. With a 3,300 lb load capacity and 177" lift height, it features adjustable forks, AC motor, and a 24V/200Ah battery with side-pull access. Ideal for industrial warehouses and high-rack facilities requiring efficient, reliable performance.

One-year limited manufacturer warranty against manufacturing defects. Warranty exclusions and battery coverage may vary by model.

Industrial warehouse and high-rack pallet stacking. Confirm load ratings and clearance for the intended application.
