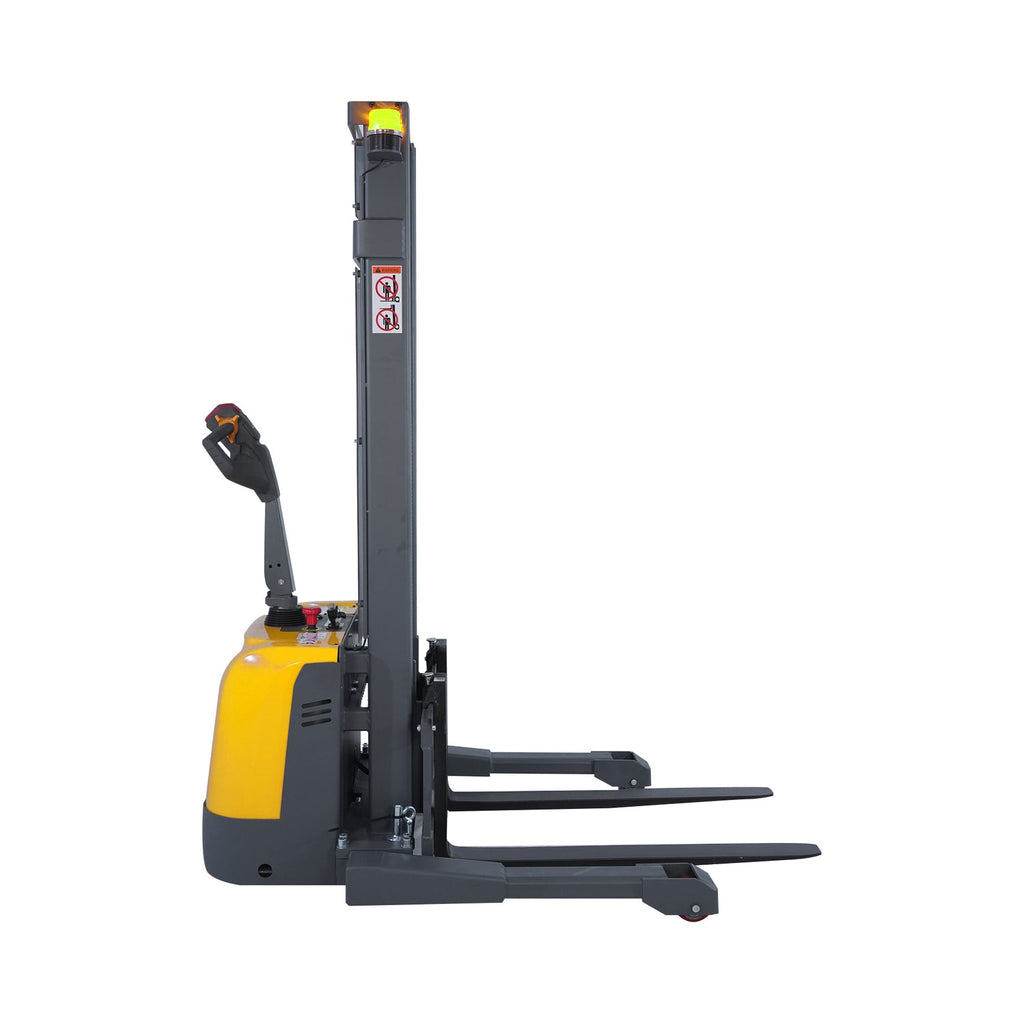

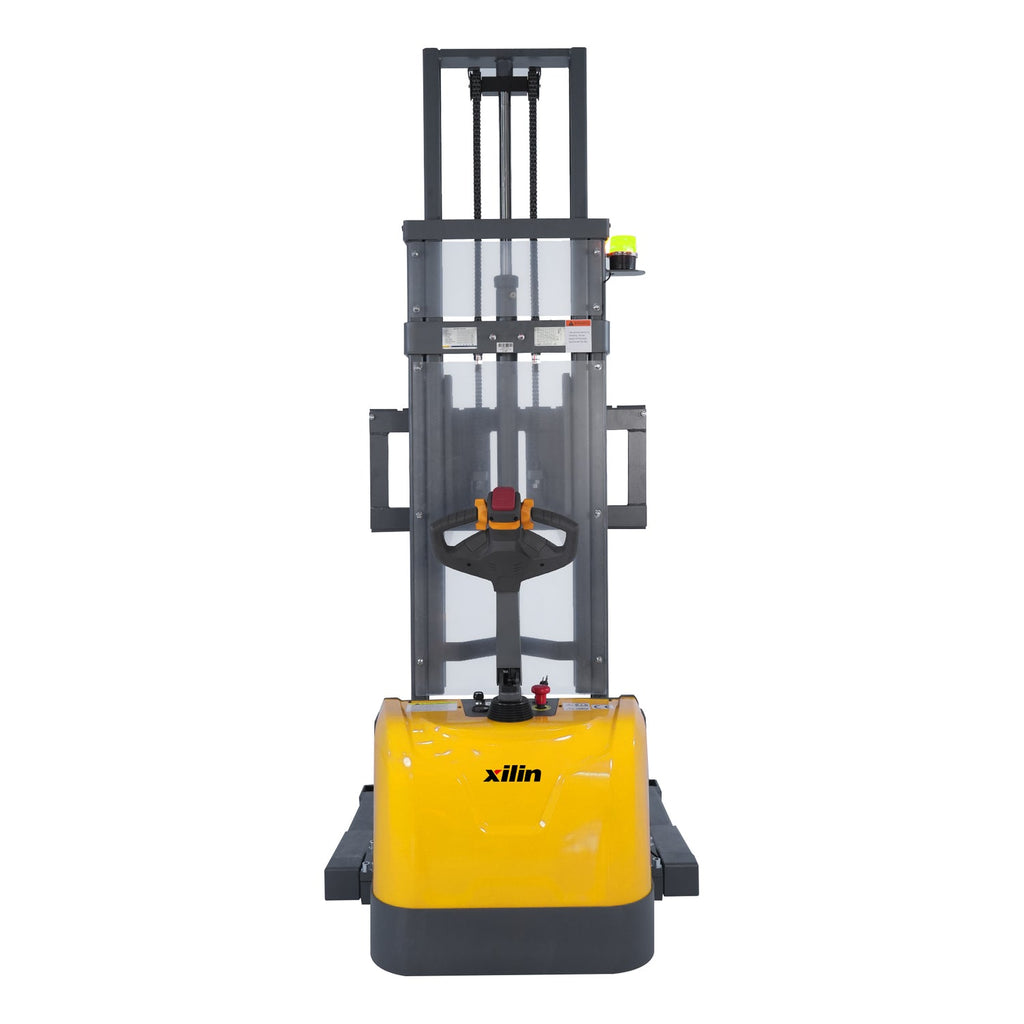

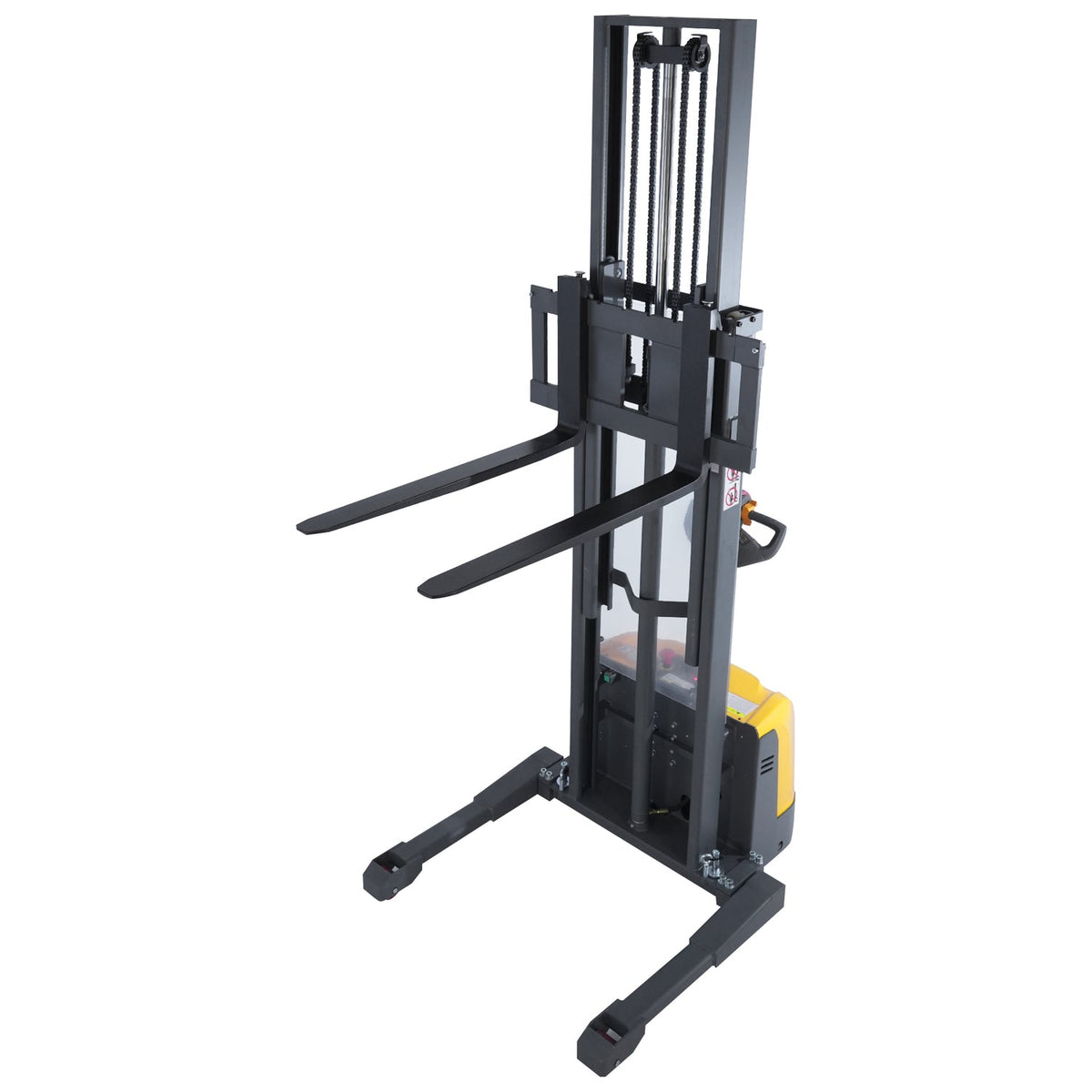

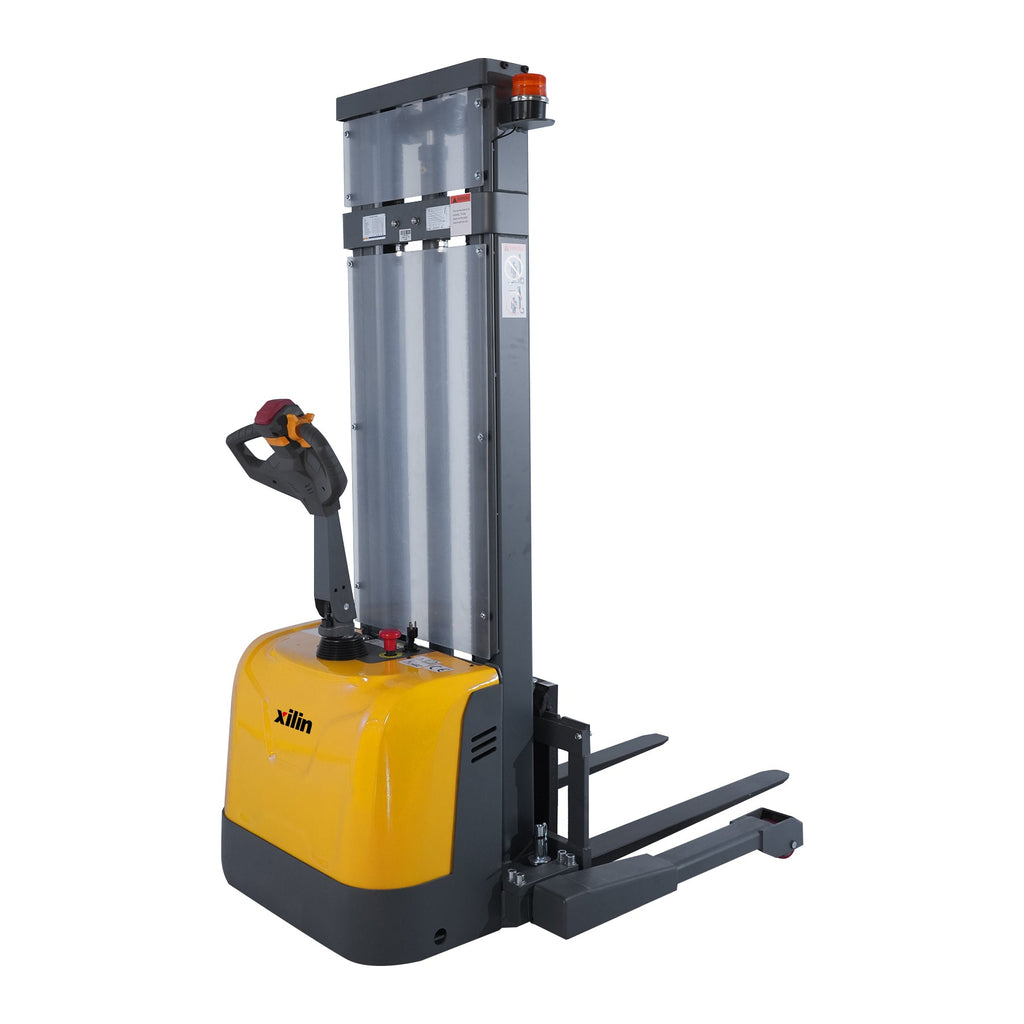

Xilin CTD15R-EN-98 Full-Electric Stacker – 3300lb, 98in

Modern Modular Design – Unified appearance with durable steel covers and family-style design across models.

Compact for Tight Areas – Replaces manual jacks in truck loading, retail, and warehouse use.

Top-Mounted Drive Motor – Keeps motor high and safe from dust, oil, and water for longer life.

Easy-Maintenance Layout – Modular design with liquid-lubricated gearbox for quiet, efficient operation.

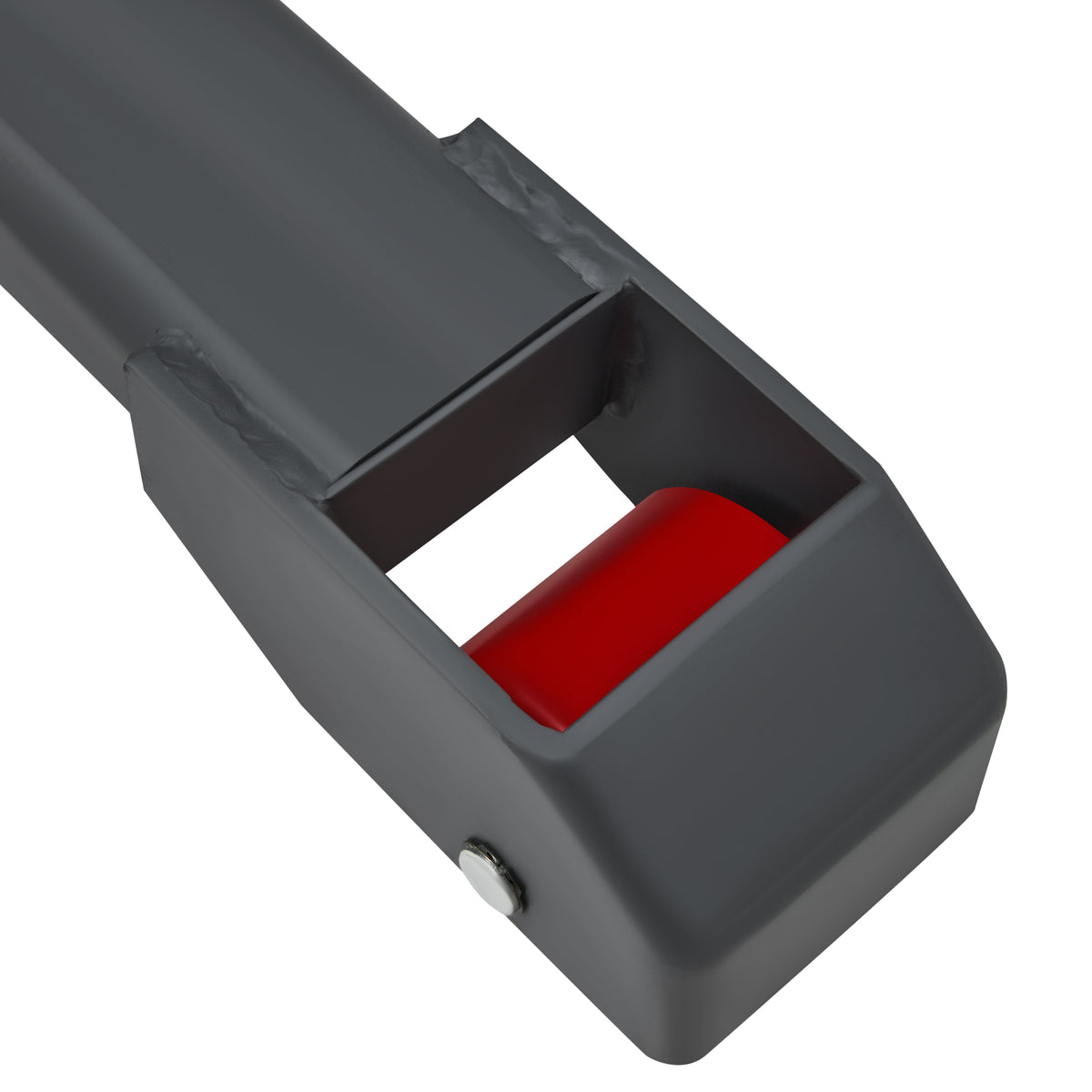

Stable 3-Point Chassis – Low center of gravity with two front wheels and center-mounted drive wheel.

Built-In Charger – No extra equipment required—just plug in and recharge from any standard outlet.

Explosion-Proof Safety Valve – Prevents free-fall in case of hydraulic failure during lifting.

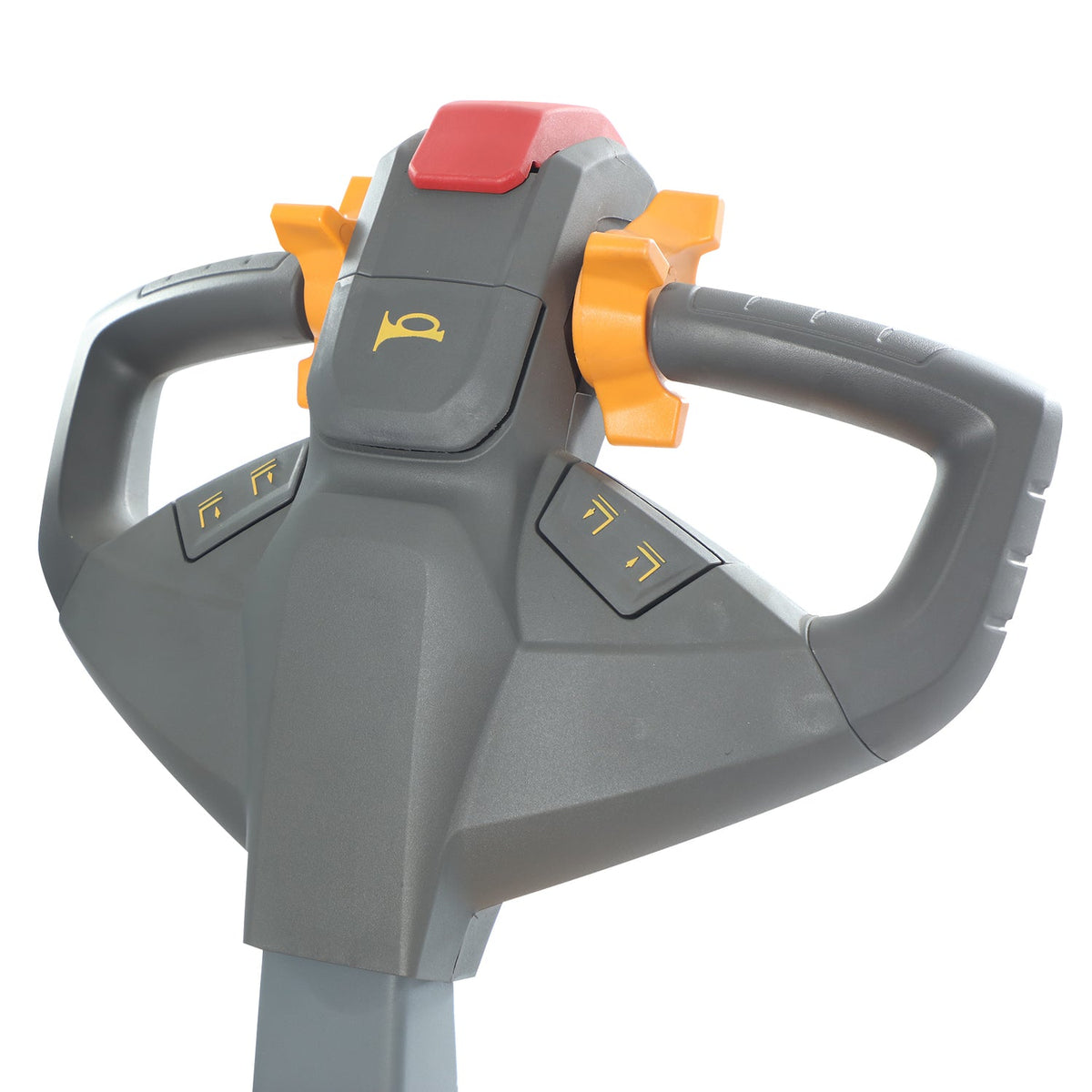

All-in-One Control Handle – Electric lift/lower, throttle, horn, turtle speed, and emergency functions.

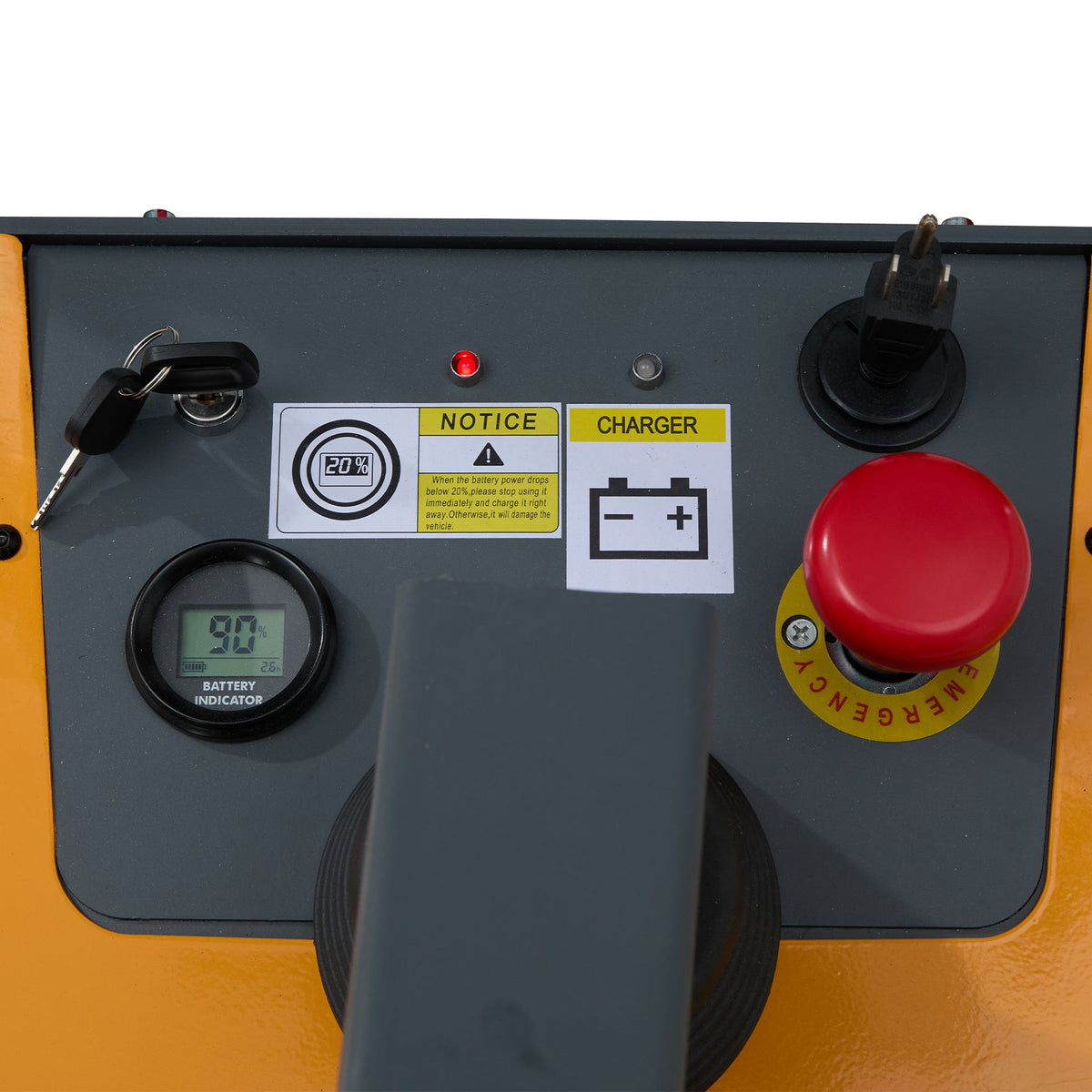

Reliable Battery System – 24V/100Ah battery with 10-hour charge time and digital dashboard display.

Customizable Parameters – Service engineers can adjust driving speed and acceleration via controller.

Full-System Electrical Protection – Each key component protected by its own fuse for long-term reliability.

Load Capacity: 3,300 lbs

Load Center: 23.6 in

Turning Radius: 53 in

Aisle Width: 87.8 in

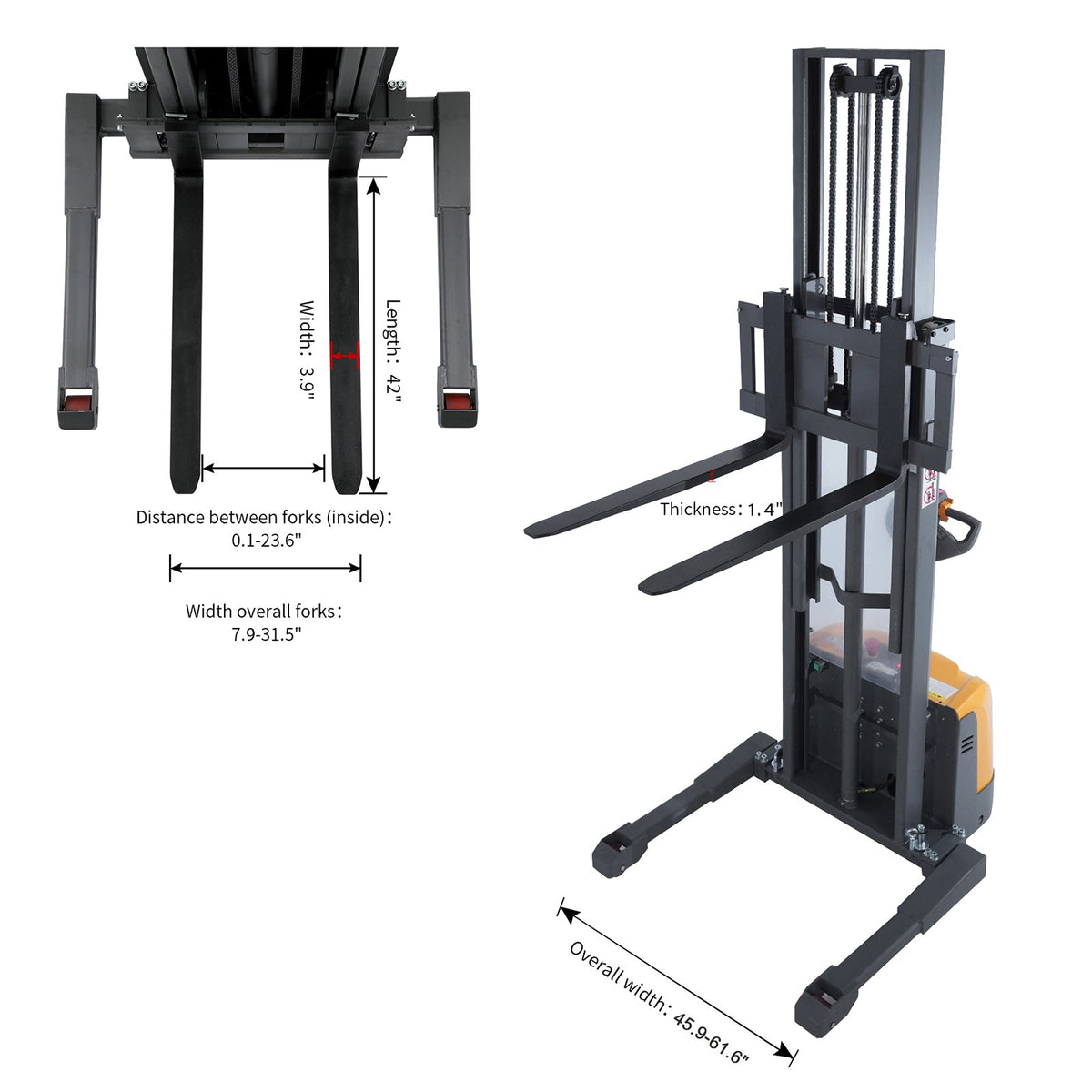

Fork Dimensions: 42 in L × 7.9–31.5 in W × 1.4 in Thick

Inside Fork Width: 0.1 in–23.6 in

Overall Width: 45.9 in–61.6 in

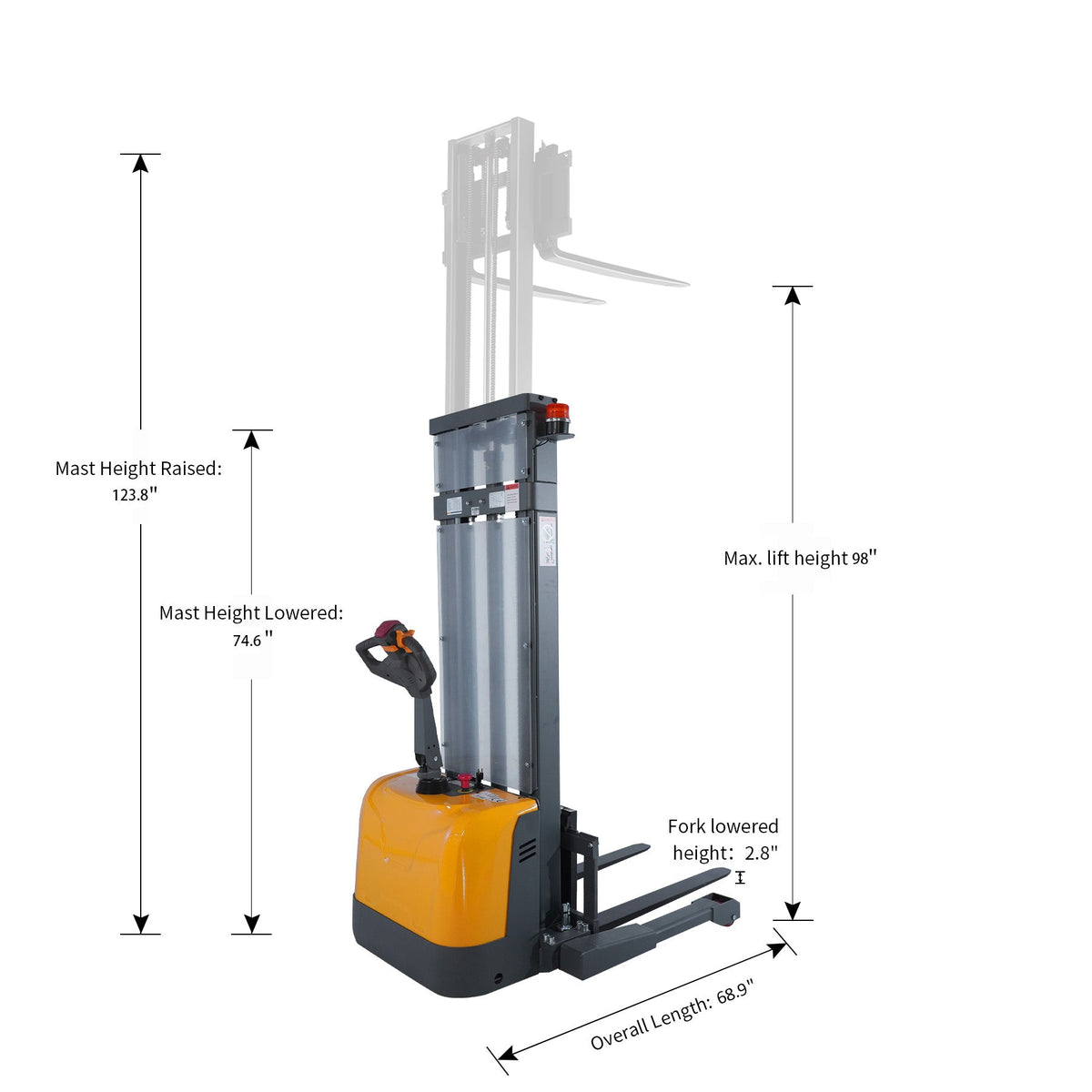

Overall Length: 68.9 in

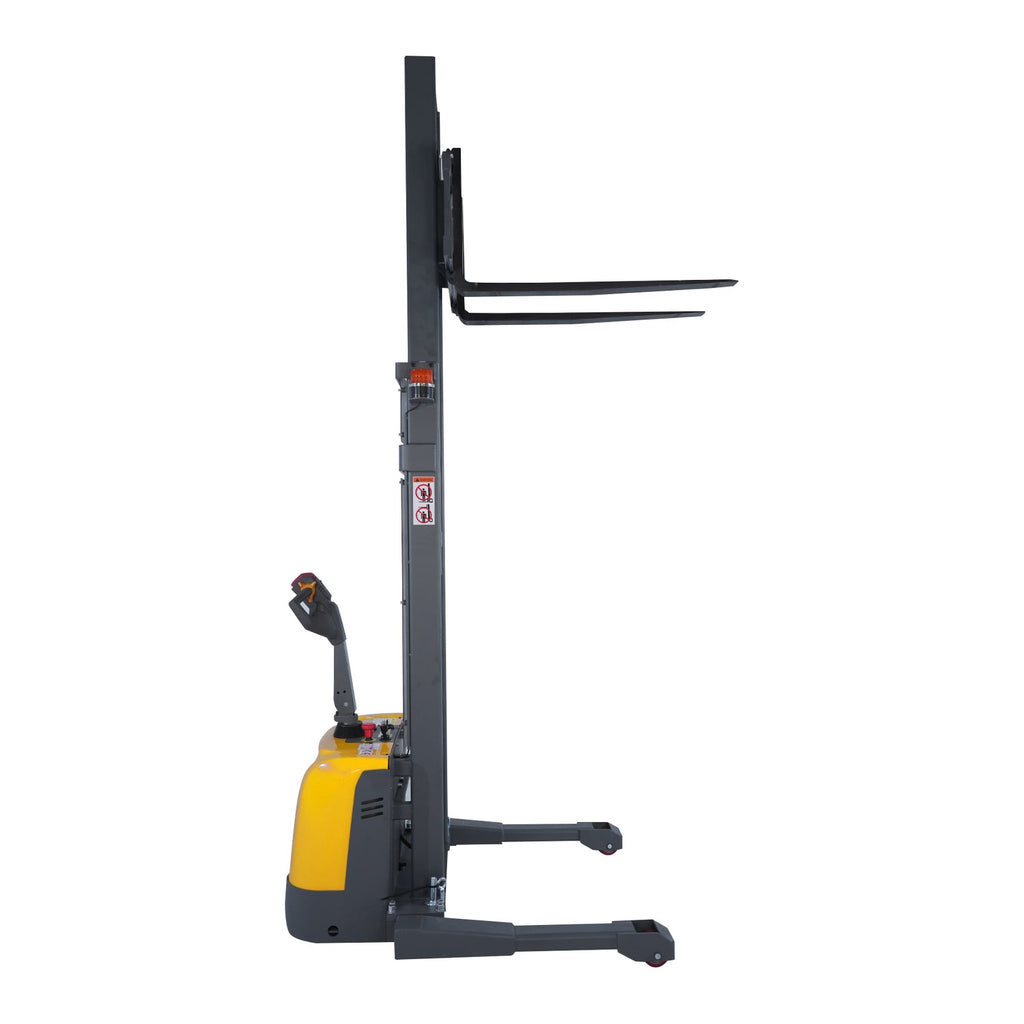

Max Lifting Height: 98 in

Mast Height (Lowered/Extended): 74.6 in / 123.8 in

Fork Lowered Height: 2.8 in

Battery: 24V / 100Ah

Charger: 24V / 10A Built-in

Travel Speed (L/U): 2.8 / 3.1 mph

Lifting Speed (L/U): 3.5 / 5.9 inch/s

Lowering Speed (L/U): 5.9 / 4.3 inch/s

Service Weight: 1350 lbs

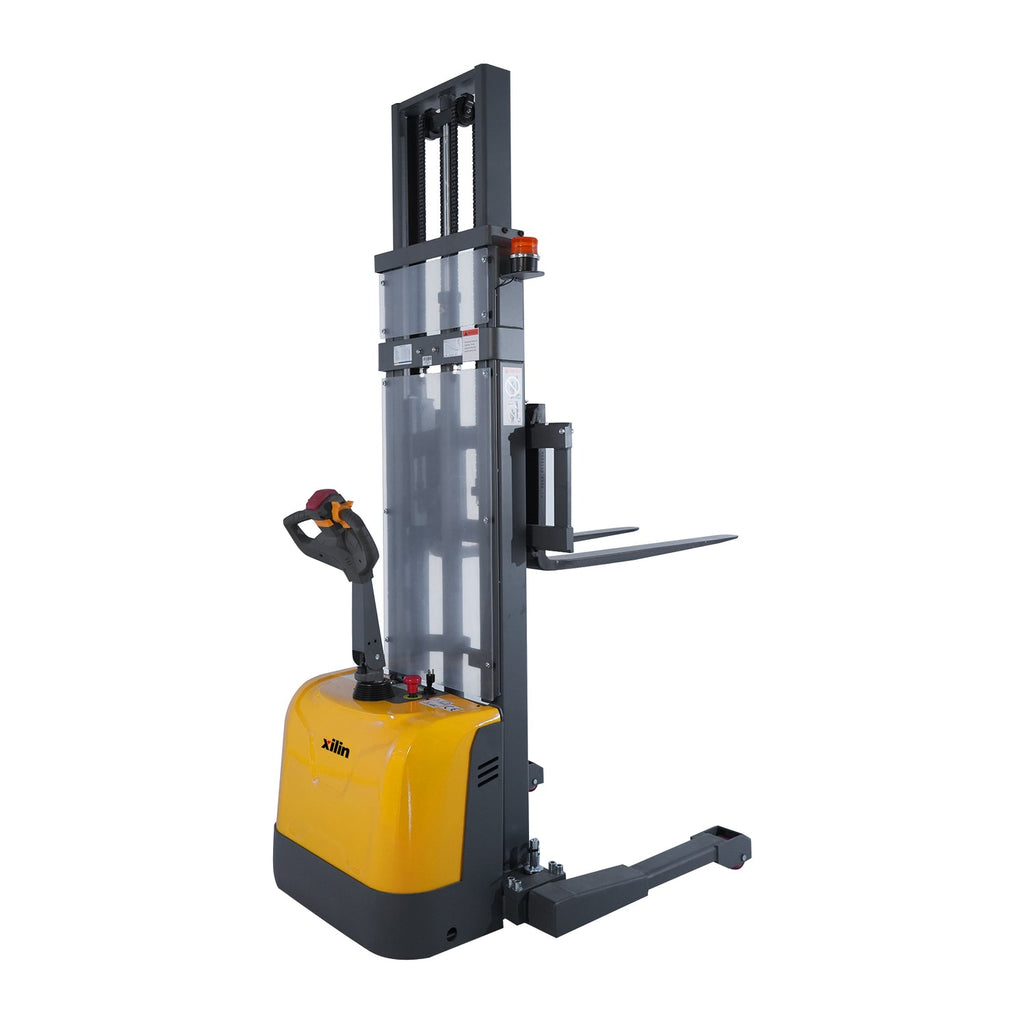

The Xilin CTD15R-EN-98 is an electric straddle stacker rated for 3,300 lb with a 98 in maximum lift height. Its adjustable straddle base supports stable pallet handling in warehouse and stockroom applications.

One-year limited manufacturer warranty. Contact ALLIZOE for warranty service details and coverage confirmation.

Warehouses and stockrooms

Pallet stacking at moderate heights

Aisles requiring a compact turning radius

Facilities using compatible open-bottom pallets

Product price and freight are separate. Freight is quoted based on the delivery ZIP code, destination type, and required delivery service. Commercial delivery, residential delivery, liftgate service, limited-access delivery, and pickup at a carrier terminal may have different costs. Inventory and freight must be confirmed before shipment.
