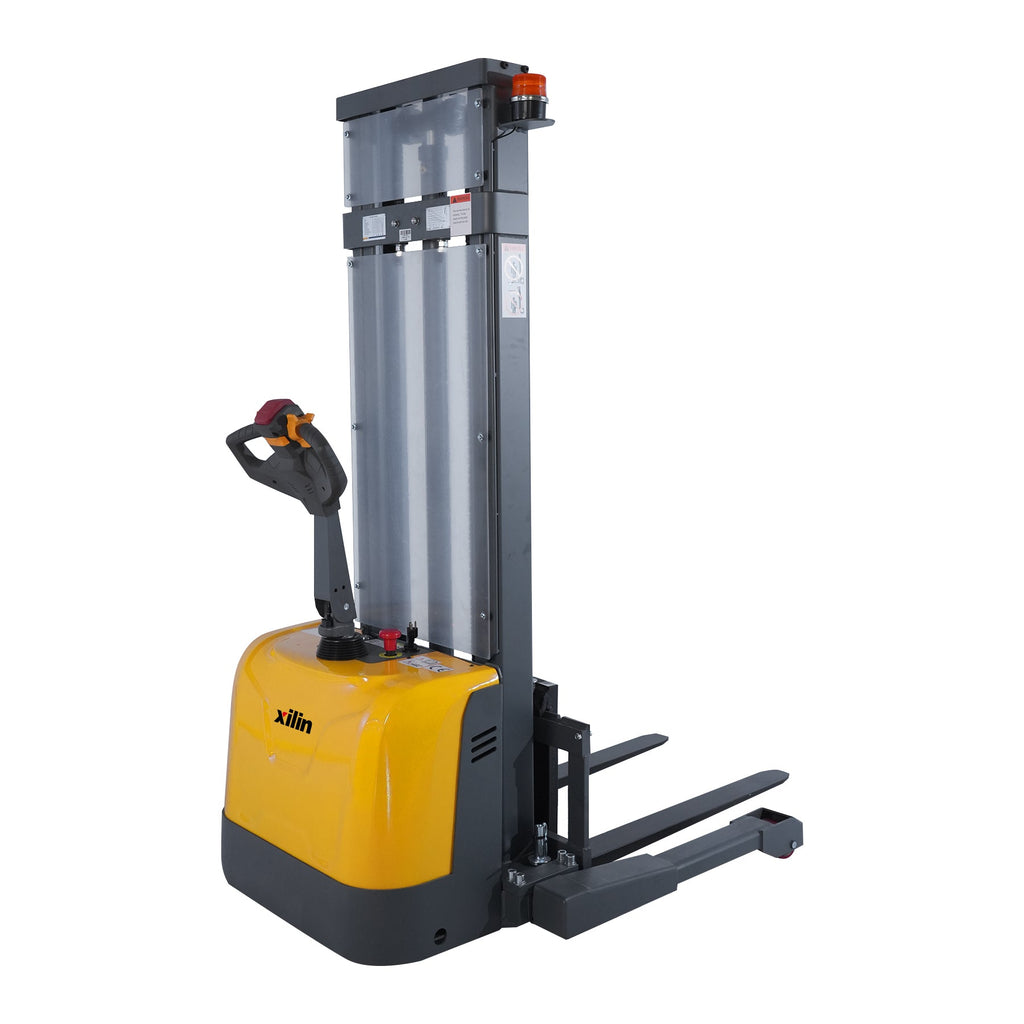

  • Yellow electric pallet stacker with raised mast and black forks

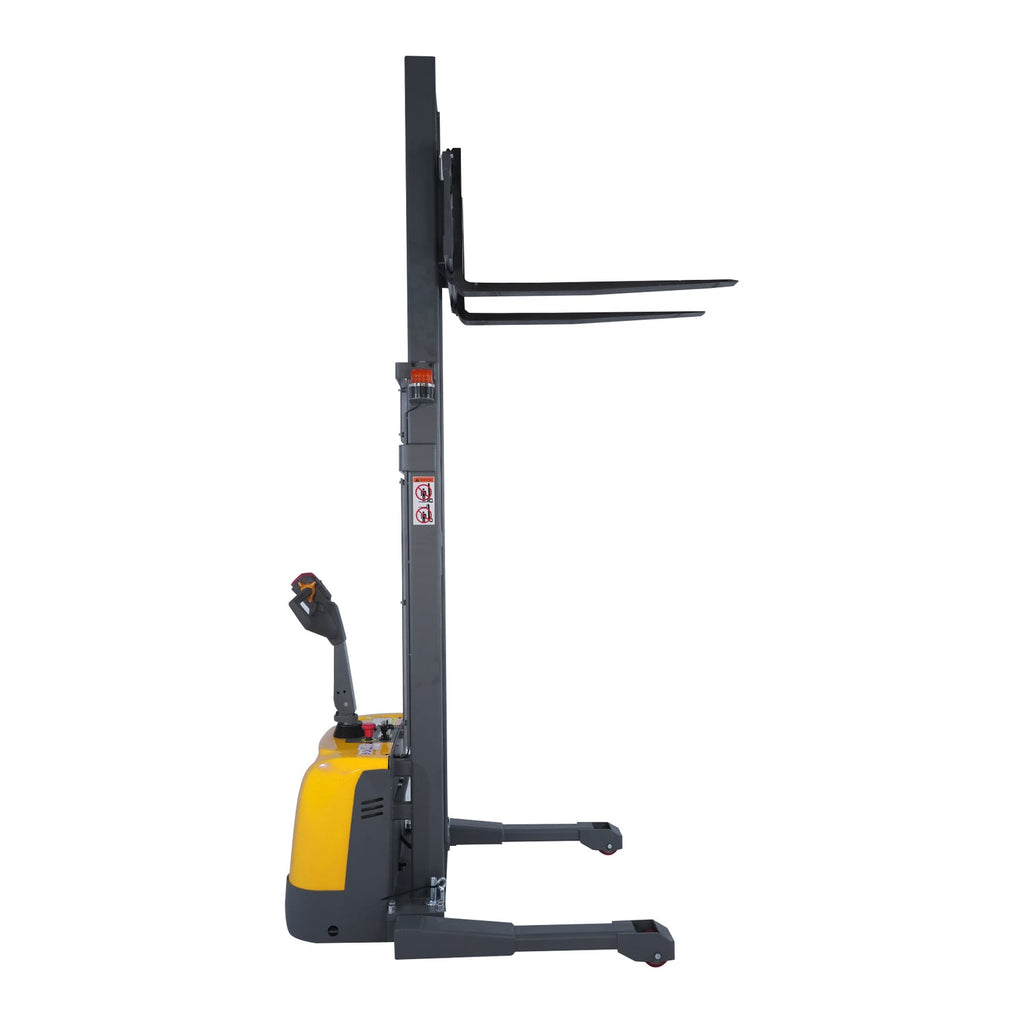

  • Side view of yellow electric pallet stacker with extended black forks

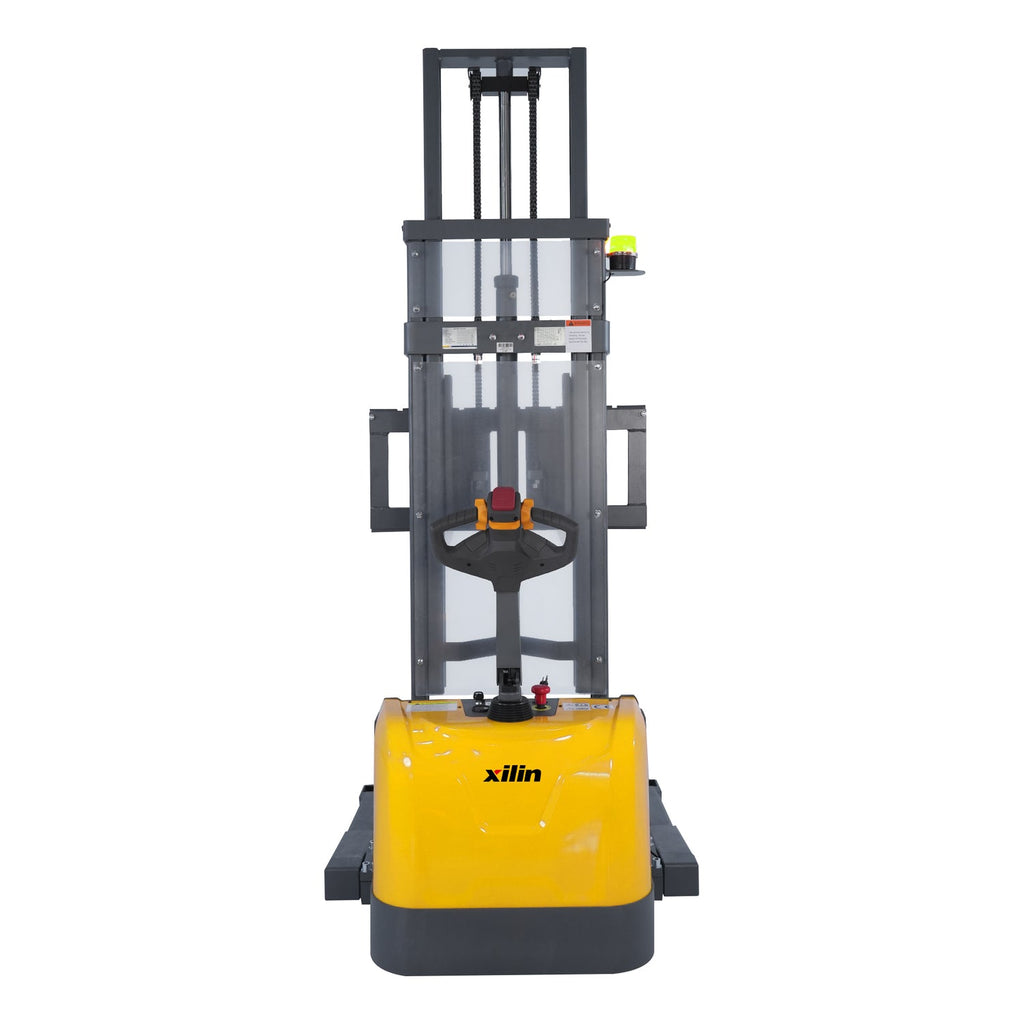

  • Front view of gray electric pallet stacker with yellow base and forks

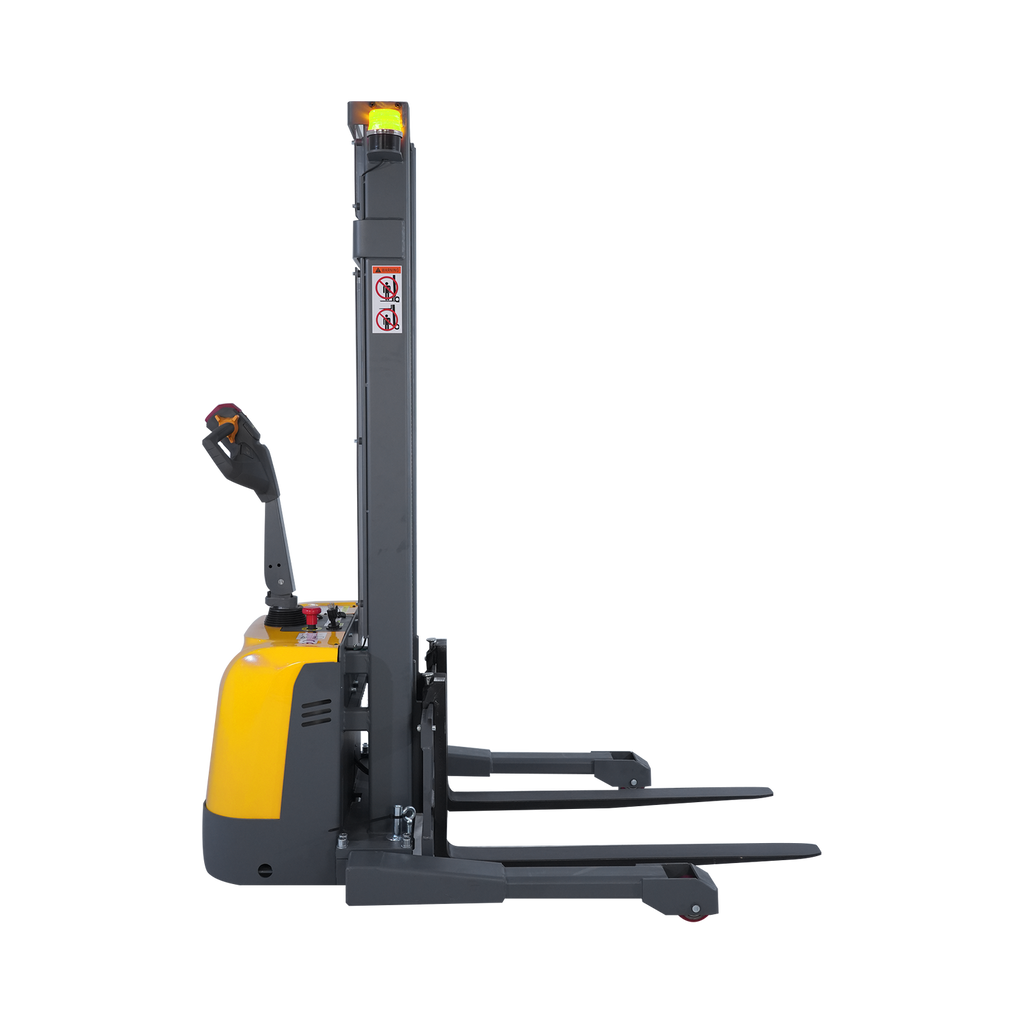

  • Yellow-and-gray electric pallet stacker with tall mast and black forks
  • Gray stacker control handle with orange grips and red safety cover
  • Close-up control panel with battery indicator and red emergency stop button

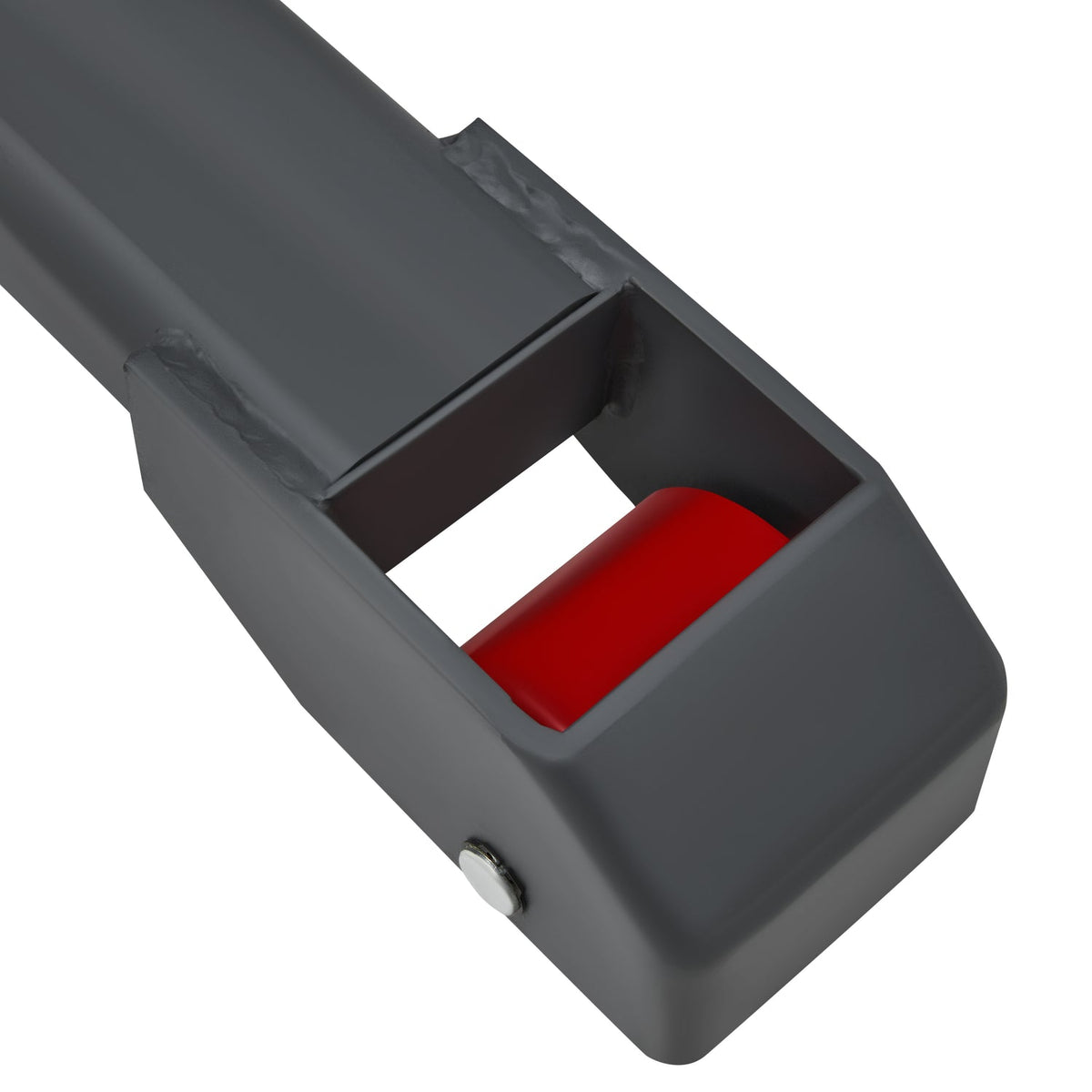

  • Gray fork carriage with red foot pad insert and corner mounting bolt

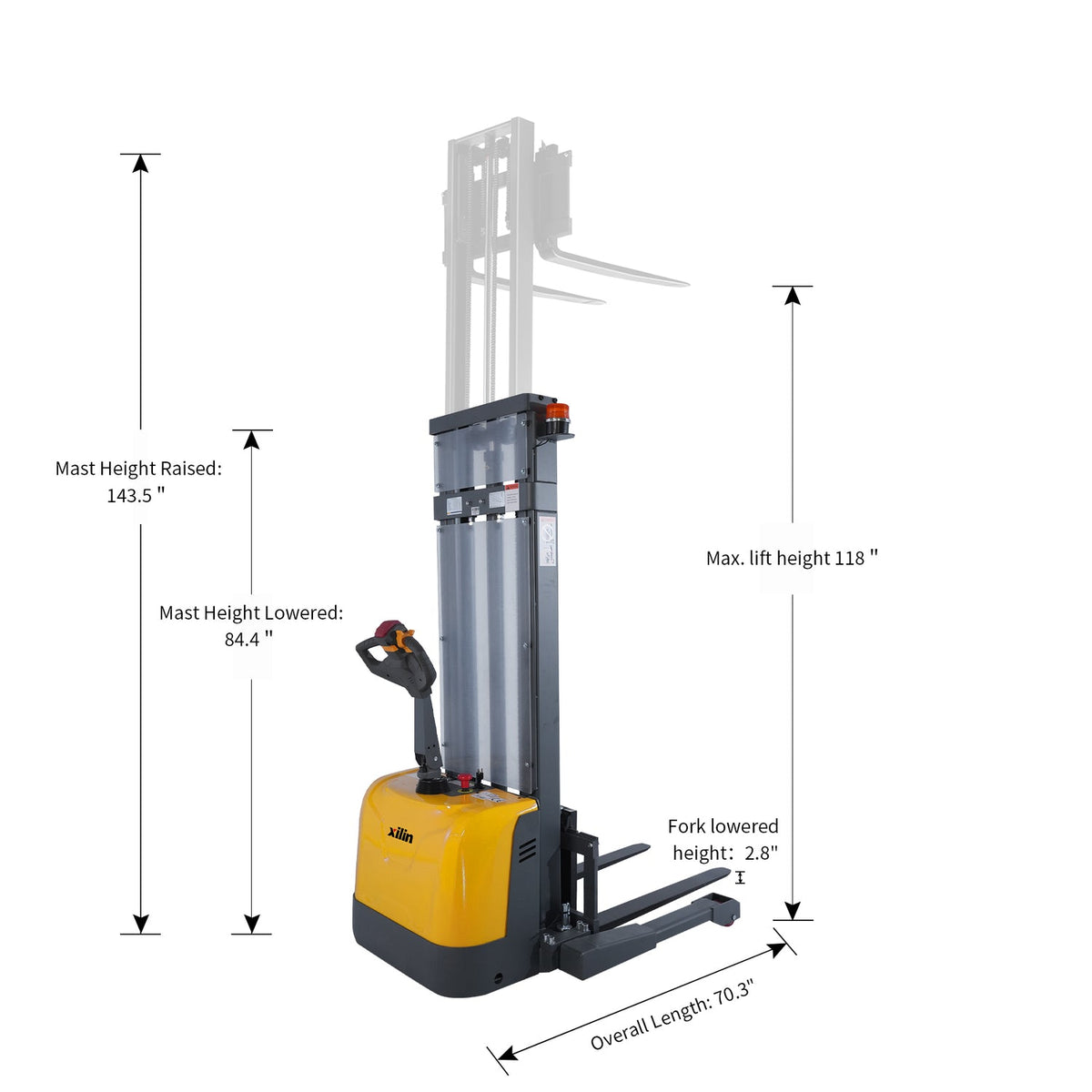

  • Diagram of electric pallet stacker showing lift height and fork height
  • 3300 lb Capacity 118" Lift Compact Electric Stacker Adjustable Forks | CTD15R-EN-118 – official product image 9
Xilin CTD15R-EN-118 Full-Electric Stacker – 3300lb, 118in

Xilin CTD15R-EN-118 Full-Electric Stacker – 3300lb, 118in

$5,600.00

Shop Pay Installments

Split your purchase into flexible installment payments with Shop Pay. Pay over time with no hidden fees.

How it works:

  • Choose Shop Pay at checkout
  • Select your preferred payment plan
  • Make your first payment today
  • Pay the rest over time with automatic payments

No interest. No hidden fees. Just flexible payments that work for you.

🚚 Shipping availability and rates vary by product, delivery option, and destination.

Carrier Terminal Pickup: Bring a suitable vehicle or trailer. The terminal will load the shipment, but the customer is responsible for unloading at the final destination.
⚠️ Warehouse Pickup – Please Contact Us First. Due to varying inventory across our warehouse locations, please contact us before placing your order to confirm stock availability at your preferred location.
Contact Us to Check Availability

🇺🇸 US-Based Business: We offer specialized support and flexible shipping and delivery options.

🏭
Expert SupportUS-Based Team
🚚
Shipping OptionsVary by Product & Destination
🛡️
1-Yr WarrantyFull Parts Support
🔬
Safety TestedLoad & Function Tested
📍
Pickup Options May Be AvailableContact us to confirm location & availability
Learn More >
Warranty

One-year limited manufacturer warranty. Contact ALLIZOE for warranty service details and coverage confirmation.
Shipping

Free freight shipping to the contiguous 48 US states. Estimated delivery: 6–10 business days. Curbside delivery only — forklift or pallet jack required. Carrier will call 24–48 hrs before delivery. View full Shipping & Delivery details →

⚠️ Safety Warning

For trained operators only. Never exceed the rated capacity. Inspect the equipment before use and follow the manufacturer’s operating and safety instructions. Confirm suitable unloading equipment before delivery.

Choose the CTD15R-EN-118 when you need the maneuverability of a compact straddle stacker with 3,300 lb capacity and additional lift height up to 118 inches.

Unified Modular Design – Clean industrial look with durable steel covers and family-style visuals.

Compact for Narrow Spaces – Ideal for stacking, transport, and retail backroom use.

Top-Mounted Drive Motor – Keeps motor clear of ground debris for extended performance.

Accessible Layout – Modular parts with oil-lubricated gearbox for quiet, reliable movement.

3-Point Chassis Structure – Center drive wheel and low battery placement enhance stability.

Plug-in Charging – Internal 24V/10A charger—no external equipment needed.

Explosion-Proof Valve – Prevents free-fall in case of hydraulic failure, ensuring safe lifting.

Full-Function Handle – Includes throttle, lift/lower, horn, reverse, turtle mode, and e-stop.

Reliable Battery System – 24V; battery capacity requires confirmation (official page lists both 100Ah and 105Ah), full charge in ~10 hrs, dashboard shows charge & run-time.

Customizable Drive Settings – Speed and acceleration adjustable via handheld service controller.

Complete Circuit Protection – Each system protected by dedicated fuse for long-term reliability.

Load Capacity: 3,300 lbs

Load Center: 23.6 in

Turning Radius: 53 in

Aisle Width: 87.8 in

Fork Dimensions: 42 in L × 7.9–31.5 in W × 1.4 in Thick

Inside Fork Width: 0.1 in–23.6 in

Overall Width: 45.9 in–61.6 in

Overall Length: 68.9 in

Max Lifting Height: 118 in

Mast Height (Lowered/Extended): 84.4 in / 143.5 in

Fork Lowered Height: 2.8 in

Battery: 24V; battery capacity requires confirmation (official page lists both 100Ah and 105Ah)

🔌 Charger: 24V / 10A Built-in

Travel Speed (L/U): 2.8 / 3.1 mph

Lifting Speed (L/U): 3.5 / 5.9 inch/s

Lowering Speed (L/U): 5.9 / 4.3 inch/s

Service Weight: 1408 lbs

The Xilin CTD15R-EN-118 is an electric straddle stacker rated for 3,300 lb with a 118 in maximum lift height. It provides adjustable straddle width and compact maneuverability for pallet stacking and retrieval.

One-year limited manufacturer warranty. Contact ALLIZOE for warranty service details and coverage confirmation.

Warehouses and distribution areas

Higher pallet stacking and retrieval

Compact aisle operations

Facilities using compatible open-bottom pallets

Product price and freight are separate. Freight is quoted based on the delivery ZIP code, destination type, and required delivery service. Commercial delivery, residential delivery, liftgate service, limited-access delivery, and pickup at a carrier terminal may have different costs. Inventory and freight must be confirmed before shipment.

Key Benefits

Unified Modular Design

Clean industrial look with durable steel covers and family-style visuals.

Compact for Narrow Spaces

Ideal for stacking, transport, and retail backroom use.

Top-Mounted Drive Motor

Keeps motor clear of ground debris for extended performance.

Accessible Layout

Modular parts with oil-lubricated gearbox for quiet, reliable movement.

3-Point Chassis Structure

Center drive wheel and low battery placement enhance stability.

Plug-in Charging

Internal 24V/10A charger—no external equipment needed.

Explosion-Proof Valve

Prevents free-fall in case of hydraulic failure, ensuring safe lifting.

Full-Function Handle

Includes throttle, lift/lower, horn, reverse, turtle mode, and e-stop.

Product Highlights

3,300 lb Capacity, 118 in Lift

3,300 lb Capacity, 118 in Lift

Full-electric walk-behind stacker for indoor stacking with reduced operator effort.

Adjustable Forks & Straddle Legs

Adjustable Forks & Straddle Legs

Adjustable fork and straddle-leg width support a wider range of pallet styles.

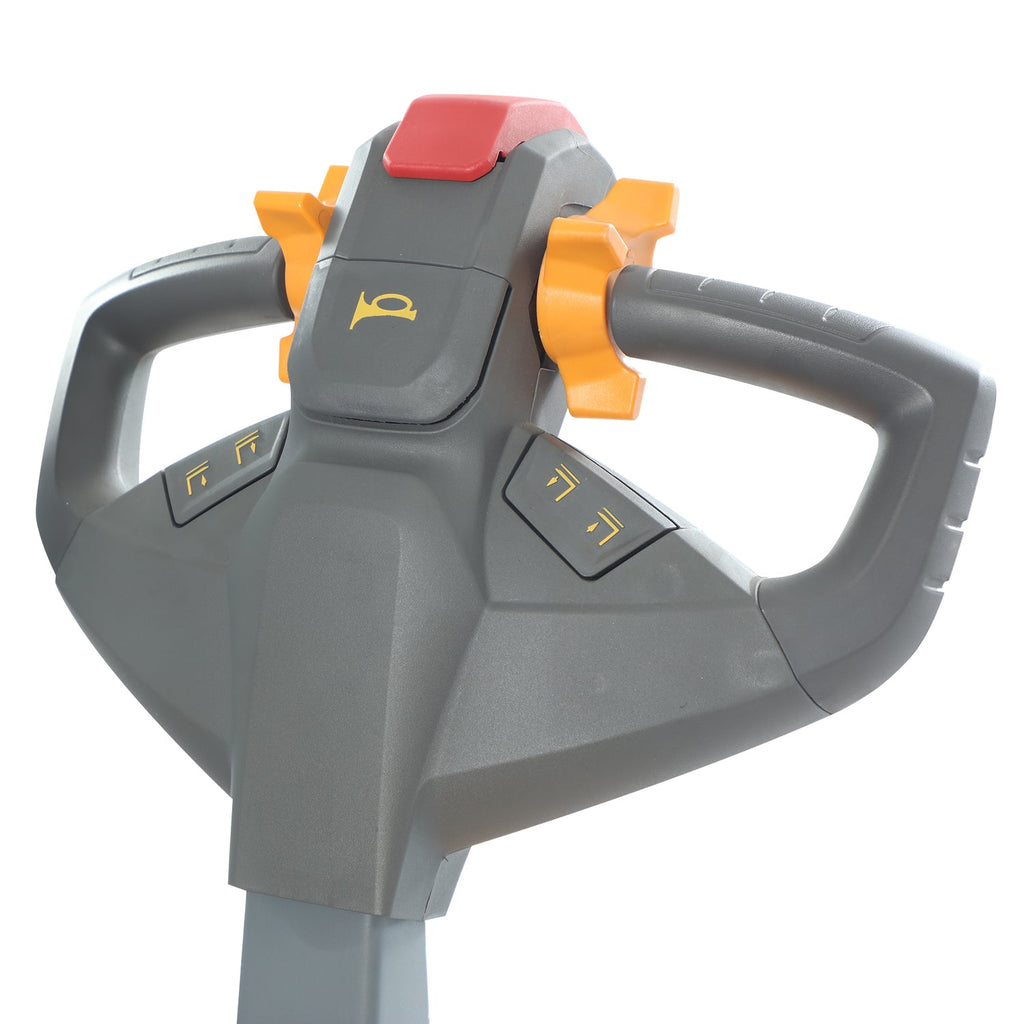

Multi-Function Tiller Handle

Multi-Function Tiller Handle

Integrated controls support travel, lifting, lowering, safety reverse, and low-speed handling.

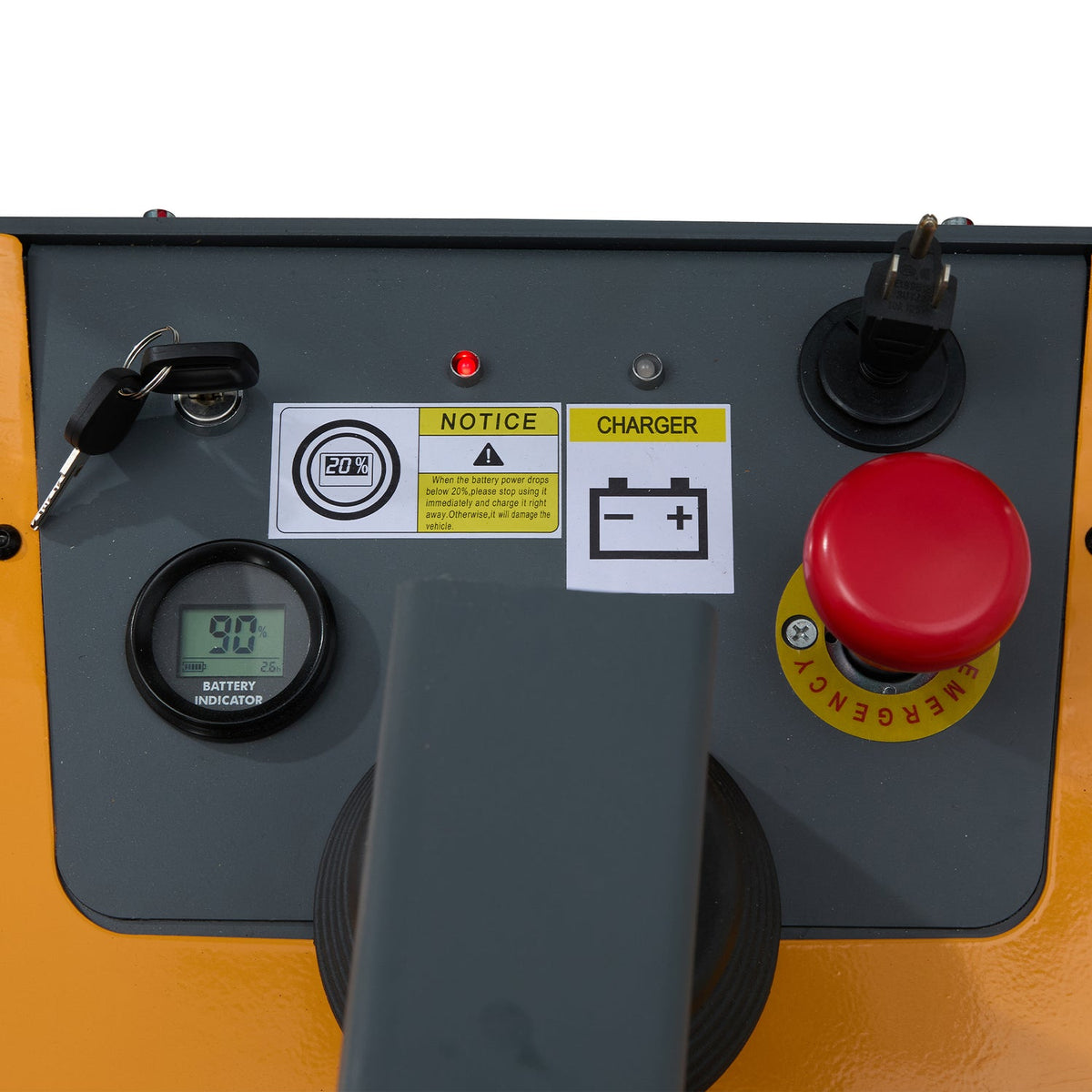

Battery Indicator & Emergency Stop

Battery Indicator & Emergency Stop

Control panel and emergency stop support safer daily operation and easier battery monitoring.

Dimensions & Product Drawing

Official Xilin specification sheet with detailed parameter tables and dimensional drawings. Click the full-page preview or download the original PDF to view the document at full size.

Xilin ctd15r en 118 full electric stackers official PDF with specification tables and dimensional drawings
Download Product Drawing (PDF)

Product Manual

Download the complete product manual and installation guide.
Download Manual
