Yellow semi-electric pallet stacker with black mast and lifting forks

Xilin CTD15BE-98 Semi-Electric Stacker – 3300lb, 98in

$3,690.00
Skip to product information
Yellow semi-electric pallet stacker with black mast and lifting forks
1/6

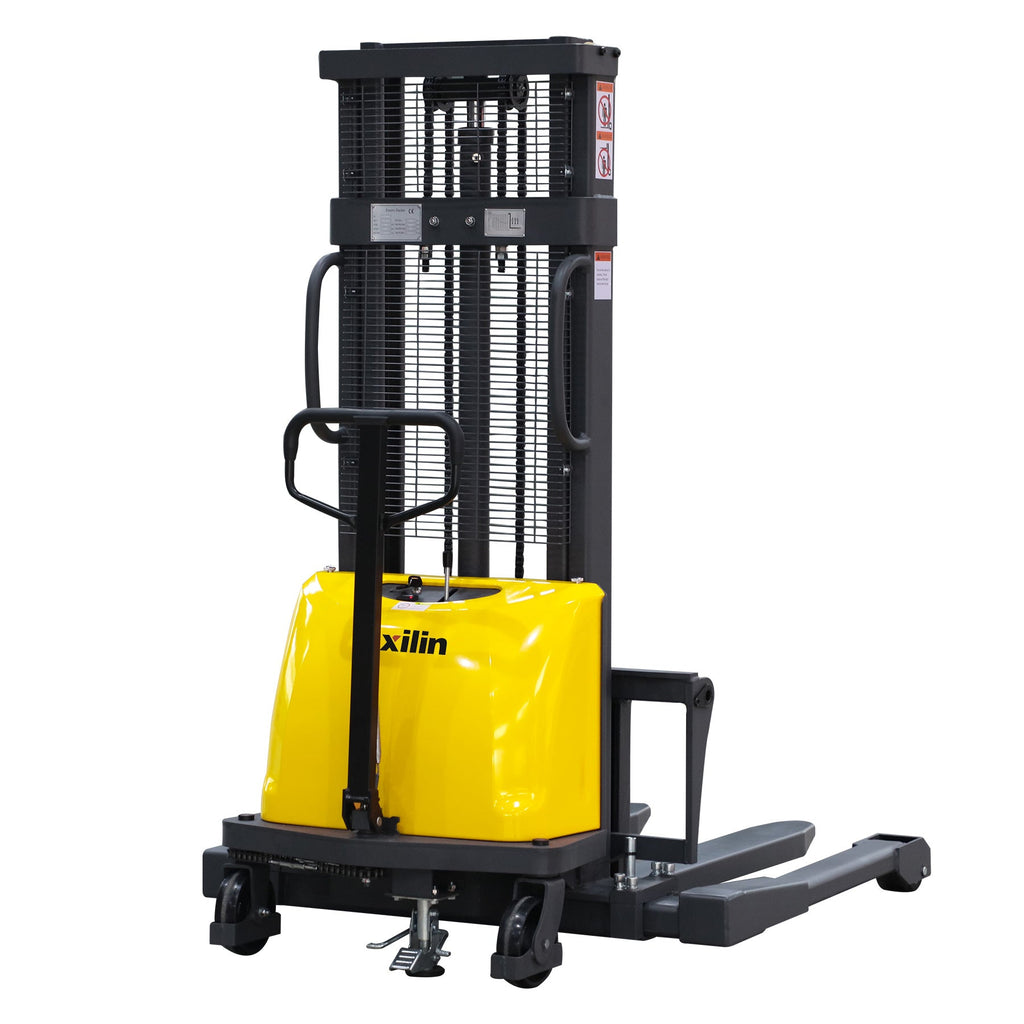

  • Yellow semi-electric pallet stacker with black mast and lifting forks

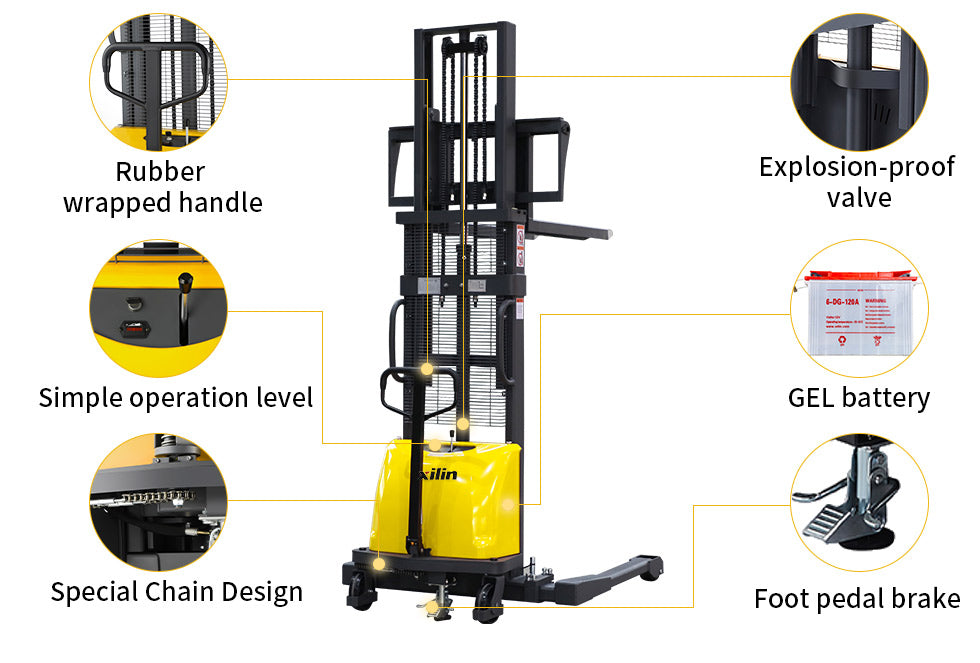

  • Semi-electric stacker with yellow body, fork lift mast, and control handle for lifting

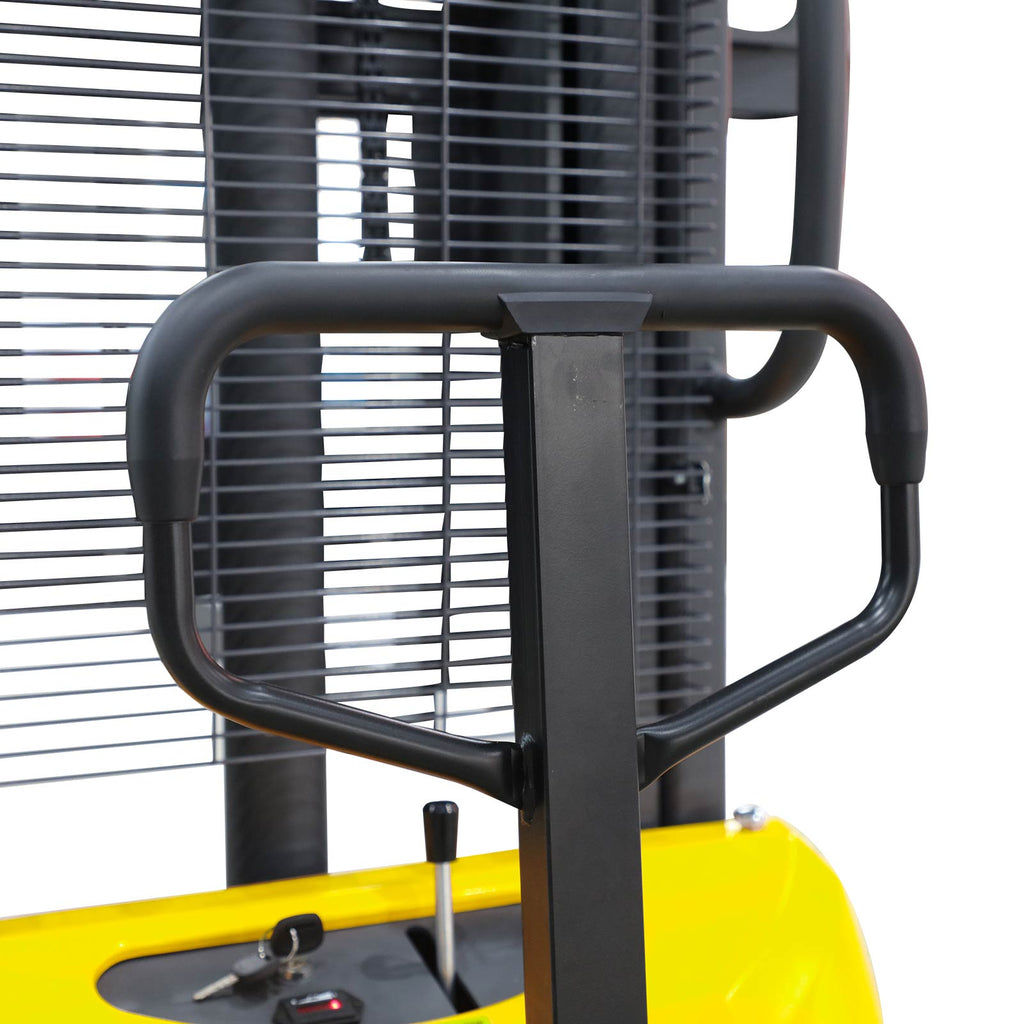

  • Semi-electric stacker front guard with black curved handle and yellow base

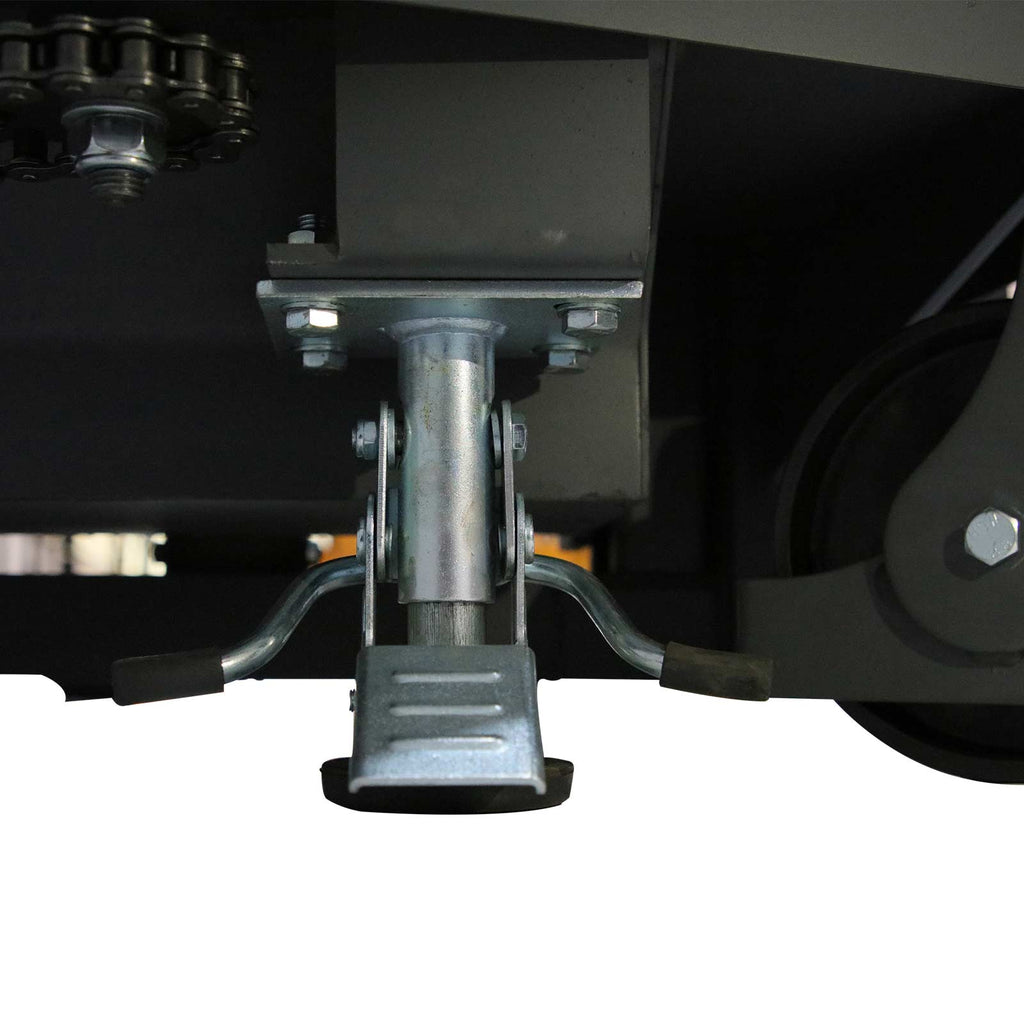

  • Semi-electric stacker hydraulic lift mechanism with metal cylinder and linkage

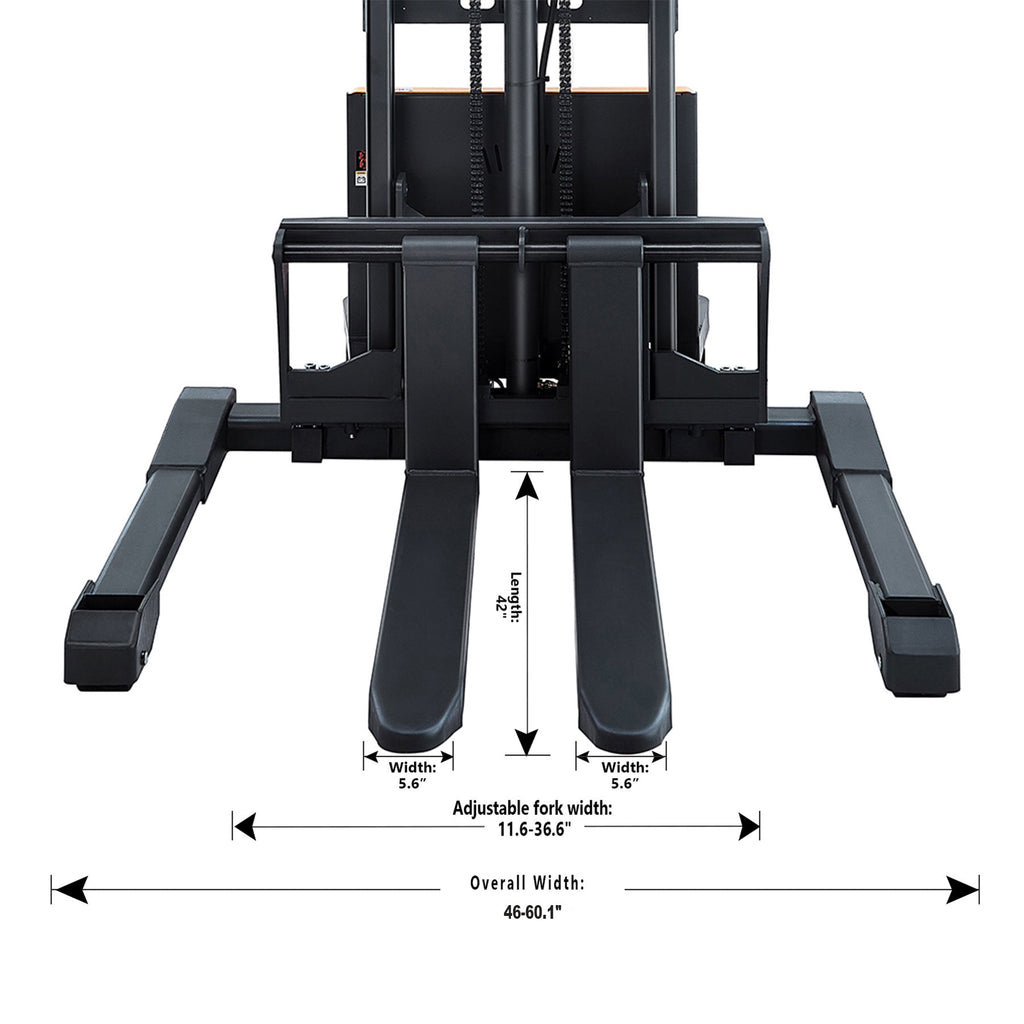

  • Semi-electric stacker with black adjustable fork arms and lifting mast

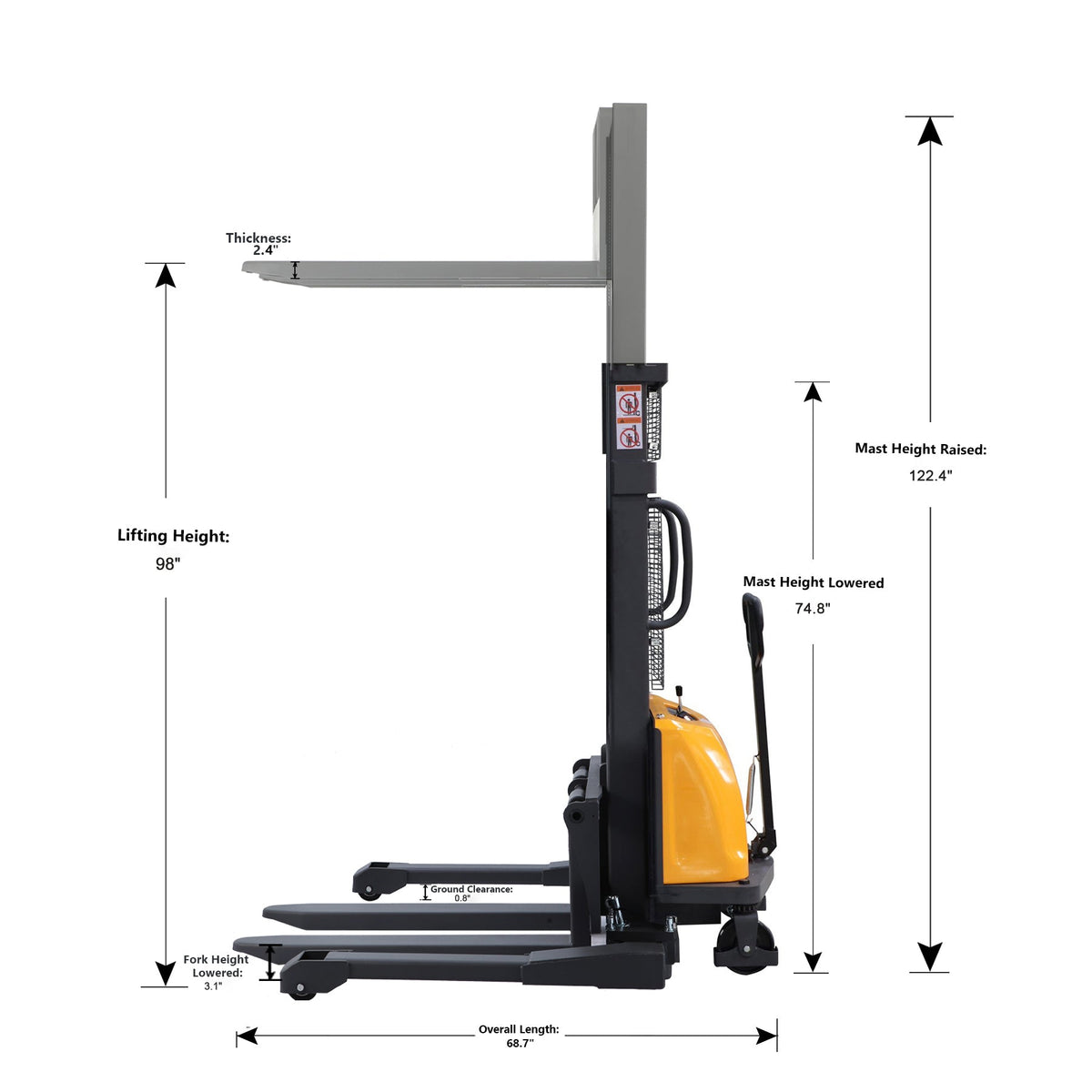

  • Semi-electric stacker side view with mast and forks, shown with height dimensions
Xilin CTD15BE-98 Semi-Electric Stacker – 3300lb, 98in

Xilin CTD15BE-98 Semi-Electric Stacker – 3300lb, 98in

$3,690.00

Shop Pay Installments

Split your purchase into flexible installment payments with Shop Pay. Pay over time with no hidden fees.

How it works:

  • Choose Shop Pay at checkout
  • Select your preferred payment plan
  • Make your first payment today
  • Pay the rest over time with automatic payments

No interest. No hidden fees. Just flexible payments that work for you.

🚚 Shipping availability and rates vary by product, delivery option, and destination.

Carrier Terminal Pickup: Bring a suitable vehicle or trailer. The terminal will load the shipment, but the customer is responsible for unloading at the final destination.
⚠️ Warehouse Pickup – Please Contact Us First. Due to varying inventory across our warehouse locations, please contact us before placing your order to confirm stock availability at your preferred location.
Contact Us to Check Availability

🇺🇸 US-Based Business: We offer specialized support and flexible shipping and delivery options.

🏭
Expert SupportUS-Based Team
🚚
Shipping OptionsVary by Product & Destination
🛡️
1-Yr WarrantyFull Parts Support
🔬
Safety TestedLoad & Function Tested
📍
Pickup Options May Be AvailableContact us to confirm location & availability
Learn More >
Warranty

One-year limited manufacturer warranty against manufacturing defects. Warranty exclusions and battery coverage may vary by model. Contact ALLIZOE before arranging warranty service.
Shipping

Free freight shipping to the contiguous 48 US states. Estimated delivery: 6–10 business days. Curbside delivery only — forklift or pallet jack required. Carrier will call 24–48 hrs before delivery. View full Shipping & Delivery details →

⚠️ Safety Warning

Read the manufacturer's operation manual before use. Only trained and authorized operators should operate this equipment. Confirm load capacity, load center, pallet compatibility, aisle clearance, and floor conditions. Never stand beneath raised forks or use this equipment to lift people.

The CTD15BE-98 is a durable and easy-to-operate semi-electric stacker designed for safe and efficient lifting. With a 3,300 lb load capacity and 98" lift height, it combines manual travel with powered lifting for a reliable upgrade from hand stackers. Ideal for warehouse, retail, and industrial use.

Ergonomic Streamlined Design – User-friendly layout with comfortable handling and smooth control.

Low Center of Gravity – Stable and well-balanced during heavy-duty handling.

Over-Discharge Protection – Prevents deep battery discharge, extending system lifespan.

Reinforced Imported Mast – Made from high-grade steel for excellent load support and long service life.

Chain Steering Mechanism – Easy, responsive steering reduces operator effort.

Durable Plate Chain – High-strength chain improves safety under heavy load conditions.

Explosion-Proof Hydraulic System – Integrated valve prevents sudden free-fall in case of system failure.

Precision Lifting Control – Manual leveler allows smooth, accurate operation.

Responsive Foot Brake – Quick-action braking system enhances safety and control.

Upgraded Hydraulic Pump – 1.5kW motor delivers reliable lifting, with manual lower control for precision.

Dual Circuit Protection – Protects battery and electrical system from overload and short circuits.

Load Capacity: 3,300 lbs

Load Center: 19.7"

Turning Radius: 56.1"

Aisle Width: 90.1"

Fork Dimensions: 42" L × 11.6–36.6" W × 2.4" Thick

Inside Fork Width: 0.4"–25.4"

Fork Lowered Height: 3.1"

Overall Width: 46"–60.1"

Overall Length: 68.7"

Max Lifting Height: 98"

Mast Height (Lowered/Extended): 74.8" / 122.4"

Battery: 12V / 100Ah

Charger: 12V / 12A Built-in

Lifting Speed (L/U): 2.0 / 3.1 inch/s

Lowering Speed (L/U): 3.9 / 3.5 inch/s

Service Weight: 1155 lbs

The CTD15BE-98 is a durable and easy-to-operate semi-electric stacker designed for safe and efficient lifting. With a 3,300 lb load capacity and 98" lift height, it combines manual travel with powered lifting for a reliable upgrade from hand stackers. Ideal for warehouse, retail, and industrial use.

One-year limited manufacturer warranty against manufacturing defects. Warranty exclusions and battery coverage may vary by model. Contact ALLIZOE before arranging warranty service.

Warehouse, retail, and industrial pallet stacking where manual travel with powered lifting is suitable.

Product price and freight are separate. Freight is quoted based on the delivery ZIP code, destination type, and required delivery service. Commercial delivery, residential delivery, liftgate service, limited-access delivery, and pickup at a carrier terminal may have different costs. Inventory and freight must be confirmed before shipment.

Key Benefits

Ergonomic Streamlined Design

User-friendly layout with comfortable handling and smooth control.

Low Center of Gravity

Stable and well-balanced during heavy-duty handling.

Over-Discharge Protection

Prevents deep battery discharge, extending system lifespan.

Reinforced Imported Mast

Made from high-grade steel for excellent load support and long service life.

Product Highlights

3,300 lb Semi-Electric Lifting

3,300 lb Semi-Electric Lifting

Manual travel with powered lifting provides a reliable upgrade from hand stackers for warehouse and retail use.

Reinforced Mast Structure

Reinforced Mast Structure

High-strength mast and chain system support stable lifting under rated loads.

Hydraulic Lift System

Hydraulic Lift System

Powered hydraulic lifting with manual lowering control helps provide smooth, controlled operation.

Responsive Foot Brake

Responsive Foot Brake

Foot brake and stable low-center design support safer handling during daily operations.

Dimensions & Product Drawing

Official Xilin specification sheet with detailed parameter tables and dimensional drawings. Click the full-page preview or download the original PDF to view the document at full size.

Xilin ctd15be 98 semi electric stackers official PDF with specification tables and dimensional drawings
Download Product Drawing (PDF)

Product Manual

Download the complete product manual and installation guide.
Download Manual
