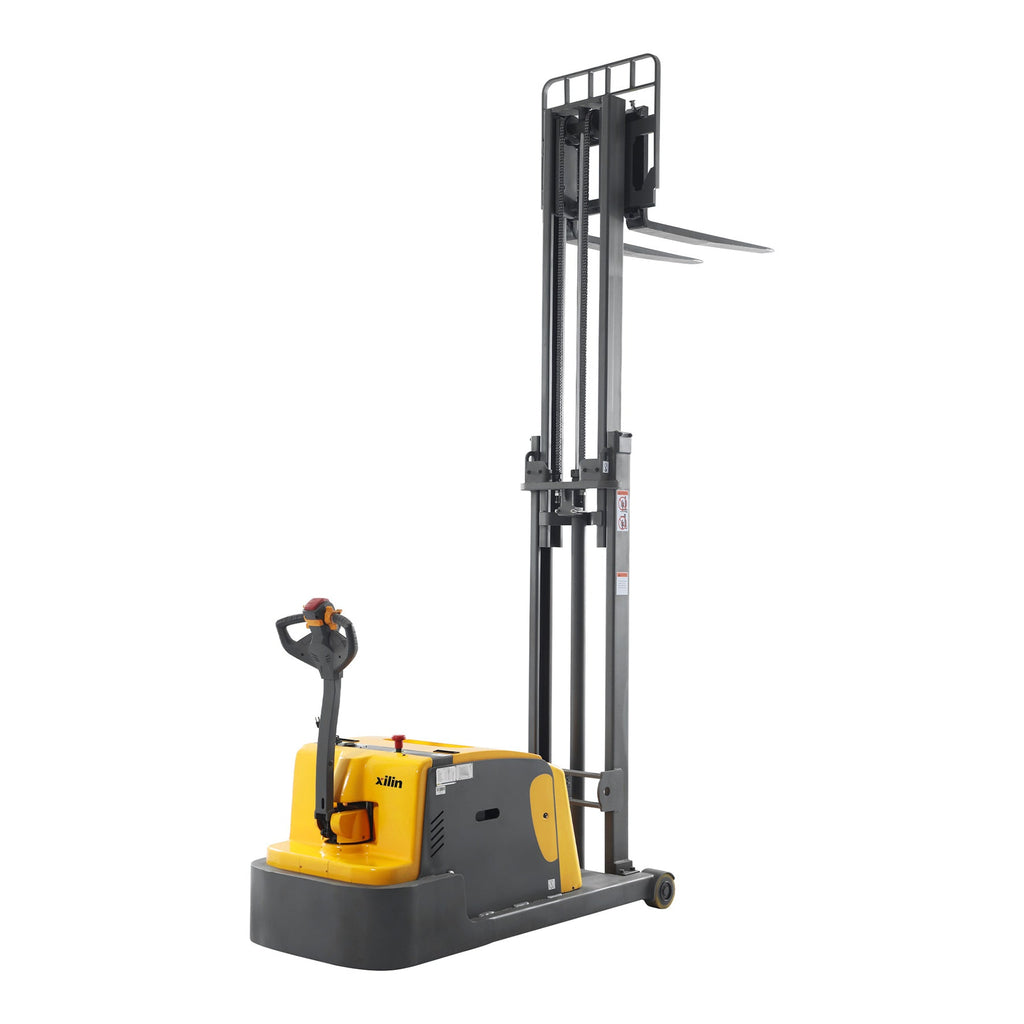

Yellow electric counterbalanced stacker with raised mast and fork tines

Xilin CPD15W-II-118 Counterbalanced Stacker – 3300lb, 118in

$9,900.00
Skip to product information
Yellow electric counterbalanced stacker with raised mast and fork tines
1/9
  • Yellow electric counterbalanced stacker with raised mast and fork tines

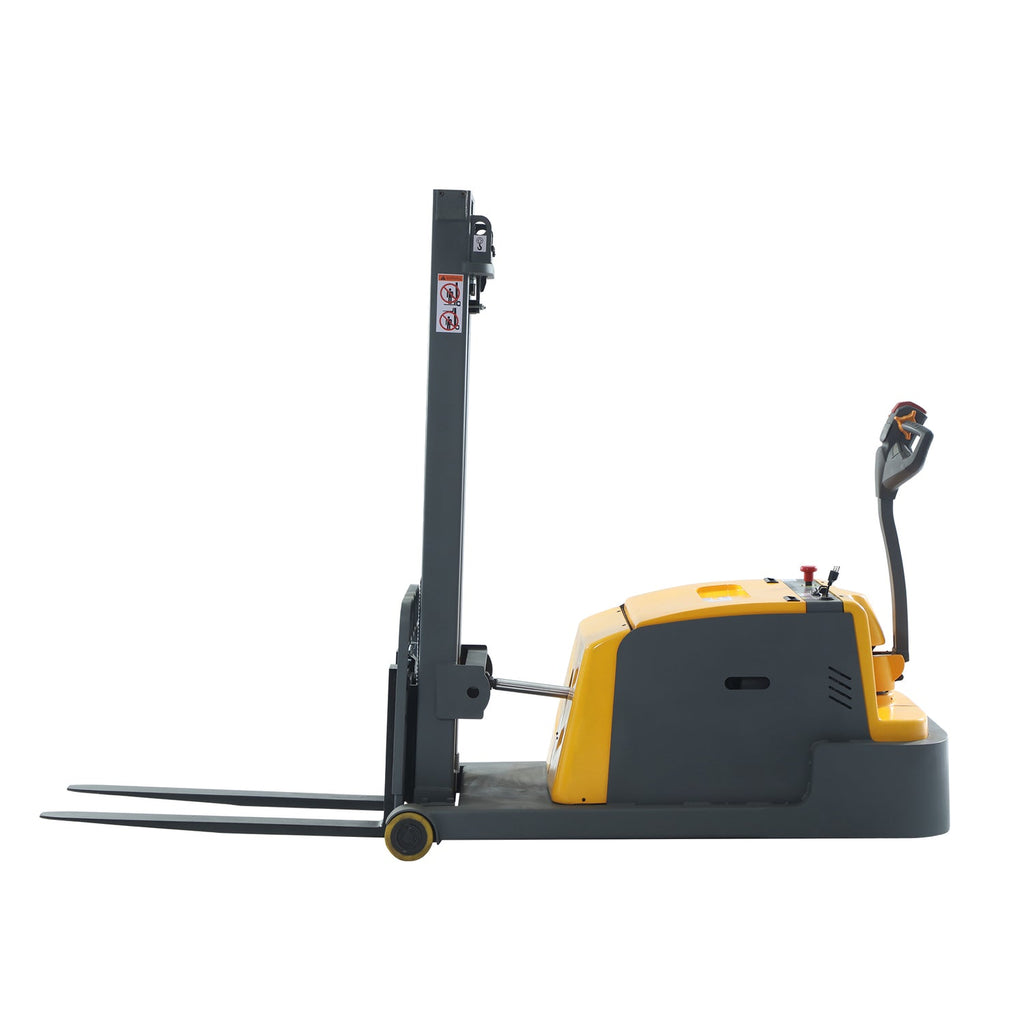

  • Side view electric pallet stacker with low forks and tall lifting mast

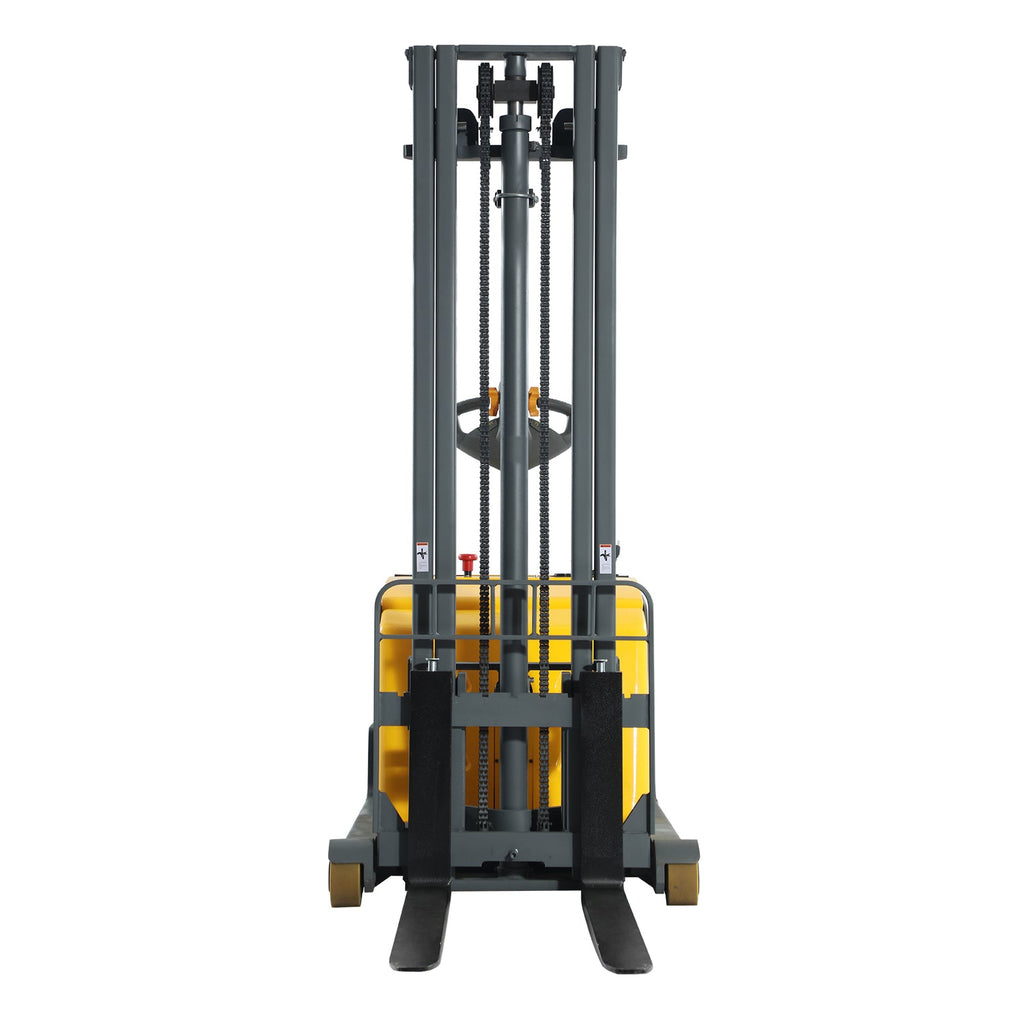

  • Front view electric stacker with steel mast and visible lifting chains

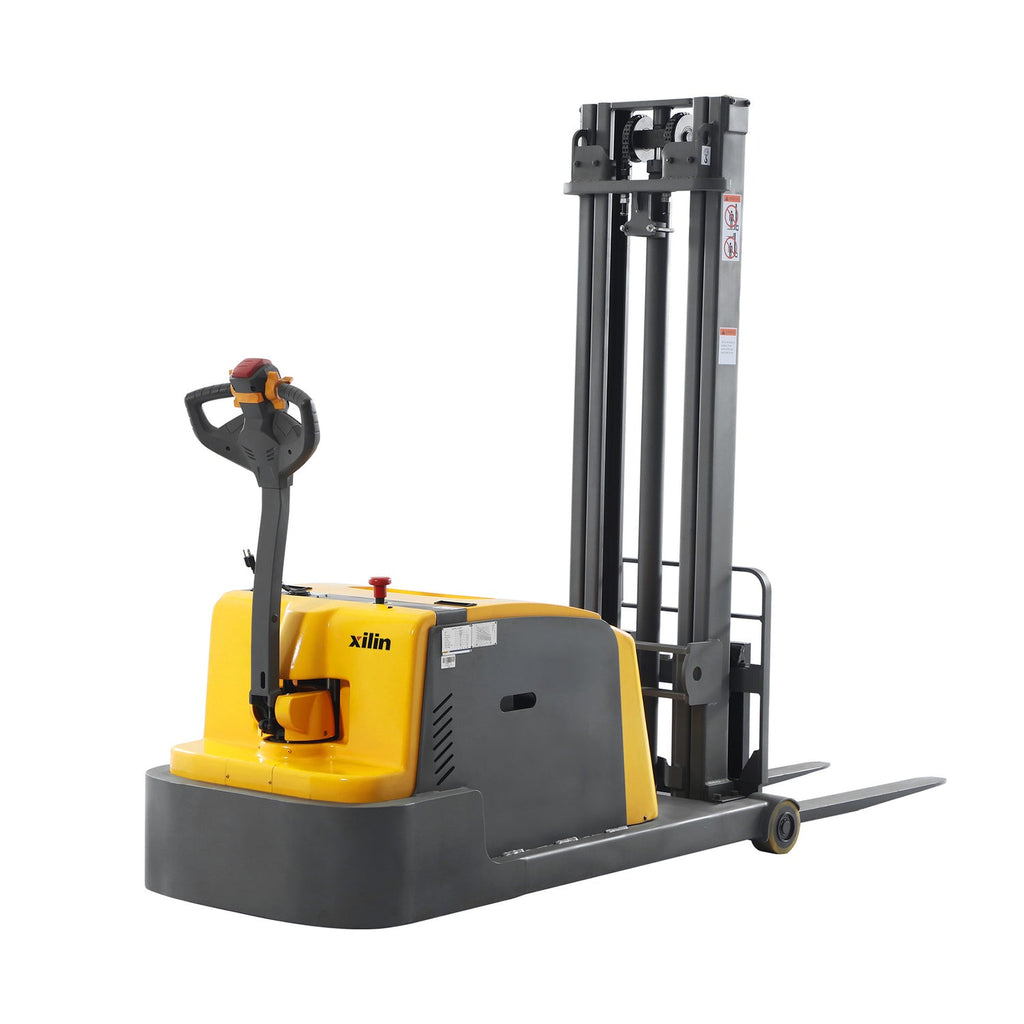

  • Yellow electric stacker with operator control handle and raised fork tines
  • Electric stacker steering handle with red emergency control switch
  • Electric stacker control compartment with red buttons and blue wiring

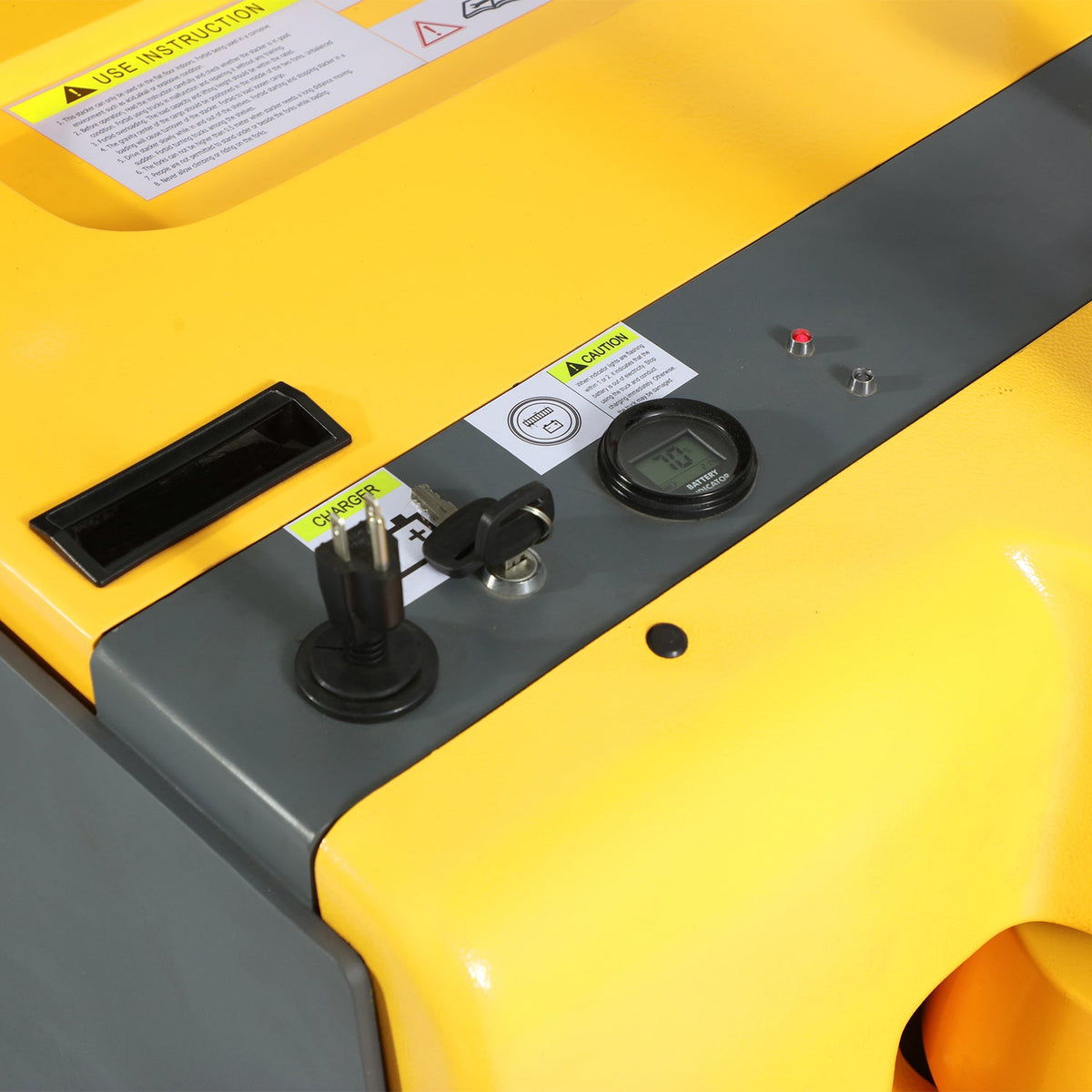

  • Electric stacker top control panel with key switch and round indicator
  • Electric stacker with forks and mast shown with overall size dimension lines
  • 3300 lbs Load 118" Lift High-Capacity Counterbalanced Electric Stacker Adjustable Forks | CPD15W-II-118 – official product image 9
Xilin CPD15W-II-118 Counterbalanced Stacker – 3300lb, 118in

Xilin CPD15W-II-118 Counterbalanced Stacker – 3300lb, 118in

$9,900.00

Shop Pay Installments

Split your purchase into flexible installment payments with Shop Pay. Pay over time with no hidden fees.

How it works:

  • Choose Shop Pay at checkout
  • Select your preferred payment plan
  • Make your first payment today
  • Pay the rest over time with automatic payments

No interest. No hidden fees. Just flexible payments that work for you.

🚚 Shipping availability and rates vary by product, delivery option, and destination.

Carrier Terminal Pickup: Bring a suitable vehicle or trailer. The terminal will load the shipment, but the customer is responsible for unloading at the final destination.
⚠️ Warehouse Pickup – Please Contact Us First. Due to varying inventory across our warehouse locations, please contact us before placing your order to confirm stock availability at your preferred location.
Contact Us to Check Availability

🇺🇸 US-Based Business: We offer specialized support and flexible shipping and delivery options.

🏭
Expert SupportUS-Based Team
🚚
Shipping OptionsVary by Product & Destination
🛡️
1-Yr WarrantyFull Parts Support
🔬
Safety TestedLoad & Function Tested
📍
Pickup Options May Be AvailableContact us to confirm location & availability
Learn More >
Warranty

One-year limited manufacturer warranty. Contact ALLIZOE for warranty service details and coverage confirmation.
Shipping

Free freight shipping to the contiguous 48 US states. Estimated delivery: 6–10 business days. Curbside delivery only — forklift or pallet jack required. Carrier will call 24–48 hrs before delivery. View full Shipping & Delivery details →

⚠️ Safety Warning

For trained operators only. Never exceed the rated capacity. Inspect the equipment before use and follow the manufacturer’s operating and safety instructions. Confirm suitable unloading equipment before delivery.

Choose the CPD15W-II-118 for heavier pallet loads that require a counterbalanced layout, 3,300 lb capacity, and lifting up to 118 inches.

Rounded Chassis Design – Wide, low center of gravity for smooth, stable stacking.

Walk-Behind Steering with 3-Point Support – Excellent maneuverability in narrow spaces.

No Front Straddle Legs – Freely handles closed-bottom and low-clearance pallets.

Multi-Function Handle – Full fingertip control for lift, drive, tilt, horn, reverse, and turtle mode.

Smart Speed Logic – Auto-brake in standby zones; proportional throttle for smooth acceleration.

Electromagnetic Brakes – Short stopping distance and low maintenance.

Quiet Operation – Shock-absorbing mounts + low-noise motor keeps sound under 70 dB(A).

Brushless AC Drive Motor – Strong ramp power, no brush replacement, long life.

Digital Dashboard – Displays battery level, hours, and fault codes in real-time.

Full Safety System – Emergency stop, belly switch, anti-drop valve, interlock, and visibility mast.

Hydraulic Mast + Tilt Lever – Push/pull control for lifting and smooth tilting action.

Quiet Hydraulic System – High-torque, oil-cooled motor with rubber vibration damping.

Easy Maintenance Layout – 90% component modularity, easy inspection, clear wiring.

Onboard Charging with Interlock – Built-in 24V/10A charger includes charging protection.

Regenerative Braking – Energy recovery during deceleration reduces brake wear.

High-Capacity Battery – 24V / 125Ah sealed battery supports long runtime and stable output.

Load Capacity: 3,300 lbs

Load Center: 19.7 in

Turning Radius: 66.9 in

Aisle Width: 133.9 in

Fork Dimensions: 42 in L × 8.7–25.4 in W × 1.4 in Thick

Inside Fork Width: 0.9 in–17.6 in

Overall Dimensions: 112.2 in L × 34.6 in W

Max Lifting Height: 118 in

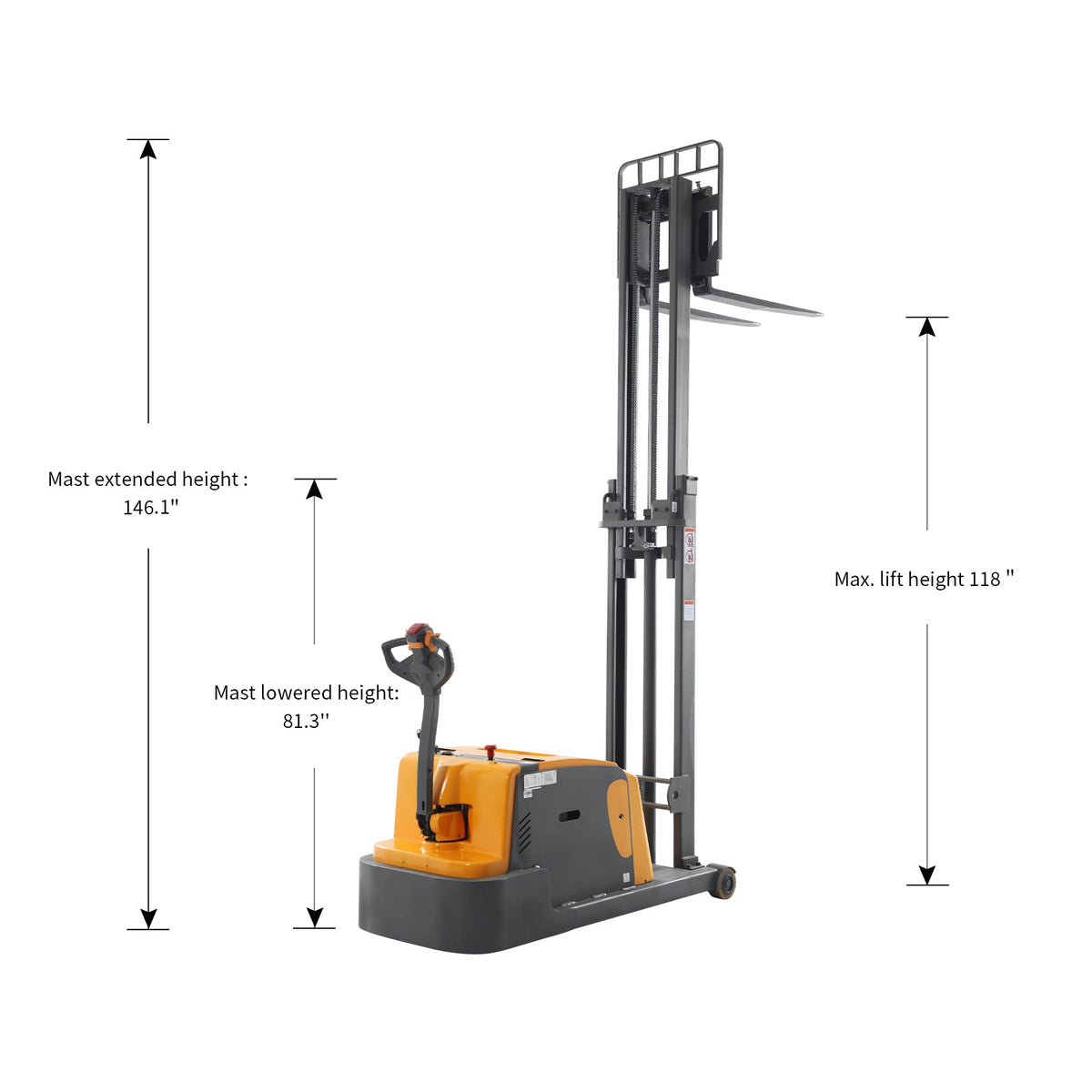

📏 Mast Height (Lowered/Extended): 81.3 in / 146.1 in

Fork Lowered Height: 1.4 in

Battery: 24V / 125Ah Lead-Acid

Charger: 24V / 10A Built-in

Service Weight: 3460 lbs

The Xilin CPD15W-II-118 is an electric counterbalanced stacker rated for 3,300 lb with a 118 in maximum lift height. It combines higher lifting capacity with a compact chassis for warehouse pallet movement and stacking.

One-year limited manufacturer warranty. Contact ALLIZOE for warranty service details and coverage confirmation.

Warehouses and distribution areas

Heavier pallet stacking

Manufacturing and inventory operations

Facilities requiring counterbalanced fork access

Product price and freight are separate. Freight is quoted based on the delivery ZIP code, destination type, and required delivery service. Commercial delivery, residential delivery, liftgate service, limited-access delivery, and pickup at a carrier terminal may have different costs. Inventory and freight must be confirmed before shipment.

Key Benefits

Rounded Chassis Design

Wide, low center of gravity for smooth, stable stacking.

Walk-Behind Steering with 3-Point Support

Excellent maneuverability in narrow spaces.

No Front Straddle Legs

Freely handles closed-bottom and low-clearance pallets.

Multi-Function Handle

Full fingertip control for lift, drive, tilt, horn, reverse, and turtle mode.

Smart Speed Logic

Auto-brake in standby zones; proportional throttle for smooth acceleration.

Electromagnetic Brakes

Short stopping distance and low maintenance.

Quiet Operation

Shock-absorbing mounts + low-noise motor keeps sound under 70 dB(A).

Brushless AC Drive Motor

Strong ramp power, no brush replacement, long life.

Product Highlights

Counterbalanced Stacker Design

Counterbalanced Stacker Design

Leg-free front design improves access to closed-bottom and low-clearance pallets.

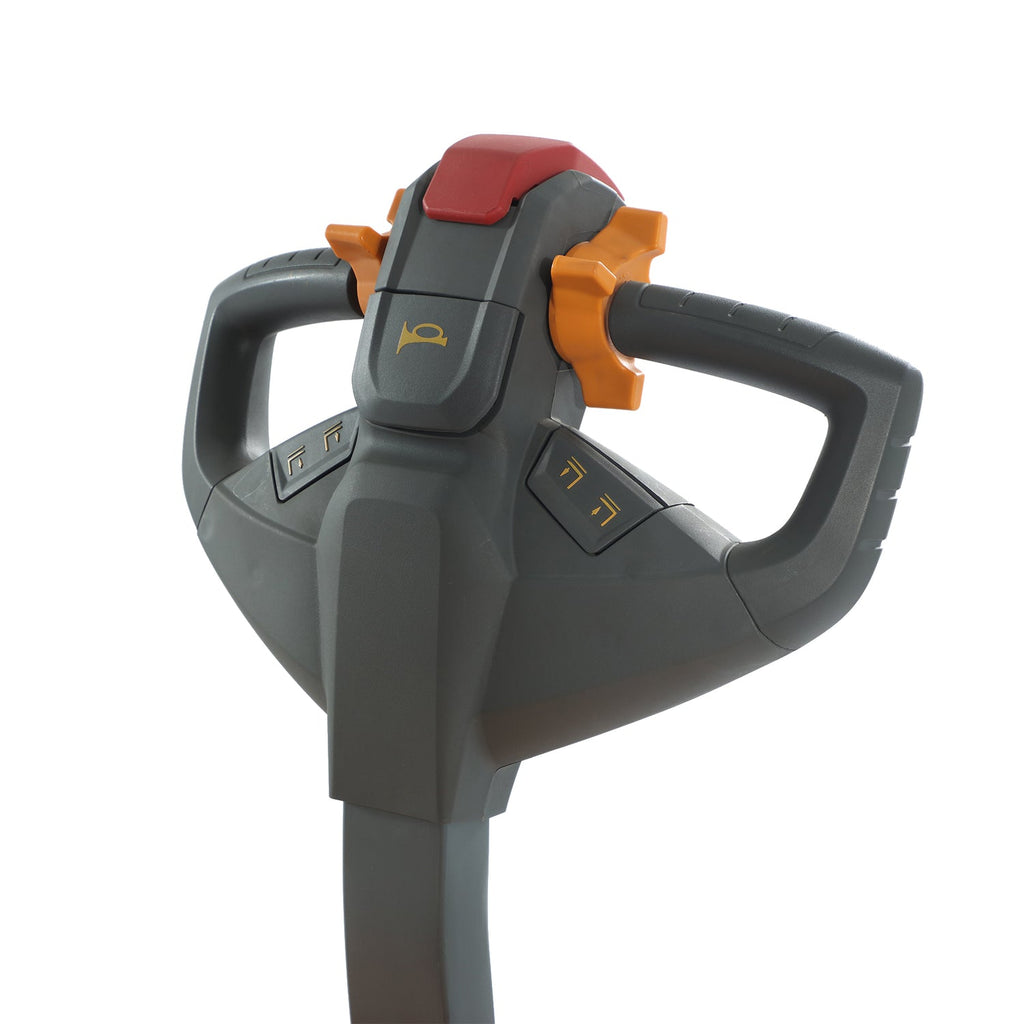

Multi-Function Tiller Controls

Multi-Function Tiller Controls

Travel, lift, lower, tilt, horn, reverse safety, and turtle-speed controls are integrated into the tiller.

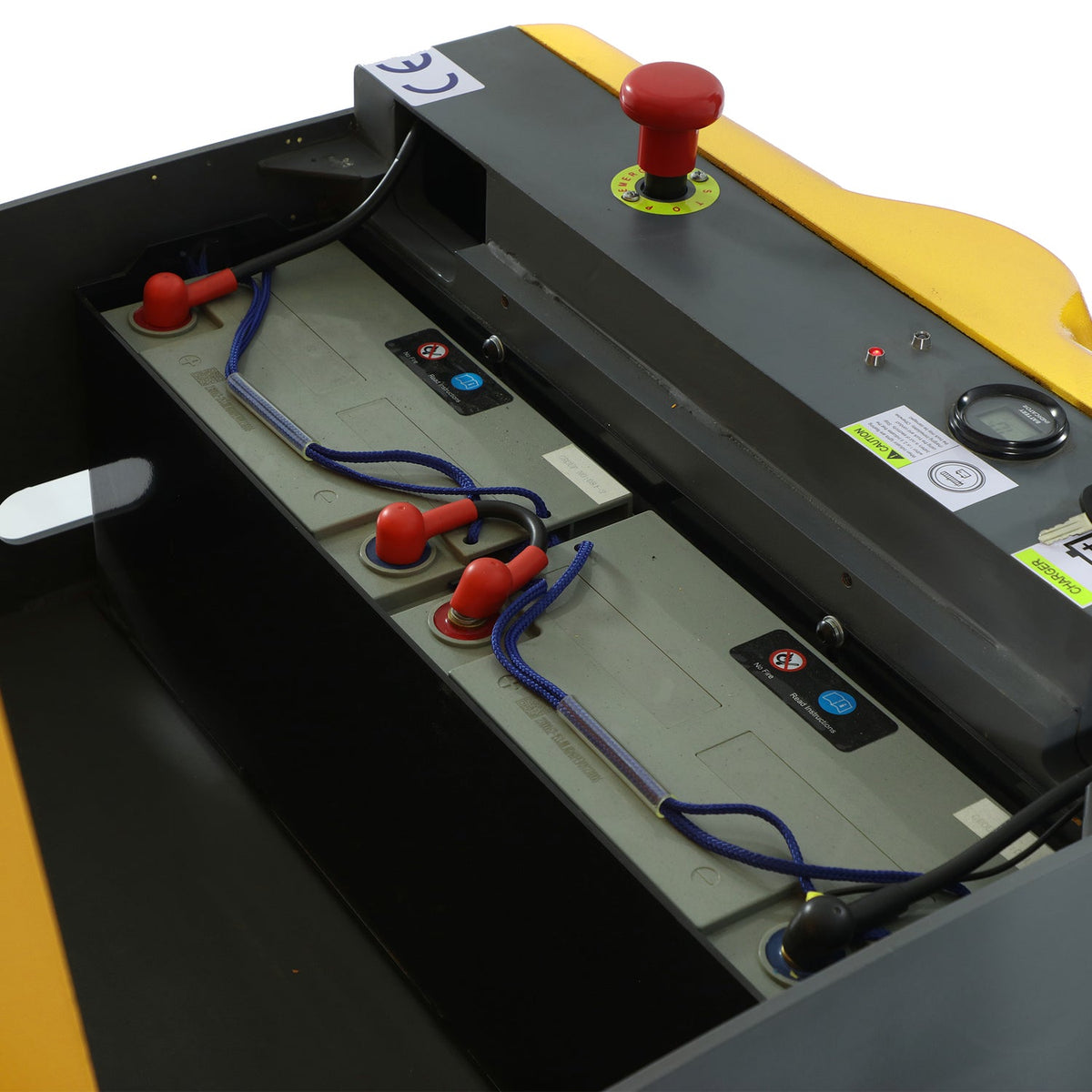

Control Compartment Detail

Control Compartment Detail

Internal controls and wiring are shown for buyer confidence and service planning.

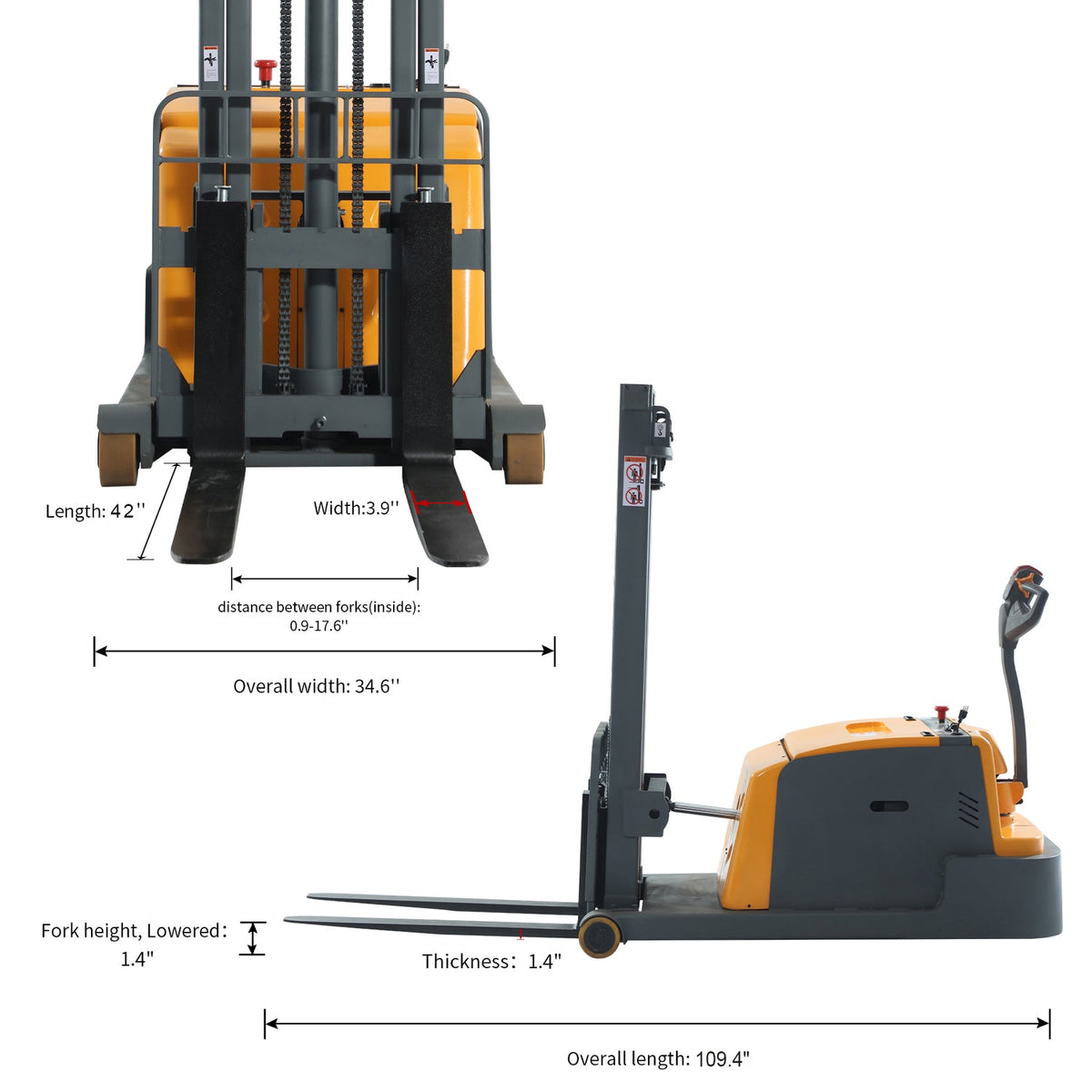

Dimension Drawing Included

Dimension Drawing Included

Dimension image shows overall length, mast height, and fork geometry for facility planning.

Dimensions & Product Drawing

Official Xilin specification sheet with detailed parameter tables and dimensional drawings. Click the full-page preview or download the original PDF to view the document at full size.

Xilin cpd15w ii 118 counterbalanced stackers official PDF with specification tables and dimensional drawings
Download Product Drawing (PDF)

Product Manual

Download the complete product manual and installation guide.
Download Manual
