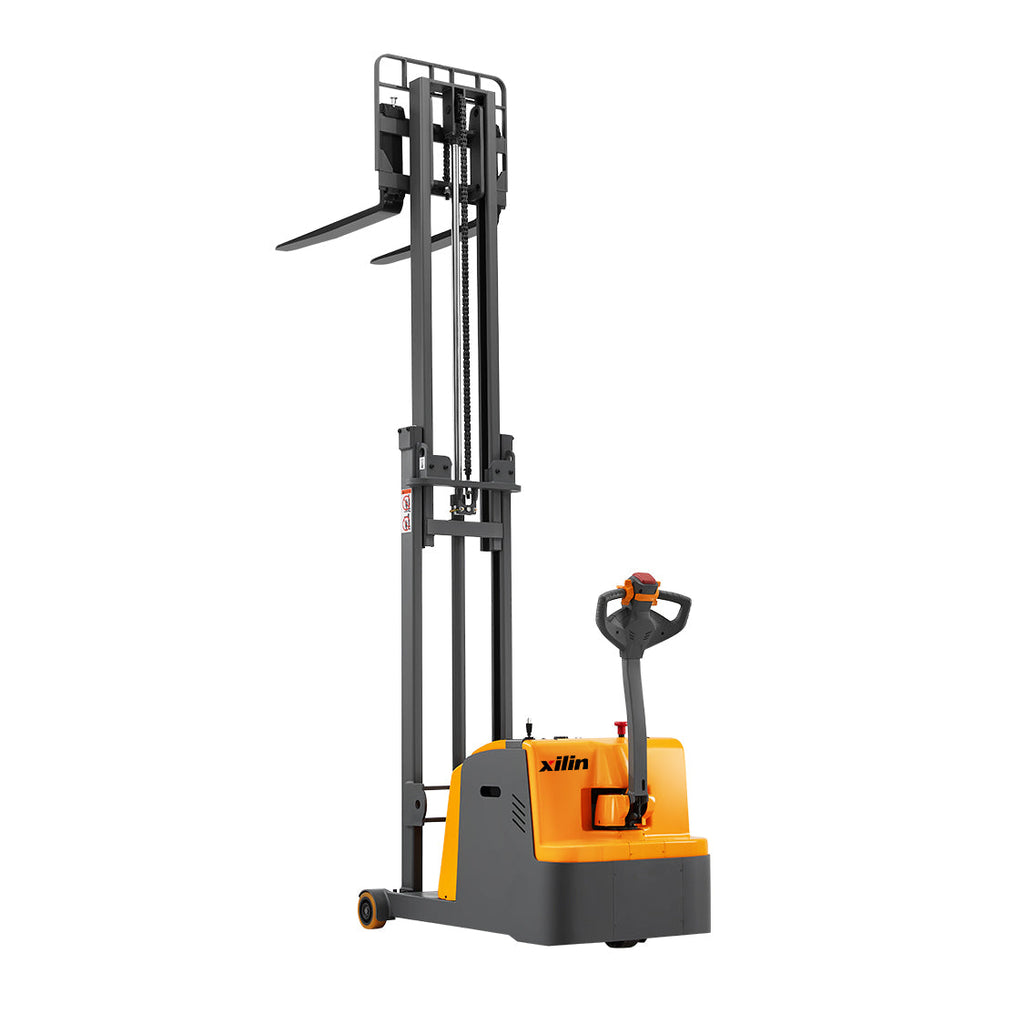

Xilin CPD10W-118 Counterbalanced Stacker – 2200lb, 118in

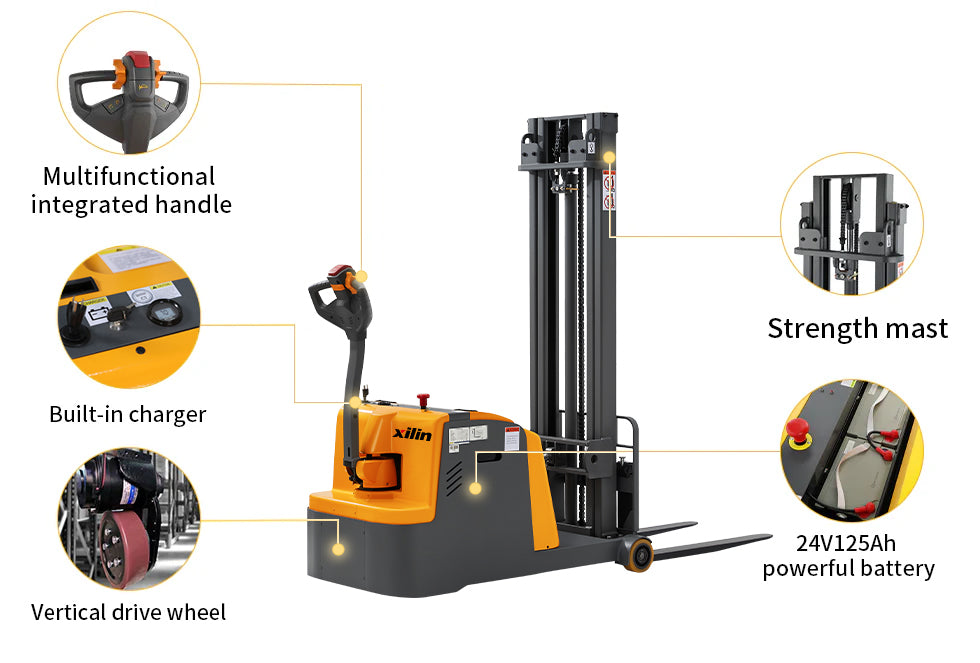

Multi-function control handle: lift, drive, tilt, horn, reverse, and turtle-speed controls in one grip.

Leg-free low-profile frame: handles closed-bottom and low-clearance pallets in compact layouts.

Tilt-adjustable mast: forward and backward tilt supports easier stacking and unloading.

Top-mounted drive motor: elevated placement helps reduce dust exposure and simplifies service access.

Three-point chassis: rear drive wheel and two front load wheels provide stability and balance.

Optional balance wheels: help maintain centered travel and reduce sway under load.

Sealed 125Ah battery: 24V lead-acid power system with low-voltage protection.

Built-in charger: onboard 24V/10A charger for convenient charging from a suitable outlet.

Battery status display: provides real-time battery and operating information.

Full safety system: emergency stop, belly switch, overload valve, lift limit, and anti-drop cylinder.

52.5 in turning radius: designed for narrow aisles, containers, and confined work areas.

Turtle-speed and upright-drive modes: enable slow, controlled travel in tight spaces.

Low-noise operation: under 70 dB(A) and designed to meet DIN 12053.

Service-friendly design: modular layout, integrated wiring, and removable rear cover.

Mechanical steering: simple linkage for steady, low-maintenance directional control.

Smart throttle zones: proportional speed control and braking zones support precise handling.

Load capacity: 2,200 lb

Load center: 15.7 in

Turning radius: 52.5 in

Minimum aisle width: 113.4 in

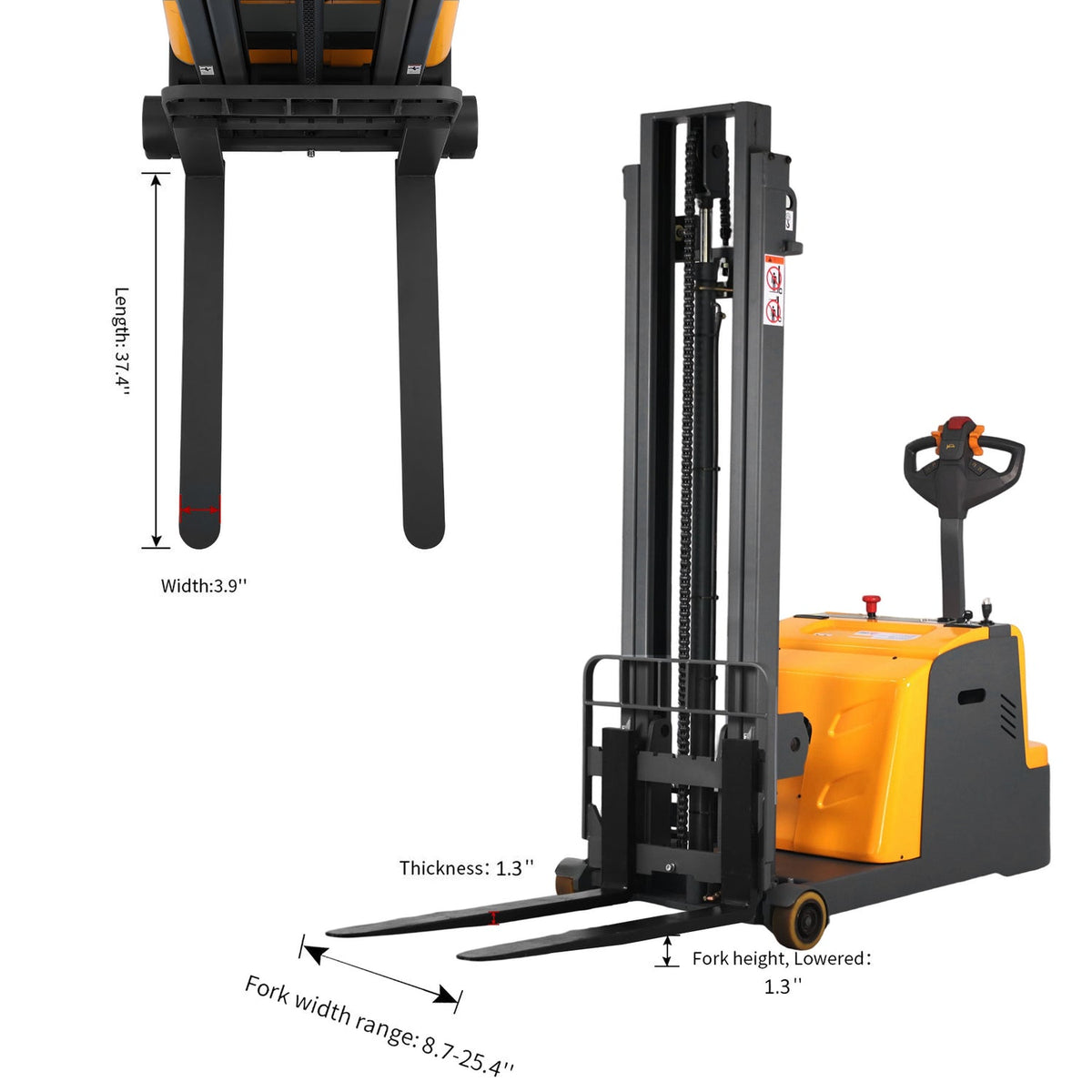

Fork dimensions: 37.4 in L × 8.7–25.4 in adjustable W × 1.3 in thick

Inside fork width: 0.9–17.6 in

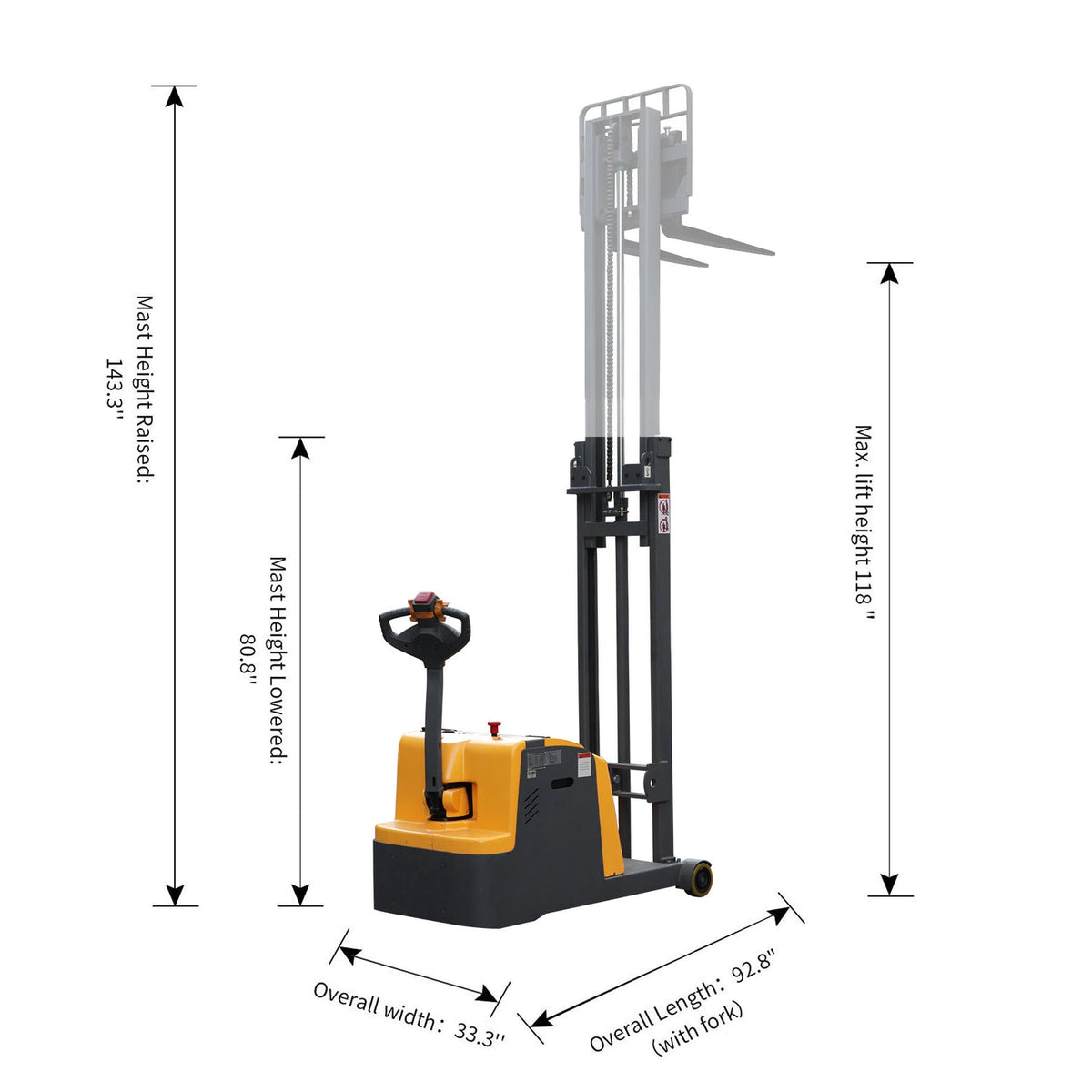

Overall dimensions: 96.7 in L × 33.3 in W

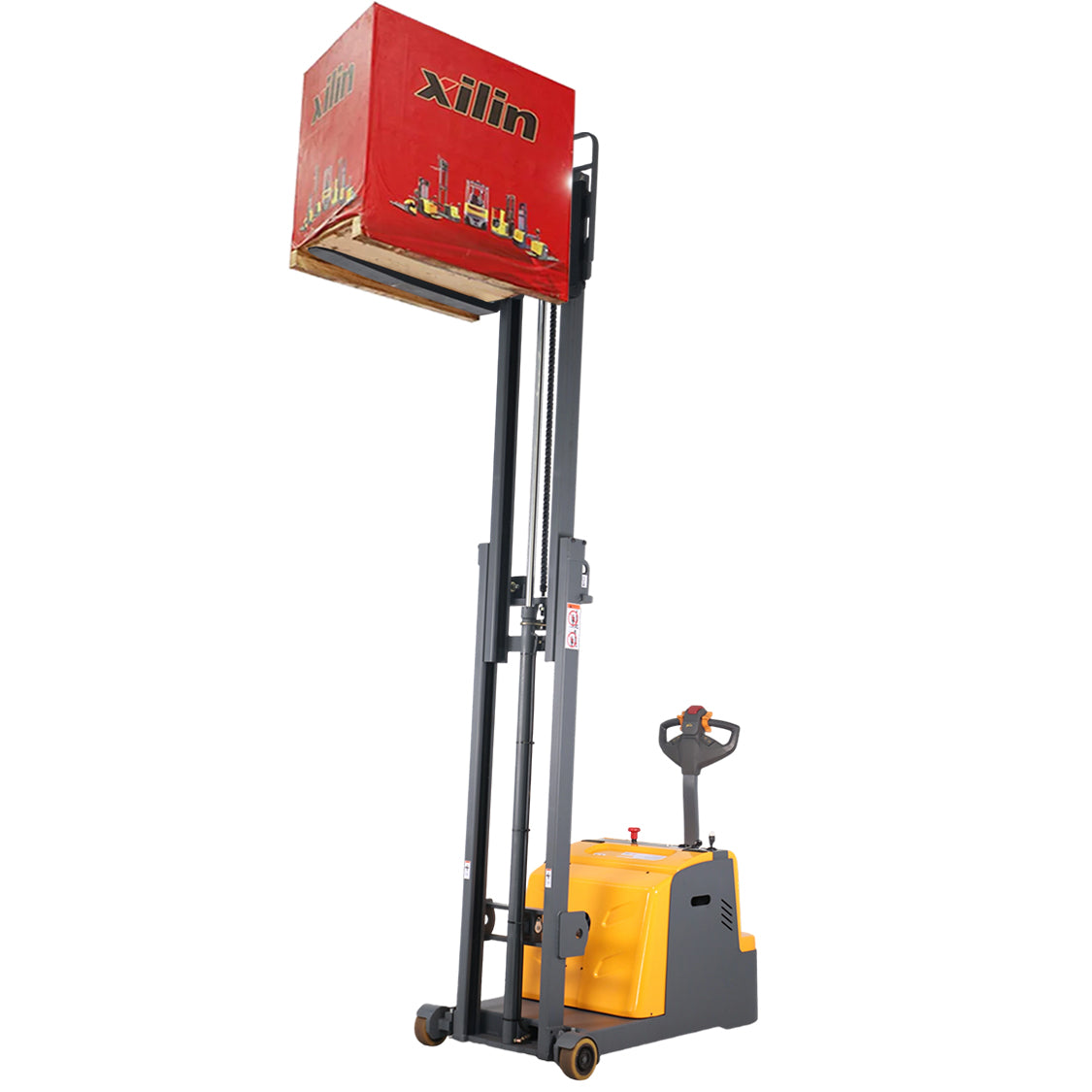

Maximum lift height: 118 in

Mast height, lowered/extended: 80.8 / 143.3 in

Fork lowered height: 1.3 in

Battery: 24V / 125Ah lead-acid

Charger: 24V / 10A built-in

Travel speed, loaded/unloaded: 2.4 / 2.6 mph

Lifting speed, loaded/unloaded: 4.3 / 5.9 in/s

Lowering speed, loaded/unloaded: 3.5 / 3.2 in/s

Service weight: 2,720 lb

Product line drawing: https://cdn.shopify.com/s/files/1/0560/0834/3710/files/CPD05W_10W.pdf?v=1743413404

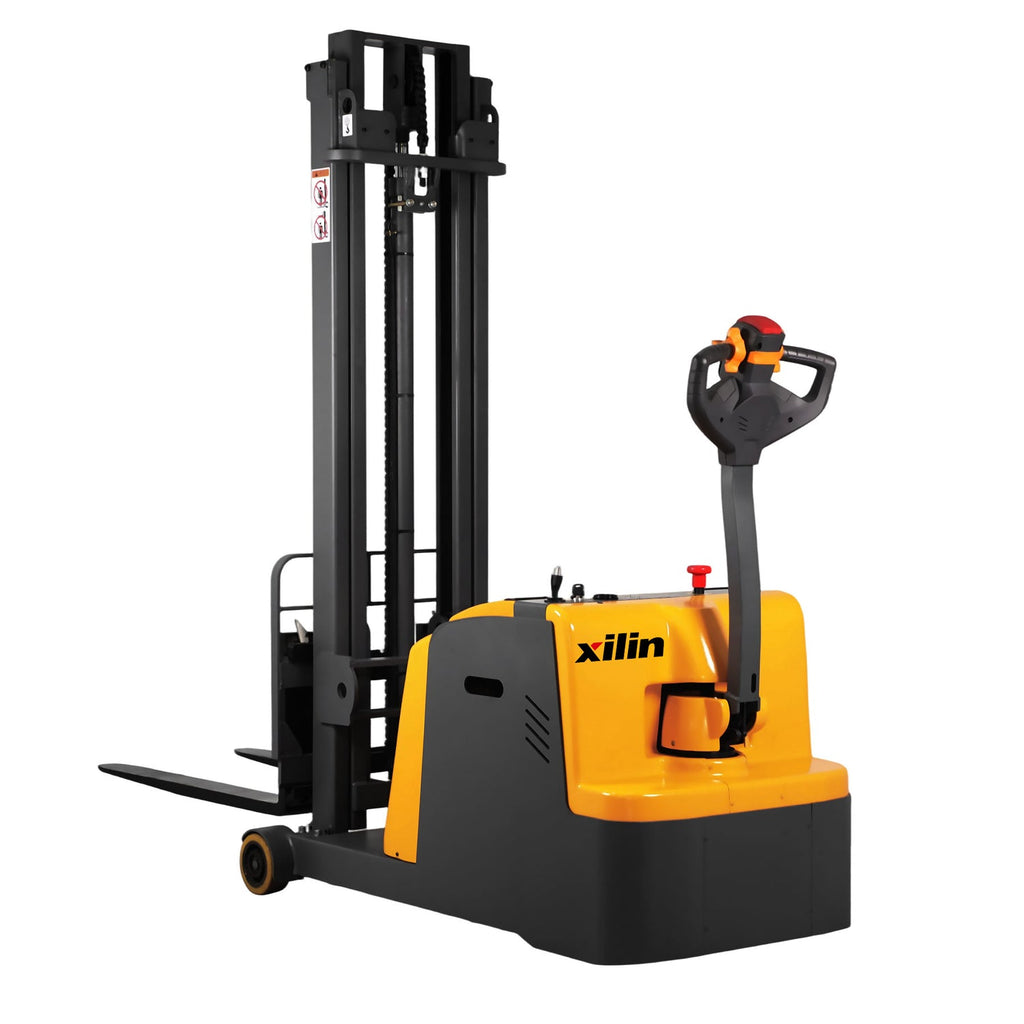

The Xilin CPD10W-118 is a compact counterbalanced electric stacker with a 2,200 lb capacity and 118 in maximum lift height. Its leg-free front design works with closed-bottom pallets and helps the truck maneuver in tight warehouse areas. A sealed 24V/125Ah lead-acid battery and built-in charger support reliable, low-noise indoor operation.

The counterbalanced chassis, mast tilt, upright-drive function, turtle-speed mode, and integrated safety controls make it suitable for pallet stacking, loading, unloading, and material movement in warehouses, retail facilities, logistics operations, and light industrial environments.

One-year limited warranty on the truck, excluding normal wear parts and damage caused by misuse. The battery carries six months of coverage, and spare parts carry three months of coverage. Warranty service and freight responsibility depend on when the issue is reported and the manufacturer’s inspection; contact ALLIZOE before arranging any return or repair.

Warehouses and stockrooms

Pallet stacking and retrieval

Loading-area material handling

Facilities with moderate-capacity lift requirements

Product price and freight are separate. Freight is quoted based on the delivery ZIP code, destination type, and required delivery service. Commercial delivery, residential delivery, liftgate service, limited-access delivery, and pickup at a carrier terminal may have different costs. Inventory and freight must be confirmed before shipment.
