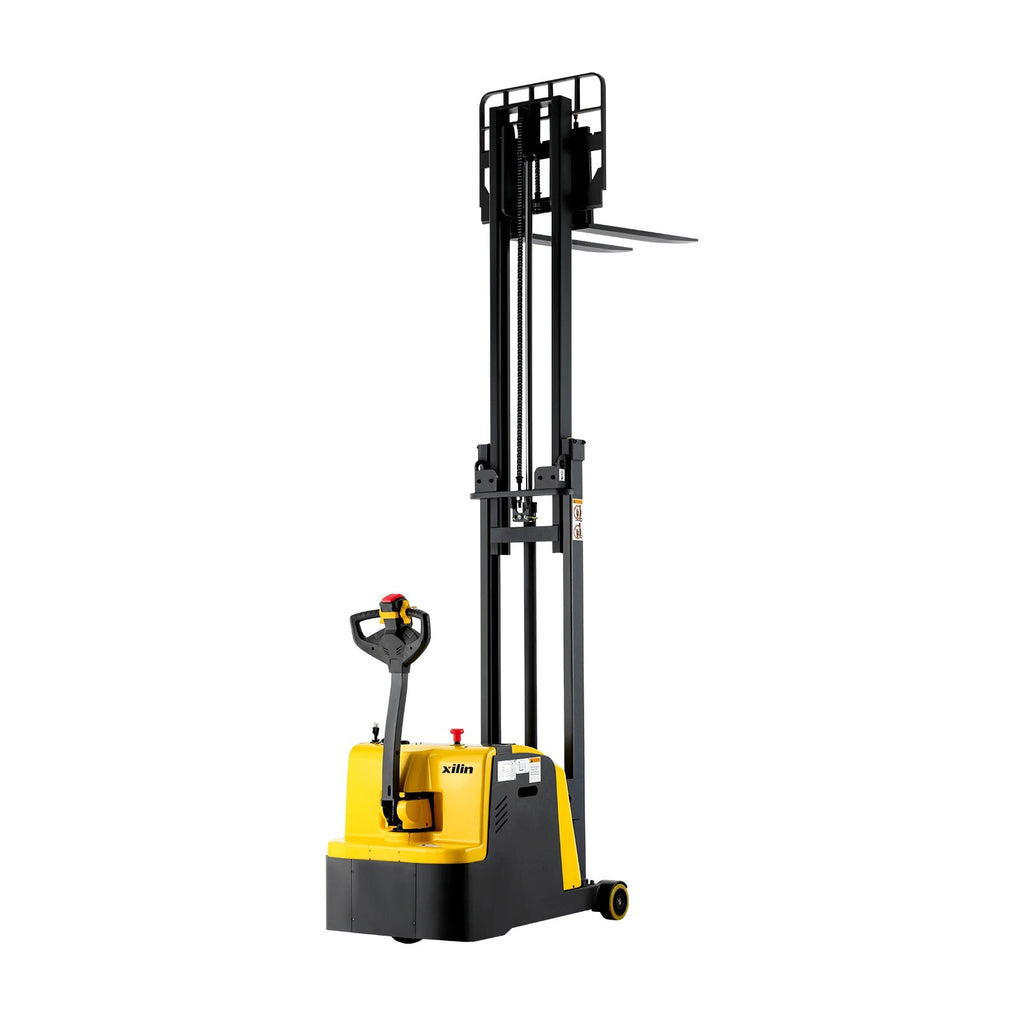

Counterbalanced pallet stacker with tall mast, yellow base and black forks

Xilin CPD05W-118 Counterbalanced Stacker – 1200lb, 118in

$8,100.00
Skip to product information
Counterbalanced pallet stacker with tall mast, yellow base and black forks
1/20
  • Counterbalanced pallet stacker with tall mast, yellow base and black forks

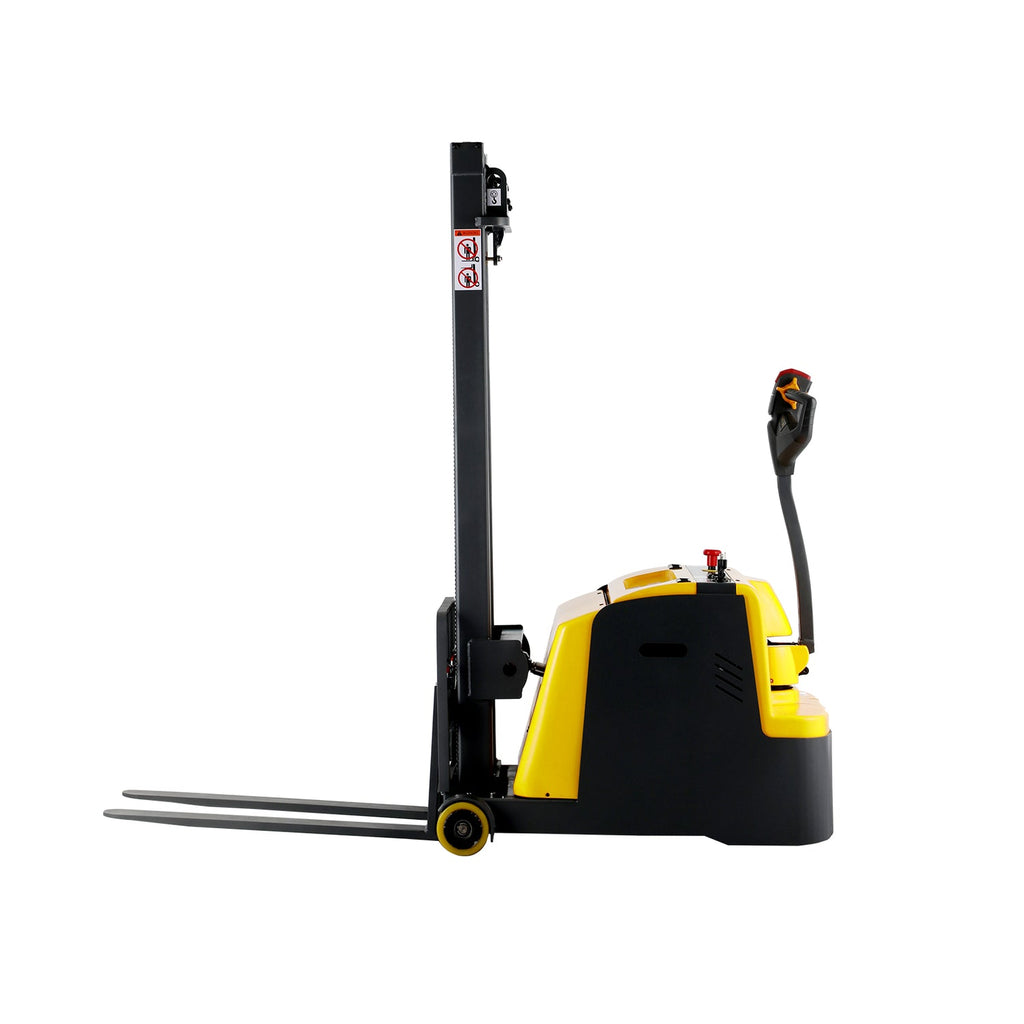

  • Counterbalanced pallet stacker with yellow body, black base, and upright mast

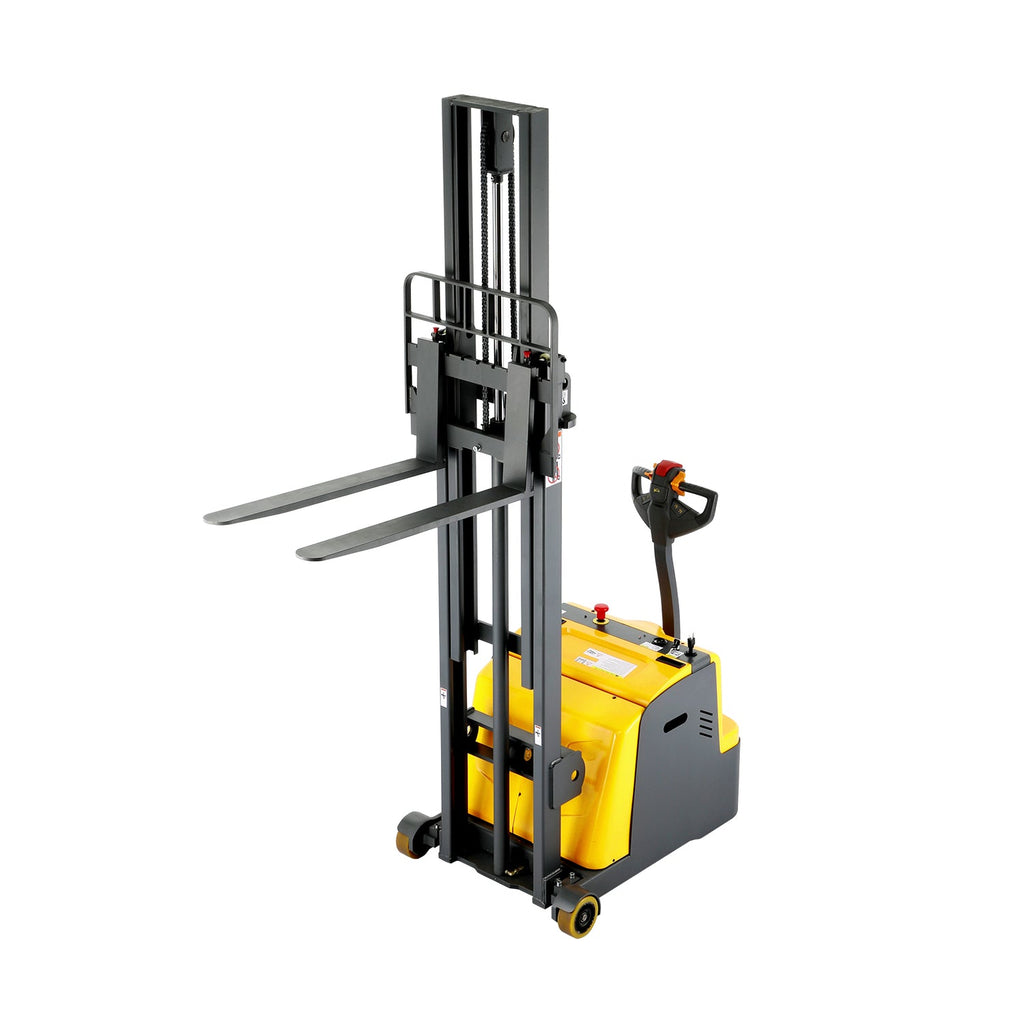

  • Counterbalanced pallet stacker, side view with extended forks and control handle

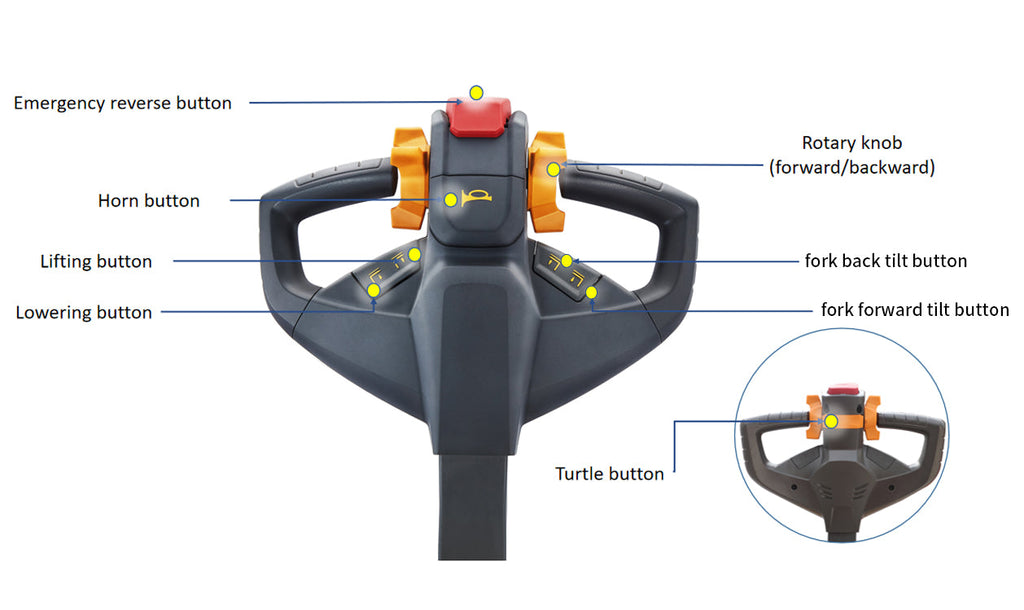

  • Stacker control handle with buttons and rotary knob for forward/backward

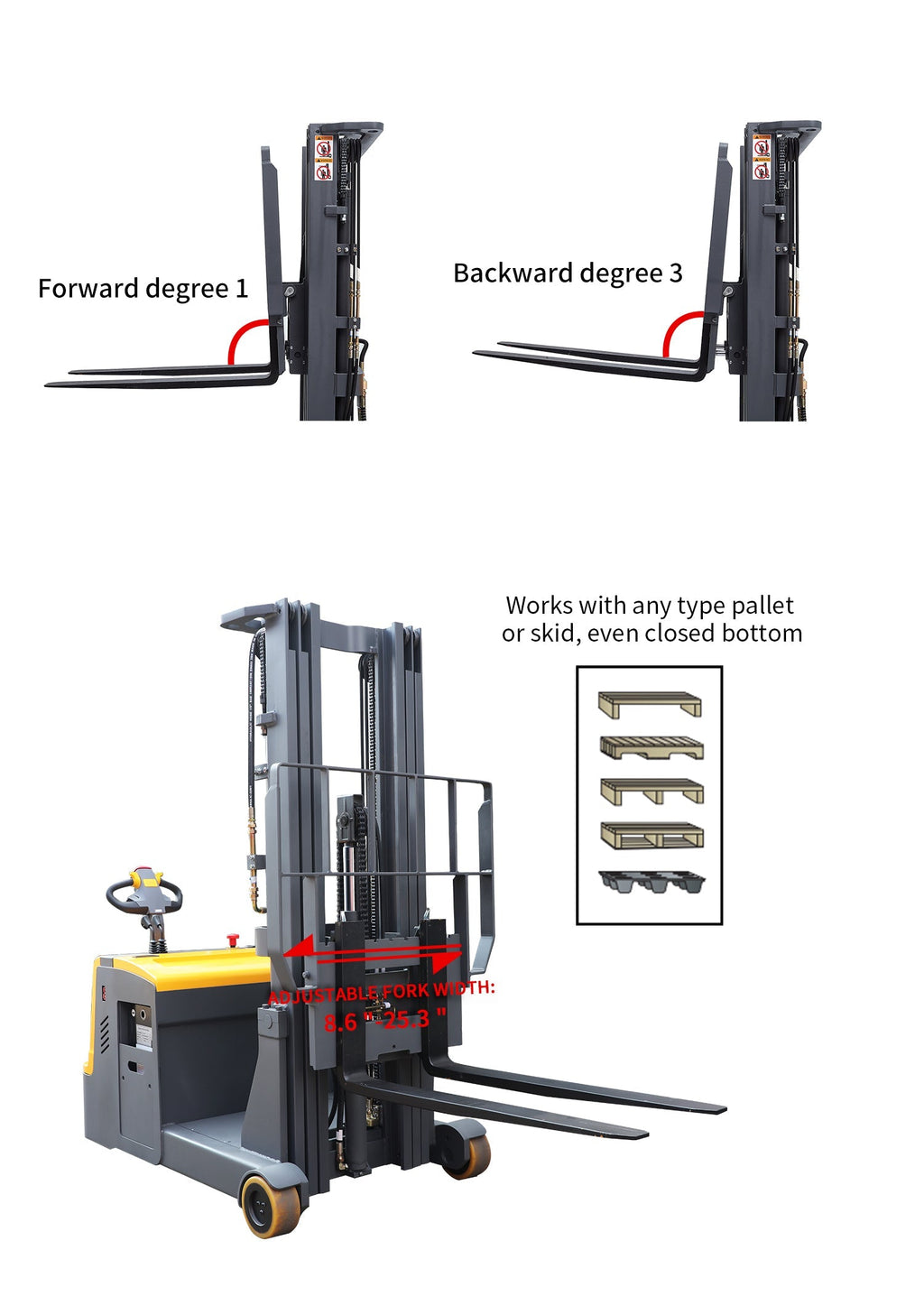

  • Counterbalanced stacker directional controls with forks and upright mast overview

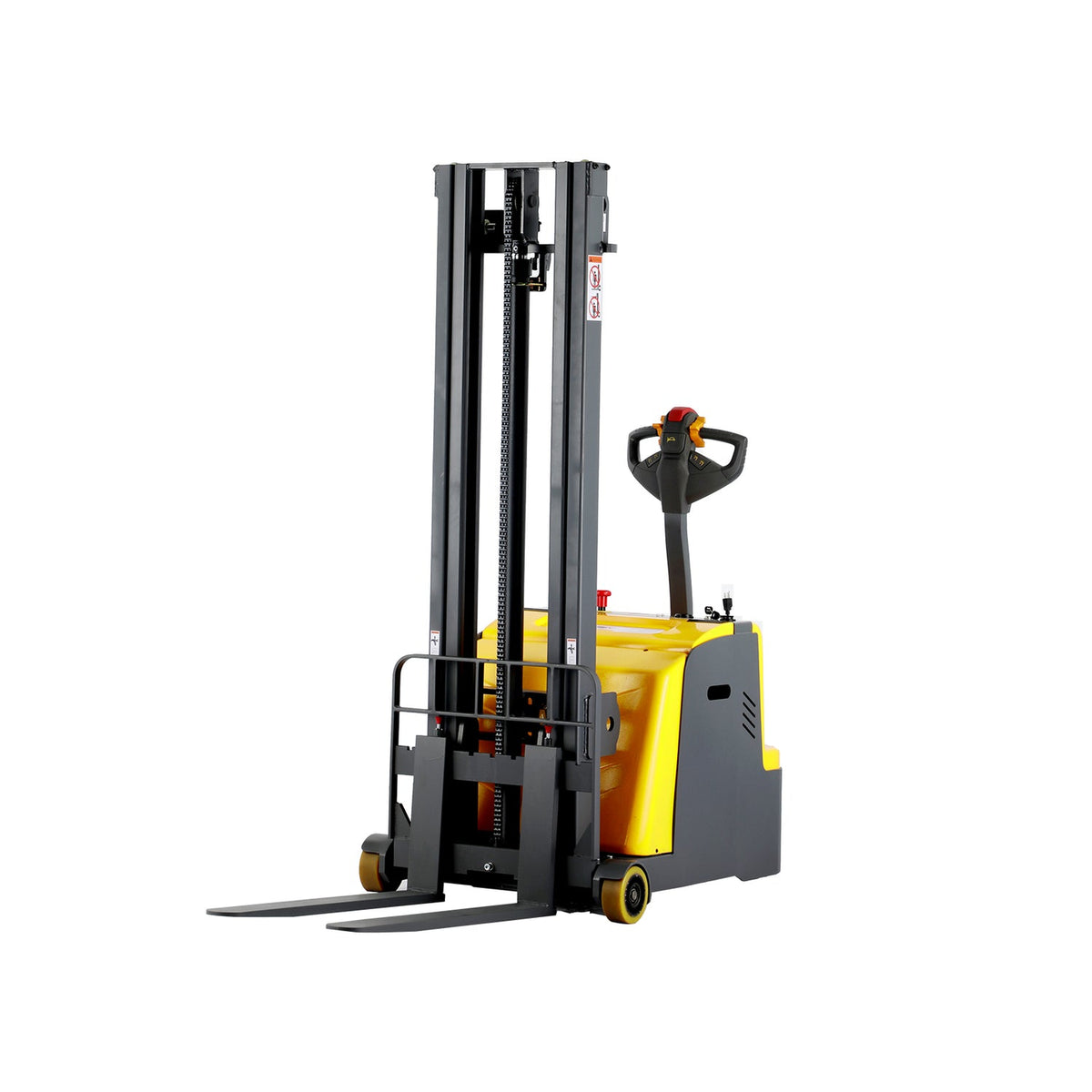

  • Counterbalanced stacker front view with yellow body, forks, and steering handle

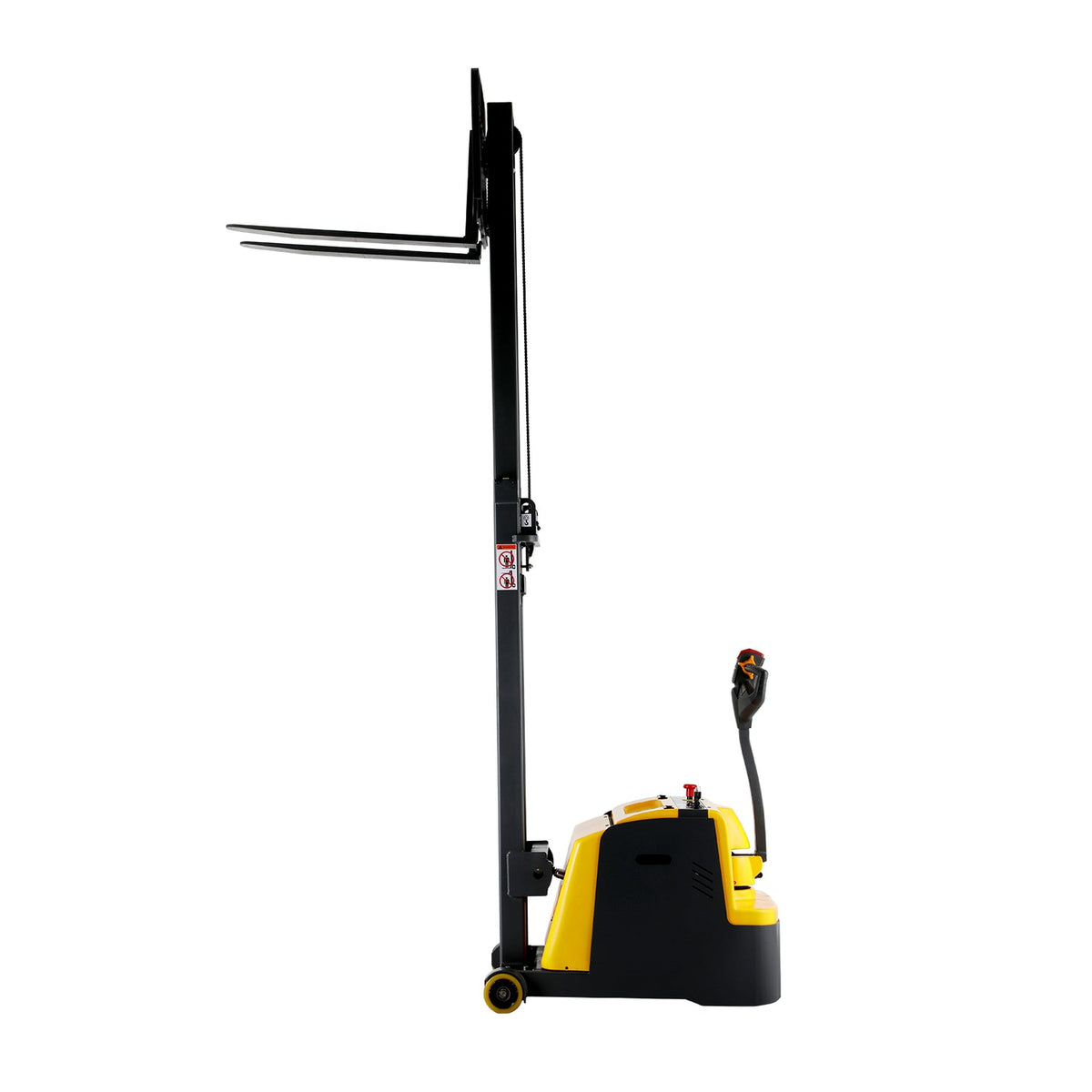

  • Counterbalanced pallet stacker with tall mast and side forks on caster wheels

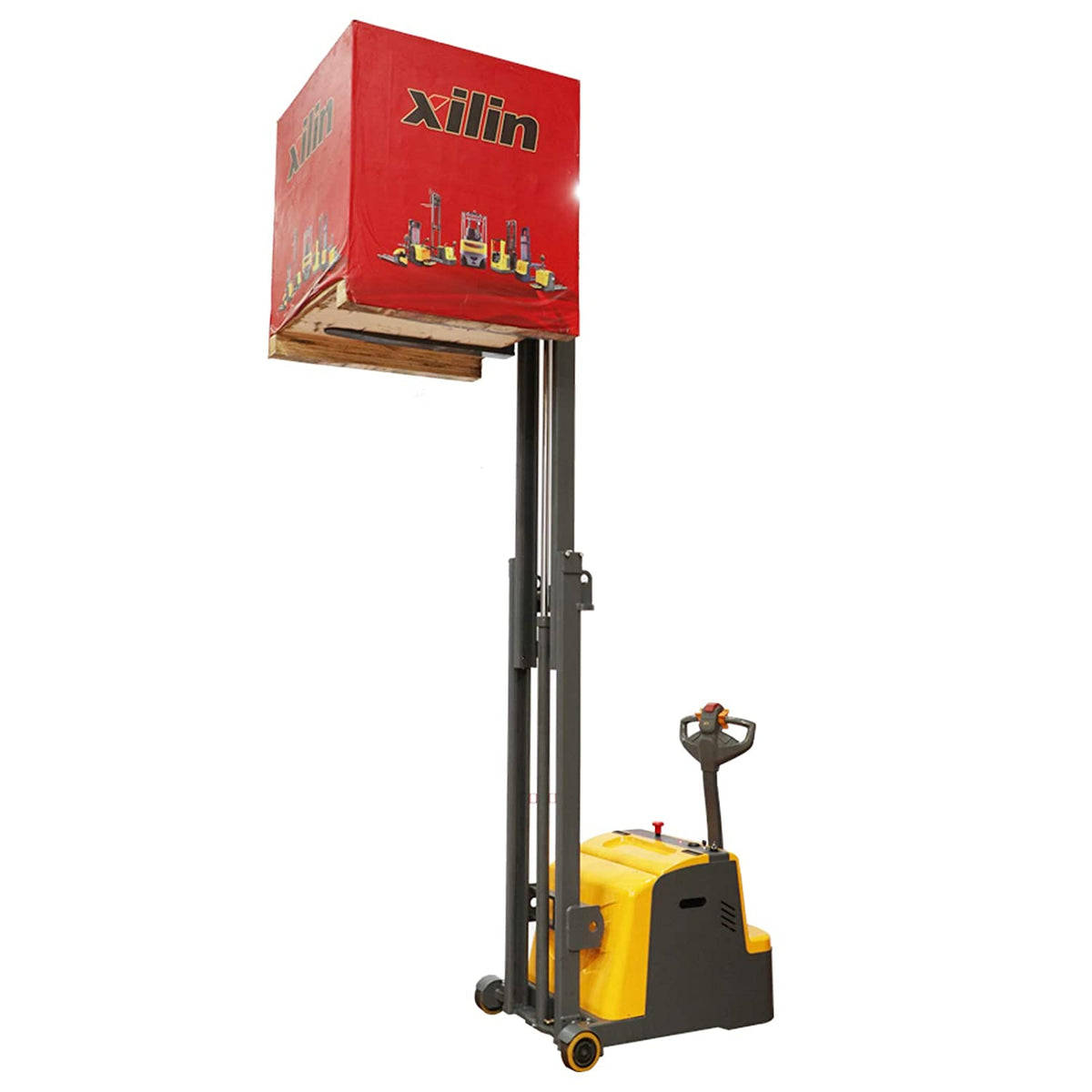

  • Counterbalanced stacker lifting a pallet on a raised platform, yellow body

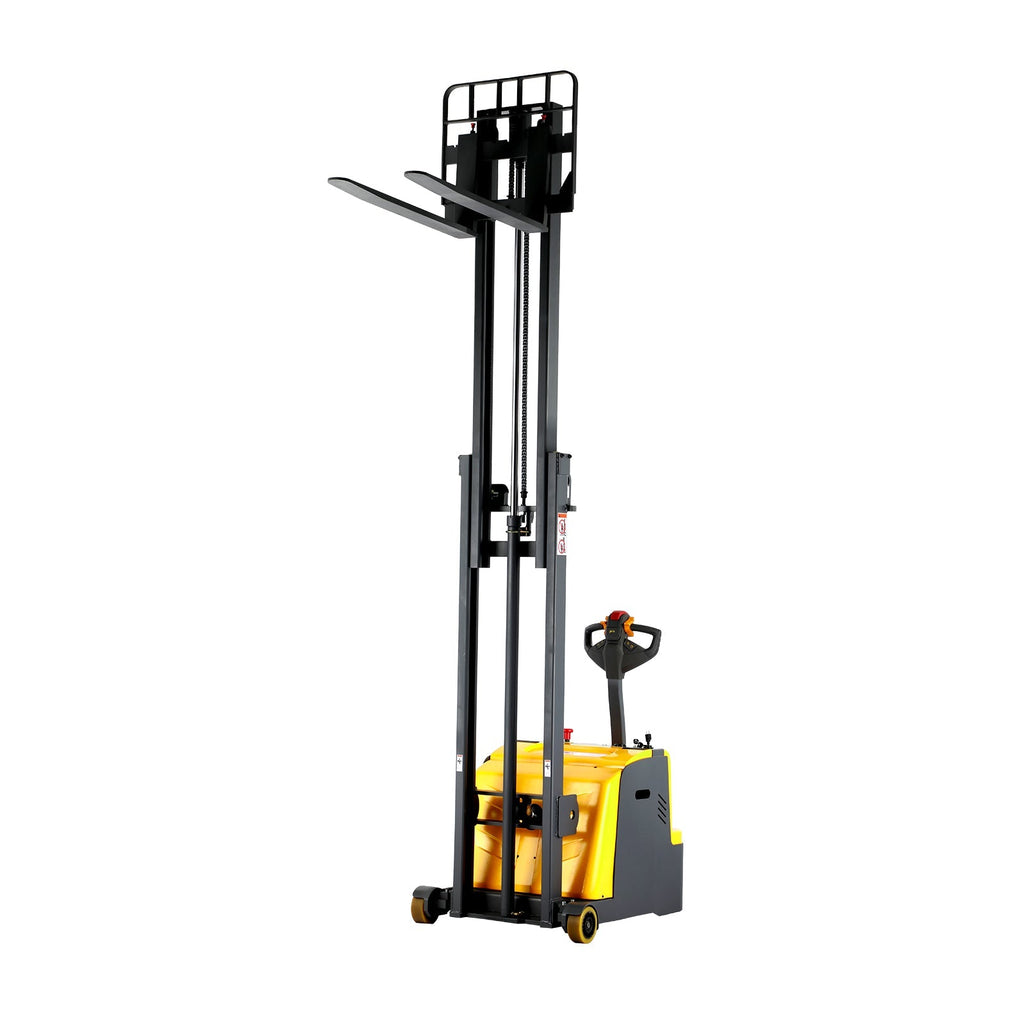

  • Counterbalanced pallet stacker with raised forks and black safety mast, yellow body

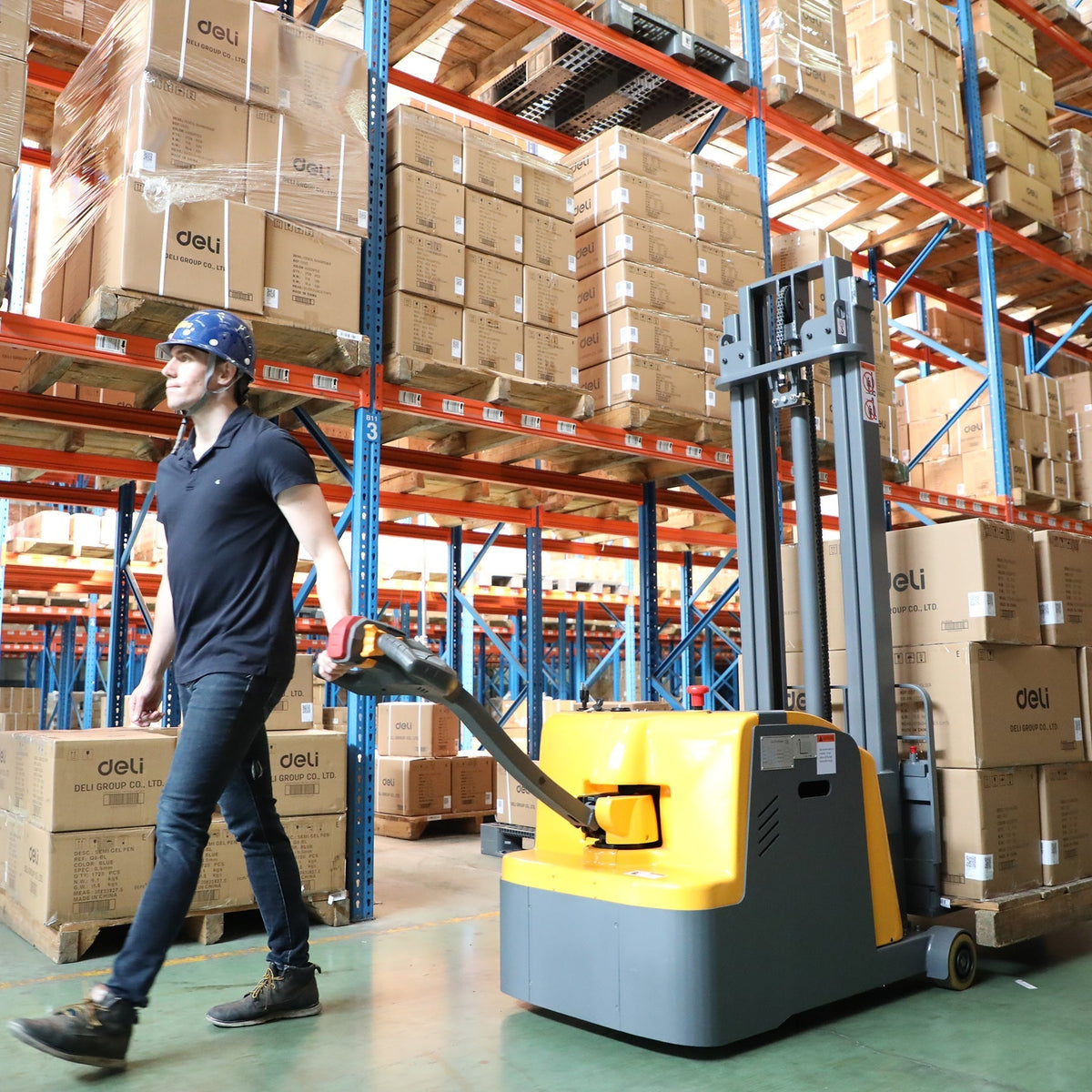

  • Yellow counterbalanced pallet stacker with forks raised in warehouse aisle

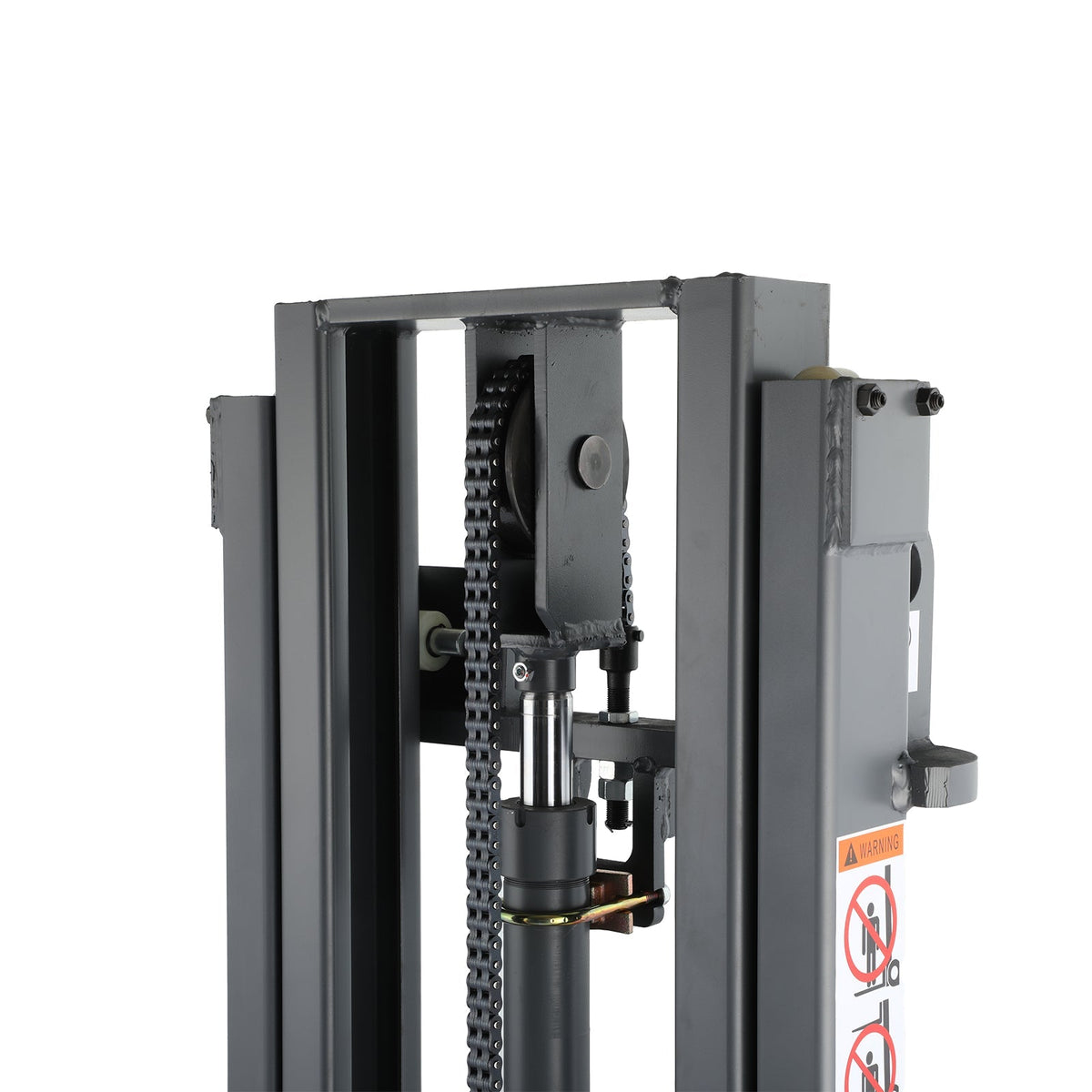

  • Counterbalanced stacker mast and chain mechanism with hydraulic components

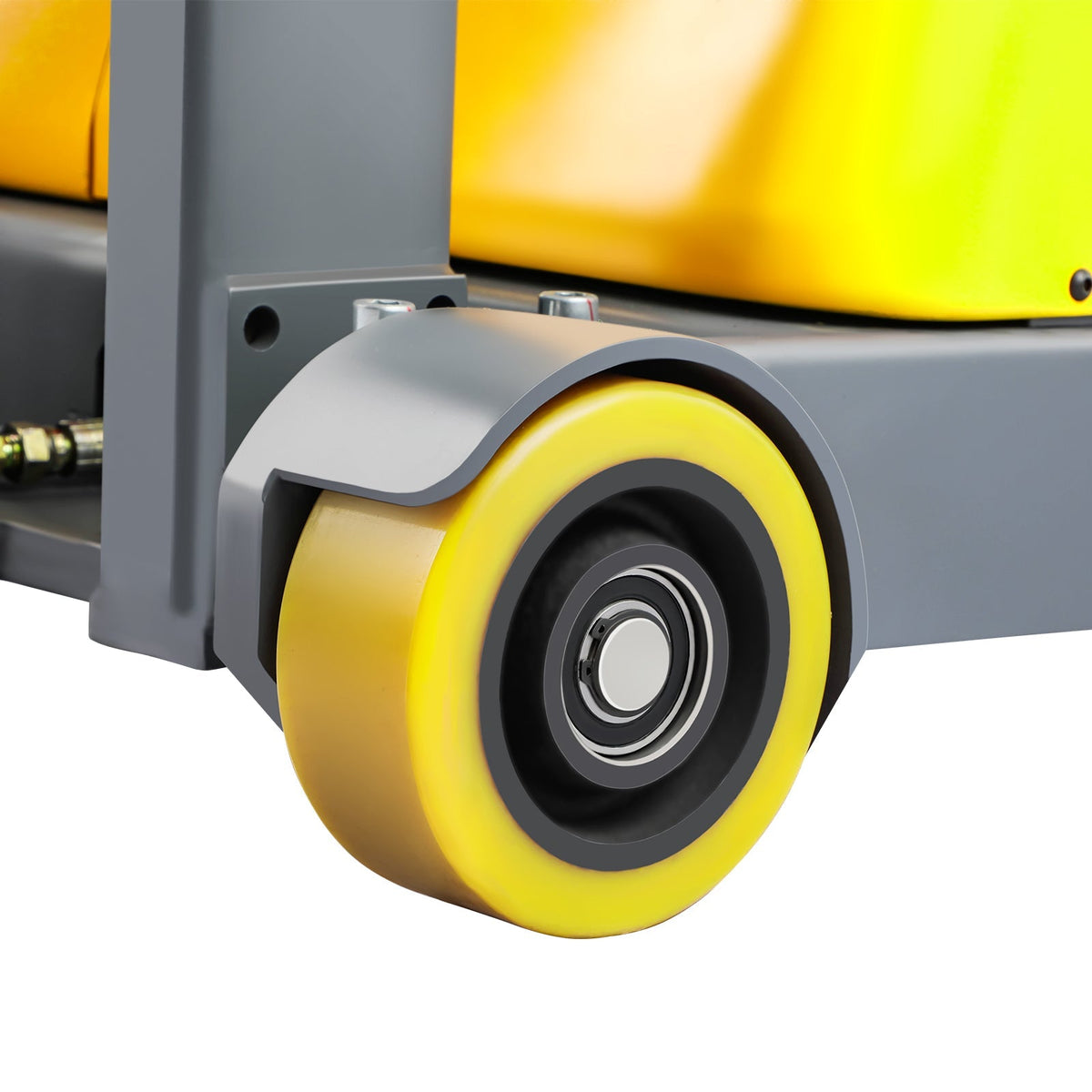

  • Stacker front wheel with yellow rim and black tire on gray frame

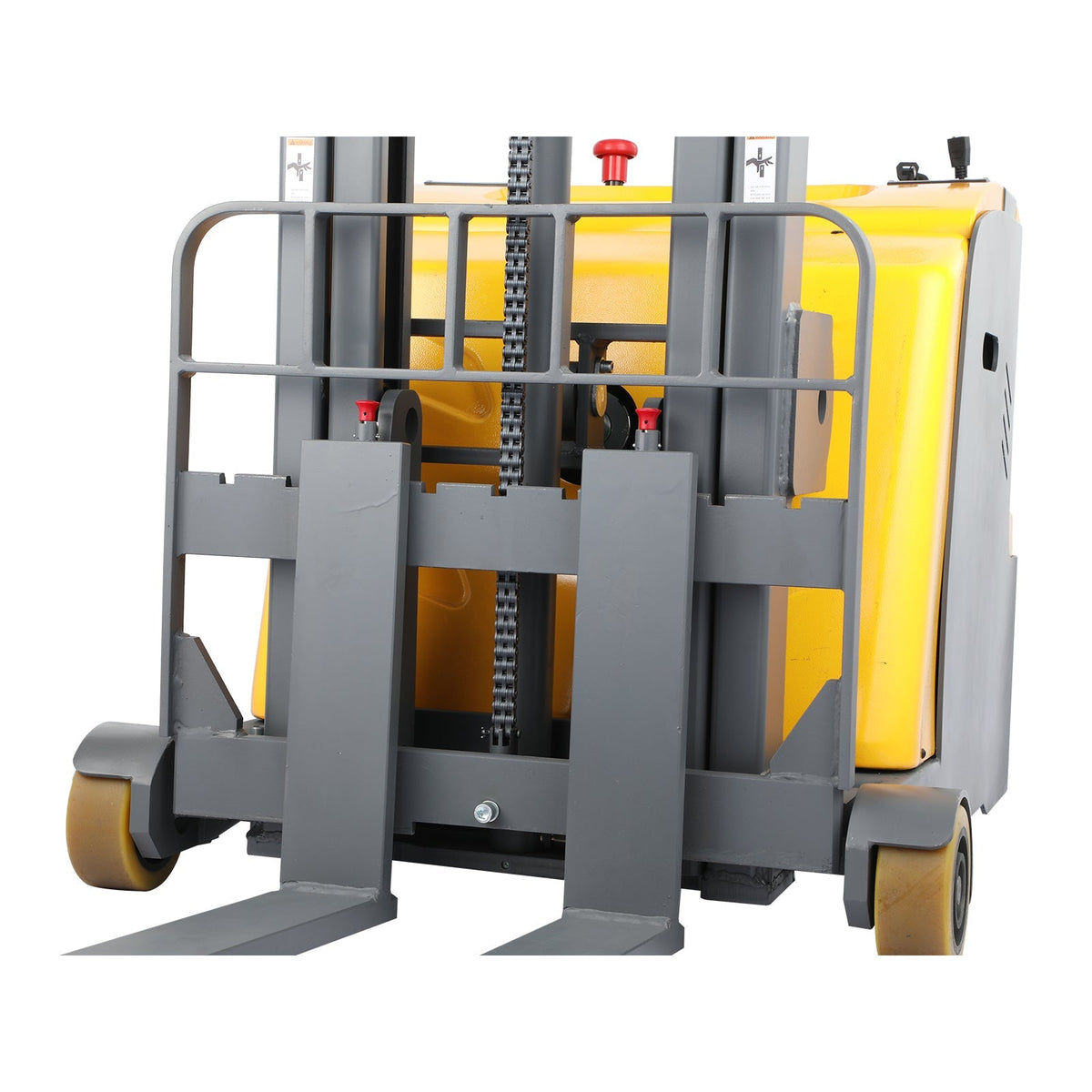

  • Counterbalanced pallet stacker with fork carriage and safety guard, yellow body

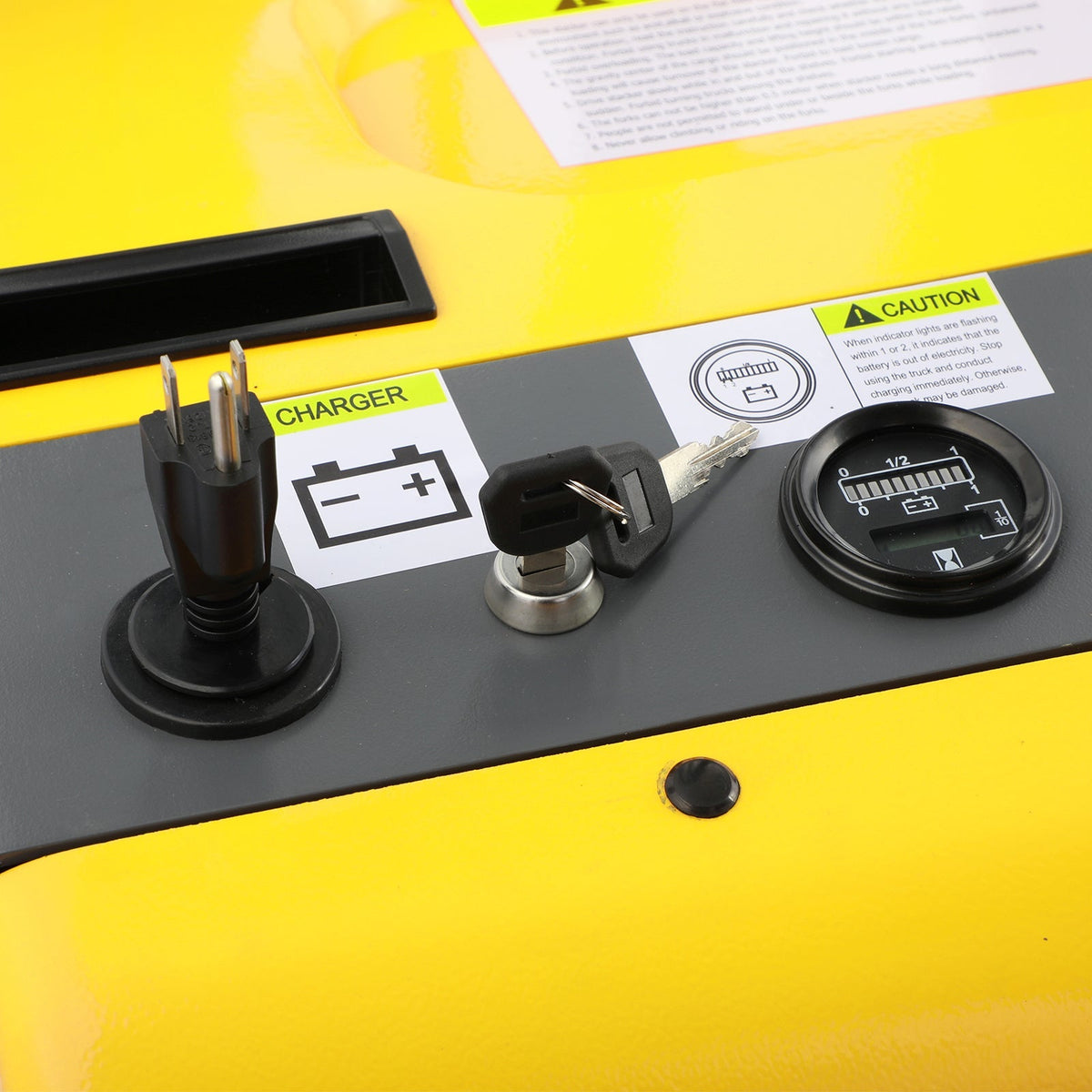

  • Stacker control panel with charge indicator, charging switch, and gauges

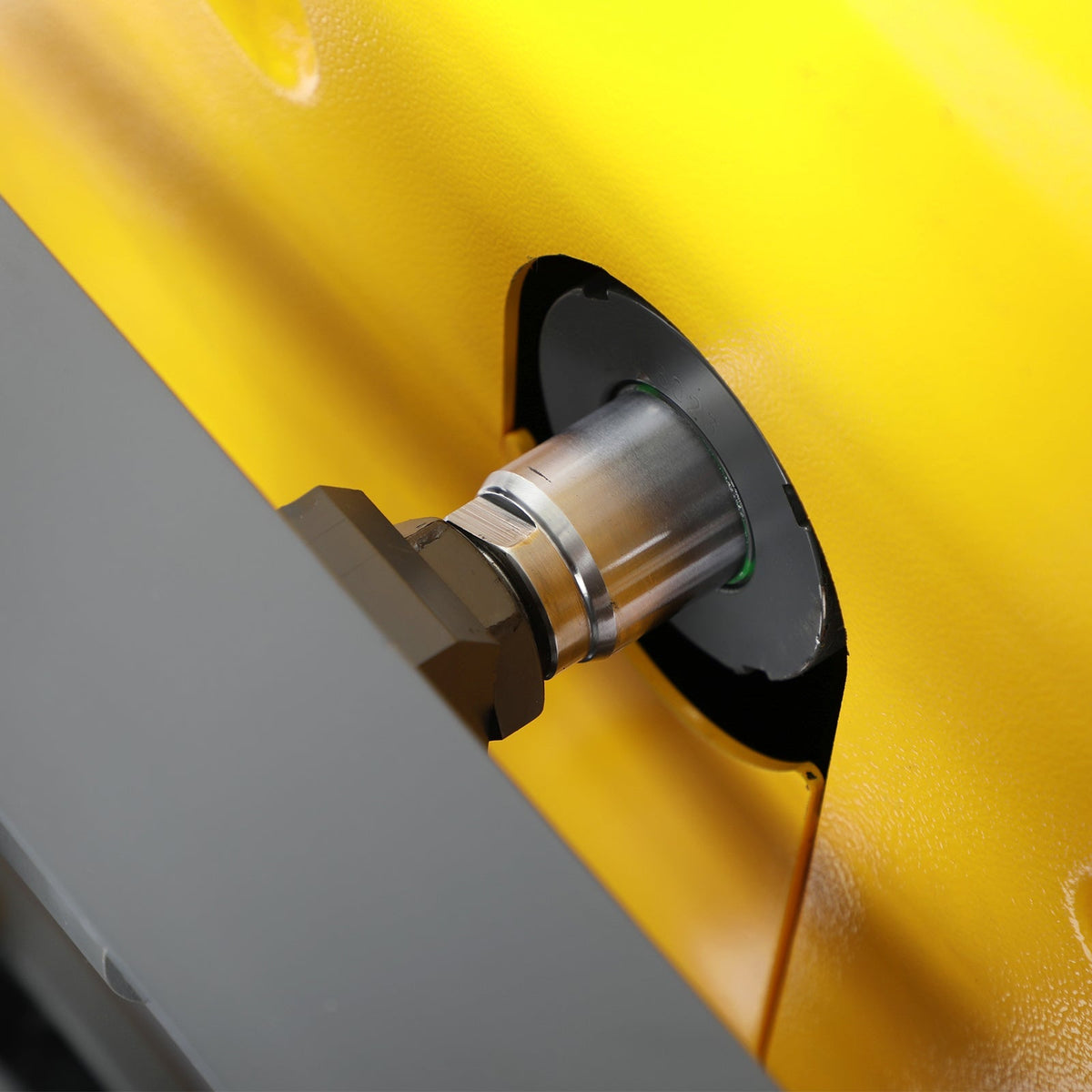

  • Stacker side charging port with round metal cap on yellow housing

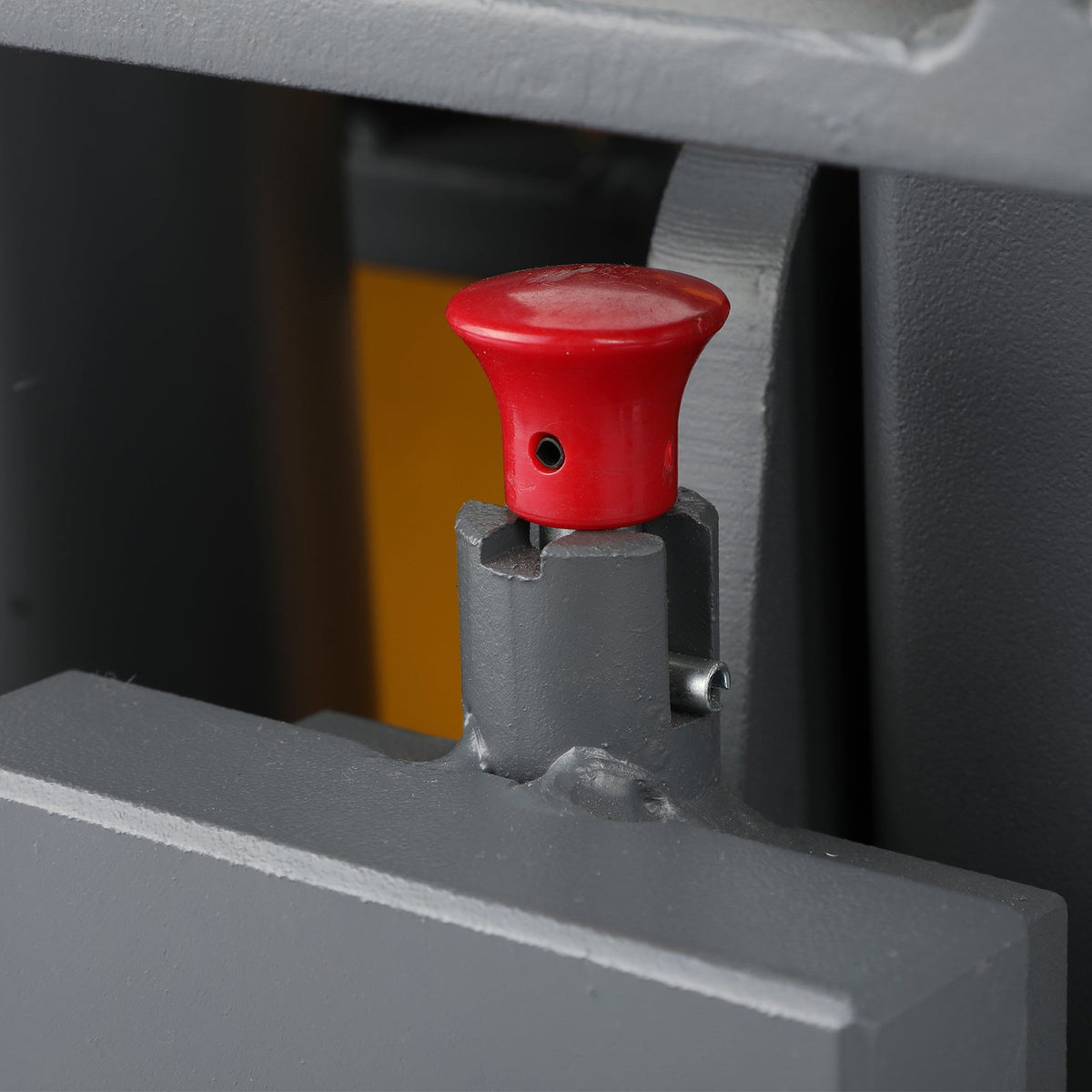

  • Stacker frame emergency control with red push knob and gray housing

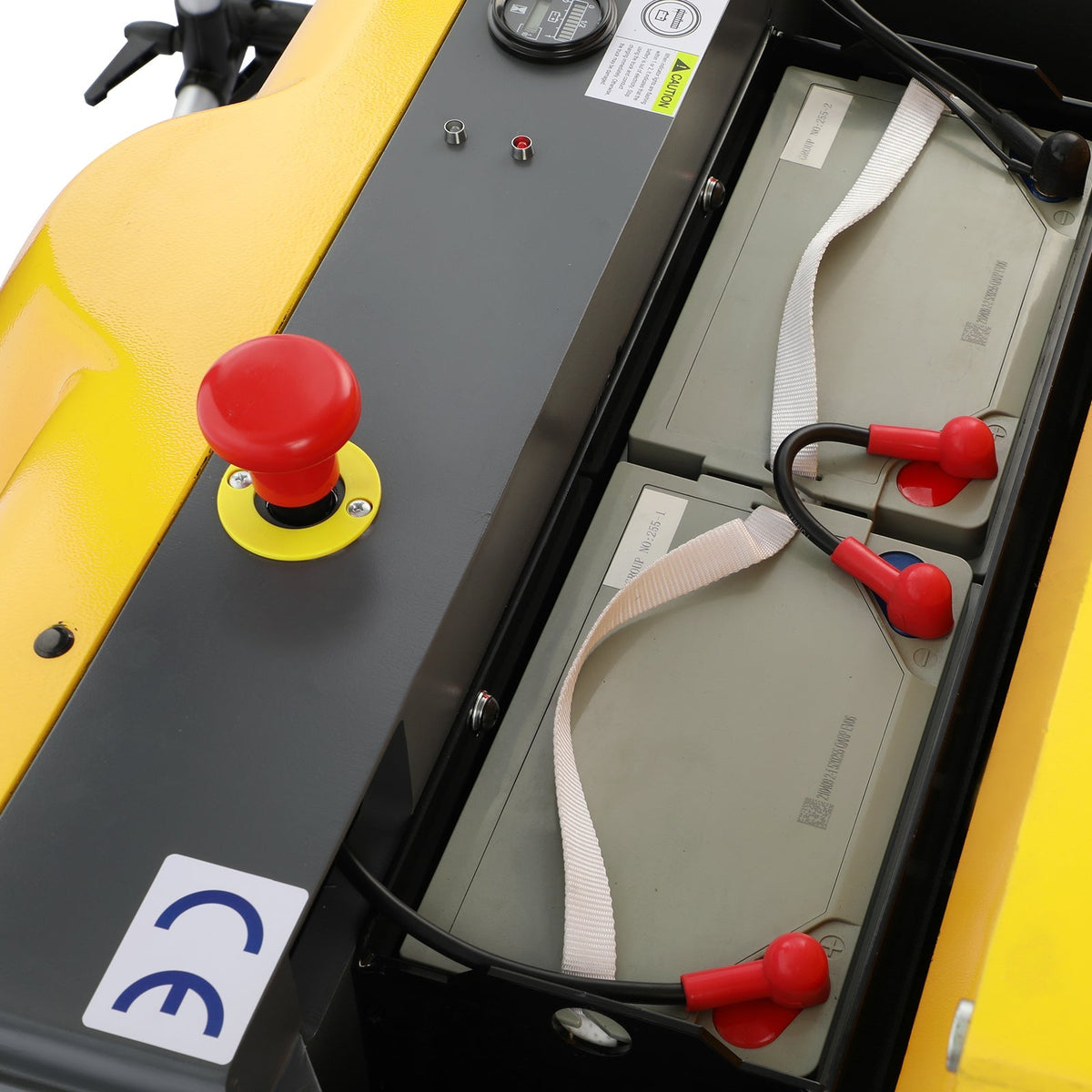

  • Stacker battery compartment with red controls and access cover

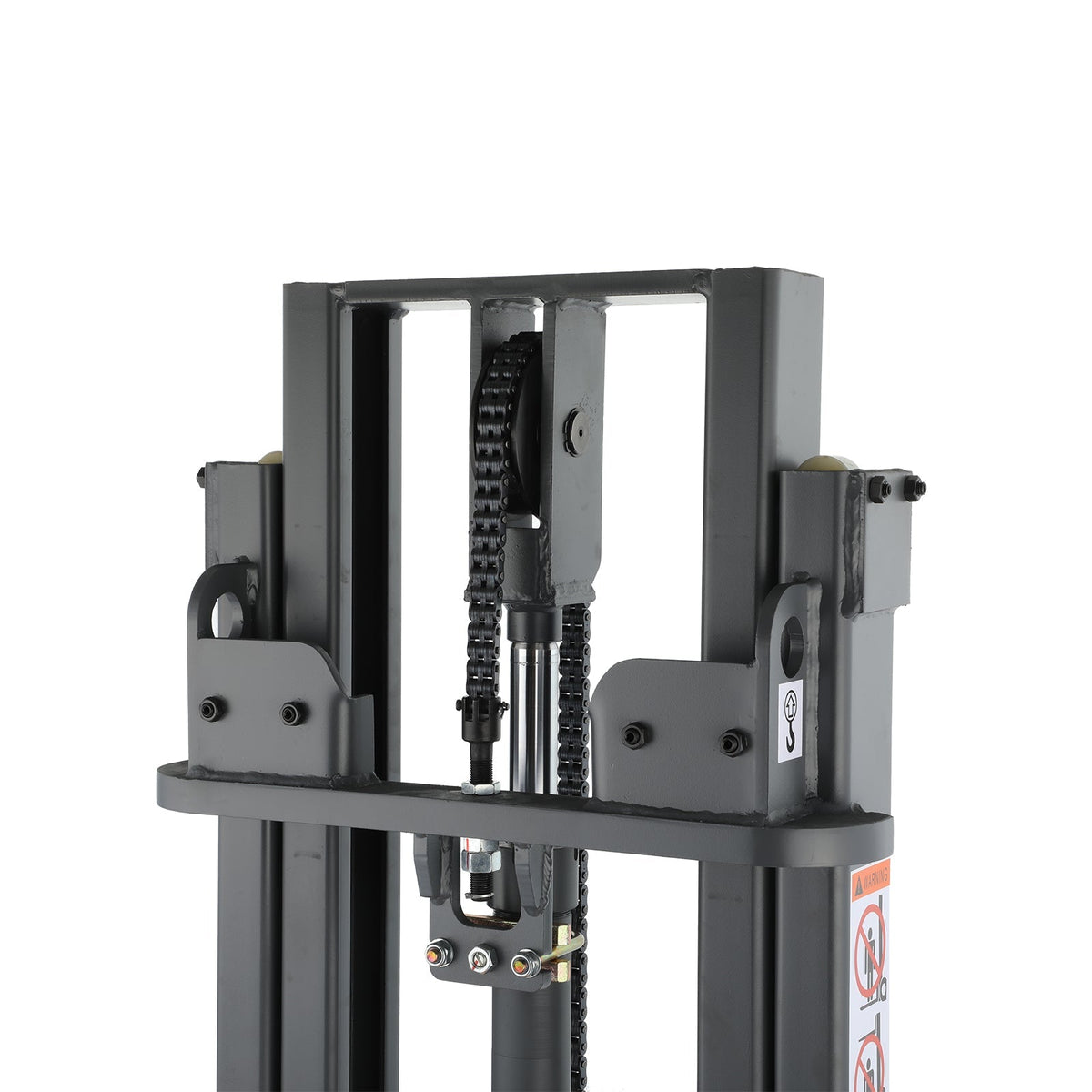

  • Counterbalanced stacker mast assembly with chains and hydraulic lines

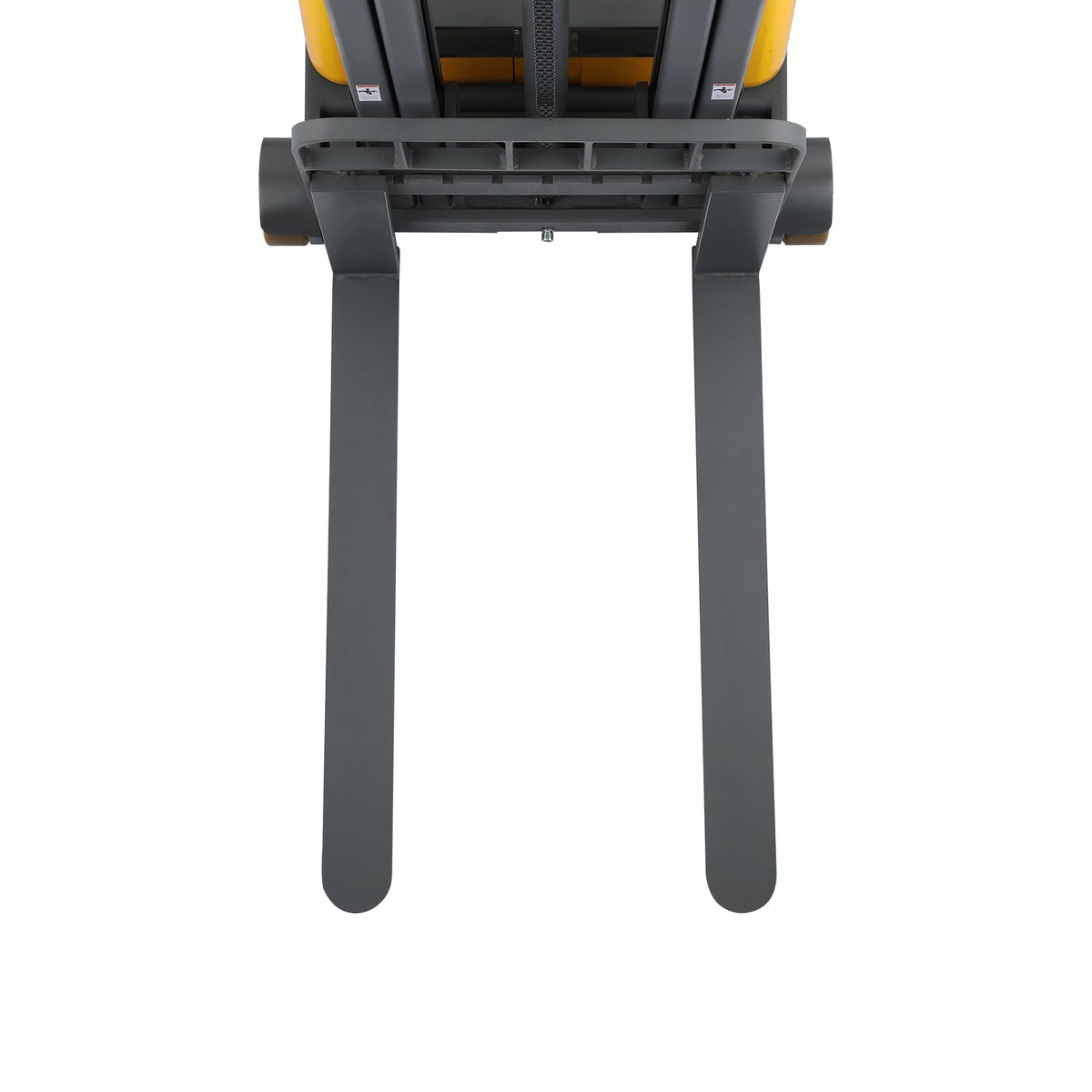

  • Counterbalanced electric pallet stacker, dark gray forks and legs
  • Electric counterbalanced pallet stacker with control handle and mast, yellow and black
Xilin CPD05W-118 Counterbalanced Stacker – 1200lb, 118in

Xilin CPD05W-118 Counterbalanced Stacker – 1200lb, 118in

$8,100.00

Shop Pay Installments

Split your purchase into flexible installment payments with Shop Pay. Pay over time with no hidden fees.

How it works:

  • Choose Shop Pay at checkout
  • Select your preferred payment plan
  • Make your first payment today
  • Pay the rest over time with automatic payments

No interest. No hidden fees. Just flexible payments that work for you.

🚚 Shipping availability and rates vary by product, delivery option, and destination.

Carrier Terminal Pickup: Bring a suitable vehicle or trailer. The terminal will load the shipment, but the customer is responsible for unloading at the final destination.
⚠️ Warehouse Pickup – Please Contact Us First. Due to varying inventory across our warehouse locations, please contact us before placing your order to confirm stock availability at your preferred location.
Contact Us to Check Availability

🇺🇸 US-Based Business: We offer specialized support and flexible shipping and delivery options.

🏭
Expert SupportUS-Based Team
🚚
Shipping OptionsVary by Product & Destination
🛡️
1-Yr WarrantyFull Parts Support
🔬
Safety TestedLoad & Function Tested
📍
Pickup Options May Be AvailableContact us to confirm location & availability
Learn More >
Warranty

One-year limited manufacturer warranty against manufacturing defects. Warranty exclusions and battery coverage may vary by model.
Shipping

Free freight shipping to the contiguous 48 US states. Estimated delivery: 6–10 business days. Curbside delivery only — forklift or pallet jack required. Carrier will call 24–48 hrs before delivery. View full Shipping & Delivery details →

⚠️ Safety Warning

Read the operation manual before use. Confirm rated capacity at the required load center and lift height, pallet compatibility, aisle and overhead clearance, and floor conditions. Never stand beneath raised forks or use this stacker to lift people.

The CPD05W-118 offers 1,200 lbs capacity and 118" lift height in a leg-free compact frame. Ideal for narrow aisles, containers, and closed-bottom pallets, it features a sealed 24V battery (capacity to be confirmed) battery, tilt mast, and full safety system—built for smooth, stable stacking in tight warehouse spaces.

Multi-Function Handle – Controls lifting, lowering, driving, tilt, horn, turtle mode, and reverse.

Compact & Leg-Free Design – Handles closed pallets and low-clearance skids with ease.

Tilt-Adjustable Mast – Forward/backward tilt improves pickup and stacking in tight areas.

Top-Mounted Drive Motor – Resists dust/moisture, with easy access for service or wheel changes.

3-Point Chassis – Two front load wheels and one rear drive wheel ensure balance and control.

Optional Balance Wheels – Reduces side sway and improves stability under heavy load.

Maintenance-Free Battery – 24V battery (capacity to be confirmed) sealed battery with built-in charger and low-voltage protection.

Plug-and-Play Charging – Built-in 24V/10A charger for easy recharging at any outlet.

Digital Display Panel – Shows battery level and working hours in real-time.

Full Safety System – Includes belly switch, lift limit, emergency stop, overload protection, and anti-drop valve.

Tight Turning Radius – Only 46.1", allowing excellent maneuverability in trucks or narrow aisles.

Turtle-Speed Upright Travel – Handle stays upright for slow, controlled movement in small spaces.

Quiet Operation – Average noise under 70 dB(A), suitable for indoor use.

Service-Friendly Layout – Rear battery cover and internal wiring designed for easy maintenance.

Reliable Mechanical Steering – Stable turning via simple mechanical linkage.

Smart Throttle Logic – Safety zones prevent unintended motion; upright mode activates slow speed.

Load Capacity: 1,200 lbs

Load Center: 15.7"

Turning Radius: 46.1"

Aisle Width: 113.4"

Fork Dimensions: 37.4" L × 8.7–25.4" W × 1.3" Thick

Inside Fork Width: 0.9"–17.6"

Overall Dimensions: 83.3" L × 33.3" W

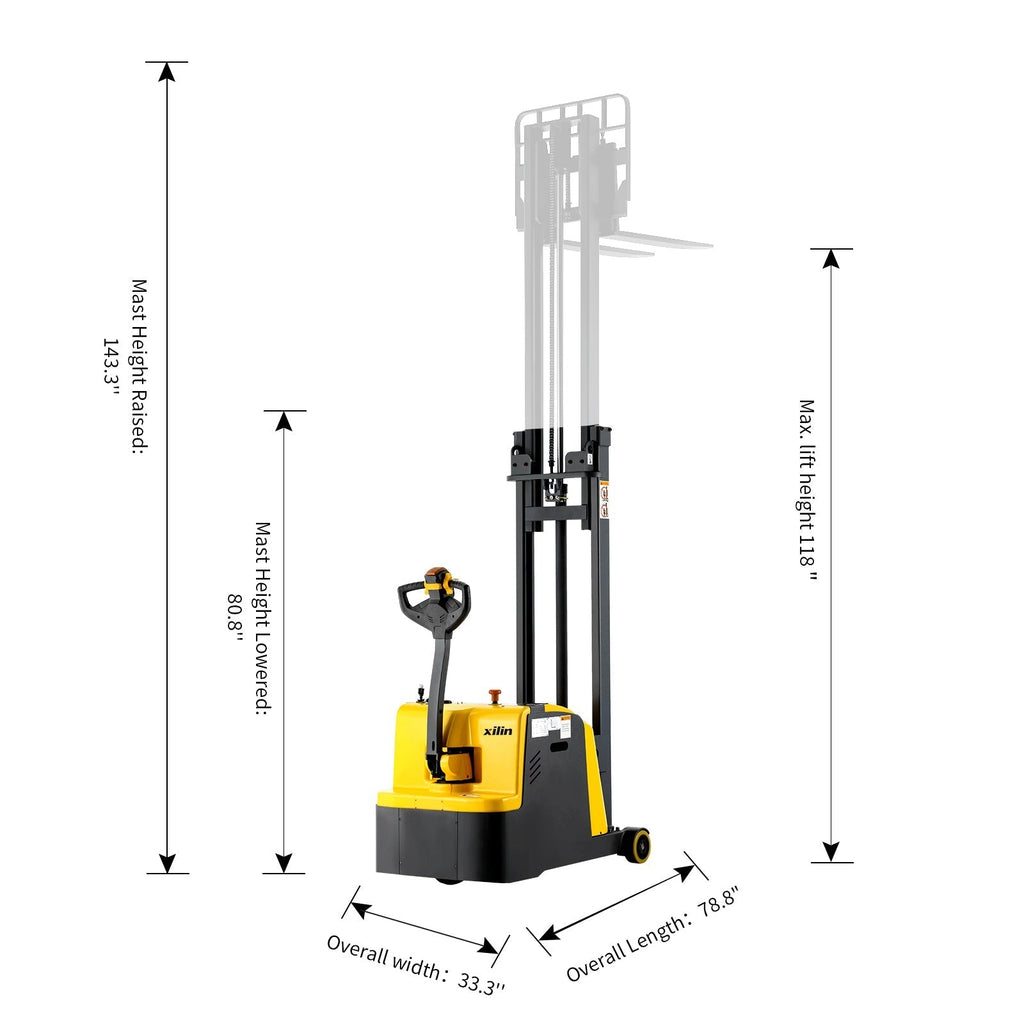

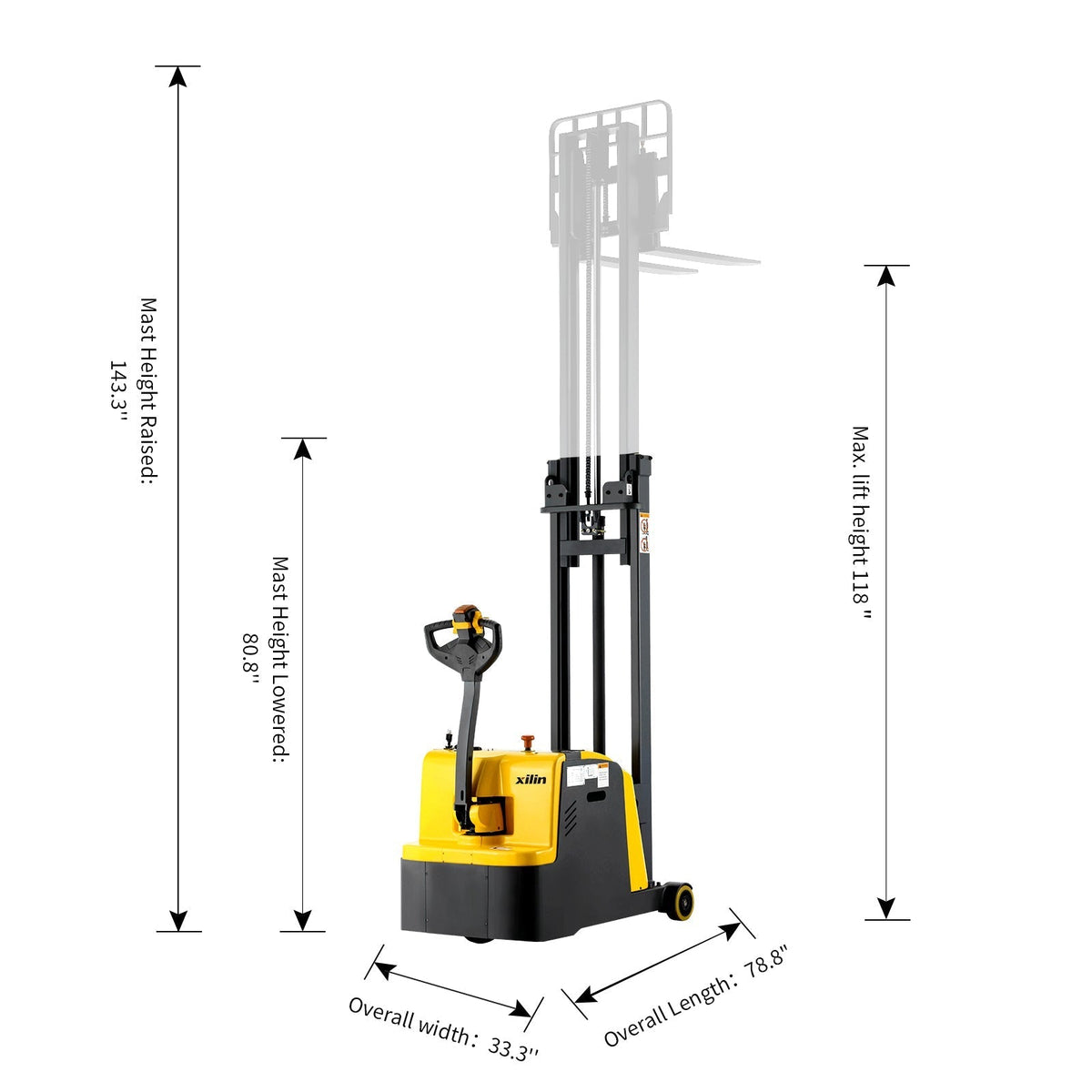

🔺 Max Lifting Height: 118"

📏 Mast Height (Lowered/Extended): 80.8" / 143.3"

Fork Lowered Height: 1.3"

Battery: 24V (capacity to be confirmed) (Maintenance-Free)

Charger: 24V / 10A Built-in

Travel Speed (Laden/Unladen): 2.5 / 2.8 mph

Lifting Speed (L/U): 6.7 / 9.8 inch/s

Lowering Speed (L/U): 5.5 / 5.5 inch/s

Service Weight: 2038 lbs

The CPD05W-118 offers 1,200 lbs capacity and 118" lift height in a leg-free compact frame. Ideal for narrow aisles, containers, and closed-bottom pallets, it features a sealed 24V battery (capacity to be confirmed) battery, tilt mast, and full safety system—built for smooth, stable stacking in tight warehouse spaces.

One-year limited manufacturer warranty against manufacturing defects. Warranty exclusions and battery coverage may vary by model.

Warehouse, retail, and logistics pallet stacking, including closed-bottom pallets where a leg-free counterbalanced chassis is suitable.

Product price and freight are separate. Freight is quoted based on the delivery ZIP code, destination type, and required delivery service. Commercial delivery, residential delivery, liftgate service, limited-access delivery, and pickup at a carrier terminal may have different costs. Inventory and freight must be confirmed before shipment.

Key Benefits

Multi-Function Handle

Controls lifting, lowering, driving, tilt, horn, turtle mode, and reverse.

Compact & Leg-Free Design

Handles closed pallets and low-clearance skids with ease.

Tilt-Adjustable Mast

Forward/backward tilt improves pickup and stacking in tight areas.

Top-Mounted Drive Motor

Resists dust/moisture, with easy access for service or wheel changes.

Product Highlights

Multi-Function Handle

Multi-Function Handle

Controls lifting, lowering, driving, tilt, horn, reverse, and turtle-speed operation from one grip.

Leg-Free Counterbalanced Design

Leg-Free Counterbalanced Design

The counterbalanced frame works with closed-bottom pallets and low-clearance skids where front support legs would interfere.

Tilt-Adjustable Mast

Tilt-Adjustable Mast

Forward and backward mast tilt helps improve pallet pickup, stacking, and positioning in tight working spaces.

Built-In Charger

Built-In Charger

The onboard 24V / 10A charger supports convenient plug-in charging without a separate external charger.

Dimensions & Product Drawing

Official Xilin specification sheet with detailed parameter tables and dimensional drawings. Click the full-page preview or download the original PDF to view the document at full size.

Xilin cpd05w 118 counterbalanced stackers official PDF with specification tables and dimensional drawings
Download Product Drawing (PDF)

Product Manual

Download the complete product manual and installation guide.
Download Manual
