Yellow electric pallet jack with black platform, tiller controls, and safety guard

Xilin CBD40T Electric Pallet Jack – 8000lb

$18,000.00
Skip to product information
Yellow electric pallet jack with black platform, tiller controls, and safety guard
1/5

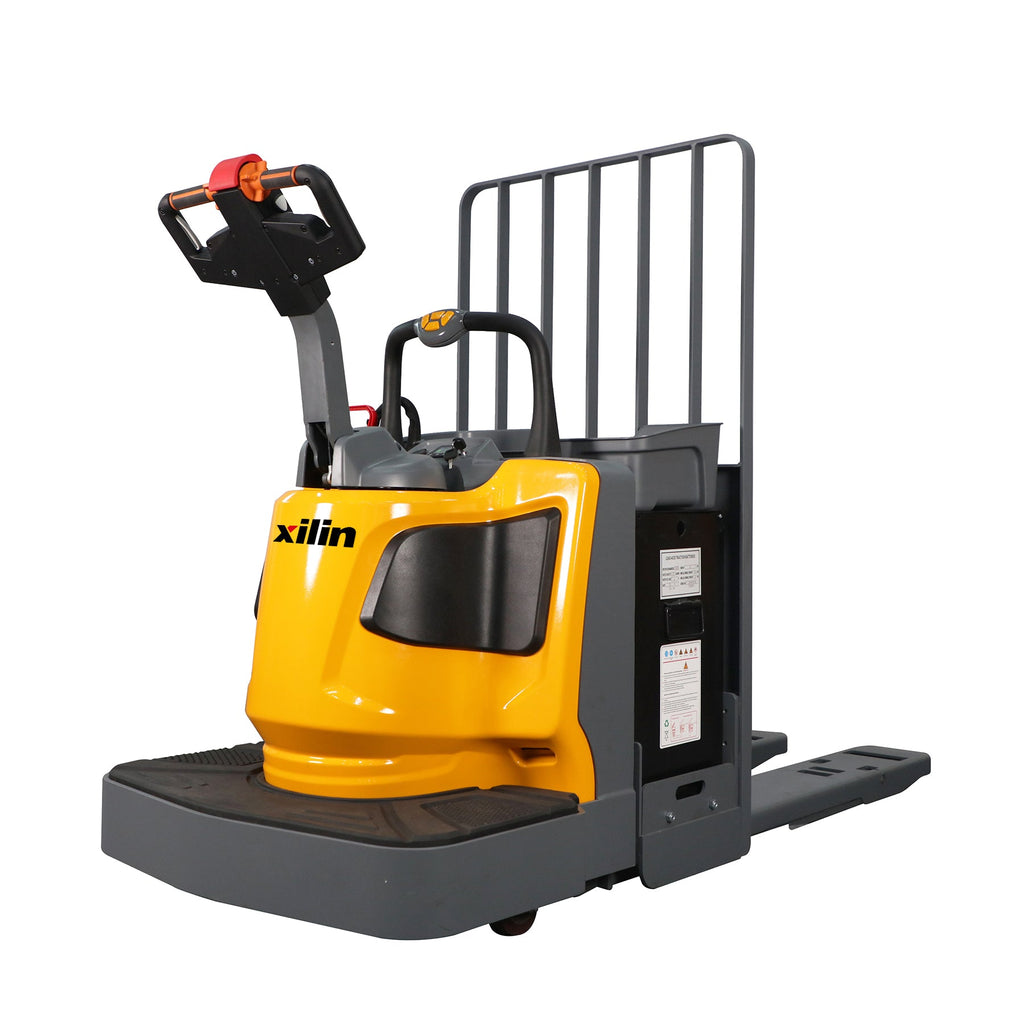

  • Yellow electric pallet jack with black platform, tiller controls, and safety guard

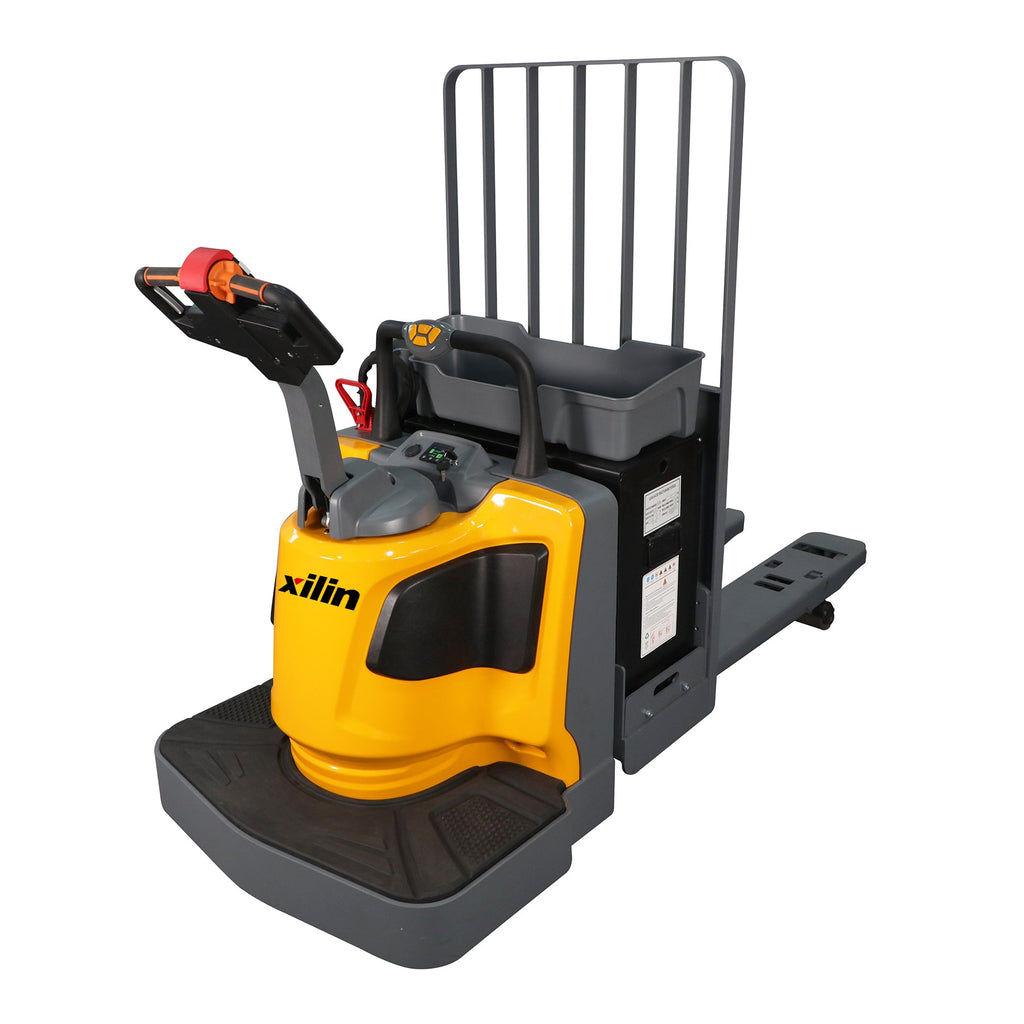

  • Yellow electric pallet truck with upright safety rack and side control panel

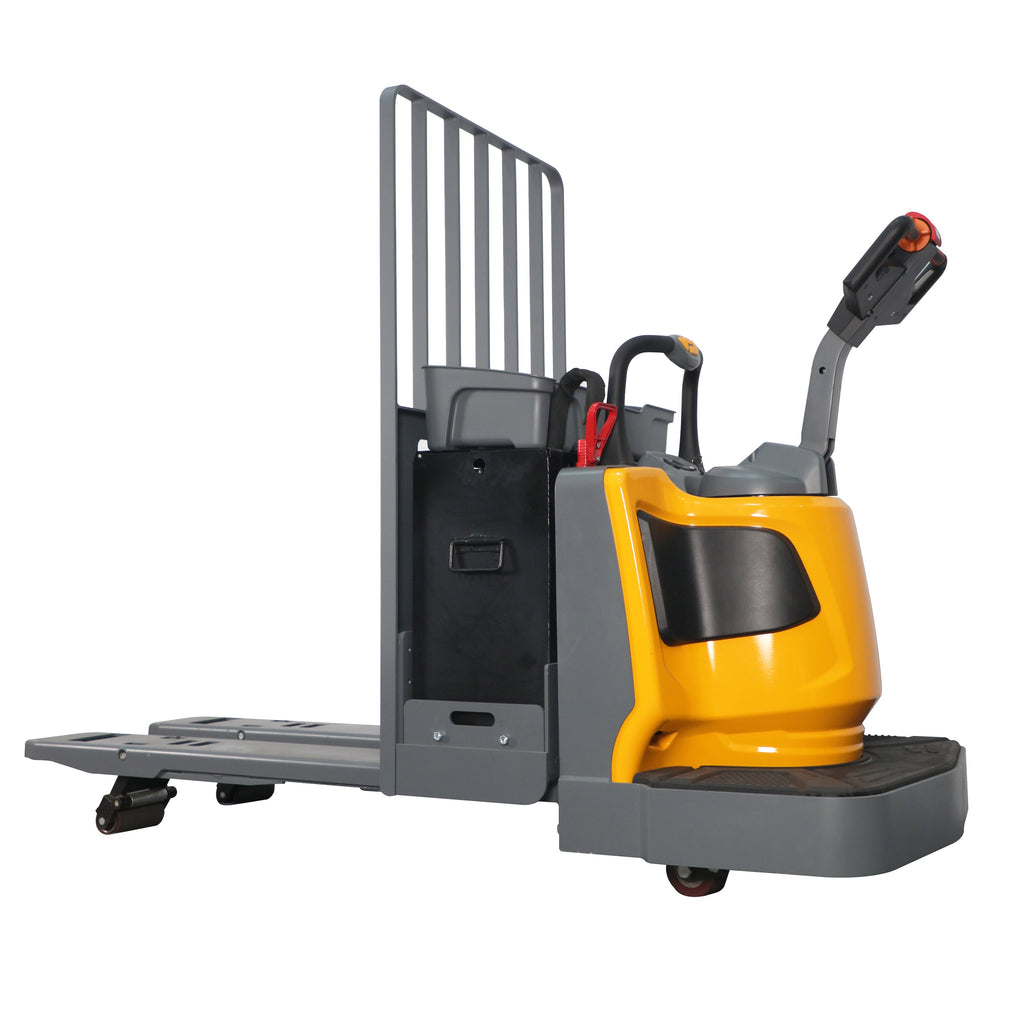

  • Yellow electric pallet jack with operator controls and vertical safety guard

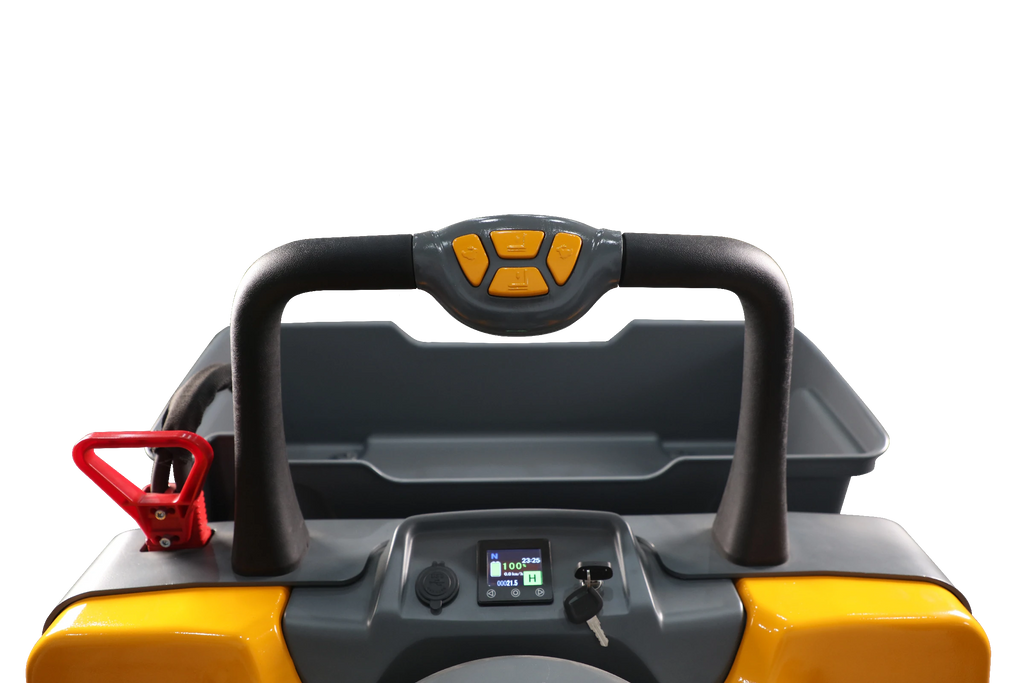

  • Electric pallet jack control panel with steering handles and small digital display

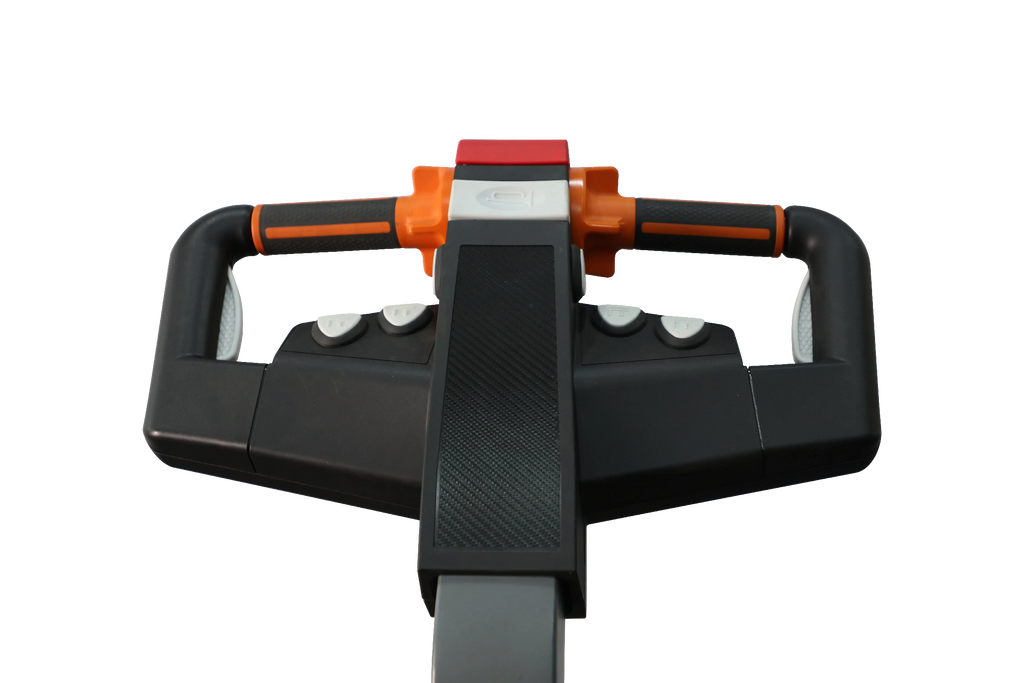

  • Electric pallet jack operator handle with black grips and orange-topped control housing
Xilin CBD40T Electric Pallet Jack – 8000lb

Xilin CBD40T Electric Pallet Jack – 8000lb

$18,000.00

Shop Pay Installments

Split your purchase into flexible installment payments with Shop Pay. Pay over time with no hidden fees.

How it works:

  • Choose Shop Pay at checkout
  • Select your preferred payment plan
  • Make your first payment today
  • Pay the rest over time with automatic payments

No interest. No hidden fees. Just flexible payments that work for you.

🚚 Shipping availability and rates vary by product, delivery option, and destination.

Carrier Terminal Pickup: Bring a suitable vehicle or trailer. The terminal will load the shipment, but the customer is responsible for unloading at the final destination.
⚠️ Warehouse Pickup – Please Contact Us First. Due to varying inventory across our warehouse locations, please contact us before placing your order to confirm stock availability at your preferred location.
Contact Us to Check Availability

🇺🇸 US-Based Business: We offer specialized support and flexible shipping and delivery options.

🏭
Expert SupportUS-Based Team
🚚
Shipping OptionsVary by Product & Destination
🛡️
1-Yr WarrantyFull Parts Support
🔬
Safety TestedLoad & Function Tested
📍
Pickup Options May Be AvailableContact us to confirm location & availability
Learn More >
Warranty

One-year limited manufacturer warranty against manufacturing defects. Warranty exclusions and battery coverage may vary by model. Contact ALLIZOE before arranging warranty service.
Shipping

Free freight shipping to the contiguous 48 US states. Estimated delivery: 6–10 business days. Curbside delivery only — forklift or pallet jack required. Carrier will call 24–48 hrs before delivery. View full Shipping & Delivery details →

⚠️ Safety Warning

Read the manufacturer's operation manual before use. Only trained and authorized operators should operate this equipment. Confirm load capacity, load center, pallet compatibility, aisle clearance, and floor conditions. Never stand beneath raised forks or use this equipment to lift people.

The CBD40T is a ride-on electric pallet truck built for heavy-duty warehouse operations. With a 8,000 lbs capacity, side-standing operation, and a 24V / 400Ah high-capacity battery, it provides a perfect balance of strength, safety, and maneuverability. Designed to handle large-scale material transport with ease, this truck helps operators stay efficient and comfortable during long shifts.

EPS (Electric Power Steering) – Reduces operator fatigue and improves turning precision.

AC Drive Technology – High-torque performance with energy efficiency and maintenance-free operation.

Multi-Function Display – Displays battery status, fault codes, and real-time truck data.

Heavy-Duty Fork Setup – 27" overall fork width, 48" length, and 2.3" thickness handle large pallets with ease.

Variable Speed Modes – Easily switch between high and low speeds depending on task requirements.

Operator Safety Features – Includes dual handrails, anti-slip standing platform, and automatic speed reduction when turning.

Side-Pull Battery Design – Enables fast battery replacement without tools or delays.

Fork Orientation System – Guide plates and support rollers assist pallet entry and exit.

Robust Hydraulic System – Stable lifting supported by large-capacity oil cylinders.

Ergonomic Standing Platform – Padded and spacious for all-day comfort and stability.

Capacity: 8,000 lbs

Turning Radius: 79.5"

Aisle Width: 111.2"

Fork Dimensions: 48" L × 27" W × 2.3" Thick

Inside Fork Width: 8.8"

Fork Lowered Height: 3.3"

Overall Dimensions: 36.9" W × 84.4" L

Lifting Height: 9.2"

Lifting Distance: 5.9"

Height (Top of Handle): 56.8"

Battery: 24V / 400Ah

Charger: 24V / 100A External

Travel Speed: 7.0 mph (Laden) / 8.1 mph (Unladen)

Service Weight: 2343 lbs

The CBD40T is a ride-on electric pallet truck built for heavy-duty warehouse operations. With a 8,000 lbs capacity, side-standing operation, and a 24V / 400Ah high-capacity battery, it provides a perfect balance of strength, safety, and maneuverability. Designed to handle large-scale material transport with ease, this truck helps operators stay efficient and comfortable during long shifts.

One-year limited manufacturer warranty against manufacturing defects. Warranty exclusions and battery coverage may vary by model. Contact ALLIZOE before arranging warranty service.

Heavy-duty warehouse pallet transport using a ride-on electric truck.

Product price and freight are separate. Freight is quoted based on the delivery ZIP code, destination type, and required delivery service. Commercial delivery, residential delivery, liftgate service, limited-access delivery, and pickup at a carrier terminal may have different costs. Inventory and freight must be confirmed before shipment.

Key Benefits

EPS (Electric Power Steering)

Reduces operator fatigue and improves turning precision.

AC Drive Technology

High-torque performance with energy efficiency and maintenance-free operation.

Multi-Function Display

Displays battery status, fault codes, and real-time truck data.

Heavy-Duty Fork Setup

27" overall fork width, 48" length, and 2.3" thickness handle large pallets with ease.

Product Highlights

8,000 lb Ride-On Pallet Truck

8,000 lb Ride-On Pallet Truck

Heavy-duty ride-on electric pallet truck for larger material transport jobs.

Operator Safety Guard

Operator Safety Guard

Standing platform and guard structure support safer operation during long warehouse shifts.

Multi-Function Display

Multi-Function Display

Control panel displays battery status, fault codes, and operating information.

Ergonomic Steering Handles

Ergonomic Steering Handles

Handle layout supports comfortable ride-on operation and better control during transport.
