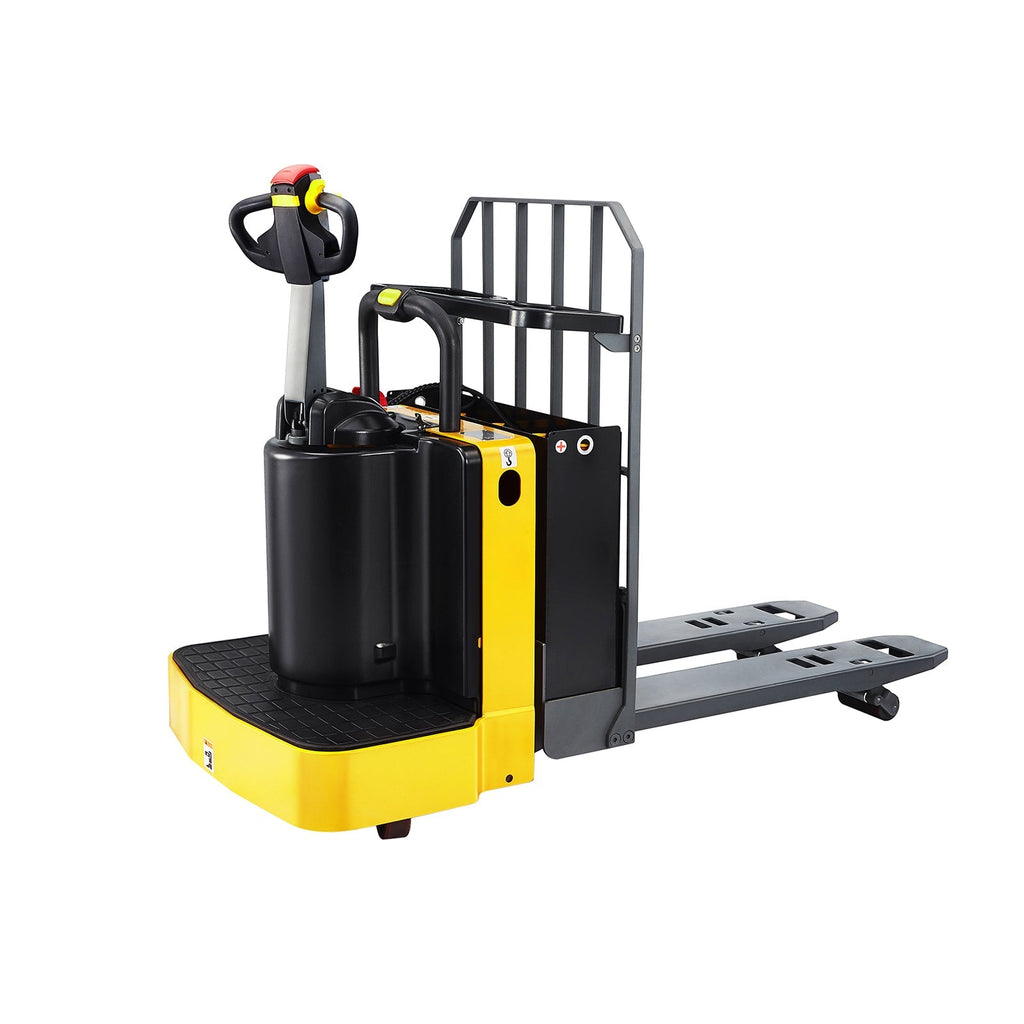

Xilin electric pallet jack with yellow base, black mast, and fork guards

Xilin CBD25T Ride-On Electric Pallet Jack – 5500lb

$13,400.00
Skip to product information
Xilin electric pallet jack with yellow base, black mast, and fork guards
1/7
  • Xilin electric pallet jack with yellow base, black mast, and fork guards

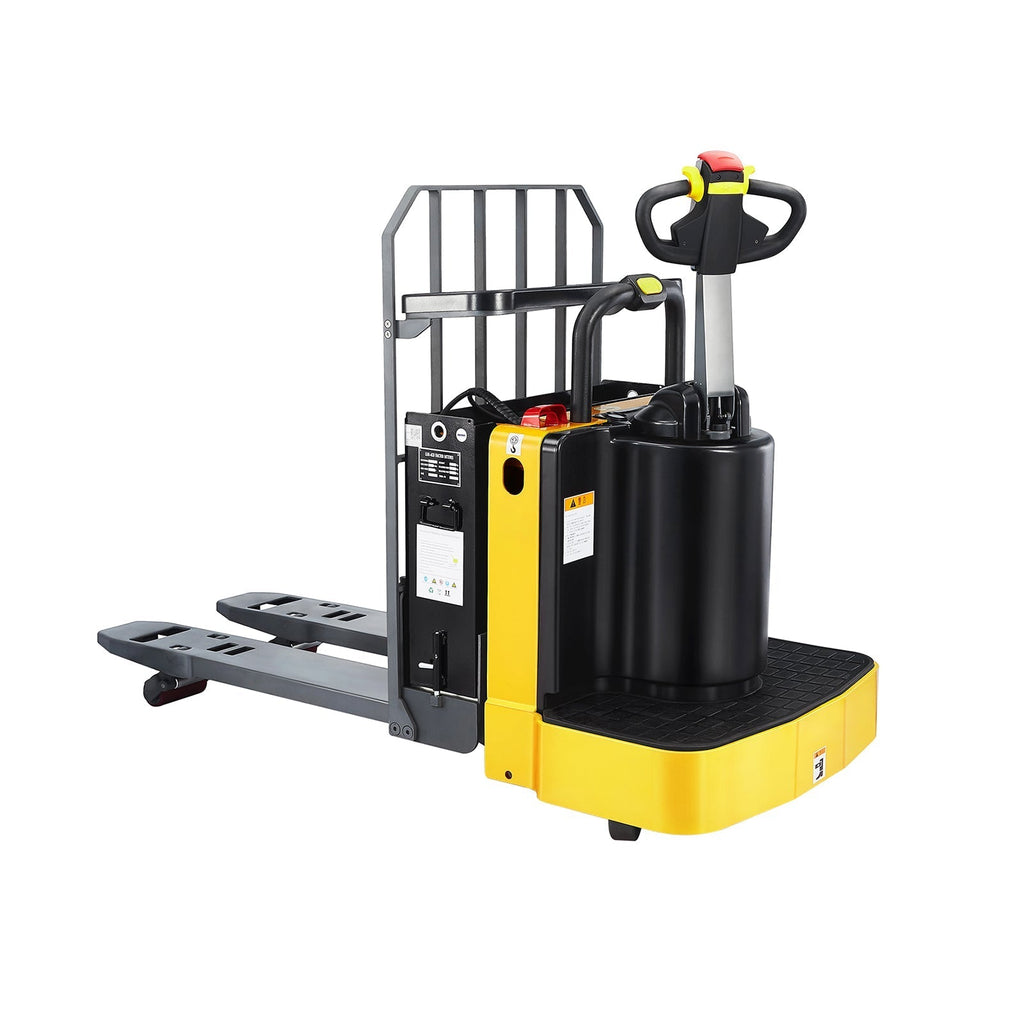

  • Electric ride-on pallet jack with fork deck, yellow and black body

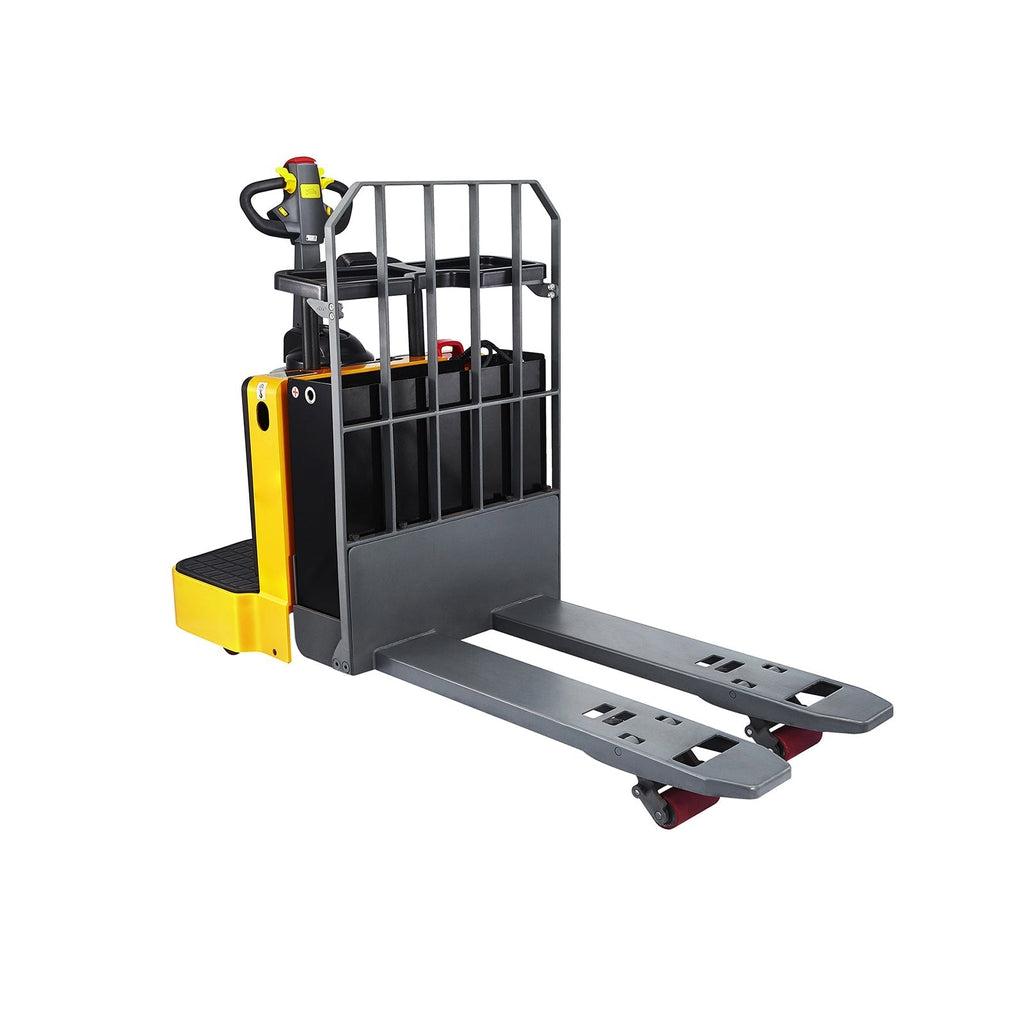

  • Electric ride-on pallet jack with raised safety cage and long forks, black and yellow

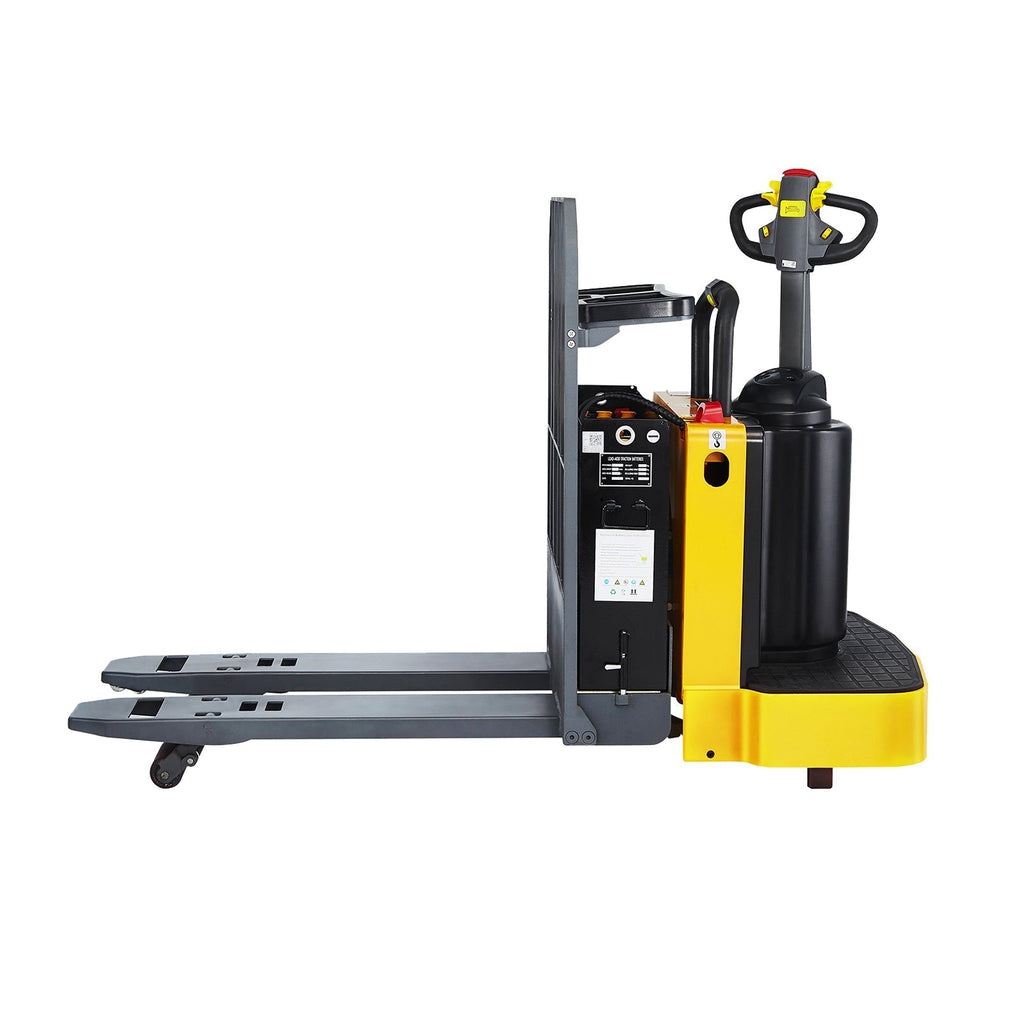

  • Electric ride-on pallet jack with operator tiller and lowered forks, yellow base

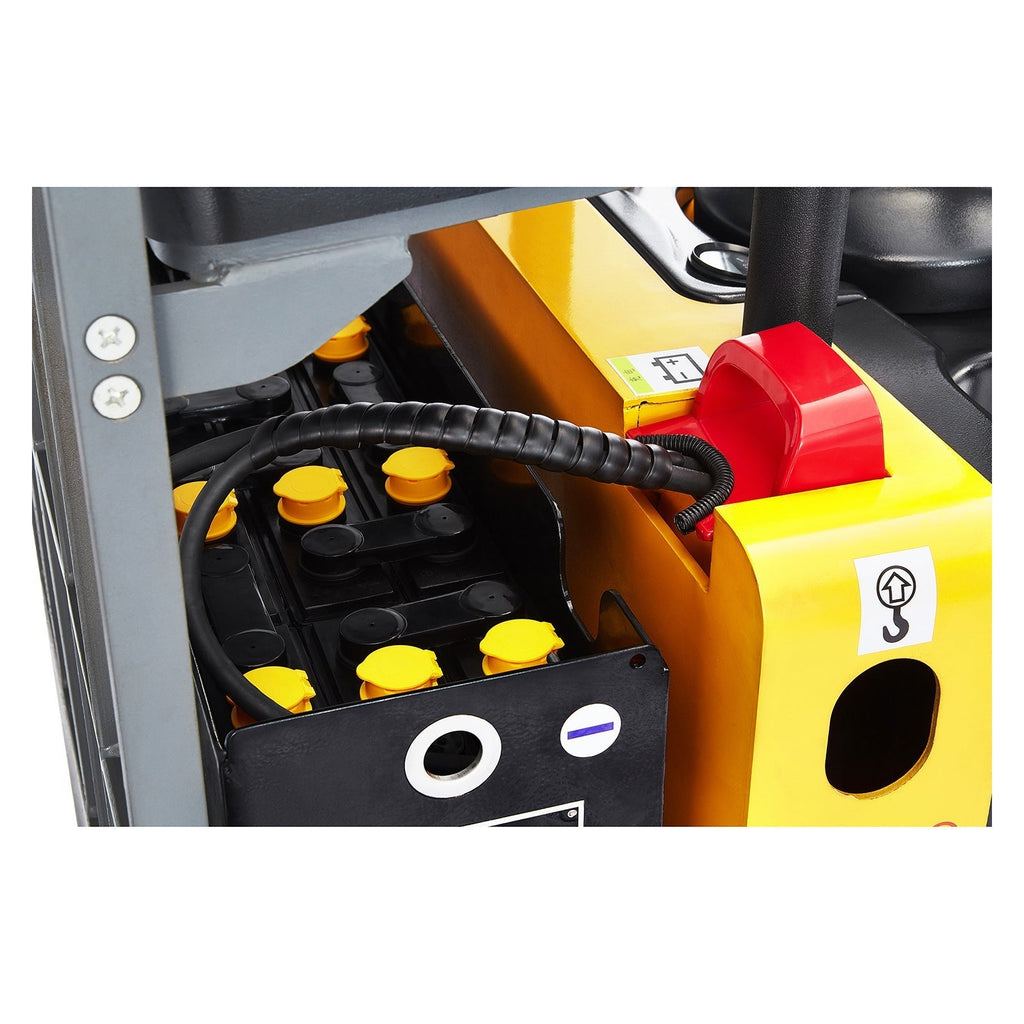

  • Close-up of pallet jack control panel with yellow caps and red emergency button

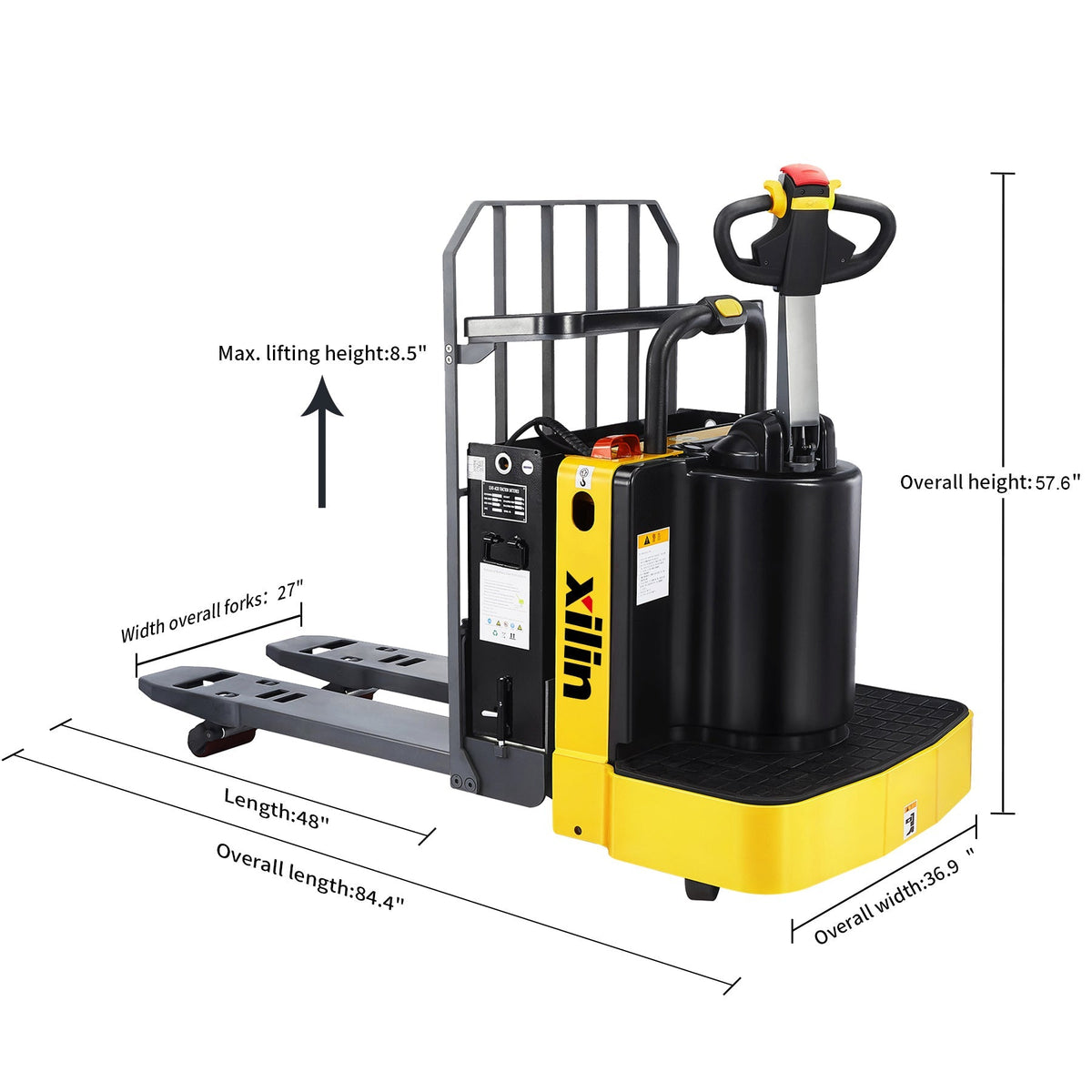

  • Electric ride-on pallet jack on display with forks extended, yellow and black frame

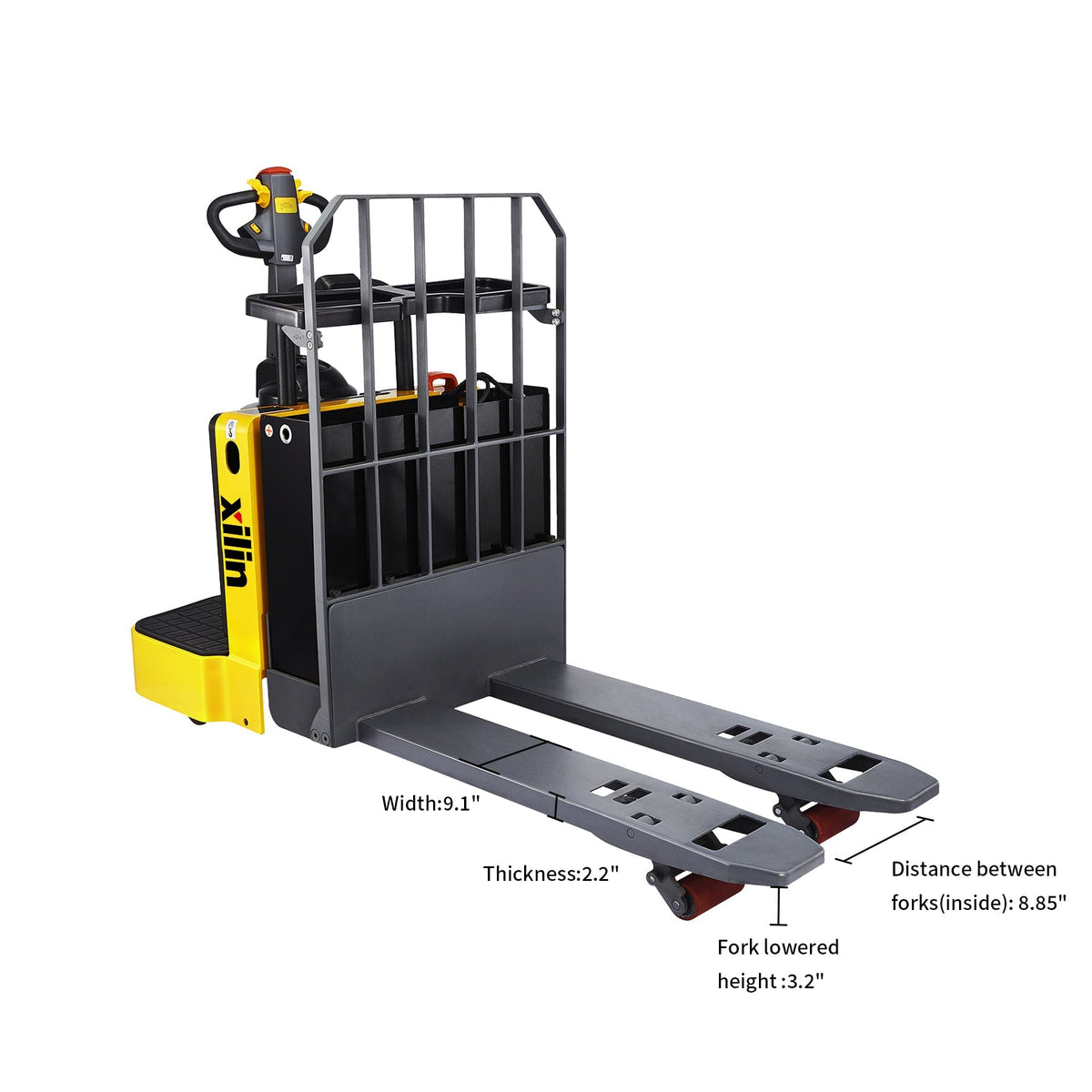

  • Electric ride-on pallet jack side view with safety cage and fork arms, yellow base
Xilin CBD25T Ride-On Electric Pallet Jack – 5500lb

Xilin CBD25T Ride-On Electric Pallet Jack – 5500lb

$13,400.00

Shop Pay Installments

Split your purchase into flexible installment payments with Shop Pay. Pay over time with no hidden fees.

How it works:

  • Choose Shop Pay at checkout
  • Select your preferred payment plan
  • Make your first payment today
  • Pay the rest over time with automatic payments

No interest. No hidden fees. Just flexible payments that work for you.

🚚 Shipping availability and rates vary by product, delivery option, and destination.

Carrier Terminal Pickup: Bring a suitable vehicle or trailer. The terminal will load the shipment, but the customer is responsible for unloading at the final destination.
⚠️ Warehouse Pickup – Please Contact Us First. Due to varying inventory across our warehouse locations, please contact us before placing your order to confirm stock availability at your preferred location.
Contact Us to Check Availability

🇺🇸 US-Based Business: We offer specialized support and flexible shipping and delivery options.

🏭
Expert SupportUS-Based Team
🚚
Shipping OptionsVary by Product & Destination
🛡️
1-Yr WarrantyFull Parts Support
🔬
Safety TestedLoad & Function Tested
📍
Pickup Options May Be AvailableContact us to confirm location & availability
Learn More >
Warranty

One-year limited manufacturer warranty against manufacturing defects. Normal wear, misuse, improper maintenance, battery wear, and freight damage are excluded. Contact ALLIZOE before arranging warranty service.
Shipping

Free freight shipping to the contiguous 48 US states. Estimated delivery: 6–10 business days. Curbside delivery only — forklift or pallet jack required. Carrier will call 24–48 hrs before delivery. View full Shipping & Delivery details →

⚠️ Safety Warning

For trained and authorized operators only. Never carry passengers or exceed rated capacity. Reduce speed before turns and on ramps, keep clear of dock edges, and inspect steering, brakes, controls, forks, wheels, battery, charger, safety rails, and emergency systems before use.

Choose the CBD25T for 5,500 lb ride-on capacity, electric power steering, a 300Ah battery, smart display, and operator safety features.

Electric power steering

AC drive with high and low speed modes

Multifunction smart display

Side-pull 24V / 300Ah battery

Dual safety rails and anti-slip operator platform

Automatic turning-speed reduction

Fork guidance rollers

Reinforced hydraulic system

Model: CBD25T

Load capacity: 5,500 lb

Fork size: 48 × 27 in; inside fork width: 8.9 in; fork thickness: 2.1 in

Lowered fork height: 3.2 in; maximum fork height: 8.5 in; lift travel: 5.3 in

Turning radius: 73.2 in; minimum aisle width: 105 in

Overall size: 84.4 in L × 36.9 in W; handle height: 57.6 in

Battery: 24V / 300Ah

Charger: 24V / 40A external

Travel speed: 3.7 mph laden / 4.0 mph unladen

Service weight: 1,895 lb

The Xilin CBD25T is a 5,500 lb ride-on electric pallet truck with a 24V / 300Ah battery, electric power steering, AC drive, smart display, operator platform, safety rails, and side-pull battery access.

One-year limited manufacturer warranty against manufacturing defects. Normal wear, misuse, improper maintenance, battery wear, and freight damage are excluded. Contact ALLIZOE before arranging warranty service.

Large warehouses, logistics hubs, distribution centers, and industrial facilities requiring longer-distance ride-on pallet transport.

Product price and freight are separate. Freight is quoted based on the delivery ZIP code, destination type, and required delivery service. Commercial delivery, residential delivery, liftgate service, limited-access delivery, and pickup at a carrier terminal may have different costs. Inventory and freight must be confirmed before shipment.

Key Benefits

Ride-On Operation

Operator platform supports longer-distance transport.

5,500 lb Capacity

High capacity for warehouse and logistics loads.

300Ah Battery

High-capacity system for extended operations.

EPS Steering

Reduces steering effort and improves control.

Product Highlights

5,500 lb Ride-On Capacity

5,500 lb Ride-On Capacity

Designed for longer-distance pallet movement in large warehouses, logistics hubs, and industrial facilities.

Electric Power Steering

Electric Power Steering

Power steering helps reduce steering effort during extended ride-on pallet transport.

Operator Platform & Safety Rails

Operator Platform & Safety Rails

Anti-slip operator platform and dual safety rails support ride-on operation for trained users.

Side-Pull Battery System

Side-Pull Battery System

24V / 300Ah battery system supports longer work cycles and easier battery access.

Dimensions & Product Drawing

Official Xilin specification sheet with detailed parameter tables and dimensional drawings. Click the full-page preview or download the original PDF to view the document at full size.

Xilin cbd25t electric pallet jacks official PDF with specification tables and dimensional drawings
Download Product Drawing (PDF)

Product Manual

Download the complete product manual and installation guide.
Download Manual

Complete Your Shop Setup

Everything a professional tire shop needs
Tire Service Packages Collection Banner

Tire Service Packages

2-Post Lifts Category Image

2-Post Lift

4-Post Lifts Category Image

4-Post Lifts

Tire Changer

Tire Changer

Wheel Balancer

Wheel Balancer

Shop Accessories Collection Banner

Shop Accessories

Frequently Asked Questions

  • 5,500 lb.
  • 48 inches long by 27 inches wide.
  • 24V / 300Ah battery with 24V / 40A external charger.
  • Yes. It includes an operator platform and safety rails.
  • No. Freight is quoted separately based on delivery ZIP code, destination type, and required delivery service.
