Xilin CBD20WE-19BC Electric Pallet Jack – 4400lb, 105Ah Battery

$2,530.00
Skip to product information
Electric pallet jack with orange and black body and two steel forks
1/7

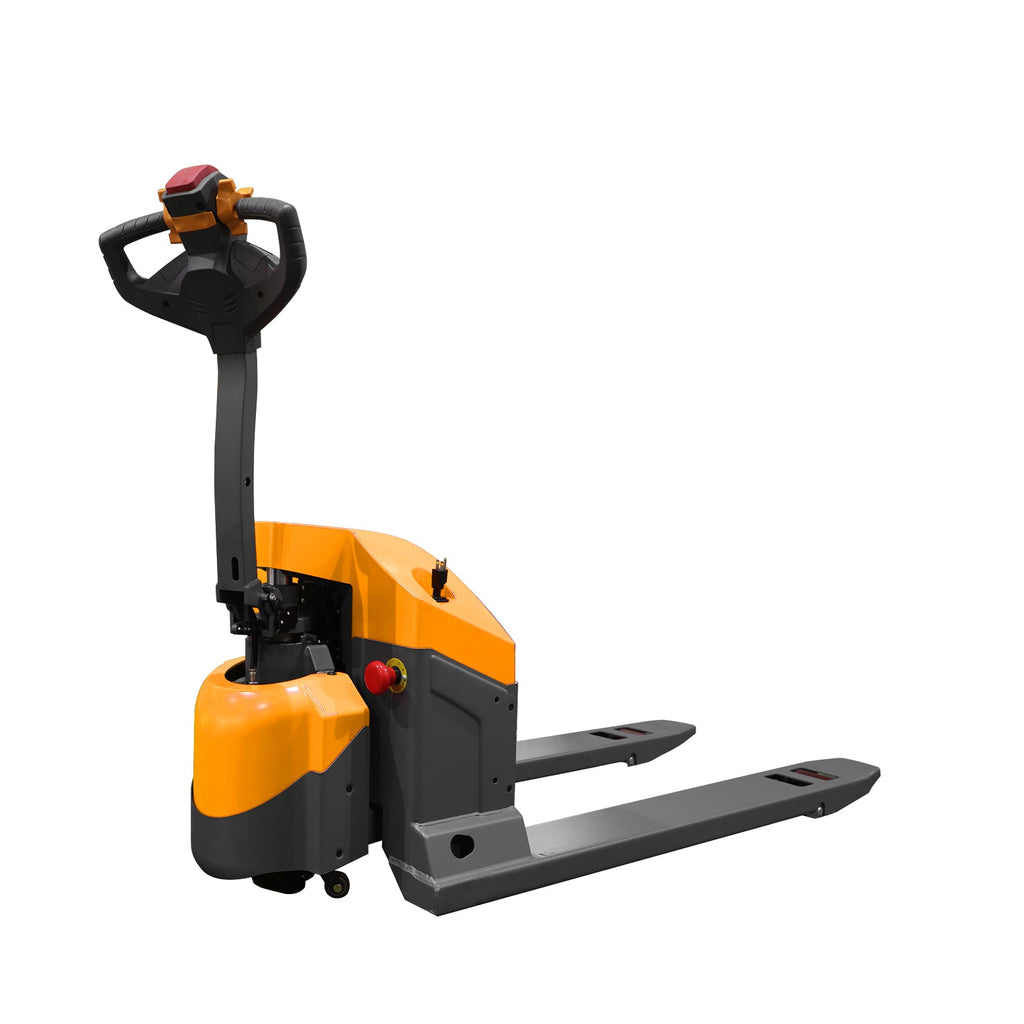

  • Electric pallet jack with orange and black body and two steel forks

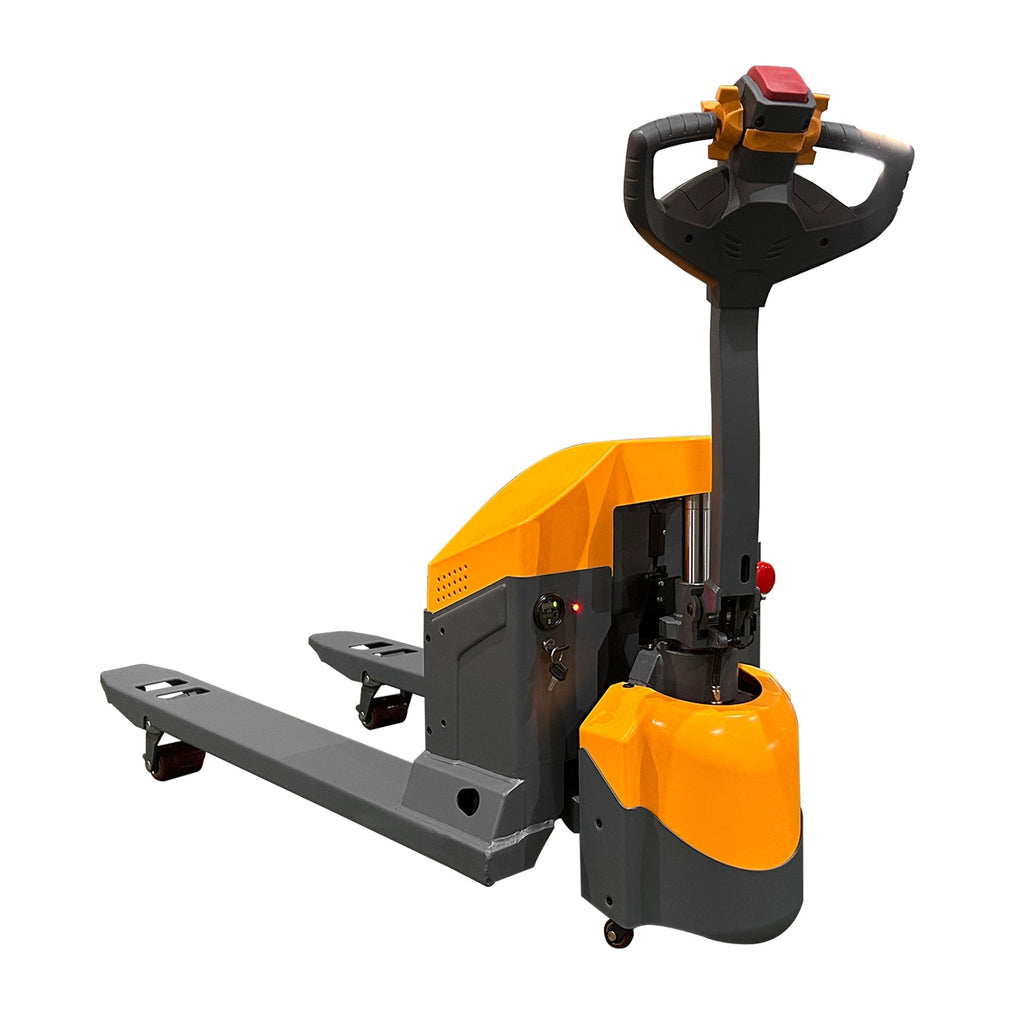

  • Electric pallet jack with gray and orange body, black lift handle, fork prongs

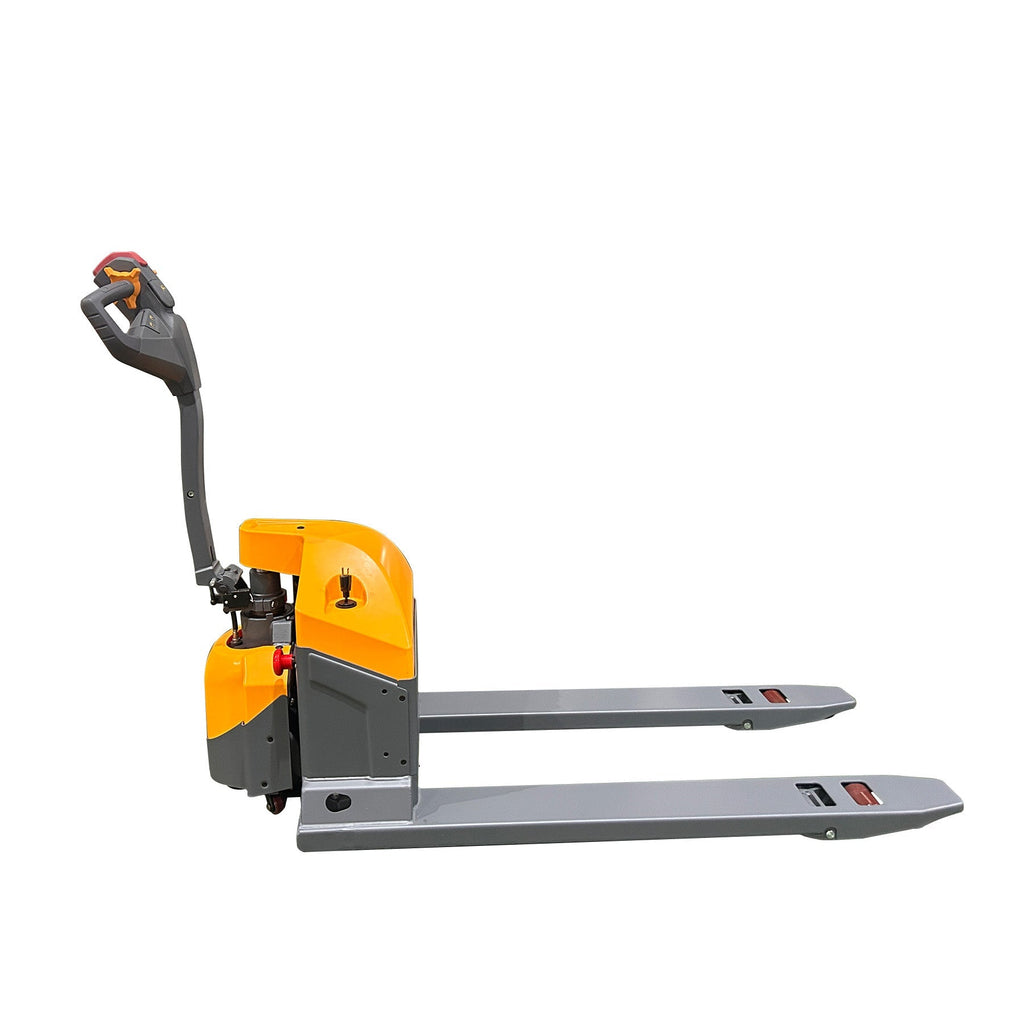

  • Electric pallet jack side view with orange battery housing and gray fork carriage

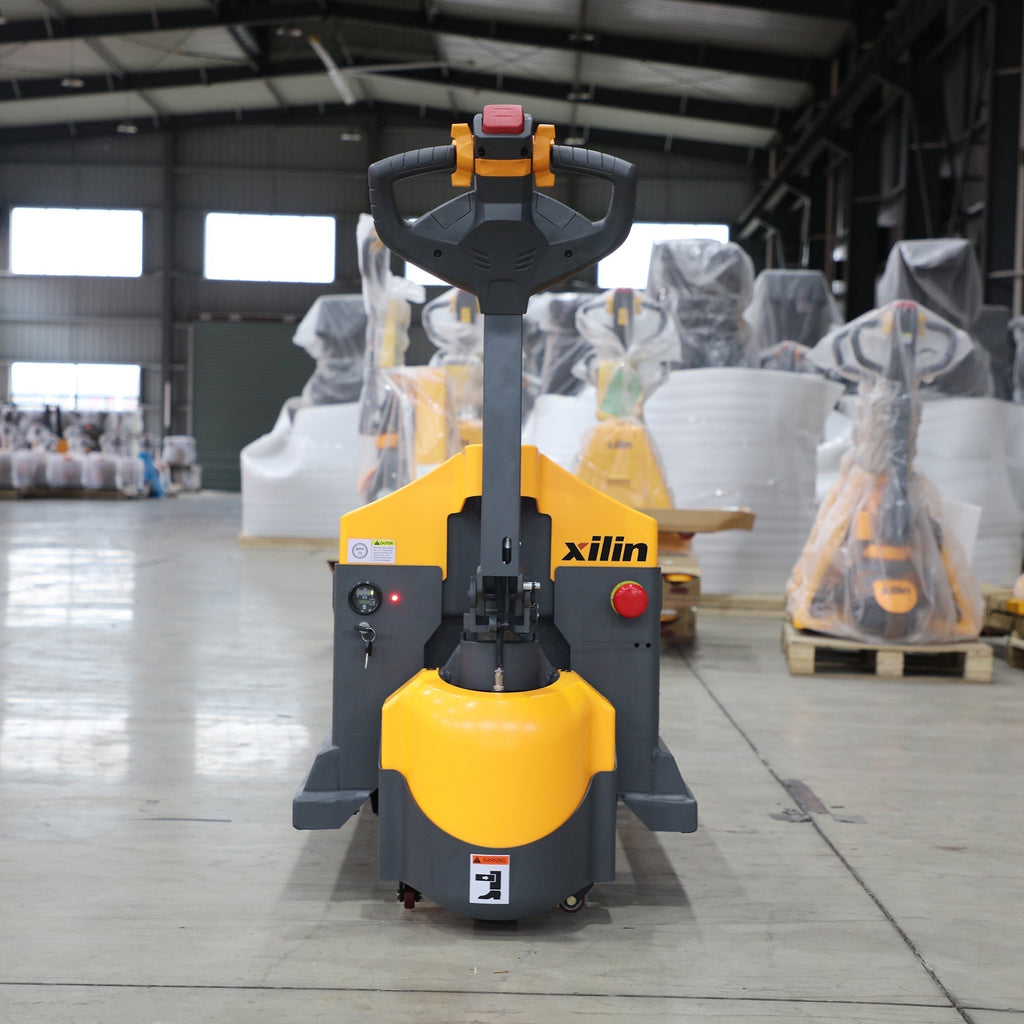

  • Electric pallet jack with orange/yellow body and black forks in warehouse setting

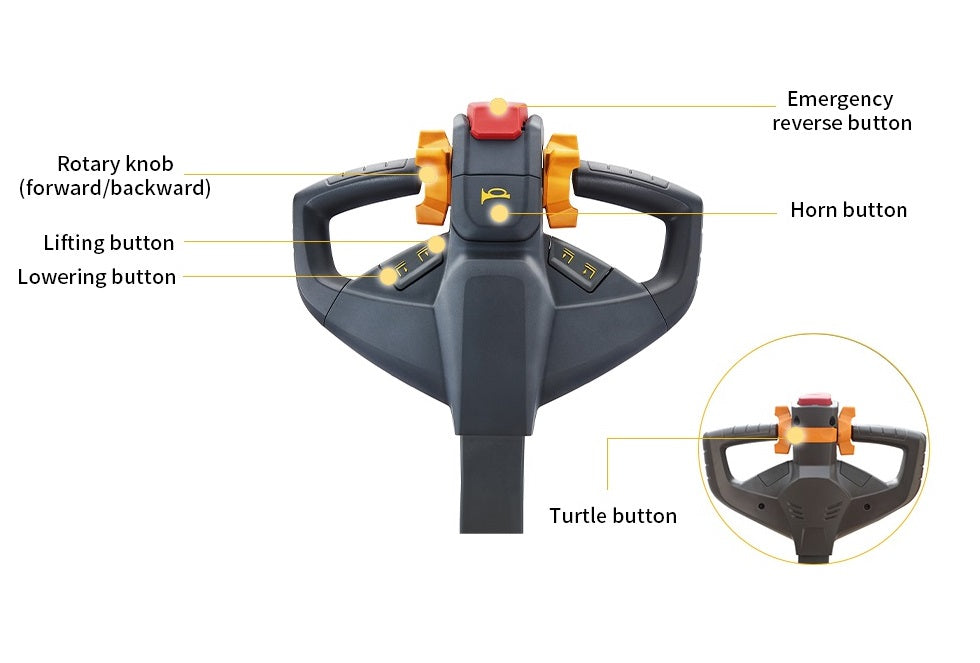

  • Electric pallet jack control handle with rotary knob and emergency reverse button

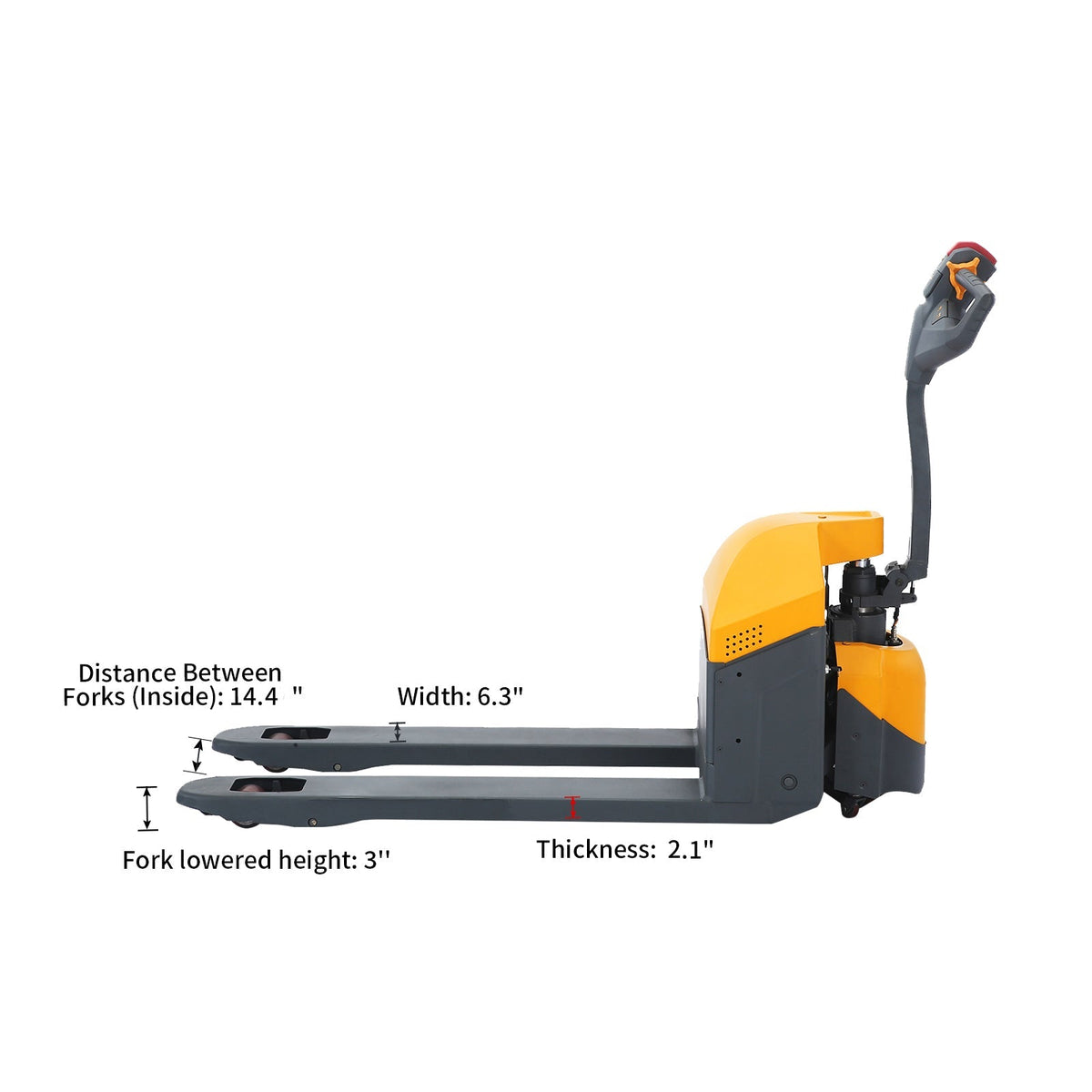

  • Electric pallet jack side profile with gray forks and orange body, dimension arrows

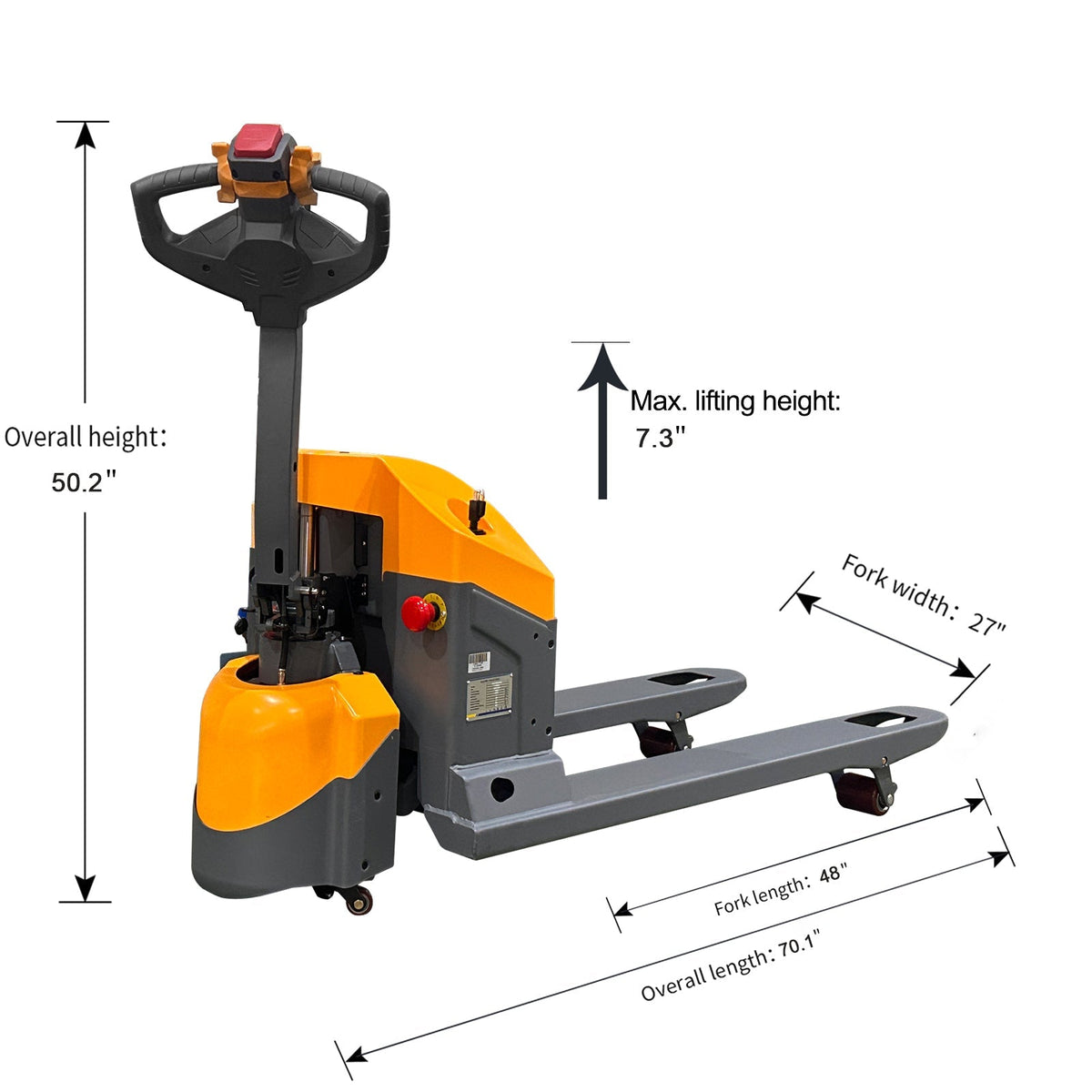

  • Electric pallet jack side view with orange body, black handle, and fork dimension arrows
Xilin CBD20WE-19BC Electric Pallet Jack – 4400lb, 105Ah Battery

Xilin CBD20WE-19BC Electric Pallet Jack – 4400lb, 105Ah Battery

$2,530.00

Shop Pay Installments

Split your purchase into flexible installment payments with Shop Pay. Pay over time with no hidden fees.

How it works:

  • Choose Shop Pay at checkout
  • Select your preferred payment plan
  • Make your first payment today
  • Pay the rest over time with automatic payments

No interest. No hidden fees. Just flexible payments that work for you.

🚚 Shipping availability and rates vary by product, delivery option, and destination.

Carrier Terminal Pickup: Bring a suitable vehicle or trailer. The terminal will load the shipment, but the customer is responsible for unloading at the final destination.
⚠️ Warehouse Pickup – Please Contact Us First. Due to varying inventory across our warehouse locations, please contact us before placing your order to confirm stock availability at your preferred location.
Contact Us to Check Availability

🇺🇸 US-Based Business: We offer specialized support and flexible shipping and delivery options.

🏭
Expert SupportUS-Based Team
🚚
Shipping OptionsVary by Product & Destination
🛡️
1-Yr WarrantyFull Parts Support
🔬
Safety TestedLoad & Function Tested
📍
Pickup Options May Be AvailableContact us to confirm location & availability
Learn More >
Warranty

One-year limited manufacturer warranty against manufacturing defects. Normal wear, misuse, improper maintenance, battery wear, and freight damage are excluded. Contact ALLIZOE before arranging warranty service.
Shipping

Free freight shipping to the contiguous 48 US states. Estimated delivery: 6–10 business days. Curbside delivery only — forklift or pallet jack required. Carrier will call 24–48 hrs before delivery. View full Shipping & Delivery details →

⚠️ Safety Warning

For trained operators only. Use on suitable level surfaces and compatible pallets. Never exceed rated capacity. Keep hands, feet, and bystanders clear. Inspect controls, wheels, forks, battery, charger, braking, emergency reverse, and emergency stop before use. Follow the manufacturer manual and charging instructions.

Choose the CBD20WE-19BC for a 4,400 lb capacity, 105Ah battery, stable floating balance wheels, and controlled compact travel.

Electric lift and drive

Integrated multifunction handle with turtle mode and emergency reverse

24V / 105Ah lead-acid battery

Floating balance wheels

Top-mounted drive motor

Overload protection, lift limit, braking, and emergency cutoff

Pallet entry rollers

Model: CBD20WE-19BC

Load capacity: 4,400 lb

Fork size: 48 × 27 in; inside fork width: 14.4 in; fork thickness: 2.1 in

Lowered fork height: 3 in; maximum fork height: 7.3 in; lift travel: 4.3 in

Turning radius: 59.5 in; minimum aisle width: 90.9 in

Overall size: 70.1 × 27 × 50.2 in

Battery: 24V / 105Ah lead-acid

Charger: 24V / 10A

Travel speed: 2.7 mph laden / 3.0 mph unladen

Service weight: 530 lb

The Xilin CBD20WE-19BC is a 4,400 lb walk-behind electric pallet jack for longer shifts and high-volume indoor pallet movement, with a 24V / 105Ah battery, floating balance wheels, integrated controls, and turtle/upright travel mode.

One-year limited manufacturer warranty against manufacturing defects. Normal wear, misuse, improper maintenance, battery wear, and freight damage are excluded. Contact ALLIZOE before arranging warranty service.

Warehouses, distribution centers, loading areas, trucks, containers, and high-volume indoor pallet movement where longer battery runtime is needed.

Product price and freight are separate. Freight is quoted based on the delivery ZIP code, destination type, and required delivery service. Commercial delivery, residential delivery, liftgate service, limited-access delivery, and pickup at a carrier terminal may have different costs. Inventory and freight must be confirmed before shipment.

Key Benefits

105Ah Battery

Supports longer working periods.

4,400 lb Capacity

Electric lift and drive for demanding pallet movement.

Stable Travel

Floating balance wheels help reduce side sway.

Turtle Mode

Low-speed upright travel for tight spaces.

Product Highlights

4,400 lb Capacity

4,400 lb Capacity

Built for longer shifts and high-volume indoor pallet movement in warehouses and loading areas.

24V / 105Ah Battery

24V / 105Ah Battery

Higher-capacity lead-acid battery with charger supports extended daily pallet-handling work.

Integrated Multifunction Handle

Integrated Multifunction Handle

Travel, lift, lower, turtle mode, and emergency reverse are grouped for straightforward walk-behind operation.

Stable Indoor Handling

Stable Indoor Handling

Floating balance wheels, pallet entry rollers, and compact chassis support controlled indoor use.

Dimensions & Product Drawing

Official Xilin specification sheet with detailed parameter tables and dimensional drawings. Click the full-page preview or download the original PDF to view the document at full size.

Xilin cbd20we 19bc electric pallet jacks official PDF with specification tables and dimensional drawings
Download Product Drawing (PDF)

Product Manual

Download the complete product manual and installation guide.
Download Manual

Complete Your Shop Setup

Everything a professional tire shop needs
Tire Service Packages Collection Banner

Tire Service Packages

2-Post Lifts Category Image

2-Post Lift

4-Post Lifts Category Image

4-Post Lifts

Tire Changer

Tire Changer

Wheel Balancer

Wheel Balancer

Shop Accessories Collection Banner

Shop Accessories

Frequently Asked Questions

  • 4,400 lb.
  • 48 inches long by 27 inches wide.
  • 24V / 105Ah lead-acid battery with 24V / 10A charger.
  • No. This is a walk-behind electric pallet jack.
  • No. Freight is quoted separately based on delivery ZIP code, destination type, and required delivery service.
