Electric pallet jack with yellow battery housing, gray forks, red control button

Xilin CBD20W-II Li Smart Electric Pallet Jack – 4400lb

$2,100.00
Skip to product information
Electric pallet jack with yellow battery housing, gray forks, red control button
1/10

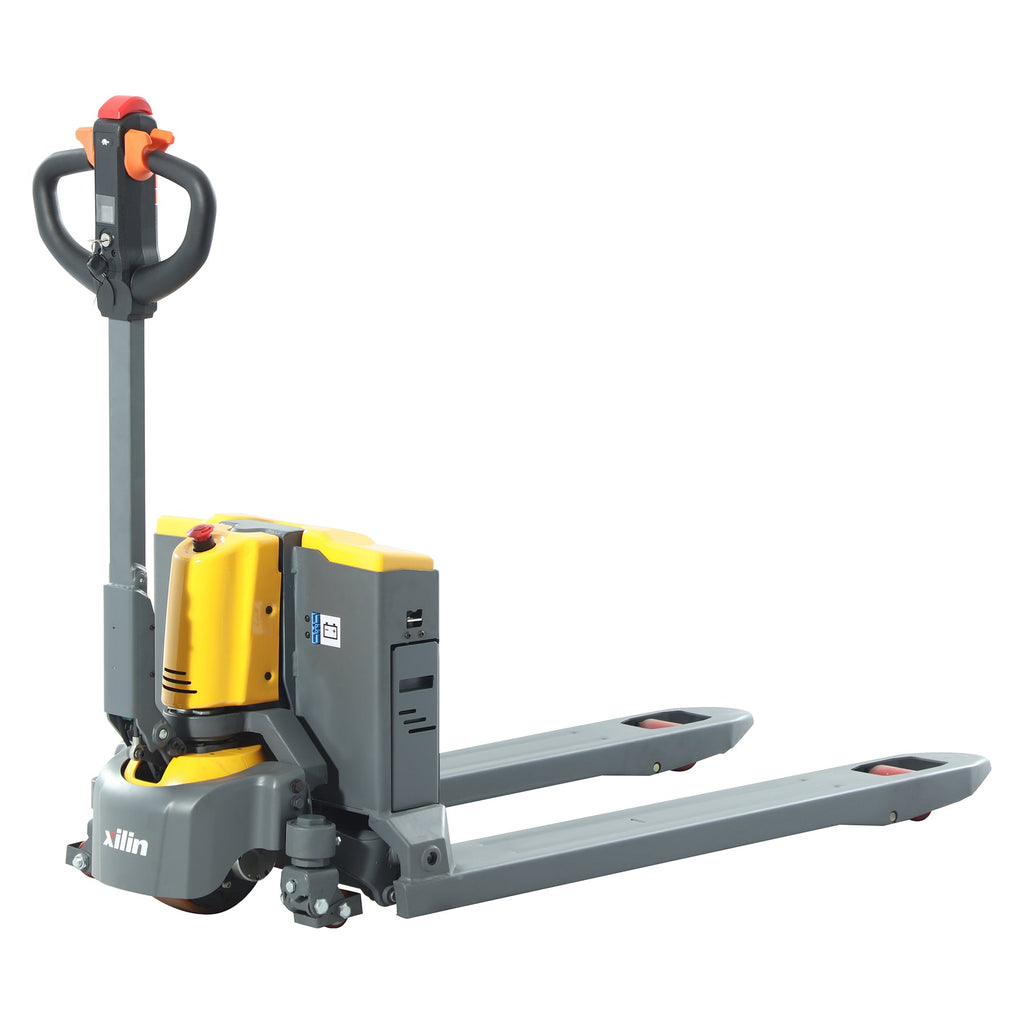

  • Electric pallet jack with yellow battery housing, gray forks, red control button

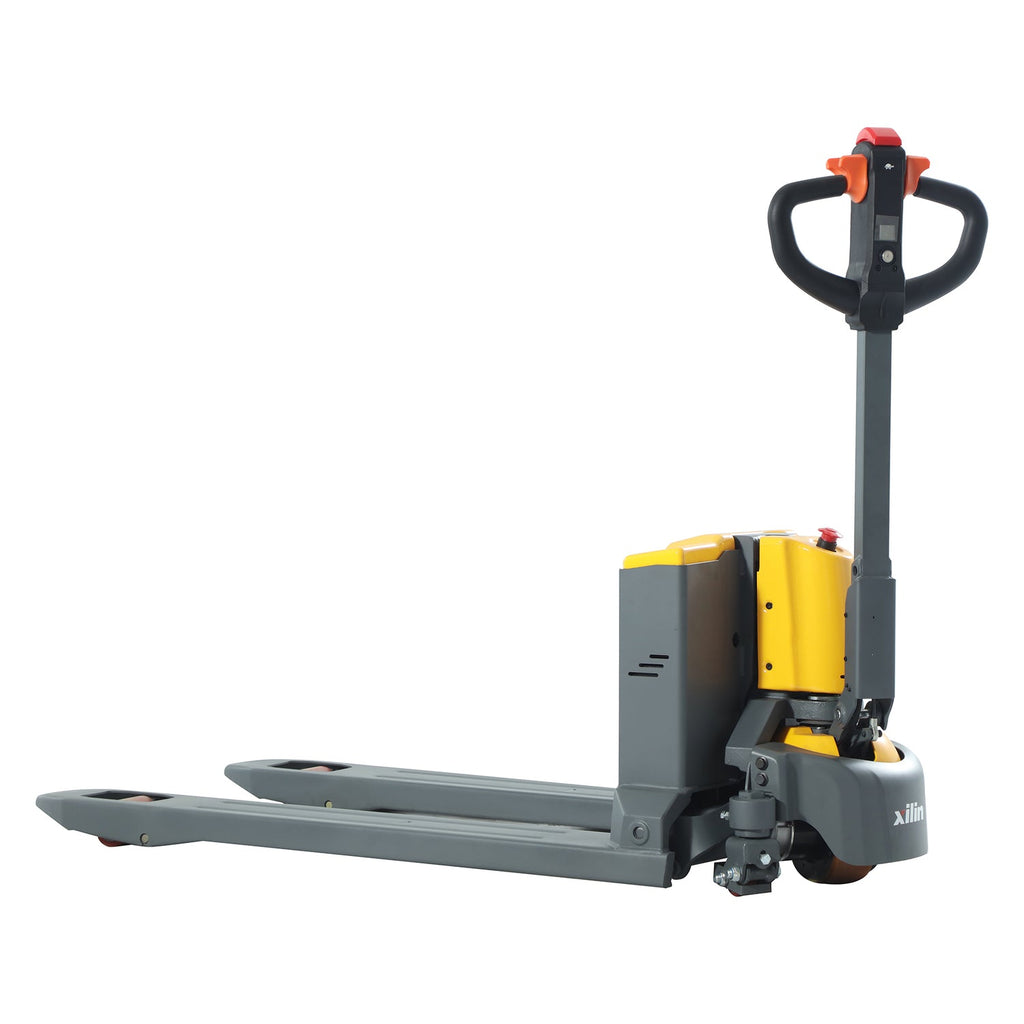

  • Electric pallet jack showing gray forks and yellow power unit, angled front view

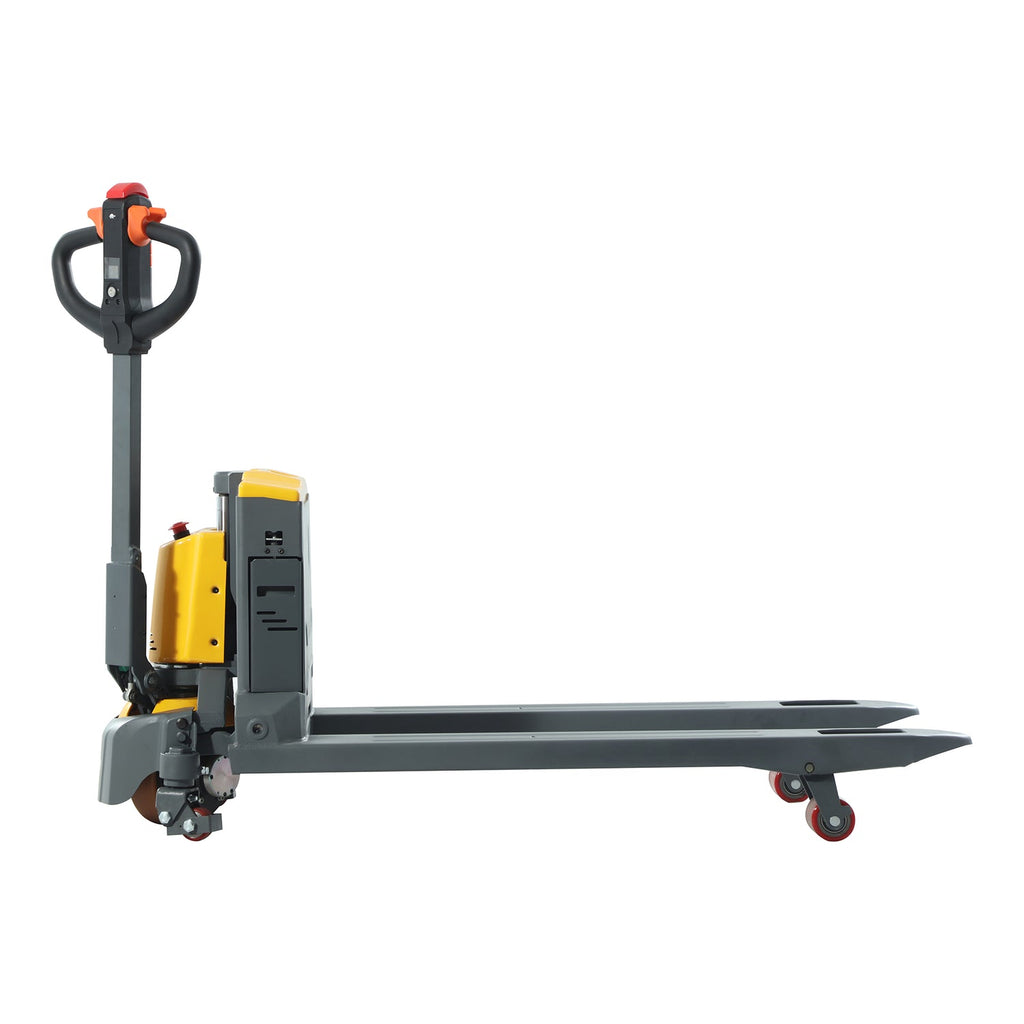

  • Electric pallet jack with long gray forks and yellow battery unit, side view

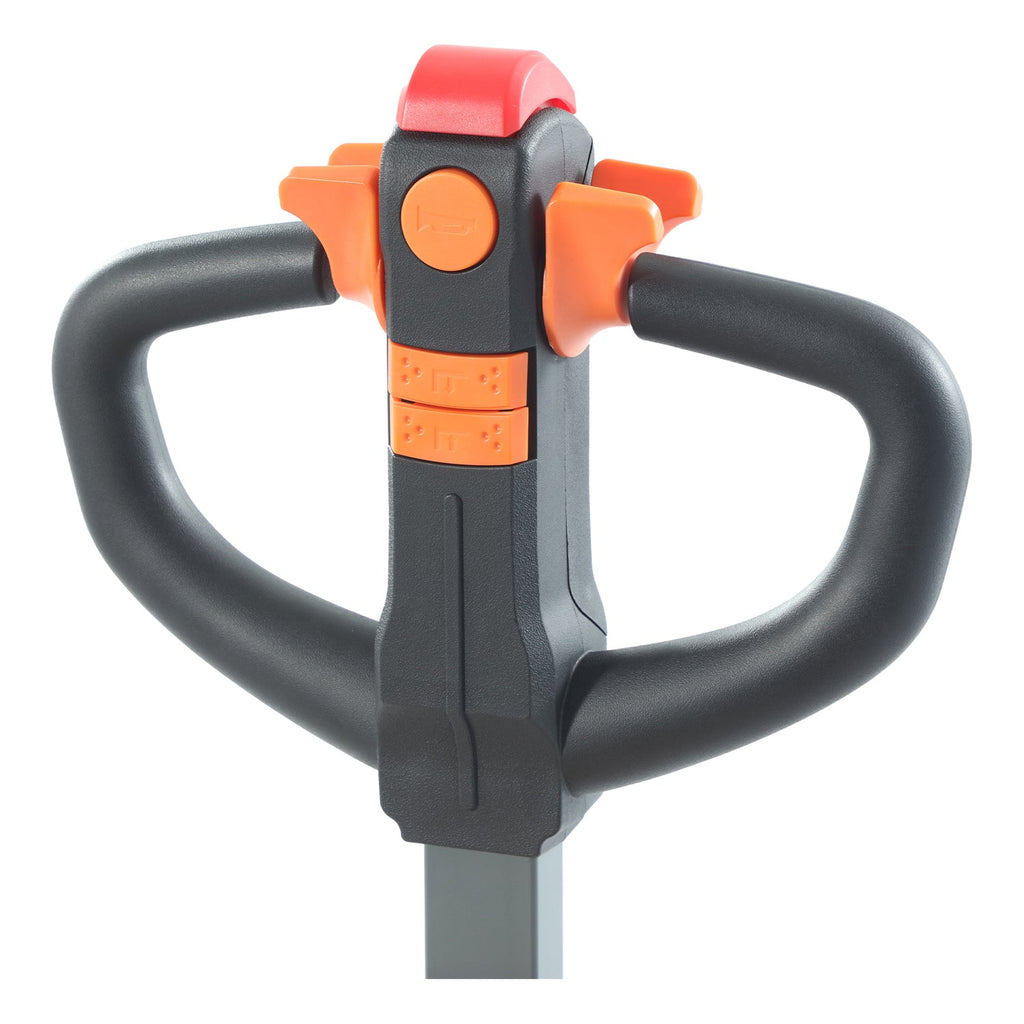

  • Electric pallet jack handle with black grips, orange levers, red top button

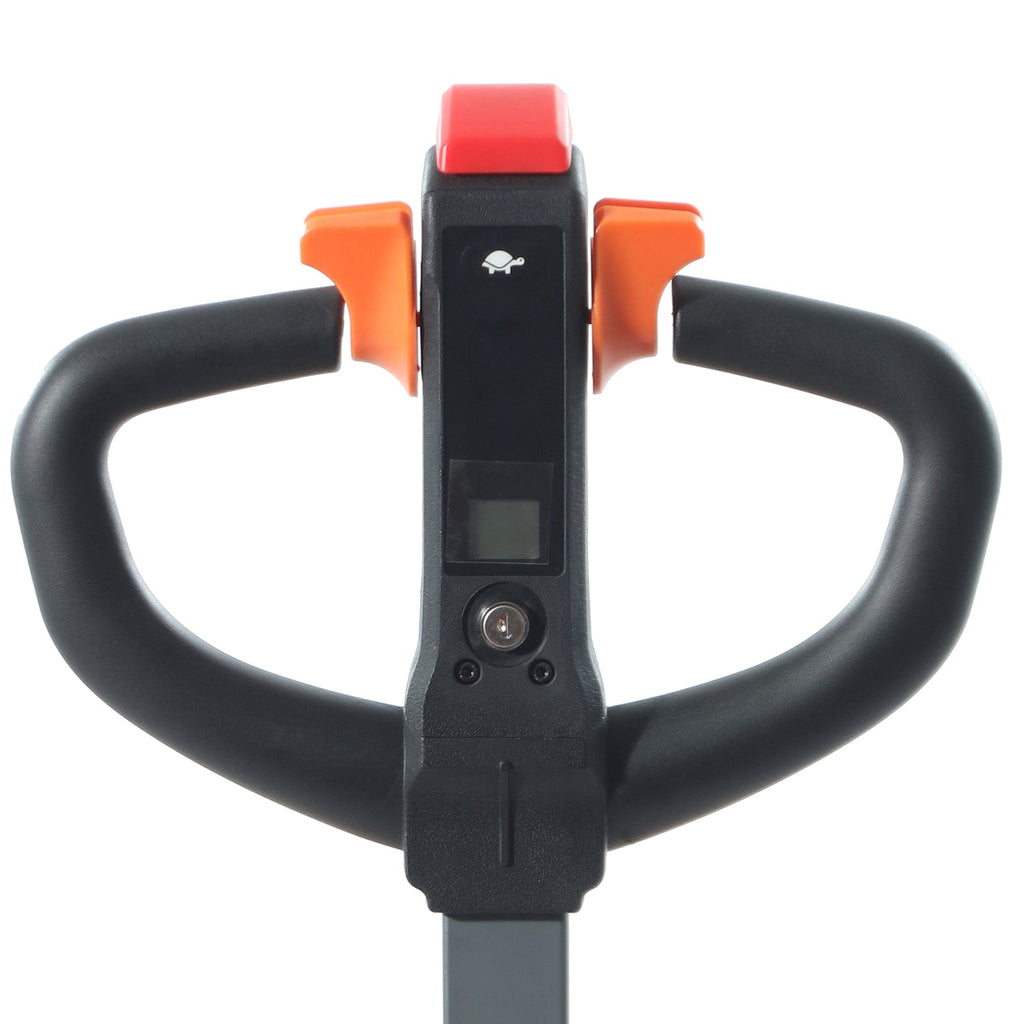

  • Electric pallet jack control panel with screen and round button, black housing

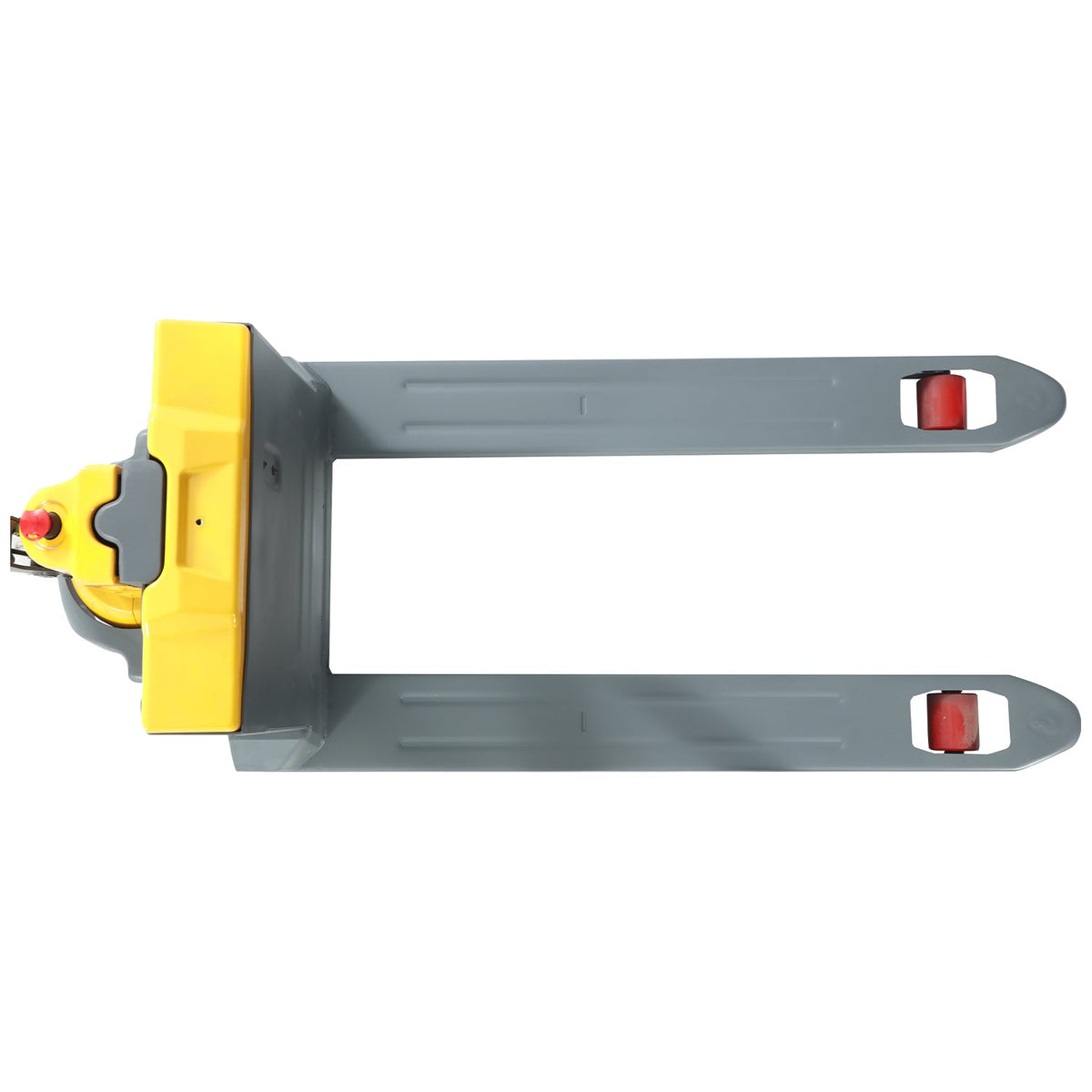

  • Electric pallet jack forks with black latch plates and yellow power end, close-up

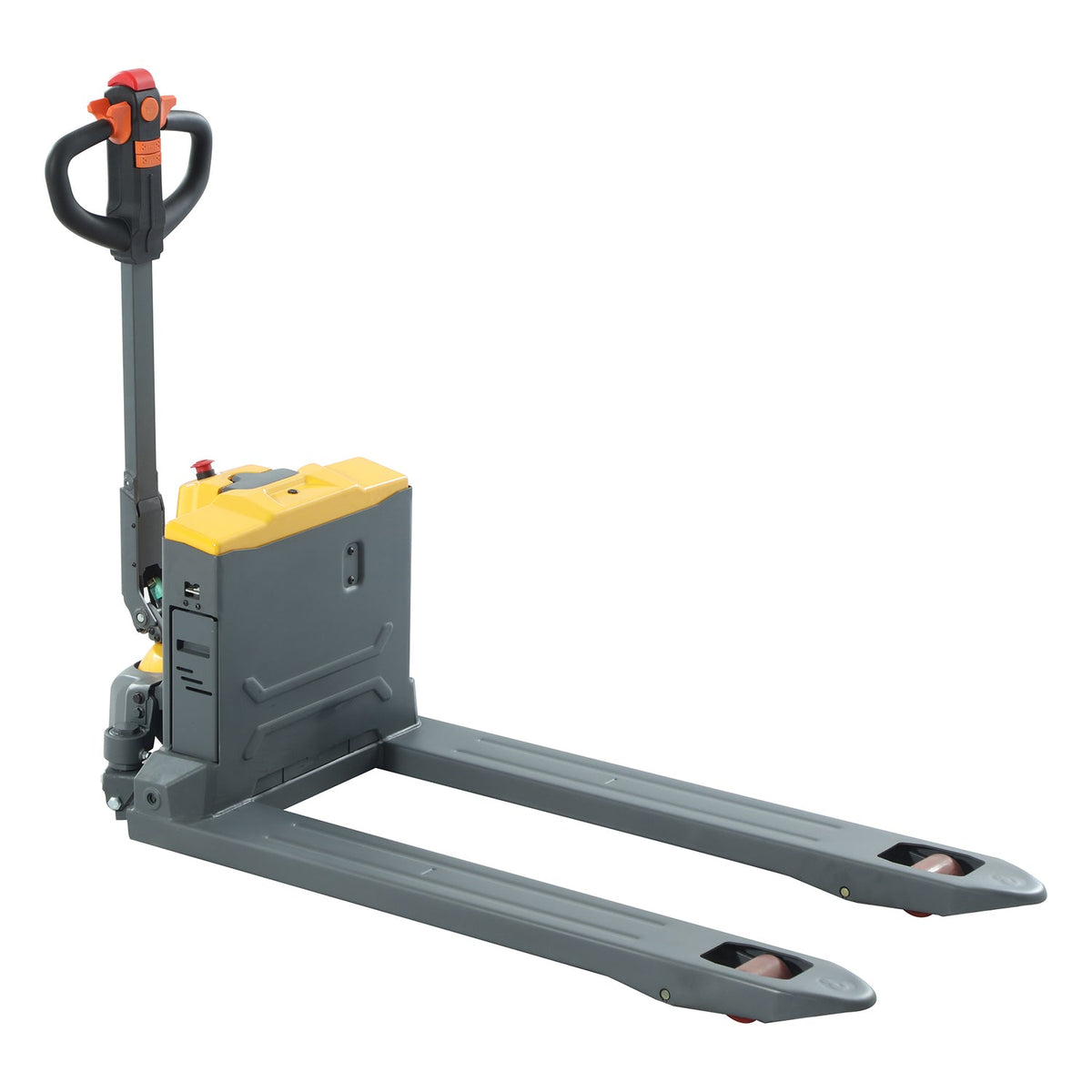

  • Electric pallet jack with gray chassis, yellow battery unit, and red safety knob

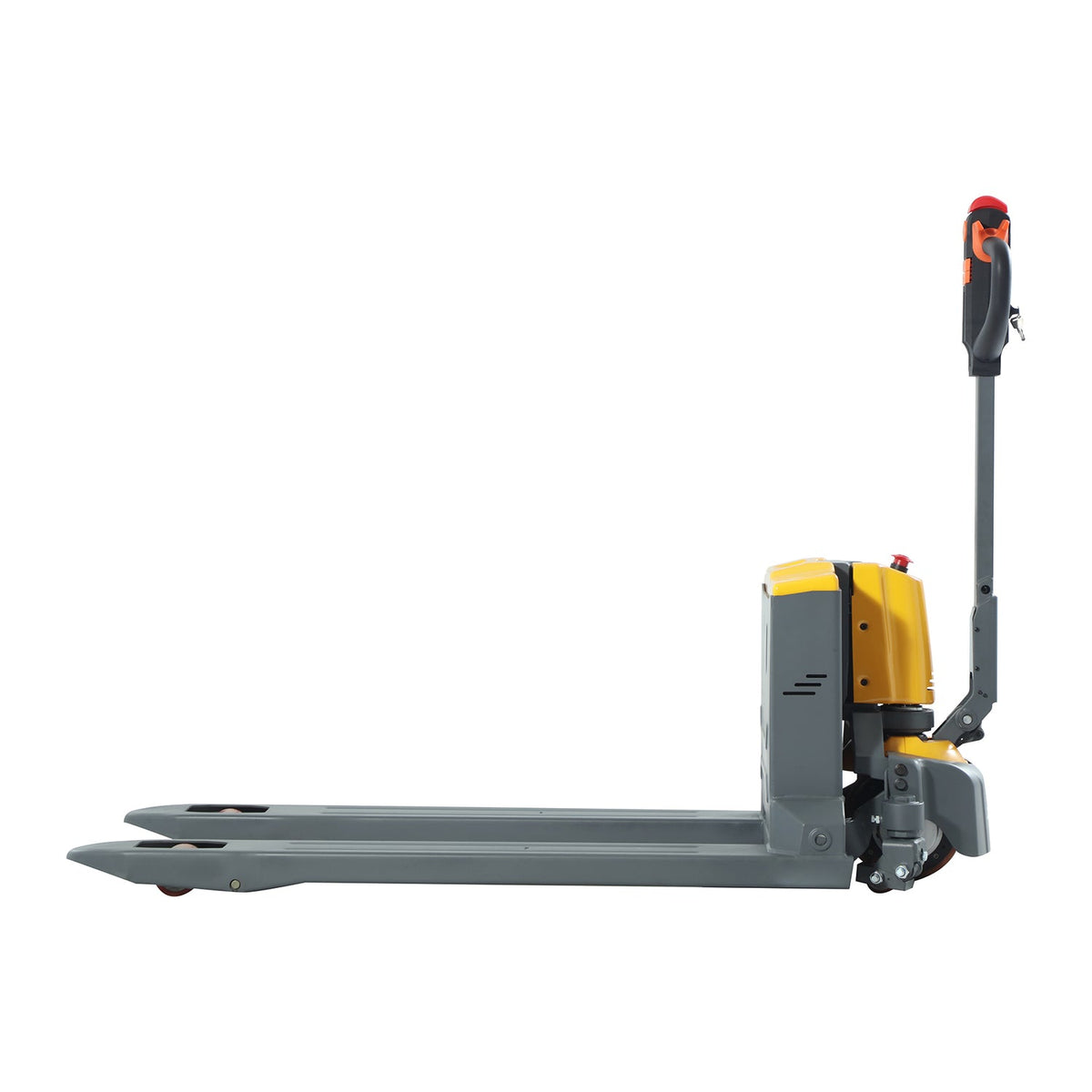

  • Electric pallet jack with yellow power unit, gray forks, standing side profile

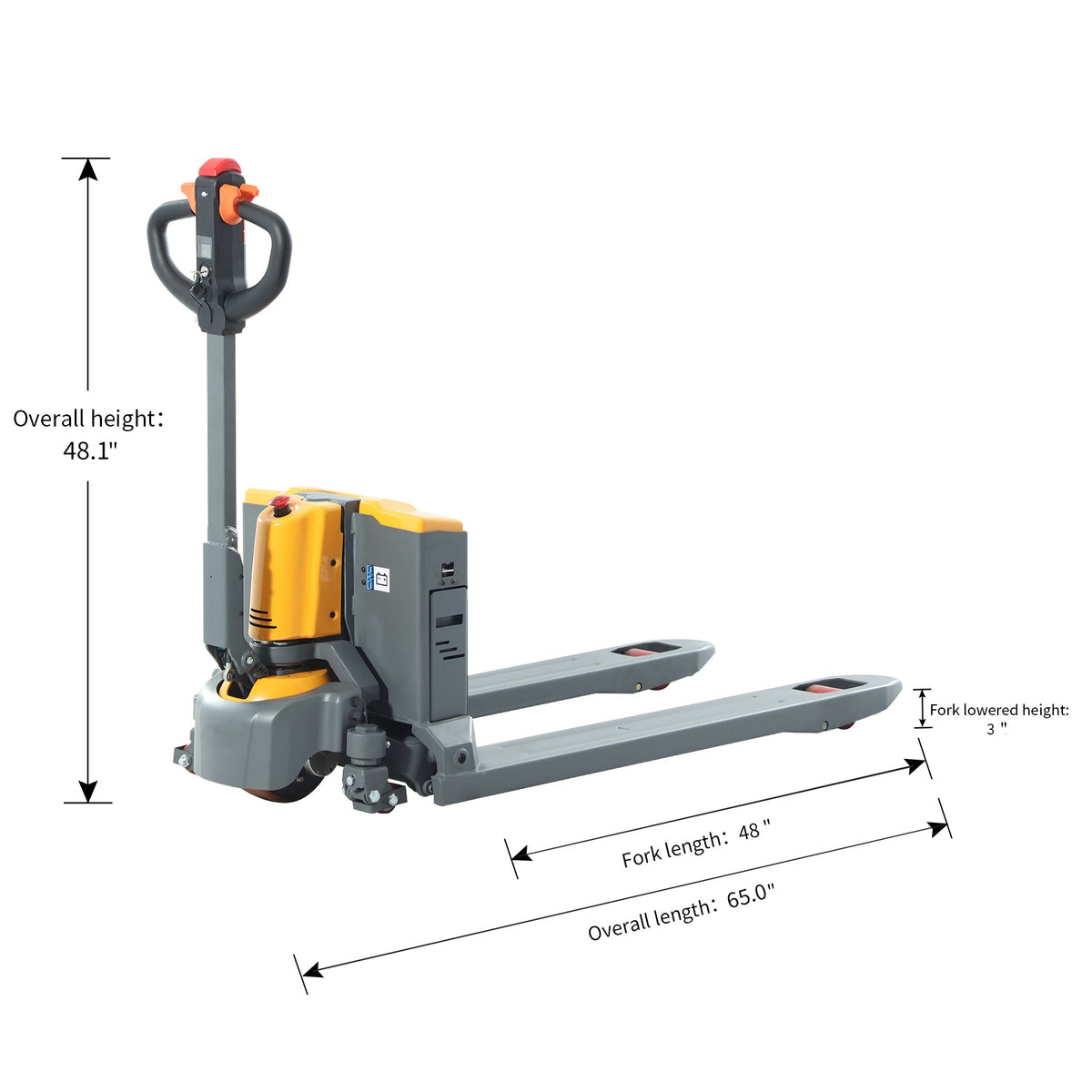

  • Electric pallet jack with yellow battery unit; overall height 48 in, fork length 48 in.

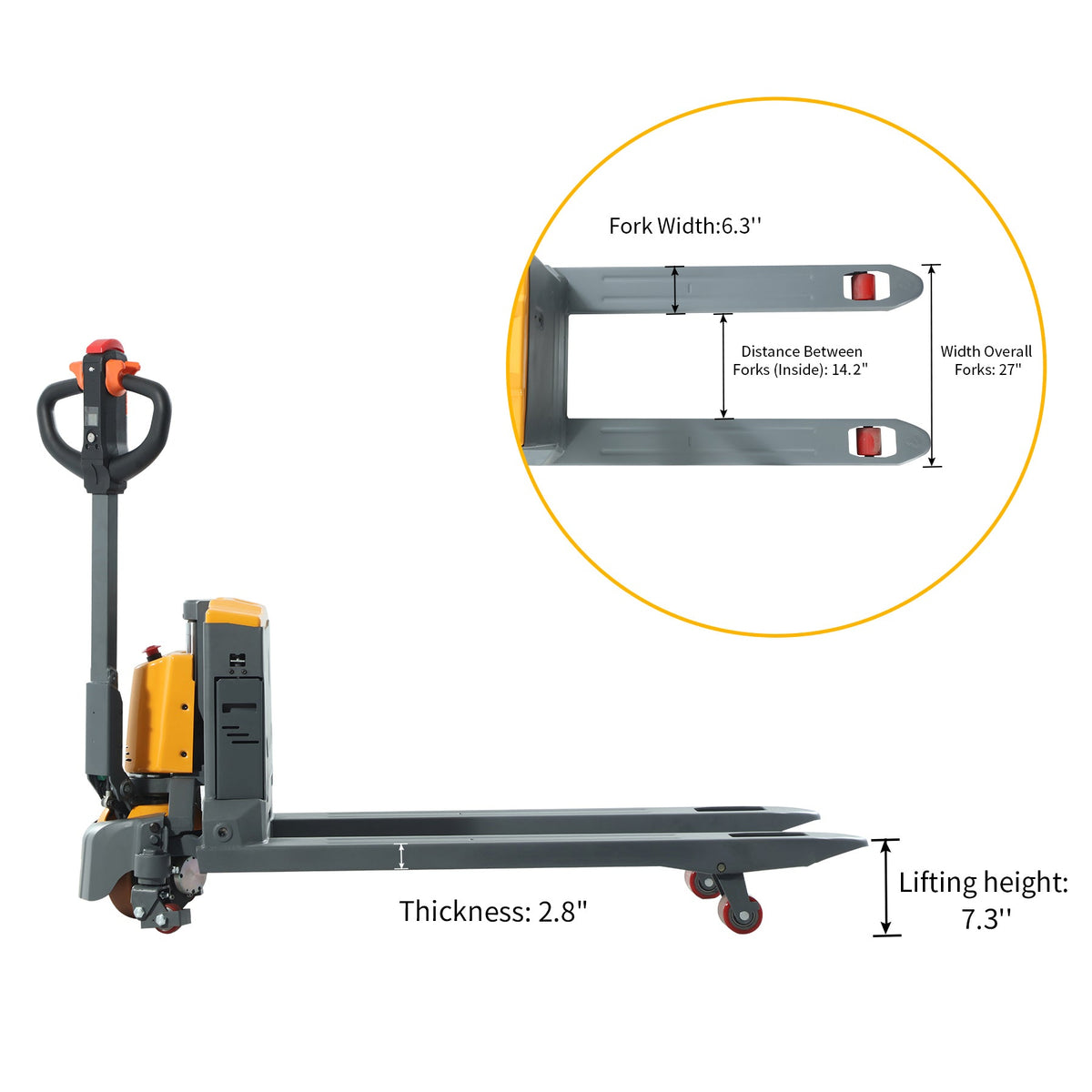

  • Electric pallet jack with yellow body, gray forks; shows fork thickness and lifting height.
Xilin CBD20W-II Li Smart Electric Pallet Jack – 4400lb

Xilin CBD20W-II Li Smart Electric Pallet Jack – 4400lb

$2,100.00

Shop Pay Installments

Split your purchase into flexible installment payments with Shop Pay. Pay over time with no hidden fees.

How it works:

  • Choose Shop Pay at checkout
  • Select your preferred payment plan
  • Make your first payment today
  • Pay the rest over time with automatic payments

No interest. No hidden fees. Just flexible payments that work for you.

🚚 Shipping availability and rates vary by product, delivery option, and destination.

Carrier Terminal Pickup: Bring a suitable vehicle or trailer. The terminal will load the shipment, but the customer is responsible for unloading at the final destination.
⚠️ Warehouse Pickup – Please Contact Us First. Due to varying inventory across our warehouse locations, please contact us before placing your order to confirm stock availability at your preferred location.
Contact Us to Check Availability

🇺🇸 US-Based Business: We offer specialized support and flexible shipping and delivery options.

🏭
Expert SupportUS-Based Team
🚚
Shipping OptionsVary by Product & Destination
🛡️
1-Yr WarrantyFull Parts Support
🔬
Safety TestedLoad & Function Tested
📍
Pickup Options May Be AvailableContact us to confirm location & availability
Learn More >
Warranty

One-year limited manufacturer warranty against manufacturing defects. Normal wear, misuse, improper maintenance, battery wear, and freight damage are excluded. Contact ALLIZOE before arranging warranty service.
Shipping

Free freight shipping to the contiguous 48 US states. Estimated delivery: 6–10 business days. Curbside delivery only — forklift or pallet jack required. Carrier will call 24–48 hrs before delivery. View full Shipping & Delivery details →

⚠️ Safety Warning

For trained operators only. Use on suitable level indoor floors and compatible pallets. Never exceed rated capacity. Keep hands, feet, and bystanders clear; inspect controls, wheels, forks, battery, charger, braking, emergency reverse, and emergency stop before operation. Follow the manufacturer manual and charging instructions.

Choose the CBD20W-II Li for its 4,400 lb capacity, 48V lithium system, smart LCD handle, magnetic key access, compact turning radius, and controlled low-speed travel.

Smart multifunction handle with LCD battery display

Magnetic key access

48V / 20Ah quick-swap lithium battery

Turtle and upright travel modes

Reinforced frame with fork gussets

Emergency reverse, overload protection, lift limit, and braking

Quiet non-marking PU wheels

Service-accessible metal covers

Model: CBD20W-II Li

Load capacity: 4,400 lb

Fork size: 48 × 27 in; inside fork width: 14.2 in; fork thickness: 2.8 in

Lowered fork height: 3 in; maximum fork height: 7.3 in; lift travel: 4.3 in

Turning radius: 55.7 in; minimum aisle width: 87 in

Overall size: 65 × 27 × 48.1 in

Battery: 48V / 20Ah lithium

Charger: 48V / 10A external

Travel speed: 2.9 mph laden / 3.0 mph unladen

Service weight: 310 lb

The Xilin CBD20W-II Li is a 4,400 lb walk-behind electric pallet jack with a smart LCD control handle, magnetic key access, 48V lithium power, turtle/upright travel mode, and compact maneuverability for demanding indoor pallet movement.

One-year limited manufacturer warranty against manufacturing defects. Normal wear, misuse, improper maintenance, battery wear, and freight damage are excluded. Contact ALLIZOE before arranging warranty service.

Warehouses, distribution centers, loading zones, shipping and receiving areas, trucks, and other indoor applications requiring 4,400 lb electric pallet movement.

Product price and freight are separate. Freight is quoted based on the delivery ZIP code, destination type, and required delivery service. Commercial delivery, residential delivery, liftgate service, limited-access delivery, and pickup at a carrier terminal may have different costs. Inventory and freight must be confirmed before shipment.

Key Benefits

4,400 lb Capacity

Higher rated capacity for demanding pallet movement.

Smart LCD Handle

Integrated controls and battery information at the operator handle.

48V Lithium Power

Quick-swap 48V / 20Ah battery with external charger.

Magnetic Key

Helps restrict unauthorized equipment operation.

Product Highlights

4,400 lb Capacity

4,400 lb Capacity

Higher rated capacity supports demanding pallet movement in warehouses and loading zones.

Smart LCD Handle

Smart LCD Handle

Integrated handle controls travel, lift, lower, battery status, and operator functions.

48V / 20Ah Lithium Power

48V / 20Ah Lithium Power

Quick-swap lithium battery with external charger supports indoor pallet handling with less downtime.

Turtle & Upright Travel Modes

Turtle & Upright Travel Modes

Low-speed control helps the operator maneuver more precisely in confined working areas.

Dimensions & Product Drawing

Official Xilin specification sheet with detailed parameter tables and dimensional drawings. Click the full-page preview or download the original PDF to view the document at full size.

Xilin cbd20w ii li electric pallet jacks official PDF with specification tables and dimensional drawings
Download Product Drawing (PDF)

Product Manual

Download the complete product manual and installation guide.
Download Manual

Complete Your Shop Setup

Everything a professional tire shop needs
Tire Service Packages Collection Banner

Tire Service Packages

2-Post Lifts Category Image

2-Post Lift

4-Post Lifts Category Image

4-Post Lifts

Tire Changer

Tire Changer

Wheel Balancer

Wheel Balancer

Shop Accessories Collection Banner

Shop Accessories

Frequently Asked Questions

  • 4,400 lb.
  • A 48V / 20Ah lithium battery with a 48V / 10A external charger.
  • 48 inches long by 27 inches wide.
  • Yes. Turtle/upright mode supports precise movement in confined spaces.
  • No. Freight is quoted separately based on delivery ZIP code, destination type, and required delivery service.
