Xilin CBD20KD Heavy-Duty Electric Pallet Jack – 4400lb

$5,400.00
Skip to product information
Electric pallet jack with yellow body, gray forks, and red emergency stop button
1/10

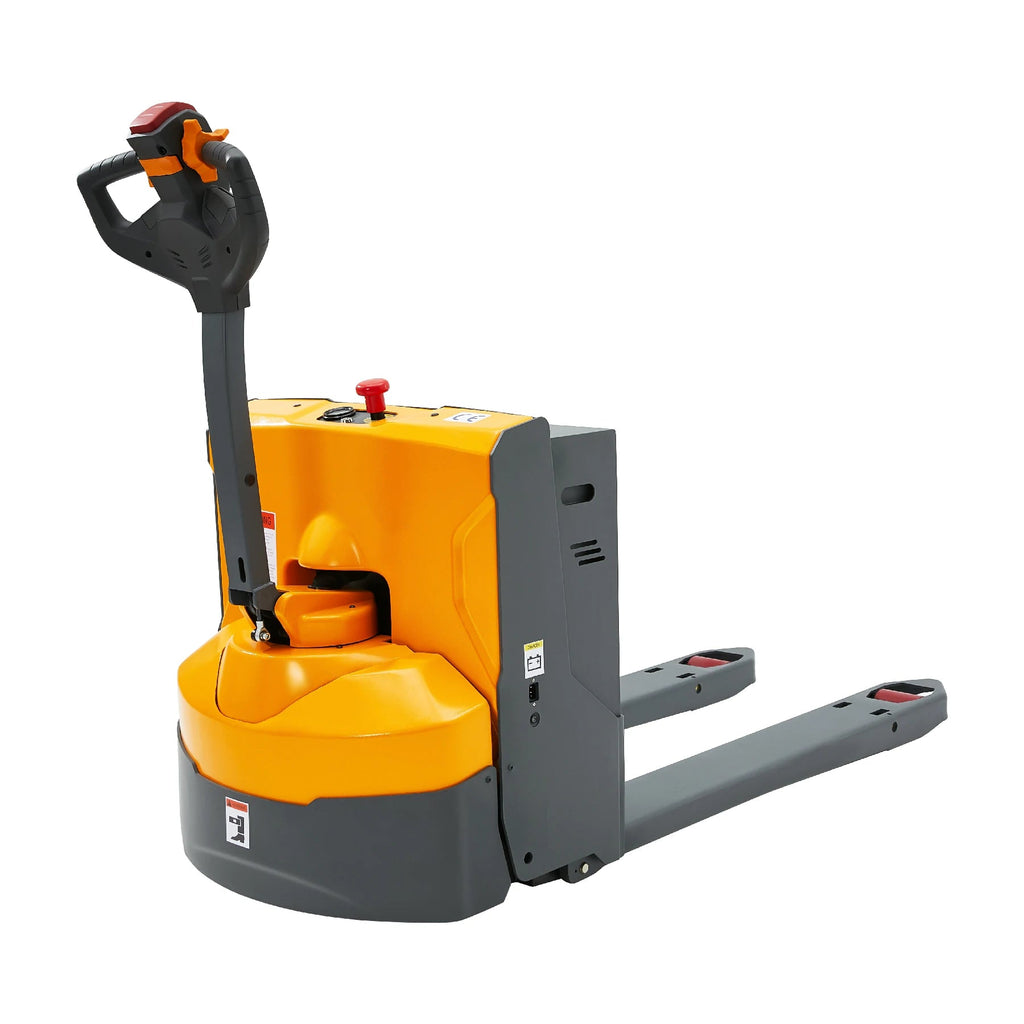

  • Electric pallet jack with yellow body, gray forks, and red emergency stop button

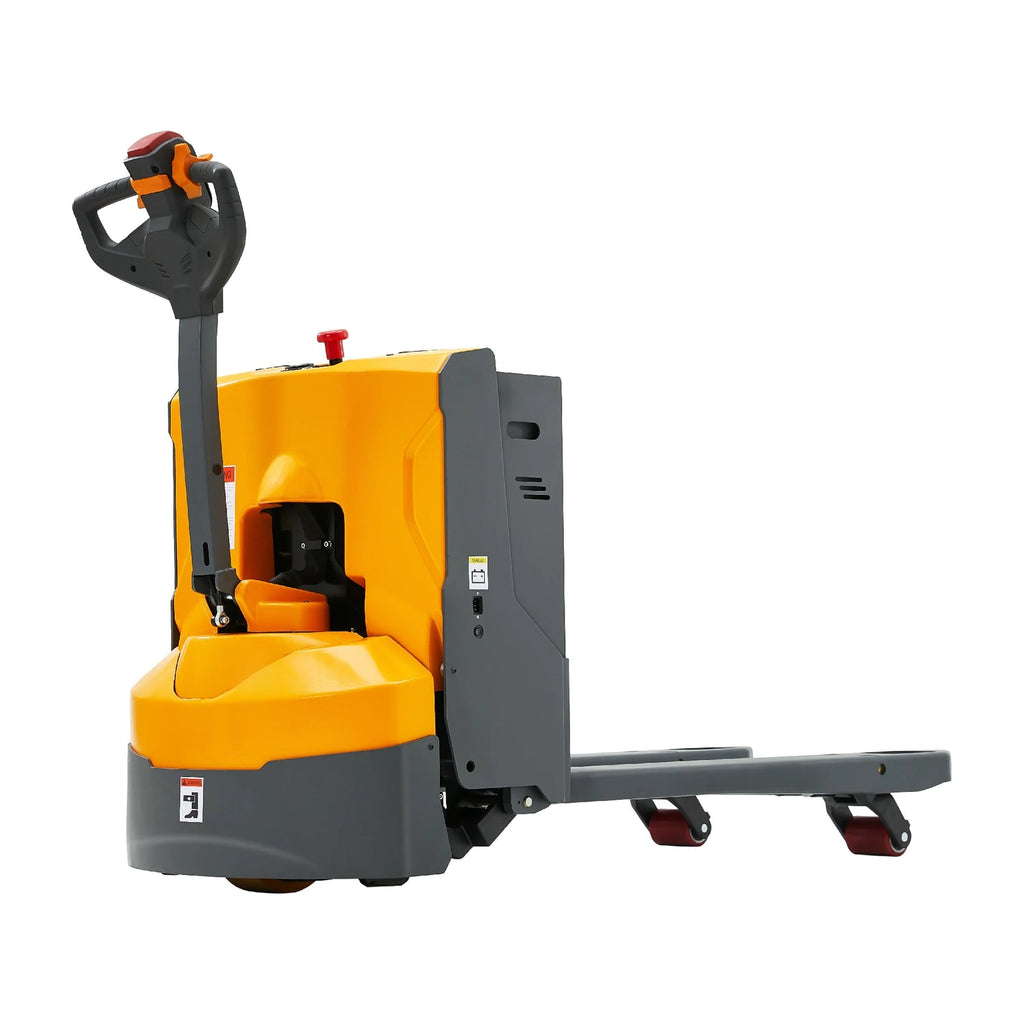

  • Electric pallet jack with yellow operator unit, gray forks, and red wheel guards

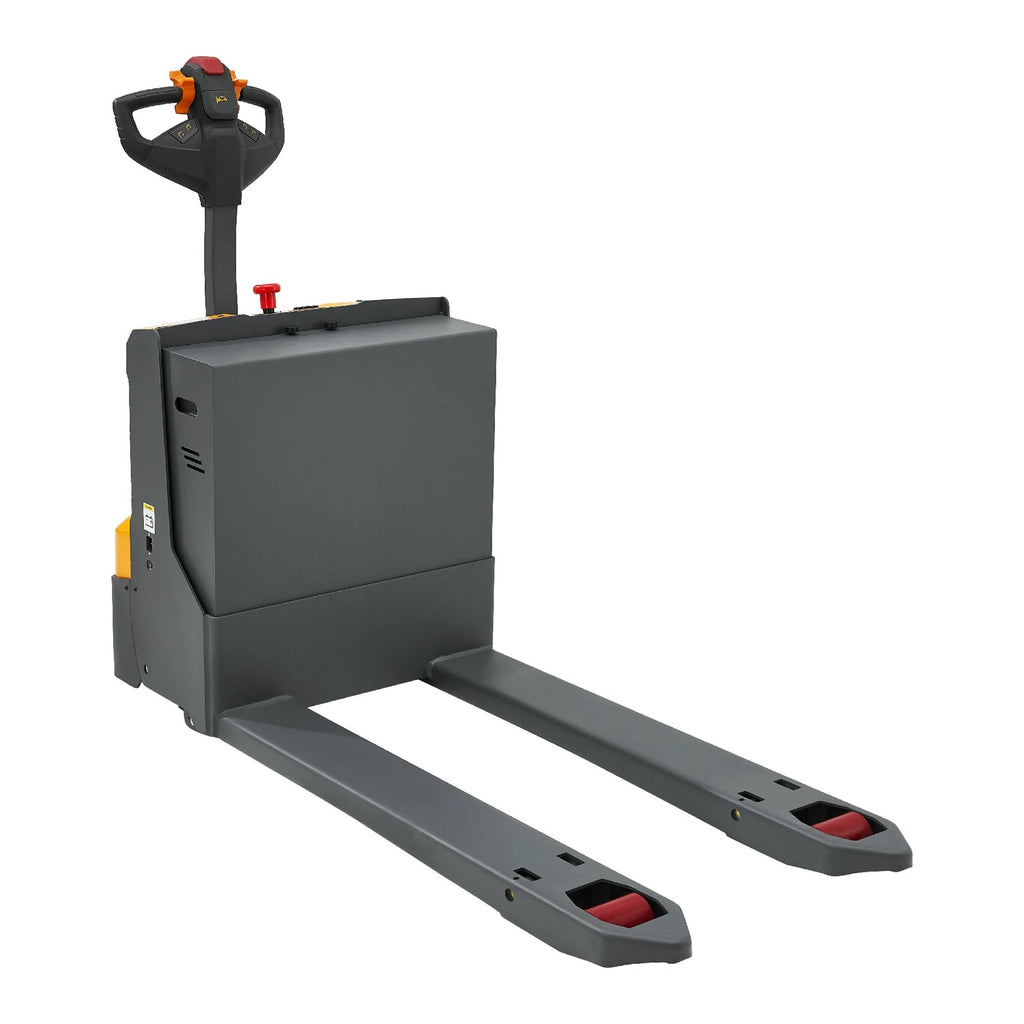

  • Electric pallet jack with two gray forks and black operator mast

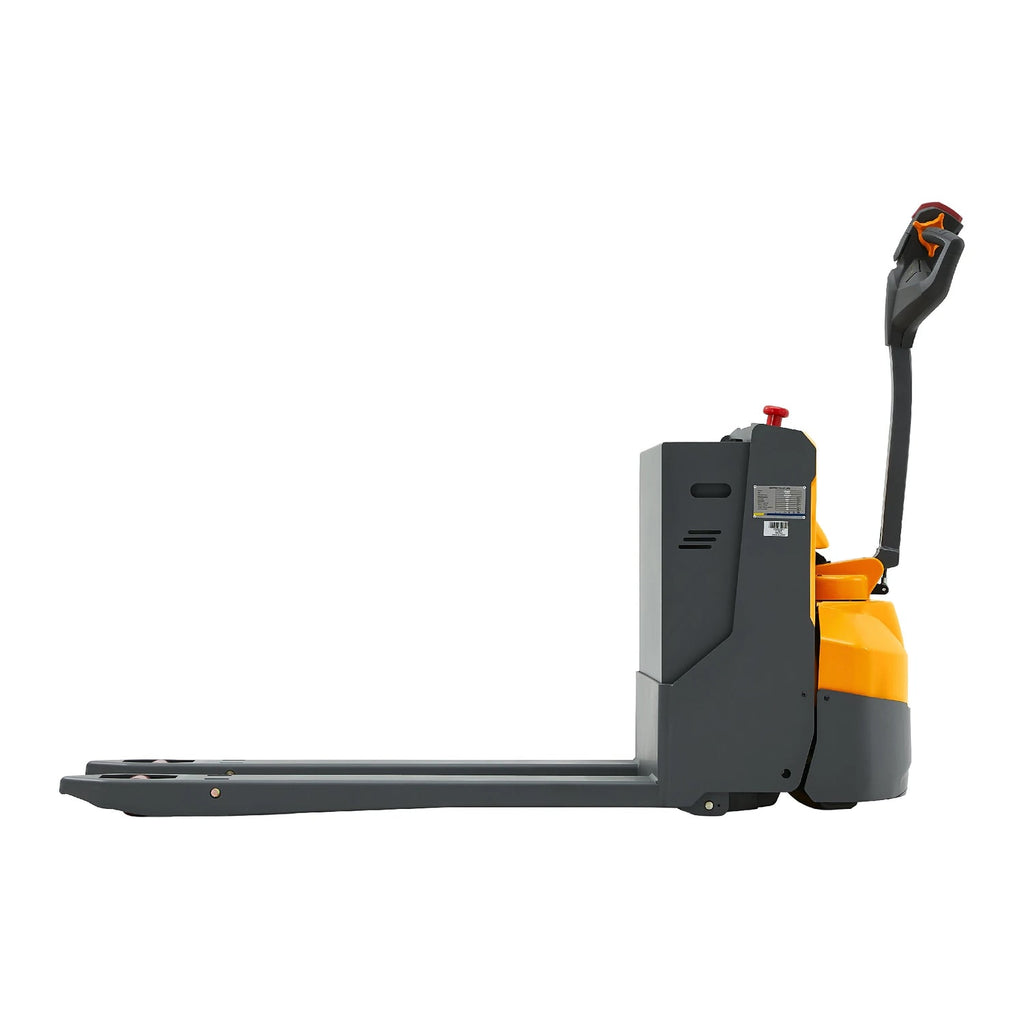

  • Electric pallet jack side view with yellow base and raised black handle

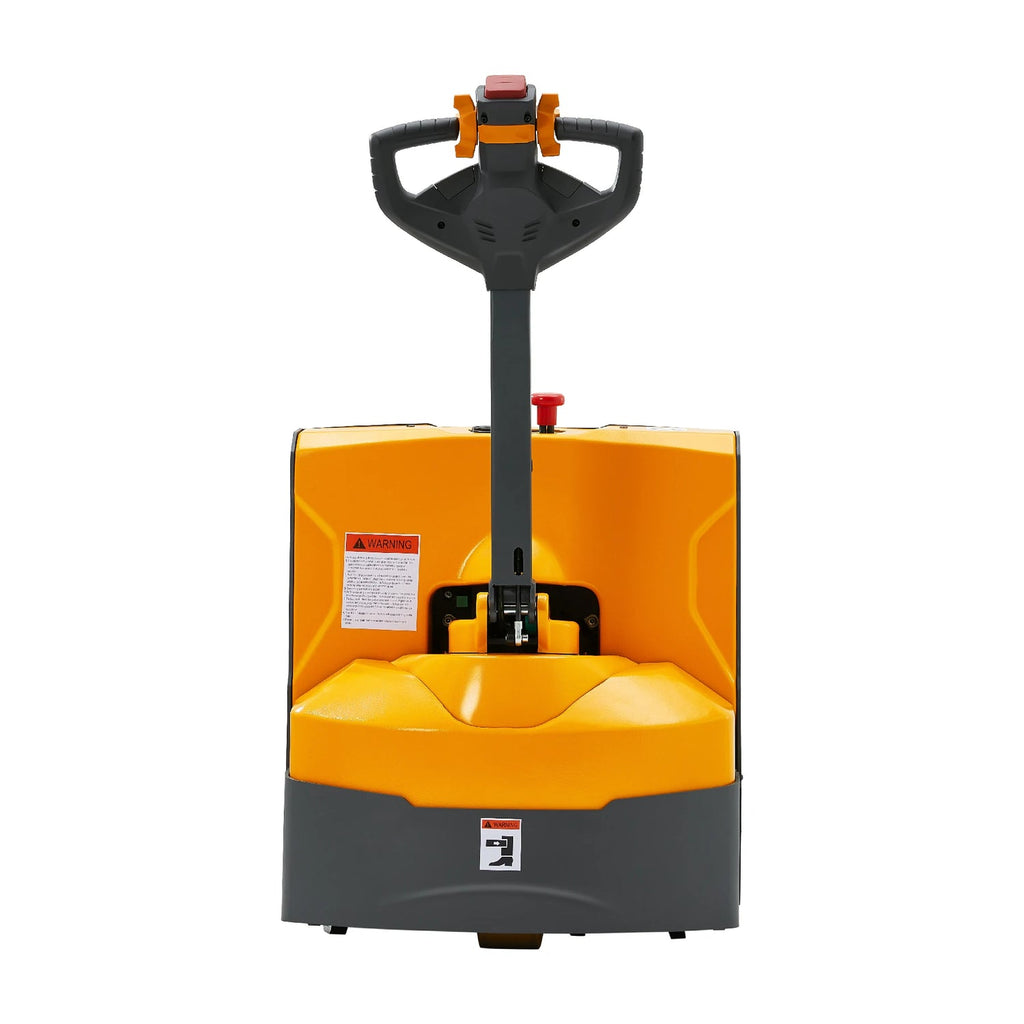

  • Electric pallet jack front view with yellow seat housing and black control mast

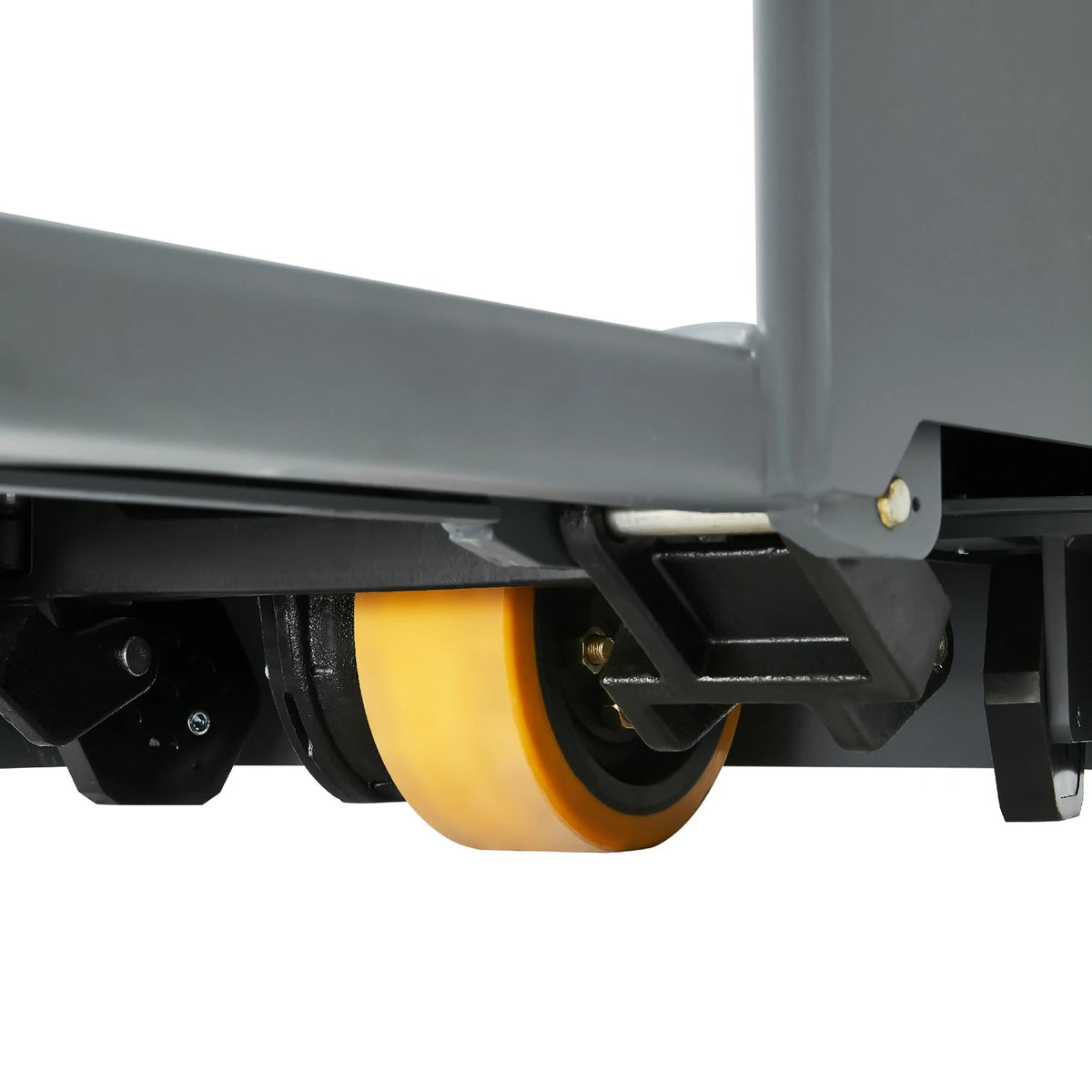

  • Electric pallet jack close-up of gray frame and yellow wheels under forks

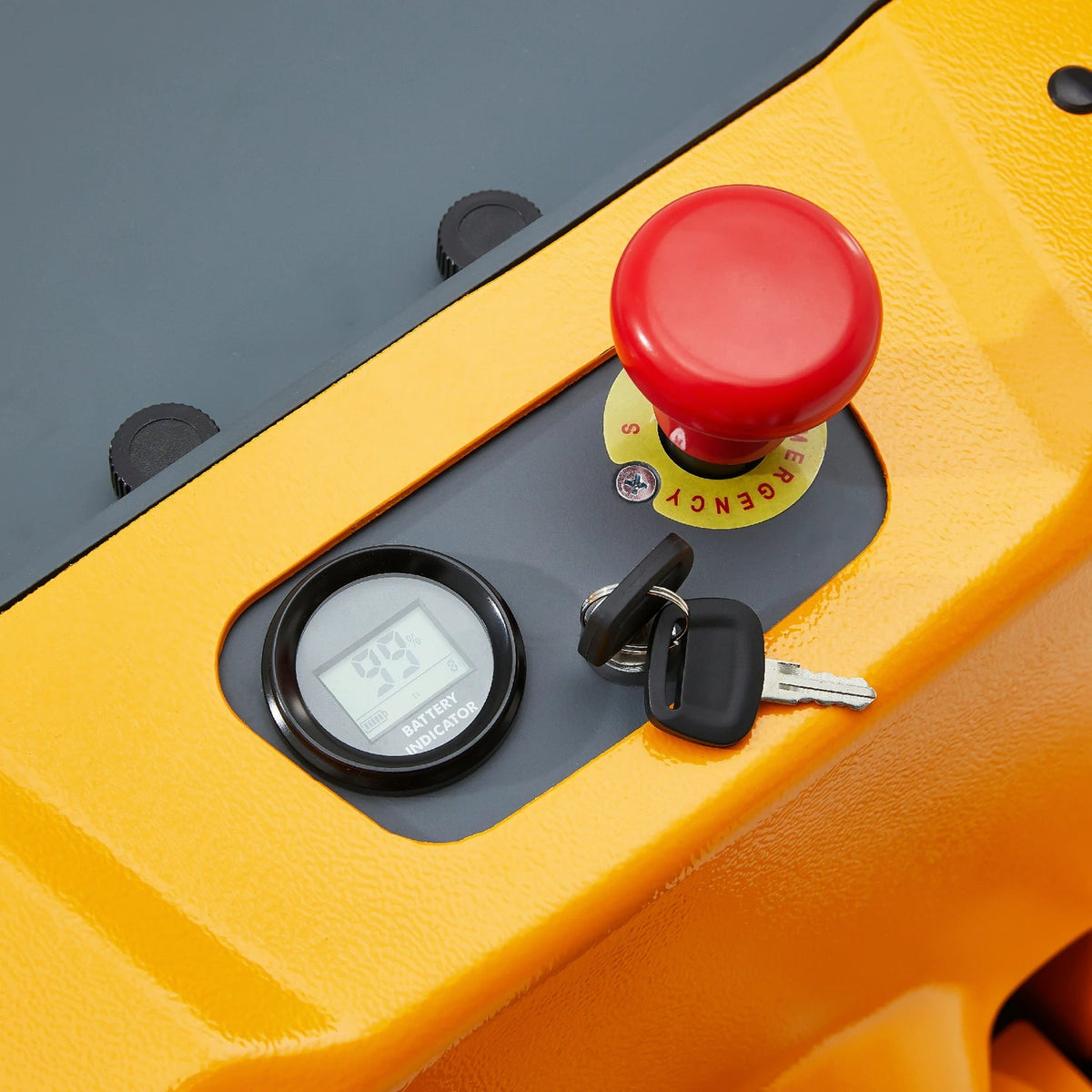

  • Electric pallet jack key switch and red emergency stop on yellow control panel
  • Electric pallet jack control console with red button and black levers on yellow top

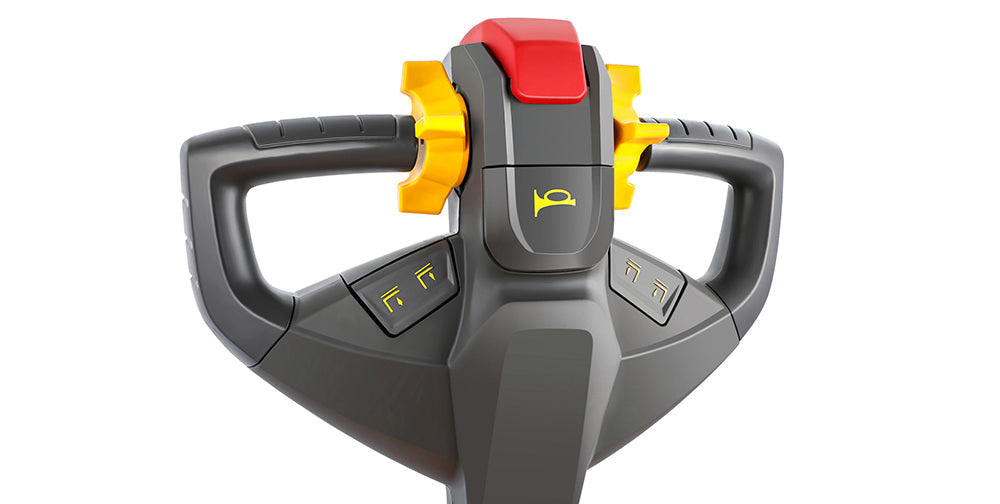

  • Electric pallet jack handle with red safety switch and yellow control buttons

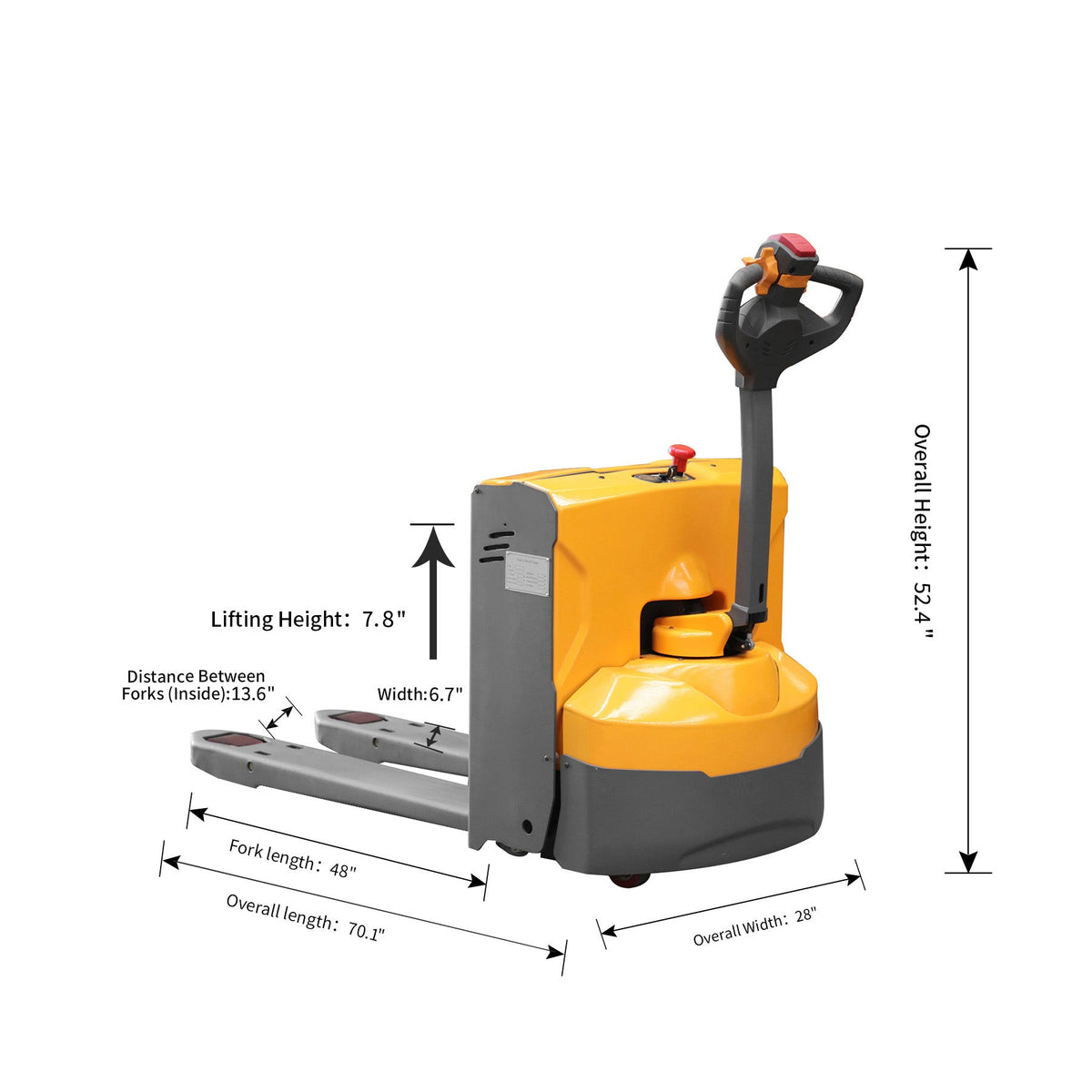

  • Electric pallet jack with forks and upright tiller; shown with size dimension diagram
Xilin CBD20KD Heavy-Duty Electric Pallet Jack – 4400lb

Xilin CBD20KD Heavy-Duty Electric Pallet Jack – 4400lb

$5,400.00

Shop Pay Installments

Split your purchase into flexible installment payments with Shop Pay. Pay over time with no hidden fees.

How it works:

  • Choose Shop Pay at checkout
  • Select your preferred payment plan
  • Make your first payment today
  • Pay the rest over time with automatic payments

No interest. No hidden fees. Just flexible payments that work for you.

🚚 Shipping availability and rates vary by product, delivery option, and destination.

Carrier Terminal Pickup: Bring a suitable vehicle or trailer. The terminal will load the shipment, but the customer is responsible for unloading at the final destination.
⚠️ Warehouse Pickup – Please Contact Us First. Due to varying inventory across our warehouse locations, please contact us before placing your order to confirm stock availability at your preferred location.
Contact Us to Check Availability

🇺🇸 US-Based Business: We offer specialized support and flexible shipping and delivery options.

🏭
Expert SupportUS-Based Team
🚚
Shipping OptionsVary by Product & Destination
🛡️
1-Yr WarrantyFull Parts Support
🔬
Safety TestedLoad & Function Tested
📍
Pickup Options May Be AvailableContact us to confirm location & availability
Learn More >
Warranty

One-year limited manufacturer warranty against manufacturing defects. Normal wear, misuse, improper maintenance, battery wear, and freight damage are excluded. Contact ALLIZOE before arranging warranty service.
Shipping

Free freight shipping to the contiguous 48 US states. Estimated delivery: 6–10 business days. Curbside delivery only — forklift or pallet jack required. Carrier will call 24–48 hrs before delivery. View full Shipping & Delivery details →

⚠️ Safety Warning

For trained operators only. Use on suitable level surfaces and compatible pallets. Never exceed rated capacity. Keep hands, feet, and bystanders clear. Inspect controls, wheels, forks, battery, charger, braking, emergency reverse, and emergency stop before use. Follow the manufacturer manual and charging instructions.

Choose the CBD20KD for AC drive, regenerative braking, a 180Ah battery, side-pull battery access, and heavy-duty 4,400 lb capacity.

Brushless AC drive with regenerative braking

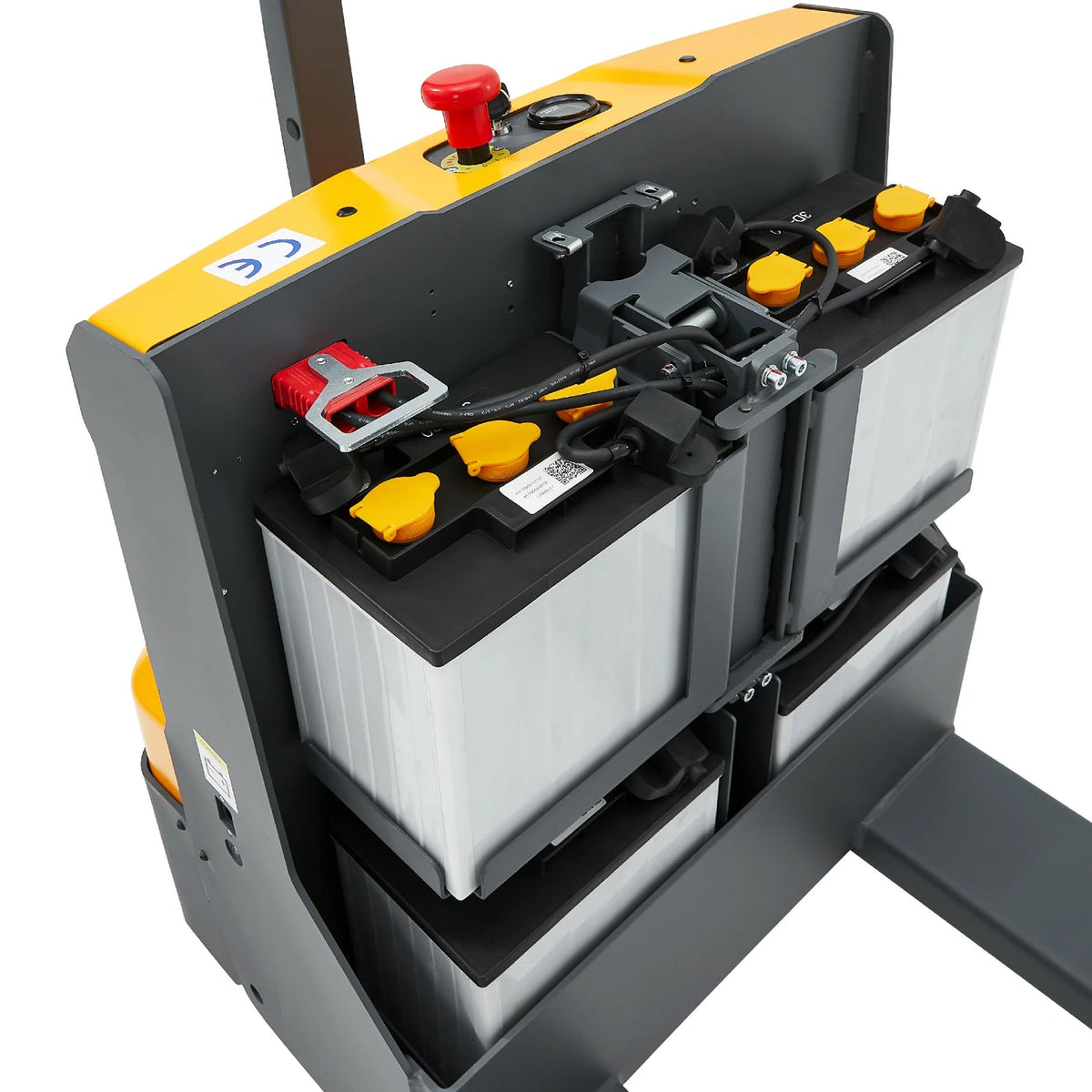

Side-pull battery compartment

24V / 180Ah battery

Stepless speed control and turtle mode

Emergency reverse and power cutoff

Hydraulic pressure relief valve

Spring-loaded caster wheels

Sealed vertical drive system

Model: CBD20KD

Load capacity: 4,400 lb

Fork size: 48 × 27 in; inside fork width: 13.6 in; fork thickness: 2.1 in

Lowered fork height: 3.1 in; maximum fork height: 7.8 in; lift travel: 4.7 in

Turning radius: 63.7 in; minimum aisle width: 95.2 in

Overall size: 70.1 × 27 × 52.4 in

Battery: 24V / 180Ah

Charger: 24V / 20A built-in

Travel speed: 3.6 mph laden / 3.7 mph unladen

Service weight: 1,084 lb

The Xilin CBD20KD is a heavy-duty 4,400 lb walk-behind electric pallet jack with AC drive, regenerative braking, a 24V / 180Ah battery, side-pull battery access, reinforced construction, and spring-loaded caster wheels.

One-year limited manufacturer warranty against manufacturing defects. Normal wear, misuse, improper maintenance, battery wear, and freight damage are excluded. Contact ALLIZOE before arranging warranty service.

High-intensity warehouses, logistics hubs, industrial facilities, loading areas, and indoor pallet movement requiring a larger battery and AC drive.

Product price and freight are separate. Freight is quoted based on the delivery ZIP code, destination type, and required delivery service. Commercial delivery, residential delivery, liftgate service, limited-access delivery, and pickup at a carrier terminal may have different costs. Inventory and freight must be confirmed before shipment.

Key Benefits

AC Drive

Brushless drive with regenerative braking.

180Ah Battery

High-capacity battery for demanding workflows.

Side-Pull Battery

Supports faster battery replacement.

4,400 lb Capacity

Built for heavy-duty pallet movement.

Product Highlights

Heavy-Duty Electric Pallet Jack

Heavy-Duty Electric Pallet Jack

4,400 lb walk-behind electric pallet jack for higher-intensity warehouse and logistics handling.

Integrated Safety Controls

Integrated Safety Controls

Key switch, emergency stop, emergency reverse, and operator controls are grouped for safer daily operation.

Ergonomic Control Handle

Ergonomic Control Handle

Handle controls support travel, horn, and safety operation for walk-behind handling.

Dimension Diagram Included

Dimension Diagram Included

Product dimension image helps confirm aisle width, turning radius, and fork size before purchase.

Complete Your Shop Setup

Everything a professional tire shop needs
Tire Service Packages Collection Banner

Tire Service Packages

2-Post Lifts Category Image

2-Post Lift

4-Post Lifts Category Image

4-Post Lifts

Tire Changer

Tire Changer

Wheel Balancer

Wheel Balancer

Shop Accessories Collection Banner

Shop Accessories

Frequently Asked Questions

  • 4,400 lb.
  • 48 inches long by 27 inches wide.
  • 24V / 180Ah battery with built-in 24V / 20A charger.
  • No. This is a walk-behind electric pallet jack.
  • No. Freight is quoted separately based on delivery ZIP code, destination type, and required delivery service.
