Xilin CBD15W-II-Li-II Smart Electric Pallet Jack – 3300lb

$1,800.00
Skip to product information
Electric pallet jack with yellow power unit, gray forks, and black handle grips
1/10

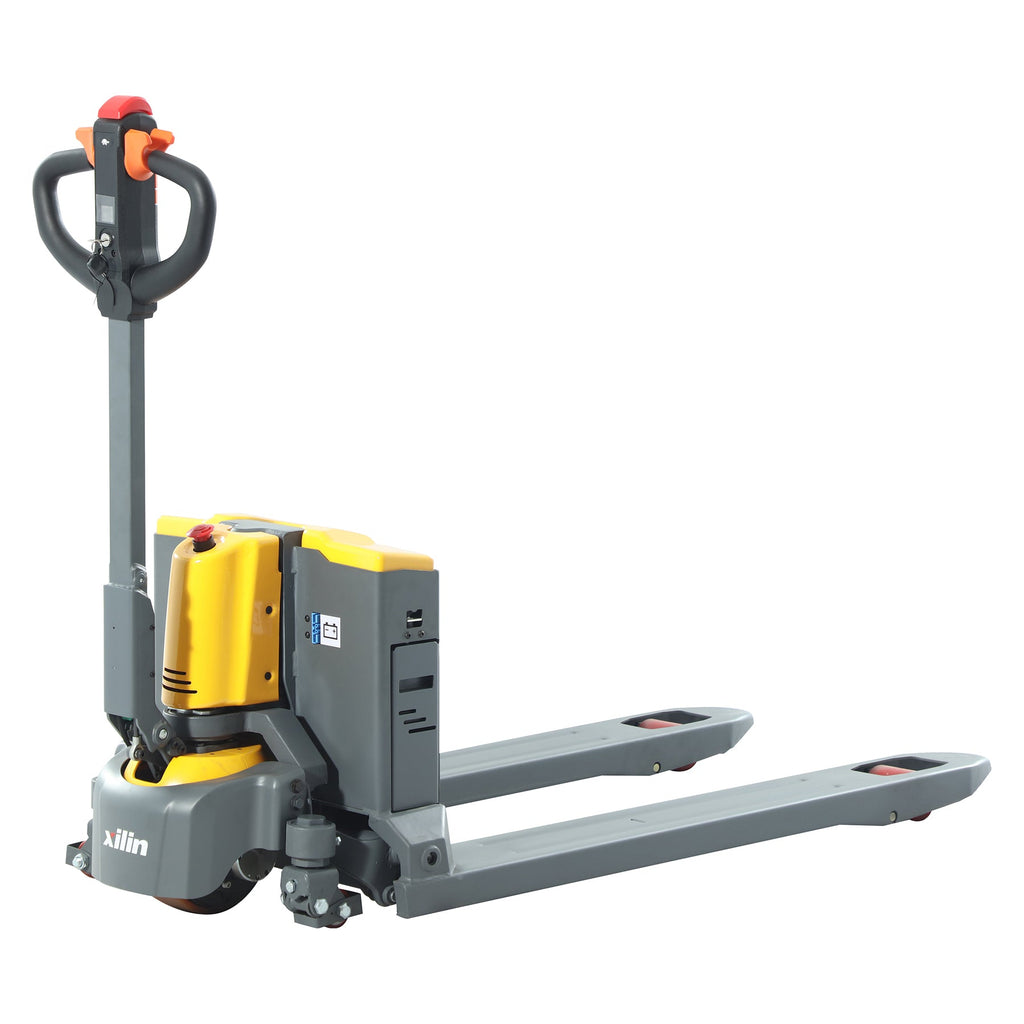

  • Electric pallet jack with yellow power unit, gray forks, and black handle grips

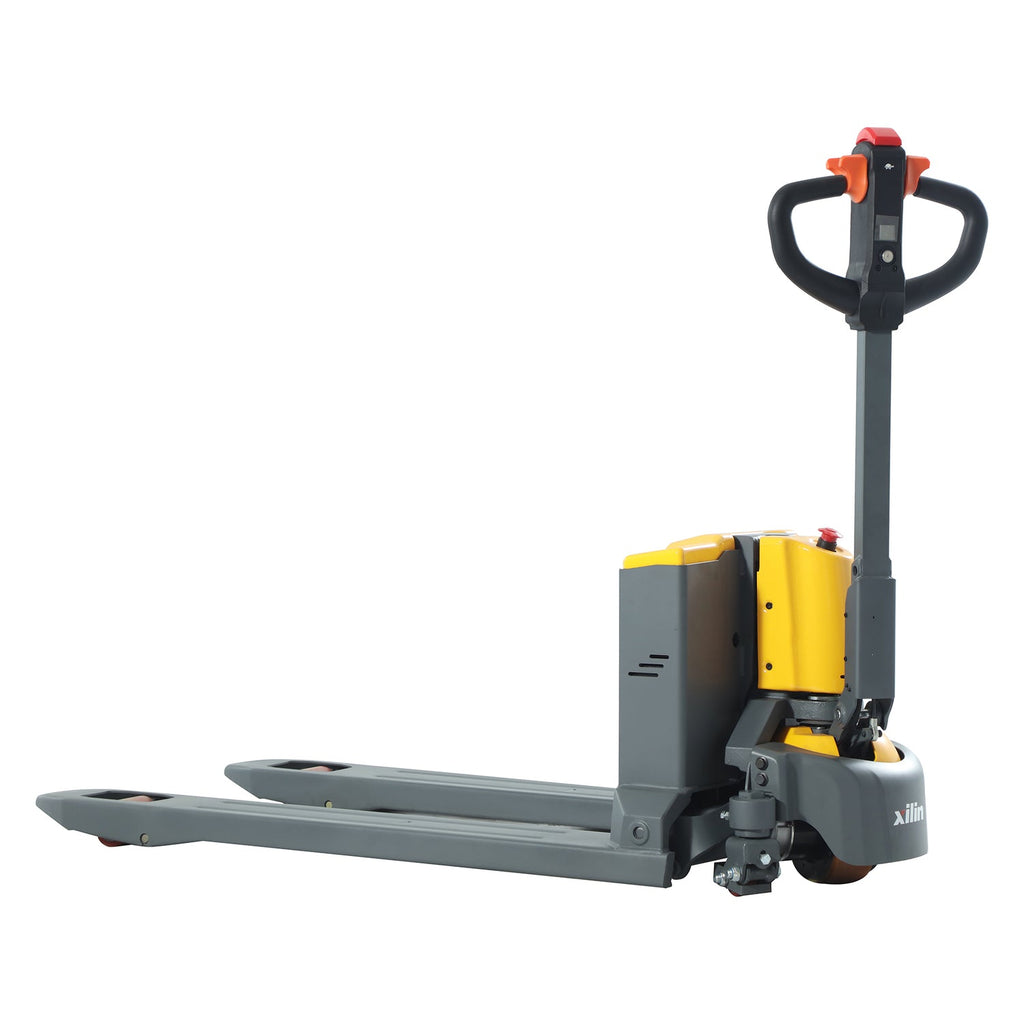

  • Electric pallet jack in side view with gray body, yellow battery housing, and black handle

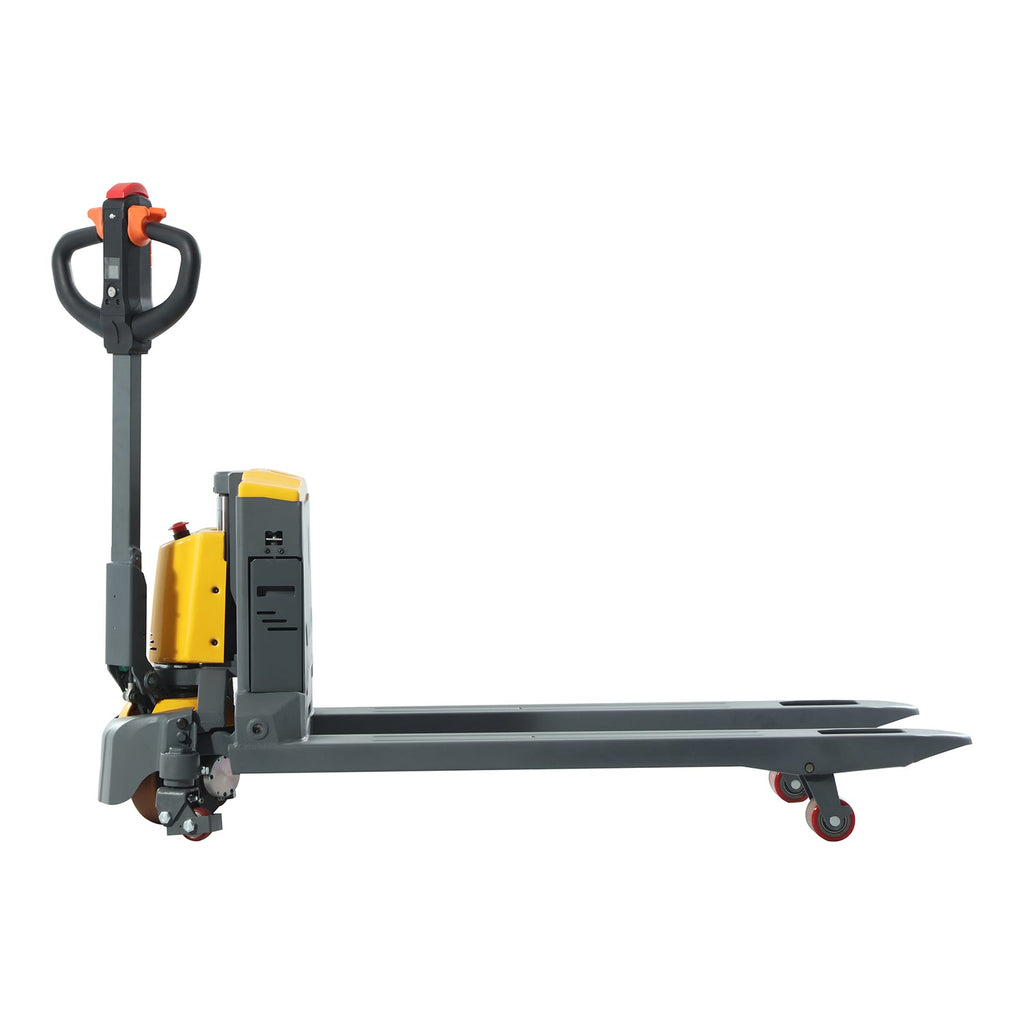

  • Electric pallet jack with gray frame, yellow battery, and black handle on caster base

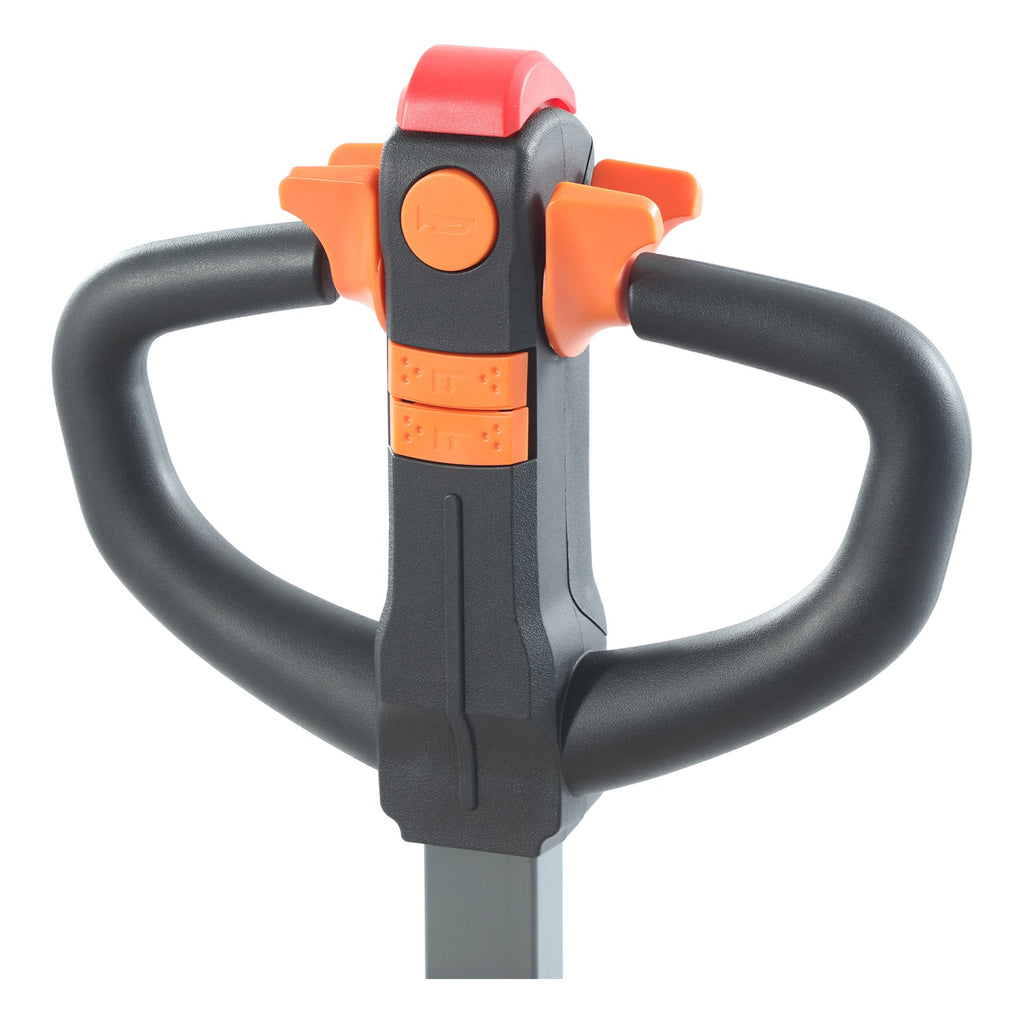

  • Electric pallet jack handle with red button, orange accents, and black ergonomic grip

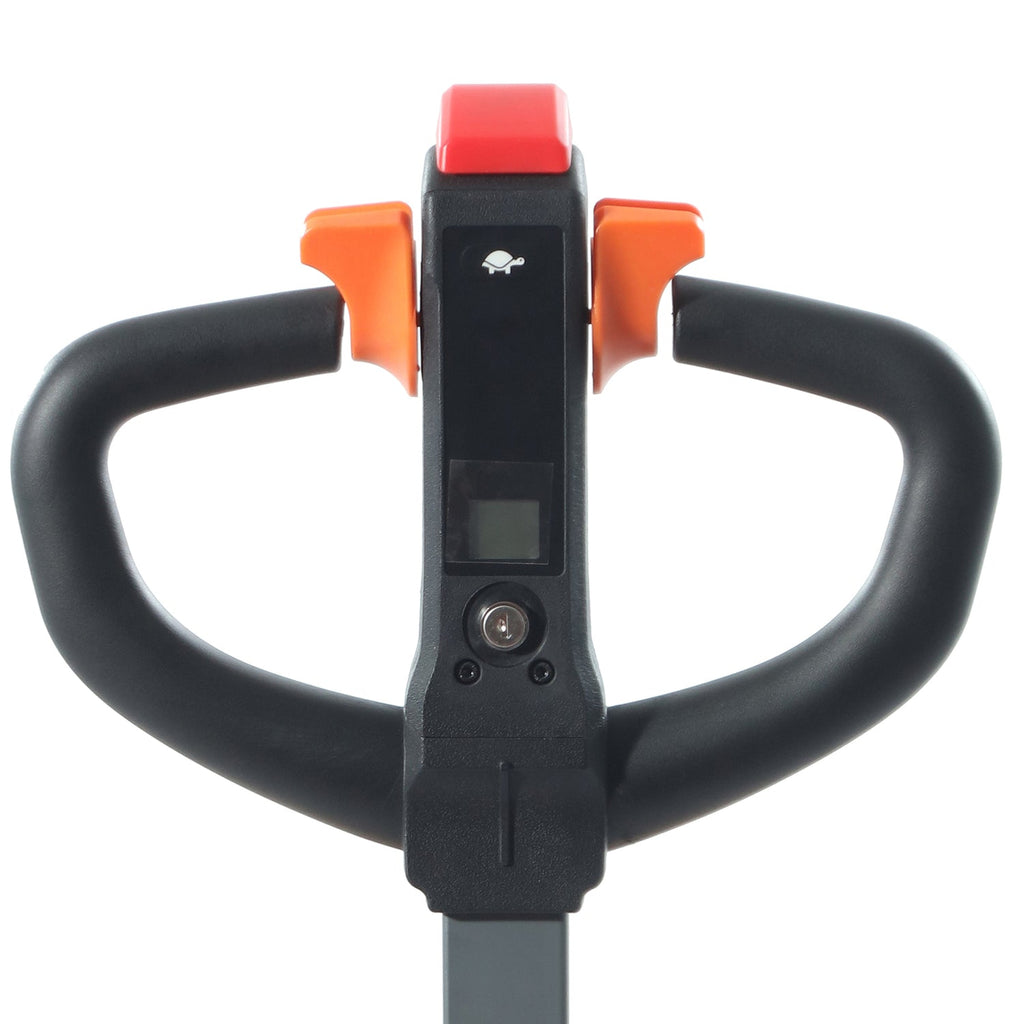

  • Electric pallet jack control panel on steering handle with display and red top button

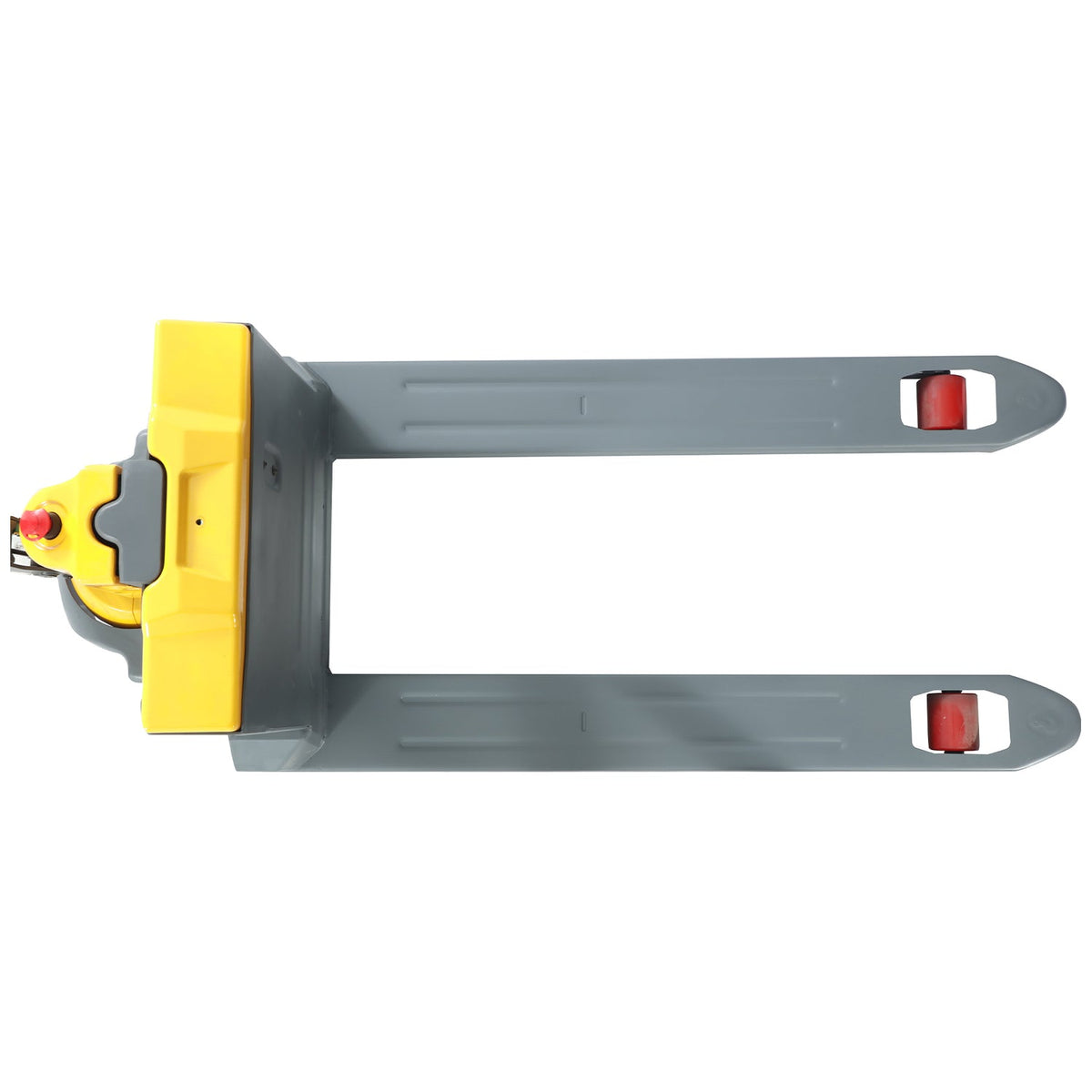

  • Electric pallet jack forks with red wheel stops and gray steel lift arms

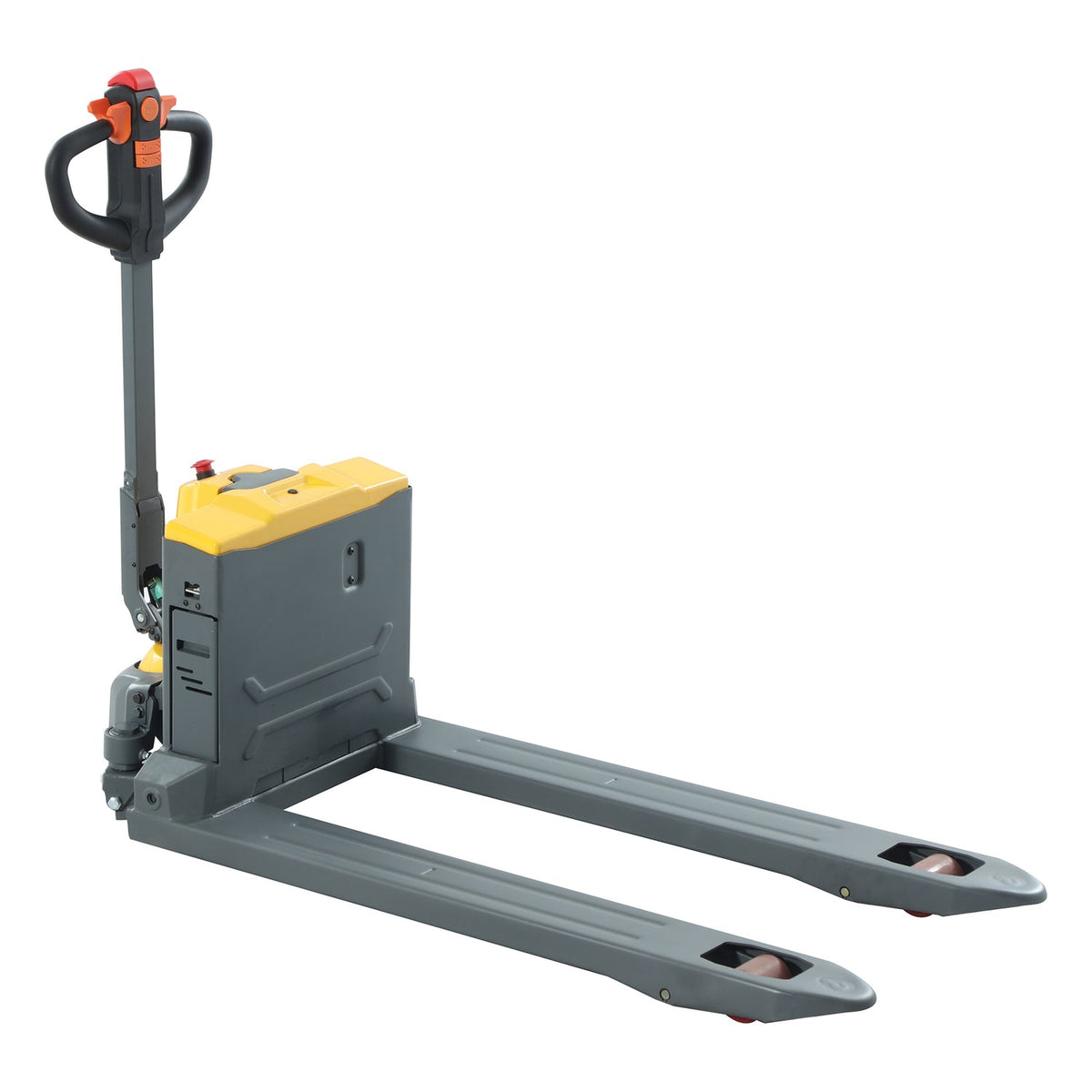

  • Electric pallet jack front three-quarter view with yellow lift module and gray forks

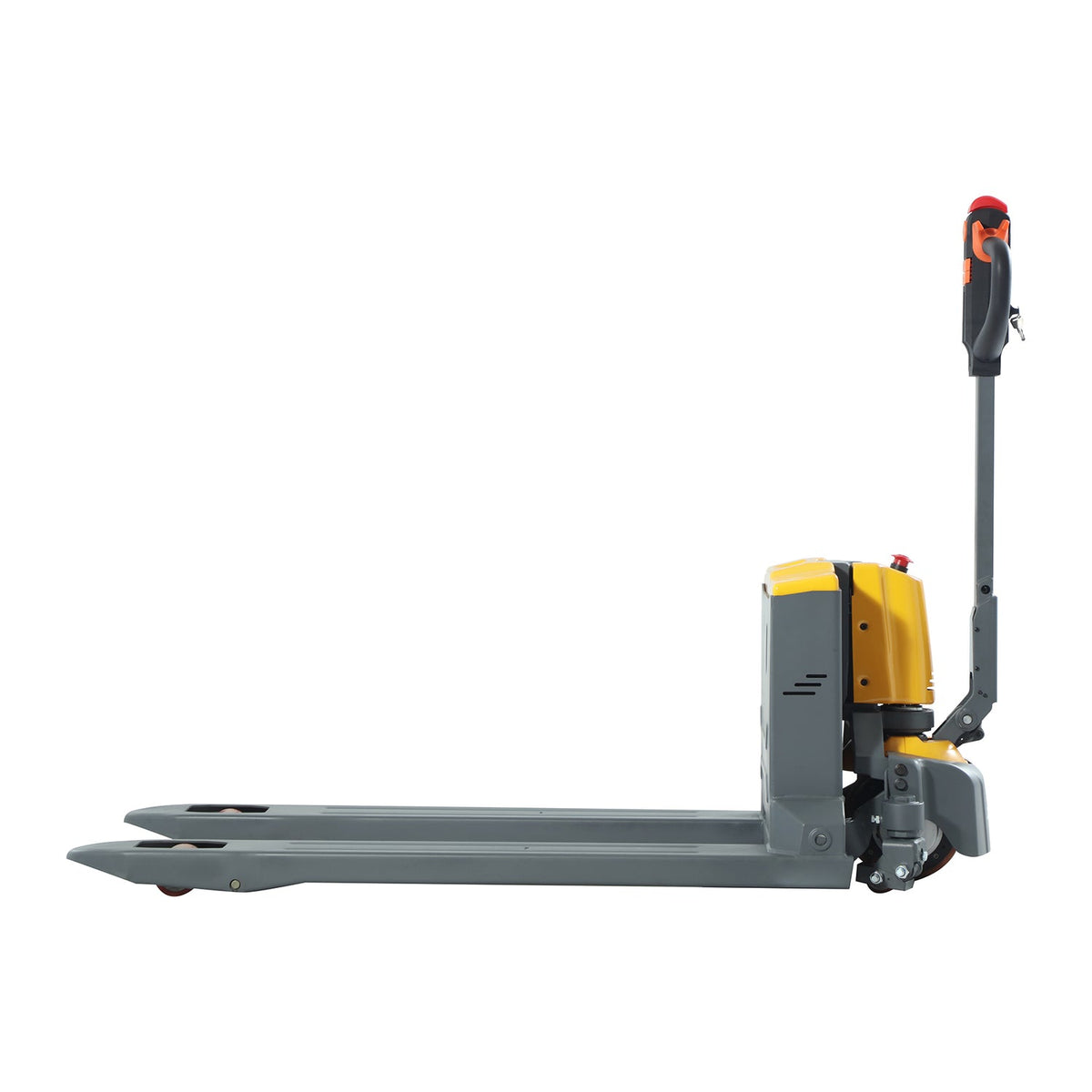

  • Electric pallet jack long forks with yellow battery module and upright gray mast

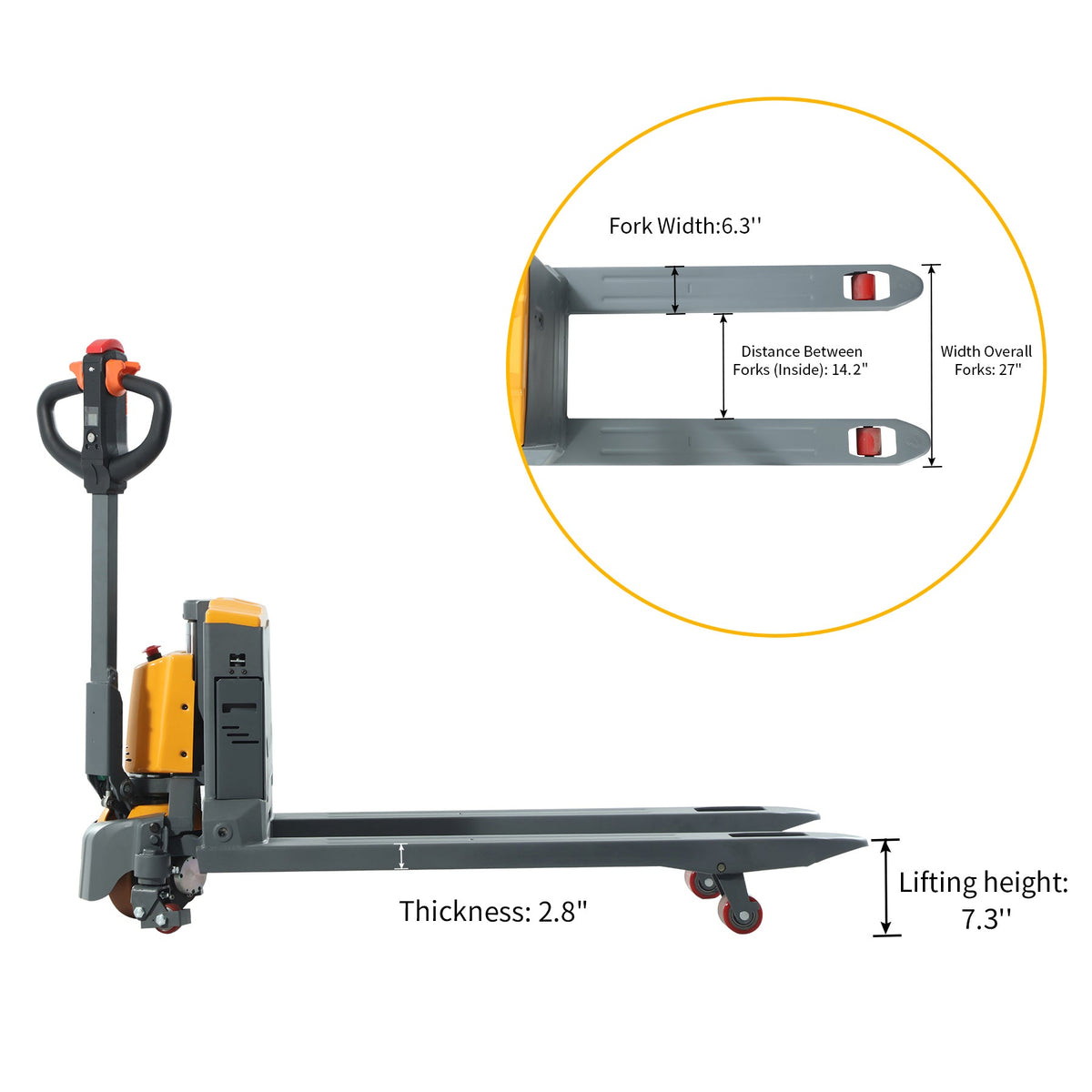

  • Electric pallet jack with dual forks, showing fork width and lifting height dimensions

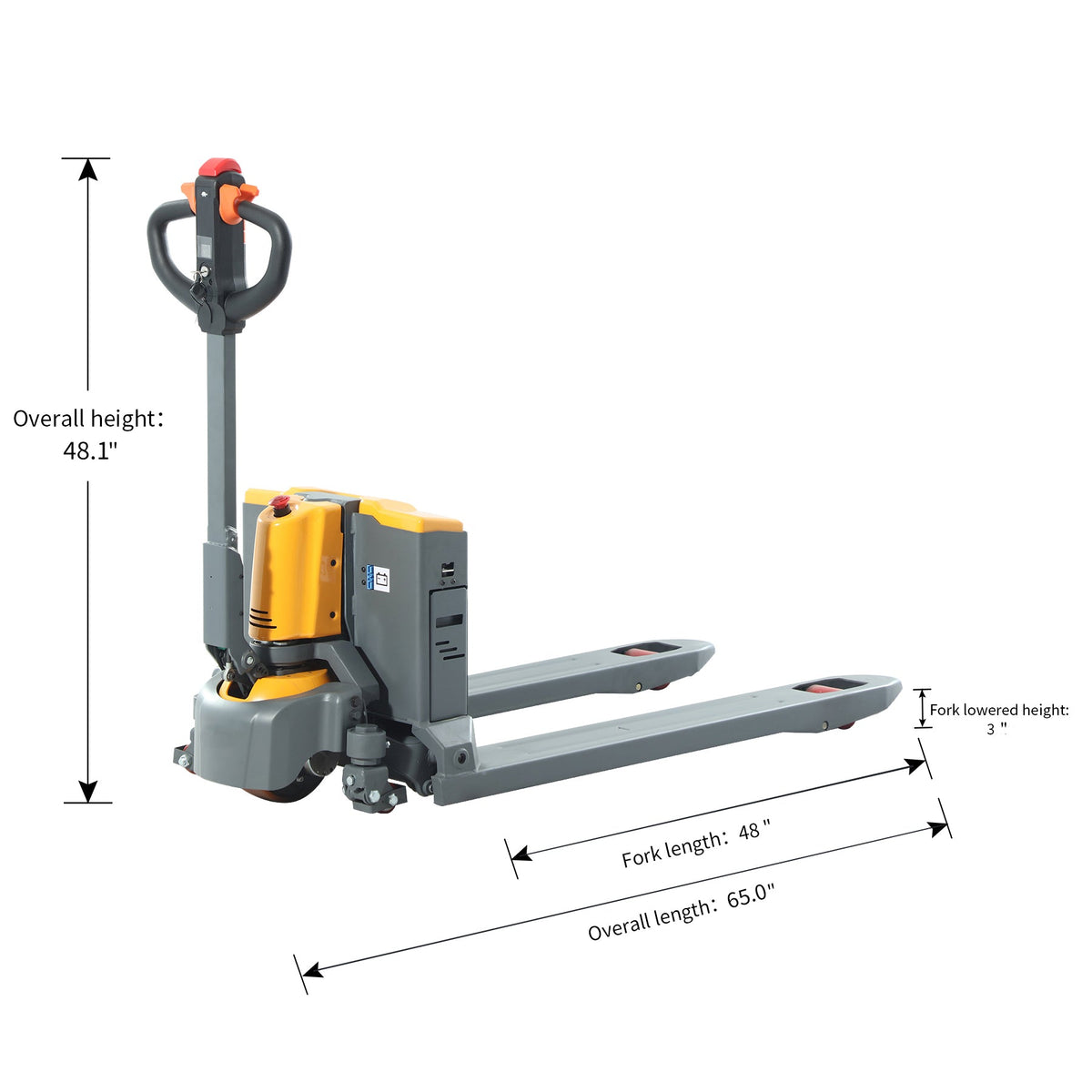

  • Electric pallet jack with lifting fork arms, overall length and height measurement labels
Xilin CBD15W-II-Li-II Smart Electric Pallet Jack – 3300lb

Xilin CBD15W-II-Li-II Smart Electric Pallet Jack – 3300lb

$1,800.00

Shop Pay Installments

Split your purchase into flexible installment payments with Shop Pay. Pay over time with no hidden fees.

How it works:

  • Choose Shop Pay at checkout
  • Select your preferred payment plan
  • Make your first payment today
  • Pay the rest over time with automatic payments

No interest. No hidden fees. Just flexible payments that work for you.

🚚 Shipping availability and rates vary by product, delivery option, and destination.

Carrier Terminal Pickup: Bring a suitable vehicle or trailer. The terminal will load the shipment, but the customer is responsible for unloading at the final destination.
⚠️ Warehouse Pickup – Please Contact Us First. Due to varying inventory across our warehouse locations, please contact us before placing your order to confirm stock availability at your preferred location.
Contact Us to Check Availability

🇺🇸 US-Based Business: We offer specialized support and flexible shipping and delivery options.

🏭
Expert SupportUS-Based Team
🚚
Shipping OptionsVary by Product & Destination
🛡️
1-Yr WarrantyFull Parts Support
🔬
Safety TestedLoad & Function Tested
📍
Pickup Options May Be AvailableContact us to confirm location & availability
Learn More >
Warranty

One-year limited warranty on the truck, excluding normal wear parts and damage caused by misuse. The battery carries six months of coverage, and spare parts carry three months of coverage. Warranty service and freight responsibility depend on when the issue is reported and the manufacturer’s inspection; contact ALLIZOE before arranging any return or repair.
Shipping

Free freight shipping to the contiguous 48 US states. Estimated delivery: 6–10 business days. Curbside delivery only — forklift or pallet jack required. Carrier will call 24–48 hrs before delivery. View full Shipping & Delivery details →

⚠️ Safety Warning

Trained operators only. Operate on firm, level surfaces and never exceed the rated 3,300 lb capacity or specified gradeability. Center loads, keep pedestrians clear, reduce speed in confined areas, and inspect brakes, controls, forks, wheels, battery, and emergency functions before each shift.

Choose the CBD15W-II-Li-II when you want compact powered handling plus a reinforced chassis, smart LCD controls, strong safety protections, and a quick-swap lithium power system.

Smart control handle with LCD display and magnetic key

Reinforced 0.16 in steel frame with structural gussets

Quick-swap lithium battery

Turtle-speed and upright-drive modes for confined areas

Emergency reverse, overload protection, and lift-limit protection

Armored drive wheel and large-plunger lift cylinder

Metal protective covers and dependable brake system

Quiet polyurethane wheels

Load capacity: 3,300 lb

Fork size: 48 in L × 27 in W × 2.8 in thick; inside fork width: 14.2 in

Lowered fork height: 3 in; maximum lift height: 7.3 in; lift travel: 4.3 in

Overall dimensions: 65 in L × 27 in W × 48.1 in H

Turning radius: 55.7 in; minimum aisle width: 87 in

Travel speed: 2.8 mph loaded / 3.0 mph unloaded

Battery: 24V / 20Ah lithium; external 24V / 10A charger

Approximate charge time: 3.5 hours; battery swap: approximately 10 seconds

Gradeability: up to 5% when loaded

Service weight: 290 lb

The Xilin CBD15W-II-Li-II is a reinforced 3,300 lb lithium electric pallet truck designed for demanding warehouse and logistics work. Its smart LCD handle, magnetic key, quick-swap battery, reinforced steel frame, and comprehensive safety controls support dependable daily operation in compact spaces.

One-year limited warranty on the truck, excluding normal wear parts and damage caused by misuse. The battery carries six months of coverage, and spare parts carry three months of coverage. Warranty service and freight responsibility depend on when the issue is reported and the manufacturer’s inspection; contact ALLIZOE before arranging any return or repair.

Warehouses, distribution centers, loading areas, manufacturing facilities, retail stockrooms, and operations that require a reinforced compact electric pallet truck for frequent use.

Product price and freight are separate. Freight is quoted based on the delivery ZIP code, destination type, and required delivery service. Commercial delivery, residential delivery, liftgate service, limited-access delivery, and pickup at a carrier terminal may have different costs. Inventory and freight must be confirmed before shipment.

Key Benefits

Powered Handling

Electric travel and lift support efficient daily pallet movement.

Reinforced Frame

Steel construction and structural gussets support frequent use.

Smart Controls

LCD handle and magnetic key provide clear operating control.

Quick-Swap Battery

24V lithium battery can be exchanged in approximately 10 seconds.

Comprehensive Safety

Emergency reverse, overload, lift-limit, and braking protections are integrated.

Product Highlights

Smart Multi-Function Handle

Smart Multi-Function Handle

Lift, lower, drive, and monitor battery status from an ergonomic control handle with magnetic key access.

Quick-Swap Lithium Battery

Quick-Swap Lithium Battery

24V / 20Ah lithium battery charges quickly and can be swapped to help reduce downtime.

Reinforced Steel Frame

Reinforced Steel Frame

Steel frame and fork gussets support durability and stable pallet handling under rated loads.

Compact Indoor Maneuvering

Compact Indoor Maneuvering

55.7 inch turning radius and upright/turtle modes support precise low-speed control in tight areas.

Dimensions & Product Drawing

Official Xilin specification sheet with detailed parameter tables and dimensional drawings. Click the full-page preview or download the original PDF to view the document at full size.

Xilin cbd15w ii li ii electric pallet jacks official PDF with specification tables and dimensional drawings
Download Product Drawing (PDF)

Product Manual

Download the complete product manual and installation guide.
Download Manual

Complete Your Shop Setup

Everything a professional tire shop needs
Tire Service Packages Collection Banner

Tire Service Packages

2-Post Lifts Category Image

2-Post Lift

4-Post Lifts Category Image

4-Post Lifts

Tire Changer

Tire Changer

Wheel Balancer

Wheel Balancer

Shop Accessories Collection Banner

Shop Accessories

Frequently Asked Questions

  • 3,300 lb.
  • Approximately 3.5 hours with the specified external charger.
  • Yes. Turtle-speed and upright-drive modes support precise maneuvering.
  • Up to 5% under the stated conditions.
  • No. Freight is quoted separately based on delivery ZIP code, destination type, and required delivery service.
