Xilin CBD15-NEW Electric Pallet Jack – 3300lb, 24V Lithium

$1,410.00
Skip to product information
Electric pallet jack with yellow forks, black mast, and operator handle, front view
1/9

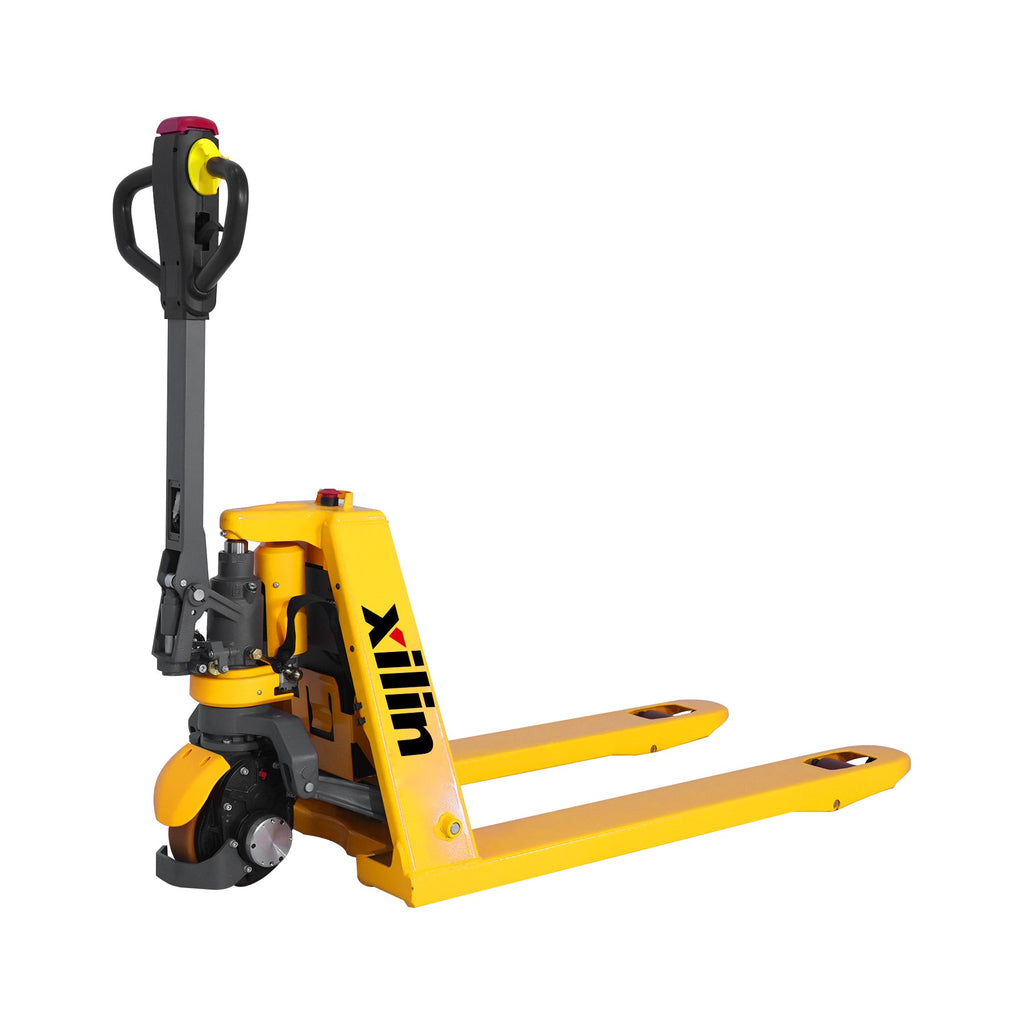

  • Electric pallet jack with yellow forks, black mast, and operator handle, front view

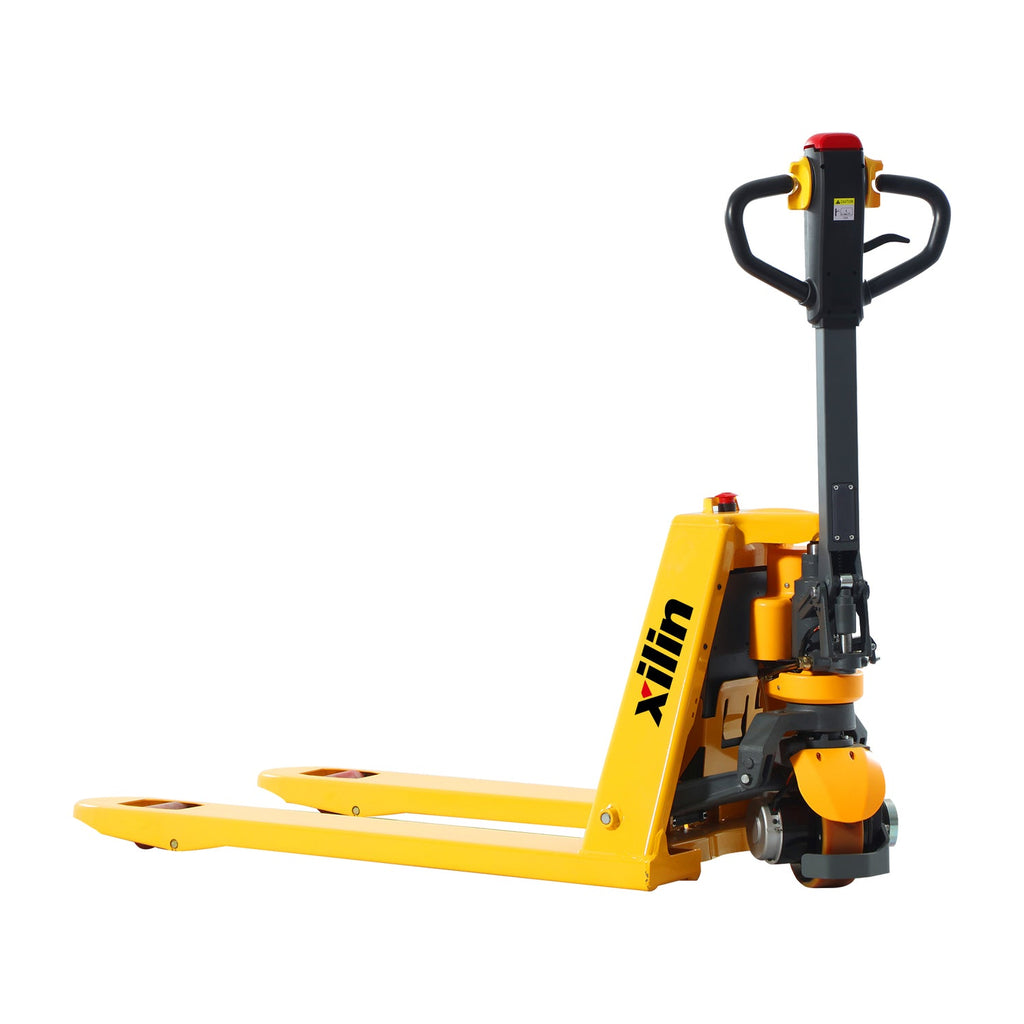

  • Electric pallet jack with yellow body and black control mast, side view

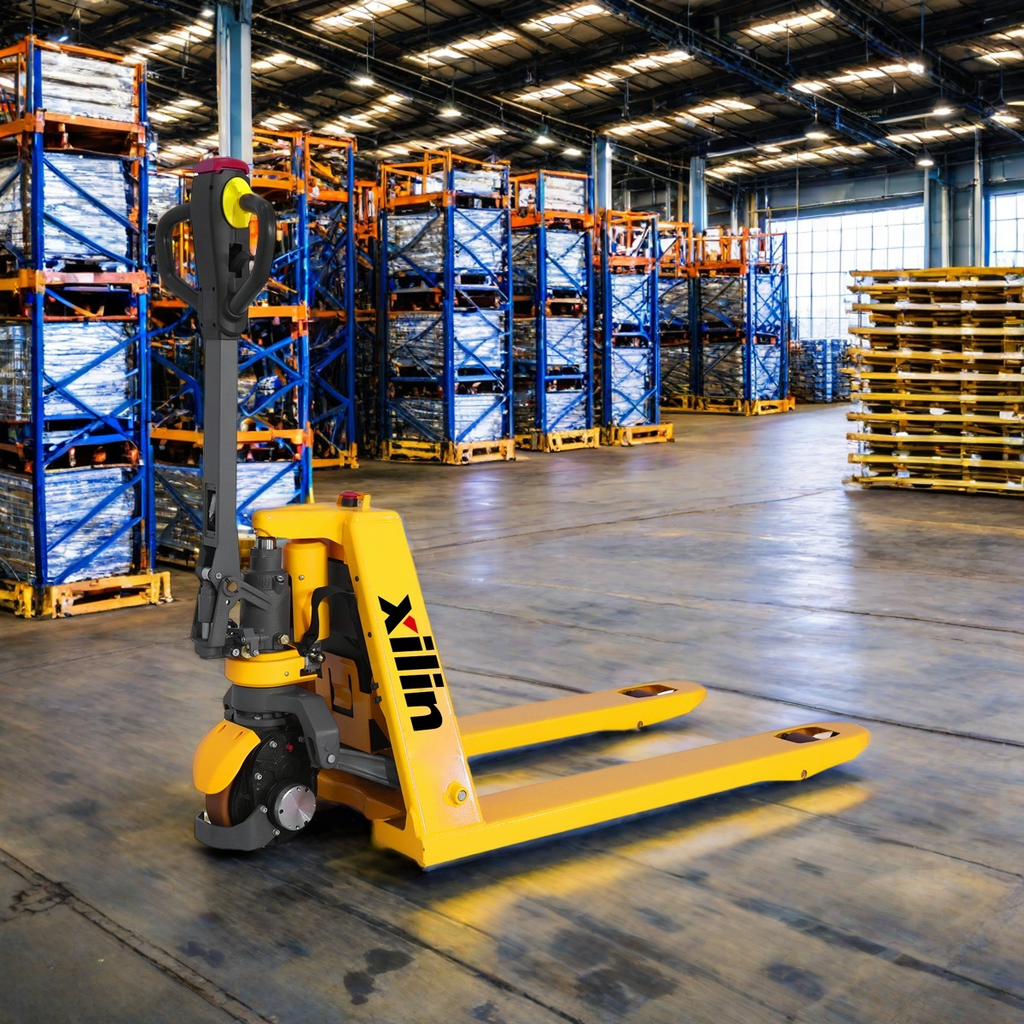

  • Electric pallet jack in warehouse with yellow forks and black mast near racking

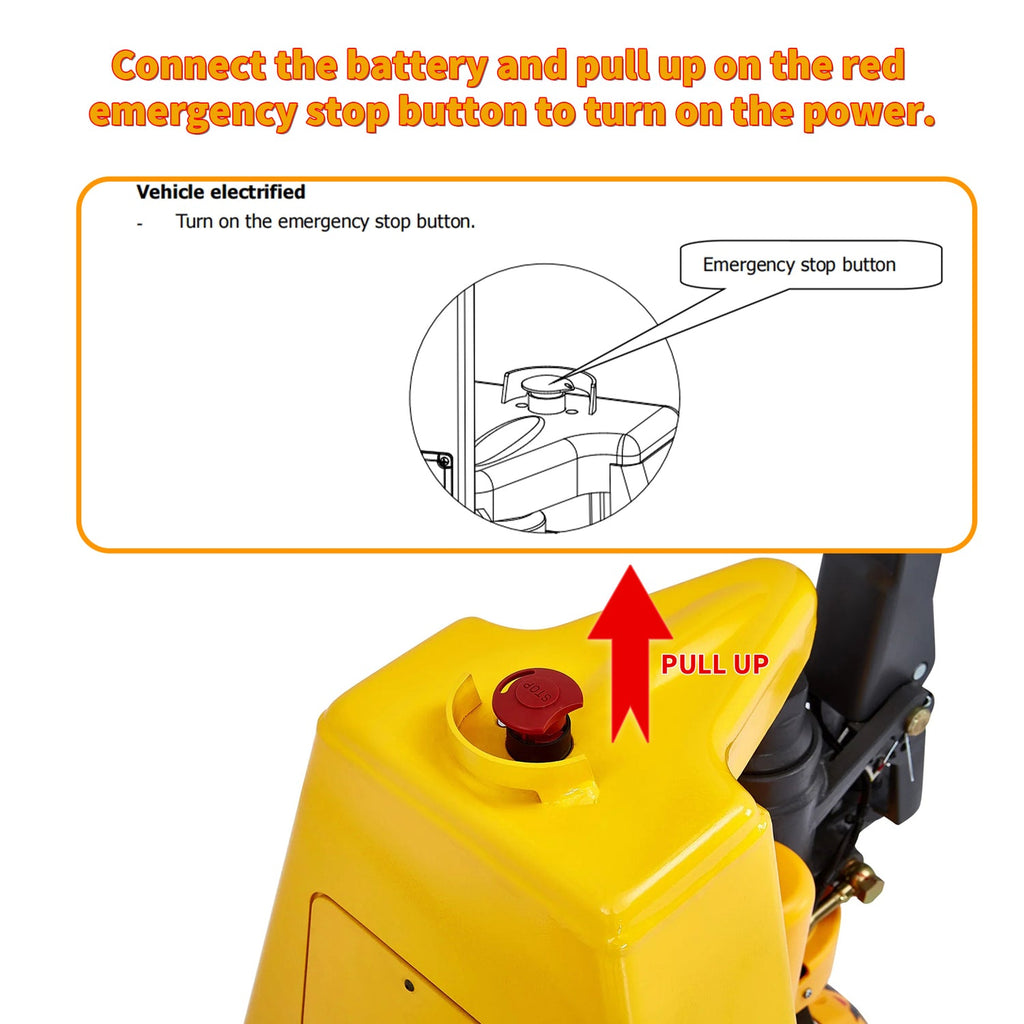

  • Electric pallet jack emergency stop red button on yellow battery housing

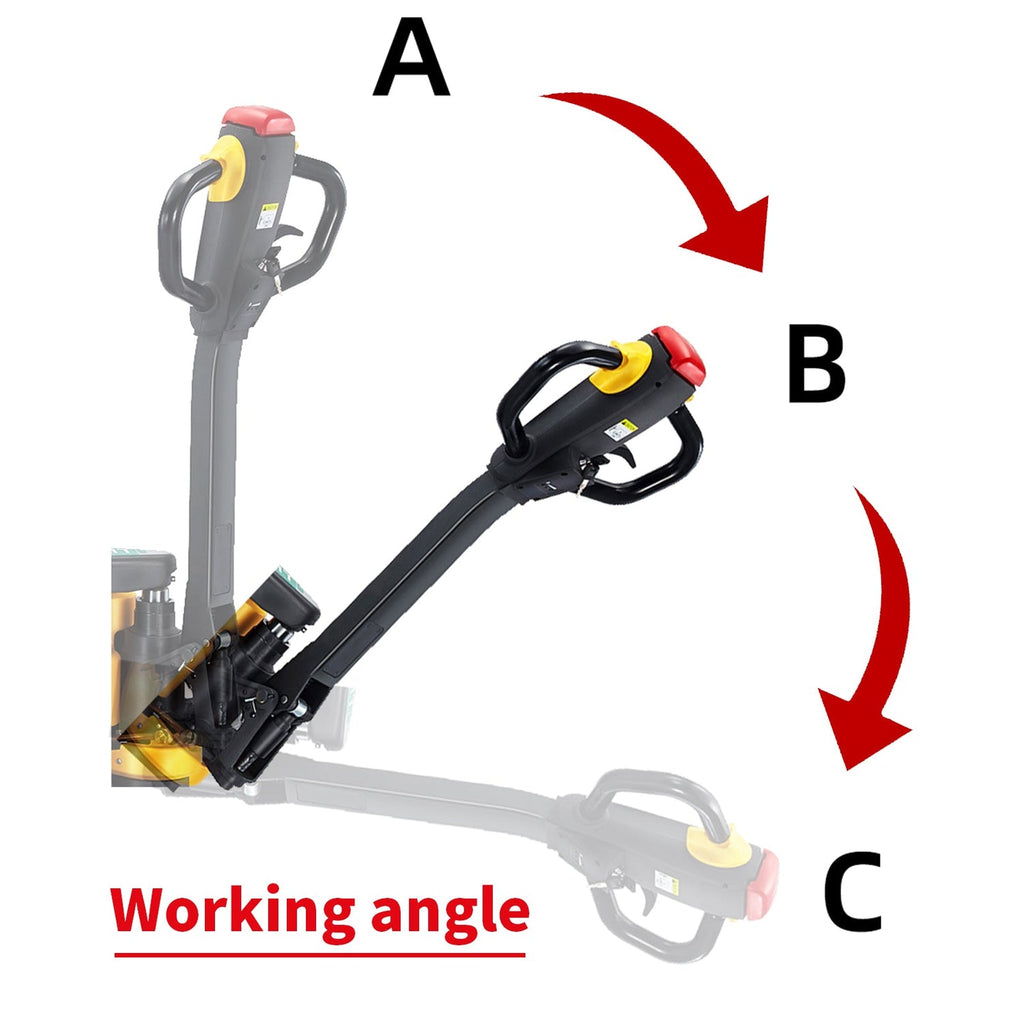

  • Electric pallet jack working-angle diagram with arrows showing tilt positions

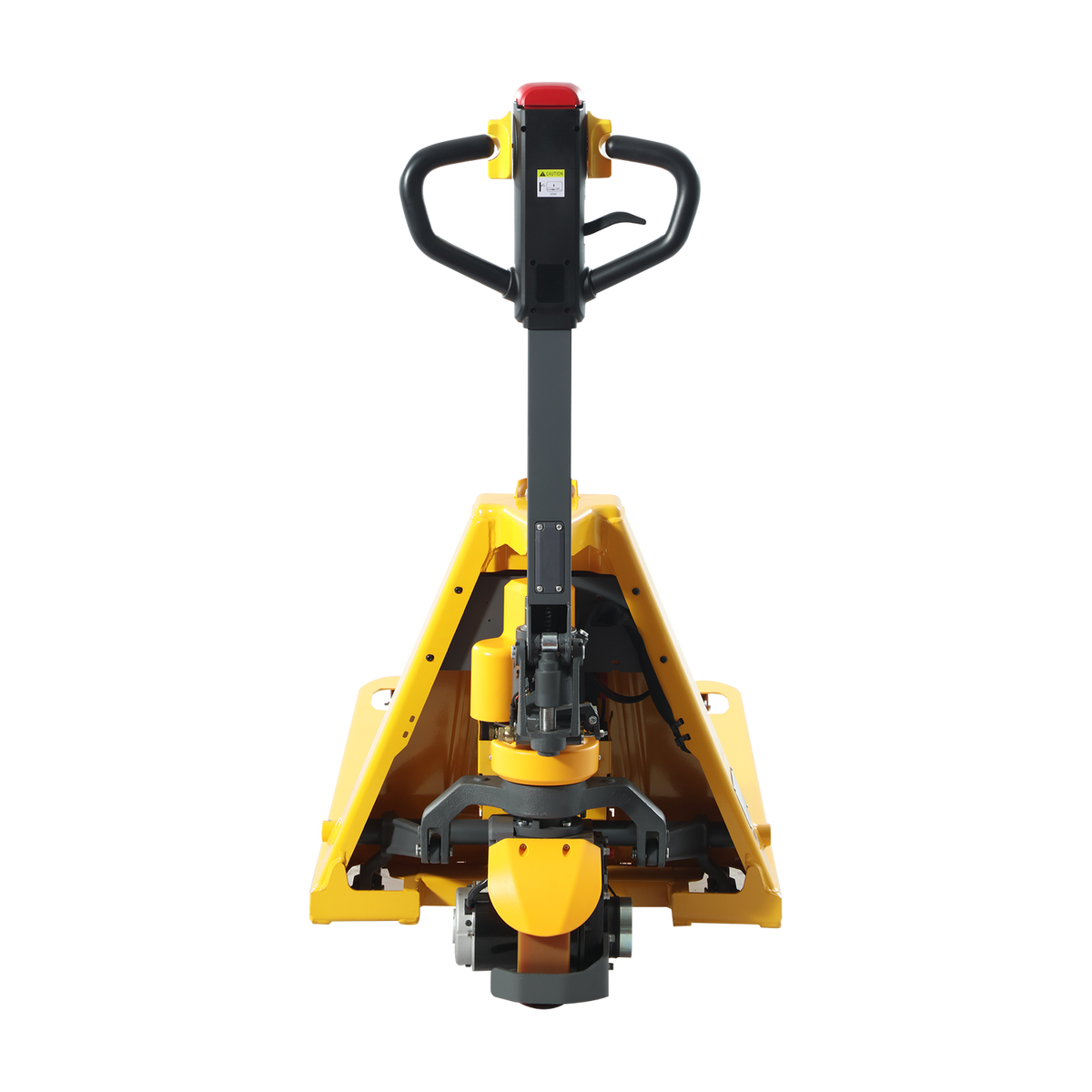

  • Electric pallet jack front view with yellow frame, black mast, and red top button

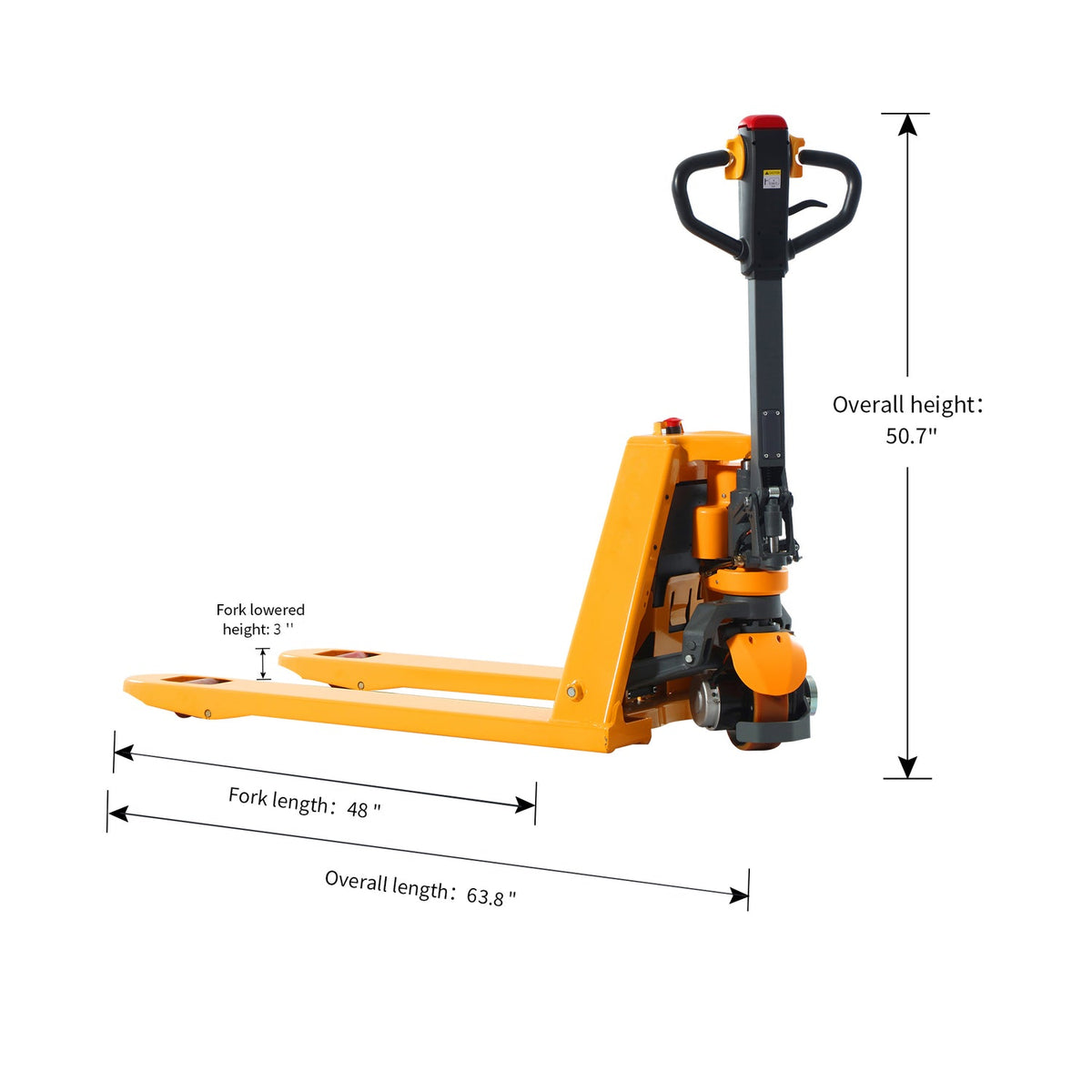

  • Electric pallet jack dimension diagram with fork length and overall height callouts

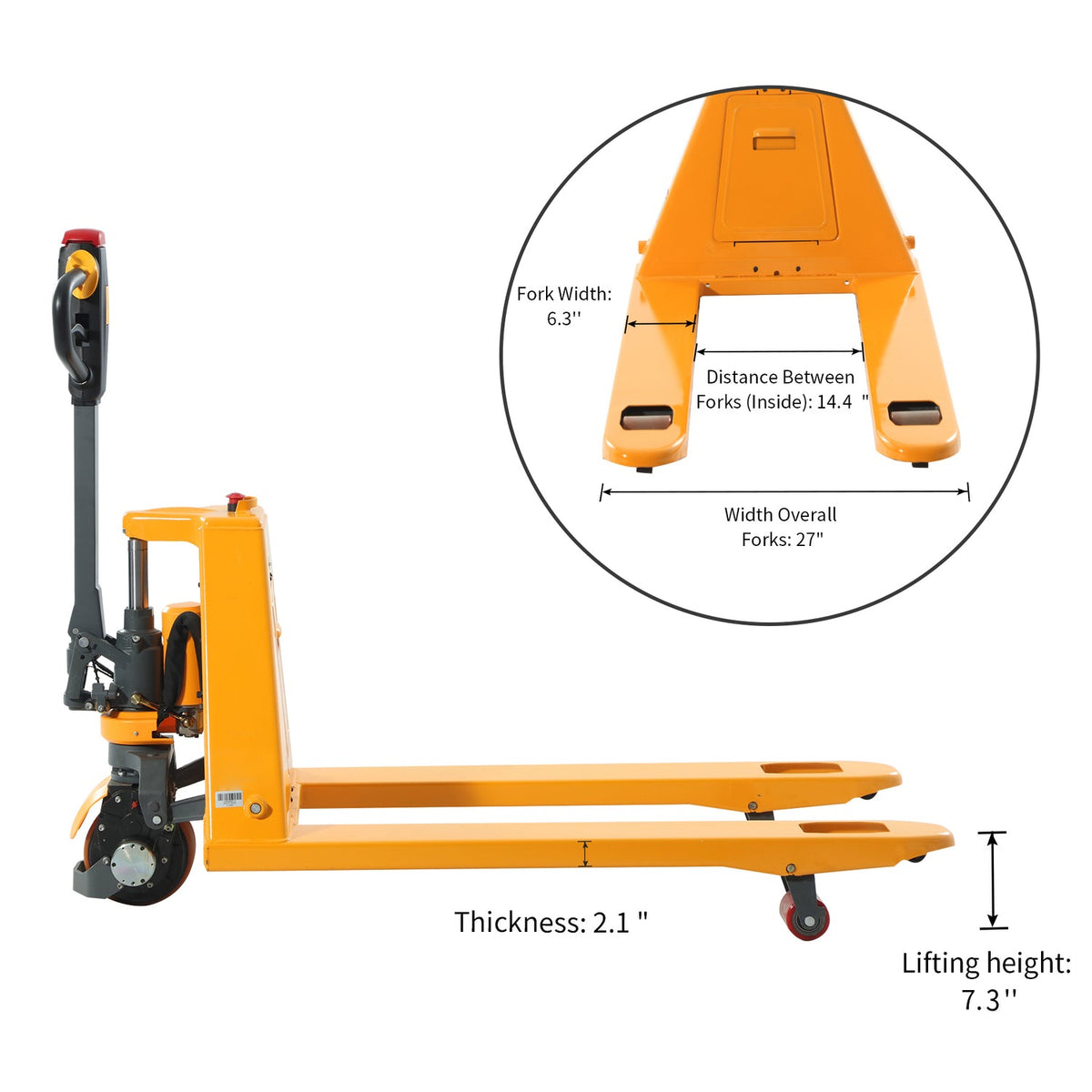

  • Electric pallet jack top-view diagram with fork-width and lifting-height labels

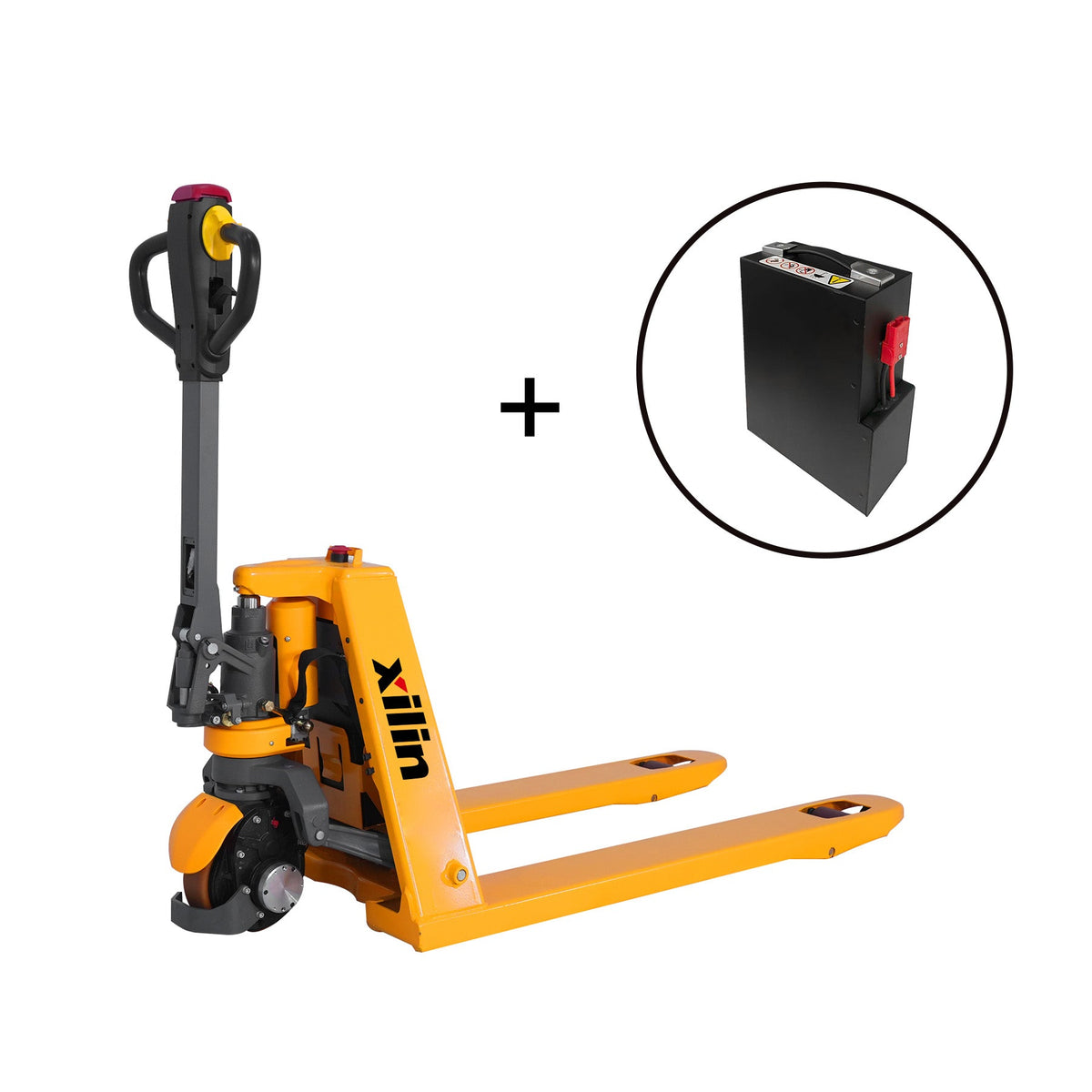

  • Orange electric pallet jack with black handle and forks, 3300 lb capacity
Xilin CBD15-NEW Electric Pallet Jack – 3300lb, 24V Lithium

Xilin CBD15-NEW Electric Pallet Jack – 3300lb, 24V Lithium

$1,410.00

Shop Pay Installments

Split your purchase into flexible installment payments with Shop Pay. Pay over time with no hidden fees.

How it works:

  • Choose Shop Pay at checkout
  • Select your preferred payment plan
  • Make your first payment today
  • Pay the rest over time with automatic payments

No interest. No hidden fees. Just flexible payments that work for you.

🚚 Shipping availability and rates vary by product, delivery option, and destination.

Carrier Terminal Pickup: Bring a suitable vehicle or trailer. The terminal will load the shipment, but the customer is responsible for unloading at the final destination.
⚠️ Warehouse Pickup – Please Contact Us First. Due to varying inventory across our warehouse locations, please contact us before placing your order to confirm stock availability at your preferred location.
Contact Us to Check Availability

🇺🇸 US-Based Business: We offer specialized support and flexible shipping and delivery options.

🏭
Expert SupportUS-Based Team
🚚
Shipping OptionsVary by Product & Destination
🛡️
1-Yr WarrantyFull Parts Support
🔬
Safety TestedLoad & Function Tested
📍
Pickup Options May Be AvailableContact us to confirm location & availability
Learn More >
Warranty

One-year limited warranty on the truck, excluding normal wear parts and damage caused by misuse. The battery carries six months of coverage, and spare parts carry three months of coverage. Warranty service and freight responsibility depend on when the issue is reported and the manufacturer’s inspection; contact ALLIZOE before arranging any return or repair.
Shipping

Free freight shipping to the contiguous 48 US states. Estimated delivery: 6–10 business days. Curbside delivery only — forklift or pallet jack required. Carrier will call 24–48 hrs before delivery. View full Shipping & Delivery details →

⚠️ Safety Warning

Trained operators only. Operate on firm, level surfaces and never exceed the rated 3,300 lb capacity. Center loads, maintain clearance from pedestrians and dock edges, use low speed in confined areas, and inspect brakes, controls, forks, wheels, battery, and emergency functions before each shift.

Choose the CBD15-NEW for compact powered handling with a 3,300 lb capacity, easy battery swapping, simple service access, and safety controls suited to everyday indoor logistics.

Electric travel and electric lift

Quick-swap lithium battery

Turtle-speed mode for precise maneuvering

Multi-function ergonomic control handle

Emergency stop and reverse belly switch

Overload protection and reinforced rocker-arm construction

Open chassis for easier inspection and service

Quiet, durable polyurethane wheels

Load capacity: 3,300 lb

Fork size: 48 in L × 27 in W × 2.1 in thick; inside fork width: 14.4 in

Lowered fork height: 3 in; maximum lift height: 7.3 in; lift travel: 4.3 in

Overall dimensions: 63.8 in L × 27 in W × 50.7 in H

Turning radius: 57.1 in; minimum aisle width: 88.6 in

Travel speed: 2.7 mph loaded / 2.8 mph unloaded

Battery: 24V / 20Ah lithium; external 24V / 6A charger

Approximate charge time: 3.5 hours; battery swap: approximately 10 seconds

Service weight: 270 lb

The Xilin CBD15-NEW is a compact 3,300 lb lithium electric pallet truck built for efficient horizontal transport in warehouses, stockrooms, loading areas, and delivery operations. Electric drive and lift, a quick-swap battery, turtle mode, and an open chassis make it practical for daily use and service.

One-year limited warranty on the truck, excluding normal wear parts and damage caused by misuse. The battery carries six months of coverage, and spare parts carry three months of coverage. Warranty service and freight responsibility depend on when the issue is reported and the manufacturer’s inspection; contact ALLIZOE before arranging any return or repair.

Warehouses, stockrooms, retail backrooms, loading areas, light manufacturing, and delivery operations that need compact powered pallet movement.

Product price and freight are separate. Freight is quoted based on the delivery ZIP code, destination type, and required delivery service. Commercial delivery, residential delivery, liftgate service, limited-access delivery, and pickup at a carrier terminal may have different costs. Inventory and freight must be confirmed before shipment.

Key Benefits

Powered Travel & Lift

Electric travel and lift reduce manual effort.

3,300 lb Capacity

Compact powered handling for common pallet loads.

Quick-Swap Battery

24V lithium battery can be exchanged in approximately 10 seconds.

Precise Maneuvering

Turtle-speed mode supports control in confined areas.

Operator Protection

Emergency stop, reverse switch, and overload protection are built in.

Product Highlights

Electric Lift & Drive

Electric Lift & Drive

Electric travel and lifting reduce manual pushing and pumping for everyday pallet movement.

24V / 20Ah Lithium Battery

24V / 20Ah Lithium Battery

Lithium battery charges in about 3.5 hours and supports quick battery swapping to reduce downtime.

Compact Turning Radius

Compact Turning Radius

A compact 57.1 inch turning radius helps the pallet jack work in trucks, containers, and narrow aisles.

Emergency Stop & Safety Controls

Emergency Stop & Safety Controls

Emergency stop and reverse belly switch help improve operator safety during daily use.

Dimensions & Product Drawing

Official Xilin specification sheet with detailed parameter tables and dimensional drawings. Click the full-page preview or download the original PDF to view the document at full size.

Xilin cbd15 new electric pallet jacks official PDF with specification tables and dimensional drawings
Download Product Drawing (PDF)

Product Manual

Download the complete product manual and installation guide.
Download Manual

Complete Your Shop Setup

Everything a professional tire shop needs
Tire Service Packages Collection Banner

Tire Service Packages

2-Post Lifts Category Image

2-Post Lift

4-Post Lifts Category Image

4-Post Lifts

Tire Changer

Tire Changer

Wheel Balancer

Wheel Balancer

Shop Accessories Collection Banner

Shop Accessories

Frequently Asked Questions

  • 3,300 lb.
  • Approximately 3.5 hours with the specified external charger.
  • Yes. It is designed for a quick swap in approximately 10 seconds.
  • Yes. Both travel and lift are electric.
  • No. Freight is quoted separately based on delivery ZIP code, destination type, and required delivery service.
