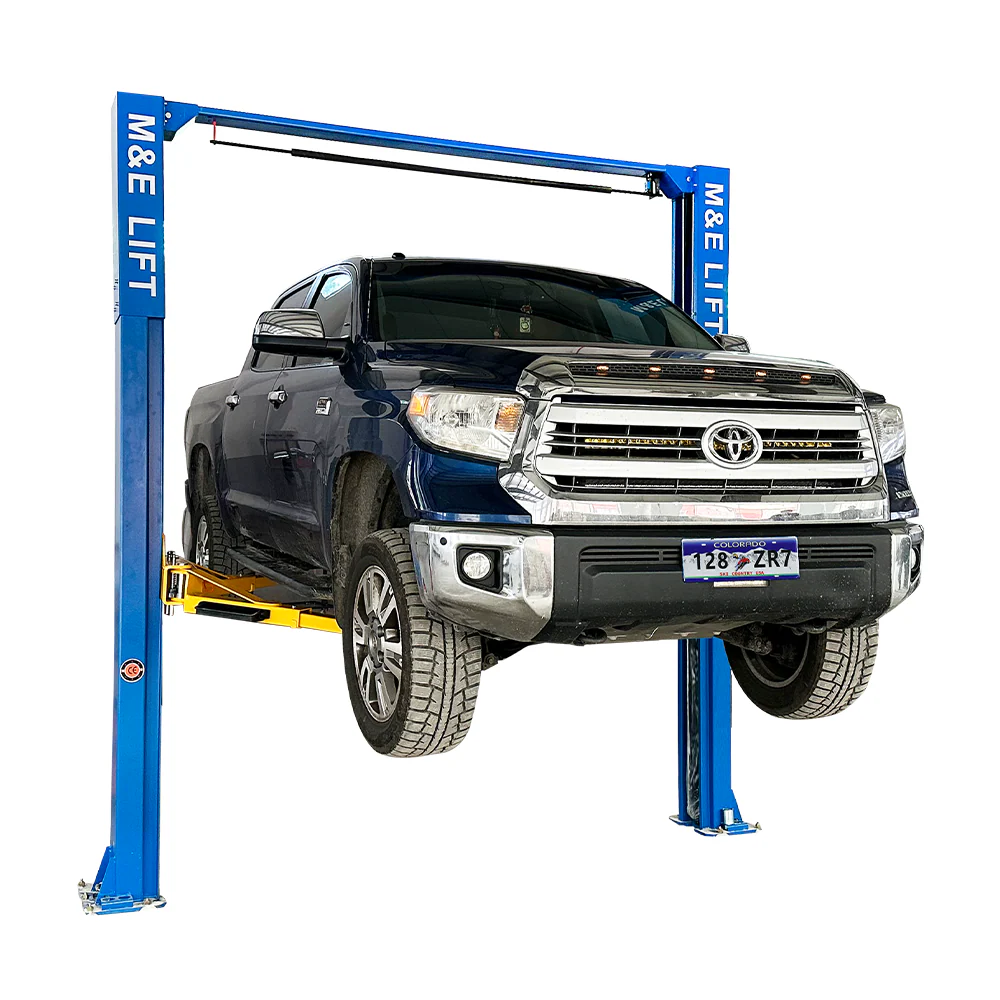

Two-post car lift with a blue frame holding a dark pickup truck

M&E ME-LM110S 11,000 lb 2-Post Lift - Super Quality Premium Construction

Warehouse Pickup
$2,297.00 $3,299.00
Skip to product information
Two-post car lift with a blue frame holding a dark pickup truck
1/20
  • Two-post car lift with a blue frame holding a dark pickup truck

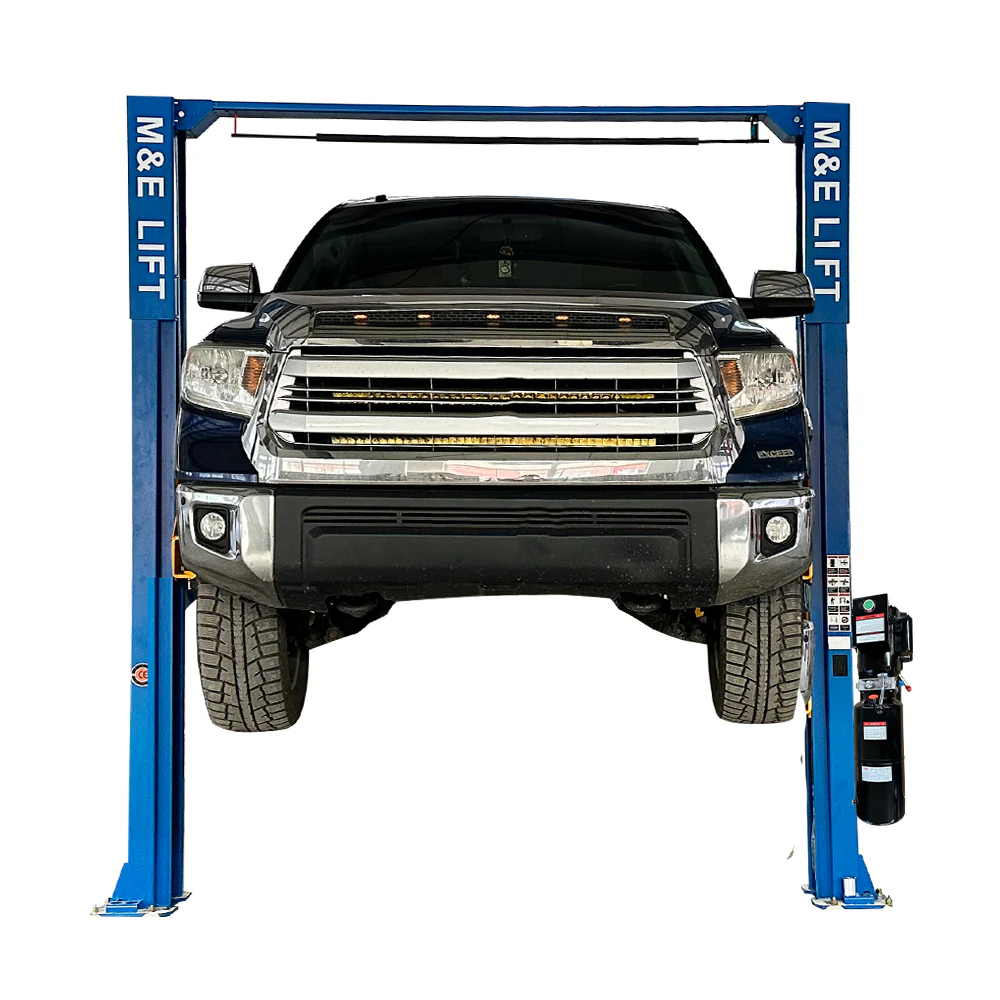

  • Two-post car lift with a blue frame, holding a dark pickup truck

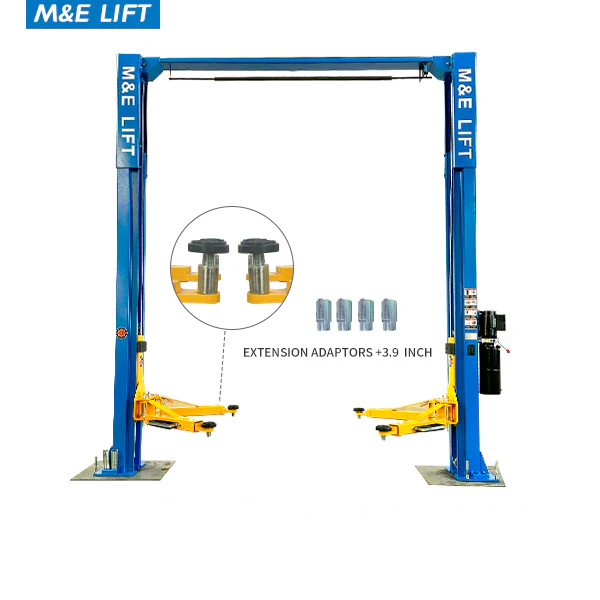

  • 1. 11,000 lb super quality 2-post lift - LM110S premium construction

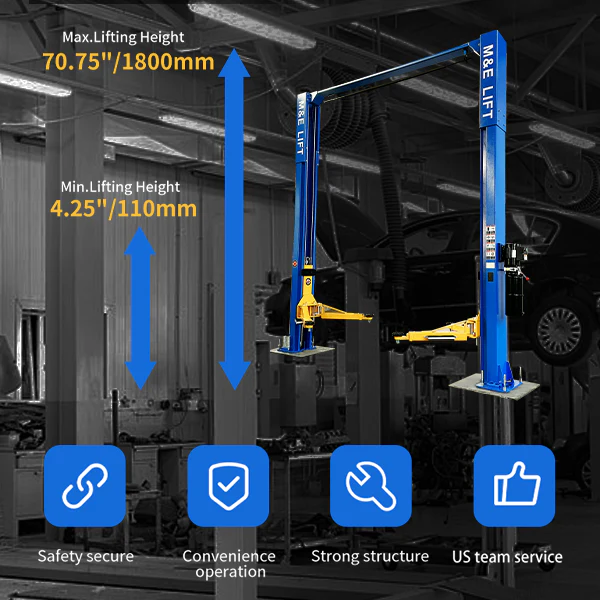

  • Two-post car lift showing min and max lifting height arrows

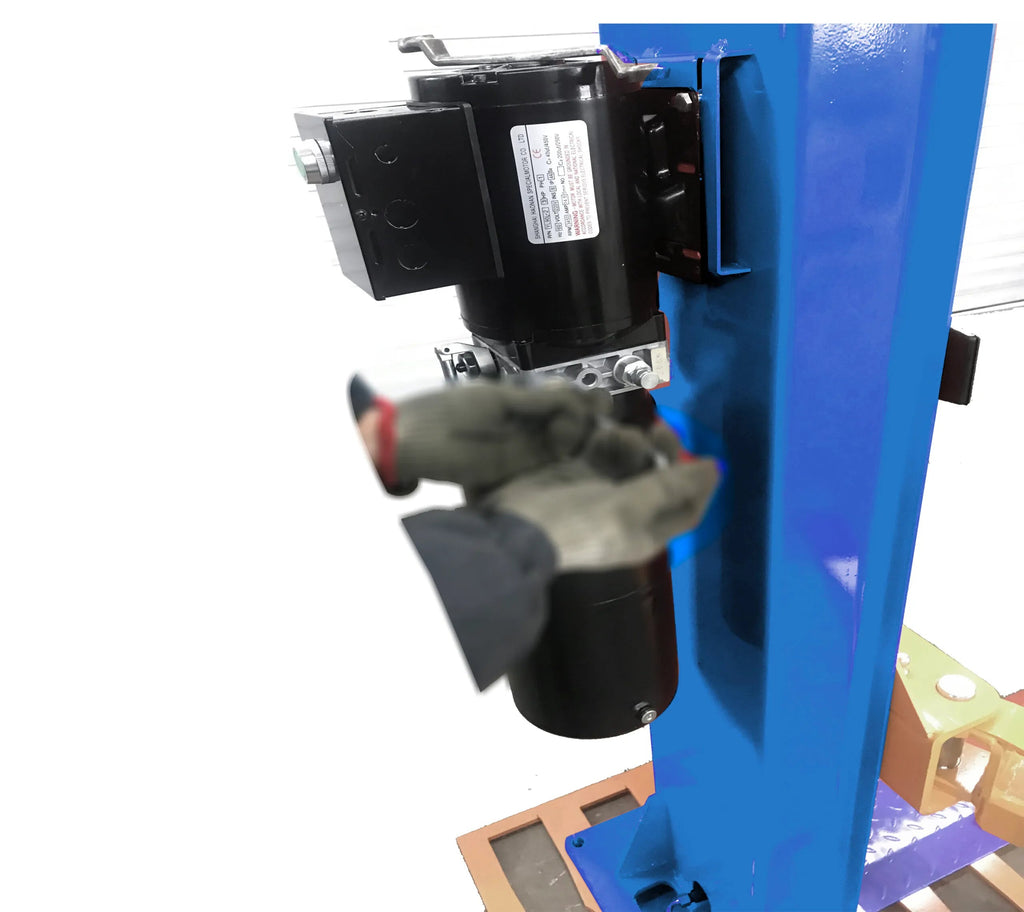

  • Two-post car lift pump and hydraulic components on the blue column
  • 5. 11,000 lb capacity premium lift for commercial facilities

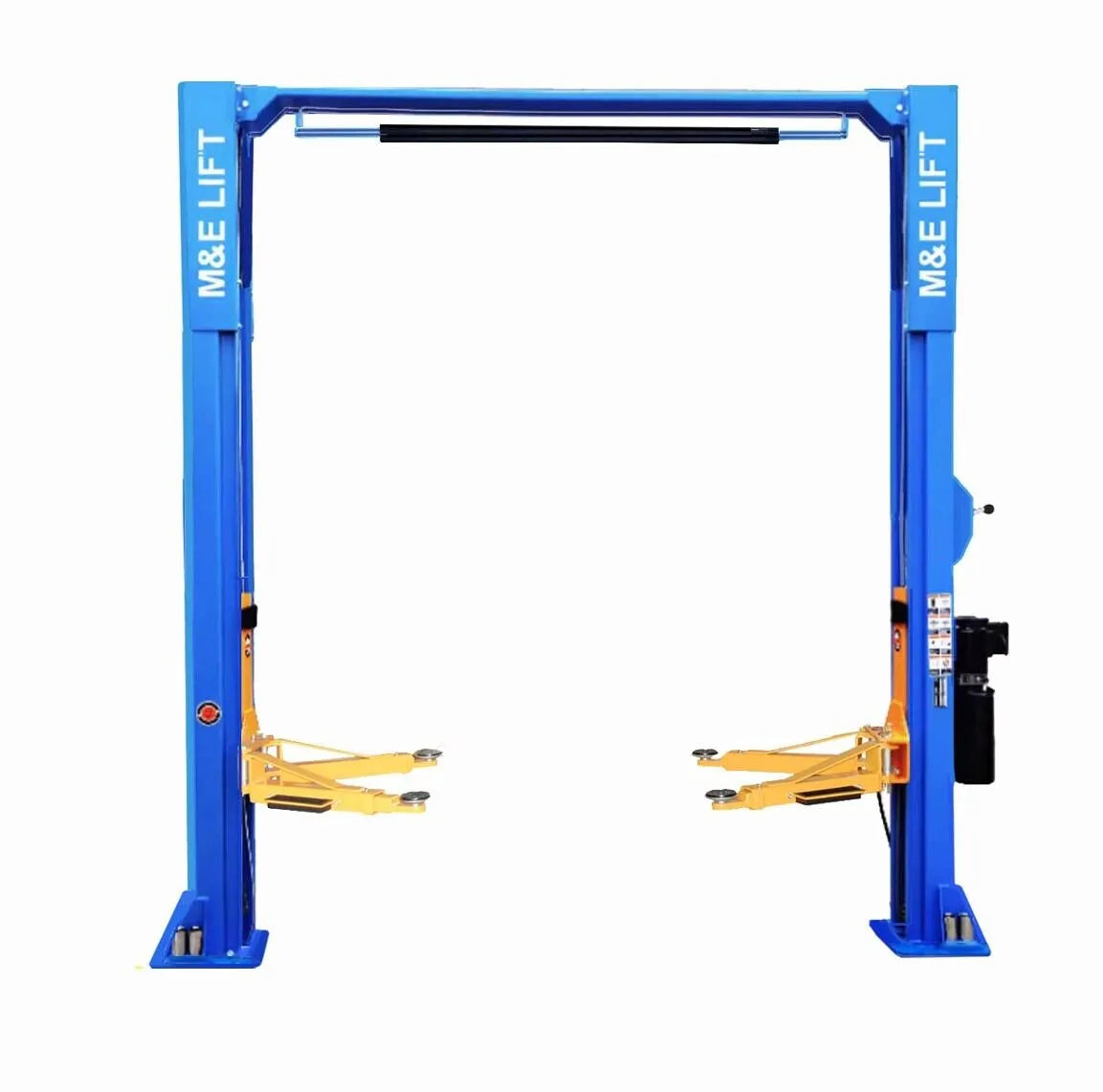

  • Two-post car lift with blue uprights and yellow platforms

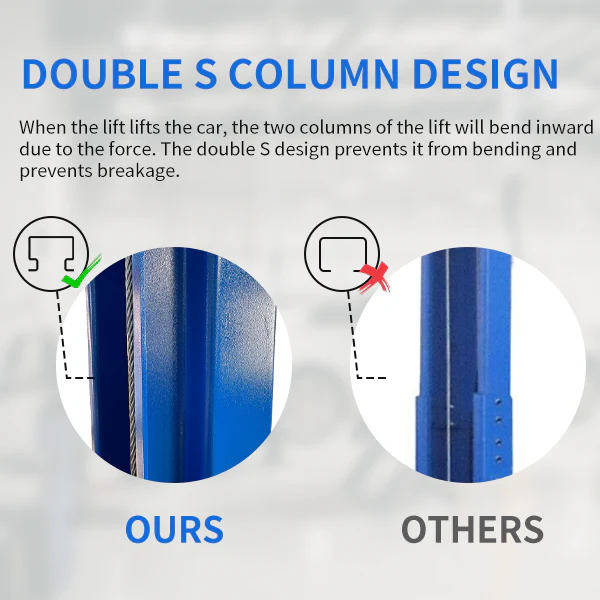

  • Two-post car lift column reinforcement detail with blue steel plates

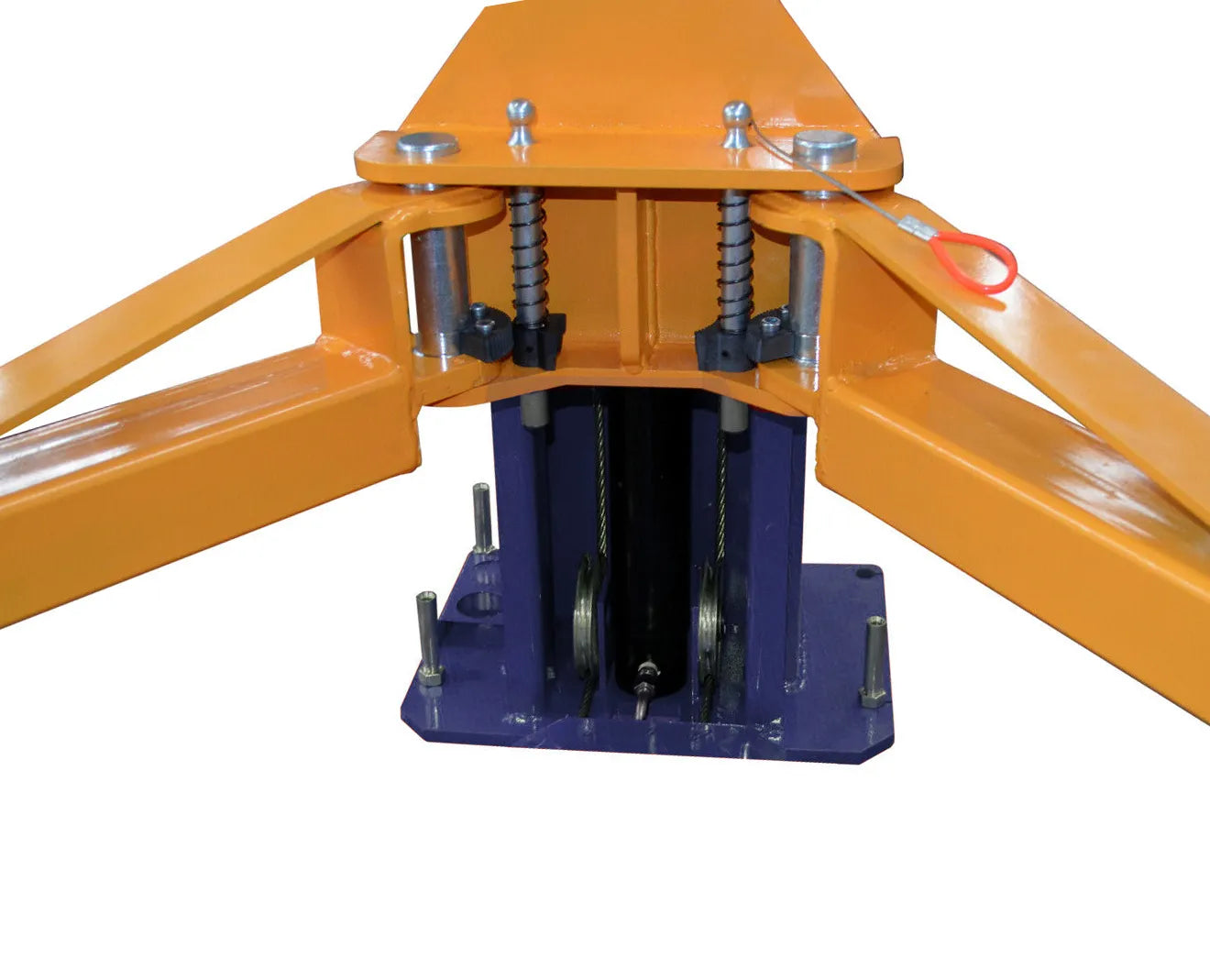

  • Two-post car lift scissor lifting mechanism with yellow arms

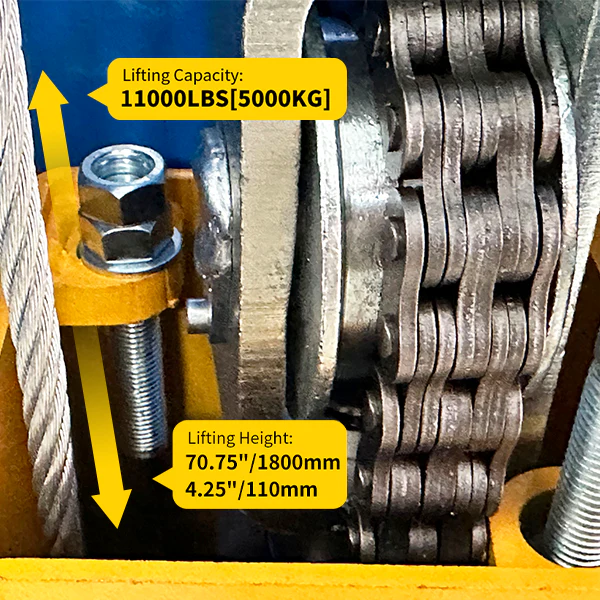

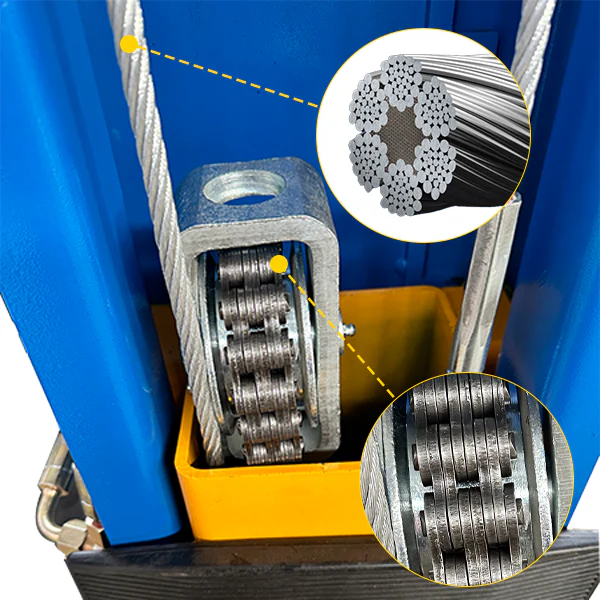

  • Two-post car lift cable and pulley assembly on the blue column

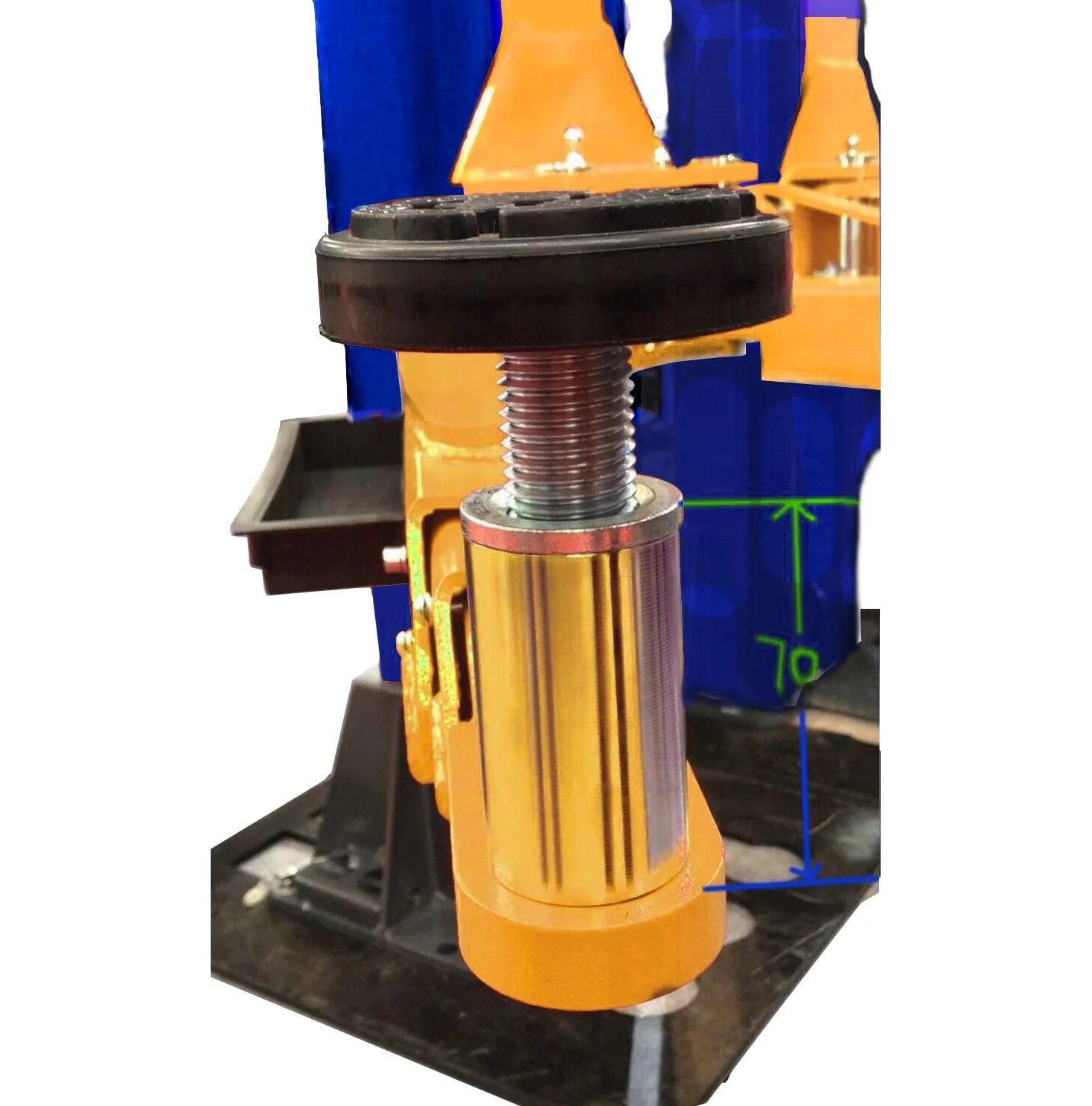

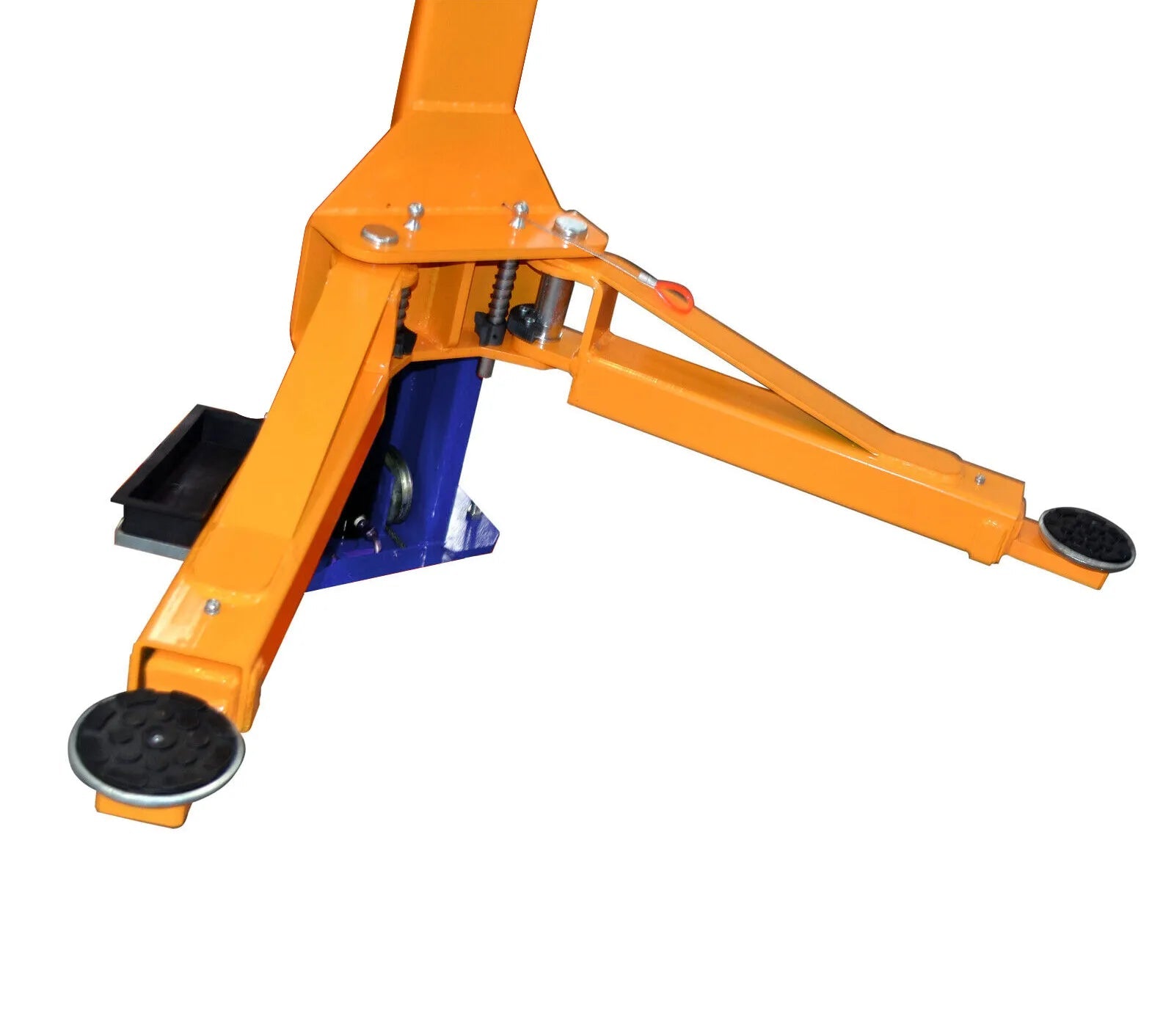

  • Two-post car lift yellow front arm with black rubber pad
  • Two-post car lift used in workshop and service environments
  • 12. 11,000 lb premium lift raising truck in commercial shop

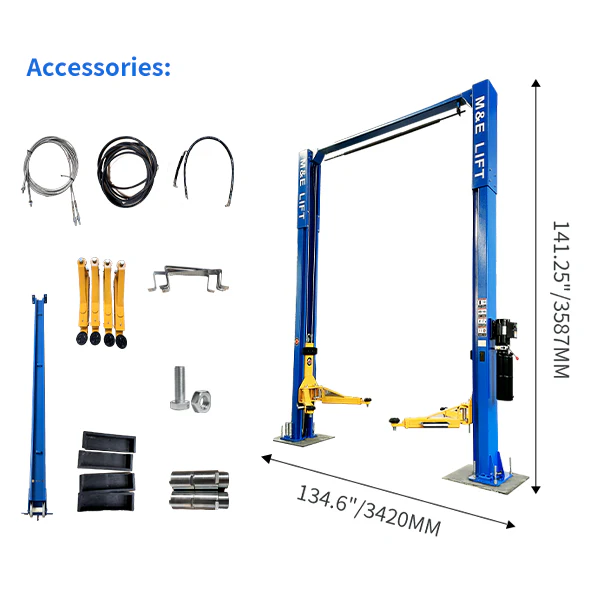

  • Two-post vehicle lift with blue columns and yellow lifting arms, accessories kit

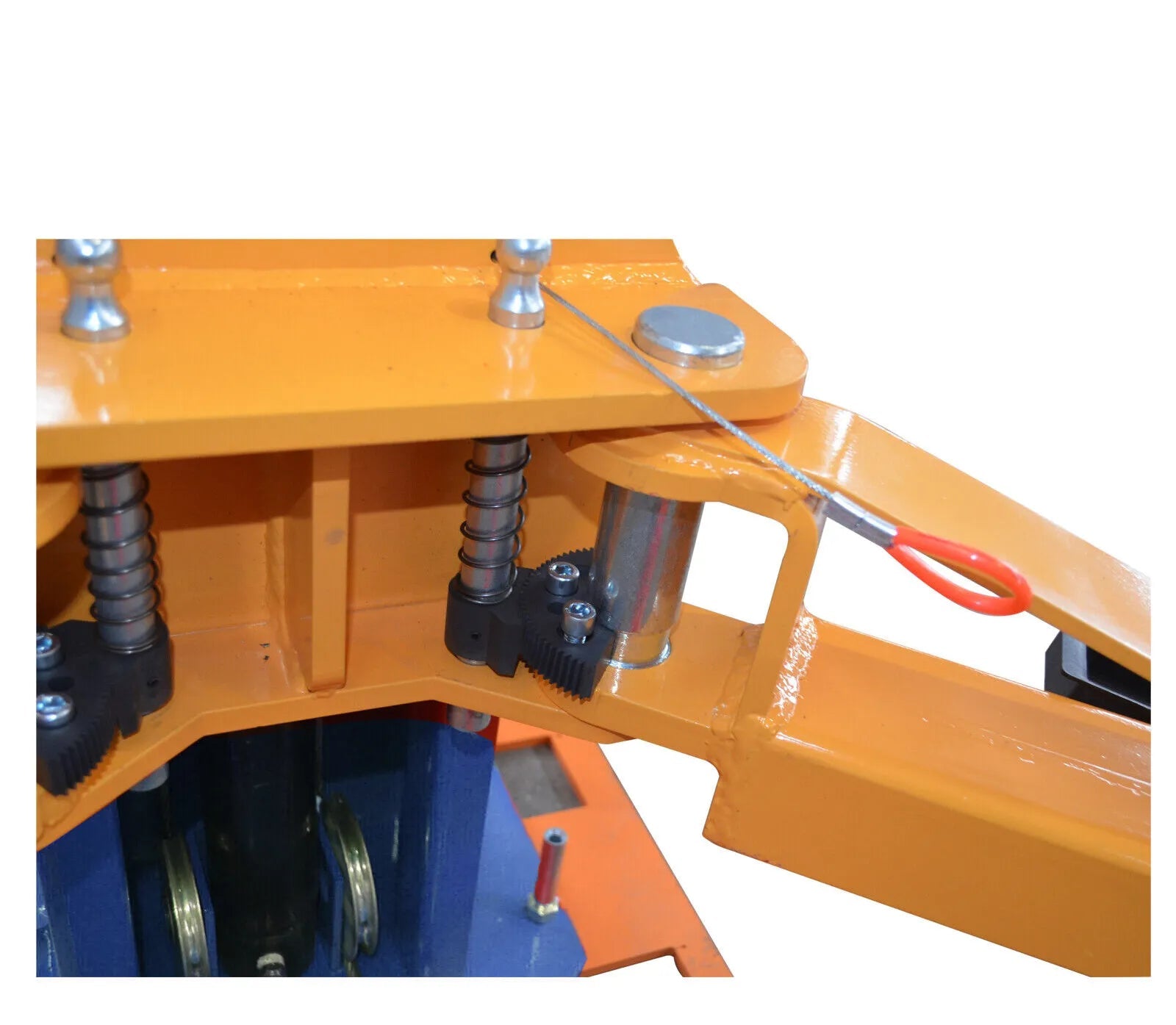

  • Yellow lift beam with hydraulic cylinder and hoses, close-up of lifting mechanism

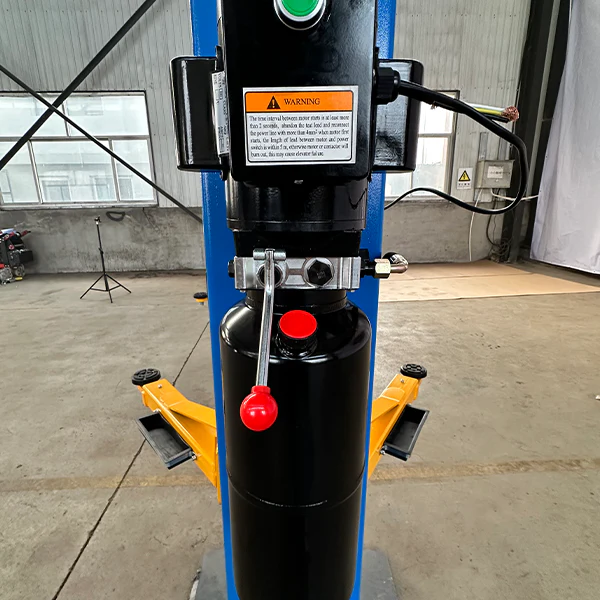

  • Two-post lift control column with black hydraulic unit and red emergency stop button

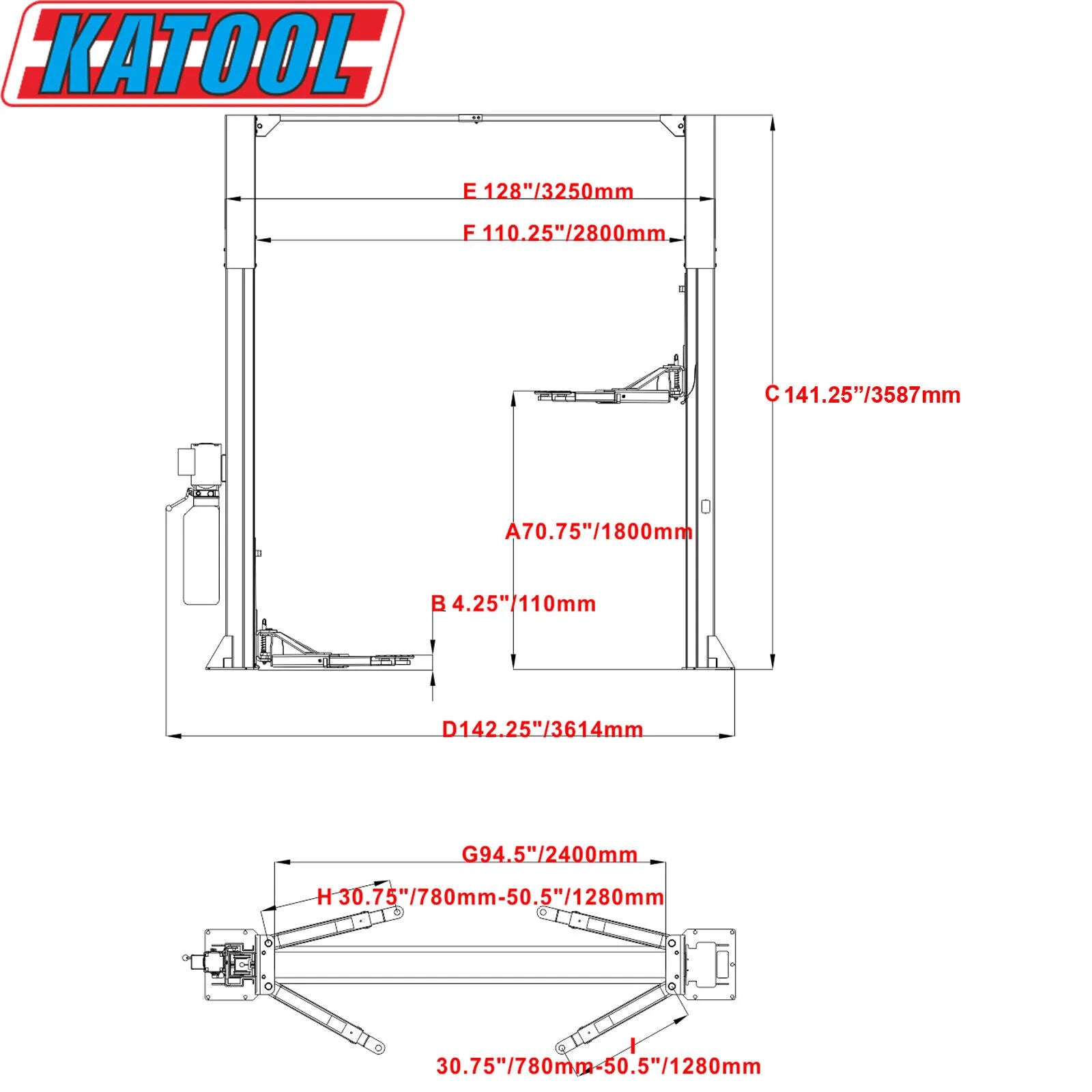

  • Vehicle lift dimension diagram with KATOOL label and measurement lines

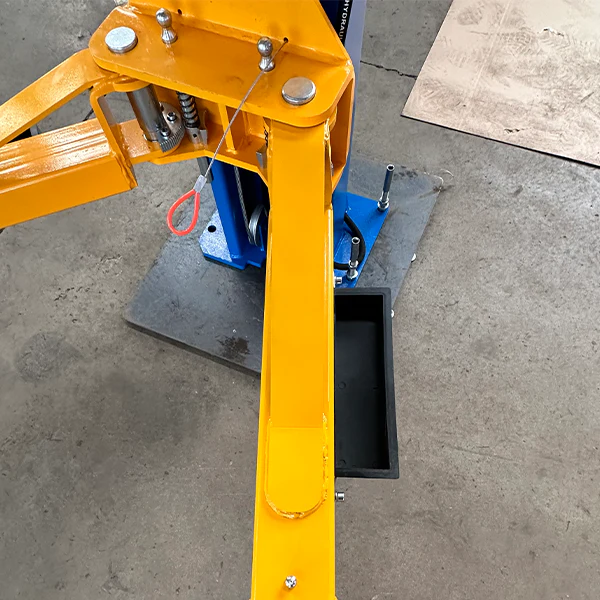

  • Yellow lift support arm with black base tray and adjustment hardware

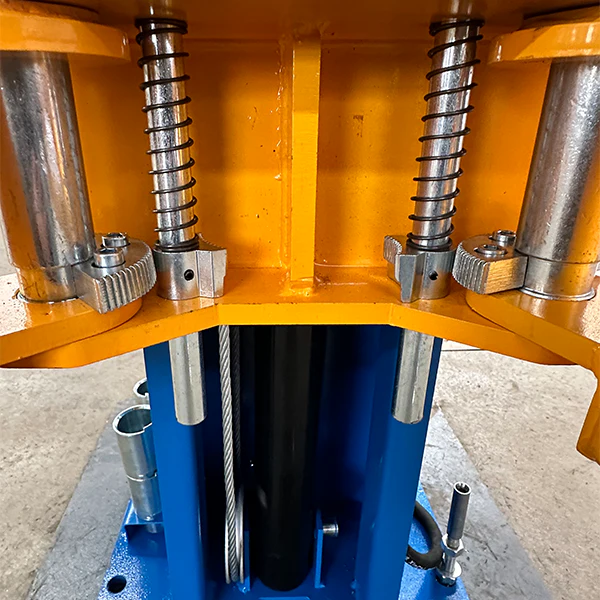

  • 18. 11,000 lb super quality lift for professional facilities
  • M&E ME-LM110S 11,000 lb 2-Post Lift - Super Quality Premium Construction
M&E ME-LM110S 11,000 lb 2-Post Lift - Super Quality Premium Construction

M&E ME-LM110S 11,000 lb 2-Post Lift - Super Quality Premium Construction

$2,297.00 $3,299.00

🚚 Delivery option includes free freight to the lower 48 states.

Delivery Options

Shop Pay Installments

Split your purchase into flexible installment payments with Shop Pay. Pay over time with no hidden fees.

How it works:

  • Choose Shop Pay at checkout
  • Select your preferred payment plan
  • Make your first payment today
  • Pay the rest over time with automatic payments

No interest. No hidden fees. Just flexible payments that work for you.

🇺🇸 US-Based Business: Unlike big out-of-state sellers, we offer specialized support and $0 Sales Tax outside Illinois.

💰
Tax-Free Outside IL
🚚
Free Freight Lower 48 States
🛡️
1-Yr Warranty Full Parts Support
✅
CE Approved International Quality
📍
Local Pickup Nationwide Save up to $1,400 in freight costs
Learn More >
Warranty

M&E offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge. A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.

Warranty Includes:

  • Cylinders, power units, motors, displays, electronics, etc.
  • Vehicle lifts: additional 36-month warranty on structural components

Warranty Conditions:

  • Claims must fall within the warranty period
  • Non-transferable — requires original order number
  • Replacement parts provided at no cost, including free shipping
  • Labor is not included
  • Photos and/or videos of defects may be requested
  • Do not disassemble any equipment before the issue is determined

📄 Download Manual (PDF)
Shipping

Free freight shipping to the contiguous 48 US states. Estimated delivery: 6–10 business days. Curbside delivery only — forklift or pallet jack required. Carrier will call 24–48 hrs before delivery. View full Shipping & Delivery details →
How to Choose the Right Lift ▾

Not sure whether a 2-post or 4-post lift is right for your shop? Our guide breaks down the key differences in access, space, capacity, and use case.

View the 2-Post vs 4-Post Comparison Guide →

⚠️ Safety Warning

⚠️ IMPORTANT SAFETY WARNING: Concrete thickness must be at least 5.9 inches (150 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete could result in serious injury or death! It is the customer's responsibility to verify concrete thickness and strength before purchase and installation.

⚠️ IMPORTANT SAFETY WARNING: Ceiling clearance must be at least 13 feet (3,962 mm). Failure to verify your garage or shop height before installation could result in serious injury or death! It is the customer's responsibility to verify ceiling height before purchase and installation.

The M&E ME-LM110S Super Quality 2-Post Lift is premium construction designed for professional auto repair facilities. With 11,000 lbs of capacity, dual hydraulic chain drive cylinders for smooth operation, and a 75-inch maximum lift height, this lift delivers precision, stability, and reliability for shops that refuse to compromise. Built with premium materials for commercial facilities demanding performance for daily heavy-duty use.

  • 11,000 lbs lifting capacity
  • Super Quality Premium Construction
  • Dual Hydraulic Chain Drive Cylinders for smooth operation
  • Symmetric arm design
  • 75-inch maximum lift height
  • 4.35-inch minimum clearance for low-clearance vehicles
  • Premium materials for commercial facilities
  • Rubber pad door opening protection
  • Built for daily heavy-duty professional use
Feature M110 AS110D H115Z M115S M&E LM110S
Capacity 11,000 lb 11,000 lb 11,000 lb 11,000 lb 11,000 lb
Arm Type Clear-Floor Asymmetrical Symmetrical Clear-Floor Symmetrical
Max Lift Height — — — — 75 in
Motor 220V/110V opt. 220V/110V opt. 220V 2PH 2KW×4 110V Dual Hydraulic 220V Standard
Min Clearance — — — — 4.35 in
Single Point Lock — Yes — — —
Package Weight 1,367 lbs 1,323 lbs 1,370 lbs 1,412 lbs —
Best For Clean floor access Asymmetric loading Heavy-duty trucks 110V shops Premium build

Lifting Capacity: 11,000 lbs (5,000 kg)

Max. Lifting Height: 70.87 in / 1,800 mm

Min. Height: 4.25 in / 110 mm

Height Overall: 141.25 in / 3,587 mm

Width Overall: 134.65 in / 3,420 mm

Outside Column: 128 in / 3,250 mm

Inside Column: 110.25 in / 2,800 mm

Drive-Thru Clearance: 98.82 in / 2,510 mm

Front Arm Reach (Min): 30.75 in / 780 mm (2 stages)

Front Arm Reach (Max): 50.5 in / 1,280 mm (2 stages)

Rear Arm Reach (Min): 30.75 in / 780 mm (2 stages)

Rear Arm Reach (Max): 50.5 in / 1,280 mm (2 stages)

Motor: 220VAC/60HZ/1PH/2.2KW

Net Weight: 1,367 lbs / 620 kg

Minimum Ceiling Height Required: 13 ft / 3,962 mm

The M&E ME-LM110S Super Quality 2-Post Lift sets the standard for premium commercial auto service with 11,000 lbs of lifting capacity and superior construction built for demanding professional environments. Dual hydraulic chain drive cylinders deliver smooth, consistent operation while the symmetric arm design accommodates a wide range of vehicles including light trucks, SUVs, and passenger cars. With a 75-inch maximum lift height, 4.35-inch minimum clearance, and premium materials throughout, this lift is engineered for commercial facilities and serious auto repair shops that demand performance and reliability every day.

M&E offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge. A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.

Warranty Includes:

  • Cylinders, power units, motors, displays, electronics, etc.
  • Vehicle lifts: additional 36-month warranty on structural components

Warranty Conditions:

  • Claims must fall within the warranty period
  • Non-transferable — requires original order number
  • Replacement parts provided at no cost, including free shipping
  • Labor is not included
  • Photos and/or videos of defects may be requested
  • Do not disassemble any equipment before the issue is determined

📄 Download Manual (PDF)

  • Commercial Auto Shops: Premium construction built for commercial facilities demanding reliability
  • Truck & SUV Service: 11,000 lb capacity handles light trucks, SUVs, and passenger cars
  • Low-Clearance Vehicles: 4.35-inch minimum clearance for demanding environments
  • Auto Repair Shops: 45 dealerships and serious home garages trust this lift
  • Professional Use: Premium materials and superior quality engineering

All M&E equipment is manufactured to international quality standards.

  • Quality Control — Each unit undergoes pre-shipment inspection
  • US-Based Support — Technical support provided from the United States
  • Warranty — 1-year limited manufacturer warranty included

Freight shipping included to the lower 48 states. Four delivery options available:

  • Warehouse Pickup — No shipping cost, pickup at our warehouse
  • Terminal Pickup — Ship to nearest freight terminal, no forklift needed
  • Commercial Delivery — Delivery to business address, forklift required
  • Residential Delivery — Delivery to home address, forklift required

Due to the size and weight of this lift, please confirm your unloading capability before ordering.

Product Manual

Download the complete product manual and installation guide.
Download Manual

Complete Your Shop Setup

Everything a professional tire shop needs
Tire Service Packages Collection Banner

Tire Service Packages

2-Post Lifts Category Image

2-Post Lift

4-Post Lifts Category Image

4-Post Lifts

Tire Changer

Tire Changer

Wheel Balancer

Wheel Balancer

Shop Accessories Collection Banner

Shop Accessories

Frequently Asked Questions

  • Due to the size and weight of this lift, a forklift is required for unloading. Four options: Warehouse Pickup (no shipping cost), Terminal Pickup at a nearby freight terminal (no forklift needed, shipping included), Commercial Delivery with forklift required (shipping included), and Residential Delivery with forklift required (shipping included).
  • Professional installation by a certified technician is strongly recommended. A concrete floor with minimum 4-inch (100mm) thickness is required. Anchor bolts and installation hardware are included. A detailed installation manual is provided with every lift.
  • The ME-LM110S does not carry CE certification. It is built to international quality standards with certified safety features. For customers requiring CE certified lifts, we recommend verifying your specific facility requirements before purchase.
  • Yes. We offer Shop Pay Installments, allowing you to split your purchase into 4 interest-free payments on orders from $5,000 and up.
  • We provide US-based technical support via email and phone. Our team assists with installation questions, troubleshooting, and parts replacement throughout your warranty period.
  • Returns are accepted within 30 days for unused equipment in original packaging. Please contact us before returning any equipment. Return freight costs are the responsibility of the buyer.
