What delivery options are available?

Due to the size and weight of this lift, a forklift is required for unloading. We offer four options: Warehouse Pickup (no shipping cost), Terminal Pickup at a nearby freight terminal (no forklift needed, shipping included), Commercial Delivery with forklift required (shipping included), and Residential Delivery with forklift required (shipping included).

Is professional installation required?

Professional installation by a certified technician is strongly recommended. A concrete floor with minimum 4-inch (100mm) thickness is required. Anchor bolts and installation hardware are included. A detailed installation manual is provided with every lift.

Is this lift CE certified?

Yes. The M&E H1000 is CE approved, meeting international safety and quality standards. Certification details are provided in the product documentation.

Do you offer financing or installment payments?

Yes. We offer Shop Pay Installments, allowing you to split your purchase into 4 interest-free payments on orders from $5,000 and up.

What after-sales support do you provide?

We provide US-based technical support via email and phone. Our team assists with installation questions, troubleshooting, and parts replacement throughout your warranty period.

What is your return policy?

Returns are accepted within 30 days for unused equipment in original packaging. Please contact us before returning any equipment. Return freight costs are the responsibility of the buyer.

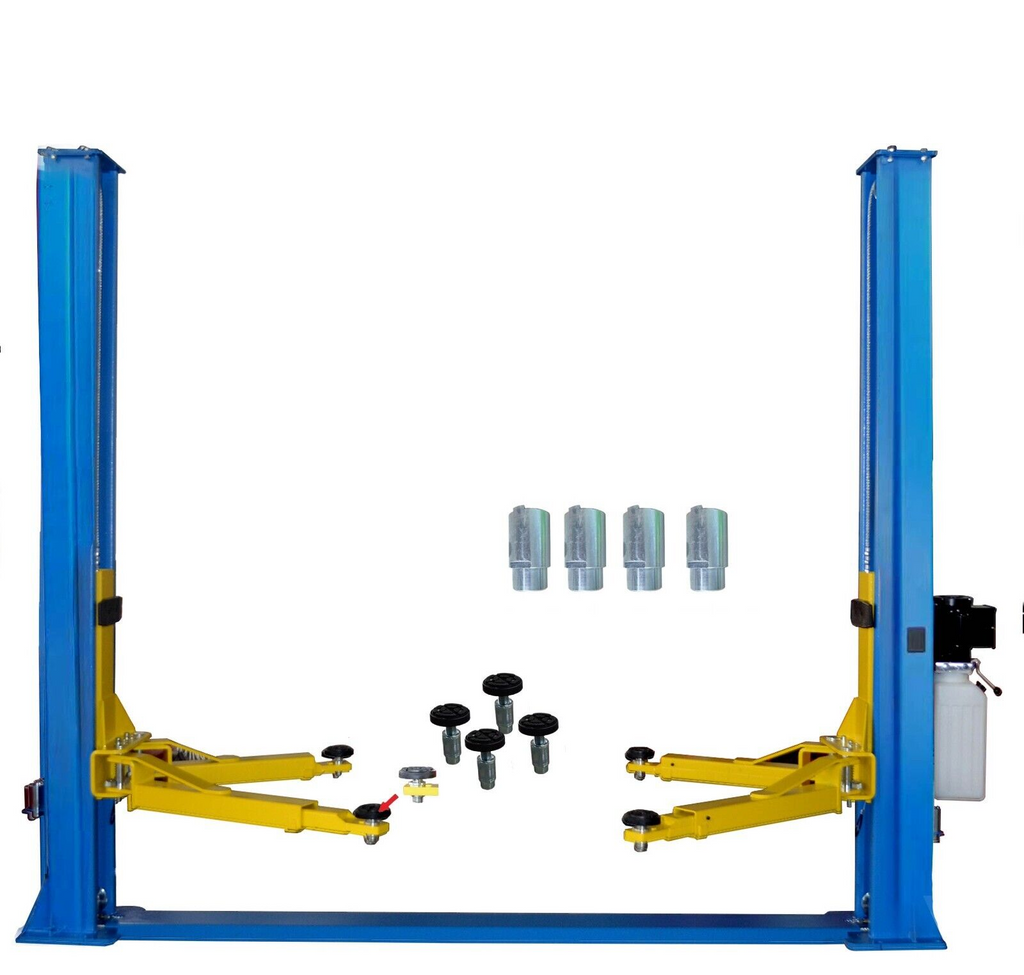

Two-post car lift frame with blue columns and yellow arms, with steel guide rollers

M&E H1000 10,000 lb 2-Post Auto Lift - CE Approved

Warehouse Pickup

$1,997.00 $2,395.00

1/17

M&E H1000 10,000 lb 2-Post Auto Lift - CE Approved

$1,997.00 $2,395.00

🚚 Delivery option includes free freight to the lower 48 states.

Delivery Options Warehouse Pickup Terminal Pickup (No Forklift) Commercial Delivery (Forklift Required) Residential Delivery (Forklift Required)

Select Pickup Location *

Shop Pay Installments

Split your purchase into flexible installment payments with Shop Pay. Pay over time with no hidden fees.

How it works:

Choose Shop Pay at checkout
Select your preferred payment plan
Make your first payment today
Pay the rest over time with automatic payments

No interest. No hidden fees. Just flexible payments that work for you.

🇺🇸 US-Based Business: Unlike big out-of-state sellers, we offer specialized support and $0 Sales Tax outside Illinois.

💰

Tax-Free Outside IL

🚚

Free Freight Lower 48 States

🛡️

1-Yr Warranty Full Parts Support

✅

CE Approved International Quality

📍

Local Pickup Nationwide Save up to $1,400 in freight costs

Learn More >

Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge.
A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.

Warranty Includes:

Cylinders, power units, motors, displays, electronics, etc.
Vehicle lifts include an additional three-year (36 months) warranty on structural components only.

Warranty Conditions:

Claims must fall within the warranty period.
Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor.
Replacement parts will be provided at no cost, including free shipping.

Free freight shipping to the contiguous 48 US states. Estimated delivery: 6–10 business days. Curbside delivery only — forklift or pallet jack required. Carrier will call 24–48 hrs before delivery. View full Shipping & Delivery details →

How to Choose the Right Lift ▾

Not sure whether a 2-post or 4-post lift is right for your shop? Our guide breaks down the key differences in access, space, capacity, and use case.

View the 2-Post vs 4-Post Comparison Guide →

⚠️ Safety Warning

*Concrete thickness must be at least 5.9" (150 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete could result in serious injury or death! It is the customer's responsibility to verify concrete thickness and strength before purchase and installation.

⚠️ IMPORTANT SAFETY WARNING: Ceiling clearance must be at least 11 feet (3,353 mm). Failure to verify your garage or shop height before installation could result in serious injury or death! It is the customer's responsibility to verify ceiling height before purchase and installation.

The H1000 delivers professional-grade performance at an entry-level price. With 10,000 lbs capacity and CE approval, this lift handles most cars and light trucks with confidence and safety. Perfect for shops that need reliable equipment or home enthusiasts who want professional quality without the premium price tag.

10,000 lbs lifting capacity
CE Approved and Certified, it has adopted 115% dynamic loading capacity and 150% static loading capacity tested

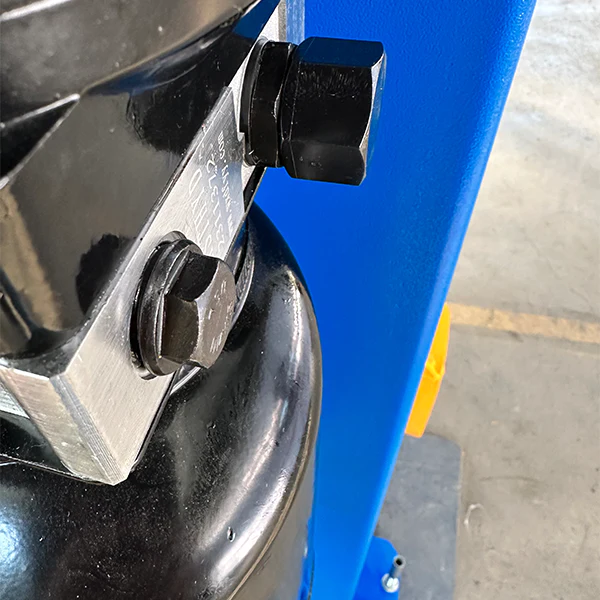

Manual safety release from two sides
Base plate design

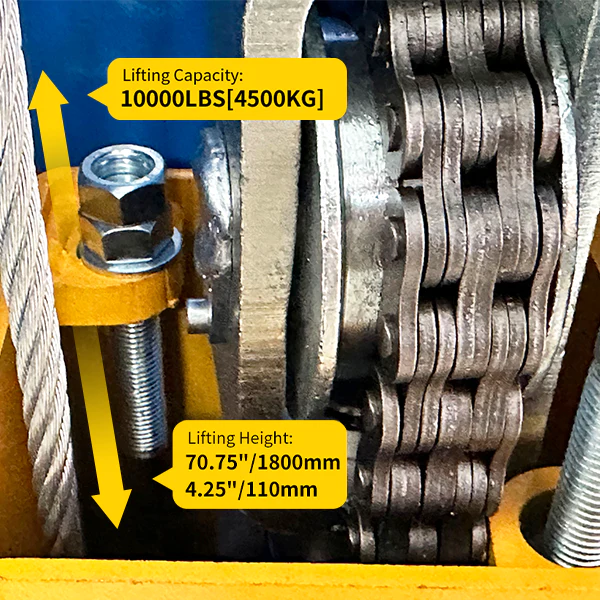

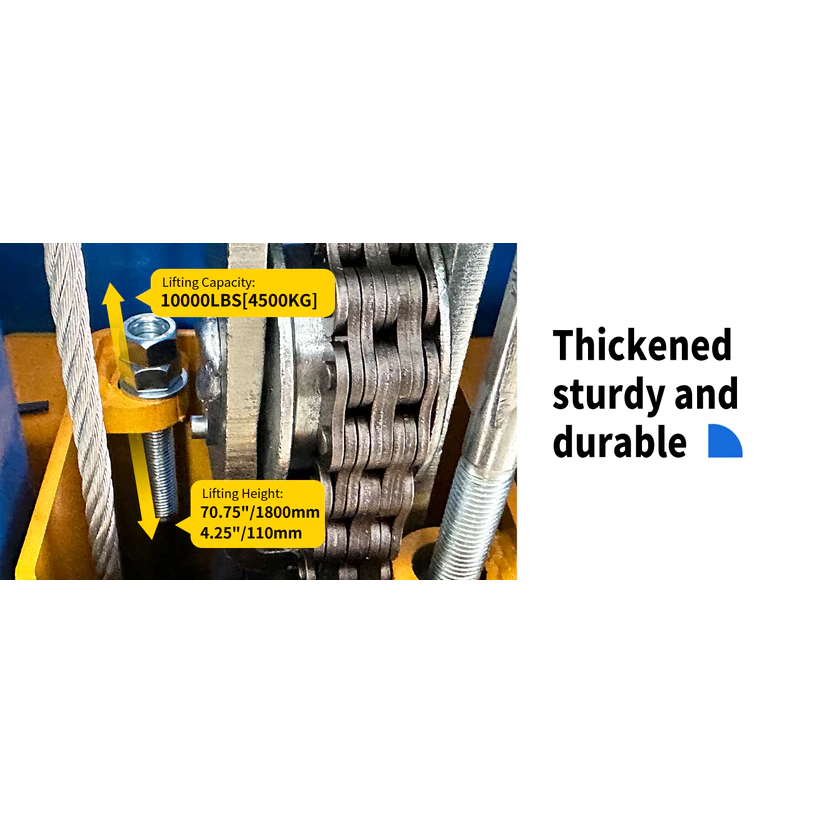

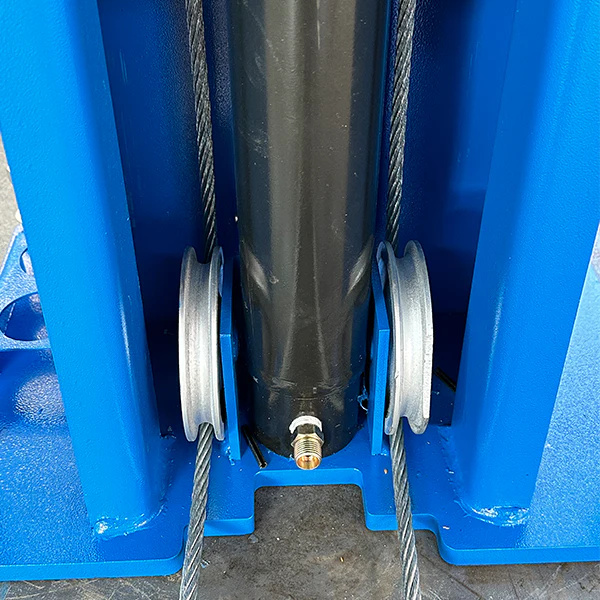

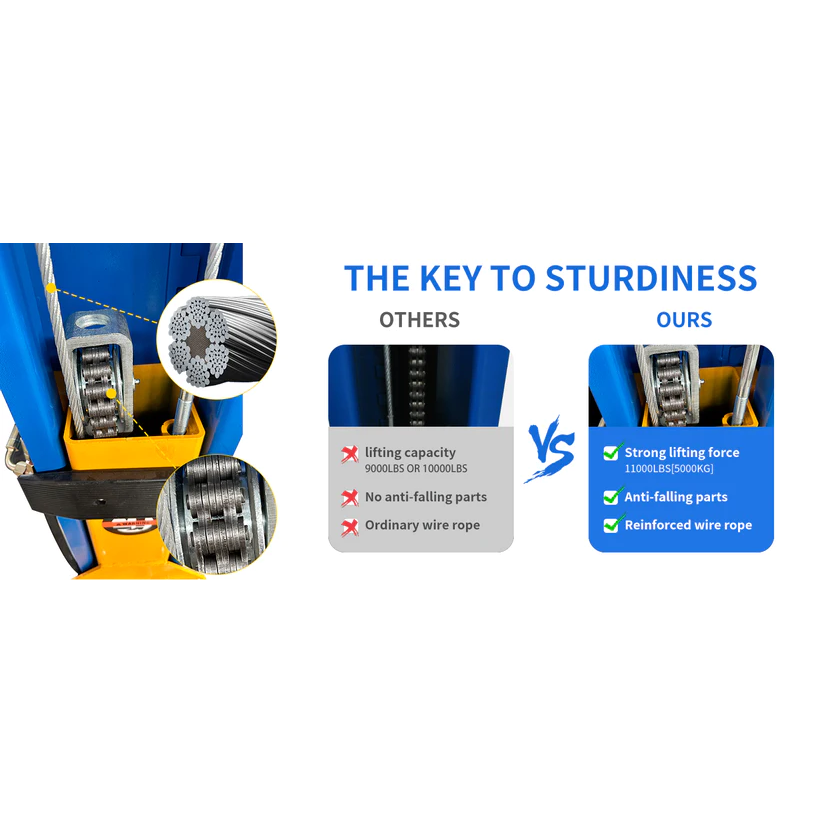

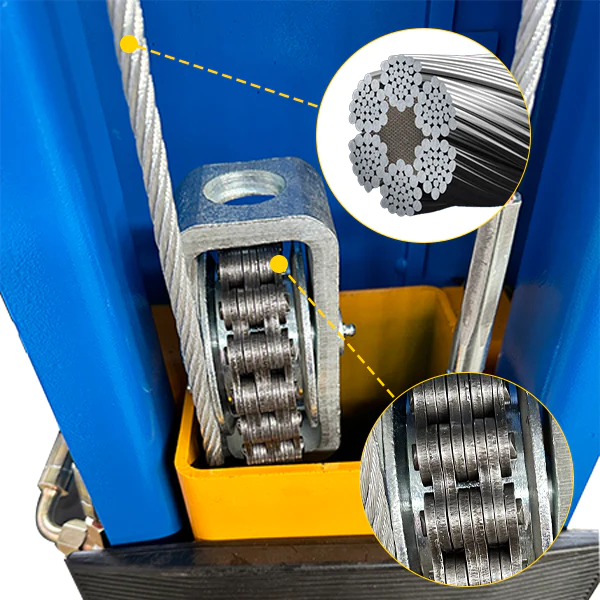

Dual Hydraulic Chain-Drive Cylinders
Rubber pad door opening protection

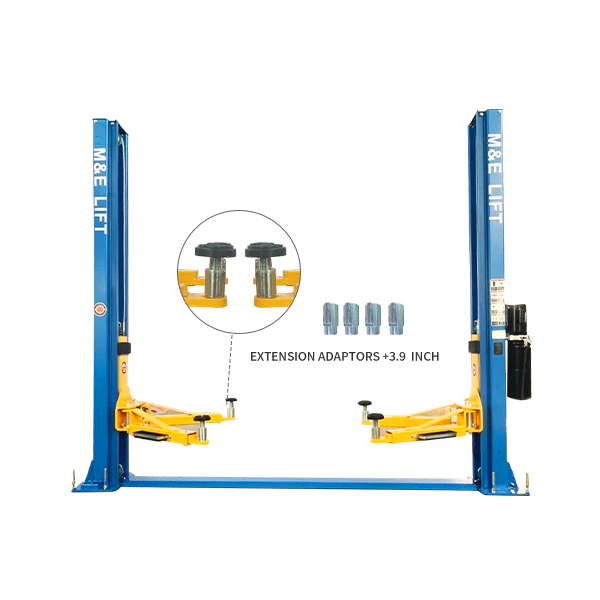

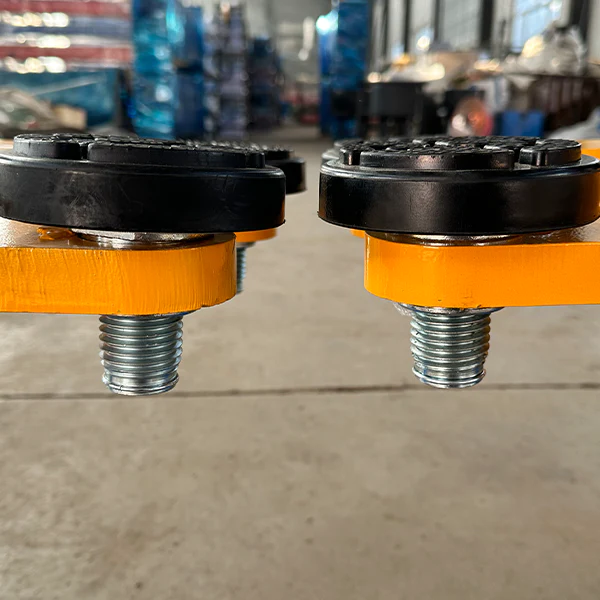

Screw-on pad and extension support adaptor sets +100mm
Top level hydraulic system with 220V/60HZ/1PH (110V/60HZ/1PH OPTIONAL ADD-ON PURCHASE $199)

	H100	H105	M&E H1000
Capacity	10,000 lb	10,000 lb	10,000 lb
Max Lift Height	70.75 in	70.8 in	70.8 in
Overall Height	110.25 in	110.9 in	110.9 in
Overall Width	142.25 in	140.4 in	140.4 in
Outside Column	128 in	124.8 in	124.8 in
Inside Column	110.25 in	110.25 in	110.25 in
Drive-Thru Clearance	94.5 in	98.4 in	98.4 in
Arm Reach (Front)	30.75–50.5 in	29.5–46 in	29.5–46 in
Arm Reach (Rear)	30.75–50.5 in	35.4–58.2 in	35.4–58.2 in
Motor	220VAC/60HZ/1PH/2.2KW	220VAC/60HZ/1PH/2.2KW	220VAC/60HZ/1PH/2.2KW
Net Weight	1,246 lbs	1,246 lbs	1,246 lbs
Arm Type	Symmetrical	Symmetrical	Symmetrical

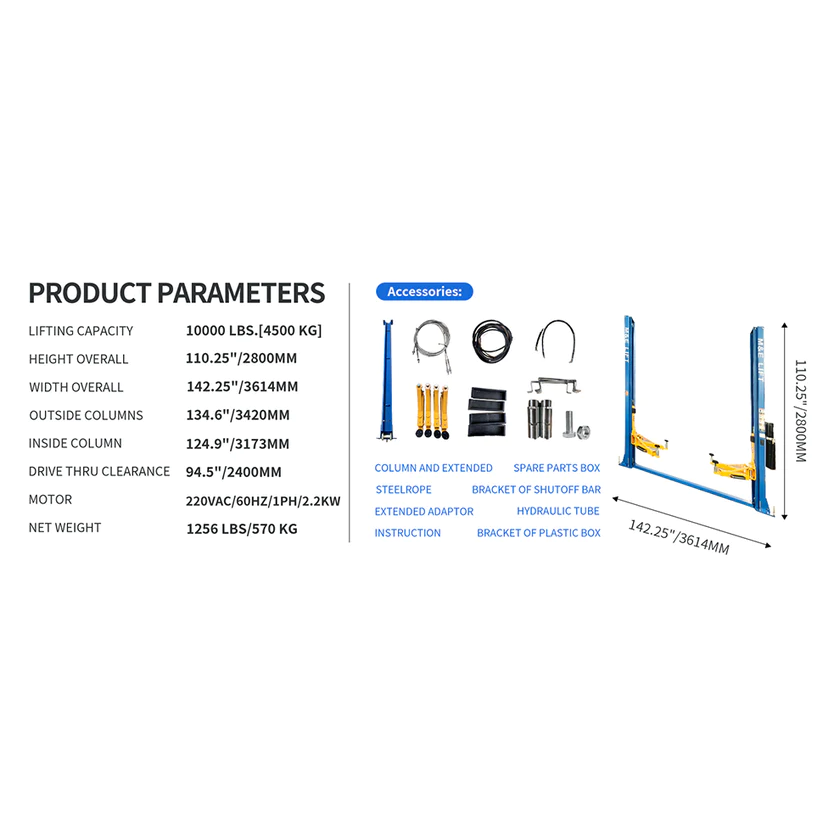

Lifting Capacity: 10,000 lbs / 4,500 kg

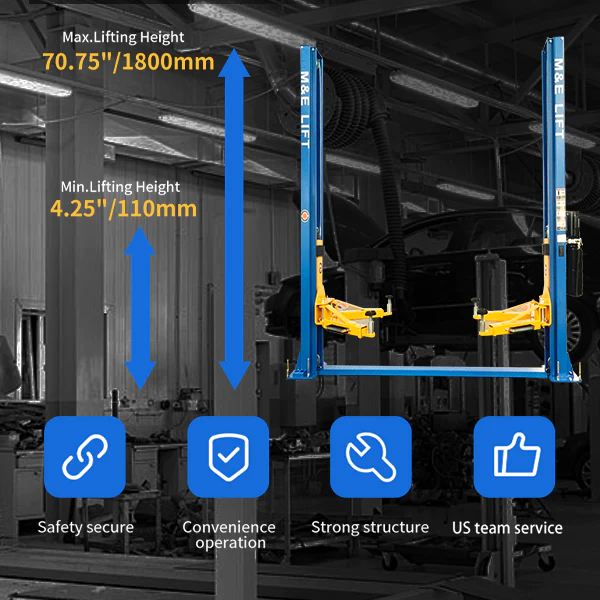

Max. Lifting Height: 70.8 in / 1,800 mm

Min. Height: 3.9 in / 100 mm

Height Overall: 110.9 in / 2,818 mm

Width Overall: 140.4 in / 3,565 mm

Outside Column: 124.8 in / 3,170 mm

Inside Column: 110.2 in / 2,800 mm

Drive-Thru Clearance: 98.4 in / 2,500 mm

Front Arm Reach (Min): 29.5 in / 750 mm (2 stages)

Minimum Ceiling Height Required: 11 ft / 3,353 mm

This professional-grade two-post vehicle lift handles 10,000lbs with confidence and safety. CE-approved and rigorously tested to 115% dynamic and 150% static loading capacity, it delivers reliability for serious automotive work. Dual hydraulic chain-drive cylinders provide smooth, consistent operation, while the advanced 220V/60Hz single-phase hydraulic system ensures optimal performance. Safety features include manual release mechanisms on both sides and rubber pad door protection. The engineered base plate design offers stability, and the screw-on pad system with +100mm extension adapters accommodates various vehicle heights and configurations.

Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge.
A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.

Warranty Includes:

Cylinders, power units, motors, displays, electronics, etc.
Vehicle lifts include an additional three-year (36 months) warranty on structural components only.

Warranty Conditions:

Claims must fall within the warranty period.
Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor.
Replacement parts will be provided at no cost, including free shipping.

Auto Repair Shops: Affordable 10,000 lb capacity for cars and light trucks
Home Garage Enthusiasts: Professional-grade lift at an entry-level price
Small Service Centers: CE approved for safety and reliability
DIY Mechanics: Heavy-duty construction for daily use
Multi-Bay Shops: Add capacity without breaking the budget

All M&E equipment is manufactured to international quality standards.

CE Approved — Meets European safety and quality standards
Quality Control — Each unit undergoes pre-shipment inspection
US-Based Support — Technical support provided from the United States
Warranty — 1-year limited manufacturer warranty included

Freight shipping included to the lower 48 states. Four delivery options available:

Warehouse Pickup — No shipping cost, pickup at our warehouse
Terminal Pickup — Ship to nearest freight terminal, no forklift needed
Commercial Delivery — Delivery to business address, forklift required
Residential Delivery — Delivery to home address, forklift required

Due to the size and weight of this lift, please confirm your unloading capability before ordering.

Package Size

L x W x H (in)	112 x 18 x 36
Weight (lbs)	1257

Product Manual

Download the complete product manual and installation guide.

Download Manual

Complete Your Shop Setup

Everything a professional tire shop needs

Tire Service Packages

2-Post Lift

4-Post Lifts

Tire Changer

Wheel Balancer

Shop Accessories

Frequently Asked Questions

Due to the size and weight of this lift, a forklift is required for unloading. We offer four options: Warehouse Pickup (no shipping cost), Terminal Pickup at a nearby freight terminal (no forklift needed, shipping included), Commercial Delivery with forklift required (shipping included), and Residential Delivery with forklift required (shipping included).
Professional installation by a certified technician is strongly recommended. A concrete floor with minimum 4-inch (100mm) thickness is required. Anchor bolts and installation hardware are included. A detailed installation manual is provided with every lift.
Yes. The M&E H1000 is CE approved, meeting international safety and quality standards. Certification details are provided in the product documentation.
Yes. We offer Shop Pay Installments, allowing you to split your purchase into 4 interest-free payments on orders from $5,000 and up.
We provide US-based technical support via email and phone. Our team assists with installation questions, troubleshooting, and parts replacement throughout your warranty period.
Returns are accepted within 30 days for unused equipment in original packaging. Please contact us before returning any equipment. Return freight costs are the responsibility of the buyer.
