KATOOL Mini Lift M7700 PRO – Portable Tilting Floor Car Jack 5500 lb

Warehouse Pickup
$999.00 $1,199.00
Skip to product information
Portable tilting floor car jack with two black lift plates and red base bar
1/11

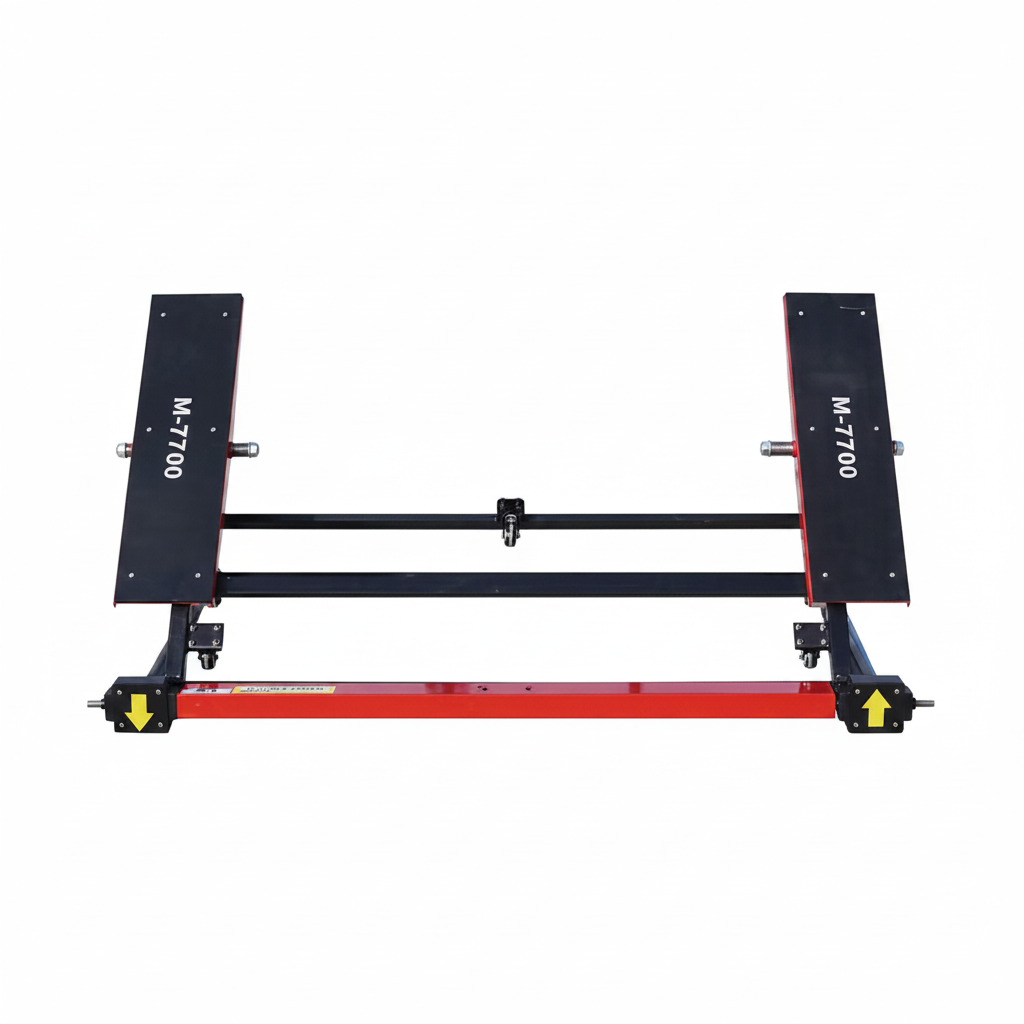

  • Portable tilting floor car jack with two black lift plates and red base bar

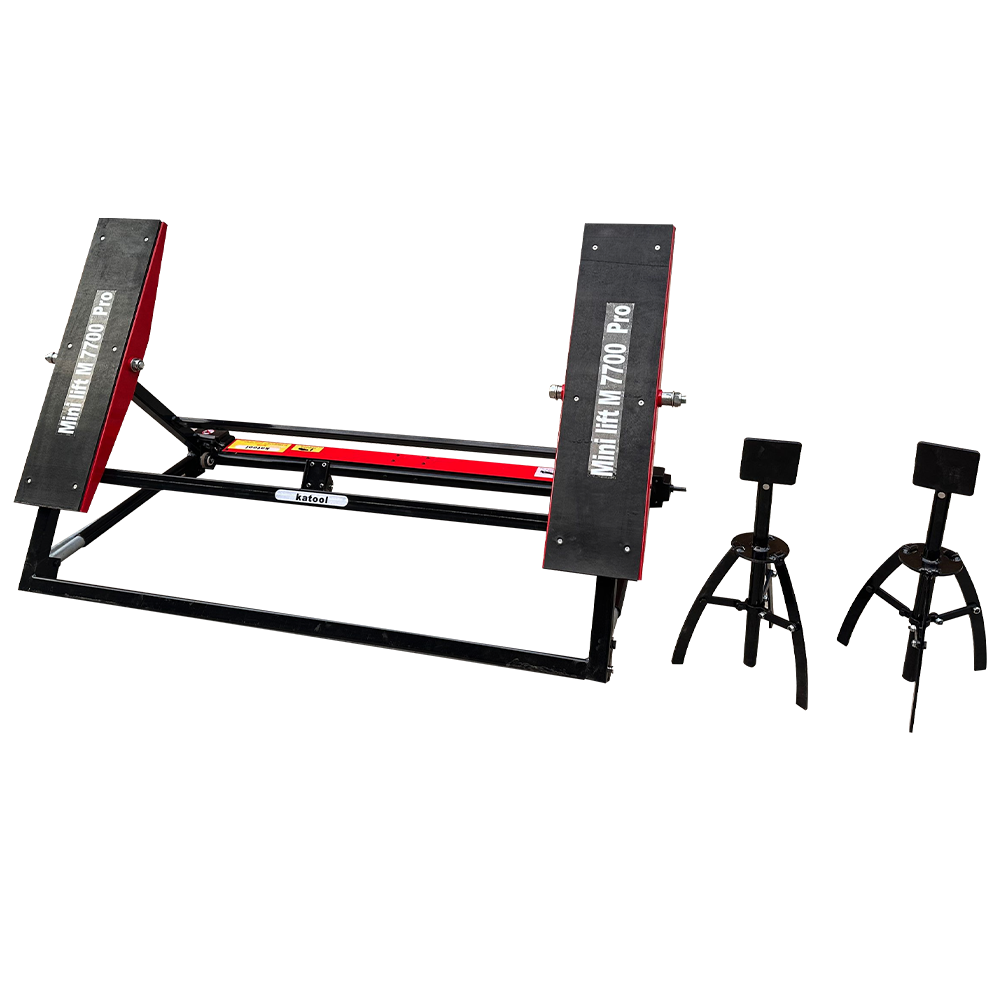

  • Tilting floor car jack, side view with black frame and red center beam

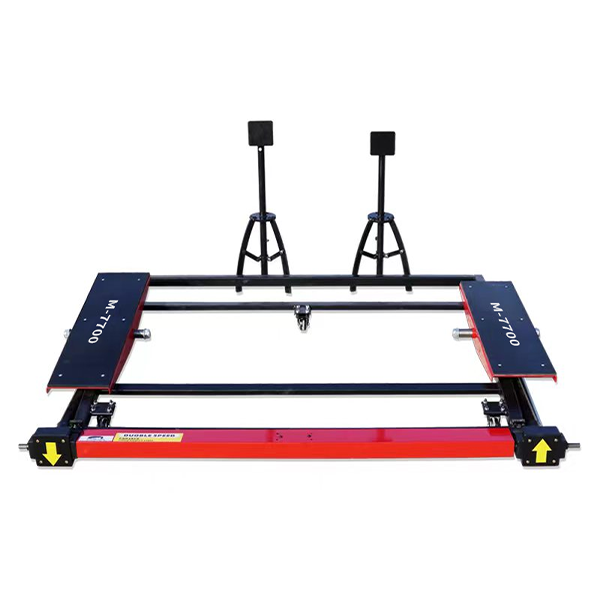

  • Portable floor car jack with two end lift plates and central screw mechanism

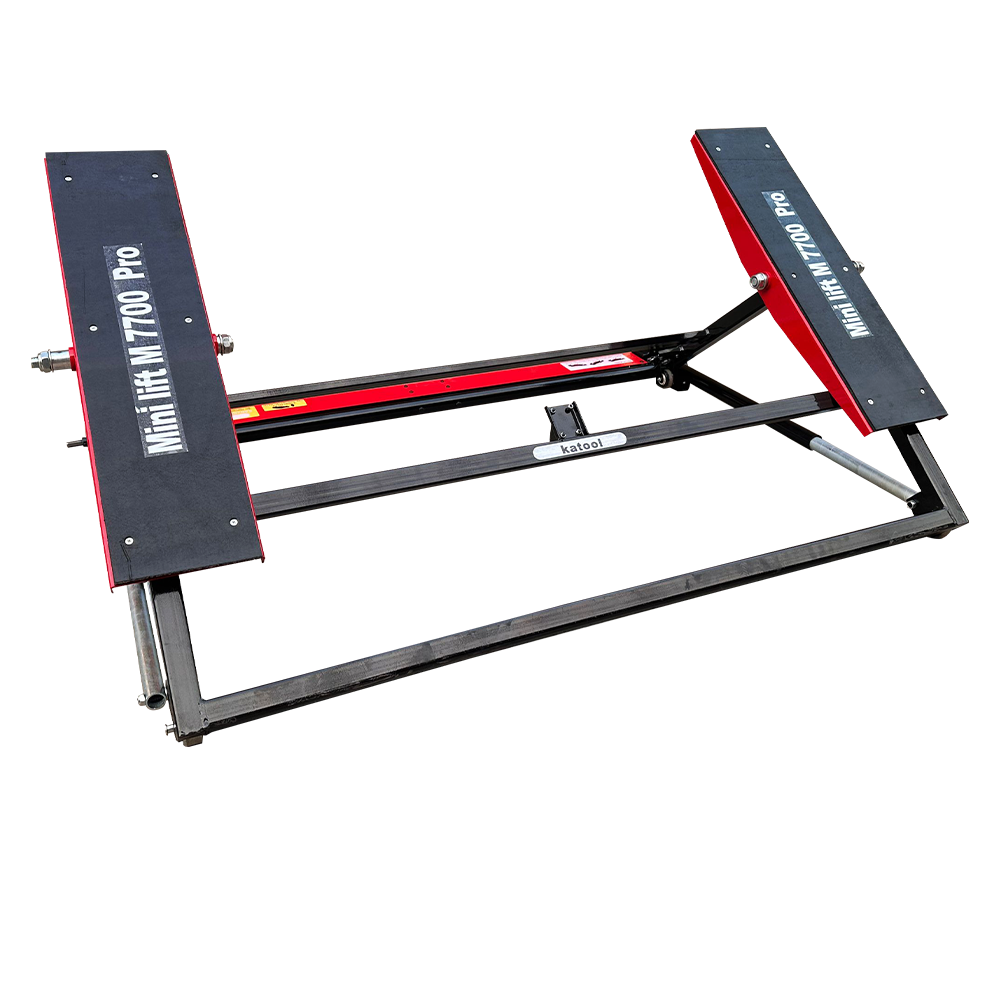

  • Tilting floor car jack with angled black lift arms and red trim along the frame

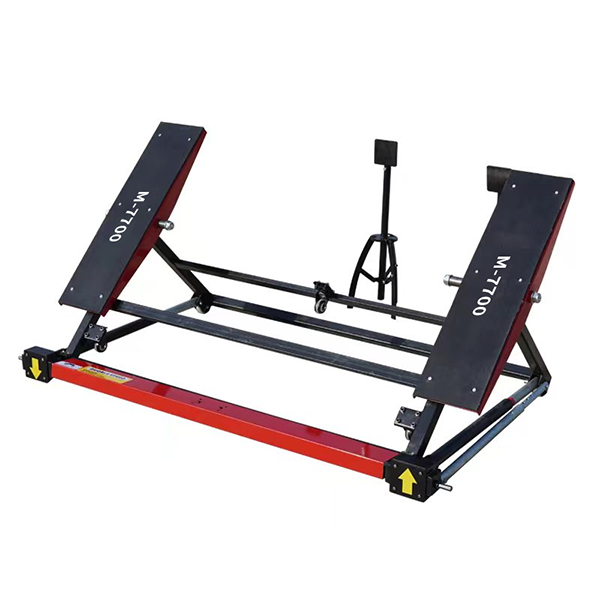

  • Portable floor car jack with two black lift plates, red base beam, and support legs

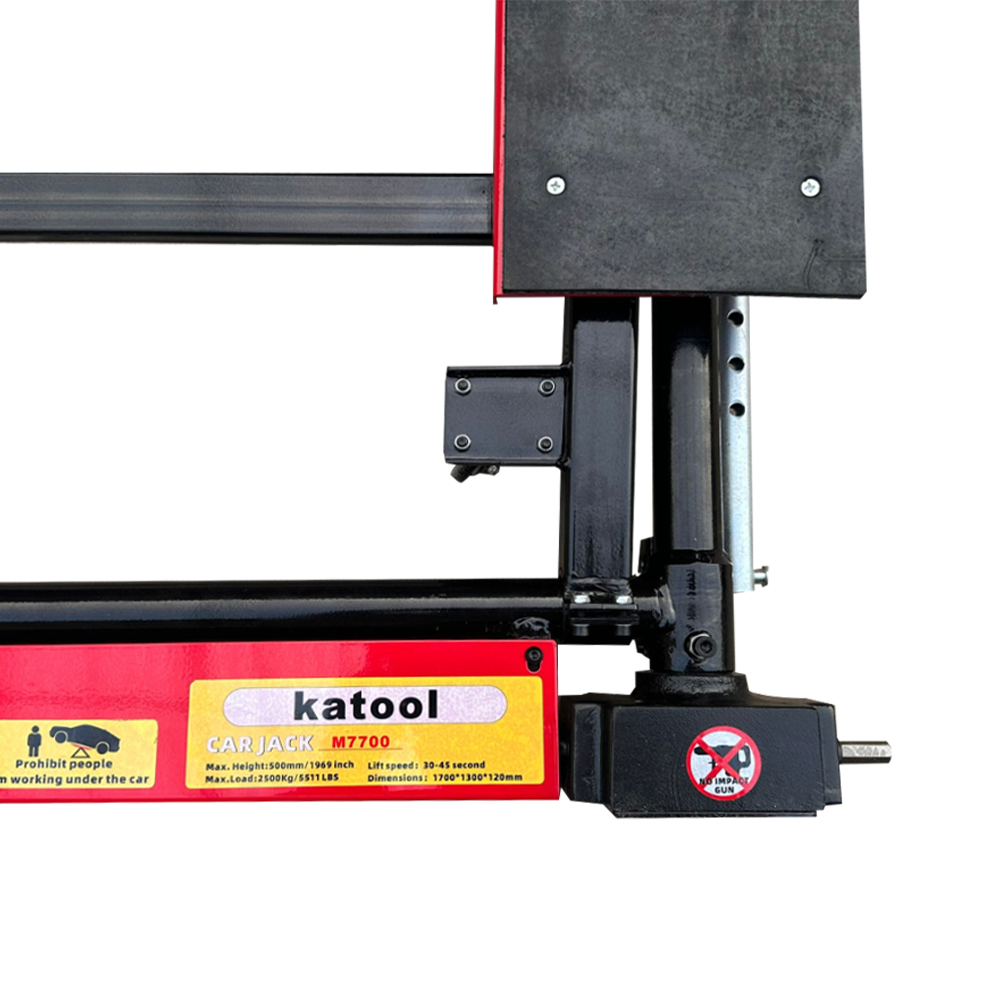

  • Car jack base close-up with control housing, warning label, and vertical lift post

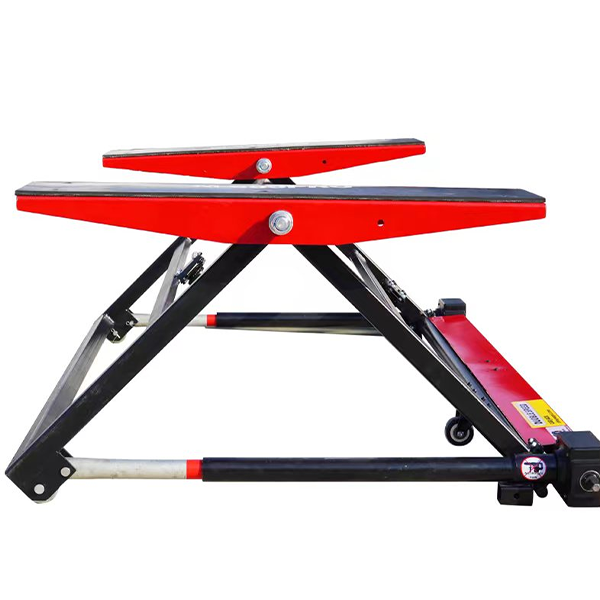

  • Scissor-style floor car jack with red and black lift platform and caster feet

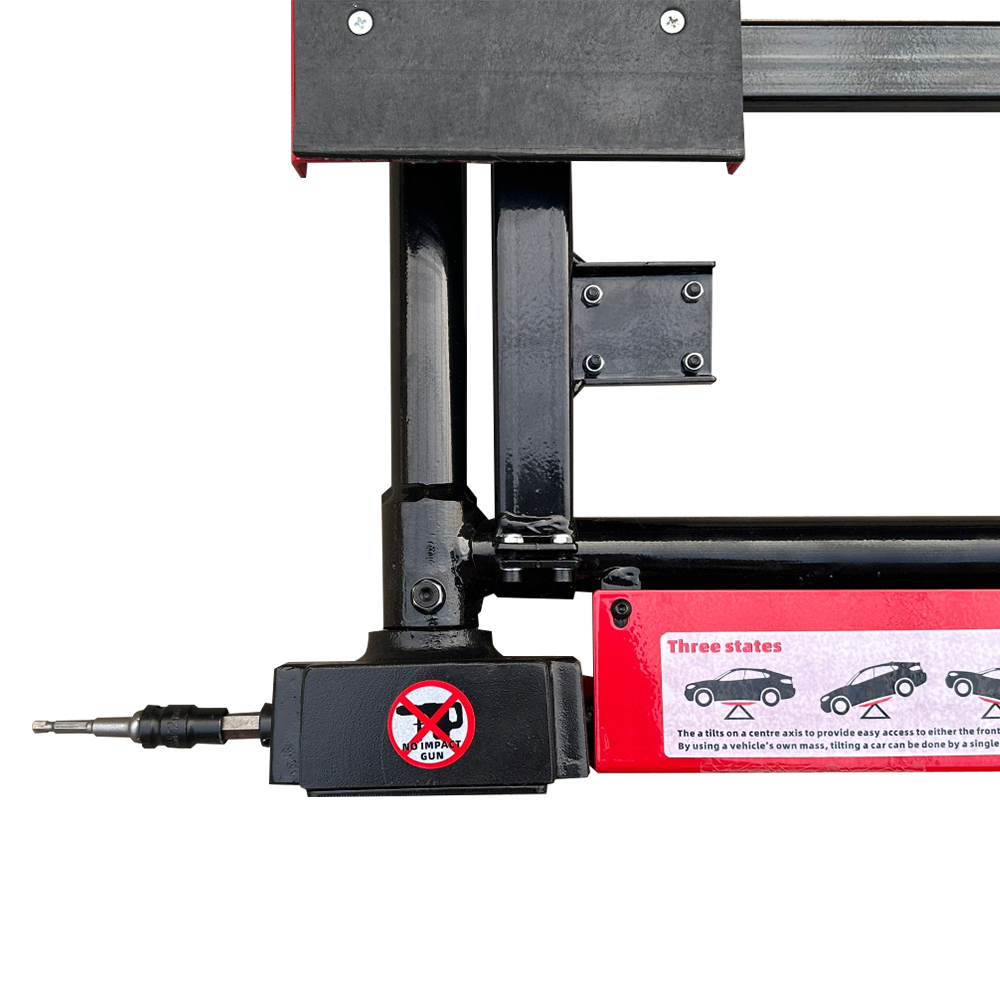

  • Car jack lifting head close-up with black housing and red safety warning panel

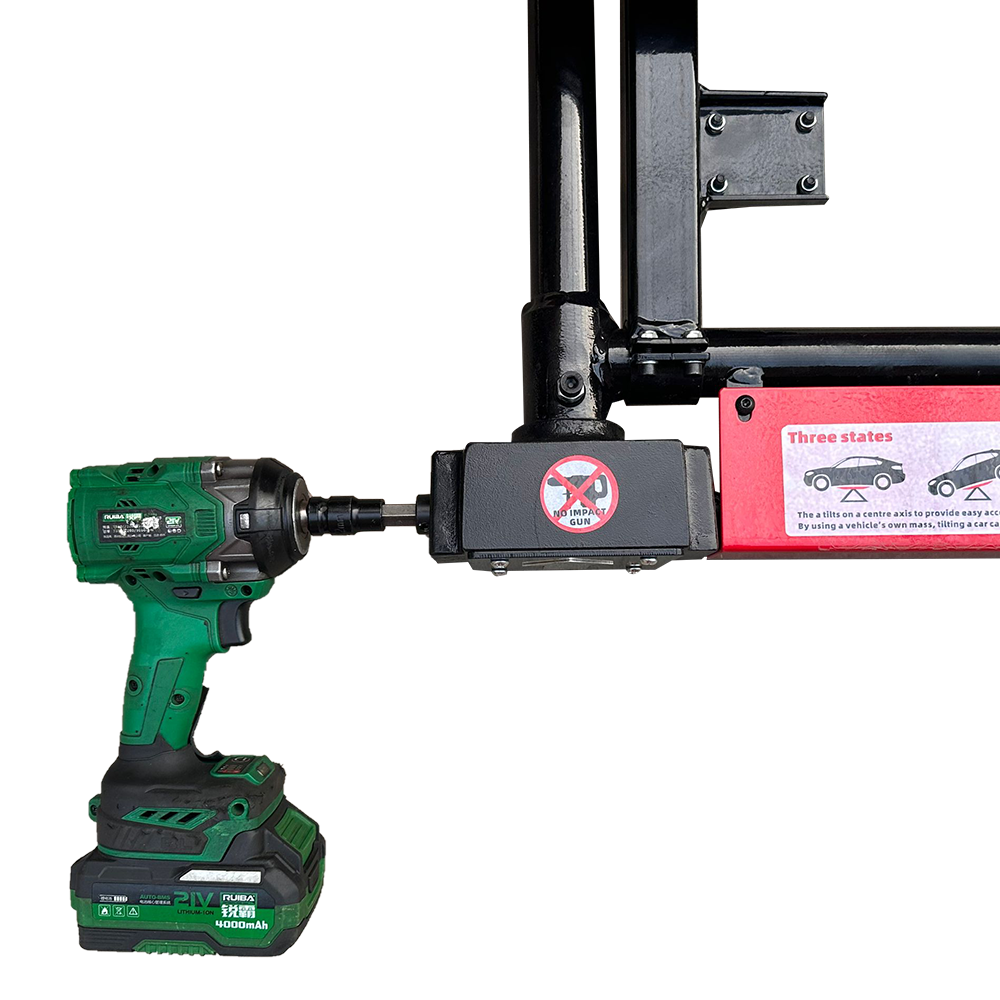

  • Car jack close-up being driven by a cordless drill, showing the red warning label

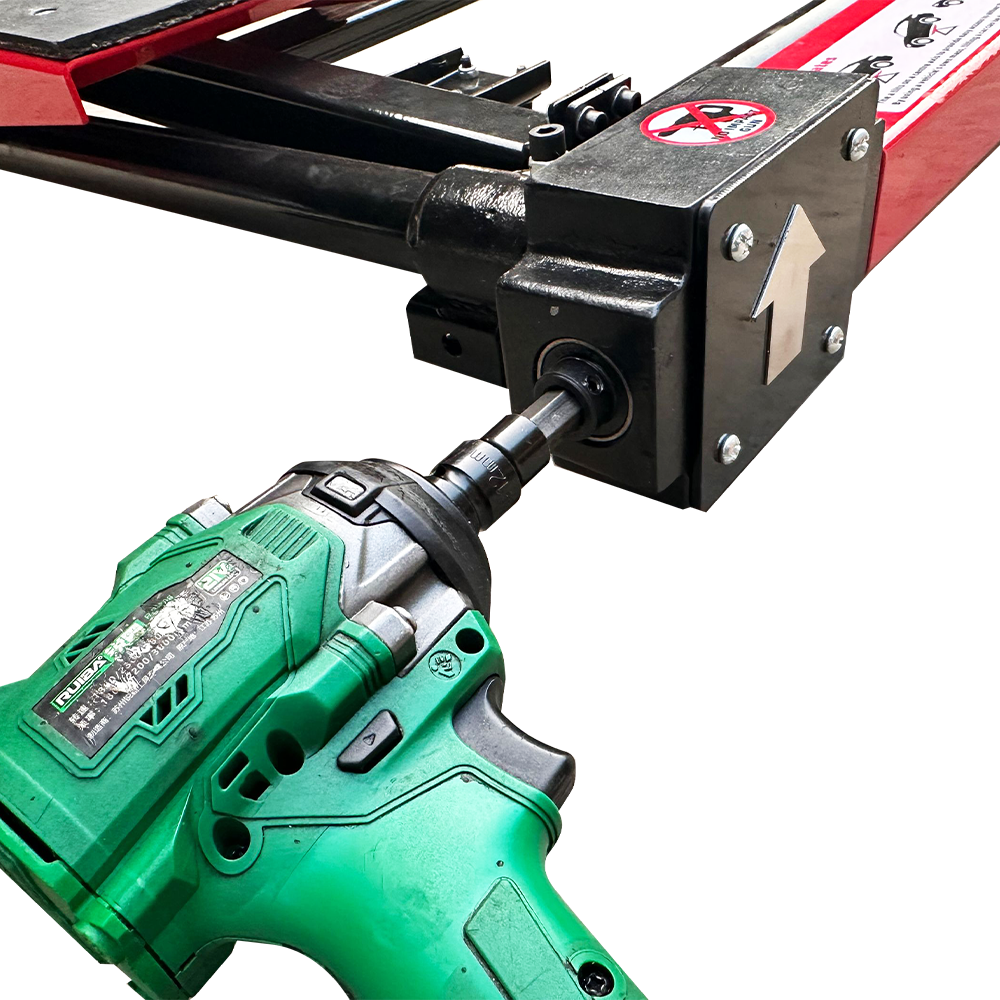

  • Car jack crank area close-up with cordless drill attached to the black drive housing

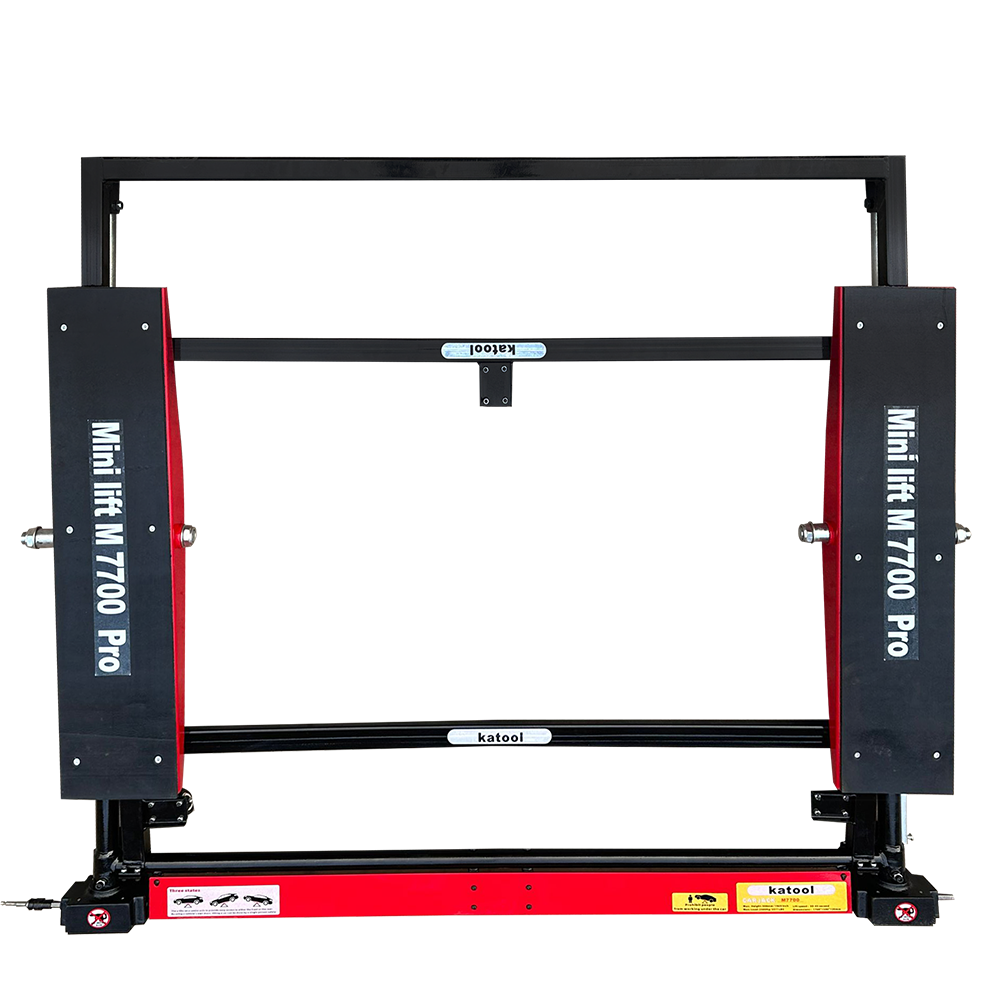

  • Portable tilting floor car jack with red base and black lift frame, side plates
KATOOL Mini Lift M7700 PRO – Portable Tilting Floor Car Jack 5500 lb

KATOOL Mini Lift M7700 PRO – Portable Tilting Floor Car Jack 5500 lb

$999.00 $1,199.00

Shop Pay Installments

Split your purchase into flexible installment payments with Shop Pay. Pay over time with no hidden fees.

How it works:

  • Choose Shop Pay at checkout
  • Select your preferred payment plan
  • Make your first payment today
  • Pay the rest over time with automatic payments

No interest. No hidden fees. Just flexible payments that work for you.

🚚 Delivery option includes free freight to the lower 48 states.

Delivery Options
⚠️ Warehouse Pickup – Please Contact Us First. Due to varying inventory across our warehouse locations, please contact us before placing your order to confirm stock availability at your preferred location.
Contact Us to Check Availability

🇺🇸 US-Based Business: Unlike big out-of-state sellers, we offer specialized support and $0 Sales Tax outside Illinois.

💰
Tax-Free Outside IL
🚚
Free Freight Lower 48 States
🛡️
1-Yr Warranty Full Parts Support
🔬
Safety Tested Load & Function Tested
📍
Local Pickup Nationwide Save up to $1,400 in freight costs
Learn More >
Warranty

Every Mini Lift M7700 PRO includes a 12-month (1-year) warranty covering all parts against manufacturing defects, at no charge.

A 2-Year Extended Warranty is available for $225. Contact us for details.
Shipping

Free freight shipping to the contiguous 48 US states. Estimated delivery: 6–10 business days. Curbside delivery only — forklift or pallet jack required. Carrier will call 24–48 hrs before delivery. View full Shipping & Delivery details →

⚠️ Safety Warning

⚠️ PROHIBITION: Do NOT use impact drills. Use a standard hand drill with the supplied 12mm adapter only. Do not lift the car past the red safety limit indicator. Always install jack stands under the vehicle before working beneath it. Ensure the lift is placed at the vehicle's centre of gravity for full-vehicle lifts. Do not exceed the 5,511 lb rated capacity.

  • World's first portable tilting floor car jack – a category-defining product
  • No compressed air, no electricity, no hydraulics – use it anywhere
  • Completely maintenance-free – no annual inspections or servicing
  • Single-person operation – lightweight enough to handle and stow alone
  • 1-year product warranty + 1-year accessories warranty
  • 5,511 lb / 2,500 kg max load capacity
  • Lifts or lowers vehicle in 15–30 seconds
  • Tilts forward and rearward on centre axis for full undercarriage access
  • Completely maintenance-free mechanical gearbox
  • No air compressor, no hydraulics, no wiring required
  • Portable – 4.7 inch collapsed profile, single-person operation
  • Waterproof – indoor and outdoor use
  • Works on uneven surfaces with supplied rails
  • Red safety limit line prevents over-extension
  • Security locking pin locks lift at working height

Technical Specifications

  • Model: Mini Lift M7700 PRO
  • Max Load: 5,511 lbs / 2,500 kg
  • Dimensions: 1750 × 1350 × 130 mm (68.9 × 53.1 × 5.1 in)
  • Net Weight: 154 lbs / 70 kg
  • Max Lift Height: 19.69 in / 500 mm
  • Lift Speed: 15–30 seconds
  • Drive: Standard 12mm drill adapter (hand drill only — NO impact drill)
  • Collapsed Profile: 4.7 inches
  • Power Source: None (fully mechanical)
  • Country of Origin: China

The Mini Lift M7700 PRO isn't meant to replace a permanently-fixed 2-post or 4-post vehicle lift. It's designed to make vehicle lifts accessible to everyone — from the automotive repair professional to the car enthusiast. The world's first portable tilting floor car jack, it turns any flat floor space into a usable workshop for inspections and light repairs. It's the one piece of equipment you'll regret not buying sooner.

Every Mini Lift M7700 PRO includes a 12-month (1-year) warranty covering all parts against manufacturing defects, at no charge.

A 2-Year Extended Warranty is available for $225. Contact us for details.

  • Auto repair shops and detailing centres needing portable lift access
  • Collision repair centres as a backup or overflow lift solution
  • Car dealership showrooms for undercarriage display
  • Vinyl wrap and spray booth professionals
  • Home garage enthusiasts and DIY mechanics

Ships via LTL Freight — Forklift Required at Delivery

  • Package Weight: 231 lbs
  • Package Dimensions: 54 × 70 × 12 in
  • Delivery Options available at checkout: Warehouse Pickup / Terminal Pickup / Commercial Delivery / Residential Delivery
  • Commercial & Residential Delivery: Customer must have a forklift available to unload
  • Estimated transit time: 5–10 business days
  • Ships from US warehouse (Chicago, New York, Los Angeles, Savannah, Houston)

Package Size

L x W x H (in) 54 x 70 x 12 in
Weight (lbs) 231

Product Manual

Download the complete product manual and installation guide.
Download Manual

Complete Your Shop Setup

Everything a professional tire shop needs
Tire Service Packages Collection Banner

Tire Service Packages

2-Post Lifts Category Image

2-Post Lift

4-Post Lifts Category Image

4-Post Lifts

Tire Changer

Tire Changer

Wheel Balancer

Wheel Balancer

Shop Accessories Collection Banner

Shop Accessories

Frequently Asked Questions

  • No. The Mini Lift M7700 PRO is fully mechanical and powered by a standard hand drill with a 12mm adapter. No air compressor, hydraulics, or electrical connection required.
  • No. Impact drills must NOT be used. Use a standard hand drill only. Using an impact drill may damage the gearbox and void the warranty.
  • The M7700 PRO lifts or lowers a vehicle in approximately 15–30 seconds.
  • The M7700 PRO supports up to 5,511 lbs (2,500 kg), covering most passenger cars, SUVs, and light trucks.
  • Yes. The M7700 PRO is waterproof and can be used indoors or outdoors. It can also be used on uneven surfaces when equipped with the supplied rails.
  • No. It is completely portable with a 4.7-inch collapsed profile and can be stored flush against a wall or hung off the ground when not in use.
  • Every M7700 PRO includes a 1-year product warranty and 1-year warranty on accessories.
