Katool M150D 15,000 lb Clear-Floor 2-Post Lift - Single Point Lock

Warehouse Pickup
$4,297.00 $5,199.00
Skip to product information
1. 15,000 lb 2-post lift with single point lock - M150D clear floor design
1/7

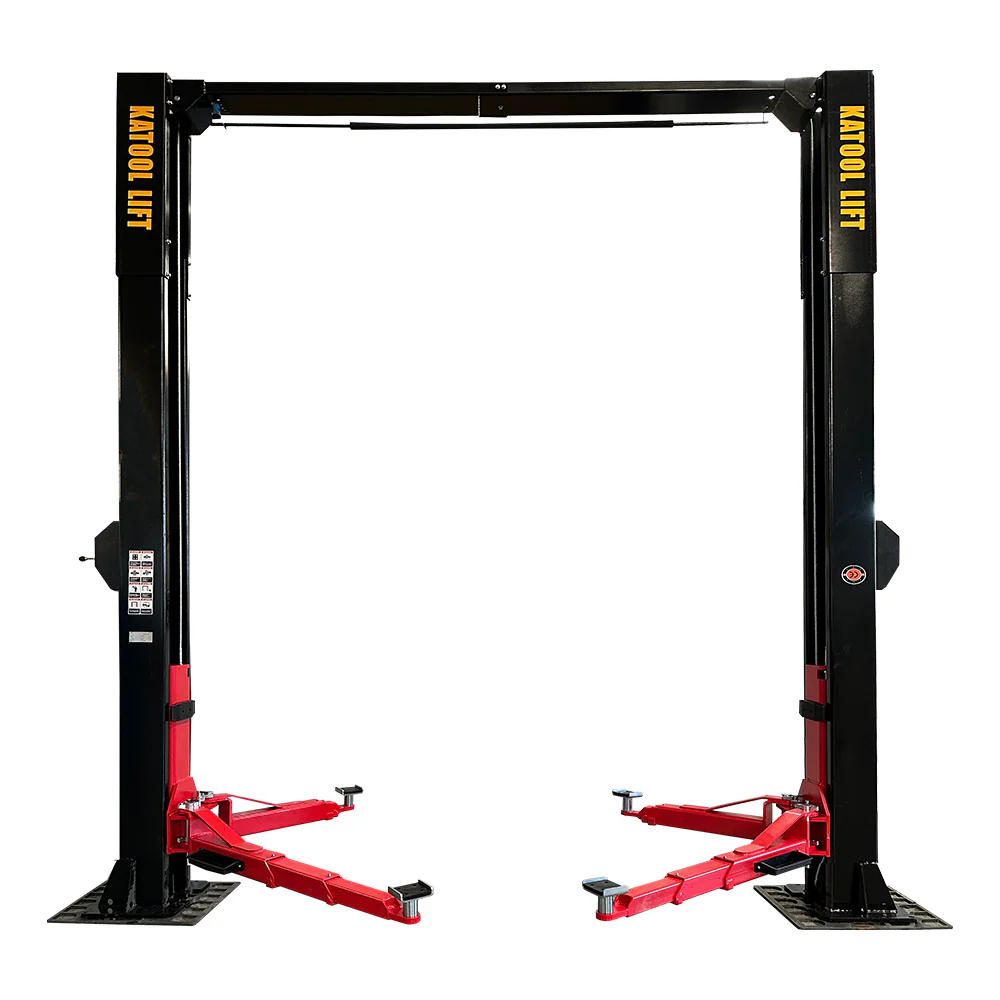

  • 1. 15,000 lb 2-post lift with single point lock - M150D clear floor design

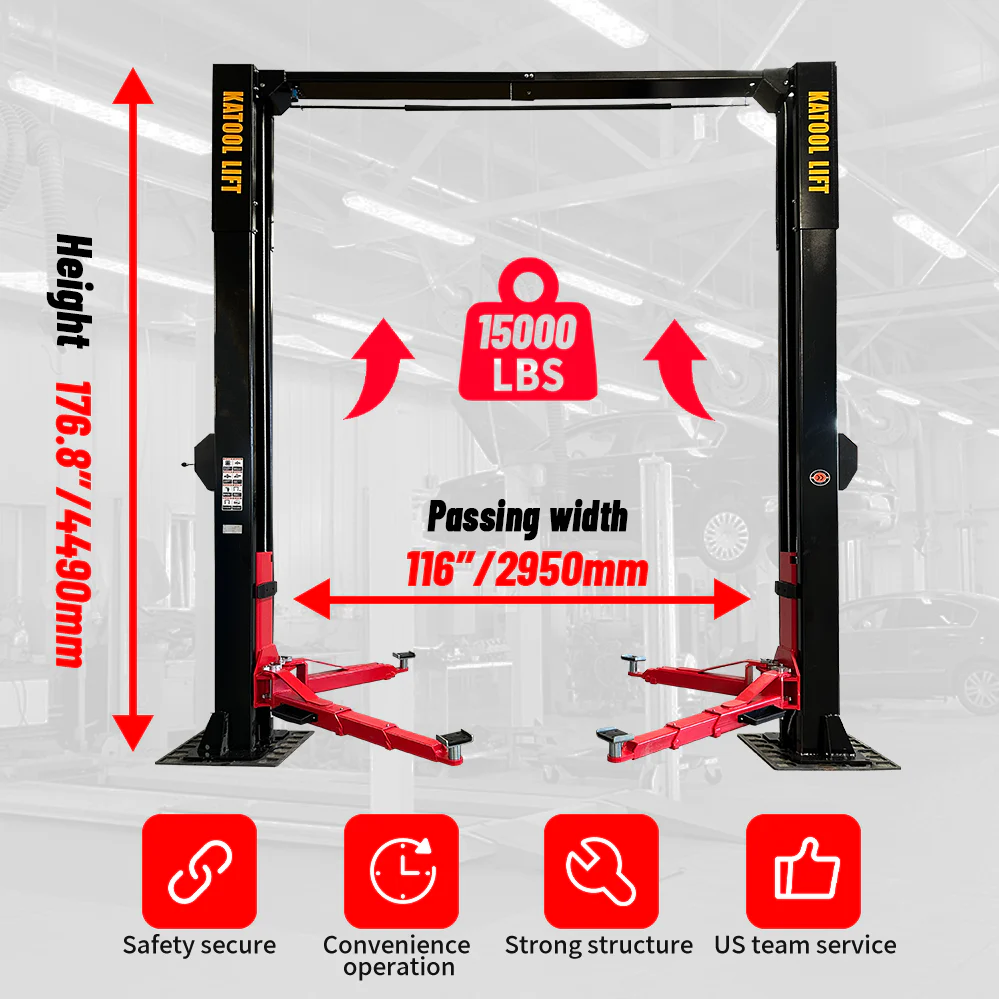

  • Two-post car lift with black posts and red ramps, clear-floor design

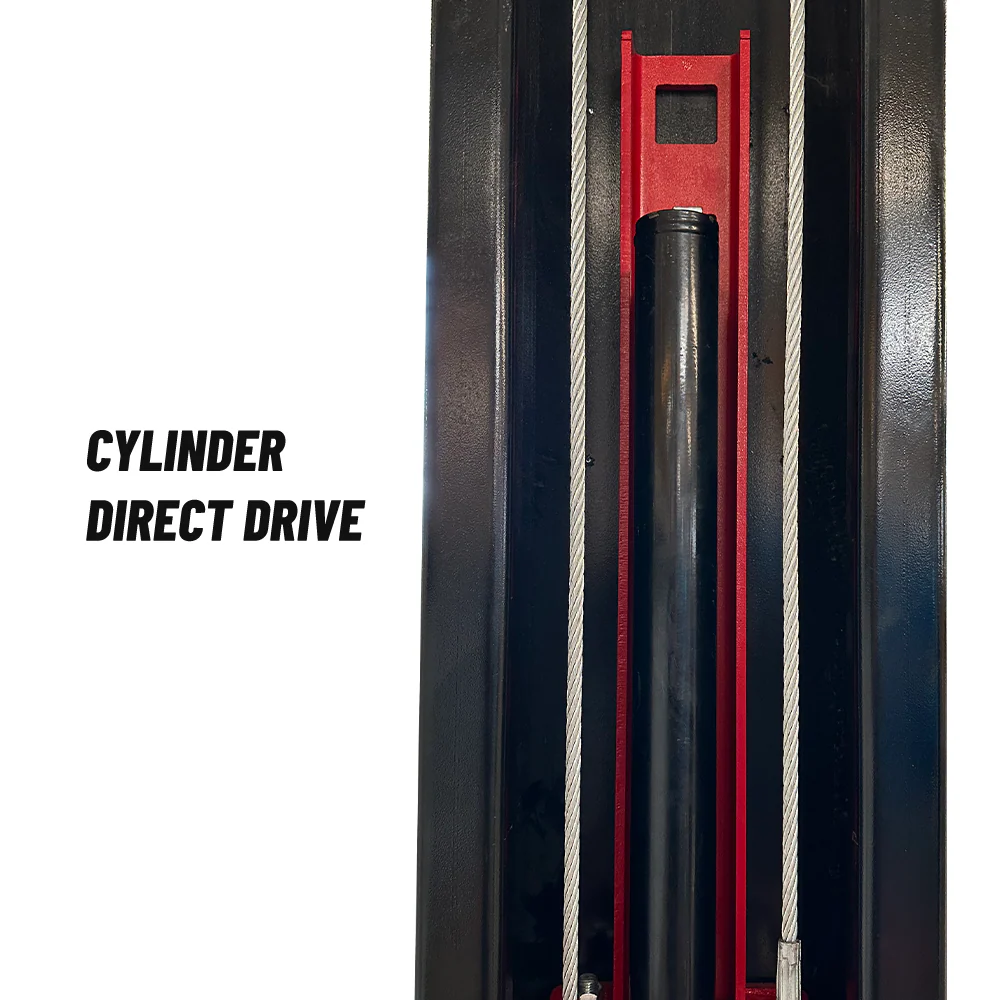

  • Car lift direct-drive cylinder with steel piston and cable sheaves

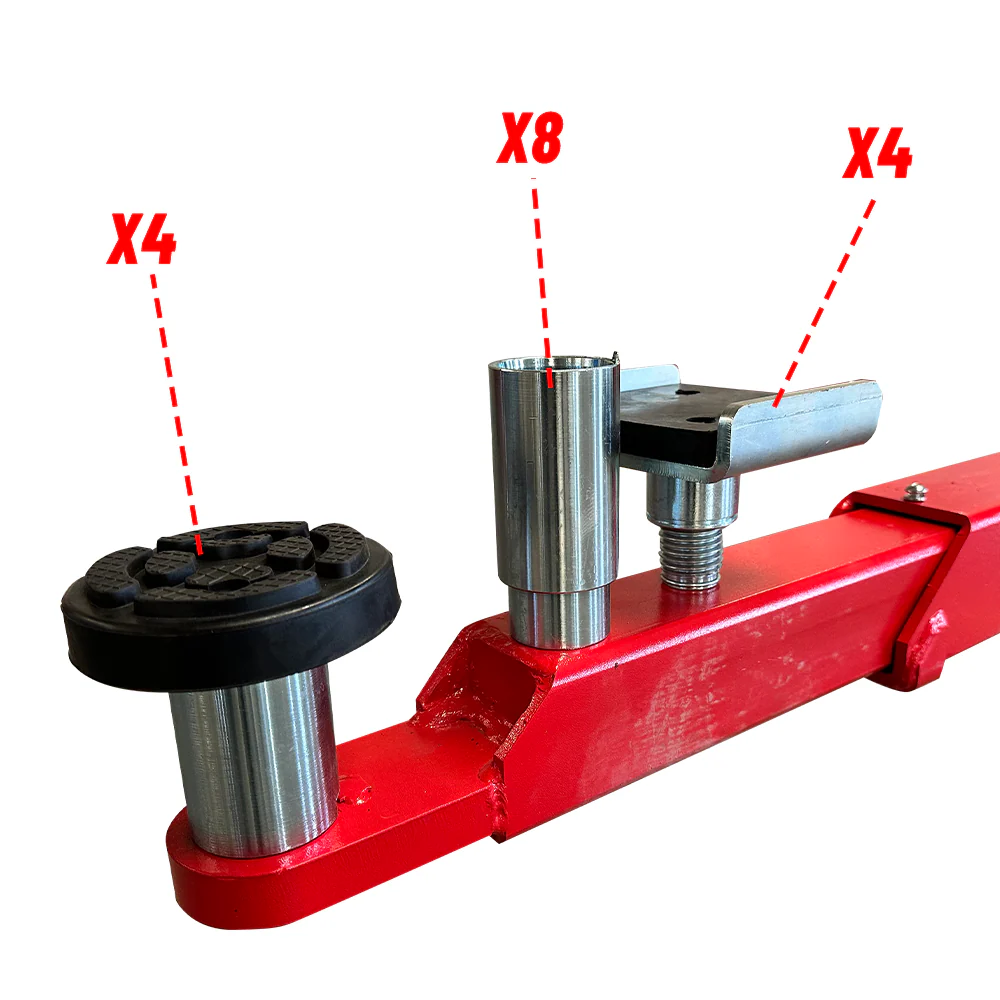

  • Red lift beam with two hydraulic cylinders and black support pads

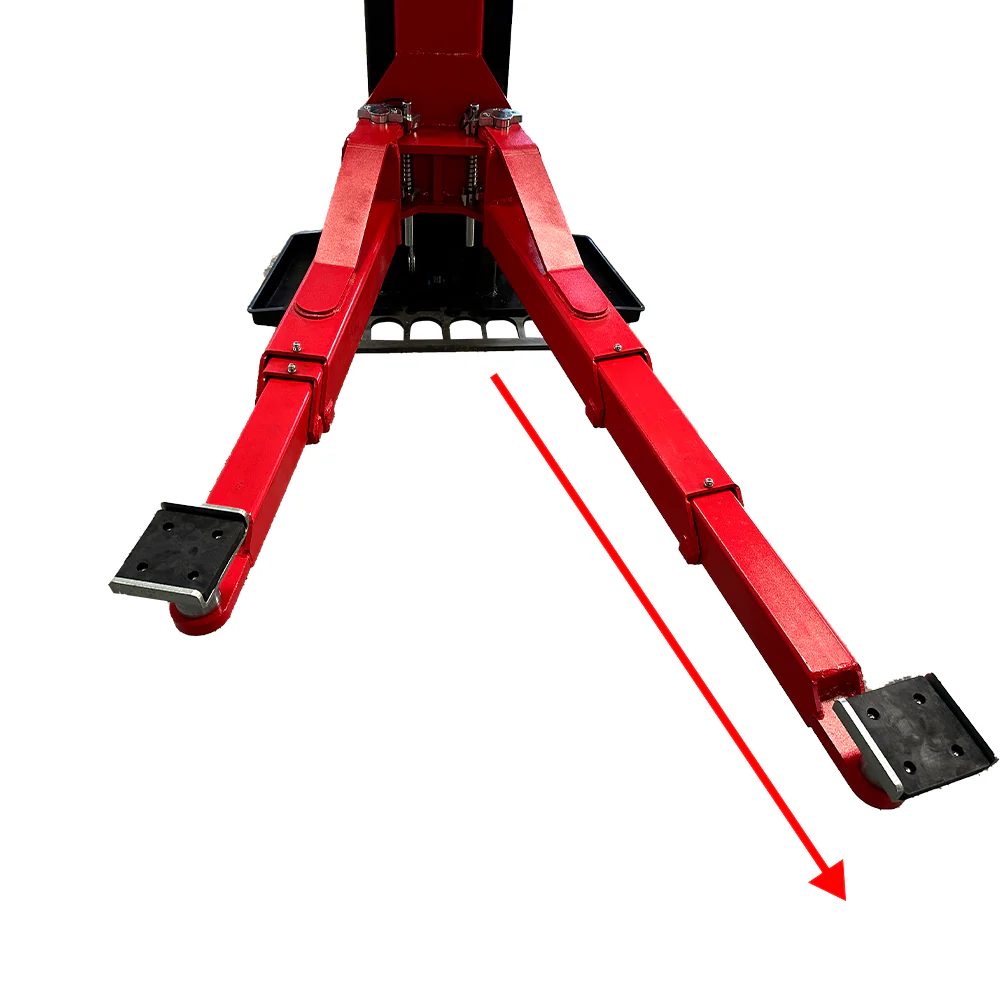

  • 5. 15,000 lb capacity 2-post lift for commercial auto shops

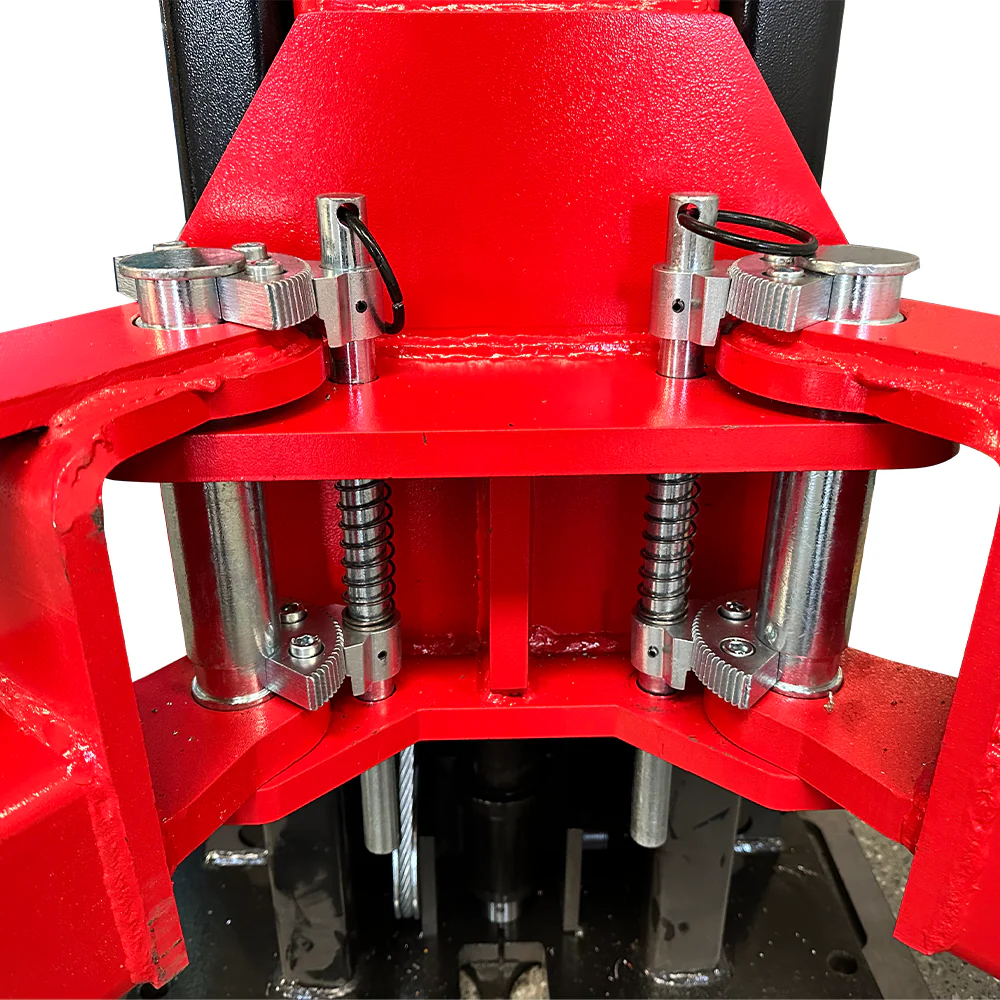

  • Red lift platform with dual locking posts and spring-loaded supports

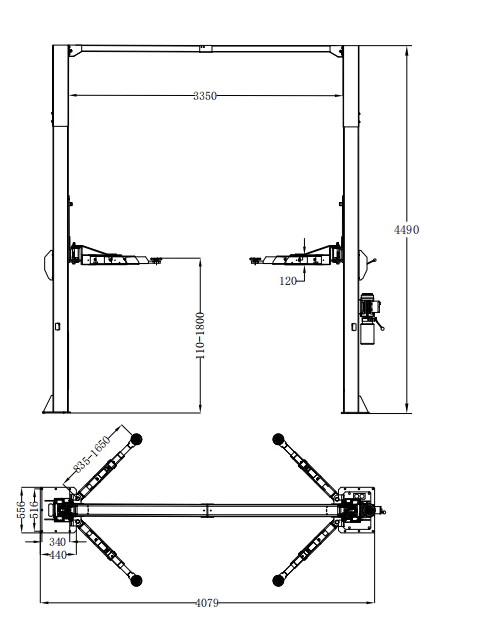

  • Two-post lift dimensional drawing with overhead frame and scissor arms
Katool M150D 15,000 lb Clear-Floor 2-Post Lift - Single Point Lock

Katool M150D 15,000 lb Clear-Floor 2-Post Lift - Single Point Lock

$4,297.00 $5,199.00

🚚 Delivery option includes free freight to the lower 48 states.

Delivery Options

Shop Pay Installments

Split your purchase into flexible installment payments with Shop Pay. Pay over time with no hidden fees.

How it works:

  • Choose Shop Pay at checkout
  • Select your preferred payment plan
  • Make your first payment today
  • Pay the rest over time with automatic payments

No interest. No hidden fees. Just flexible payments that work for you.

🇺🇸 US-Based Business: Unlike big out-of-state sellers, we offer specialized support and $0 Sales Tax outside Illinois.

💰
Tax-Free Outside IL
🚚
Free Freight Lower 48 States
🛡️
1-Yr Warranty Full Parts Support
✅
CE Approved International Quality
📍
Local Pickup Nationwide Save up to $1,400 in freight costs
Learn More >
Warranty

Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge. A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.

Warranty Includes:

  • Cylinders, power units, motors, displays, electronics, etc.
  • Vehicle lifts: additional 36-month warranty on structural components

Warranty Conditions:

  • Claims must fall within the warranty period
  • Non-transferable — requires original order number
  • Replacement parts provided at no cost, including free shipping
  • Labor is not included
  • Photos and/or videos of defects may be requested
  • Do not disassemble any equipment before the issue is determined

📄 Download Manual (PDF)
Shipping

Free freight shipping to the contiguous 48 US states. Estimated delivery: 6–10 business days. Curbside delivery only — forklift or pallet jack required. Carrier will call 24–48 hrs before delivery. View full Shipping & Delivery details →
How to Choose the Right Lift ▾

Not sure whether a 2-post or 4-post lift is right for your shop? Our guide breaks down the key differences in access, space, capacity, and use case.

View the 2-Post vs 4-Post Comparison Guide →

⚠️ Safety Warning

⚠️ IMPORTANT SAFETY WARNING: Concrete thickness must be at least 5.9 inches (150 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete could result in serious injury or death! It is the customer's responsibility to verify concrete thickness and strength before purchase and installation.

⚠️ IMPORTANT SAFETY WARNING: Ceiling clearance must be at least 16 feet (4,877 mm). Failure to verify your garage or shop height before installation could result in serious injury or death! It is the customer's responsibility to verify ceiling height before purchase and installation.

The Katool KT-M150D Clear-Floor 2-Post Lift combines professional 15,000 lb capacity with a clear-floor design that eliminates trip hazards and maximizes workspace. Unlike traditional 2-post lifts, the clear-floor design eliminates cables and chains from the floor, allowing you to work with one simple action. Low-profile swing arms provide exceptional clearance for lowered vehicles while the extra-tall 176.8-inch height accommodates lifted trucks and large SUVs. with direct-drive cylinder system, single point lock release, and durable powder coat finish in red and yellow — built for shops that service heavy trucks, commercial vehicles, and need maximum efficiency.

  • 15,000 lbs lifting capacity
  • Clear-Floor Design — no cables or chains on floor
  • Direct-Drive Cylinder System for smooth, consistent operation
  • Extra-tall 176.8-inch overall height for lifted trucks and large SUVs
  • Low-profile swing arms for exceptional clearance on lowered vehicles
  • Single Point Lock Release for fast, efficient operation
  • 116-inch drive-thru clearance
  • Durable powder coat finish in red and yellow
  • 220V/60HZ/1PH, 3000 PSI hydraulic system
Feature M120 H120D AM120SD M140XD M150D
Capacity 12,000 lb 12,000 lb 12,000 lb 14,000 lb 15,000 lb
Arm Type Clear-Floor Symmetrical Single Point Lock HD Single Point Clear-Floor
Max Lift Height 75 in 70.34 in 70.87 in 72.83 in —
Overall Height — — — — 176.8 in (extra tall)
Drive-Thru Clearance — 110.34 in — — 116 in
Motor 220V/110V opt. 220V/60Hz/1PH 4.0HP/220V 220V/60Hz/1PH 220V/1PH 3000 PSI
Arm Adjustability — 110mm — — —
Locking Positions — — 12 — —
Passing Width — — — 131 in —
Package Weight 1,750 lbs 1,300 lbs 1,369 lbs 1,960 lbs 2,450 lbs

Lifting Capacity: 15,000 lbs (6,800 kg)

Motor: 220V/60HZ/1PH, 3000 PSI

MaxLiftingHeight:72.83in/1,850 mm

Height Overall: 176.8 in / 4,493 mm

Drive Thru Clearance: 116 in

Floor Design: Clear-Floor — no cables or chains on floor

Package Size: 141 x 23.33 in

Package Weight: 2,450 lbs

Minimum Ceiling Height Required: 16 ft / 4,877 mm

The Katool KT-M150D Clear-Floor 2-Post Lift is purpose-built for professional heavy truck and commercial vehicle service with 15,000 lbs of lifting capacity. The innovative clear-floor design eliminates cables and chains from the workspace, creating a safer environment with no trip hazards and maximum workspace efficiency. Low-profile swing arms provide exceptional clearance for lowered vehicles while the extra-tall 176.8-inch overall height accommodates lifted trucks and large SUVs. The direct-drive cylinder system ensures smooth, consistent operation while the single point lock release enables fast, efficient service. Built with a durable powder coat finish in red and yellow, 116-inch drive-thru clearance, and 220V/60HZ/1PH power at 3000 PSI.

Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge. A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.

Warranty Includes:

  • Cylinders, power units, motors, displays, electronics, etc.
  • Vehicle lifts: additional 36-month warranty on structural components

Warranty Conditions:

  • Claims must fall within the warranty period
  • Non-transferable — requires original order number
  • Replacement parts provided at no cost, including free shipping
  • Labor is not included
  • Photos and/or videos of defects may be requested
  • Do not disassemble any equipment before the issue is determined

📄 Download Manual (PDF)

  • Heavy Truck & Commercial Service: 15,000 lb capacity handles heavy trucks, commercial vehicles, and large SUVs
  • Safety-Focused Shops: Clear-floor design eliminates trip hazards with no cables or chains on floor
  • High-Clearance Service: Extra-tall 176.8-inch height for lifted trucks and large SUVs
  • High-Volume Shops: Single point lock release for fast, efficient service
  • Professional Auto & Truck Service Centers: CE certified with direct-drive cylinder system

All Katool equipment is manufactured to international quality standards.

  • Quality Control — Each unit undergoes pre-shipment inspection
  • US-Based Support — Technical support provided from the United States
  • Warranty — 1-year limited manufacturer warranty included

Freight shipping included to the lower 48 states. Four delivery options available:

  • Warehouse Pickup — No shipping cost, pickup at our warehouse
  • Terminal Pickup — Ship to nearest freight terminal, no forklift needed
  • Commercial Delivery — Delivery to business address, forklift required
  • Residential Delivery — Delivery to home address, forklift required

Due to the size and weight of this lift, please confirm your unloading capability before ordering.

Package Size

L x W x H (in) 141 x 24 x 35
Weight (lbs) 2450

Product Manual

Download the complete product manual and installation guide.
Download Manual

Complete Your Shop Setup

Everything a professional tire shop needs
Tire Service Packages Collection Banner

Tire Service Packages

2-Post Lifts Category Image

2-Post Lift

4-Post Lifts Category Image

4-Post Lifts

Tire Changer

Tire Changer

Wheel Balancer

Wheel Balancer

Shop Accessories Collection Banner

Shop Accessories

Frequently Asked Questions

  • Due to the size and weight of this lift, a forklift is required for unloading. Four options: Warehouse Pickup (no shipping cost), Terminal Pickup at a nearby freight terminal (no forklift needed, shipping included), Commercial Delivery with forklift required (shipping included), and Residential Delivery with forklift required (shipping included).
  • A clear-floor design means there are no cables or chains on the floor between the two posts, allowing full drive-through access, eliminating trip hazards, and maximizing workspace efficiency.
  • Professional installation by a certified technician is strongly recommended. A concrete floor with minimum 5.9-inch (150mm) thickness and 3,000 PSI rating is required. Anchor bolts and installation hardware are included.
  • The KT-M150D is not ALI certified and does not carry CE certification. For customers requiring ALI or CE certified lifts, we recommend verifying your specific facility requirements before purchase.
  • Yes. We offer Shop Pay Installments, allowing you to split your purchase into 4 interest-free payments on orders from $5,000 and up.
  • We provide US-based technical support via email and phone. Our team assists with installation questions, troubleshooting, and parts replacement throughout your warranty period.
  • Returns are accepted within 30 days for unused equipment in original packaging. Please contact us before returning any equipment. Return freight costs are the responsibility of the buyer.
