1. 14,000 lb heavy duty 2-post lift - M140XD with single point lock

Katool KT-M140XD 14,000 lb Heavy Duty 2-Post Lift — Single-Point Lock Release

Pickup at Carrier Terminal
$3,699.00 $4,999.00
Skip to product information
1. 14,000 lb heavy duty 2-post lift - M140XD with single point lock
1/17
  • 1. 14,000 lb heavy duty 2-post lift - M140XD with single point lock

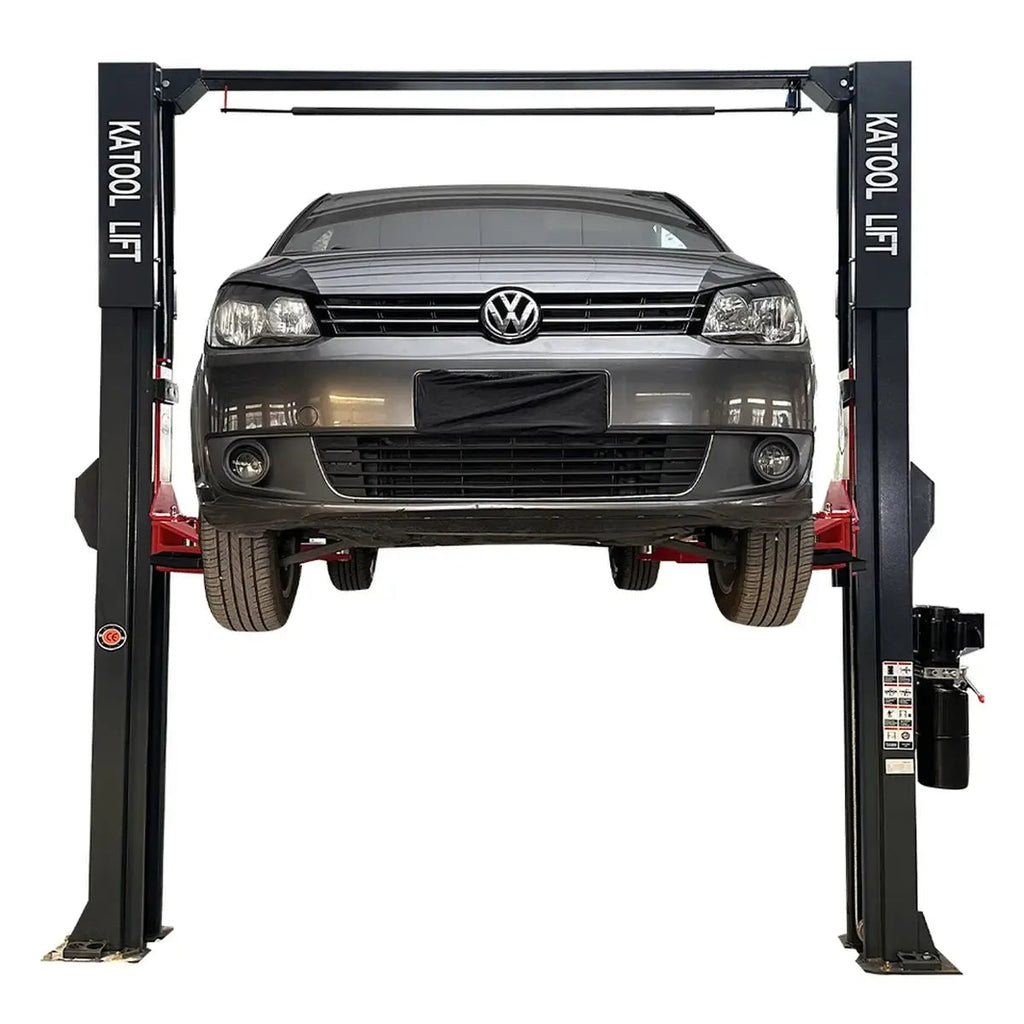

  • Katool two-post car lift with red arms and black posts supporting a vehicle

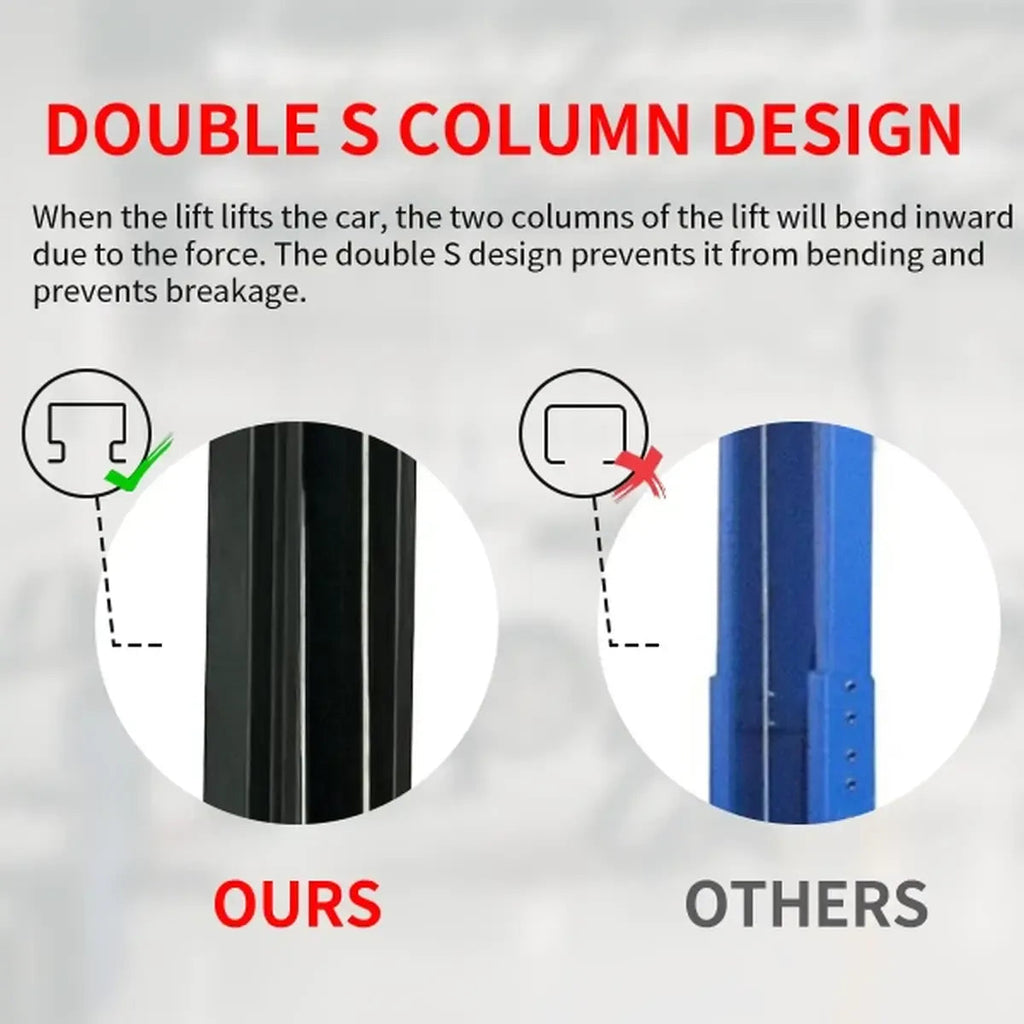

  • 3. Heavy-duty truck lift with 14,000 lb capacity

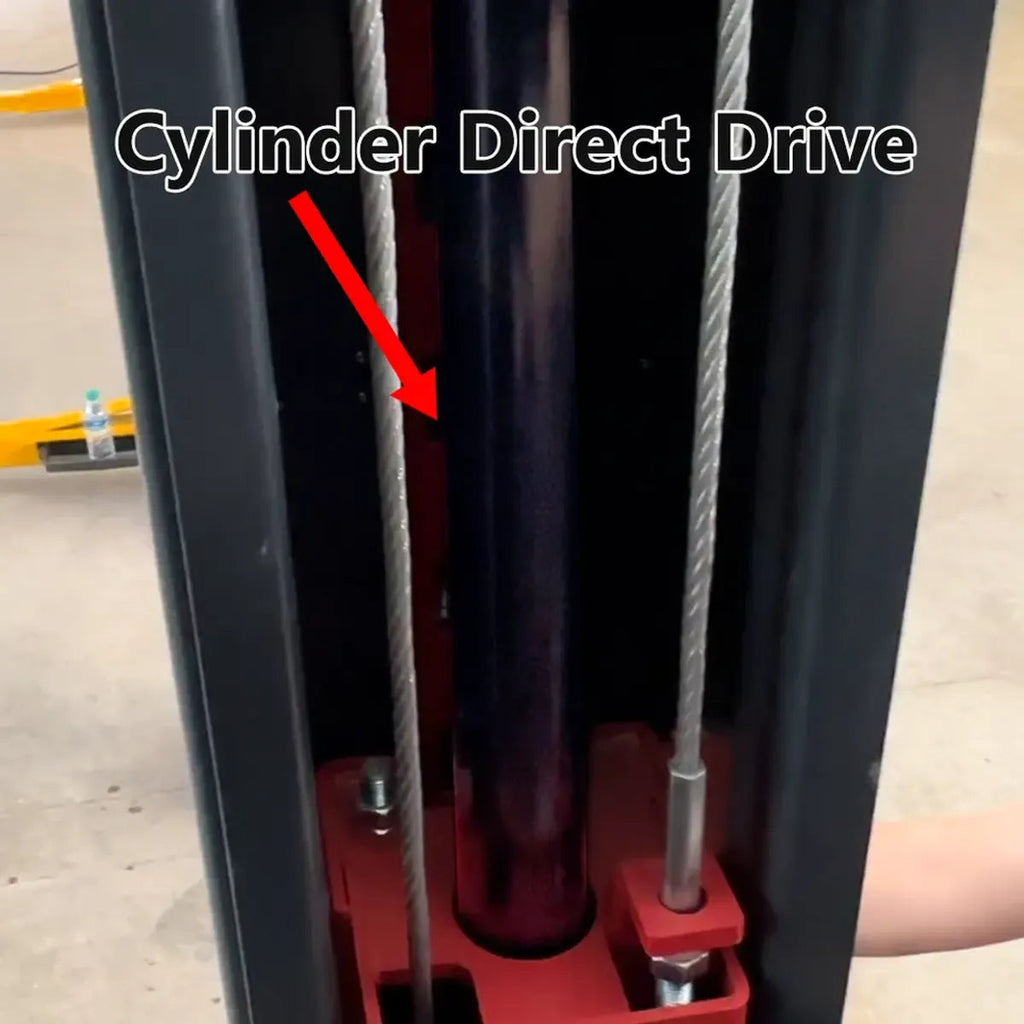

  • Two-post car lift cylinder and steel cables inside the lift columns

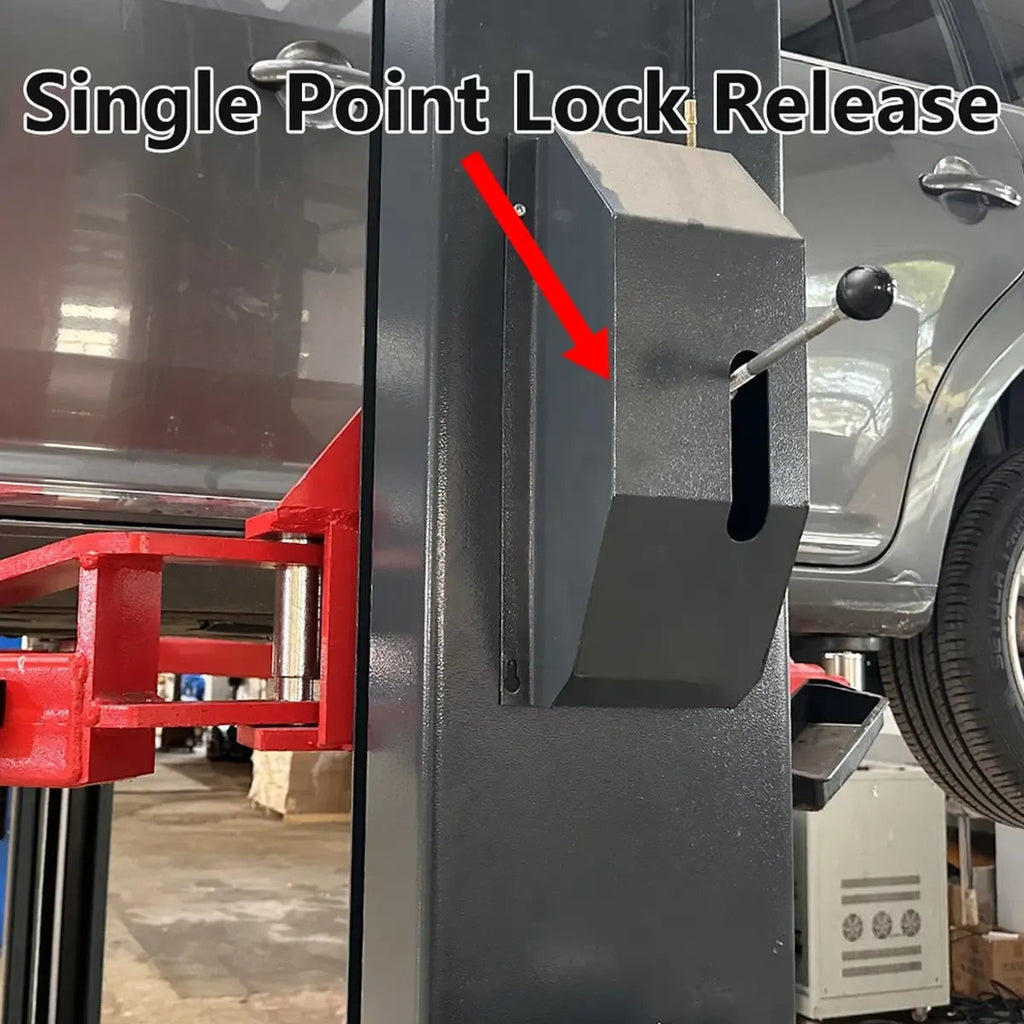

  • Two-post car lift single point lock release mechanism beside a vehicle

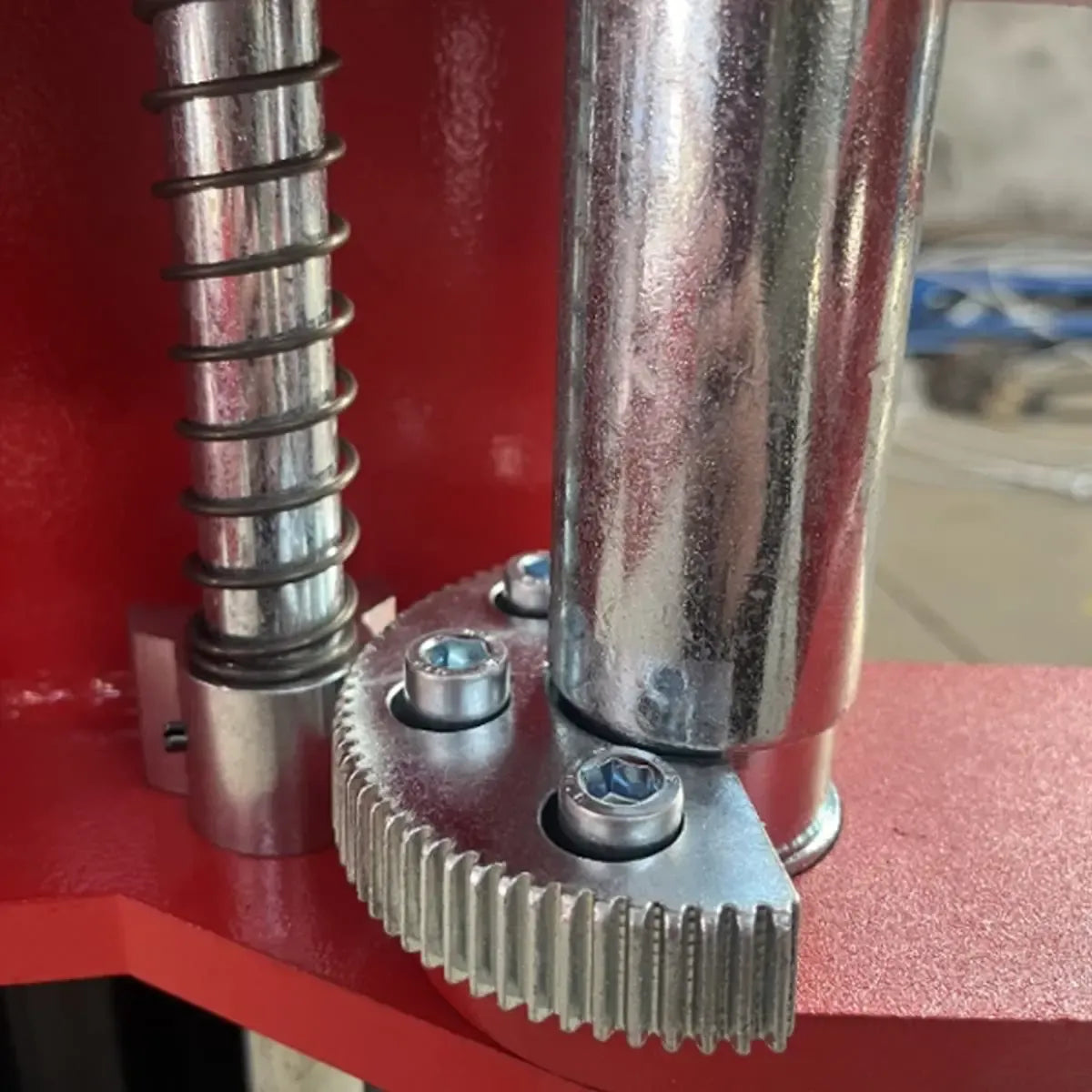

  • 6. 14,000 lb capacity lift for heavy trucks and large SUVs

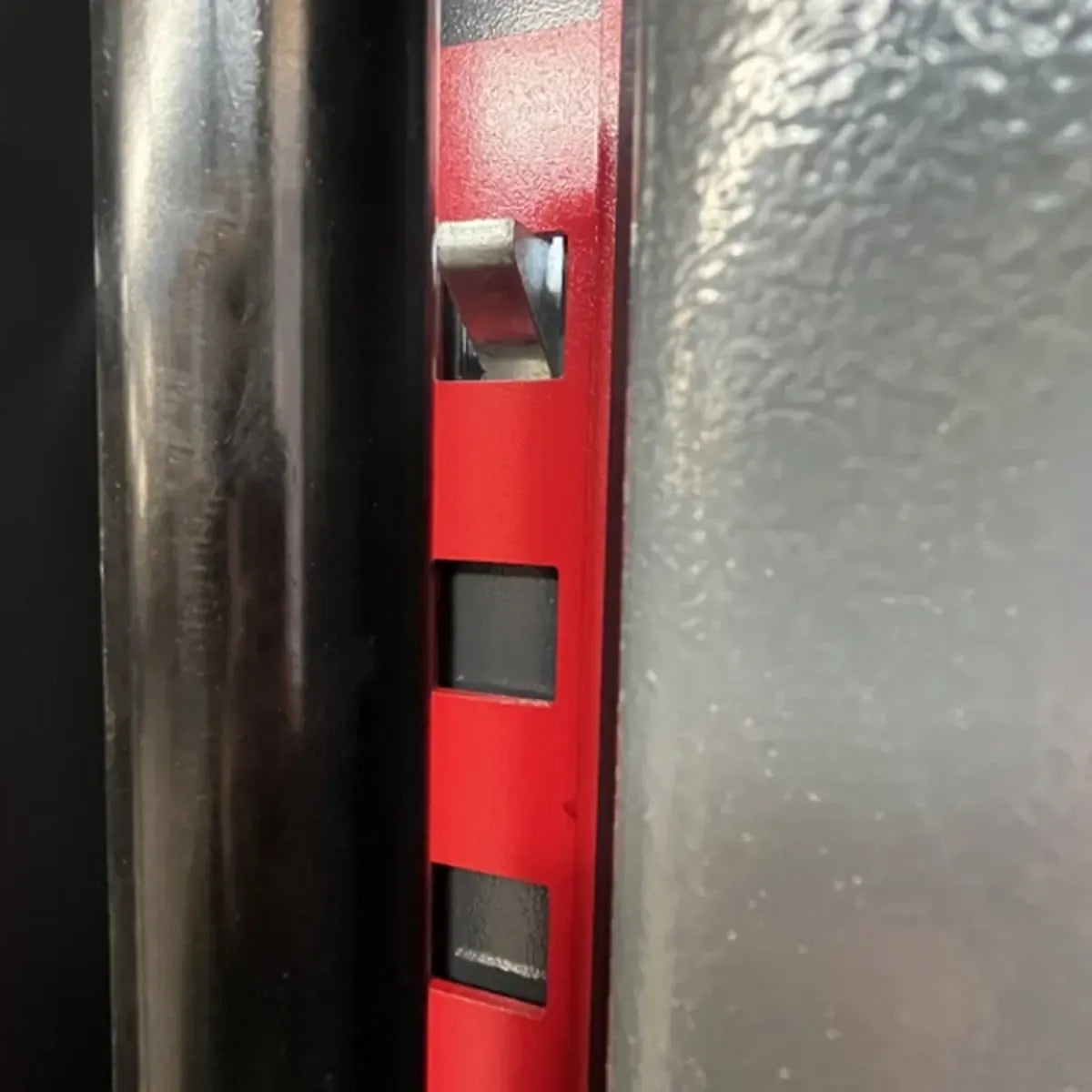

  • Two-post car lift locking plate area on the dark column with red frame

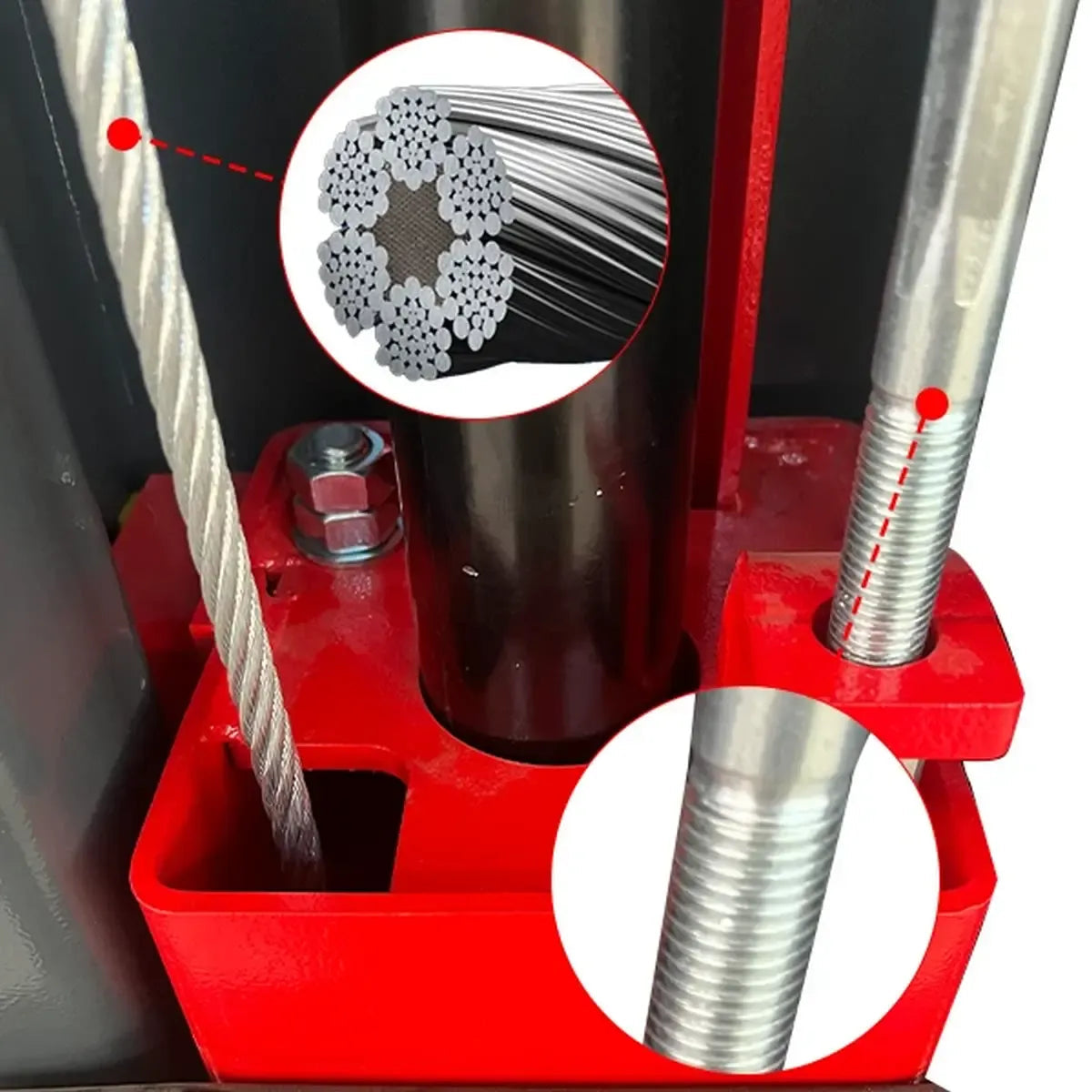

  • Two-post car lift base plate showing cable and lift screw with thread details

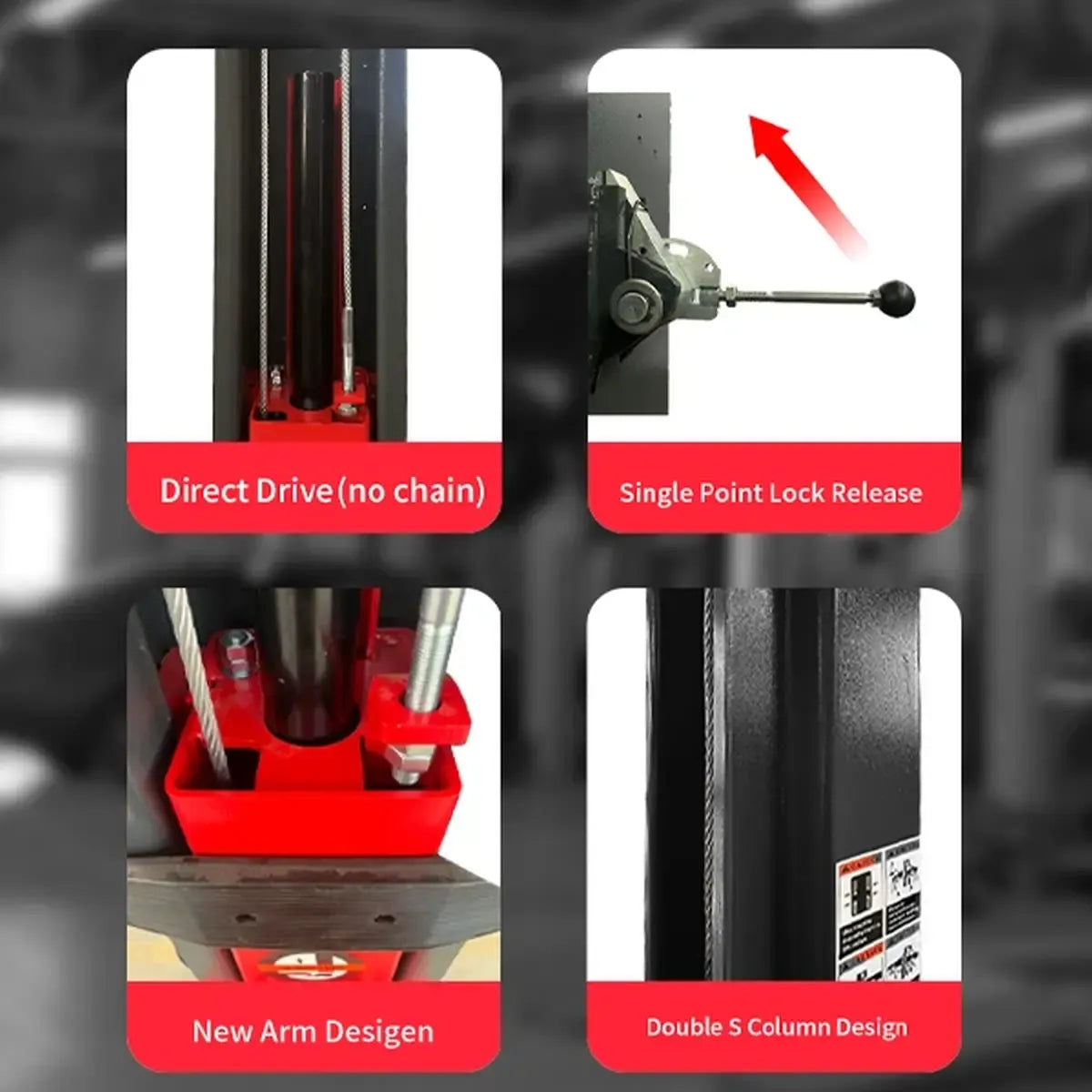

  • Two-post car lift control and cable system diagram panels showing lock release

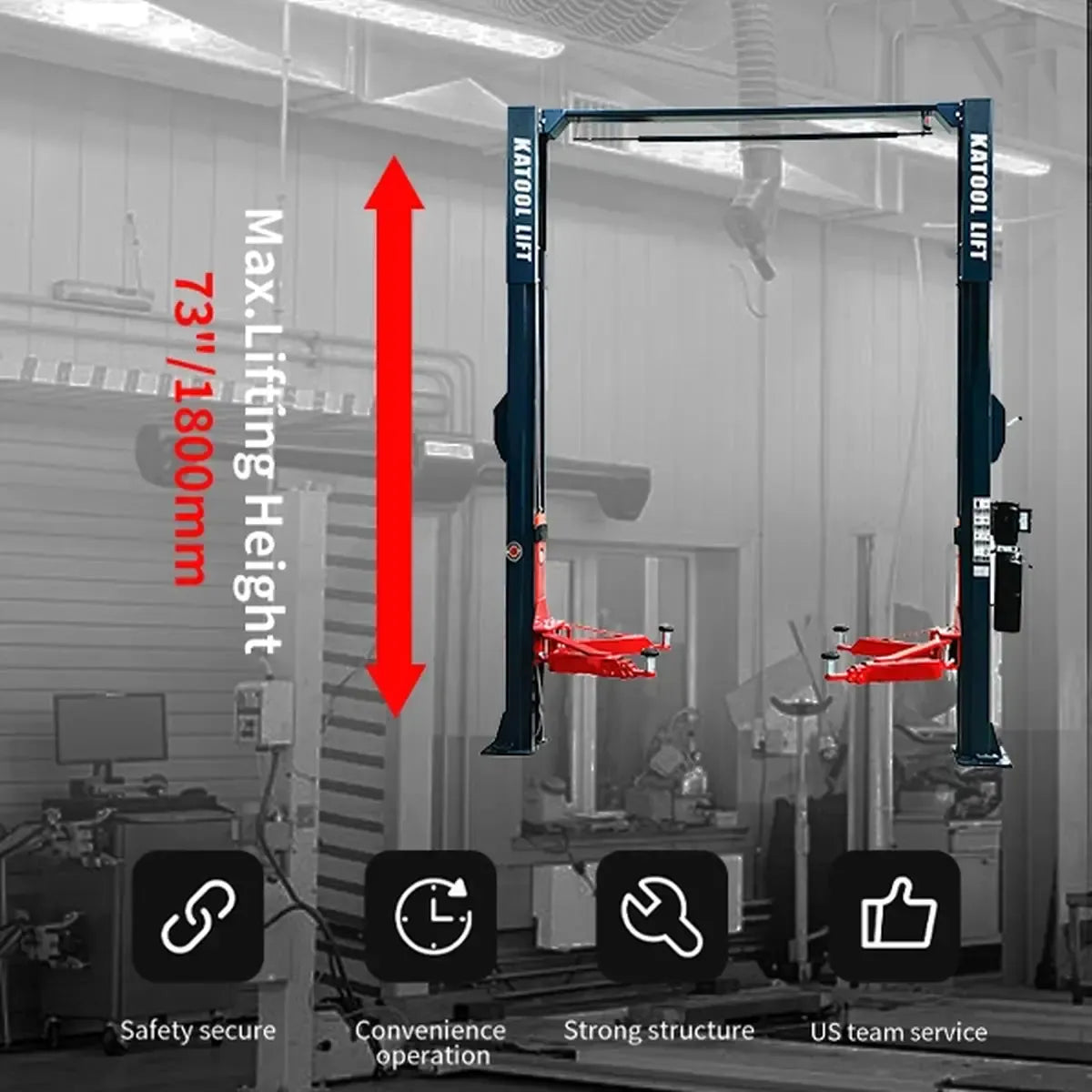

  • Two-post car lift mounted in a garage with red arms in raised position

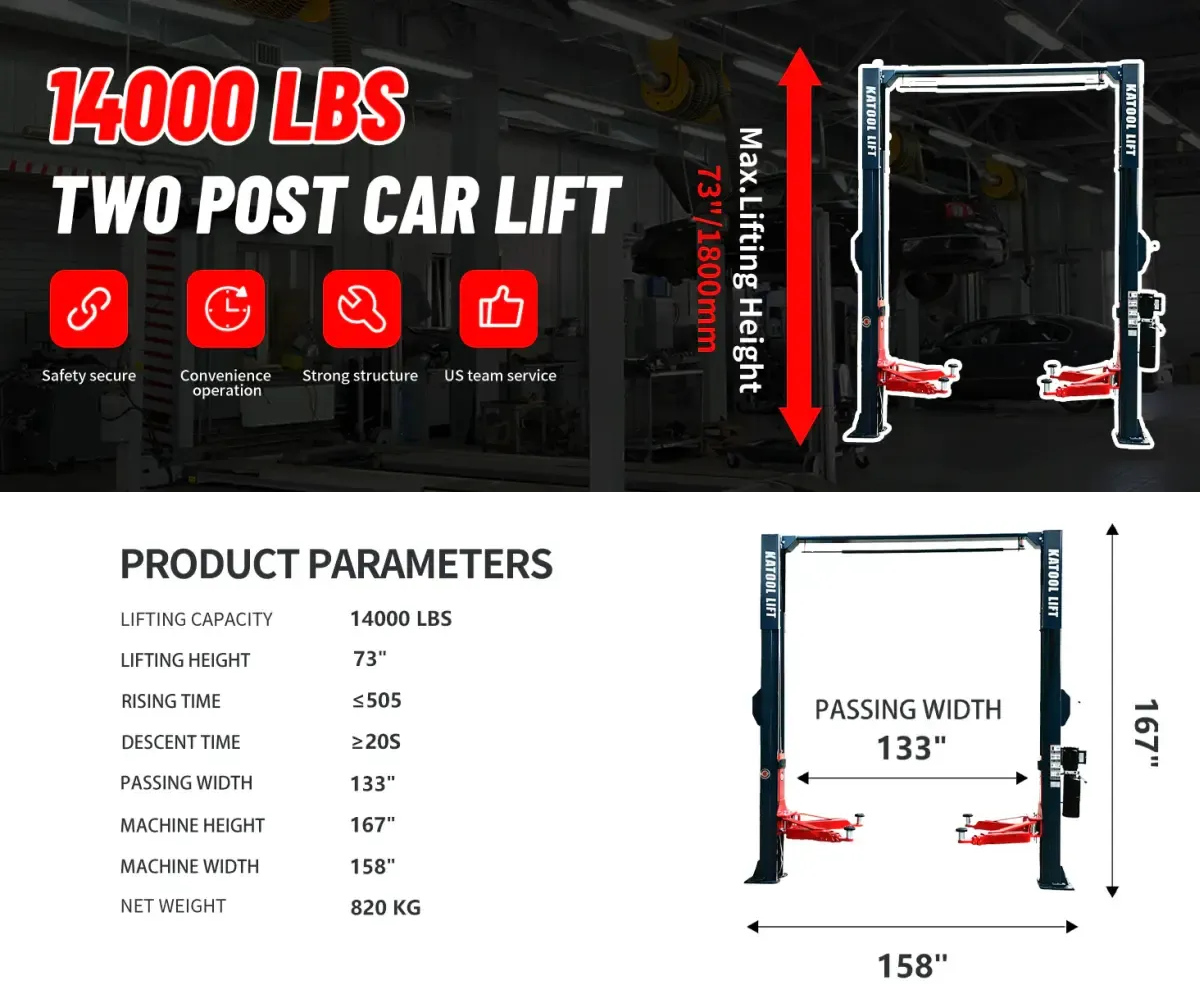

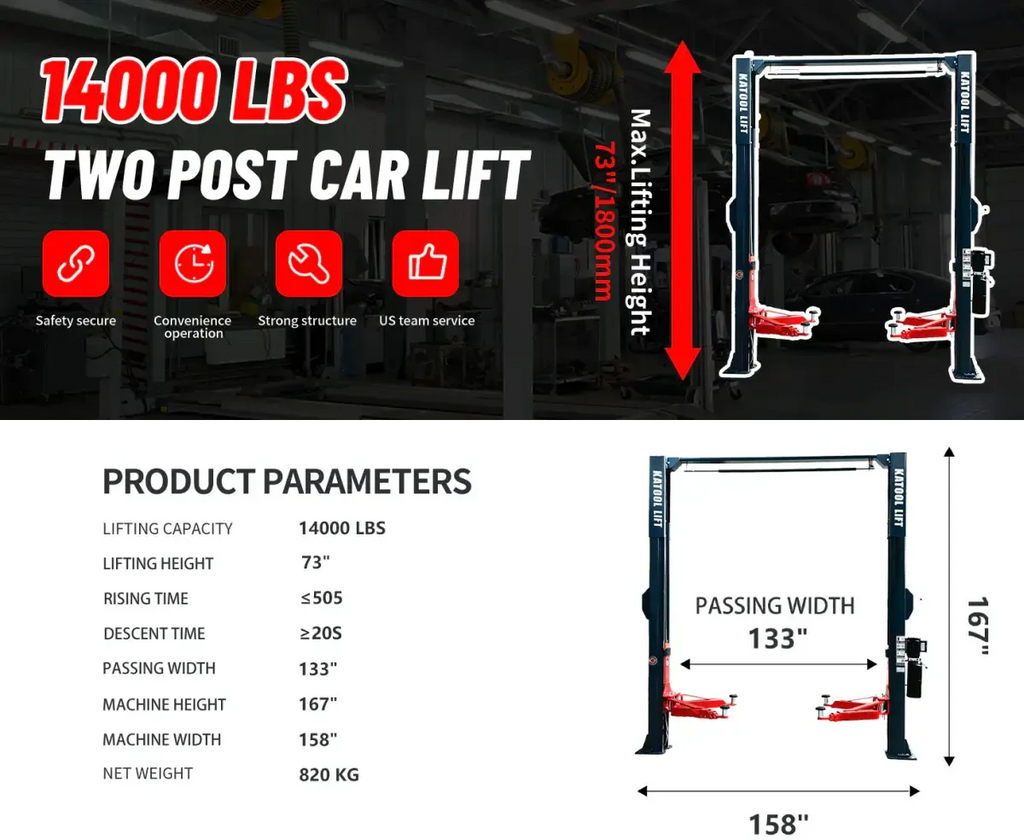

  • 11. 14,000 lb lift showing single point lock convenience
  • Two-post car lift promotional layout with capacity and height arrows and lift view

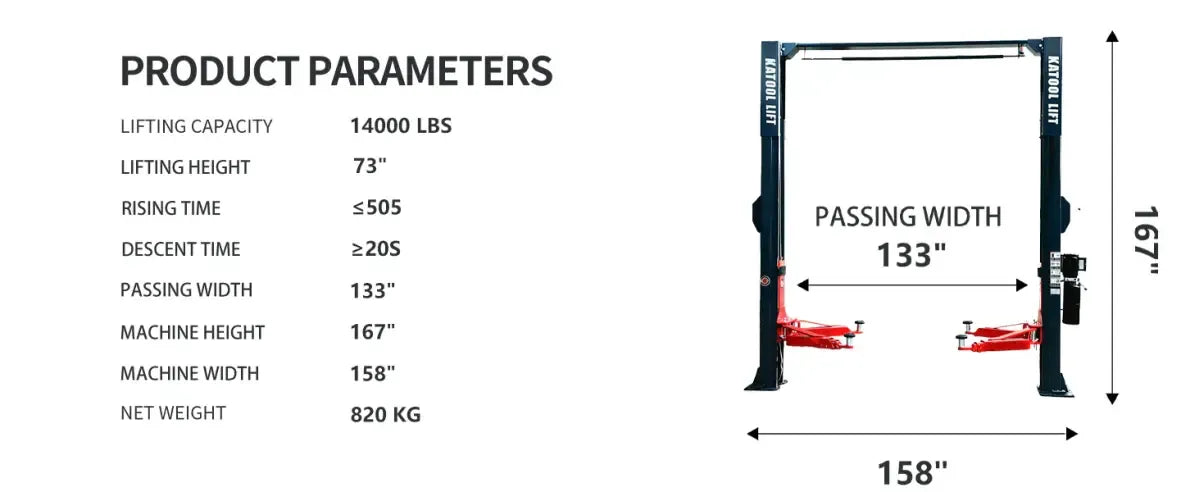

  • Two-post car lift product parameter graphic with measurements and height specs

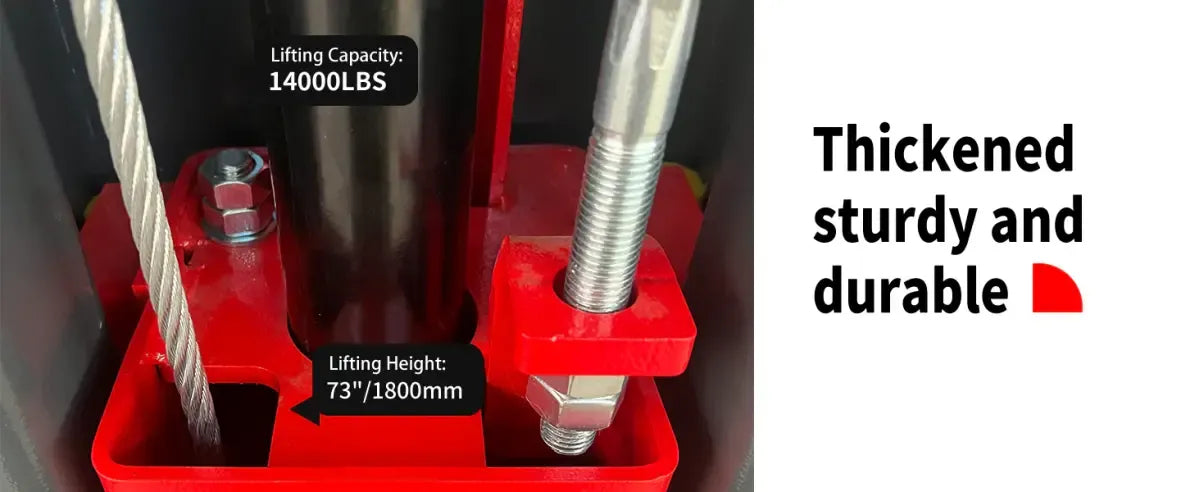

  • Two-post car lift base showing thickened red platform and lifting height label

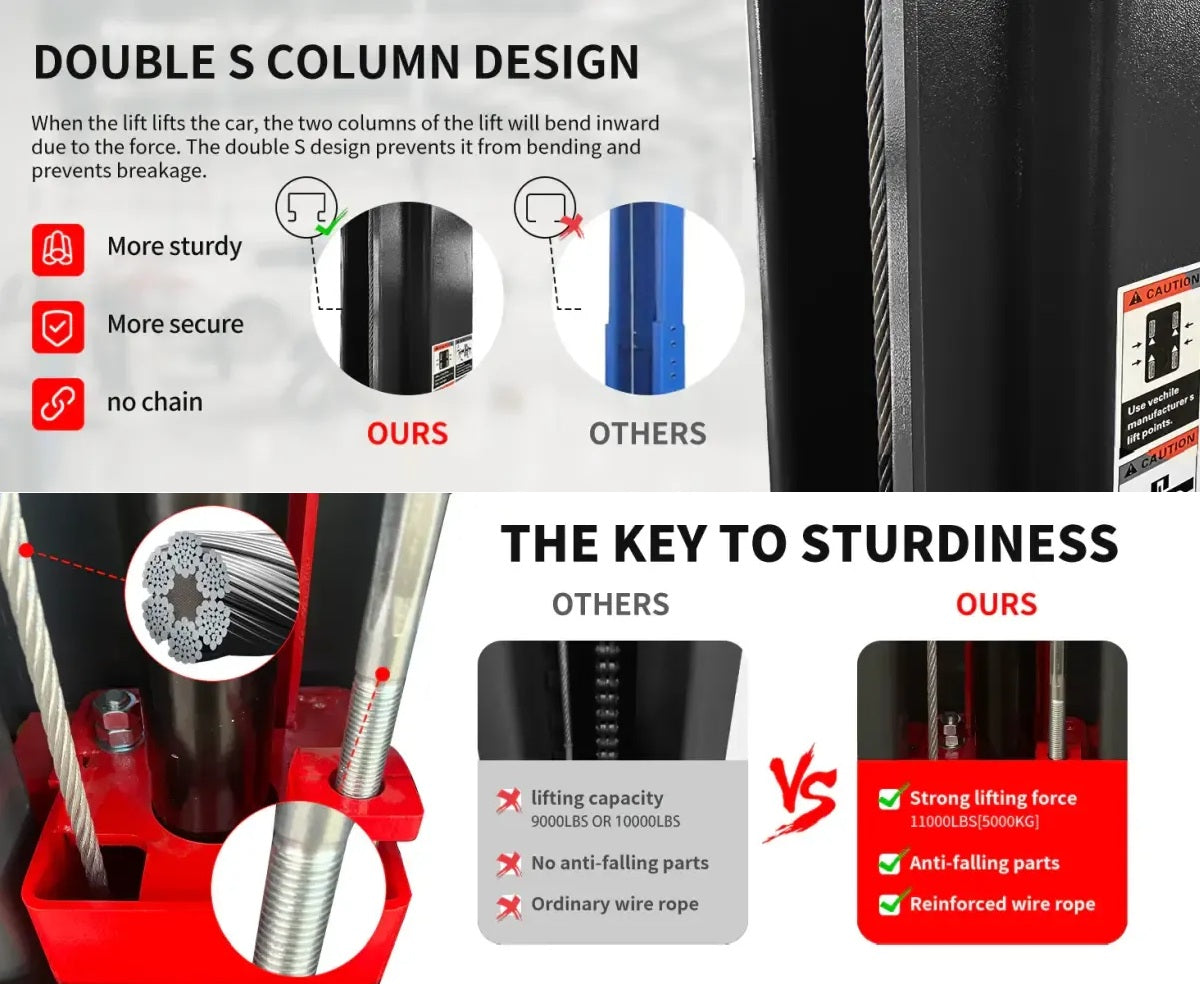

  • 15. 14,000 lb capacity 2-post lift with wide passing width

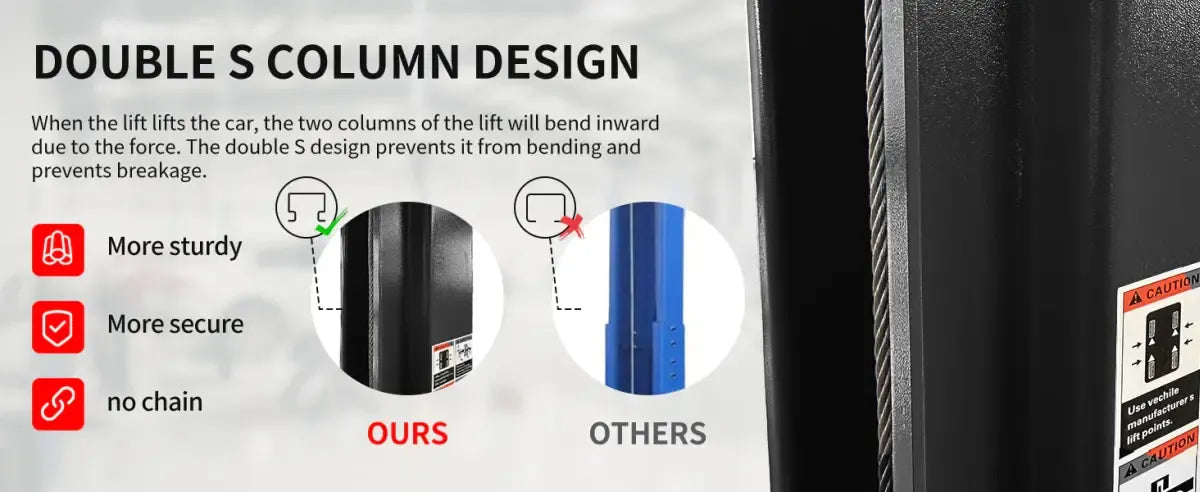

  • Two-post lift column close-up with steel cable and black and blue guide sections

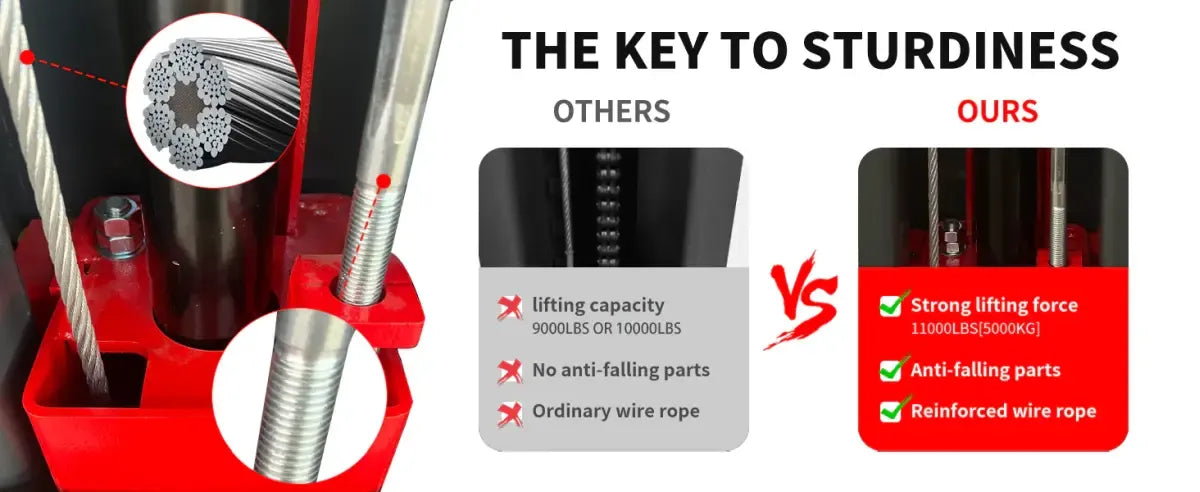

  • Two-post lift hardware close-up with steel posts and wire rope above red base
Katool KT-M140XD 14,000 lb Heavy Duty 2-Post Lift — Single-Point Lock Release

Katool KT-M140XD 14,000 lb Heavy Duty 2-Post Lift — Single-Point Lock Release

$3,699.00 $4,999.00

Shop Pay Installments

Eligible customers can split their purchase into payments with Shop Pay. Available plans and terms are shown at checkout.

How it works:

  • Choose Shop Pay at checkout
  • Select your preferred payment plan
  • Review the payment schedule and any down payment at checkout
  • Pay the rest over time with automatic payments

Payment options are subject to eligibility. Interest may apply. Review your rate, payment schedule, and total cost before completing your purchase.

🚚 Shipping availability and rates vary by product, delivery option, and destination.

Delivery Options
Free warehouse pickup · Confirm first Ask us to confirm stock and the supplier pickup location before ordering. No same-day pickup or handling fee. Contact us to arrange pickup →
Carrier Terminal Pickup: Bring a suitable vehicle or trailer. The terminal will load the shipment, but the customer is responsible for unloading at the final destination.
⚠️ Warehouse Pickup – Please Contact Us First. Due to varying inventory across our warehouse locations, please contact us before placing your order to confirm stock availability at your preferred location.
Contact Us to Check Availability

Adds 24 months after the standard parts warranty ends. Parts only; labor is not included. One plan per machine.

View coverage and terms

🇺🇸 US-Based Business: We offer specialized support and flexible shipping and delivery options.

🏭
Expert SupportUS-Based Team
🚚
Shipping OptionsVary by Product & Destination
🛡️
Manufacturer WarrantySee Product Terms
🔬
Product SupportContact ALLIZOE
📍
Pickup Options May Be AvailableContact us to confirm location & availability
Learn More >
Warranty

Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge. Optional extended parts coverage is offered only when an enabled add-on is shown for this eligible main machine. If purchased, it adds 24 months after the standard parts warranty ends. Parts only; labor is not included, and the structural warranty is not extended.

Warranty Includes:

  • Cylinders, power units, motors, displays, electronics, etc.
  • Structural components: 3-year standard manufacturer warranty

Warranty Conditions:

  • Claims must fall within the warranty period
  • Non-transferable — requires original order number
  • Replacement parts provided at no cost, including free shipping
  • Labor is not included
  • Photos and/or videos of defects may be requested
  • Do not disassemble any equipment before the issue is determined

📄 Download Manual (PDF)
Shipping

Shipping availability, charges and estimated timing vary by product, delivery option and destination. Review the selected option and confirm any unloading equipment or delivery services required before ordering. Warehouse pickup requires stock and location confirmation, an appointment and written pickup authorization; no same-day pickup. Pickup has no shipping or handling fee. View full Shipping & Delivery details →
How to Choose the Right Lift ▾

Not sure whether a 2-post or 4-post lift is right for your shop? Our guide breaks down the key differences in access, space, capacity, and use case.

View the 2-Post vs 4-Post Comparison Guide →

⚠️ Safety Warning

⚠️ IMPORTANT SAFETY WARNING: Concrete thickness must be at least 5.9 inches (150 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete could result in serious injury or death! It is the customer's responsibility to verify concrete thickness and strength before purchase and installation.

⚠️ IMPORTANT SAFETY WARNING: Ceiling clearance must be at least 15 feet (4,572 mm). Failure to verify your garage or shop height before installation could result in serious injury or death! It is the customer's responsibility to verify ceiling height before purchase and installation.

Price & Freight — Before Tax

For one lift in its listed standard configuration within the contiguous United States:

  • Warehouse Pickup: $3,699 before tax; no freight or handling fee. Confirm supplier stock, warehouse and a pickup appointment with ALLIZOE before ordering.
  • Pickup at Carrier Terminal: $3,699 product + $500 freight = $4,199 before tax.
  • Commercial Delivery (Forklift Required): $3,699 product + $500 freight = $4,199 before tax.
  • Residential Delivery (Forklift Required): $3,699 product + $600 freight = $4,299 before tax.

Tax, optional accessories or upgrades, and the optional $349 extended parts warranty are additional. Address delivery requires suitable forklift or loading-dock arrangements; standard liftgate service is not offered for this lift. For terminal pickup, bring a suitable vehicle or trailer and arrange unloading at your final destination. Confirm address eligibility and review the final total at checkout; orders containing other products may have different combined shipping charges.

The Katool M140XD Heavy Duty 2-Post Lift delivers 14,000 lbs of lifting capacity engineered for the most demanding garage and shop environments. Direct-drive cylinders with equalization cables ensure smooth, synchronized lifting while the overhead cross beam with top-limit switch adds critical safety protection. With single-point lock release, this lift supports service for full-size trucks and vans. Confirm the supplied lift's actual drive-through clearance and the vehicle's lifting-point requirements before ordering.

  • 14,000 lbs heavy-duty lifting capacity
  • Direct-Drive Cylinders with equalization cables for synchronized lifting
  • Overhead cross beam with top-limit switch for maximum safety
  • Single Point Lock Release for fast, convenient operation
  • Confirm the supplied lift's actual drive-through clearance against vehicle width before ordering
  • Confirm maximum lifting height against the supplied model's installation drawing
  • Symmetric 2-post design with overhead cross beam
  • Rubber pad door opening protection
  • 220V/60HZ/1PH power
AM120SD M140XD M150D
Capacity 12,000 lb 14,000 lb 15,000 lb
Price (from) $2,799 $3,699 $4,299
Max Lift Height 70.87 in Confirm supplied model's dimensions before ordering 72.83 in
Passing Width 94 in Confirm supplied model's dimensions before ordering 116.14 in
Machine Width — 157.87 in 160.59 in
Arm Reach Max 55.9 in 70.87 in 64.96 in
Motor 220V / 4.0 HP 220V / 1 phase / 4 HP 220V / 60Hz / 3 kW (4 HP)
Net Weight 1,369 lbs Confirm net weight 1,808 lbs
Arm Type Asymmetrical Symmetrical Symmetrical
Best For 12K standard HD trucks 14K Heavy commercial

Lifting Capacity: 14,000 lbs (6,350 kg)

Motor: 220V / single-phase / 4 HP

Max. Lifting Height: Pending supplier confirmation for the supplied model

Drive-Through Clearance: Pending supplier confirmation for the supplied model

Package Size: 114 x 22 x 40 in

Package Weight: 1,960 lbs

Min. Height: 4.25 in / 110 mm

Height Overall: 166.73 in / 4,235 mm

Width Overall: 157.87 in / 4,010 mm

Net Weight: Pending supplier confirmation; published net and shipping weight figures conflict

Minimum Ceiling Height Required: 15 ft / 4,572 mm

The listed KT-M140XD configuration is 220V single-phase with a 4 HP motor. Contact ALLIZOE before ordering any alternative voltage configuration to confirm availability, final pricing, and electrical requirements. Delivery Options select fulfillment, not voltage.

Supplier-published lifting-height and passing-width figures contain inconsistent inch/mm pairs. Confirm the supplied model's dimensioned installation drawing and actual vehicle clearance with ALLIZOE before site planning.

The Katool M140XD Heavy Duty 2-Post Lift is purpose-built for serious automotive service with 14,000 lbs of lifting capacity and engineering designed for full-size trucks, vans, and loaded service vehicles. Direct-drive cylinders with equalization cables deliver smooth, synchronized lifting while the overhead cross beam with top-limit switch provides critical safety protection at maximum height. Confirm actual drive-through clearance against your vehicle before ordering. The single-point lock release provides operation from one control point. With a Confirm maximum lifting height against the supplied model's installation drawing and 220V/60HZ/1PH power, the M140XD is the professional choice for demanding garage and shop environments that require maximum capacity and reliability.

Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge. Optional extended parts coverage is offered only when an enabled add-on is shown for this eligible main machine. If purchased, it adds 24 months after the standard parts warranty ends. Parts only; labor is not included, and the structural warranty is not extended.

Warranty Includes:

  • Cylinders, power units, motors, displays, electronics, etc.
  • Structural components: 3-year standard manufacturer warranty

Warranty Conditions:

  • Claims must fall within the warranty period
  • Non-transferable — requires original order number
  • Replacement parts provided at no cost, including free shipping
  • Labor is not included
  • Photos and/or videos of defects may be requested
  • Do not disassemble any equipment before the issue is determined

📄 Download Manual (PDF)

  • Heavy-Duty Truck Service: 14,000 lb capacity handles full-size trucks, vans, and loaded service vehicles
  • Commercial Facilities: Overhead cross beam with top-limit switch for maximum safety
  • Wide Vehicle Access: Confirm vehicle width and the supplied lift's actual drive-through clearance before ordering
  • High-Volume Shops: Single point lock release for fast, efficient operation
  • Demanding Garage Environments: Direct-drive cylinders with equalization cables for smooth, synchronized lifting

All Katool equipment is manufactured to international quality standards.

  • Quality Control — Each unit undergoes pre-shipment inspection
  • US-Based Support — Technical support provided from the United States
  • Warranty — 1-year limited manufacturer warranty included

Price & Freight — Before Tax

For one lift in its listed standard configuration within the contiguous United States:

  • Warehouse Pickup: $3,699 before tax; no freight or handling fee. Confirm supplier stock, warehouse and a pickup appointment with ALLIZOE before ordering.
  • Pickup at Carrier Terminal: $3,699 product + $500 freight = $4,199 before tax.
  • Commercial Delivery (Forklift Required): $3,699 product + $500 freight = $4,199 before tax.
  • Residential Delivery (Forklift Required): $3,699 product + $600 freight = $4,299 before tax.

Tax, optional accessories or upgrades, and the optional $349 extended parts warranty are additional. Address delivery requires suitable forklift or loading-dock arrangements; standard liftgate service is not offered for this lift. For terminal pickup, bring a suitable vehicle or trailer and arrange unloading at your final destination. Confirm address eligibility and review the final total at checkout; orders containing other products may have different combined shipping charges.

Shipping charges vary by delivery option and destination and are shown at checkout. Supplier warehouse pickup is free after stock and location are confirmed.

  • Supplier Warehouse Pickup — Free, with no freight or handling fee. Contact Allizoe before payment to confirm stock and your preferred supplier location. Warehouse addresses can be shared before payment. No same-day pickup. Once scheduled, the supplier provides a pickup release form through Allizoe; blind pickup can be arranged.
  • Carrier Terminal Pickup — Freight to the terminal is charged separately. Bring a suitable vehicle or trailer; terminal staff load the shipment, and you are responsible for unloading at the final destination.
  • Commercial Delivery — Delivery to a business address; forklift or suitable unloading equipment required.
  • Residential Delivery — Delivery to a residential address; confirm suitable unloading equipment before ordering.

Two-post lift delivery requires a suitable forklift or loading dock at the destination. Standard liftgate service is not available. Confirm unloading arrangements before ordering.

Product Manual

Download the complete product manual and installation guide.
Download Manual

Complete Your Shop Setup

Explore equipment for your shop
Tire Service Packages Collection Banner

Tire Service Packages

2-Post Lifts Category Image

2-Post Lift

4-Post Lifts Category Image

4-Post Lifts

Tire Changer

Tire Changer

Wheel Balancer

Wheel Balancer

Shop Accessories Collection Banner

Shop Accessories

Frequently Asked Questions

  • Supplier warehouse pickup is free, with no freight or handling fee. Contact Allizoe before payment to confirm current stock and your preferred supplier warehouse; pickup is not available the same day. Warehouse addresses can be shared before payment. After confirmation and scheduling, the supplier provides a pickup release form through Allizoe; blind pickup can be arranged. Carrier terminal pickup is different and includes freight to the terminal. Commercial and residential delivery rates depend on the destination and option, and are shown at checkout. Two-post lift delivery requires a suitable forklift or loading dock at the destination. Standard liftgate service is not available. Confirm unloading arrangements before ordering.
  • The listed KT-M140XD configuration is 220V single-phase with a 4 HP motor. Contact ALLIZOE before ordering any alternative voltage configuration to confirm availability, final pricing, and electrical requirements. Delivery Options select fulfillment, not voltage. Have a qualified electrician verify the circuit and connection requirements for the supplied unit before installation.
  • The KT-M140XD has a listed 14,000 lb total capacity, but truck compatibility depends on more than total weight. Check the vehicle's actual loaded weight and load distribution against the lift's rated capacity and any manufacturer-specified per-arm limits. Confirm that the arms and pads can reach the vehicle manufacturer's approved lifting points, and check minimum pad height, wheelbase, vehicle width, and actual drive-through clearance. Allow space for the raised vehicle, overhead beam, and ceiling using the supplied model-specific installation drawing and manual. Contact ALLIZOE with the vehicle year, make, model, modifications, and loaded weight if you need help checking compatibility before ordering.
  • Professional installation is strongly recommended. Katool's published M140XD manual and FAQ specify a level concrete floor at least 5.9 inches (150 mm) thick and 3,000 PSI. Verify the slab condition, strength, thickness, local requirements, and the full installation manual with a qualified installer before purchase and installation.
  • If Shop Pay Installments is offered for your order at checkout, the available payment plans and terms will be shown there. Availability is subject to eligibility and approval. Review the terms before completing your purchase.
  • We provide US-based technical support via email and phone. Our team assists with installation questions, troubleshooting, and parts replacement throughout your warranty period.
  • Contact Allizoe within 30 days of pickup or delivery to request return authorization. Eligible equipment must be unused, uninstalled, and in its original packaging with all accessories. Returns for reasons other than defect or warranty are subject to a 30% restocking fee and round-trip freight costs under our Refund Policy. Review the full policy at /policies/refund-policy before ordering.
