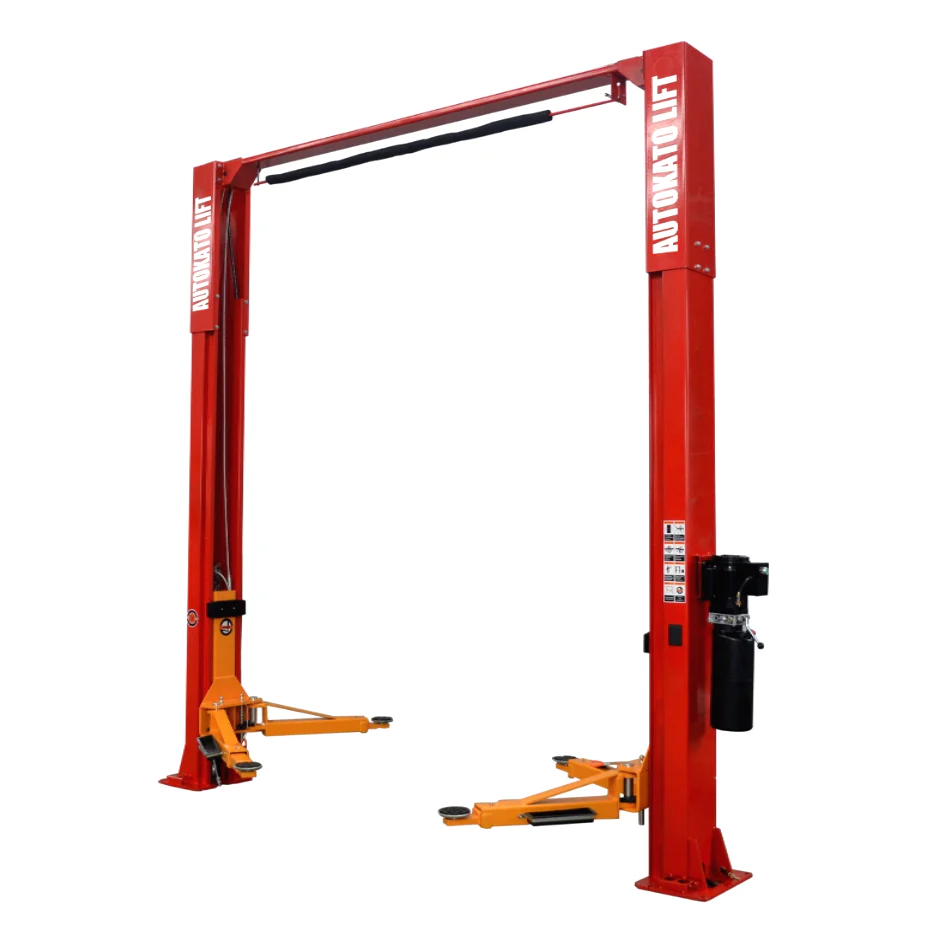

1. 12,000 lb clear-floor 2-post lift - M120 CE certified heavy duty

Katool KT-M120 12,000 lb Clear-Floor 2-Post Lift - Heavy Duty

Warehouse Pickup
$2,597.00 $3,799.00
Skip to product information
1. 12,000 lb clear-floor 2-post lift - M120 CE certified heavy duty
1/15
  • 1. 12,000 lb clear-floor 2-post lift - M120 CE certified heavy duty

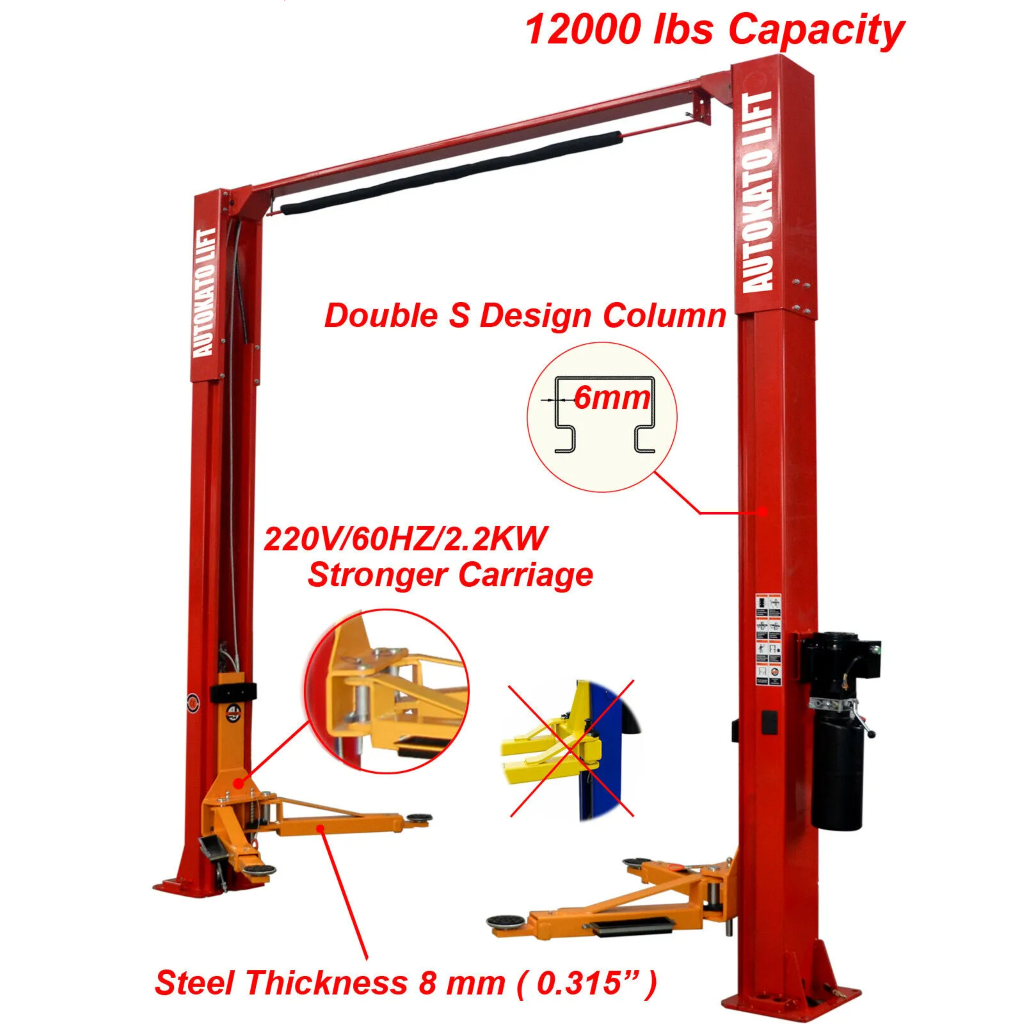

  • 2-post car lift with red columns and yellow lifting arms, heavy-duty design
  • 3. CE certified 12,000 lb 2-post lift with unobstructed floor

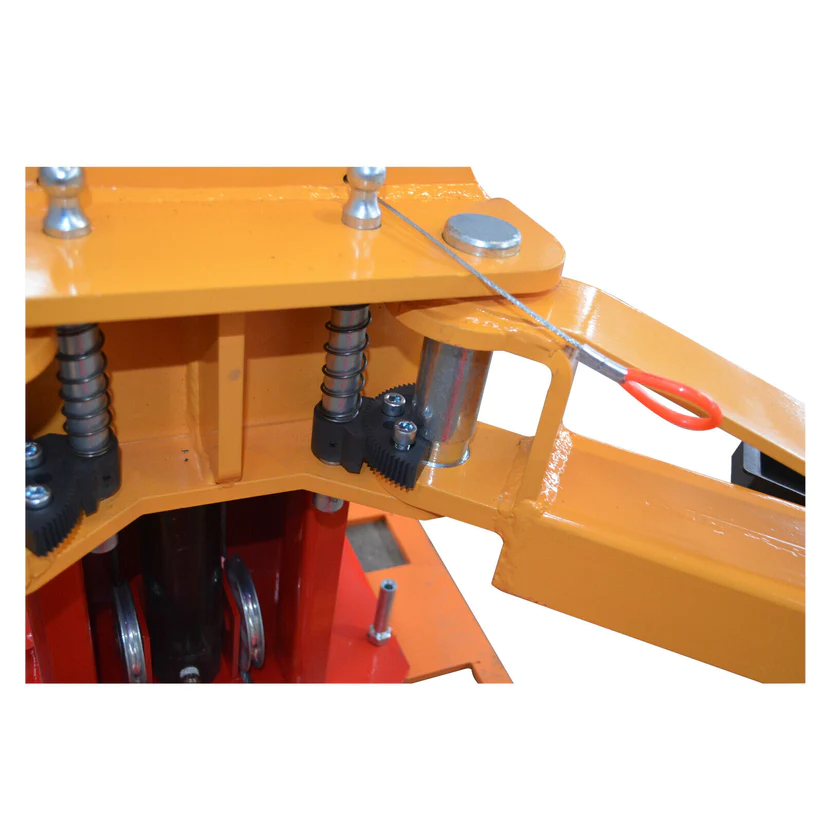

  • Yellow hydraulic carriage with spring cylinders and metal guide on 2-post lift
  • 5. 12,000 lb capacity lift showing clear floor design

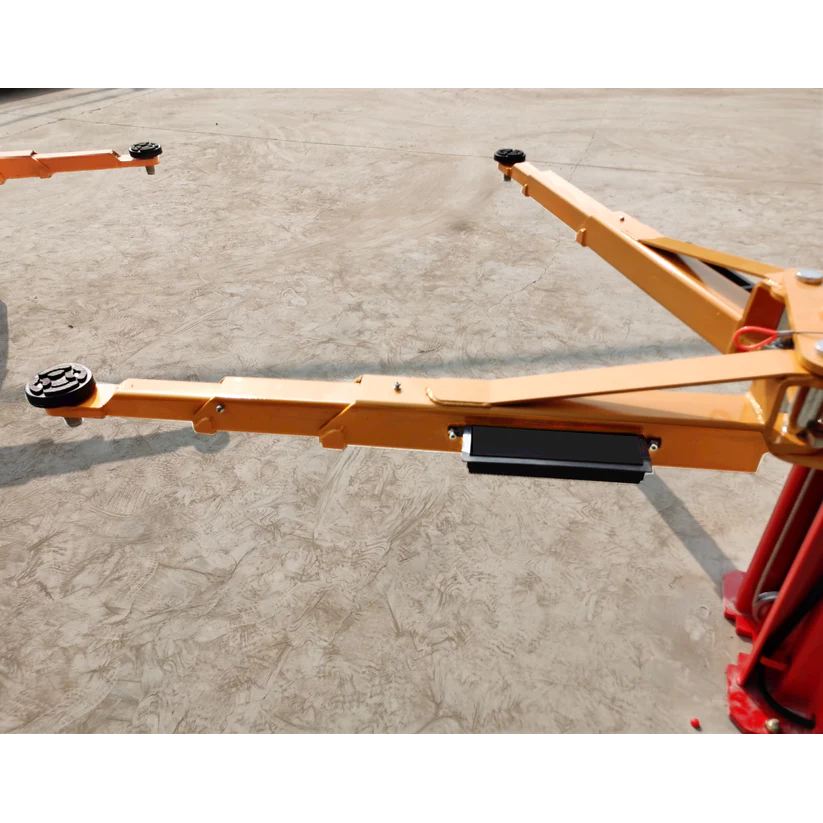

  • Yellow lifting beam with rubber pads and black release block on 2-post car lift

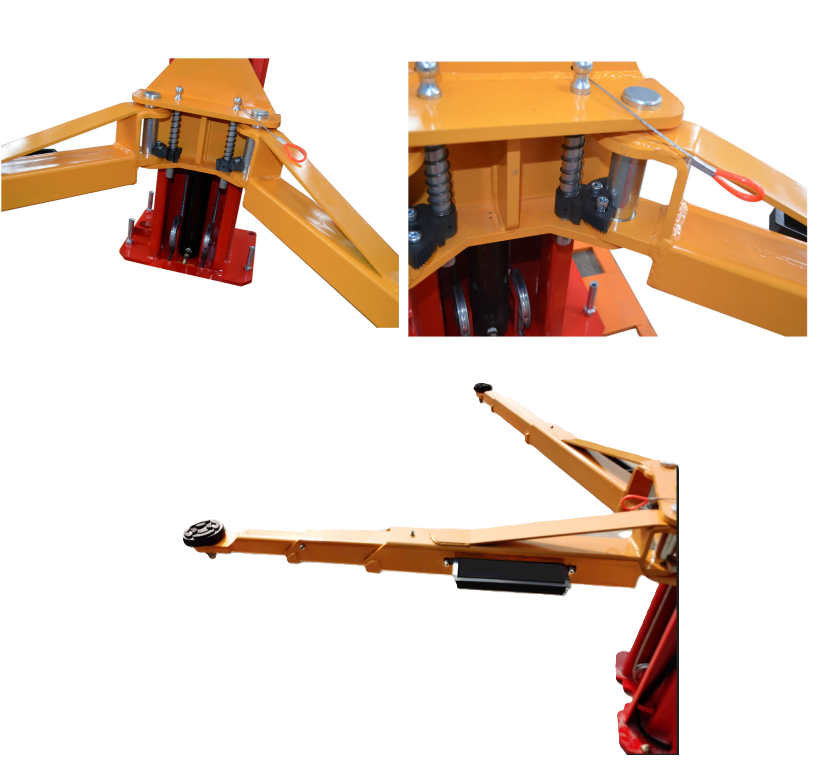

  • 2-post car lift lifting arm end with cable guide and spring housing on red base

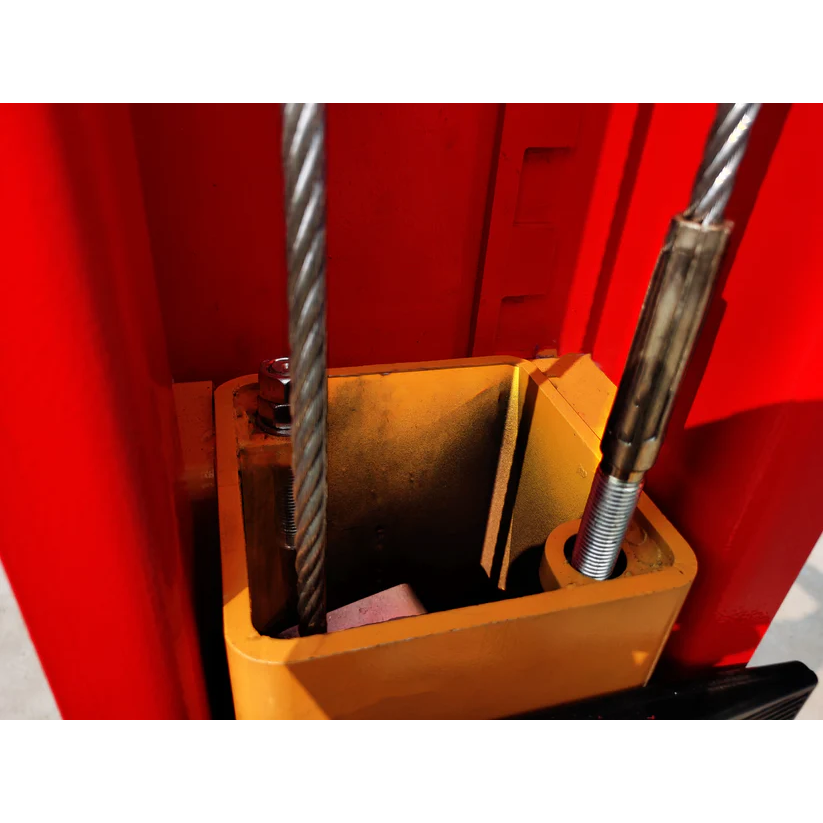

  • 8. Professional truck lift with 12,000 lb capacity

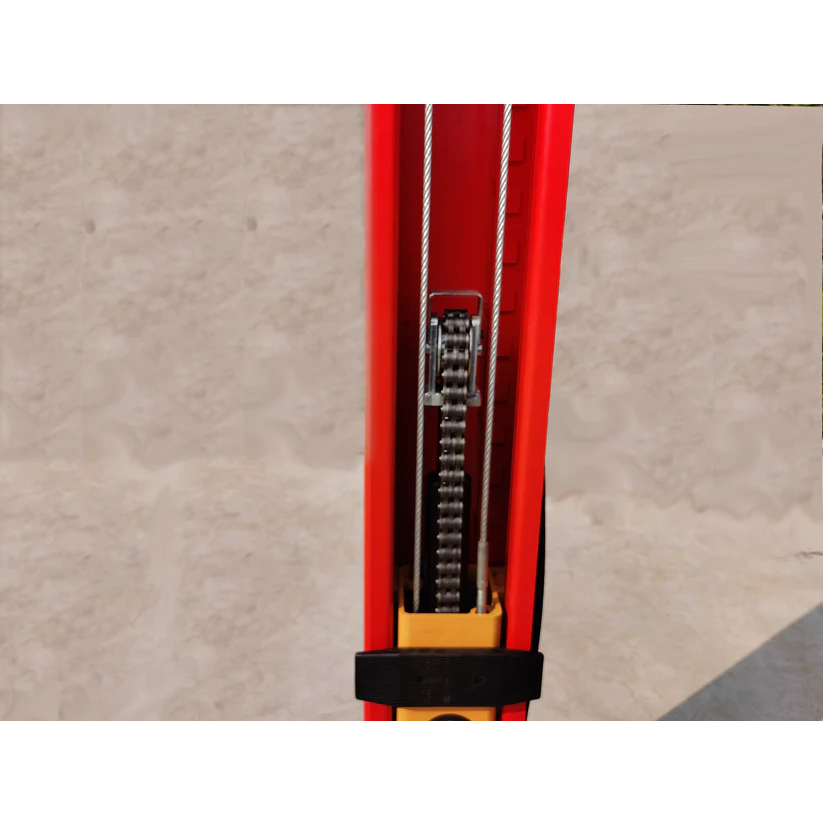

  • Red lift column with steel lifting cables and black support pad at base

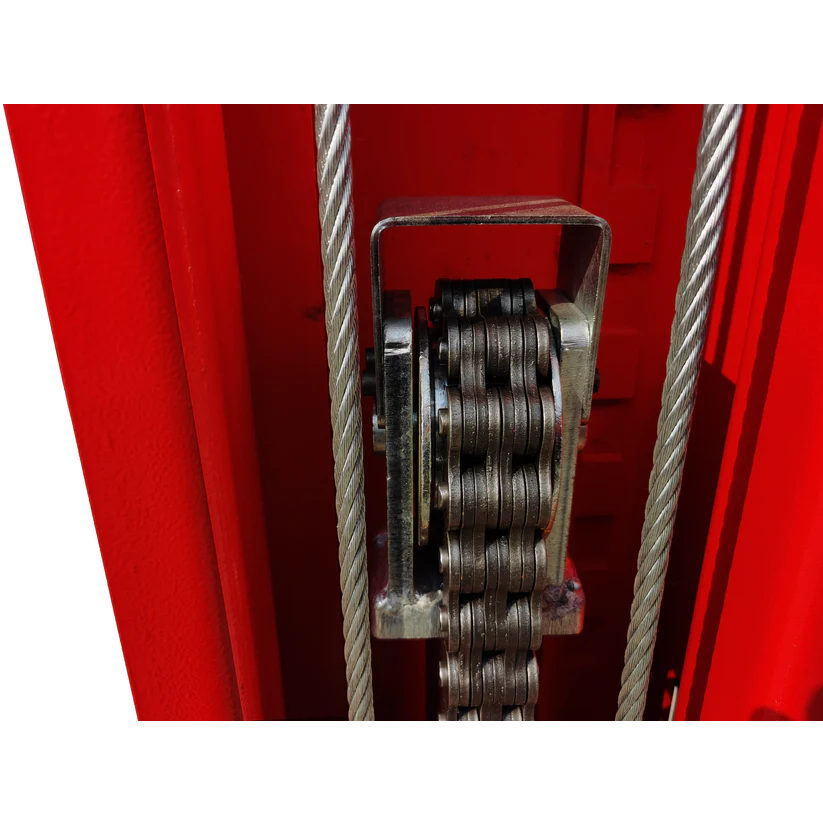

  • Hoist cable pulley assembly with steel sheaves inside red lift column

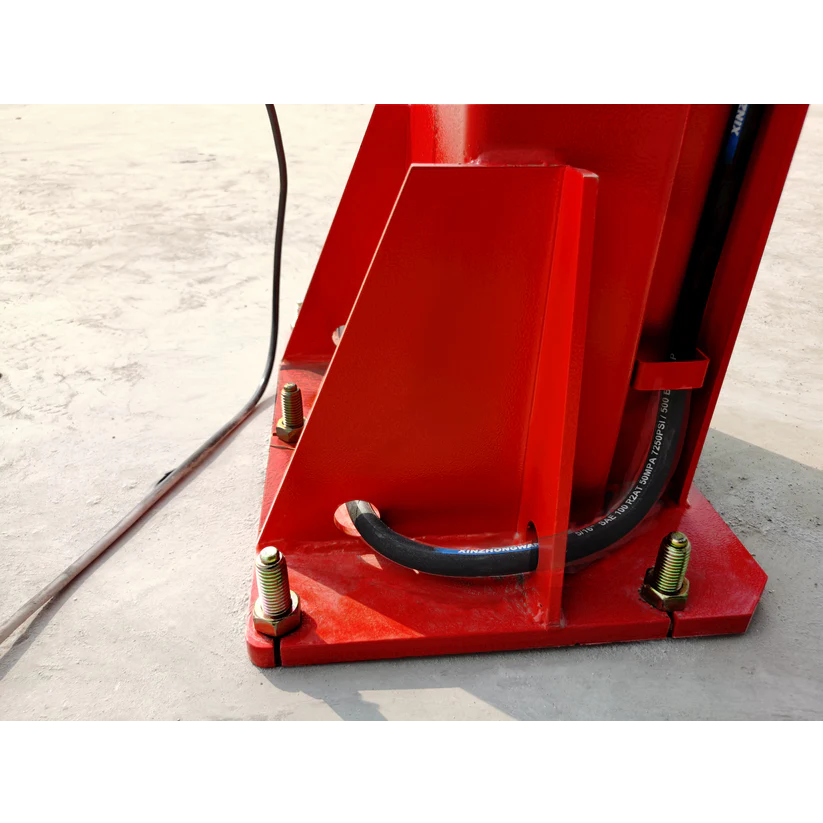

  • Red lift base with black cable cover and coil springs on steel mounting plate
  • 12. 12,000 lb clear-floor lift raising large SUV in shop

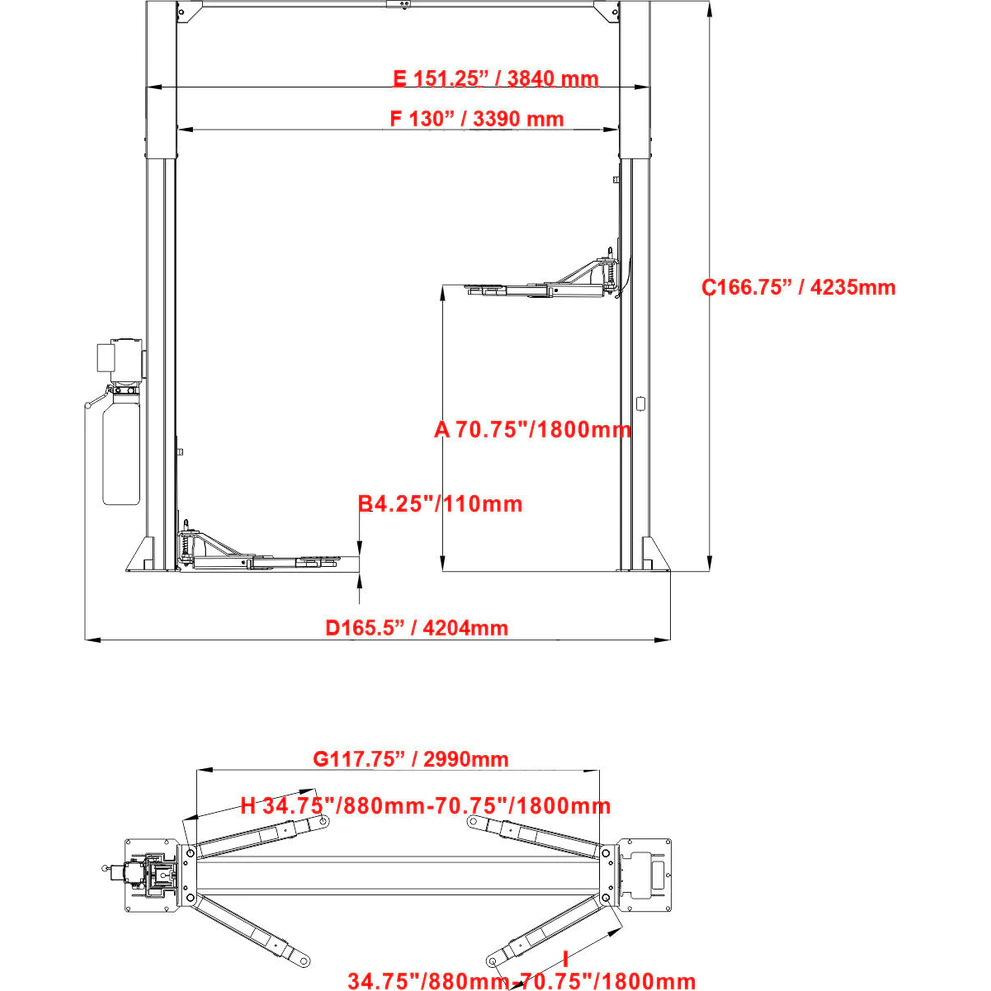

  • 2-post car lift dimension diagram with outer and inner clearance measurements

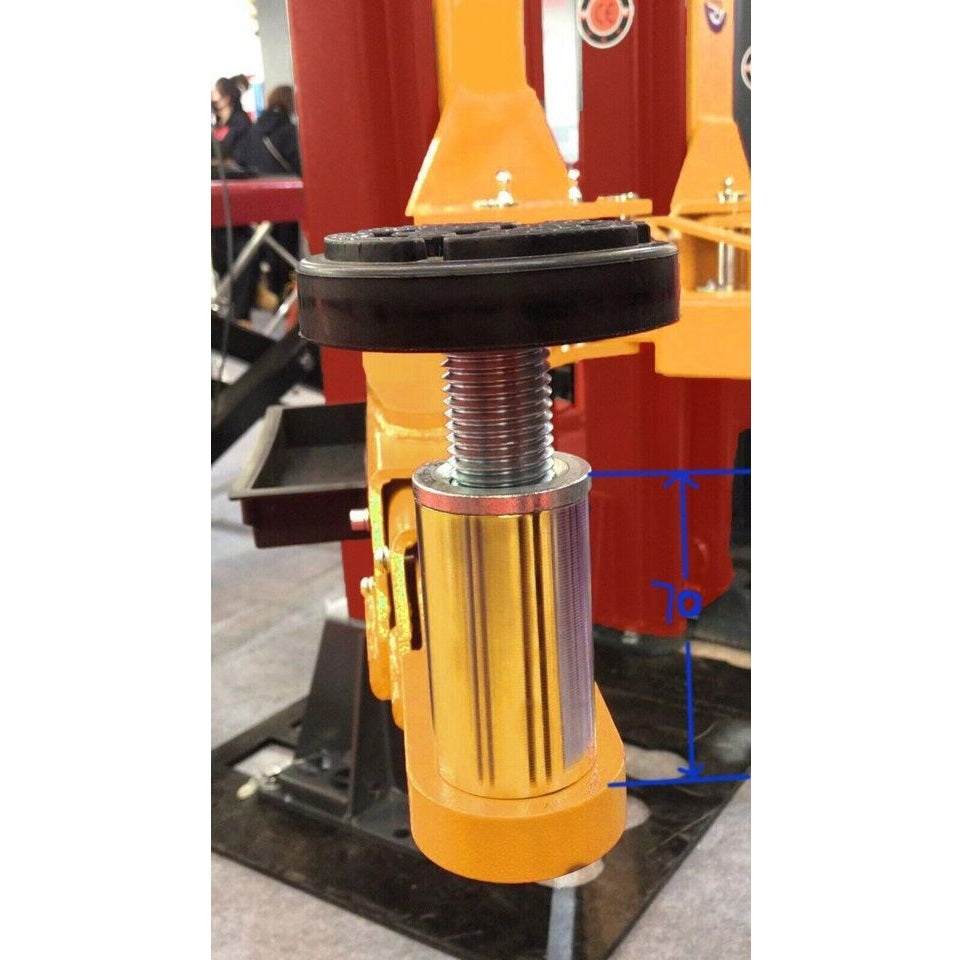

  • Gold hydraulic cylinder with threaded rod and black top plate on 2-post lift

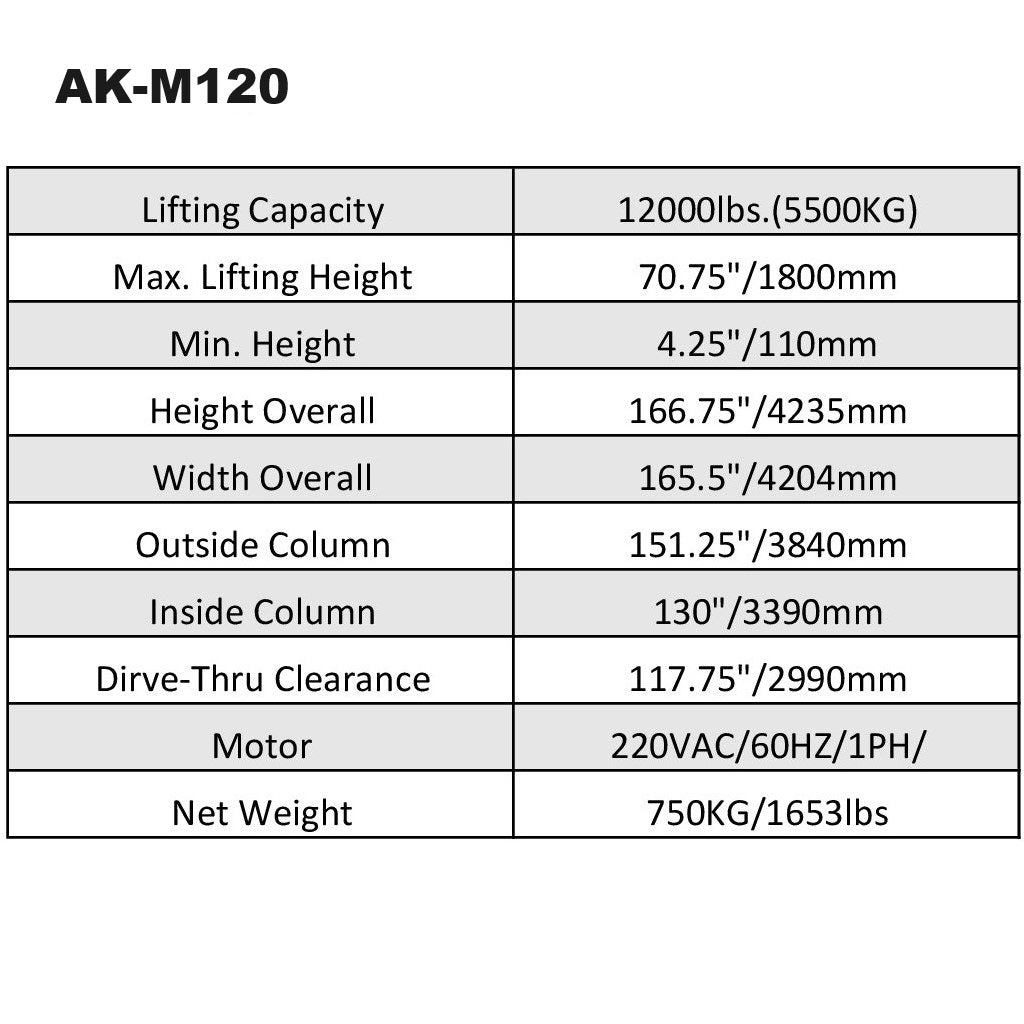

  • AK-M120 car lift specifications table showing lifting height, weight, and dimensions
Katool KT-M120 12,000 lb Clear-Floor 2-Post Lift - Heavy Duty

Katool KT-M120 12,000 lb Clear-Floor 2-Post Lift - Heavy Duty

$2,597.00 $3,799.00

🚚 Delivery option includes free freight to the lower 48 states.

Delivery Options

Shop Pay Installments

Split your purchase into flexible installment payments with Shop Pay. Pay over time with no hidden fees.

How it works:

  • Choose Shop Pay at checkout
  • Select your preferred payment plan
  • Make your first payment today
  • Pay the rest over time with automatic payments

No interest. No hidden fees. Just flexible payments that work for you.

🇺🇸 US-Based Business: Unlike big out-of-state sellers, we offer specialized support and $0 Sales Tax outside Illinois.

💰
Tax-Free Outside IL
🚚
Free Freight Lower 48 States
🛡️
1-Yr Warranty Full Parts Support
✅
CE Approved International Quality
📍
Local Pickup Nationwide Save up to $1,400 in freight costs
Learn More >
Warranty

Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge. A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.

Warranty Includes:

  • Cylinders, power units, motors, displays, electronics, etc.
  • Vehicle lifts: additional 36-month warranty on structural components

Warranty Conditions:

  • Claims must fall within the warranty period
  • Non-transferable — requires original order number
  • Replacement parts provided at no cost, including free shipping
  • Labor is not included
  • Photos and/or videos of defects may be requested
  • Do not disassemble any equipment before the issue is determined

📄 Download Manual (PDF)
Shipping

Free freight shipping to the contiguous 48 US states. Estimated delivery: 6–10 business days. Curbside delivery only — forklift or pallet jack required. Carrier will call 24–48 hrs before delivery. View full Shipping & Delivery details →
How to Choose the Right Lift ▾

Not sure whether a 2-post or 4-post lift is right for your shop? Our guide breaks down the key differences in access, space, capacity, and use case.

View the 2-Post vs 4-Post Comparison Guide →

⚠️ Safety Warning

⚠️ IMPORTANT SAFETY WARNING: Concrete thickness must be at least 5.9 inches (150 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete could result in serious injury or death! It is the customer's responsibility to verify concrete thickness and strength before purchase and installation.

⚠️ IMPORTANT SAFETY WARNING: Ceiling clearance must be at least 15 feet (4,572 mm). Failure to verify your garage or shop height before installation could result in serious injury or death! It is the customer's responsibility to verify ceiling height before purchase and installation.

The Katool KT-M120 Clear-Floor 2-Post Lift delivers 12,000 lbs of heavy-duty lifting capacity with a clear-floor design that eliminates cables and chains from the workspace. Dual hydraulic chain-drive cylinders provide smooth, synchronized lifting while the overhead safety shutoff bar and feet-protection guardrails ensure maximum safety. The integrated toolbox and extended support adapter sets add practical convenience for professional shops that demand performance, safety, and organization.

  • 12,000 lbs heavy-duty lifting capacity
  • Clear-Floor Design — no cables or chains on floor
  • Dual Hydraulic Chain-Drive Cylinders for smooth, synchronized lifting
  • Overhead safety shutoff bar for added protection
  • Feet-protection guardrails with integrated toolbox
  • Extended support adapter sets included
  • Rubber pad door opening protection
  • Symmetric arm design
  • 220V/60HZ/1PH standard — 110V optional add-on
Feature M120 H120D AM120SD M140XD M150D
Capacity 12,000 lb 12,000 lb 12,000 lb 14,000 lb 15,000 lb
Arm Type Clear-Floor Symmetrical Single Point Lock HD Single Point Clear-Floor
Max Lift Height 75 in 70.34 in 70.87 in 72.83 in —
Overall Height — — — — 176.8 in (extra tall)
Drive-Thru Clearance — 110.34 in — — 116 in
Motor 220V/110V opt. 220V/60Hz/1PH 4.0HP/220V 220V/60Hz/1PH 220V/1PH 3000 PSI
Arm Adjustability — 110mm — — —
Locking Positions — — 12 — —
Passing Width — — — 131 in —
Package Weight 1,750 lbs 1,300 lbs 1,369 lbs 1,960 lbs 2,450 lbs

Lifting Capacity: 12,000 lbs (5,500 kg)

Motor: 220V/60HZ/1PH (110V optional)

Max Lifting Height: 70.75 in / 1,800 mm

Floor Design: Clear-Floor — no cables or chains on floor

Package Size: 112 x 18 x 36 in

Package Weight: 1,750 lbs

Min. Height: 4.25 in / 110 mm

Height Overall: 166.75 in / 4,235 mm

Width Overall: 165.5 in / 4,204 mm

Drive-Thru Clearance: 117.75 in / 2,990 mm

Minimum Ceiling Height Required: 15 ft / 4,572 mm

The Katool KT-M120 Clear-Floor 2-Post Lift delivers 12,000 lbs of heavy-duty lifting capacity with a clear-floor design that eliminates cables and chains for a safer, cleaner workspace. Dual hydraulic chain-drive cylinders provide smooth, synchronized lifting while the overhead safety shutoff bar and feet-protection guardrails with integrated toolbox ensure maximum safety and organization. Extended support adapter sets accommodate various vehicle heights, and the symmetric arm design handles trucks, SUVs, and commercial vehicles with ease. Available in 220V with optional 110V add-on.

Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge. A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.

Warranty Includes:

  • Cylinders, power units, motors, displays, electronics, etc.
  • Vehicle lifts: additional 36-month warranty on structural components

Warranty Conditions:

  • Claims must fall within the warranty period
  • Non-transferable — requires original order number
  • Replacement parts provided at no cost, including free shipping
  • Labor is not included
  • Photos and/or videos of defects may be requested
  • Do not disassemble any equipment before the issue is determined

📄 Download Manual (PDF)

  • Safety-Focused Shops: Clear-floor design eliminates trip hazards with no cables or chains on floor
  • Heavy-Duty Service: 12,000 lb CE certified capacity for trucks, SUVs, and commercial vehicles
  • Commercial Facilities: Overhead safety shutoff bar and feet-protection guardrails for demanding environments
  • Organized Shops: Integrated toolbox keeps tools accessible at the lift
  • 110V Shops: Optional 110V add-on available

All Katool equipment is manufactured to international quality standards.

  • Quality Control — Each unit undergoes pre-shipment inspection
  • US-Based Support — Technical support provided from the United States
  • Warranty — 1-year limited manufacturer warranty included

Freight shipping included to the lower 48 states. Four delivery options available:

  • Warehouse Pickup — No shipping cost, pickup at our warehouse
  • Terminal Pickup — Ship to nearest freight terminal, no forklift needed
  • Commercial Delivery — Delivery to business address, forklift required
  • Residential Delivery — Delivery to home address, forklift required

Due to the size and weight of this lift, please confirm your unloading capability before ordering.

Package Size

L x W x H (in) 112 x 18 x 36
Weight (lbs) 1750

Product Manual

Download the complete product manual and installation guide.
Download Manual

Complete Your Shop Setup

Everything a professional tire shop needs
Tire Service Packages Collection Banner

Tire Service Packages

2-Post Lifts Category Image

2-Post Lift

4-Post Lifts Category Image

4-Post Lifts

Tire Changer

Tire Changer

Wheel Balancer

Wheel Balancer

Shop Accessories Collection Banner

Shop Accessories

Frequently Asked Questions

  • Due to the size and weight of this lift, a forklift is required for unloading. Four options: Warehouse Pickup (no shipping cost), Terminal Pickup at a nearby freight terminal (no forklift needed, shipping included), Commercial Delivery with forklift required (shipping included), and Residential Delivery with forklift required (shipping included).
  • A clear-floor 2-post lift has no overhead bar or cables between the posts at floor level, allowing full drive-through access and an unobstructed workspace beneath the vehicle.
  • Professional installation by a certified technician is strongly recommended. A concrete floor with minimum 4-inch (100mm) thickness is required. Anchor bolts and installation hardware are included. A detailed installation manual is provided with every lift.
  • The KT-M120 is not ALI certified. It meets ISO-standard load testing compliance. For customers requiring ALI-certified lifts, we recommend verifying your specific facility requirements before purchase.
  • Yes. We offer Shop Pay Installments, allowing you to split your purchase into 4 interest-free payments on orders from $5,000 and up.
  • We provide US-based technical support via email and phone. Our team assists with installation questions, troubleshooting, and parts replacement throughout your warranty period.
  • Returns are accepted within 30 days for unused equipment in original packaging. Please contact us before returning any equipment. Return freight costs are the responsibility of the buyer.
